vacuum glass lifter

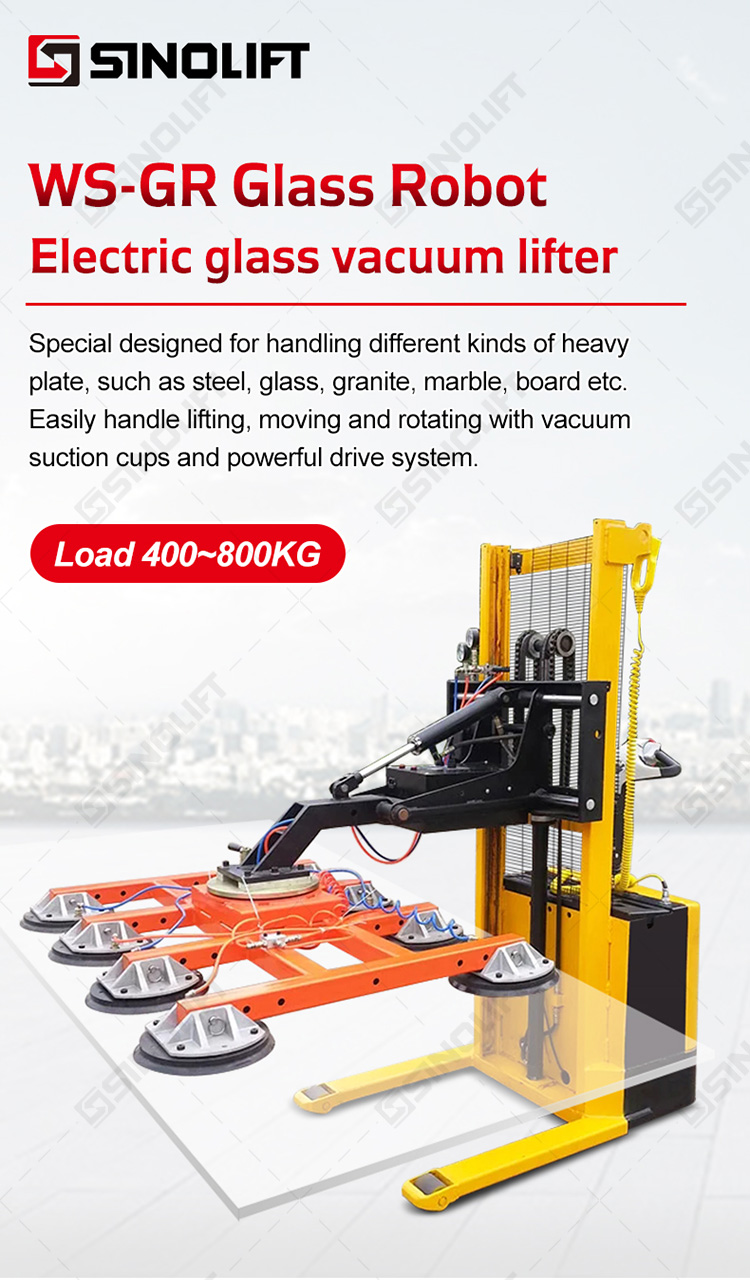

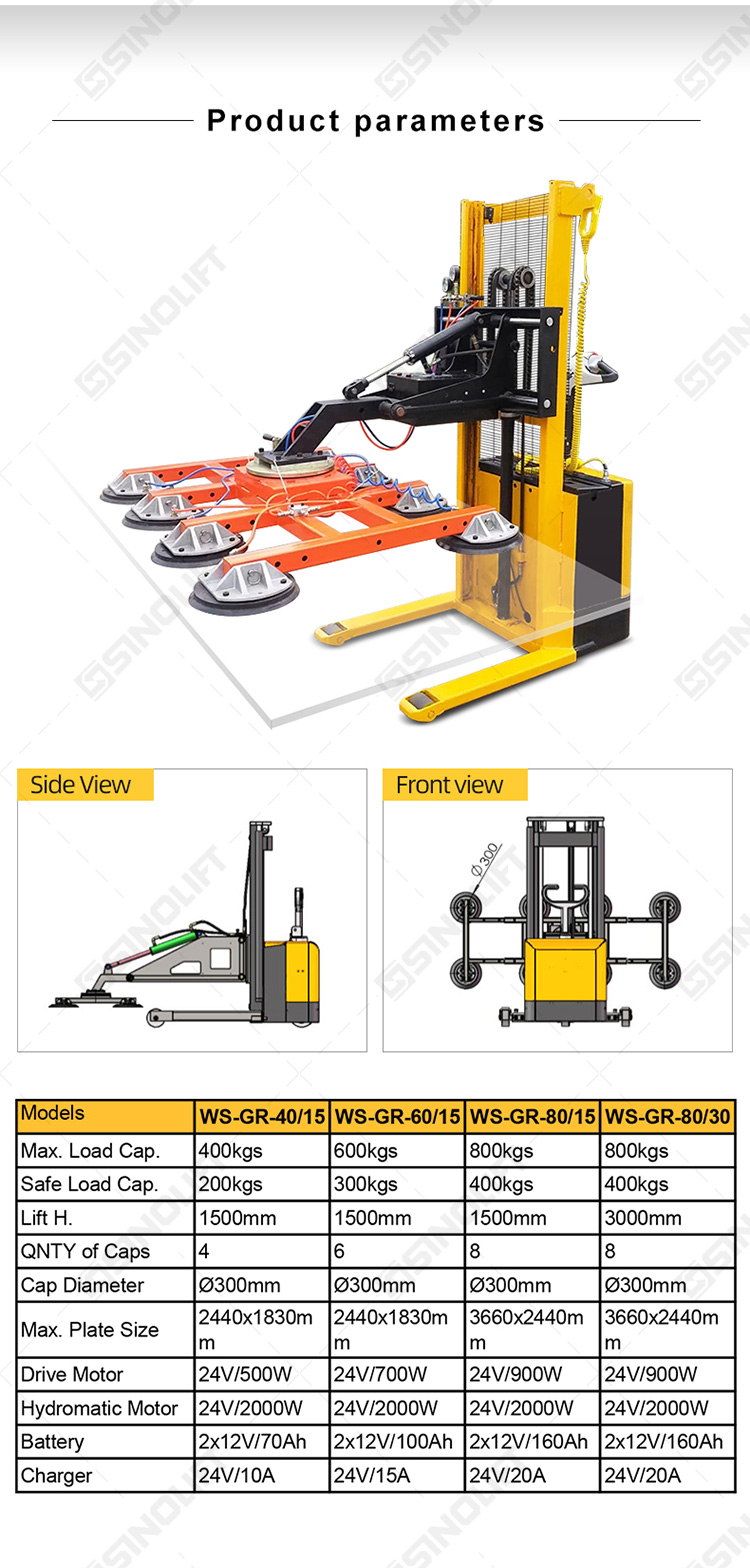

Electric Vacuum Lifter WS-GR-4015 WS-GR-6015 WS-GR-8015 WS-GR-8030 Vacuum Glass Lifter

WS-GR-4015 WS-GR-6015 WS-GR-8015 WS-GR-8030
Quantity:
Contact Now
add to cart
All Products

The vacuum lifter is designed with automatic pressure control doable routes to avoid system failure.

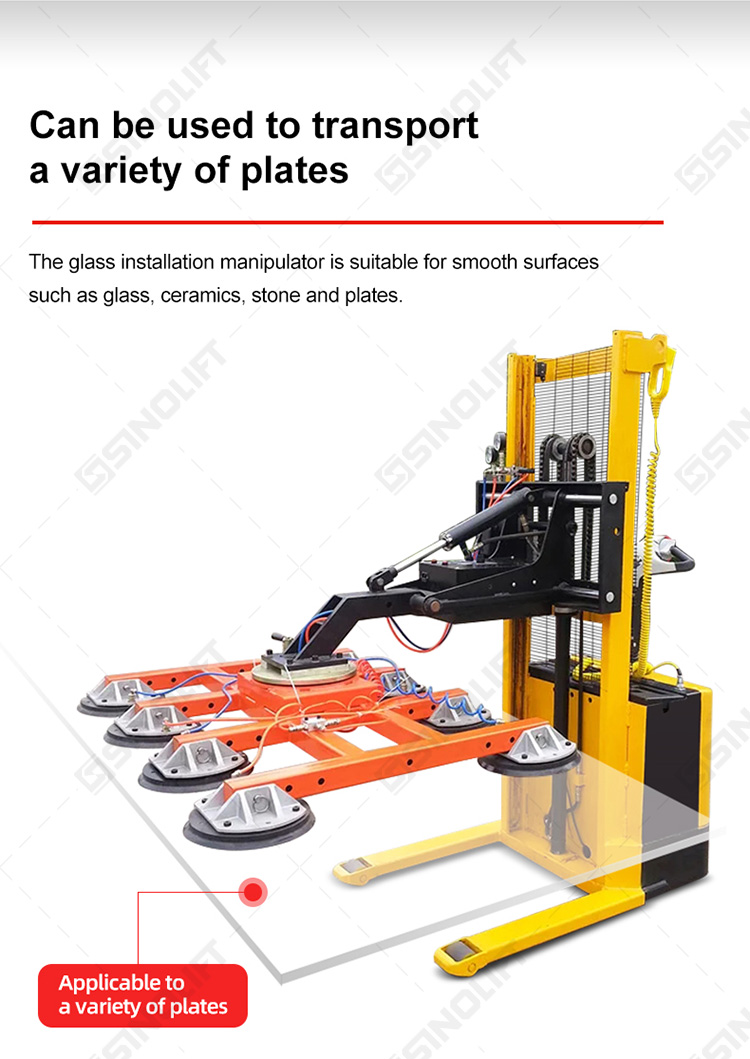

Ideal for loading & unloading transporting, rotating and installation.

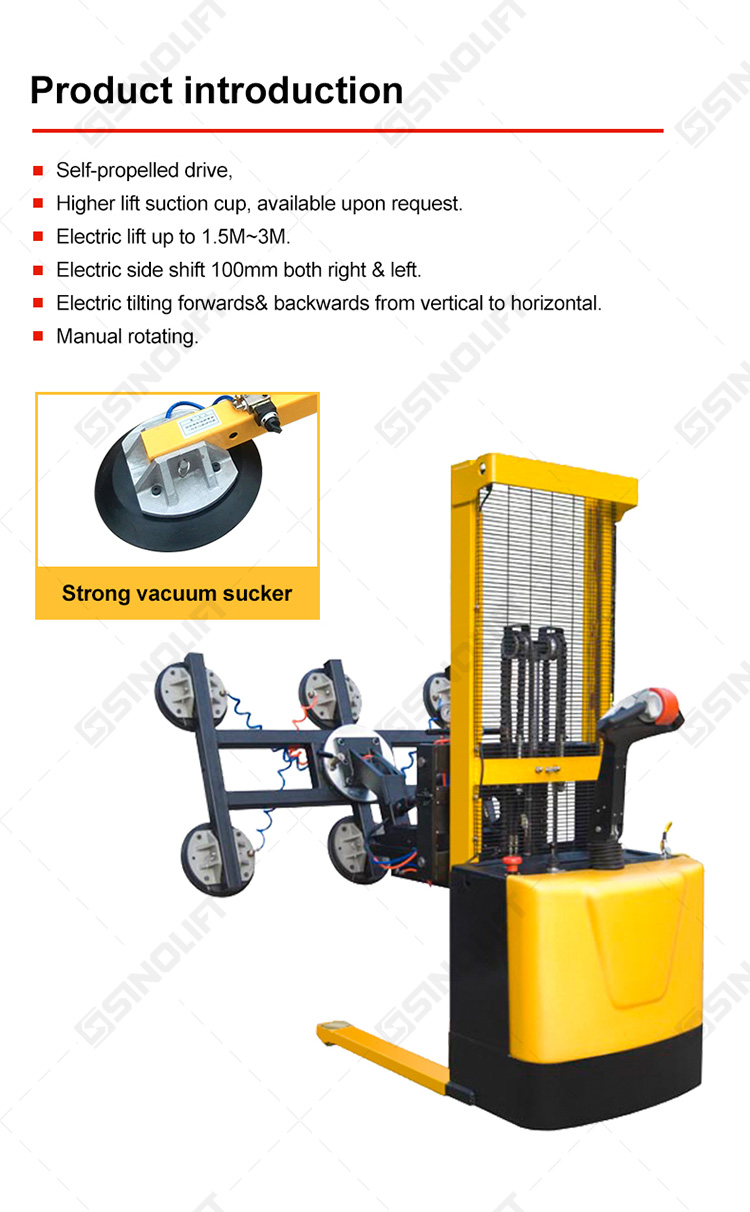

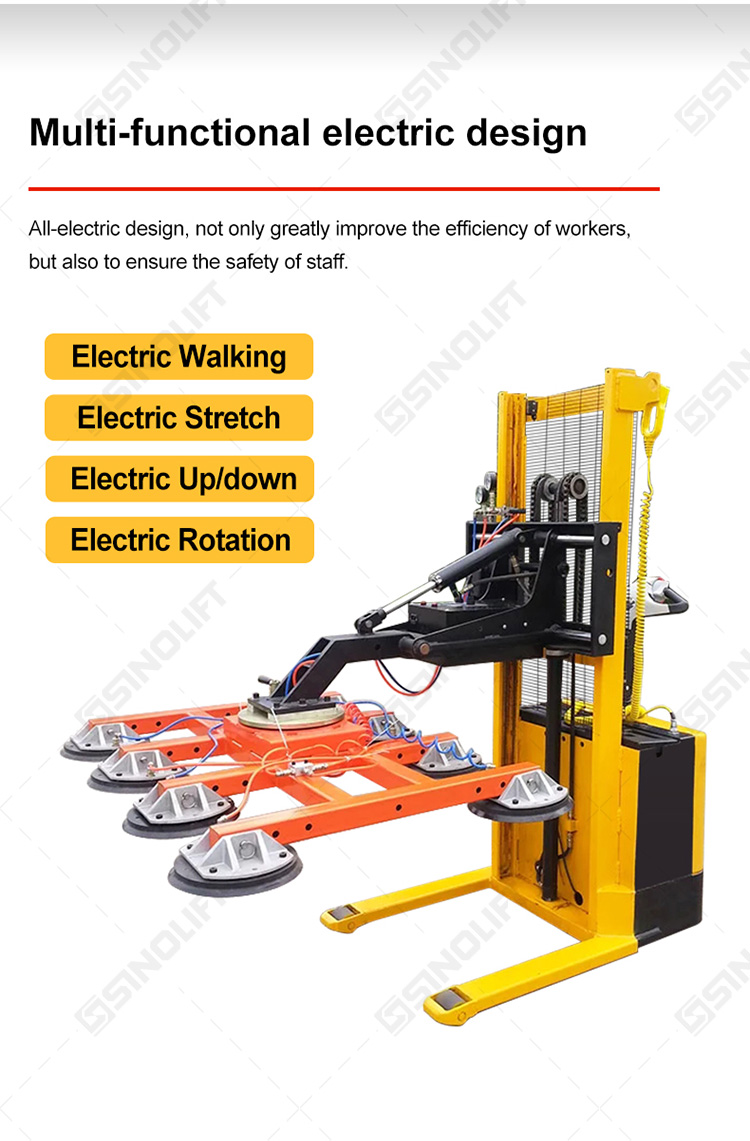

Easy for operation,with the following functions:

  1. Self-propelled drive,
  2. Higher lift suction cup, available upon request.
  3. Electric lift up to 1.5M~2.5M.
  4. Electric side shift 100mm both right & left.

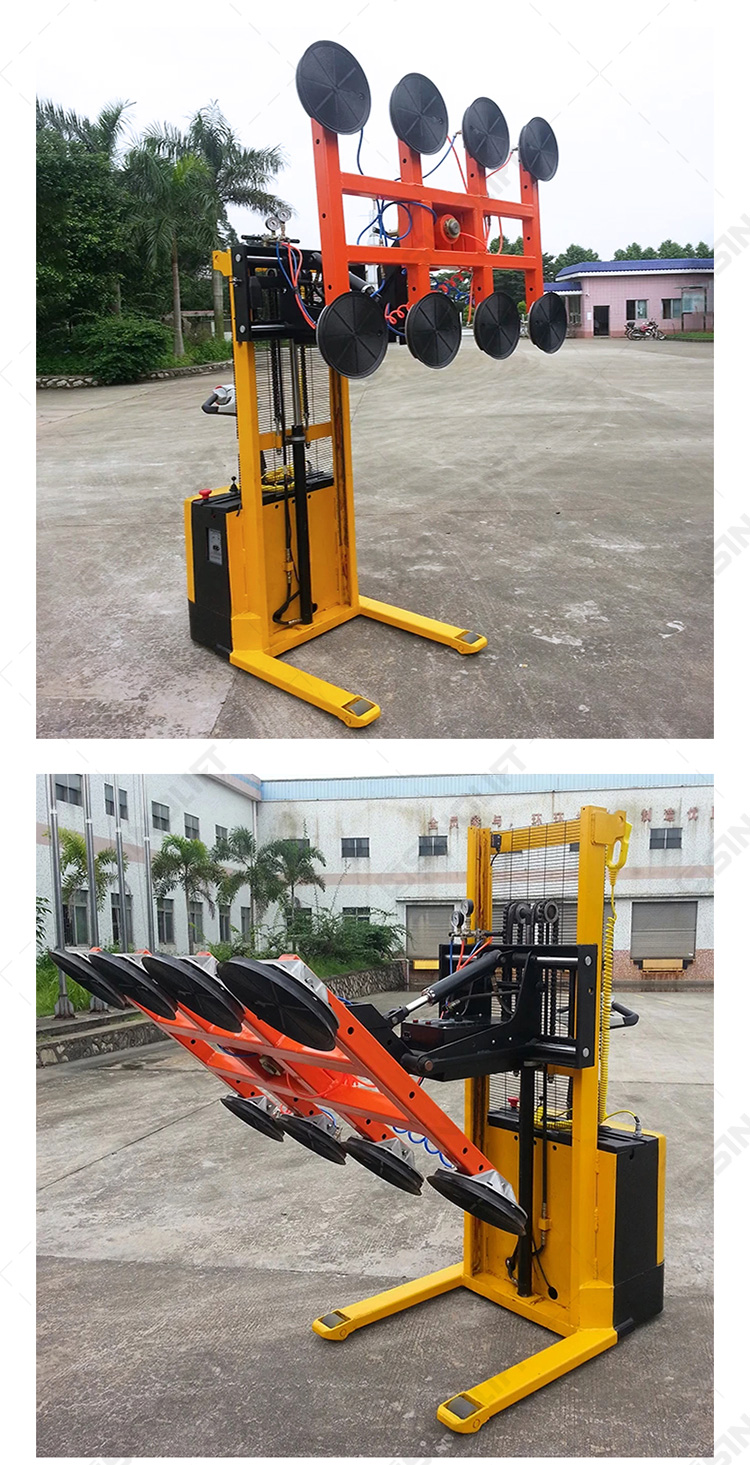

  5. Electric tilting forwards&backwards from vertical to horizontal or reverse.
  6. Manual rotating.
　WS-GR-40/15WS-GR-60/15WS-GR-80/15WS-GR-80/30
Max. Load Cap.400kgs600kgs800kgs800kgs
Safe Load Cap.200kgs300kgs400kgs400kgs
Lift H.1500mm1500mm1500mm3000mm
QNTY of Caps4688
Cap DiameterØ300mmØ300mmØ300mmØ300mm
Max. Plate Size2440x1830mm2440x1830mm3660x2440mm3660x2440mm
Drive Motor24V/500W24V/700W24V/900W24V/900W
Hydromatic Motor24V/2000W24V/2000W24V/2000W24V/2000W
Battery2x12V/70Ah2x12V/100Ah2x12V/160Ah2x12V/160Ah
Charger24V/10A24V/15A24V/20A24V/20A
