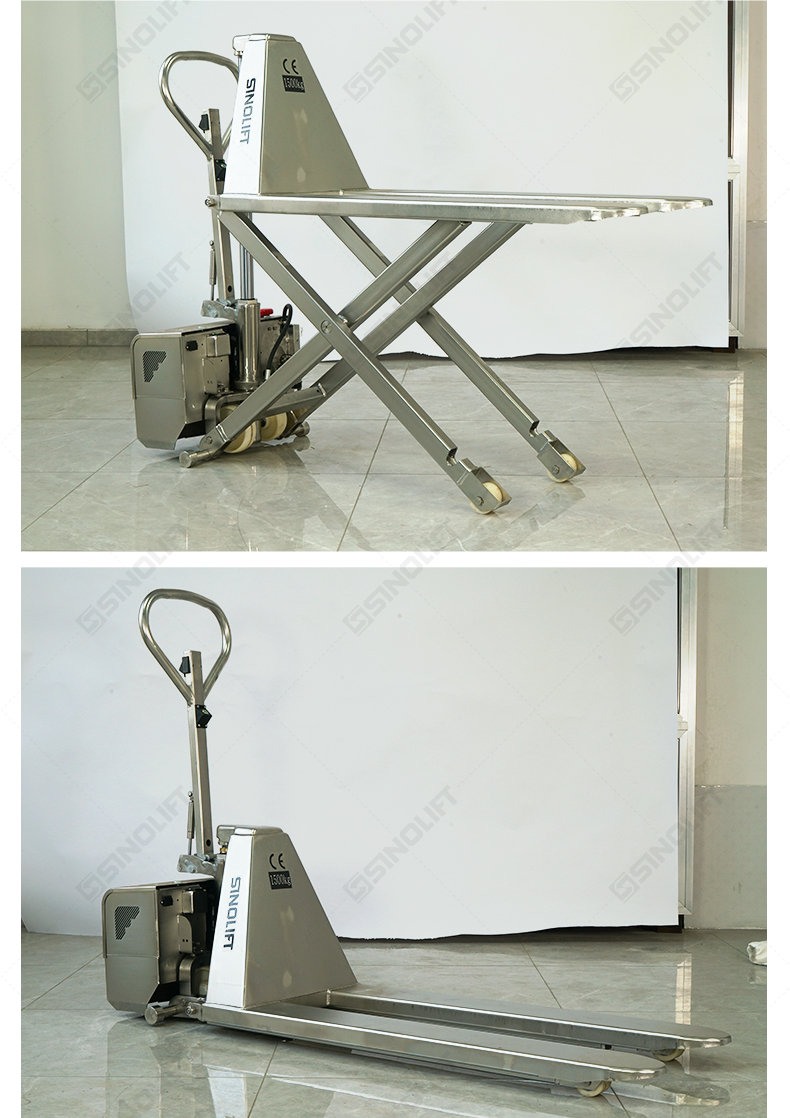

SINOLIFT EHLT10S-II Stainless Steel High Lift Hydraulic Pallet Truck | 304 Stainless Steel | 800mm Max Lift | For Food, Chemical, Medical Industries
EHLT10S-II
The SINOLIFT EHLT10S-II Stainless Steel High Lift Hydraulic Pallet Truck is a corrosion-resistant, ergonomic material handling solution built with 304 stainless steel for durability in hygiene-sensitive and harsh environments. Featuring a three-stage hydraulic cylinder, reinforced single scissor structure, and auxiliary support wheels, it combines transport and lifting functions to reduce operator strain and boost efficiency. Ideal for workshops, chemical plants, ports, logistics centers, warehouses, and medical facilities, this pallet truck delivers stable performance with a max lifting height of 800mm and a minimum fork height of 85mm.
Quantity:
Key Product Features:

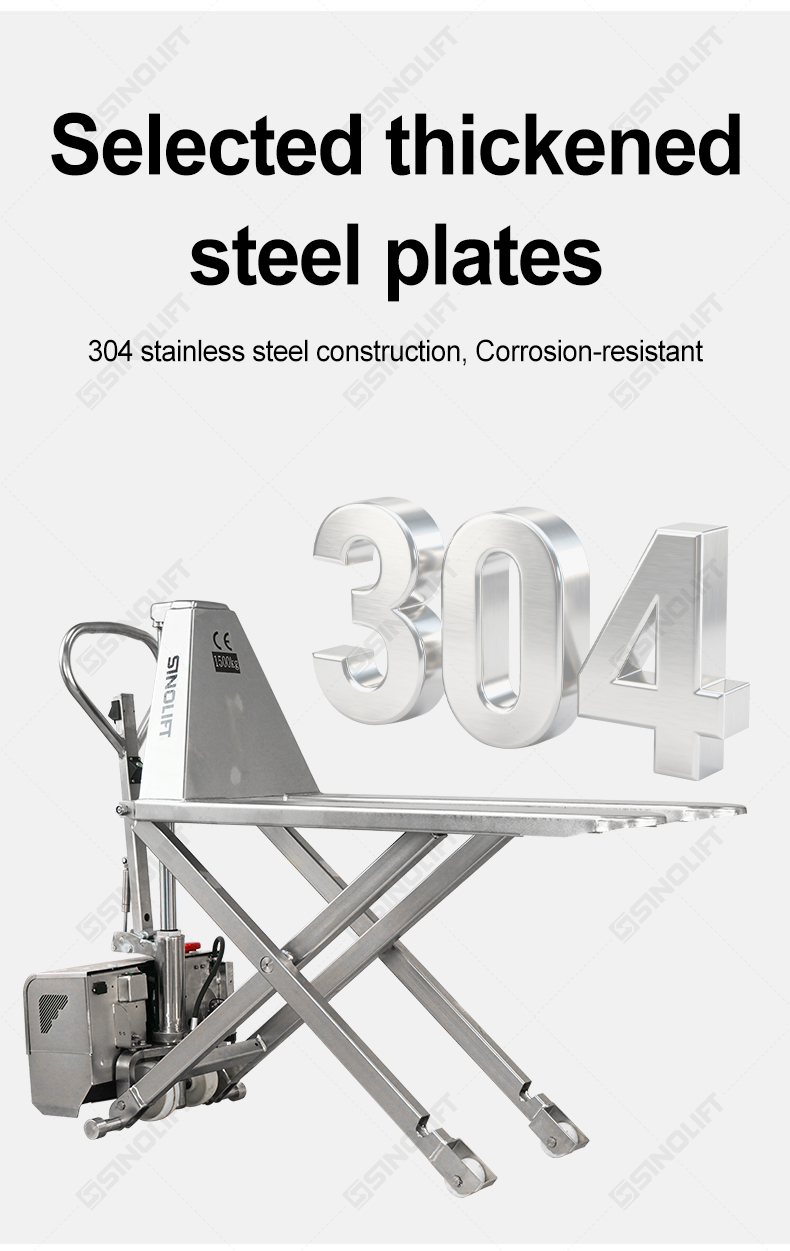

- 304 Stainless Steel Construction: Thickened steel plates provide corrosion resistance and long-term durability, suitable for wet, chemical, and food-grade environments.

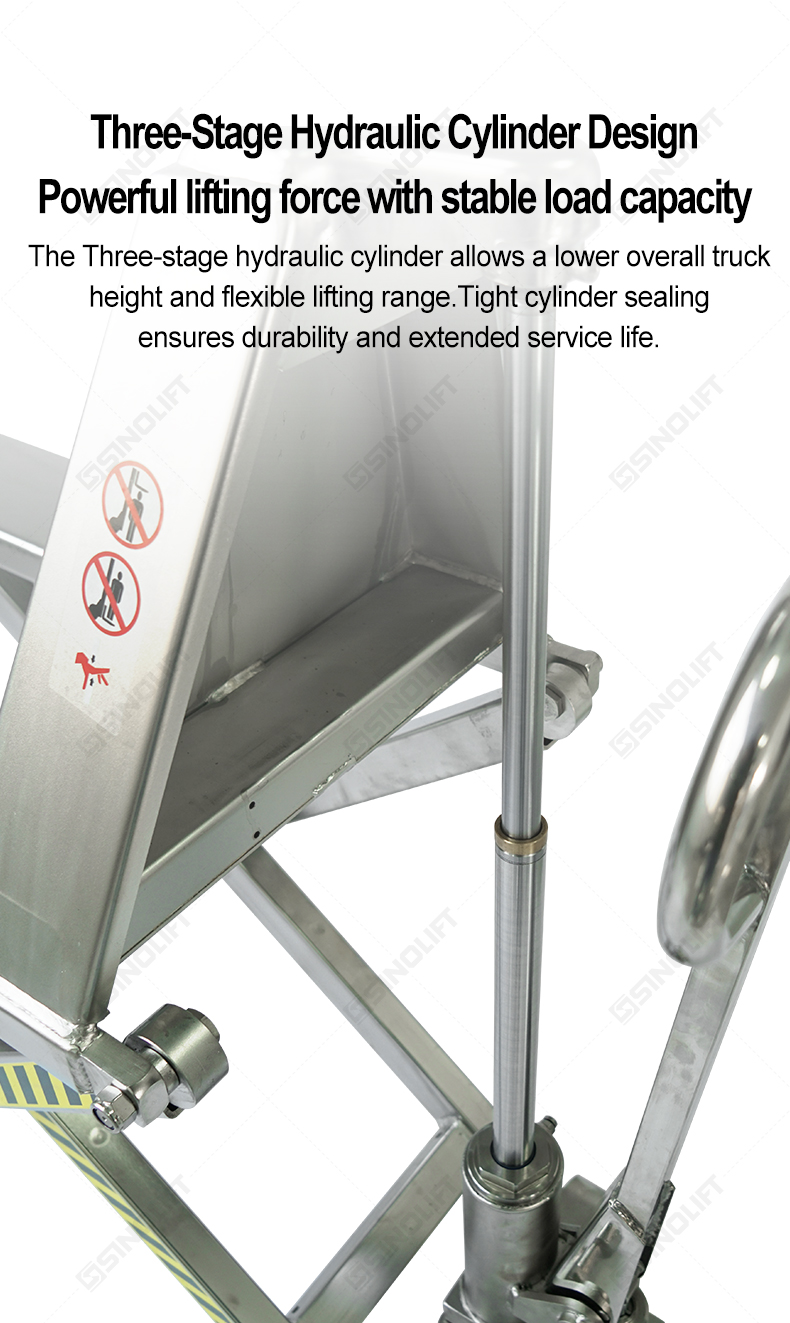

- Three-Stage Hydraulic Cylinder: Delivers powerful lifting force with stable load capacity, tight sealing for extended service life, and a flexible lifting range.

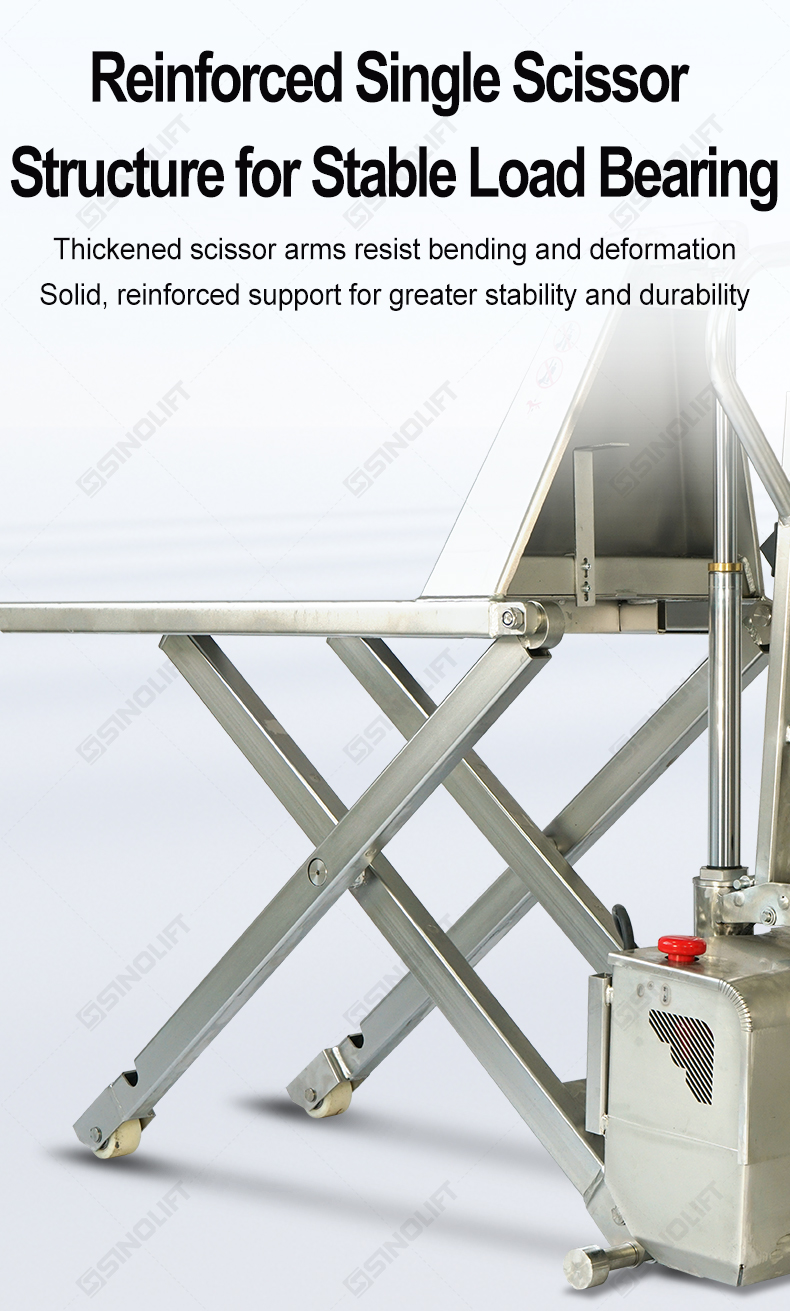

- Reinforced Single Scissor Structure: Thickened scissor arms resist bending and deformation, ensuring solid, stable load bearing.

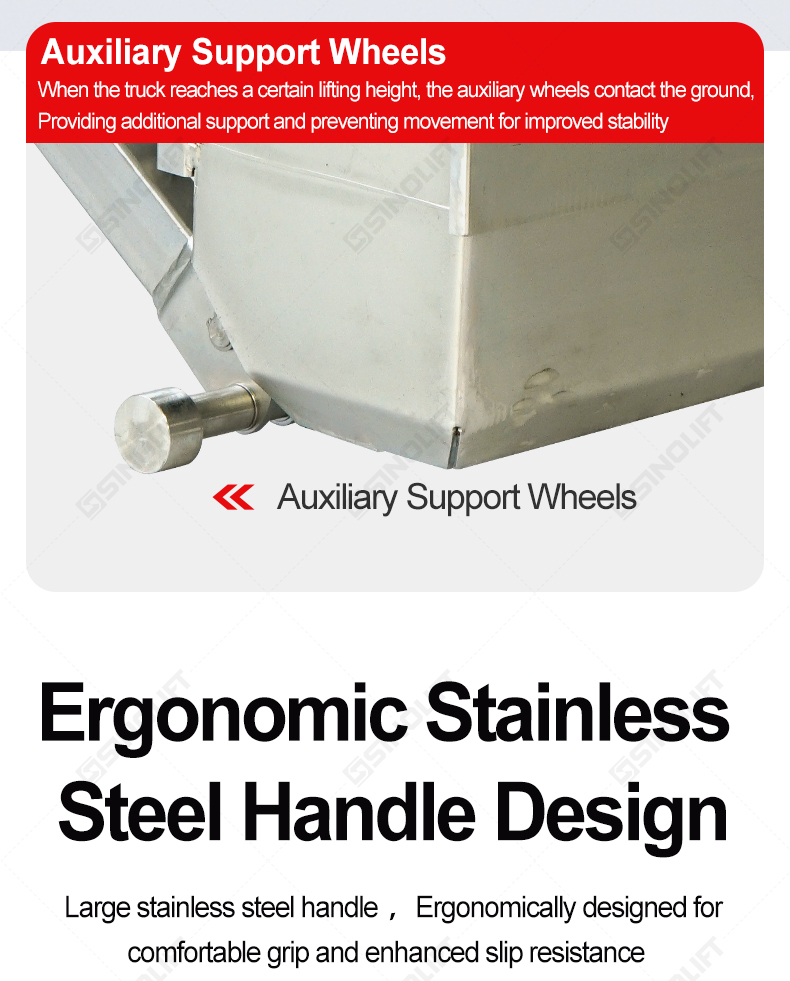

- Auxiliary Support Wheels: Contact the ground at a certain lifting height to provide extra stability and prevent movement during operation.

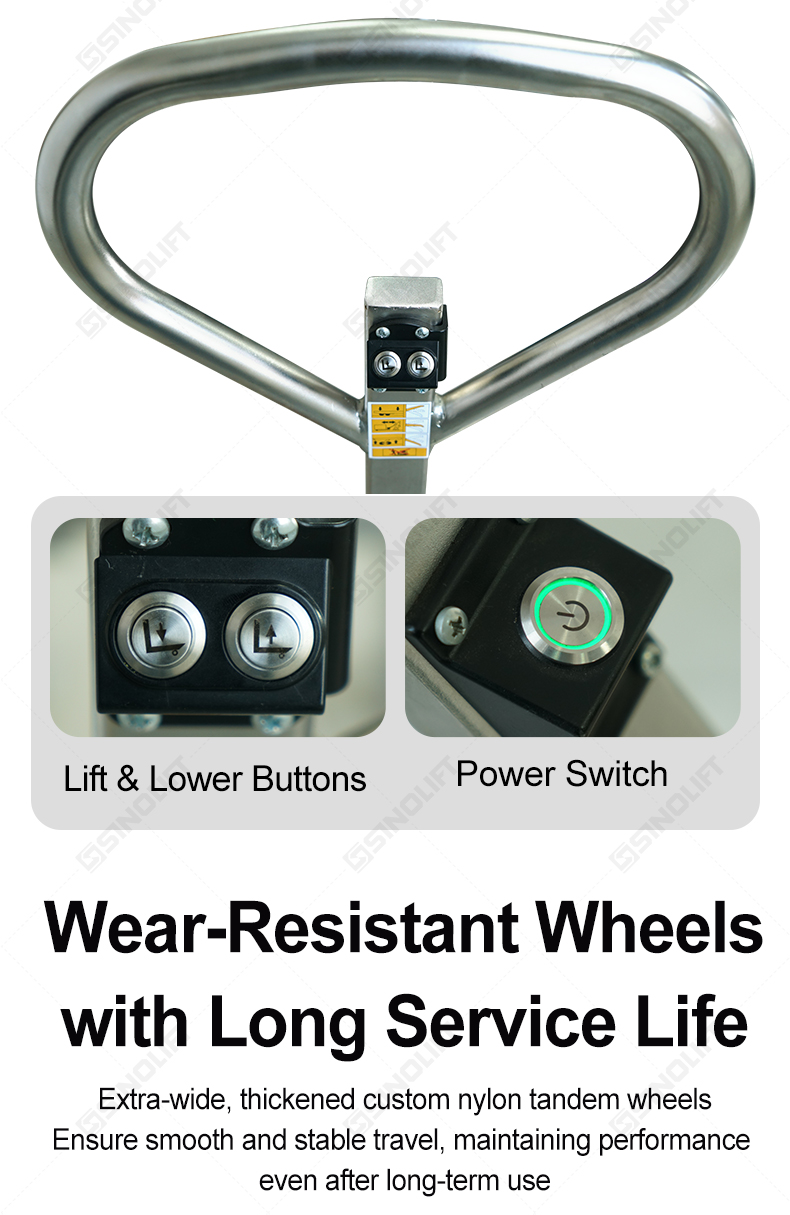

- Ergonomic Stainless Steel Handle: Large, slip-resistant handle design for comfortable grip and easy control.

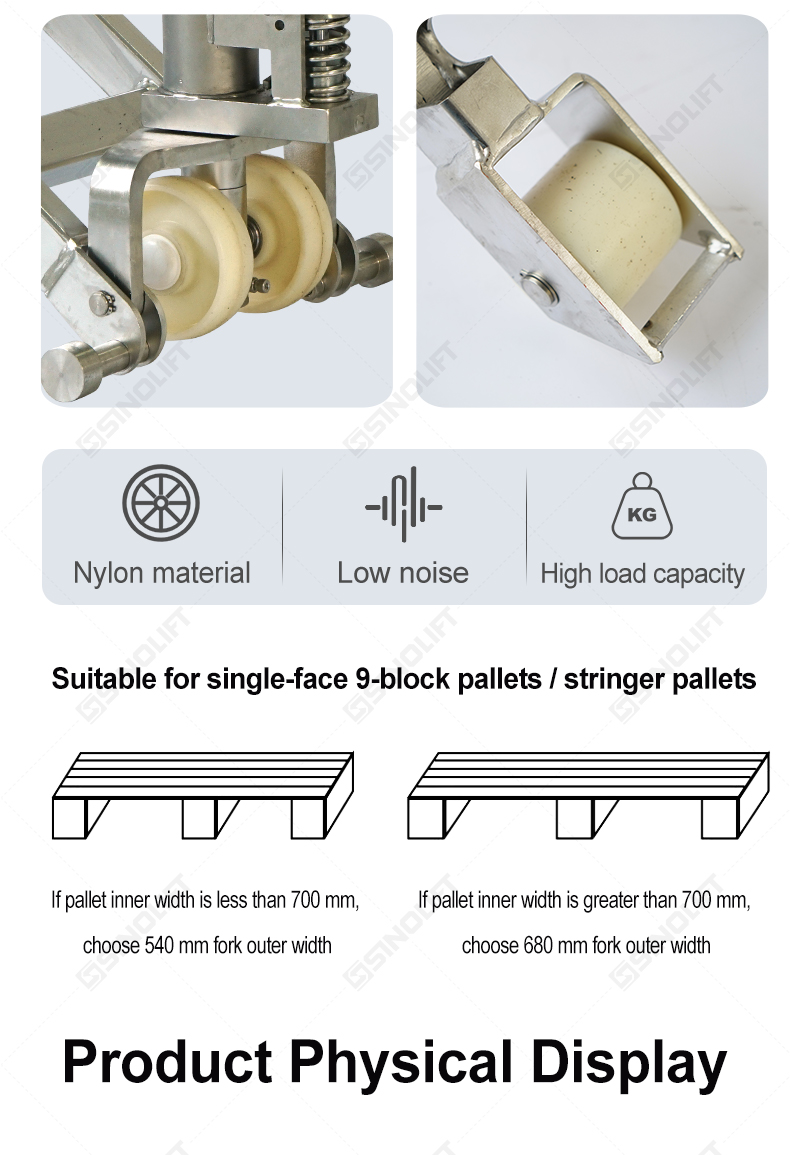

- Wear-Resistant Nylon Wheels: Extra-wide, thickened custom nylon tandem wheels ensure smooth, stable travel with low noise and high load capacity.

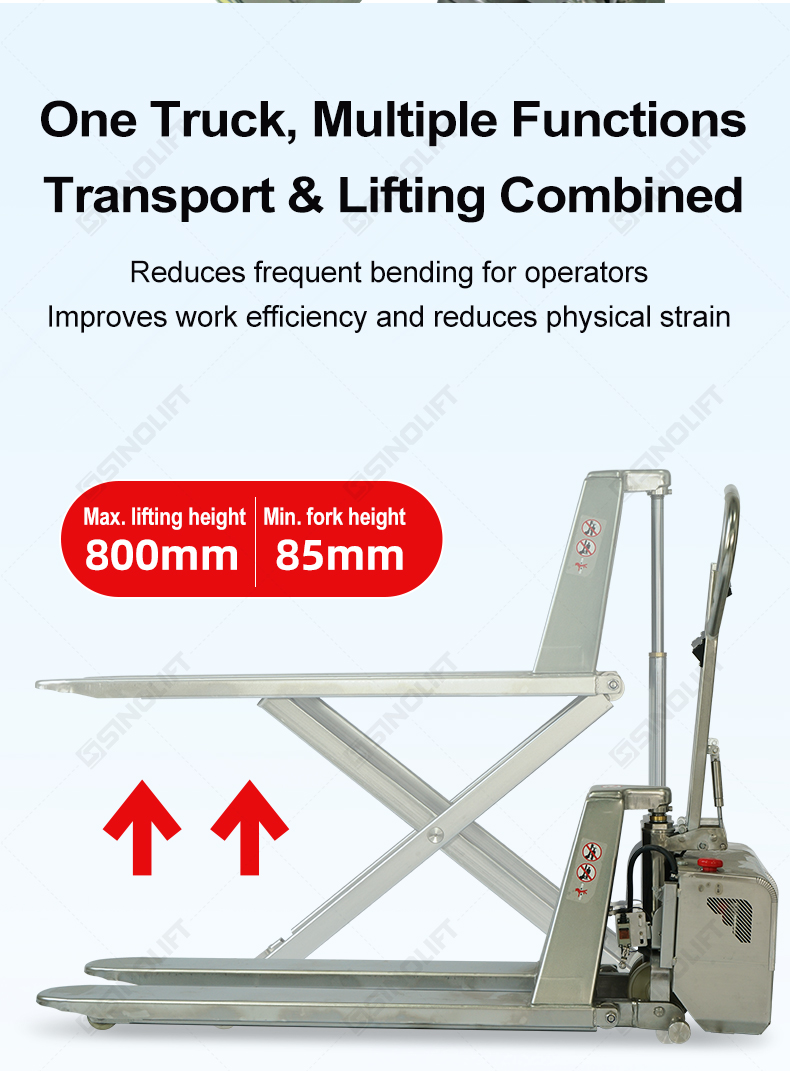

- Multi-Function Design: Combines transport and lifting to reduce operator bending, improving work efficiency and reducing physical strain.
Application Scenarios:
- Workshops: Efficiently transport and lift materials in manufacturing and assembly lines.
- Chemical Plants: Corrosion-resistant stainless steel construction withstands harsh chemical environments.
- Ports: Handle cargo safely and efficiently in busy port operations.
- Logistics Centers: Streamline material flow and reduce operator fatigue in high-volume distribution environments.
- Warehouses: Ideal for narrow aisles and pallet handling in storage facilities.
- Medical Facilities: Hygienic stainless steel design meets strict cleanliness standards for healthcare settings.
| Model | EHLT10S-II | |
| Rated Load Capacity | kg | 1000 |
| Forks Minimum Height | mm | 85 |
| Forks Maximum Height | mm | 800 |
| Max. Lifting Stroke (F) | mm | >710 |
| Forks Outside Width | mm | 540/680 |
| Forks Inside Width | mm | 220/360 |
| Fork Dimensions | mm | 1150×160×50 |
| Overall Length | mm | 1700 |
| Overall Height | mm | 1280 |
| Load Wheel Size | mm | Φ80 × 70 |
| Steering Wheel Size | mm | Φ150 × 50 |
| Minimum Turning Radius | mm | 1540 |
| Lift Motor | kW | 12V/1.2 |
| Wheel Material | PU/Nylon | |
| Battery Capacity | V/Ah | 12/65 |
| Net Weight | kg | 155 |
