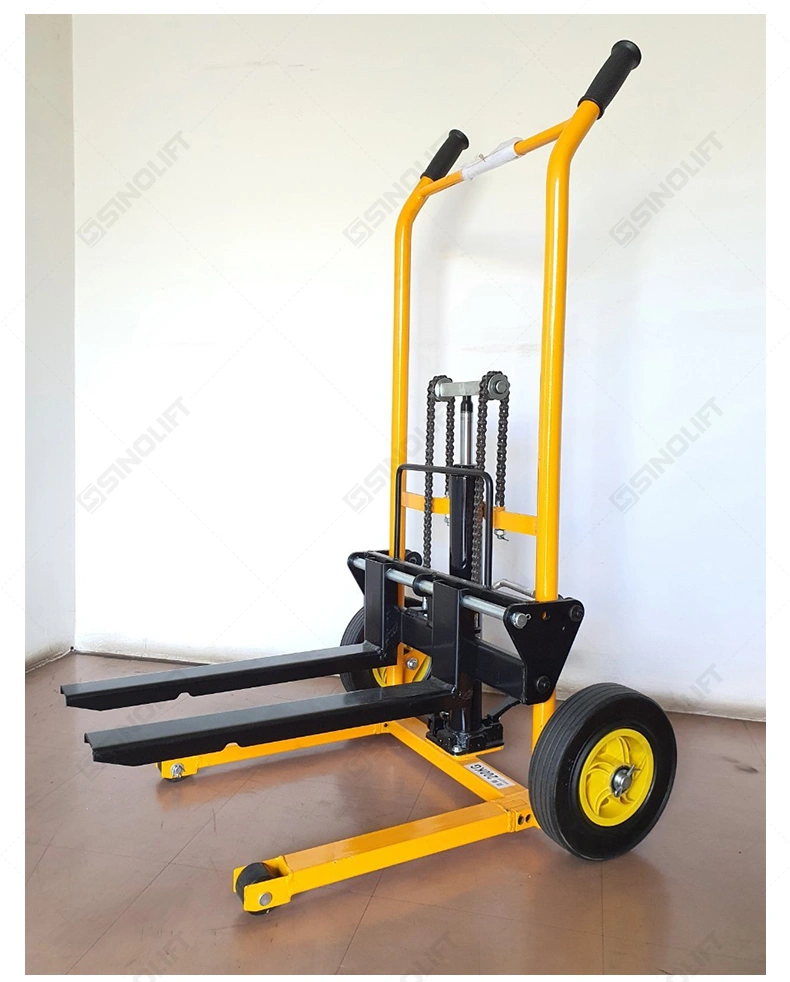

SINOLIFT GL20 Series Portable Manual Stacker – 200kg Capacity with Foldable Forks (GL20A/GL20B)

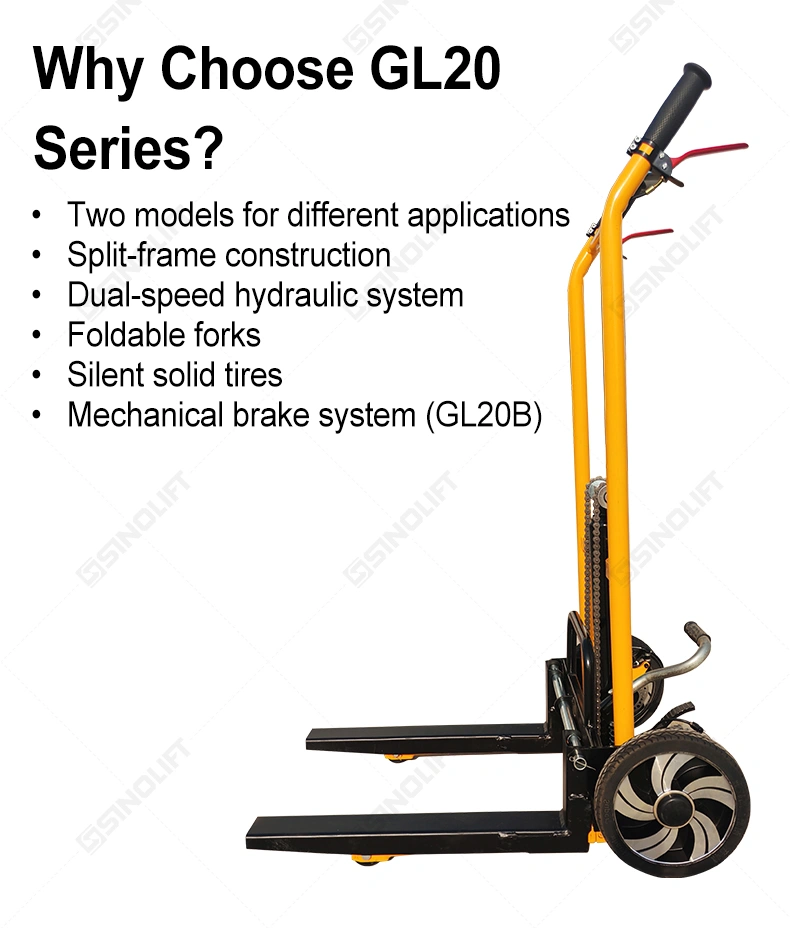

Product Features

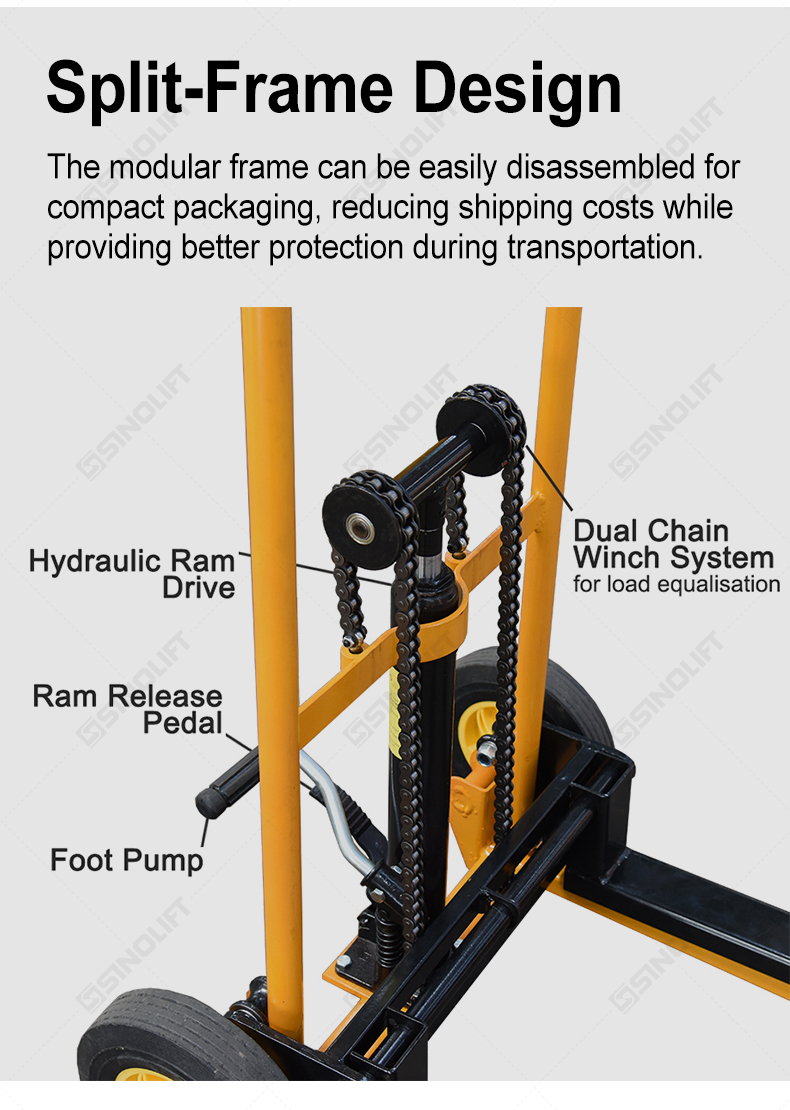

Modular Construction: Features a detachable, split-frame design that allows for compact packaging, reducing required shipping space and protecting the unit during transportation.

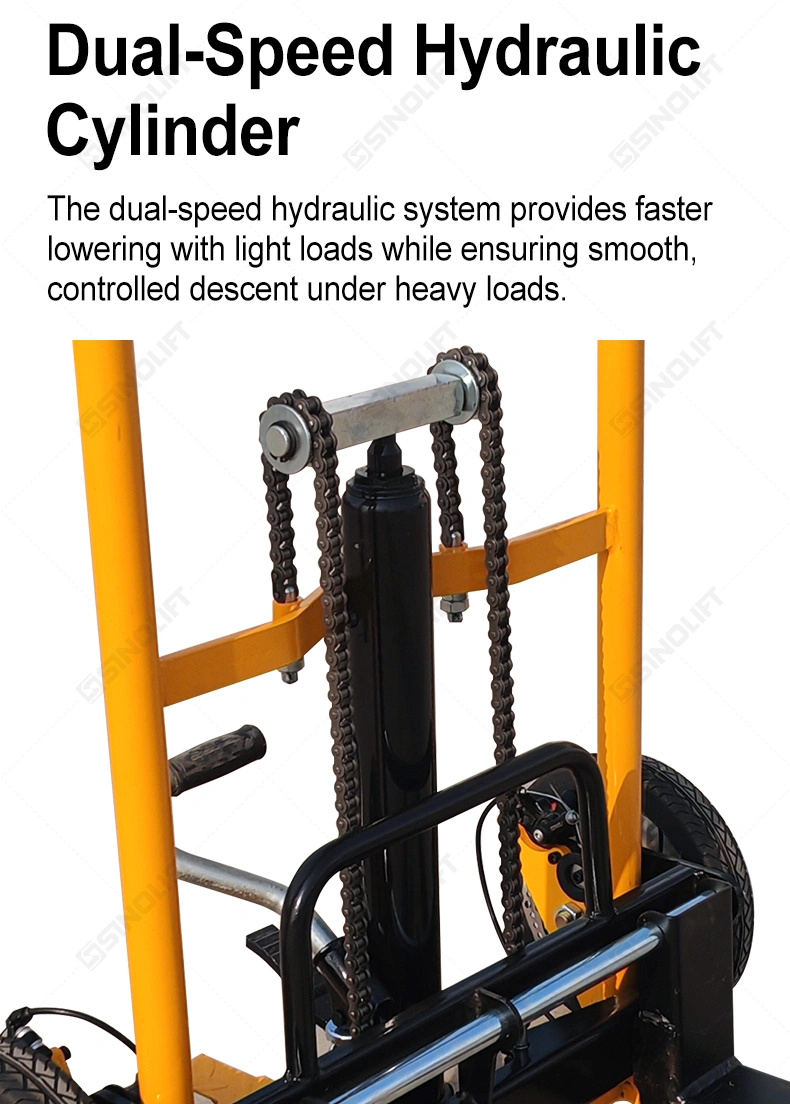

Lifting & Hydraulic System: Utilizes a foot pump and a dual-speed hydraulic cylinder. This enables faster lowering for lighter loads and a controlled, smooth descent for heavy items. A dual chain winch system ensures load equalization.

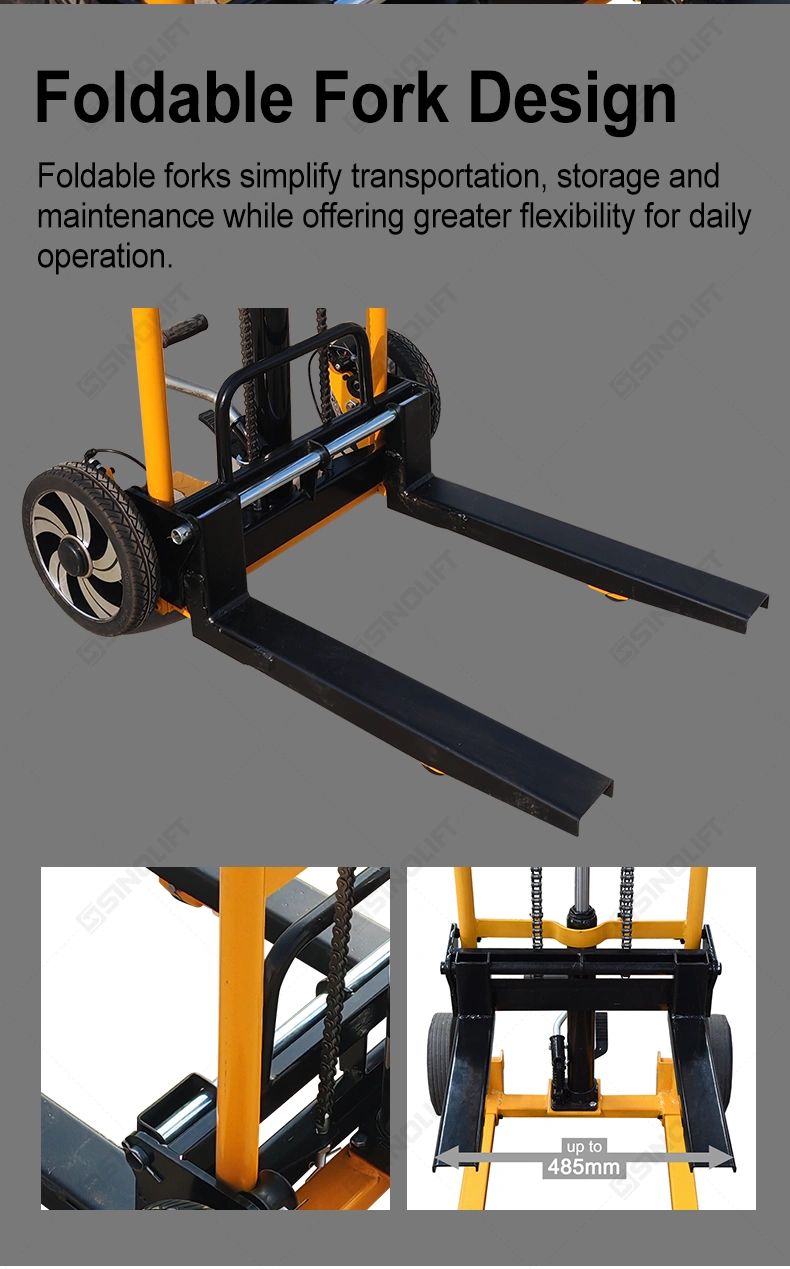

Foldable Forks: Equipped with forks that can fold upward, reducing the equipment's footprint for easier storage, transport, and maintenance.

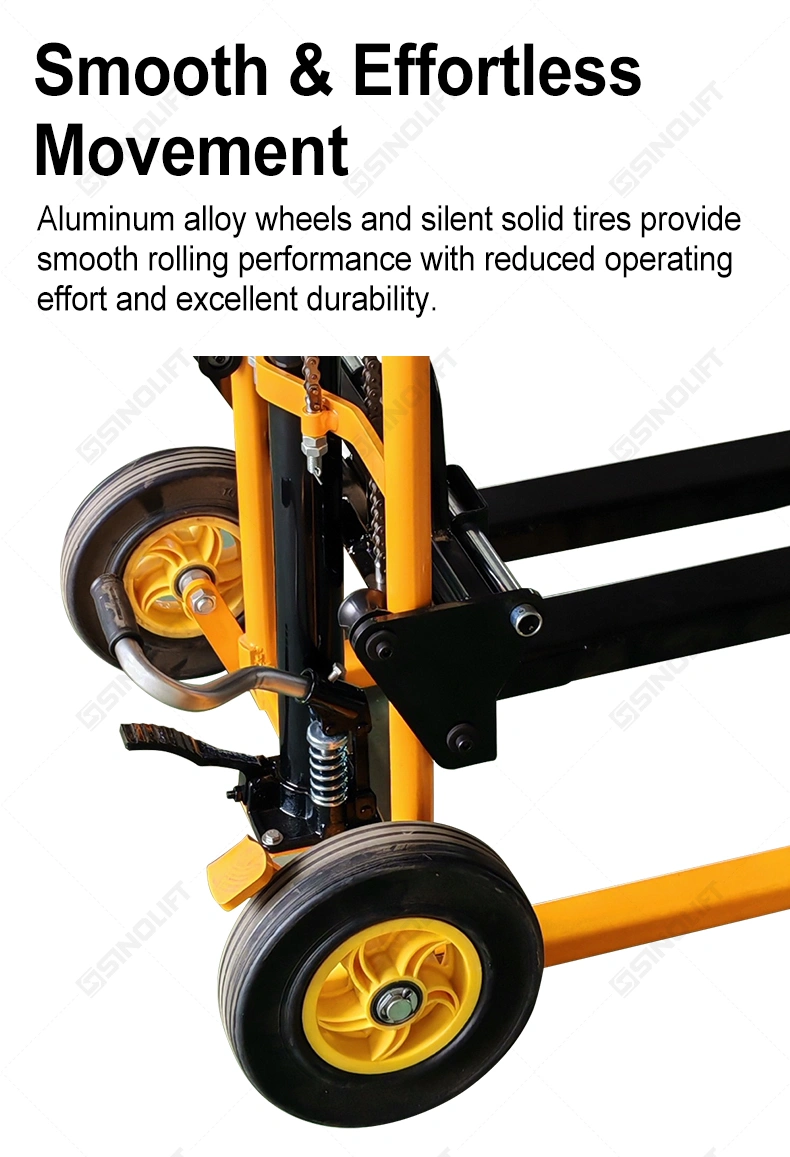

Mobility Components: Fitted with aluminum alloy wheels and silent solid tires (250x50mm/45mm rear, 40x40mm front) for durable, smooth rolling with low manual effort.

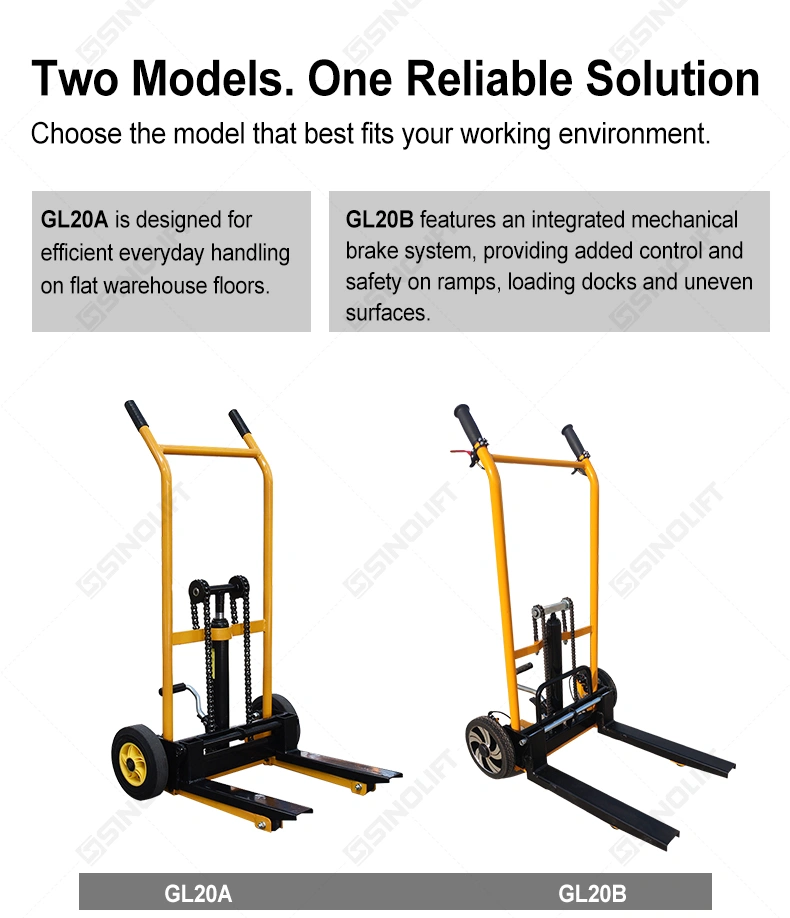

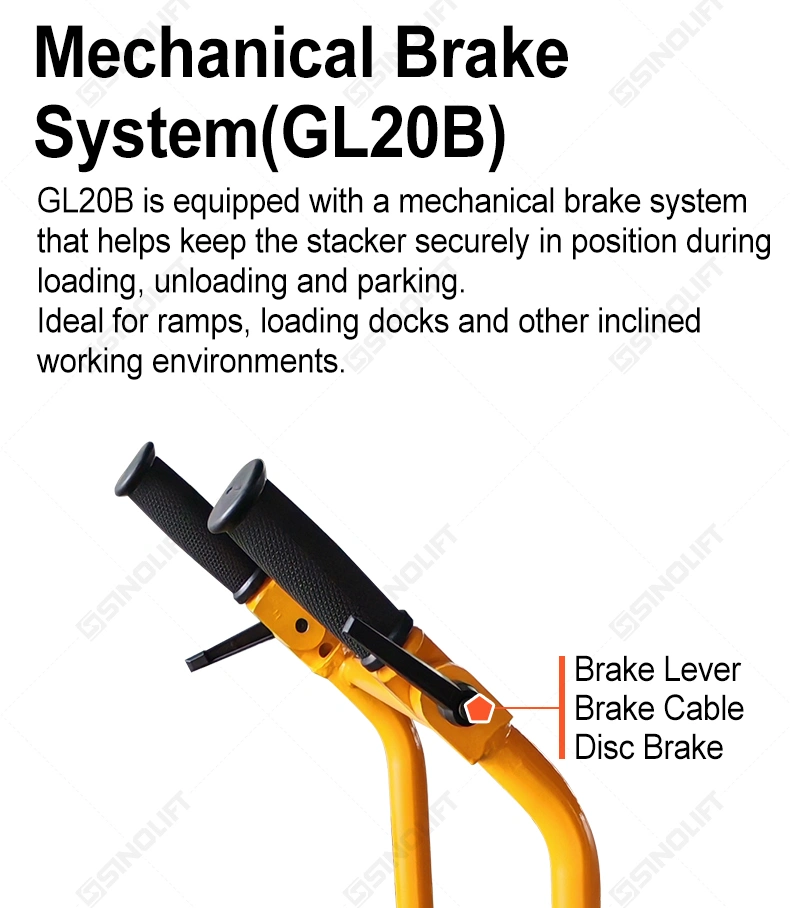

Braking Mechanism (GL20B Only): The GL20B model includes an integrated mechanical hand brake to securely lock the stacker in position.

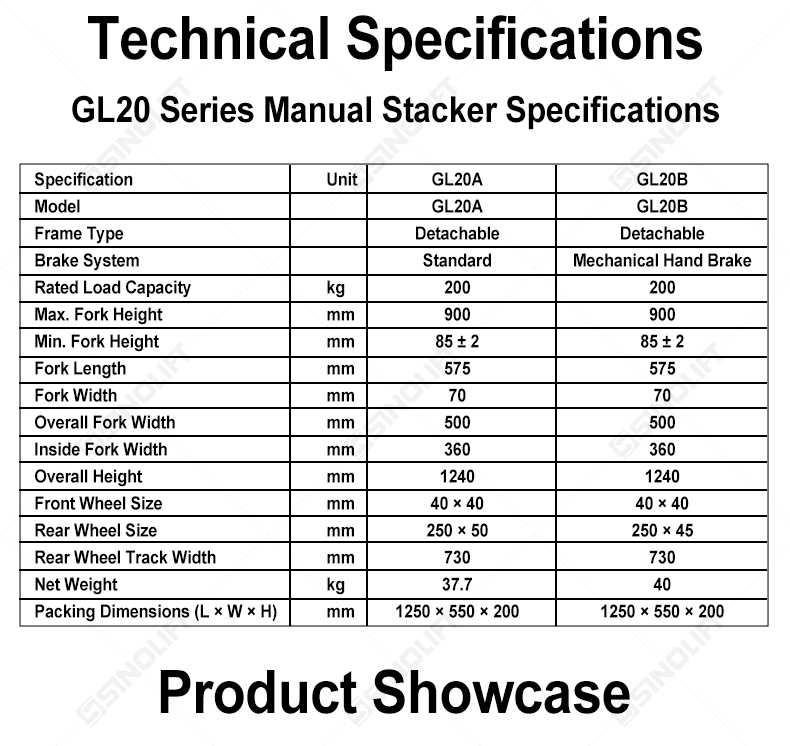

Core Specifications: Both models support a 200kg rated load capacity, a 900mm maximum lifting height, and a 500mm overall fork width.

Applications and Usage Scenarios

Level Indoor Facilities (GL20A): Functionally designed for routine material handling, inventory management, and light lifting tasks on smooth, flat concrete floors in standard warehouses, retail backrooms, and workshops.

Inclined or Uneven Environments (GL20B): The integrated mechanical hand brake makes this model specifically suited for operating safely on ramps, loading docks, and slightly uneven surfaces where holding a locked position is required during loading or unloading.

Space-Restricted Areas: The compact overall footprint and foldable-fork design are highly effective for narrow aisles, tight stockrooms, and small manufacturing plants with limited equipment storage space.
