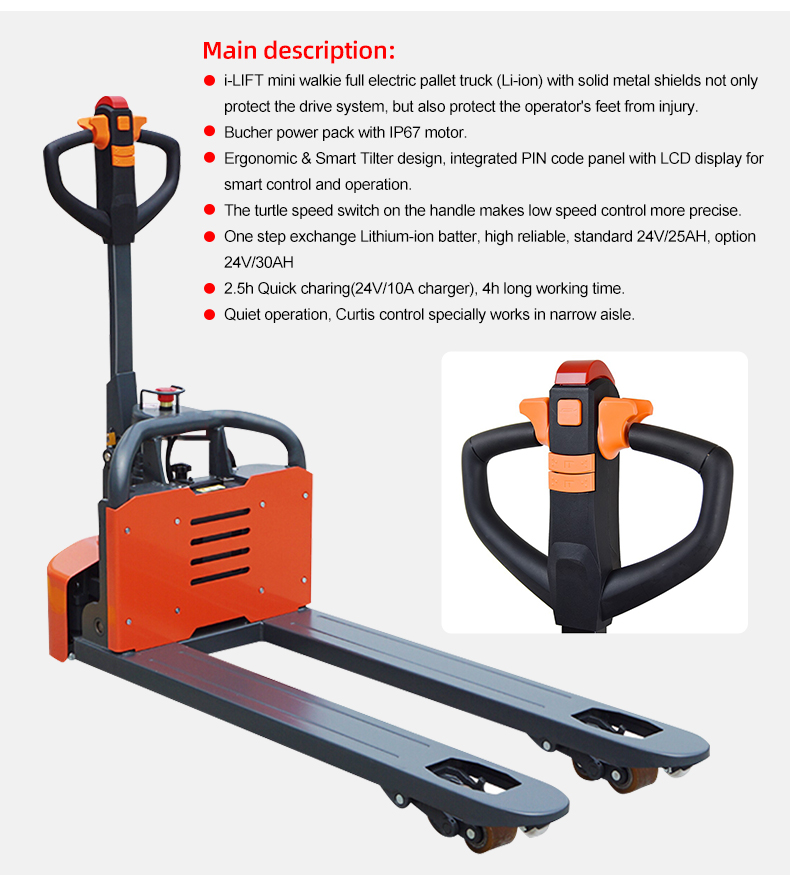

EPT15E mini walkie full electric pallet truck (Li-ion) with solid metal shields not only protect the drive system, but also protect the operator's feet from injury.

Bucher power pack with IP67 motor.

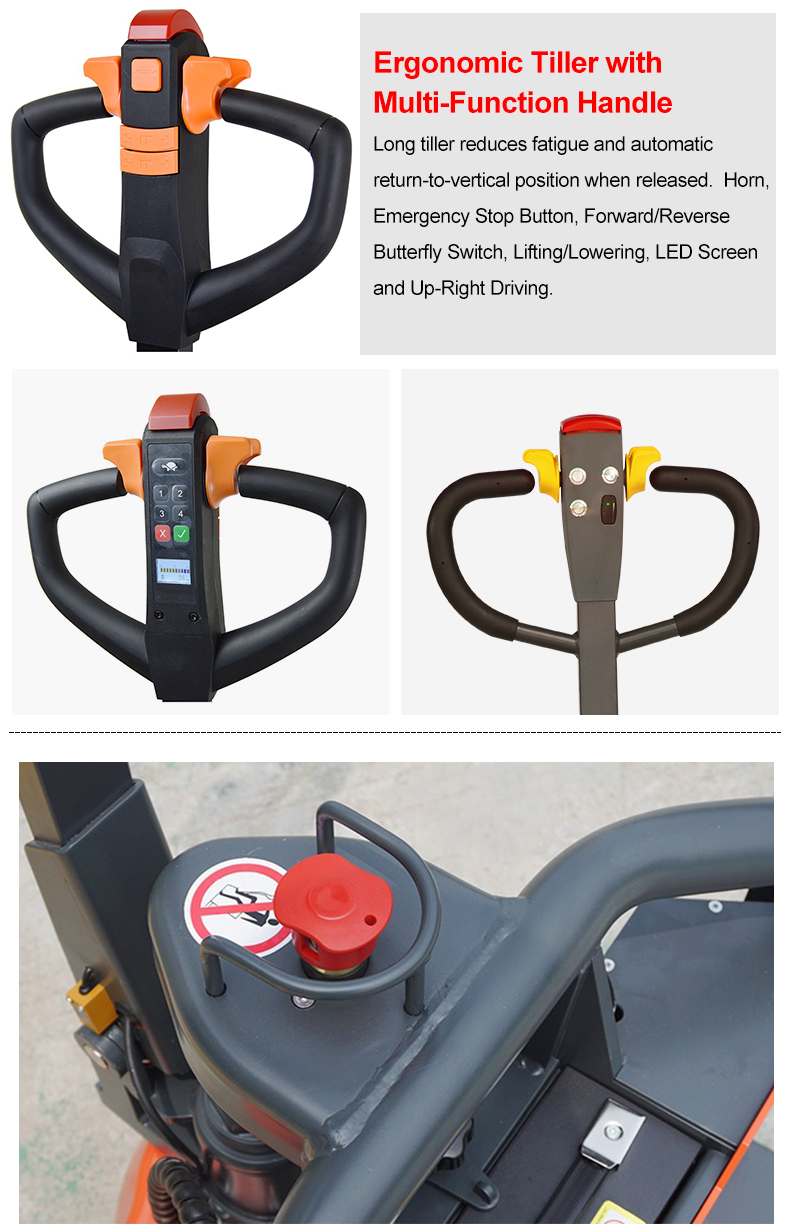

Ergonomic & Smart Tilter design, integrated PIN code panel with LCD display for smart control and operation.

The turtle speed switch on the handle makes low speed control more precise.

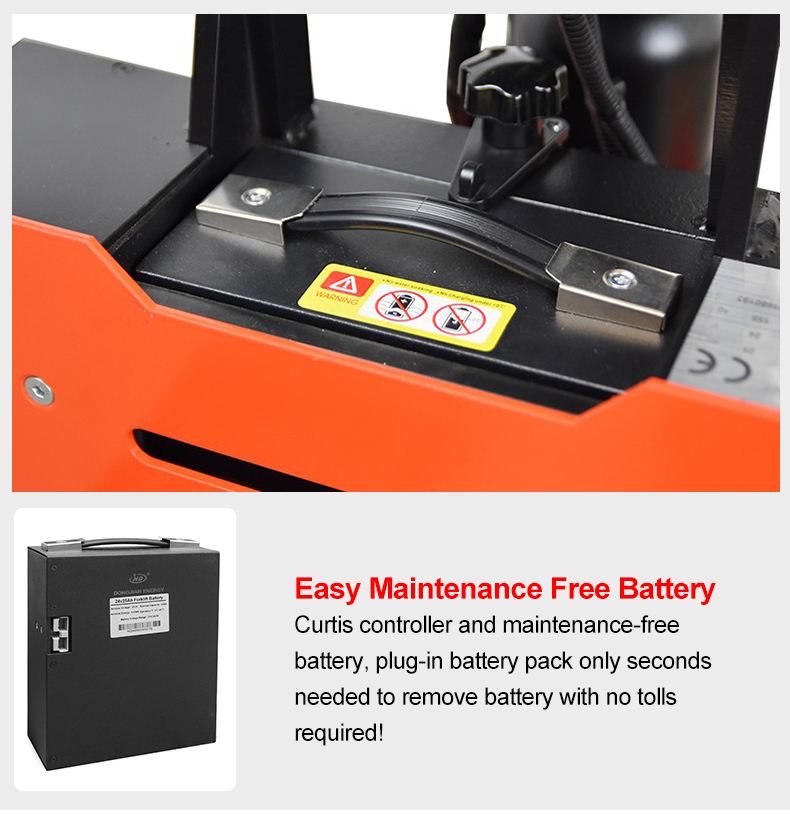

One step exchange Lithium-ion batter, high reliable, standard 24V/25AH, option 24V/30AH

2.5h Quick charing(24V/10A charger), 4h long working time.

Quiet operation, Curtis control specially works in narrow aisle.

MODEL		EPT15E(CBD16S)
Driving Type		Electric
Operation Type		Walking
Load Capacity	kg	1600
Load Center	mm	600
Max. Fork Height	mm	190
Min. Fork Height	mm	85
Fork Length	mm	1150
Frame height	mm	560
Drive Wheel Size	mm	∮210*70
Front Wheel Size	mm	∮80*70
Wheel Material		Pu iron clad core
Single Fork Width	mm	160
Turning Radius	mm	1350
Center Distance Between Front and Rear wheels	mm	1220
Driving Motor	kw	0.75
Lifting Motor	kw	0.5
Battery	v / Ah	24/20
Travel Speed, Full load / No load	km/h	4.5
Max. Gradient, Full load / No load	%	3/5
Overall Length	mm	1540
Overall Width	mm	560/680
Overall Height	mm	1220S
Net Weight(including battery)	kg	160
