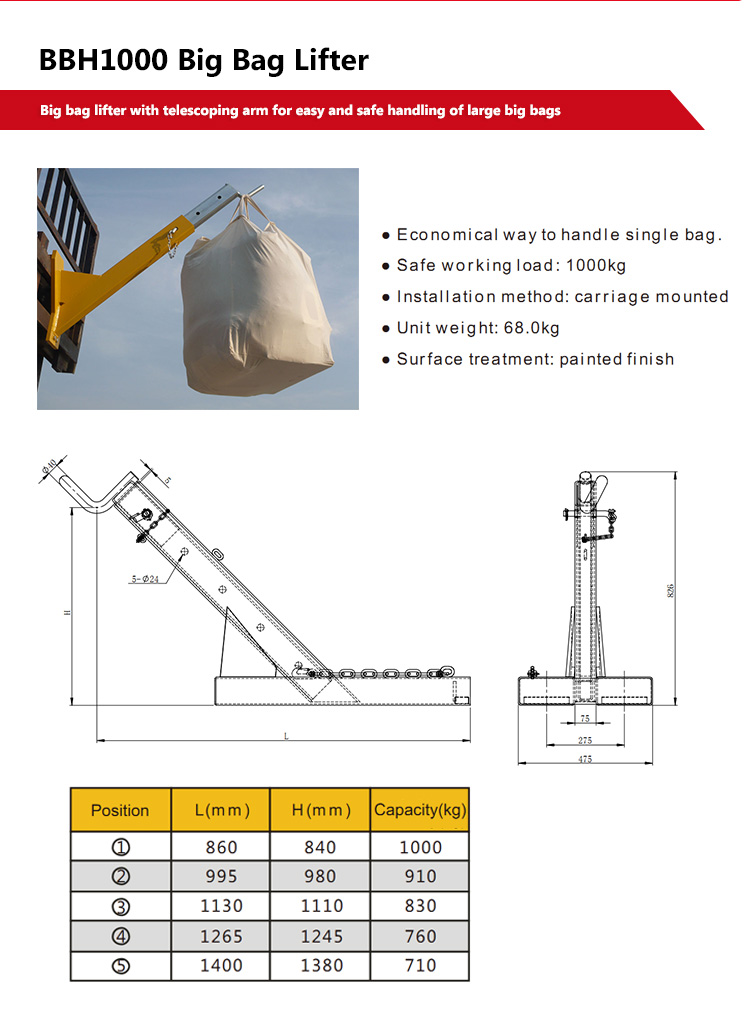

BBH1000 economical extendable fork carriage mounted big bag lifter.
BBH1000

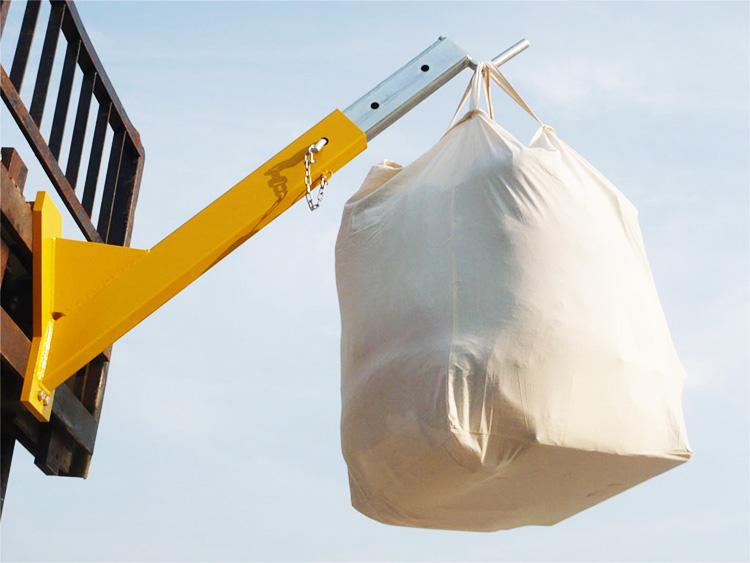

Big bag lifter with telescoping arm for easy and safe handling of large big bags. We stock big bag lifters with one or two lift arms. Equipped with fork pockets for easy mounting on forklifts.
Quantity:
BBH1000 big bag lifter is suitable for forklift trucks and big bags.
- economical way to handle single bag.
- Safe working load:1000kg
- Installation method: Carriage Mounted
- Unit weight: 68.0kg
- Surface treatment: Painted finish.
Inner Position | L(mm) | H(mm) | Capacity(kg) |
1 | 860 | 840 | 1000 |
2 | 995 | 980 | 910 |
3 | 1130 | 1110 | 830 |
4 | 1265 | 1245 | 760 |
5 | 1400 | 1380 | 710 |
