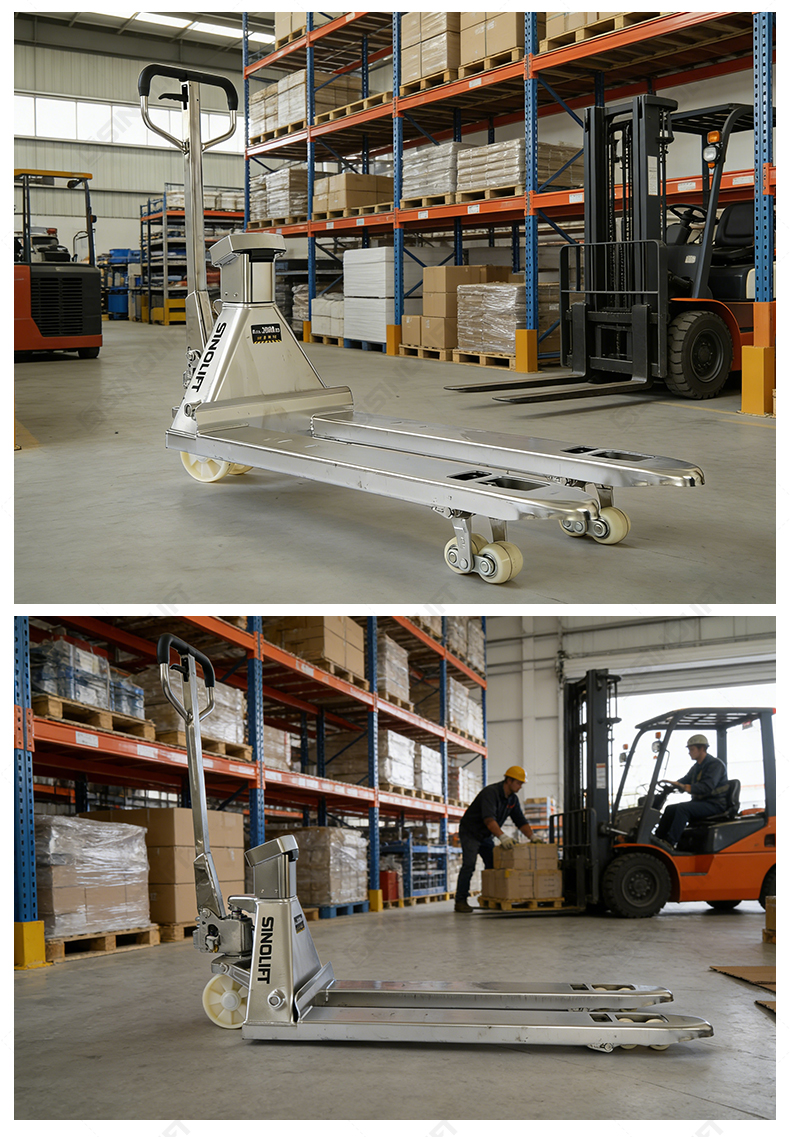

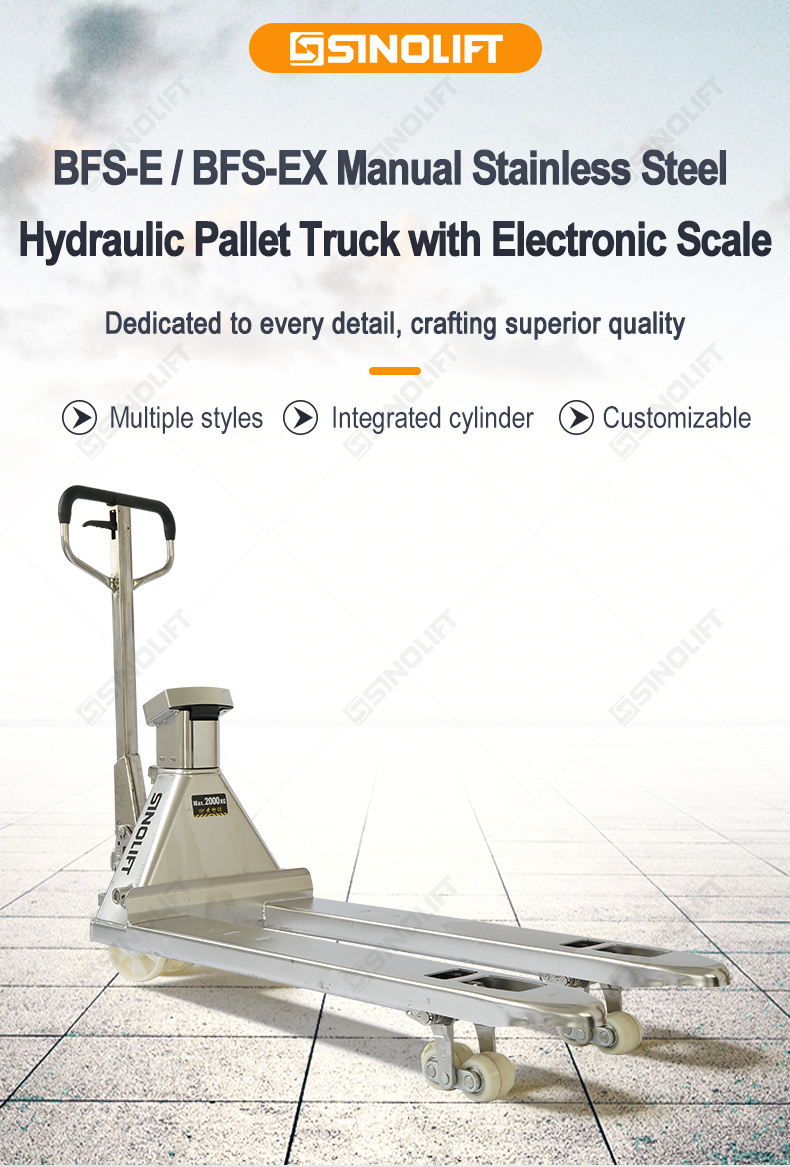

BFS-E Manual Stainless Steel Hydraulic Pallet Truck with Scale

BFS-E

Designed specifically for high-hygiene industries such as food, pharmaceutical, and chemical processing, this 304 stainless steel pallet truck offers a superior solution for both material transport and precise weighing. Its robust, waterproof construction and integrated hydraulic system ensure long-lasting reliability in cleanrooms, cold storage, and harsh environments. Equipped with a high-precision electronic scale (0.1kg accuracy) and an ergonomic handle, it streamlines workflows by allowing users to manage loads efficiently and accurately in demanding settings. Additionally, an explosion-proof model (BFS-EX) is also available for specialized safety requirements.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Product Features (BFS-E)

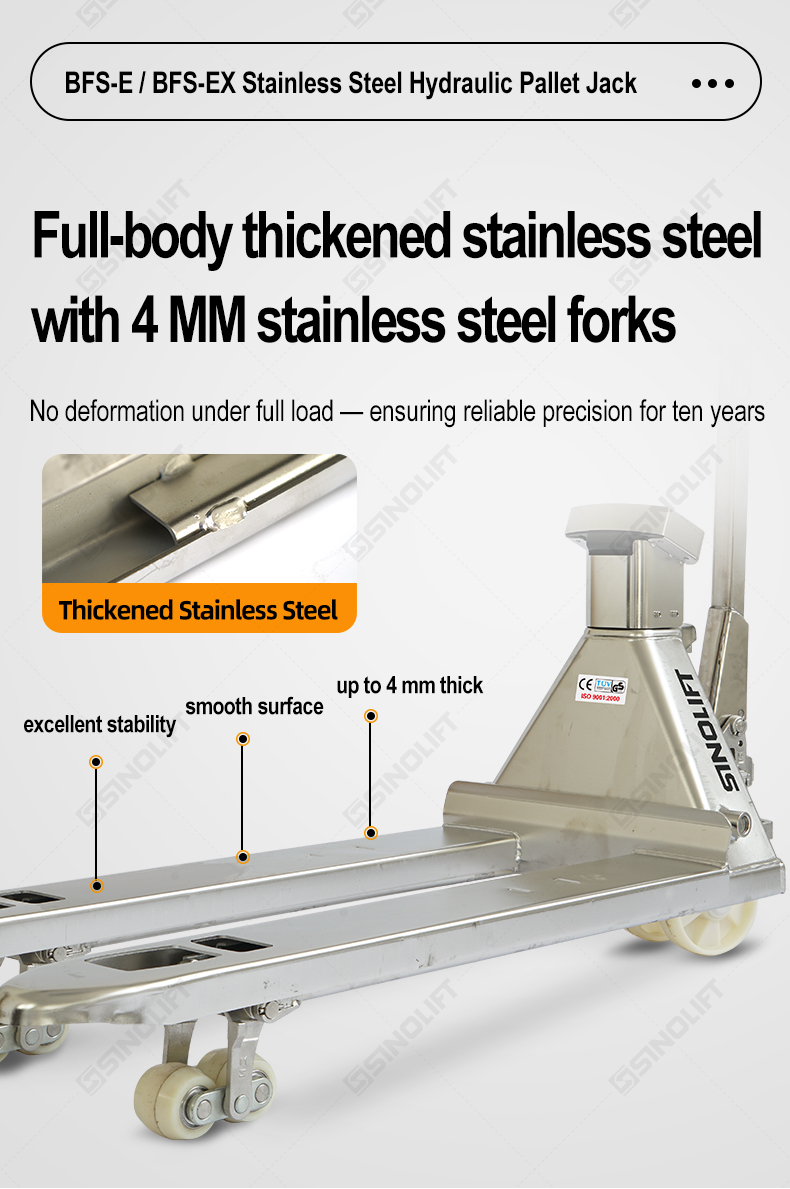

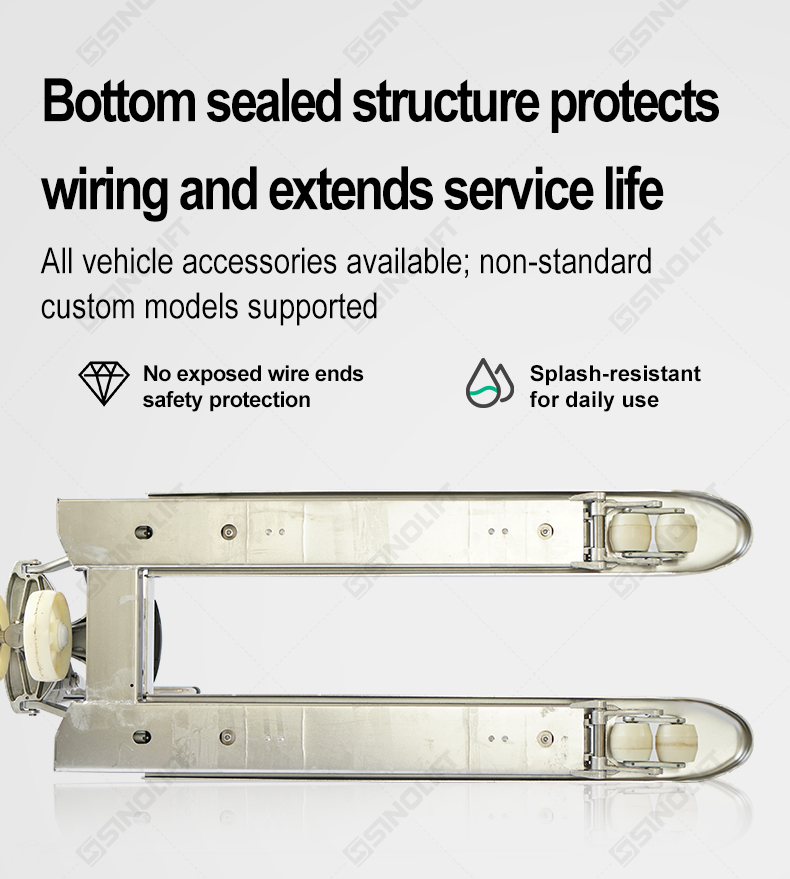

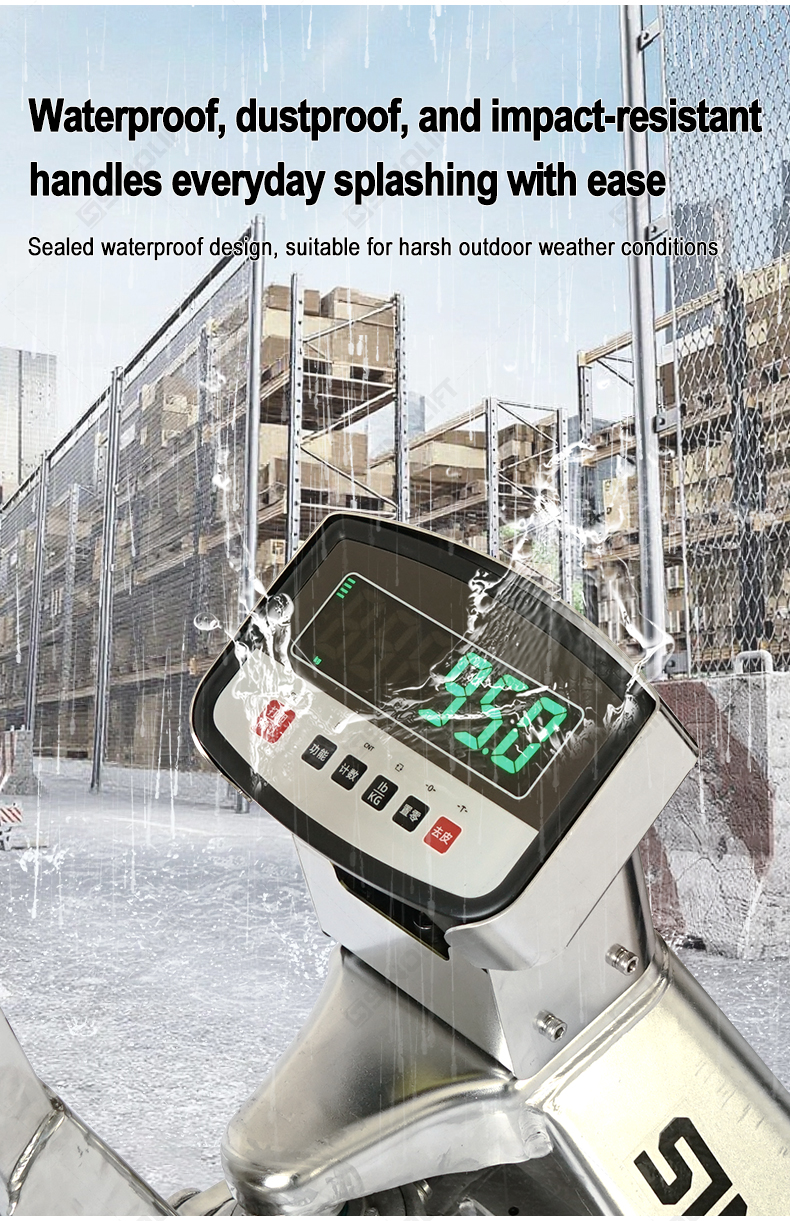

Material & Construction: Constructed from 304 stainless steel with 4mm thickened forks. The frame features a fully sealed, waterproof, and dustproof bottom structure, protecting internal wiring from daily splashing and impact.

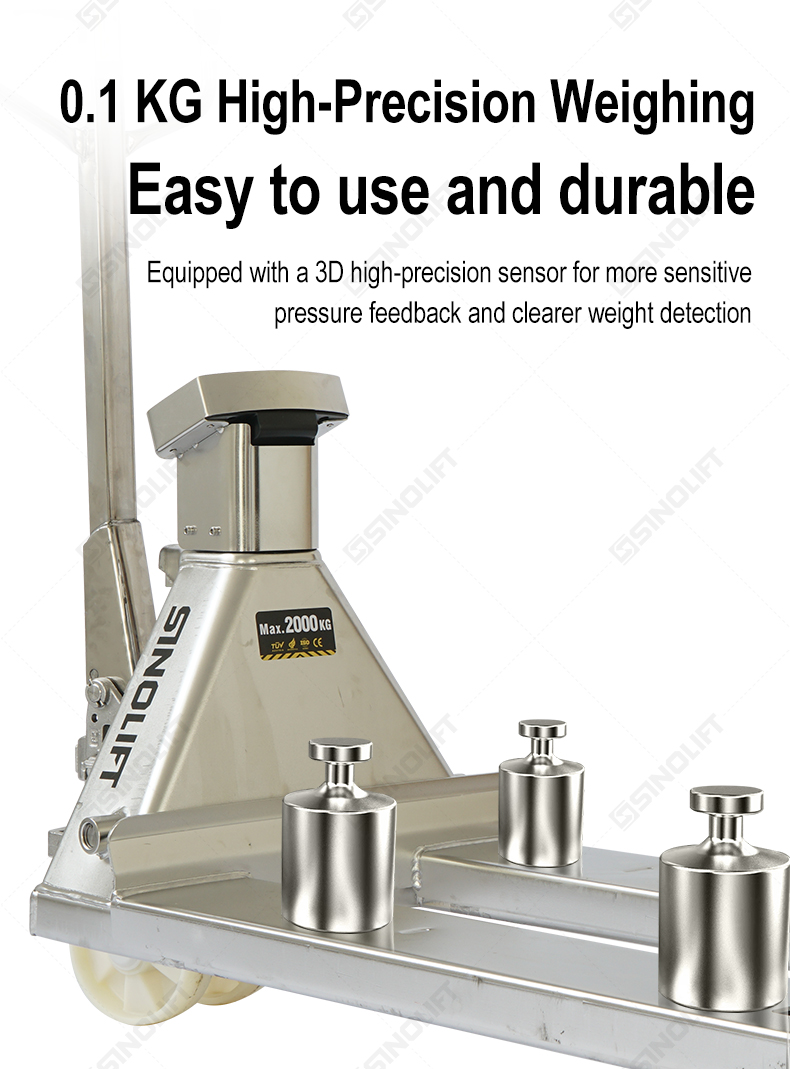

Integrated Weighing System: Equipped with 3D high-precision sensors offering an accuracy of 0.1 to 0.5 kg. Powered by a 7.4V/4Ah Li-ion battery, the scale system includes a built-in printer supporting both paper and sticker formats. CE certified.

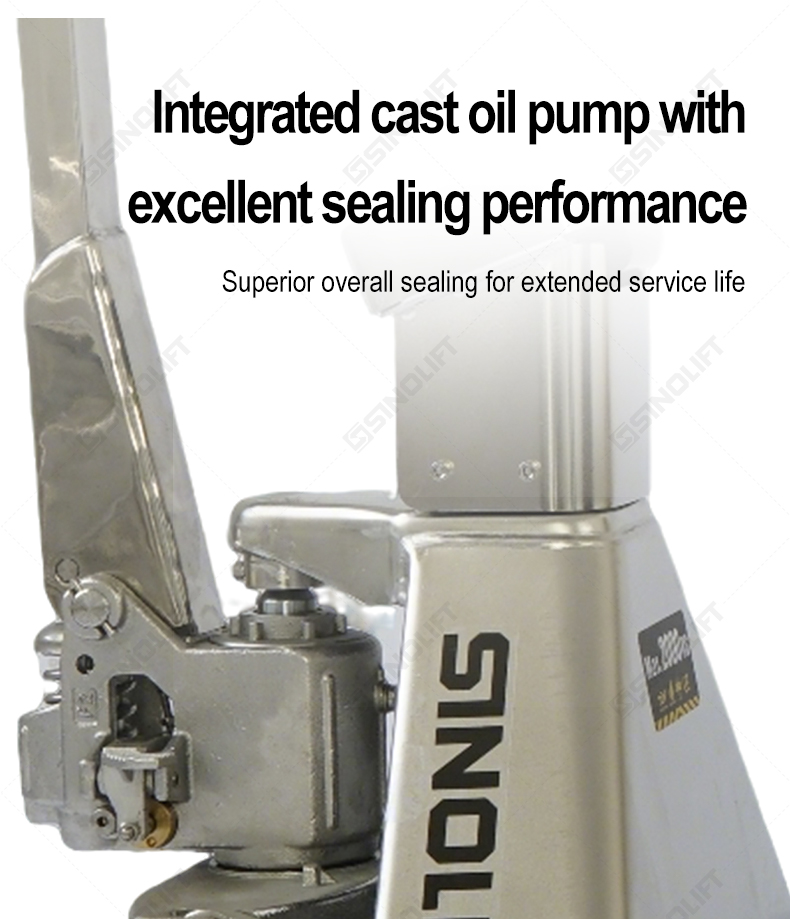

Hydraulic Mechanism: Utilizes an integrated cast oil pump and a sealed cylinder, ensuring leak prevention, long-term precision, and reliable lifting performance without deformation under full load.

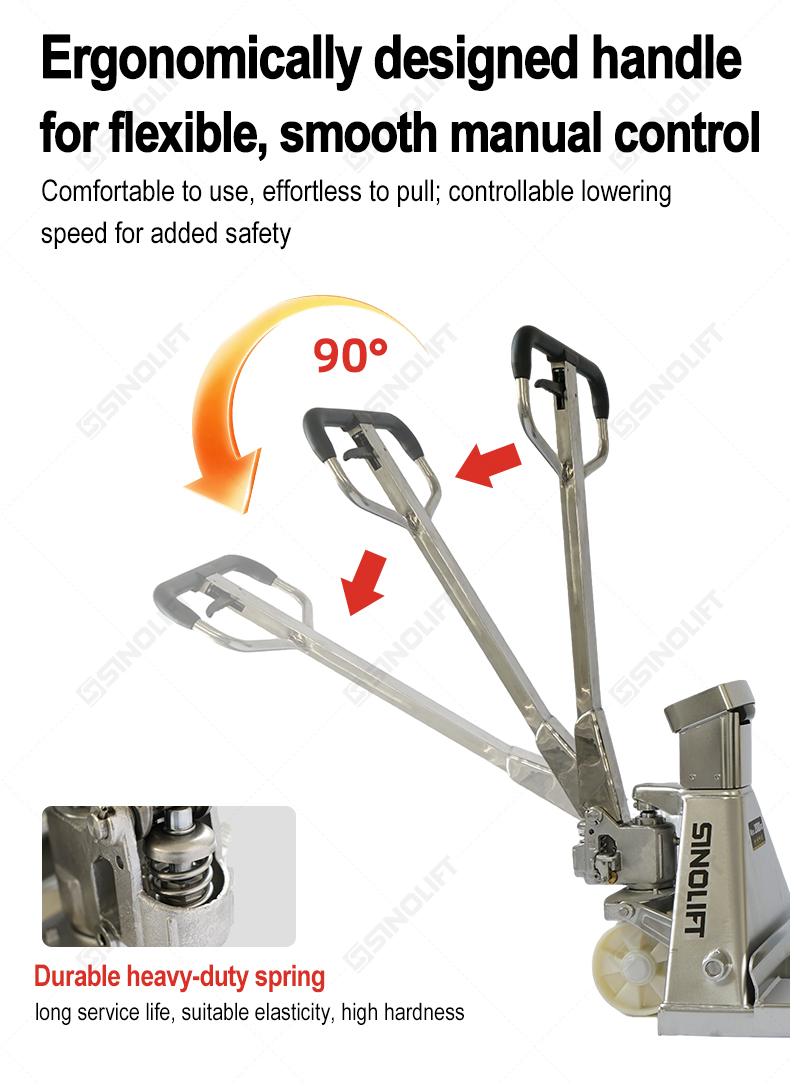

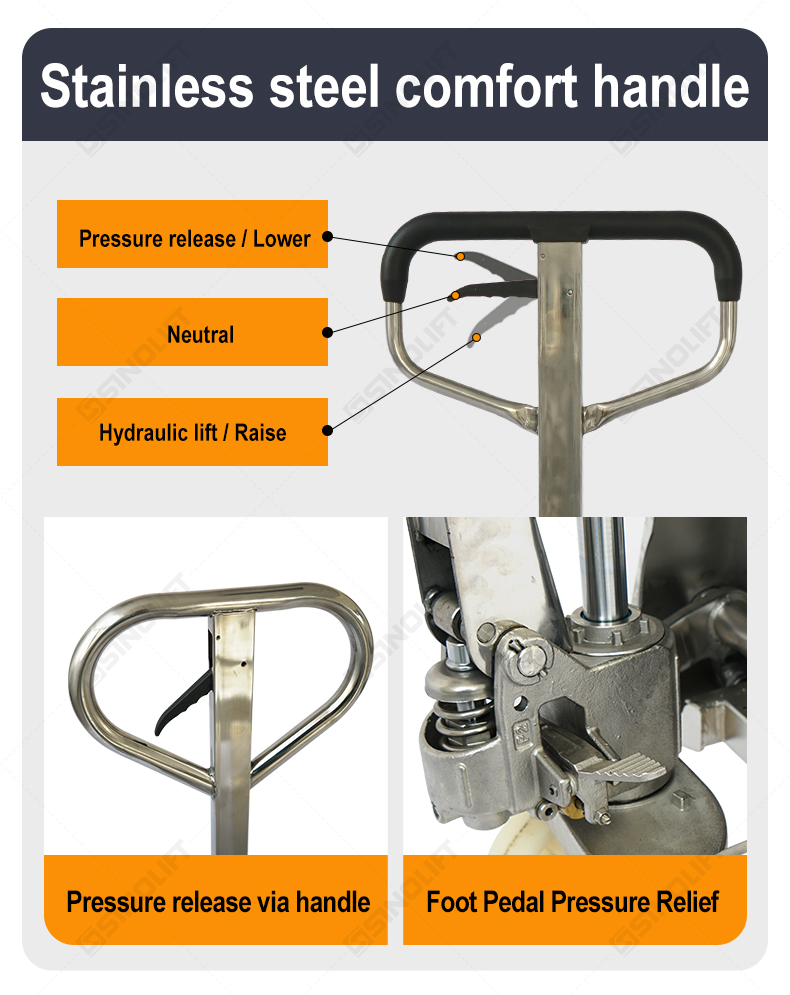

Operation & Control: Features an ergonomic stainless steel handle with a 3-position control (lift, neutral, lower) and dual pressure-release options (handle or foot pedal).

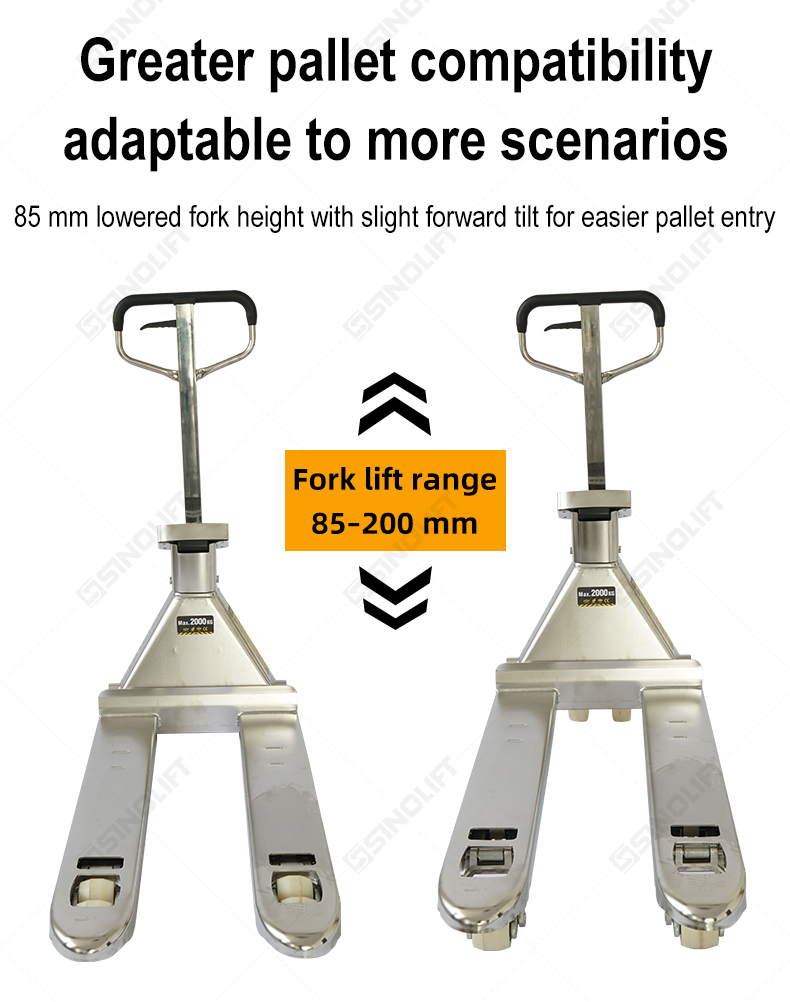

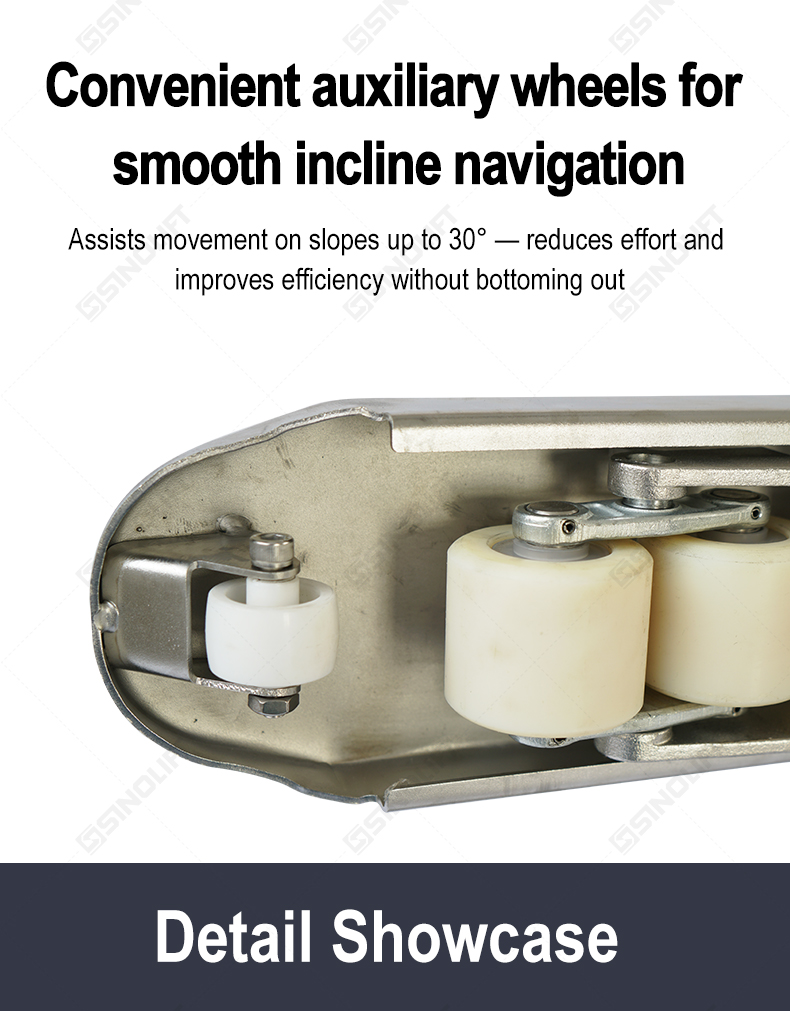

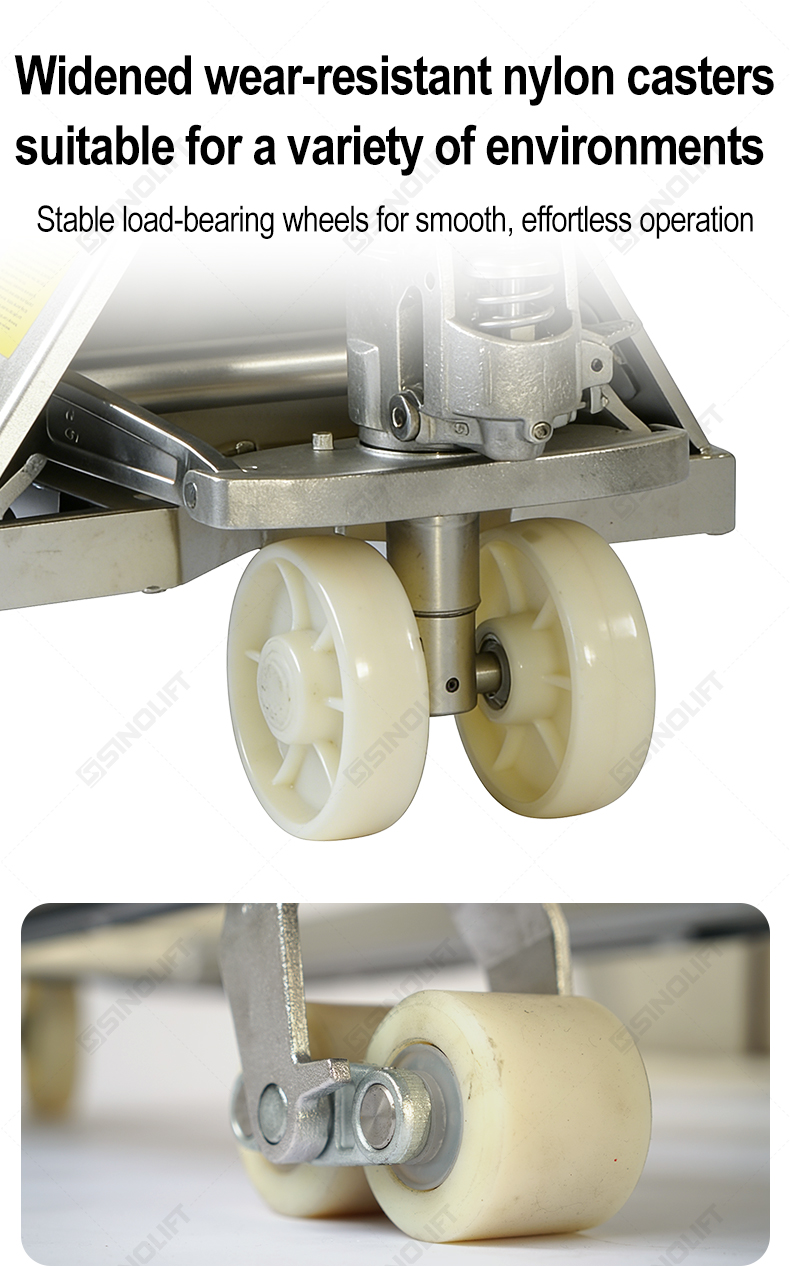

Mobility: Fitted with wear-resistant nylon wheels, stable load-bearing wheels, and auxiliary wheels designed to assist movement on inclines up to 30°. The lowered fork height is 85mm.

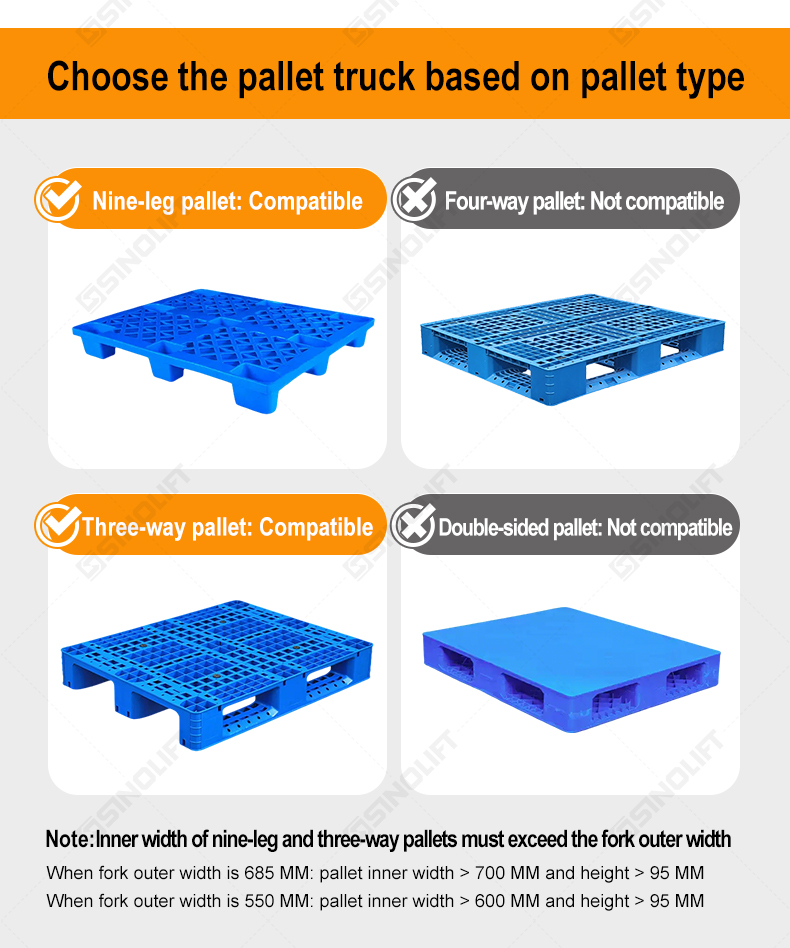

Specifications: Available in 2000 kg, 2500 kg, and 3000 kg capacities. Compatible with three-way and nine-leg pallets (not compatible with double-sided or four-way pallets).

Applications & Usage Scenarios

Strict Hygiene Facilities: Highly suitable for medical, pharmaceutical, and electronic cleanrooms where corrosion resistance and sanitation are mandatory.
Food & Aquatic Processing: Ideal for the food industry, aquatic processing plants, and cold storage due to its waterproof and rust-resistant stainless steel body.
Chemical Industry: Safely handles material transport in chemical manufacturing environments where exposure to corrosive elements is a risk.
Logistics & Warehousing: Used in loading docks and warehouses requiring simultaneous material handling and precise weight recording, streamlining operations by eliminating the need to transfer goods to a separate floor scale.

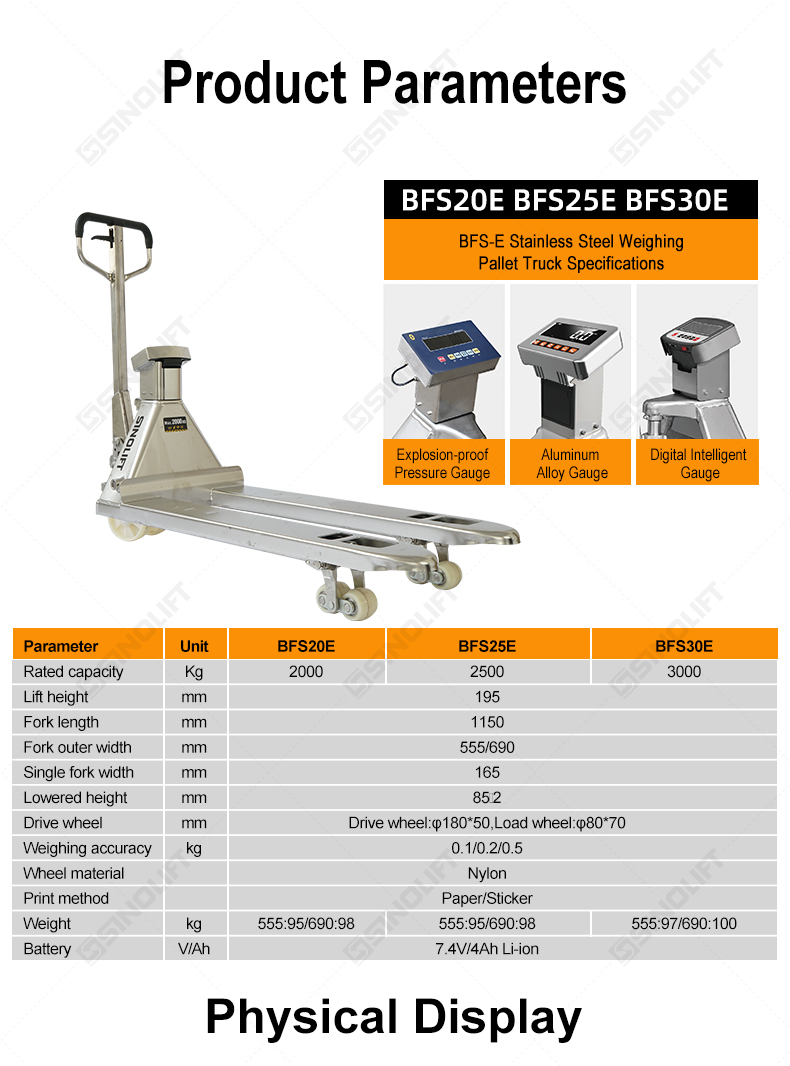

Parameter	Unit	BFS20E	BFS25E	BFS30E
Rated capacity	kg	2000	2500	3000

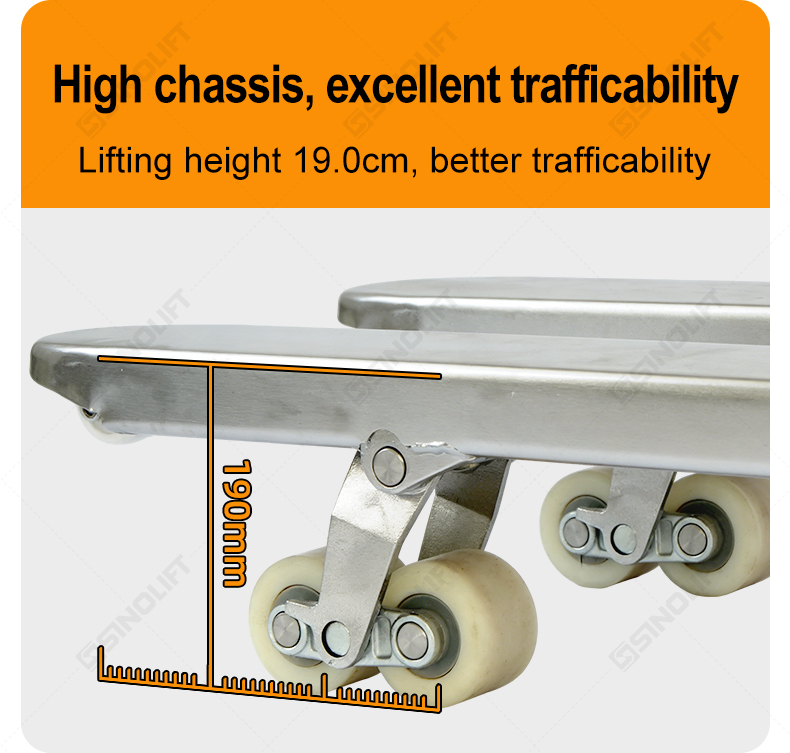

Lift height	mm	195	195	195
Fork length	mm	1150	1150	1150
Fork outer width	mm	555/690	555/690	555/690
Single fork width	mm	165	165	165
Lowered height	mm	85±2	85±2	85±2
Drive wheel	mm	Φ180×50	Φ180×50	Φ180×50
Load wheel	mm	Φ80×70	Φ80×70	Φ80×70
Weighing accuracy	kg	0.1/0.2/0.5	0.1/0.2/0.5	0.1/0.2/0.5
Wheel material	/	Nylon	Nylon	Nylon
Print method	/	Paper/Sticker	Paper/Sticker	Paper/Sticker
Weight(555)	kg	95	95	97
Weight(690)	kg	98	98	100
Battery	V/Ah	7.4V/4Ah Li-ion	7.4V/4Ah Li-ion	7.4V/4Ah Li-ion
