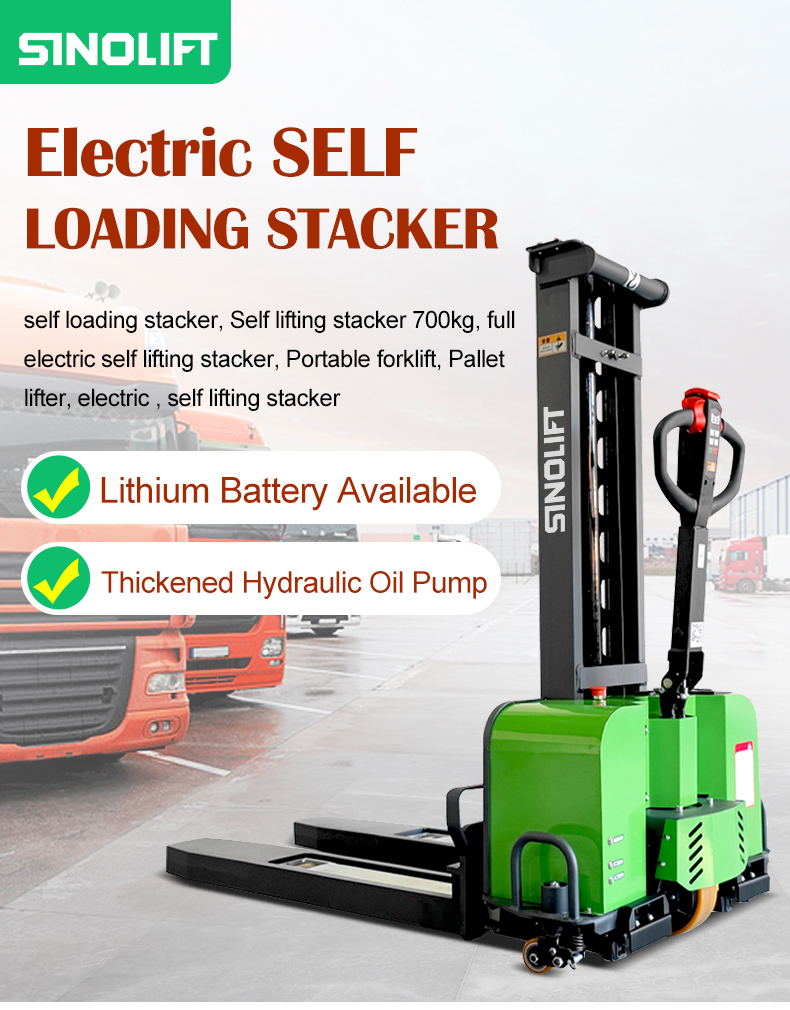

Full Electric Self-Loading Pallet Truck

BSL Full Electric Self-Loading Pallet Truck

BSL
Quantity:
Contact Now
add to cart
All Products

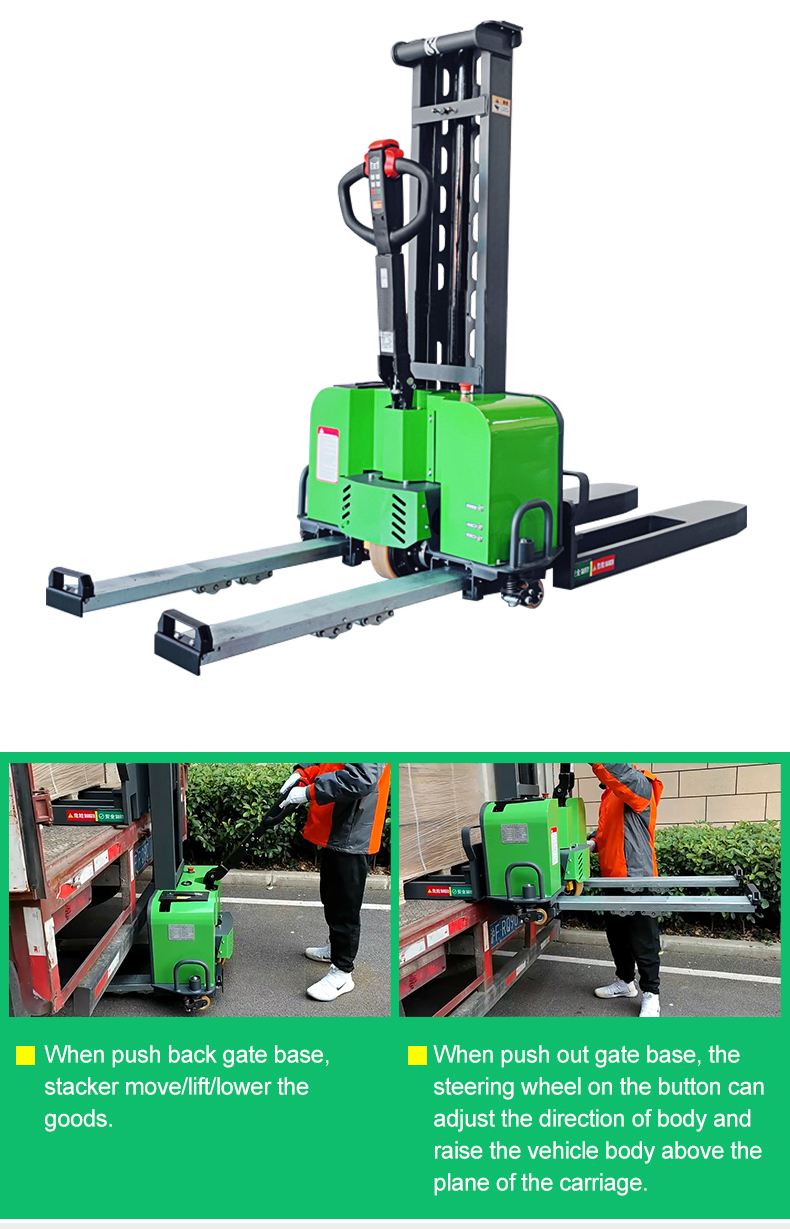

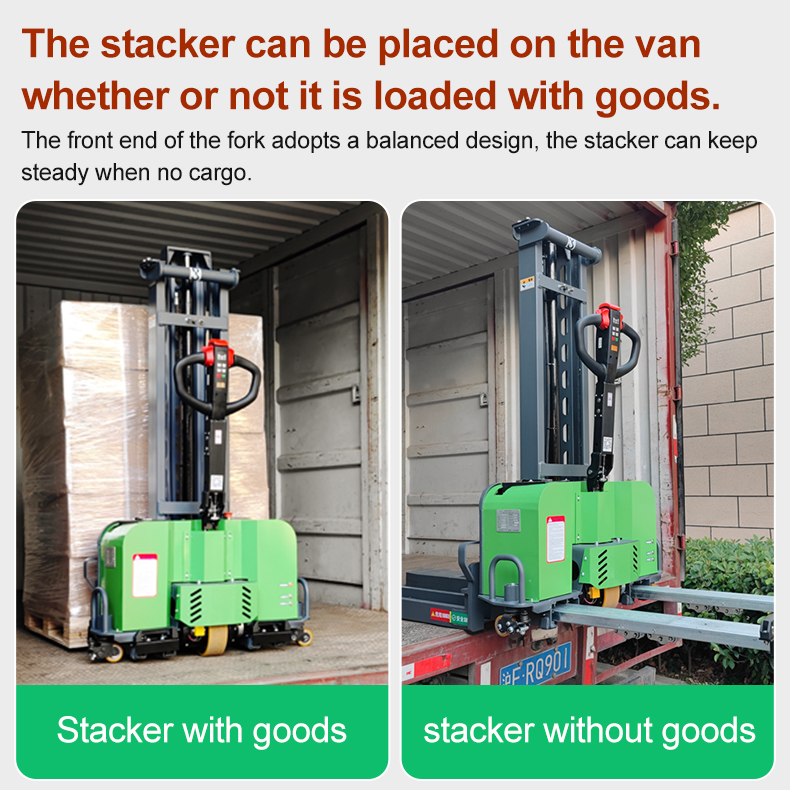

The Self-loading Pallet Truck solves that expensive issue of loading vans or other medium and commercial light vehicles when there is no available forklift or tail lift to load the goods with.

Manufactured in mainland Asia, SINOLIFT is an accredited China dealer to supply the Self Loading Pallet Truck with access to the best available prices, lead time and parts availability.

Three main benefits of the Self-loading pallet truck include:-

Simple: These well-built machines are manufactured to very high standard, without complexity, meaning they are simple to operate and maintain.  There is very little to go wrong.

Cost effective: Efficiency in production and design means that these machines are affordable for any small or large business

Reliable: Economy of design, superior standard parts and high build quality ensure machines are both reliable and durable.

Self-Loading Pallet Truck Simple Facts:

 Maximum capacity available up to 1000kg with a lift height capability 1800mm

Can be loaded and unloaded in a matter of seconds

All Health and Safety issues eliminated with the self-loading pallet truck

The ease of use improves working conditions and helps reduce costs

Ideal for any medium or small business vehicle

No forklift operator’s license required

Conforms to all required EU regulations

ModelBSL-05F/BSL-07FZSL-10F
Maximum load   capacitykg500/700500/7001000
Load centermm450450450
Weight (with battery)kg319/330330/345400
Maximum   lifting heightmm110015001300
Lifting speed   (without load)mm/s14014065
Lifting speed   (with load)mm/s13513535
Lowered speed   (without load)mm/s14014065
Lowered speed   (with load)mm/s14514535
Overall length   of frame mm166016601660
Overall width   of frame mm878878885
Mast lowered   heightmm140616061656
Max height(mast lifted with backrestmm265228522885
Wheelbasemm963963995
Fork   length mm117511751200
Fork outside   widthmm580580626
Fork inside   widthmm190190236
Fork thicknessmm606070
width of theoretical    minimum  aisle for   right-angle  stacking (1200x1000)           mm150015001250
Min ground   height     mm202032
Fork lowered   heightmm909070
Minimum turning radius mm120012001300
Front wheelmm80*5080*5080*50
Hoist motor   typeDC
 Rated outputkw0.80.81.2

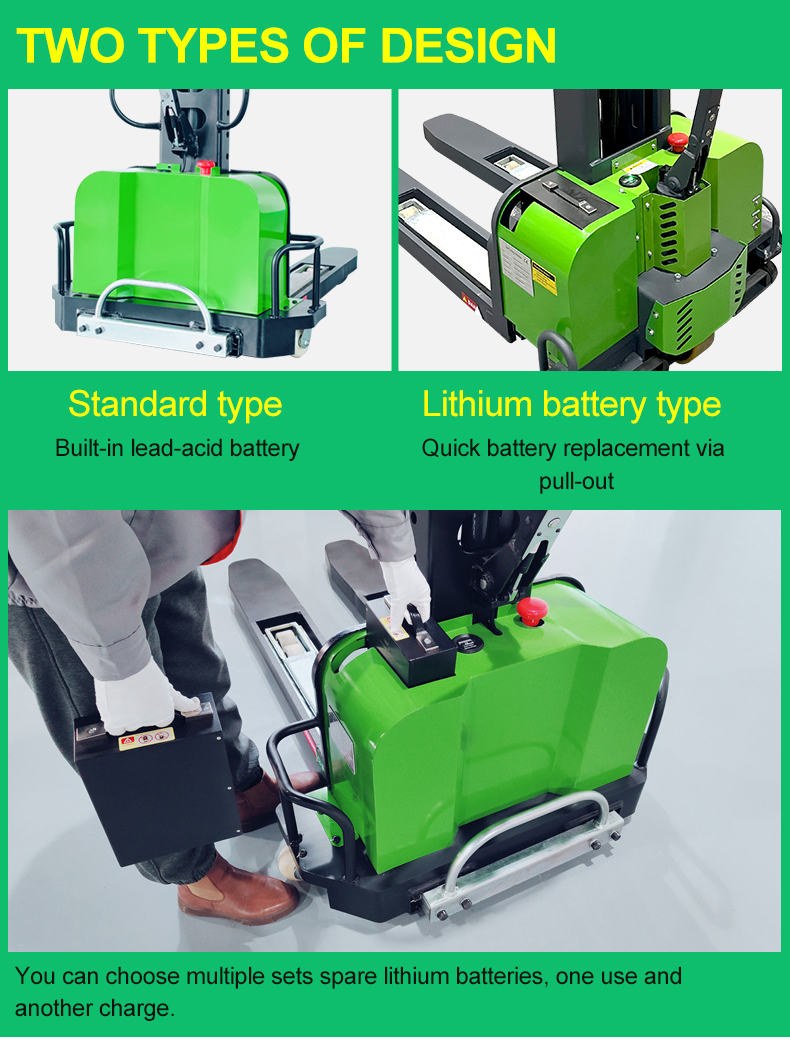

Battery typeLithium battery
VoltageV484824
CapacityAH202050
