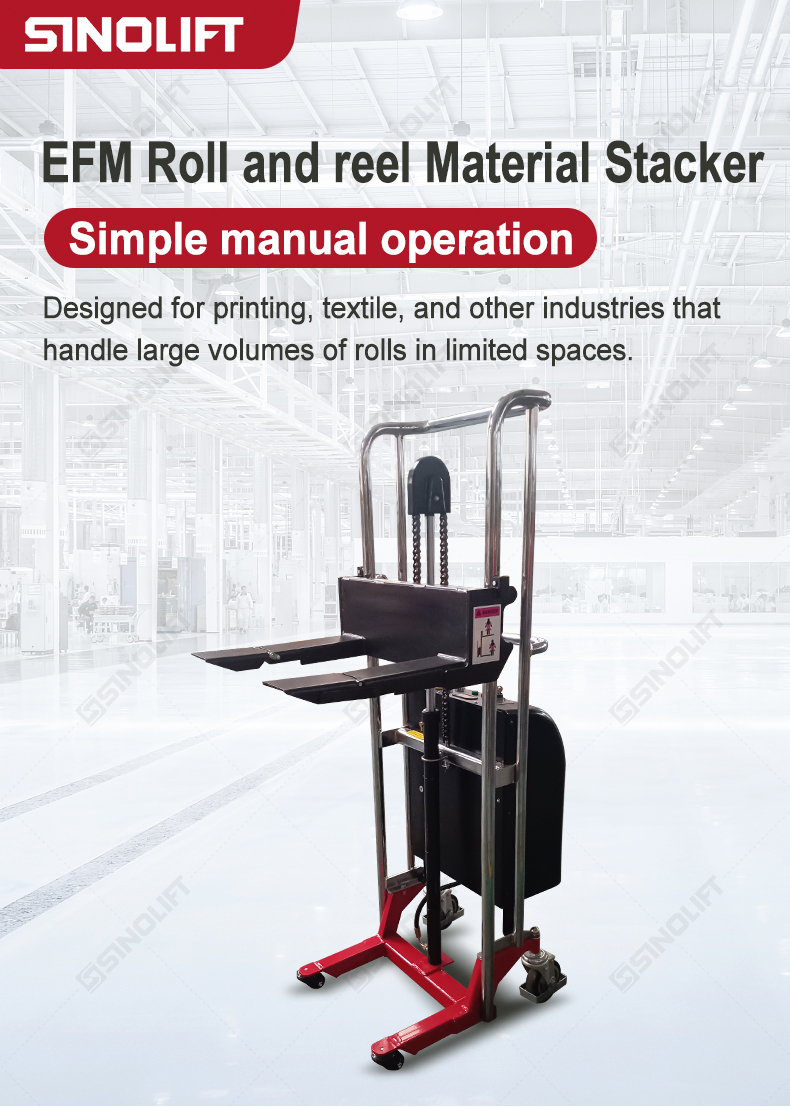

EFM Roll And Reel Material Stacker - Simple Manual Operation
Product Overview

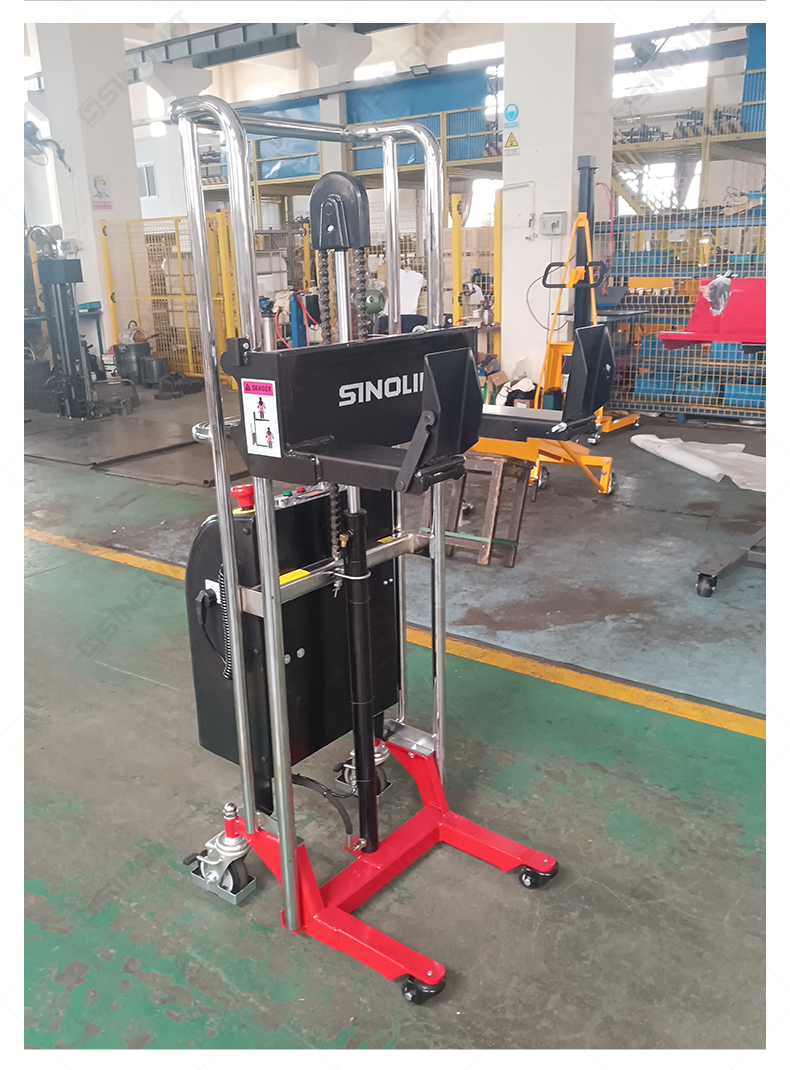

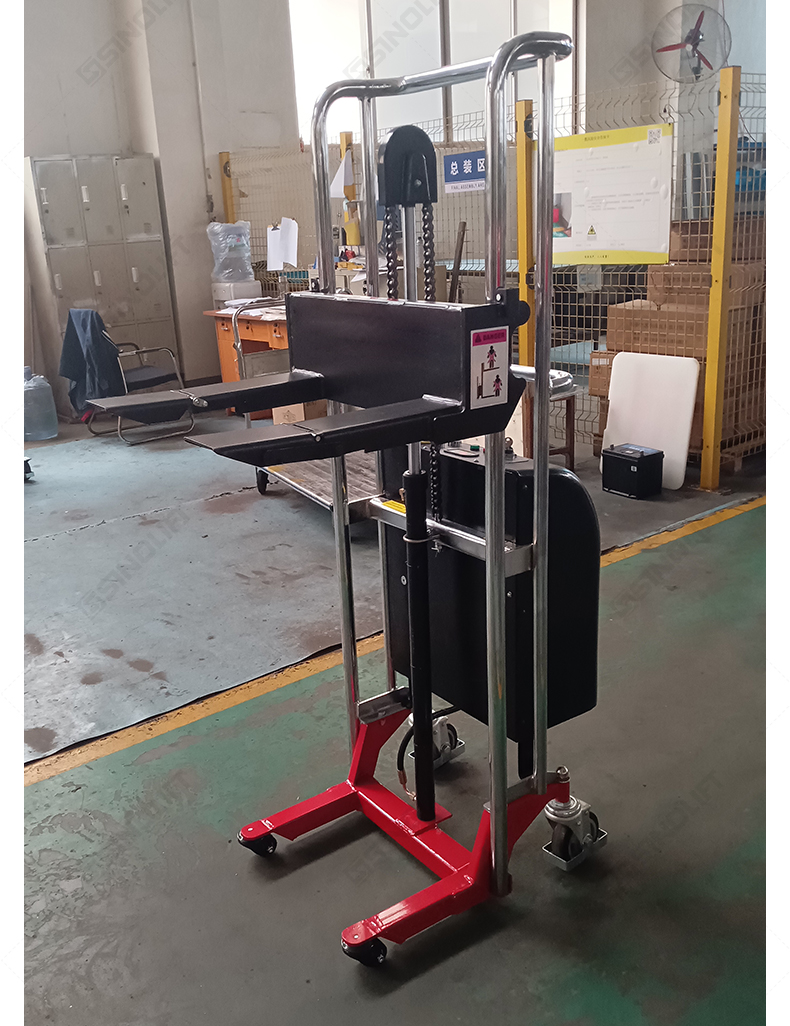

The SINOLIFT EFM Electric Roll Lifter is engineered to provide a powerful and user-friendly solution for the heavy-duty handling of large cylindrical materials. Its core design intent is to combine electric efficiency with ergonomic safety, empowering a single operator to perform precise loading, lifting, and transporting tasks with minimal physical strain. Built for demanding industrial environments, it focuses on enhancing productivity while ensuring operator safety and material protection.
Key Features & Design Highlights
Electric Efficiency & Control: Powered by a reliable electric lifting system for smooth, effortless operation controlled via up/down buttons, significantly reducing manual labor.

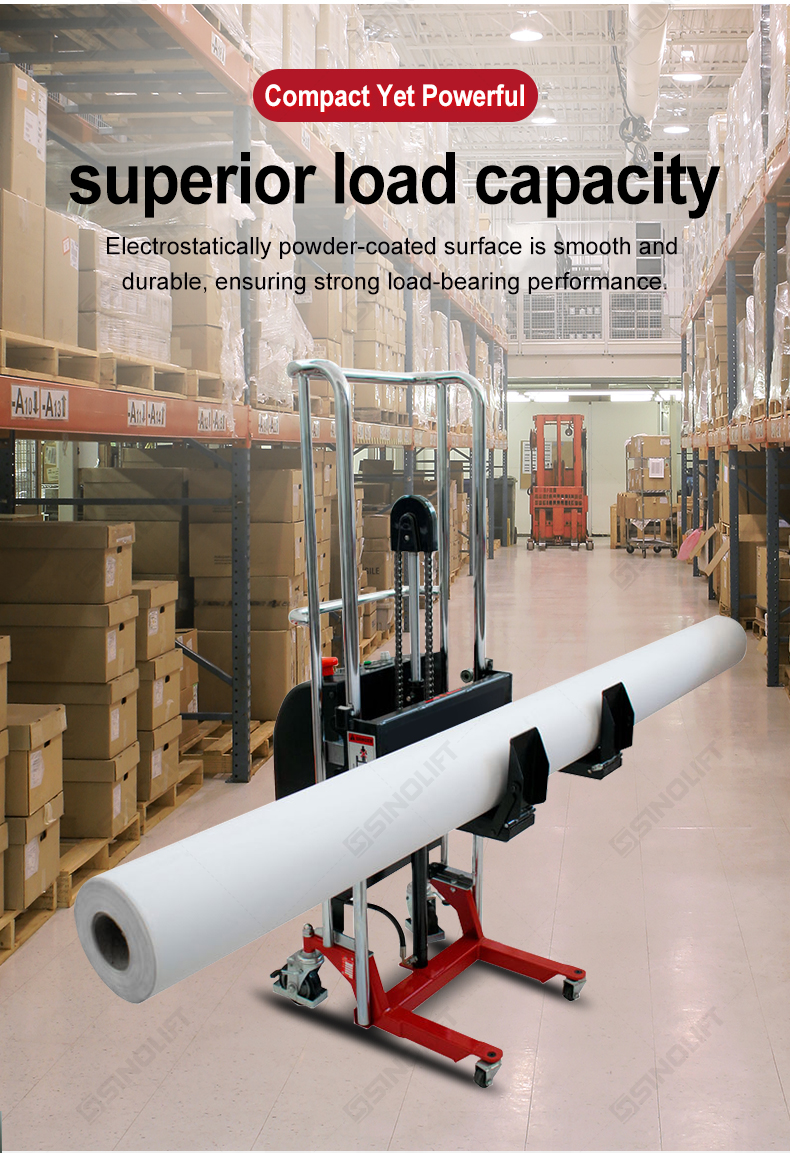

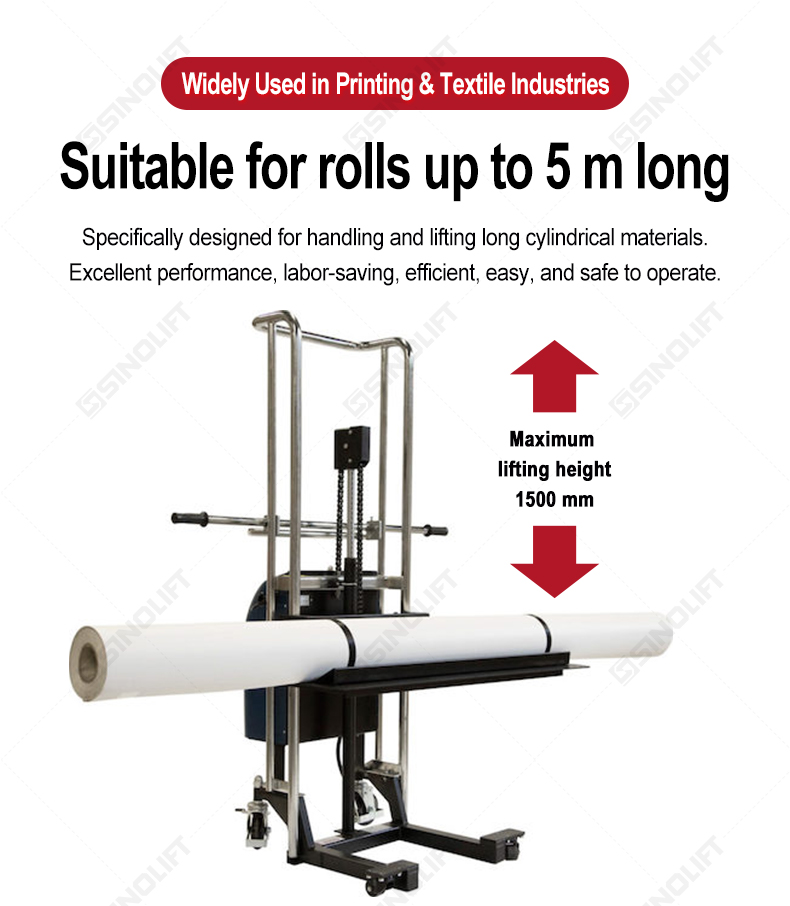

Robust Lifting Capacity: Features a strong chassis and reinforced components to safely handle heavy rolls up to 300 kg and 5 meters in length.

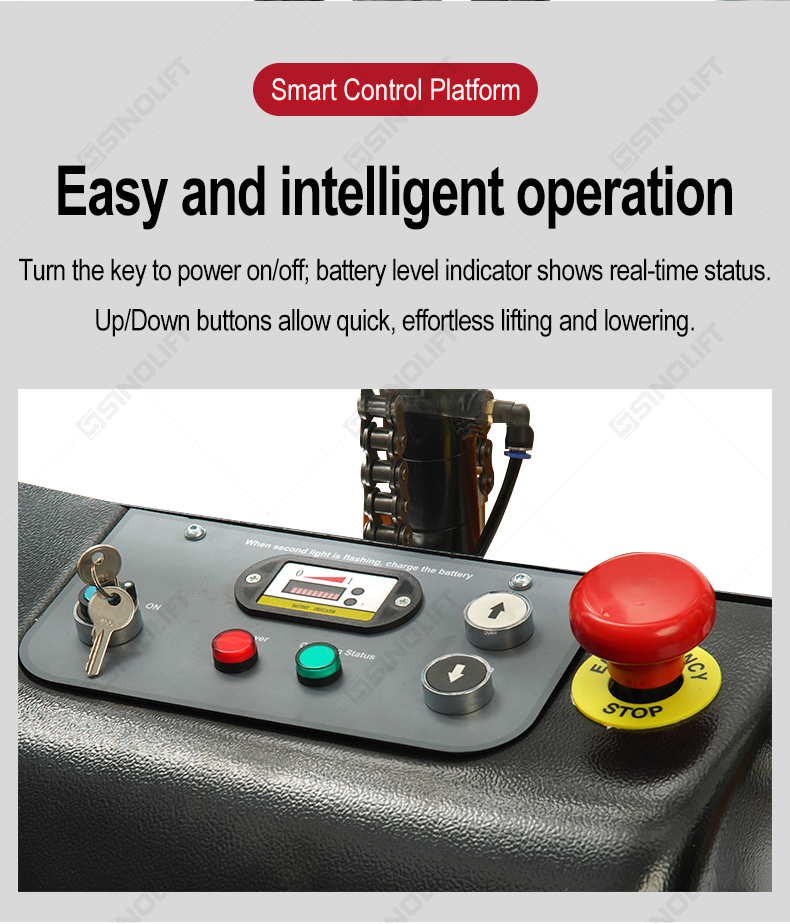

Intelligent Operation Platform: Equipped with a smart control panel for key start/stop, battery level indication, and intuitive lift controls.

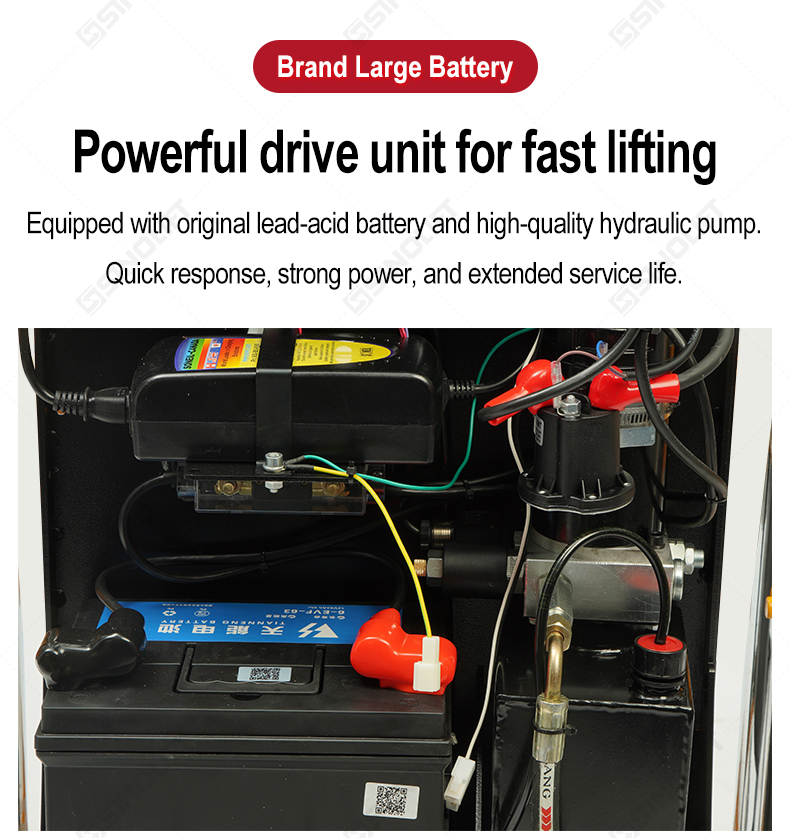

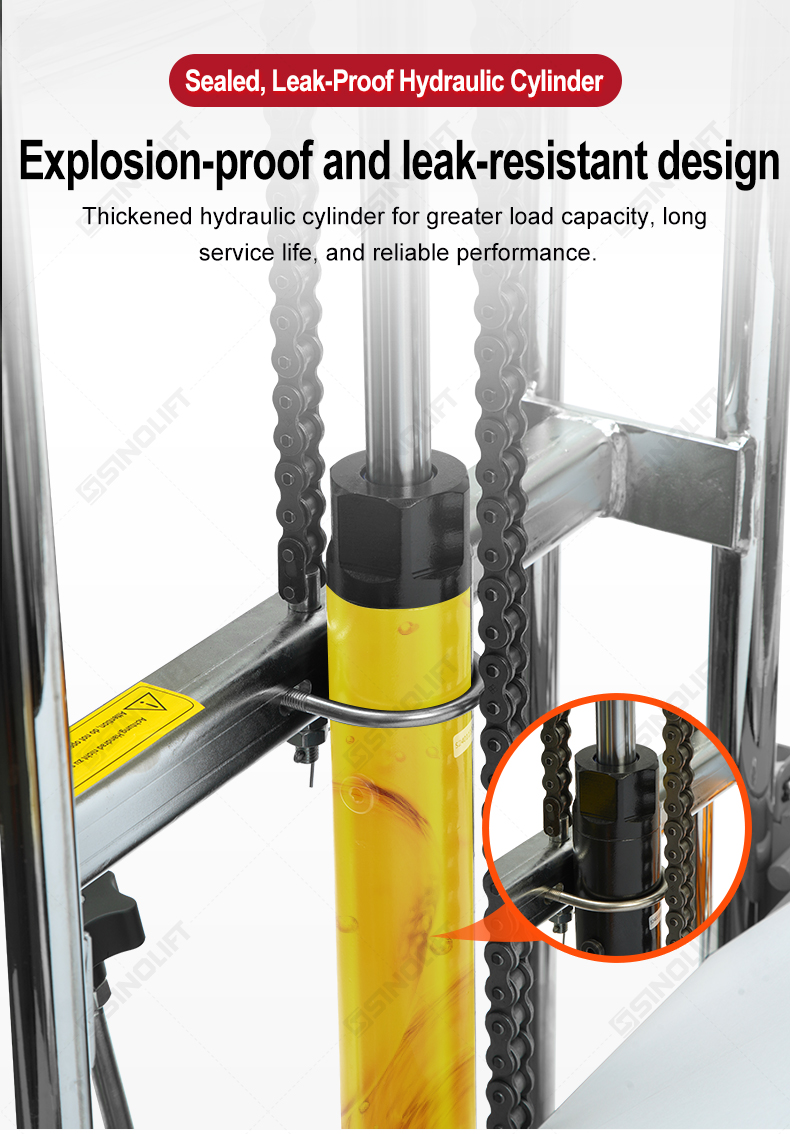

Superior Power & Durability: Integrated with a high-quality Tianneng lead-acid battery and hydraulic pump for responsive power, fast lifting, and extended service life.

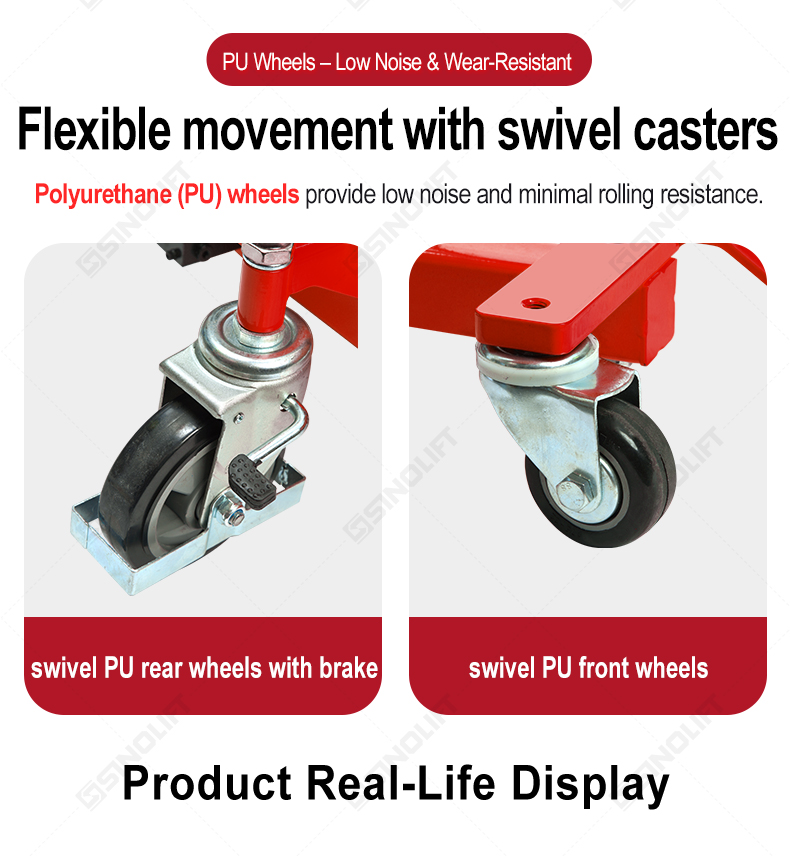

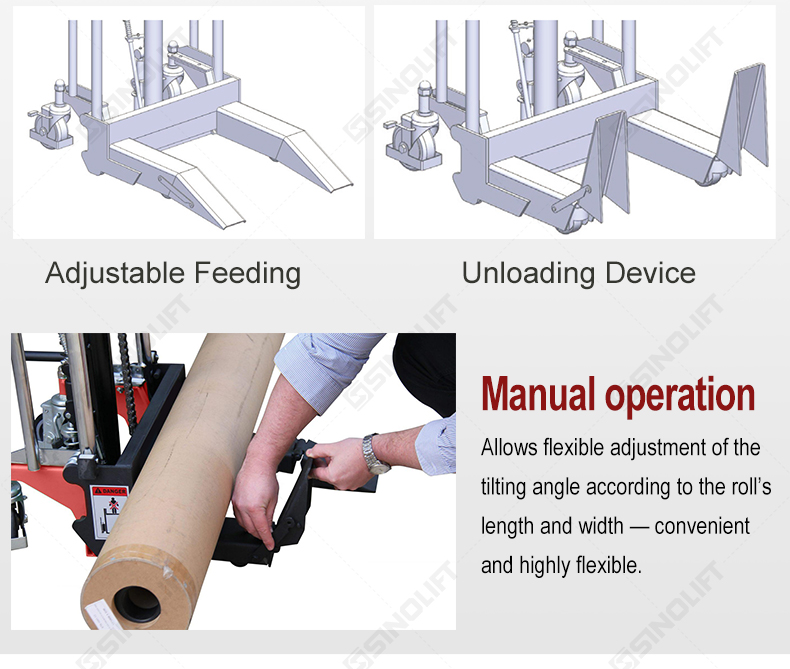

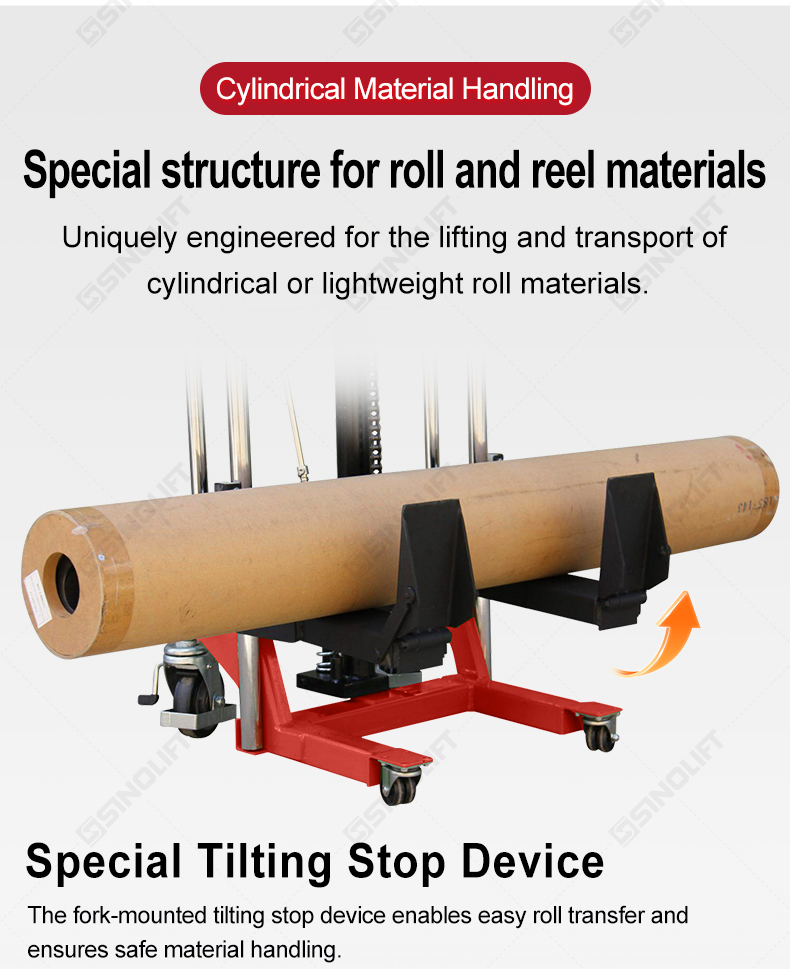

Enhanced Mobility & Safety: Fitted with low-noise, wear-resistant PU wheels and swivel casters for easy maneuverability in confined spaces, along with a secure tilting stop device for safe roll handling.
Primary Applications
The EFM Electric Lifter is the ideal solution for industries requiring frequent and efficient handling of heavy, bulky rolls:

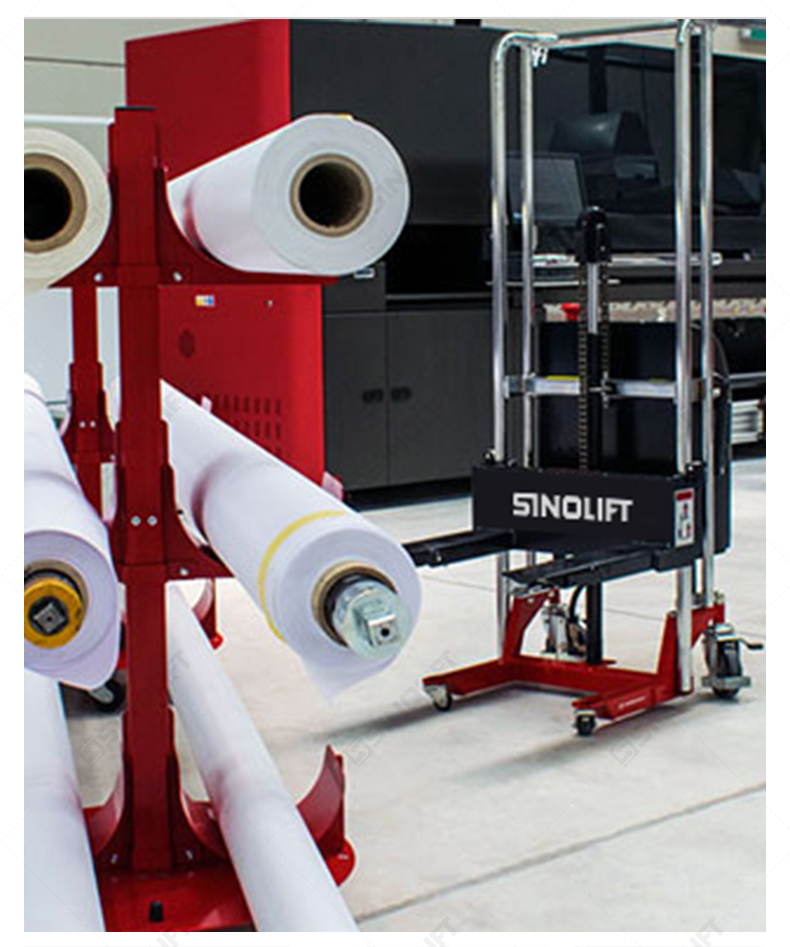

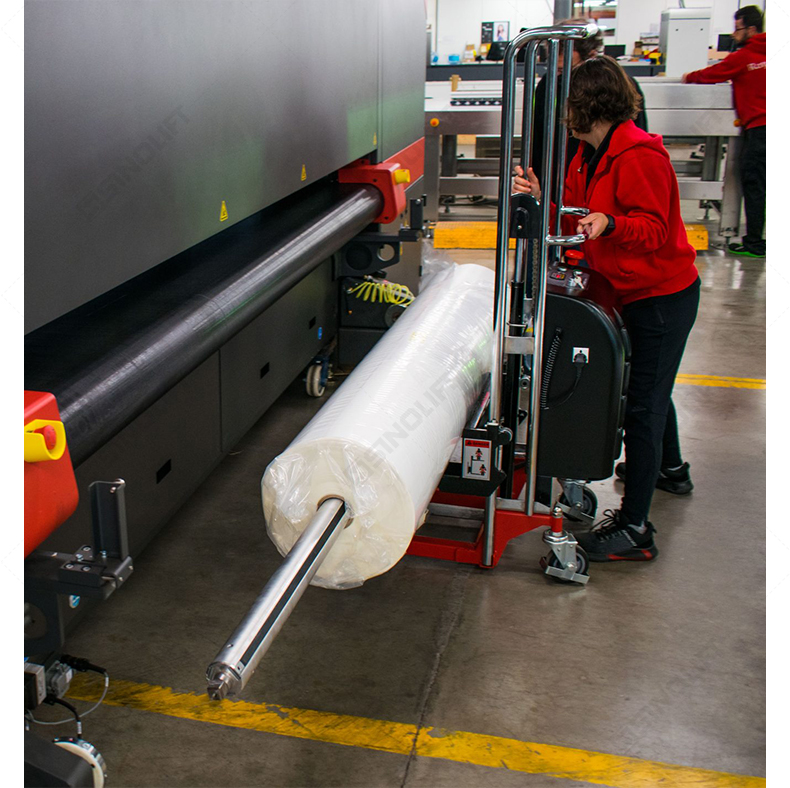

Printing Industry: For loading large paper rolls onto presses and handling finished print rolls.
Textile Manufacturing: For transporting heavy fabric rolls between production and storage areas.
Packaging & Converting: For moving large rolls of film, foil, or other flexible materials in production lines.
General Heavy Roll Handling: Any operation where ergonomic and electric-powered handling of long, heavy cylindrical materials is needed to improve safety and throughput.
| Model | EFM3013 | |
| Vendor Export Code | 61582 | |
| Roll Weight Capacity | kg (lbs) | 300 (660) |
| Lift Height | mm (inch) | 1300 (51") |
| Max. Roll Width | m (inch) | 5(16'5") |
| Max. Roll Diameter | mm (inch) | Ø305 (12") |
| Overall Media Lifter Dimensions (W x D x H) | mm | 610 x 810 x1610 |
| inch | 24"x 31.9"x 63.4" | |
| Media Lifter Weight | kg (lbs) | 107 (235) |
| Bottom Fork Clearance | mm (inch) | 75/3" |
| Front Swivel Casters | mm (inch) | Ø50(2") |
| Rear Swivel Casters | mm (inch) | Ø125(5") |
| Battery | V/Ah | 12/60 |
| Charger | V/Ah | 12/10 |
