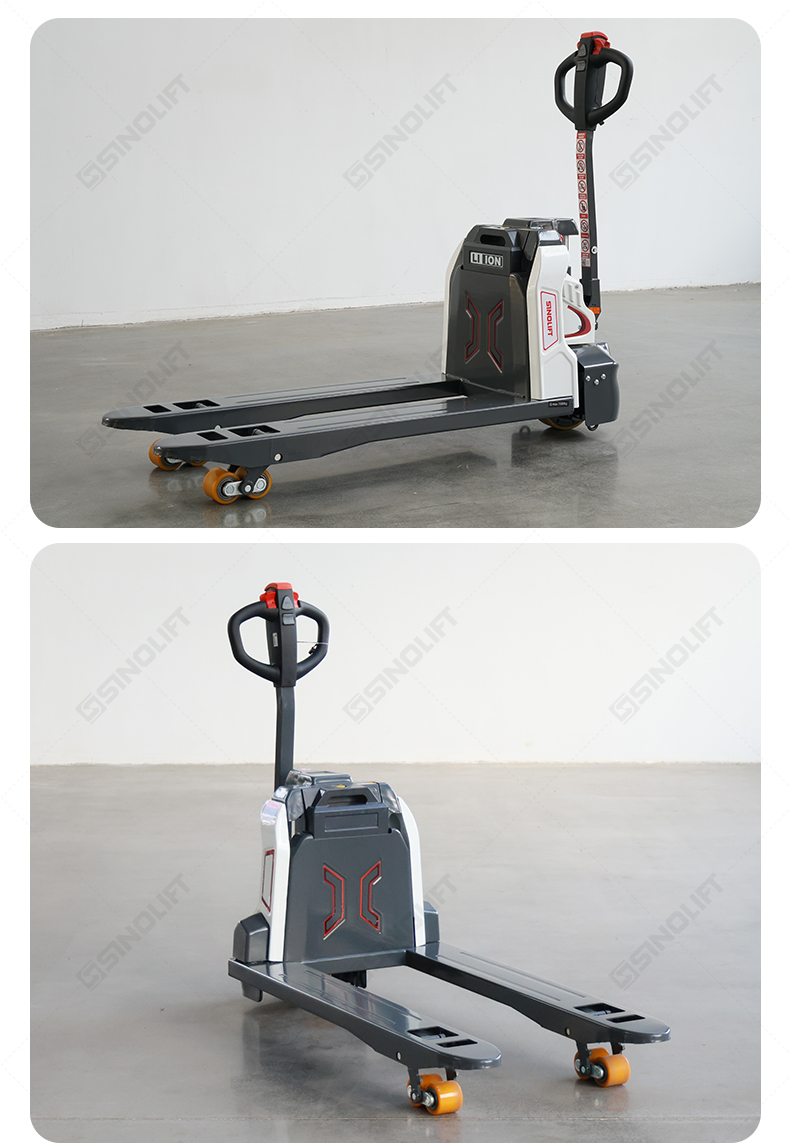

EPT15V lithium-ion electric pallet truck with 900W motor for warehouse material handling

EPT15V EPT20V Li-Ion Electric Pallet Truck

EPT15V EPT20V

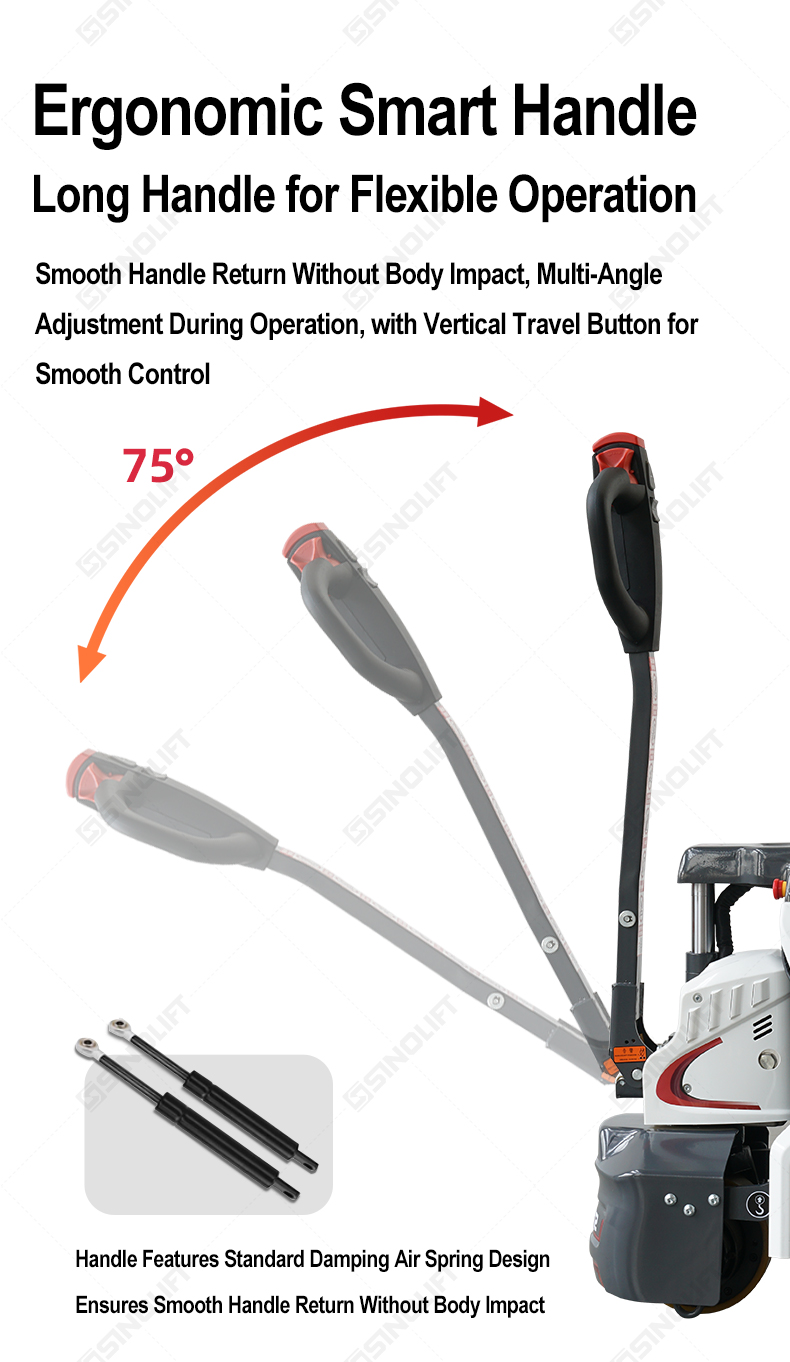

The EPT15V Li-Ion Electric Pallet Truck is designed for heavy-duty material handling in warehouses, loading docks, and delivery environments. Featuring a 900W high-power motor, 4mm reinforced steel frame, and military-grade forks, it ensures stable 1.5-ton capacity with 6% gradeability when loaded. The ergonomic smart handle, 3-second battery swap, and compact 1380mm turning radius boost efficiency in tight spaces, while ABS waterproof housing and PU wheels guarantee durability on marble or painted floors.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

EPT15V/20V Lithium-ion Electric Pallet Truck - Product Overview

Industrial-Grade Heavy-Duty Handling Solution
Designed for demanding material transportation, the EPT15V/20V combines robust performance, intelligent control, and extended operation for warehousing, manufacturing, and loading dock applications.

Key Features:

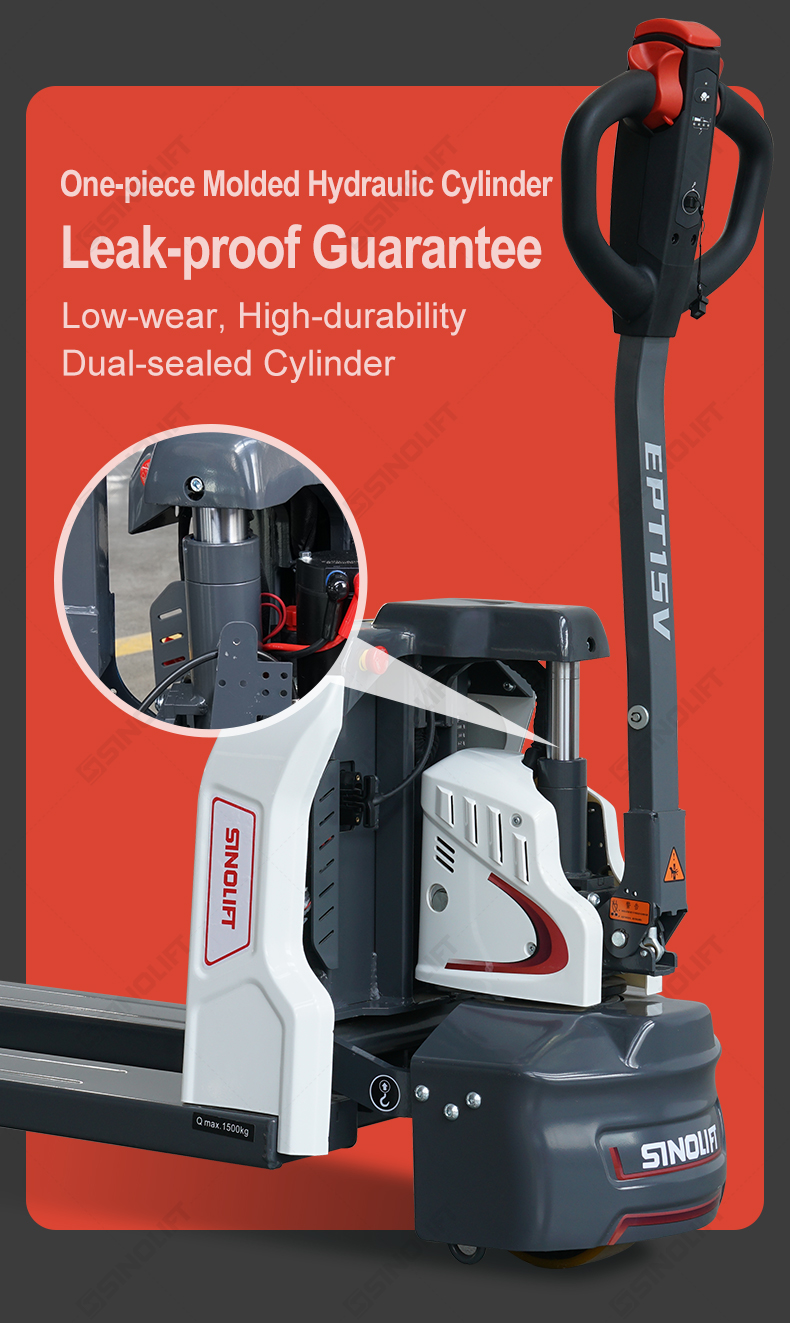

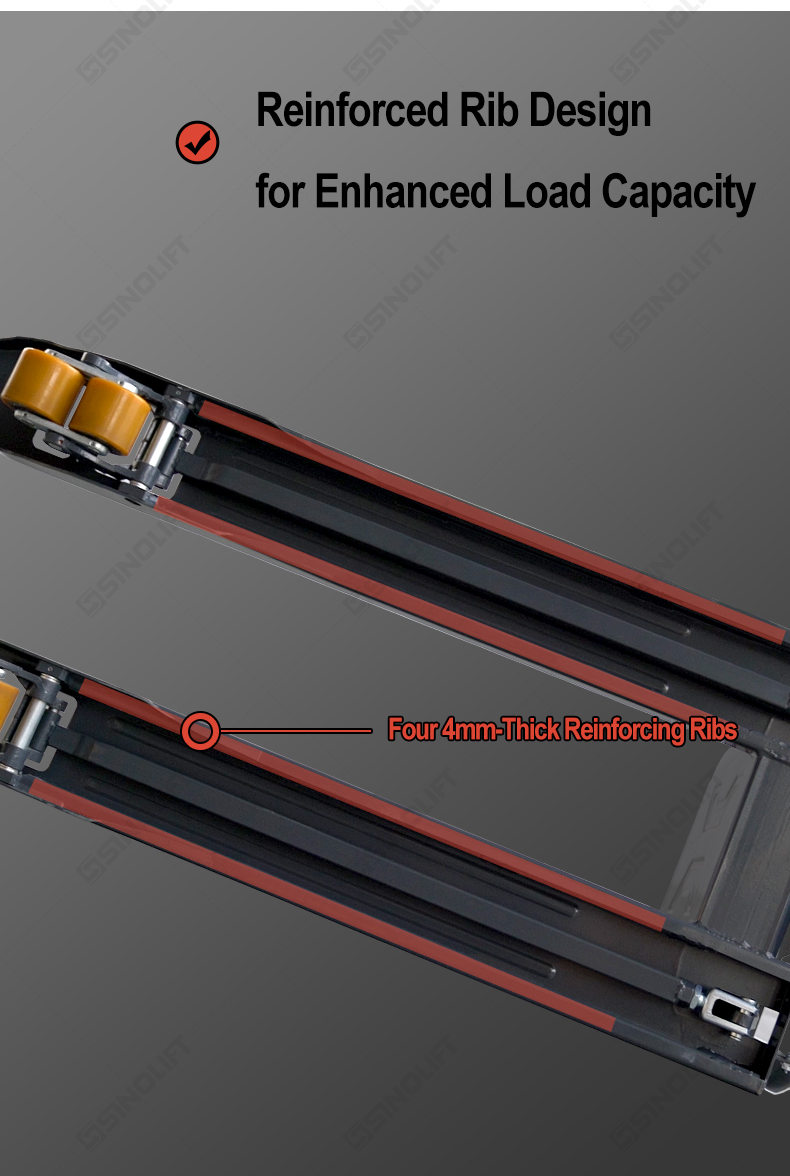

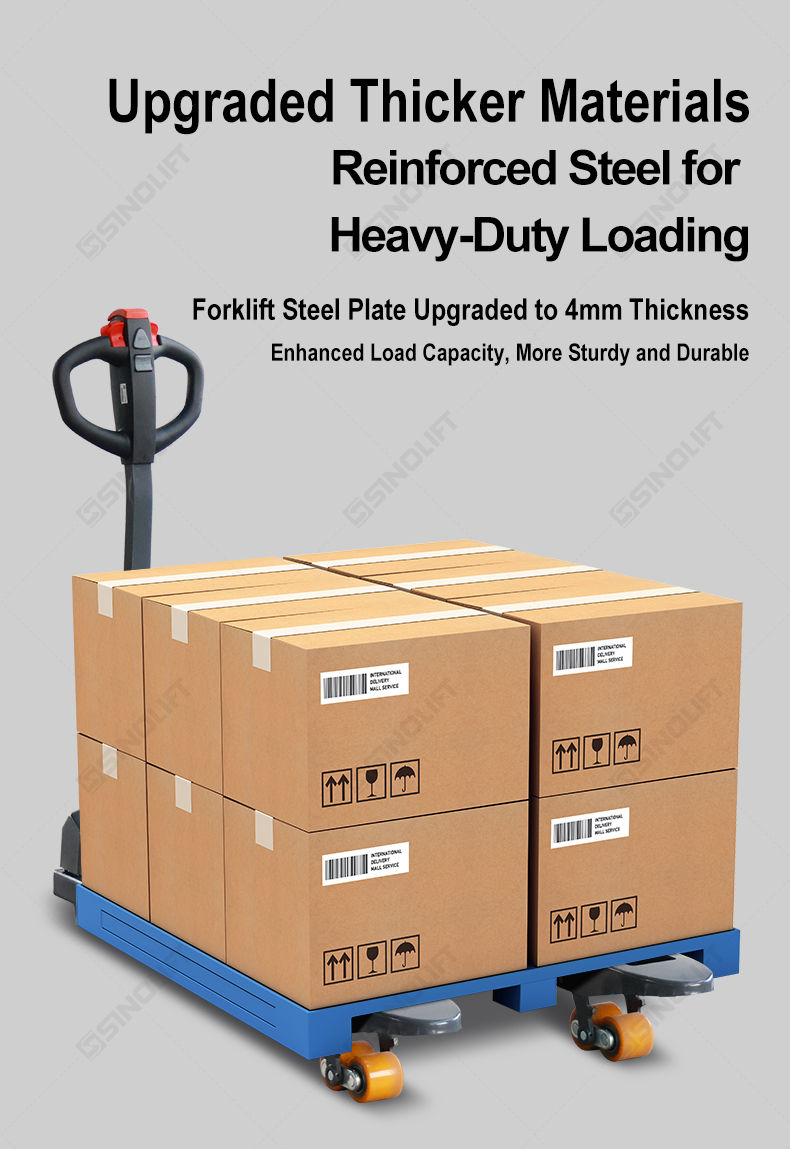

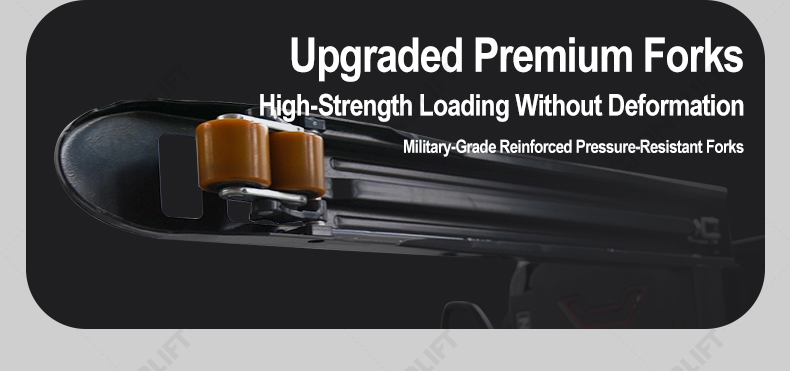

•  Military-Grade Structure: 4mm reinforced steel frame + one-piece hydraulic cylinder, 2-3T load capacity, leak-proof design

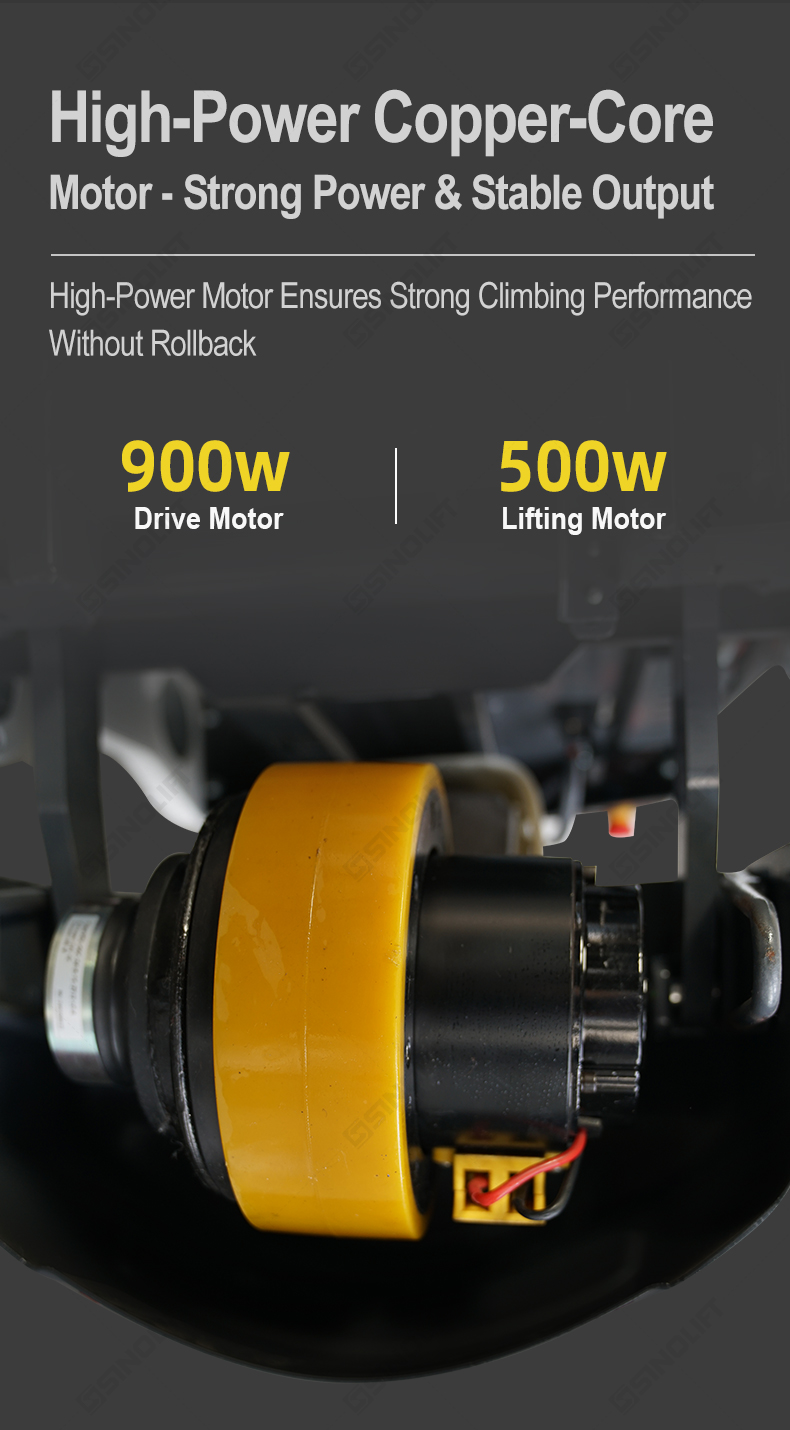

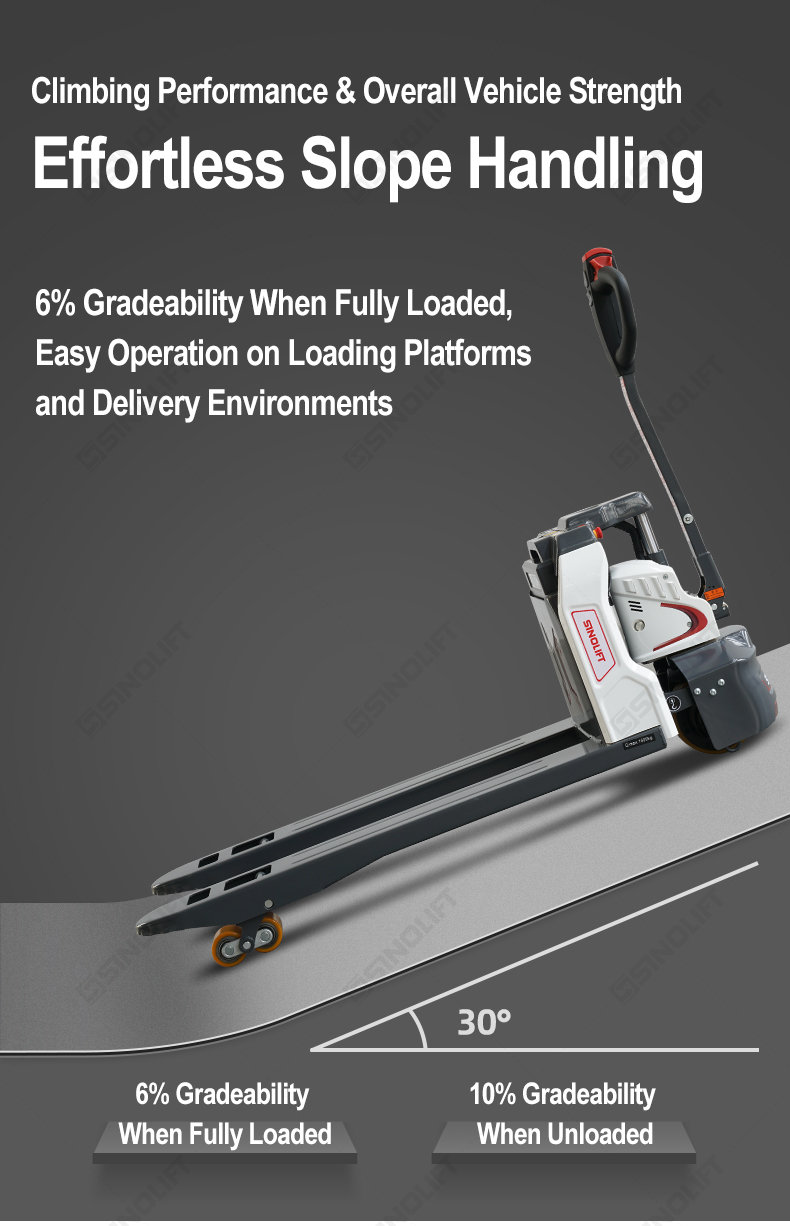

•  Exceptional Power: 900W copper-core motor + 6% loaded gradeability, zero rollback on slopes

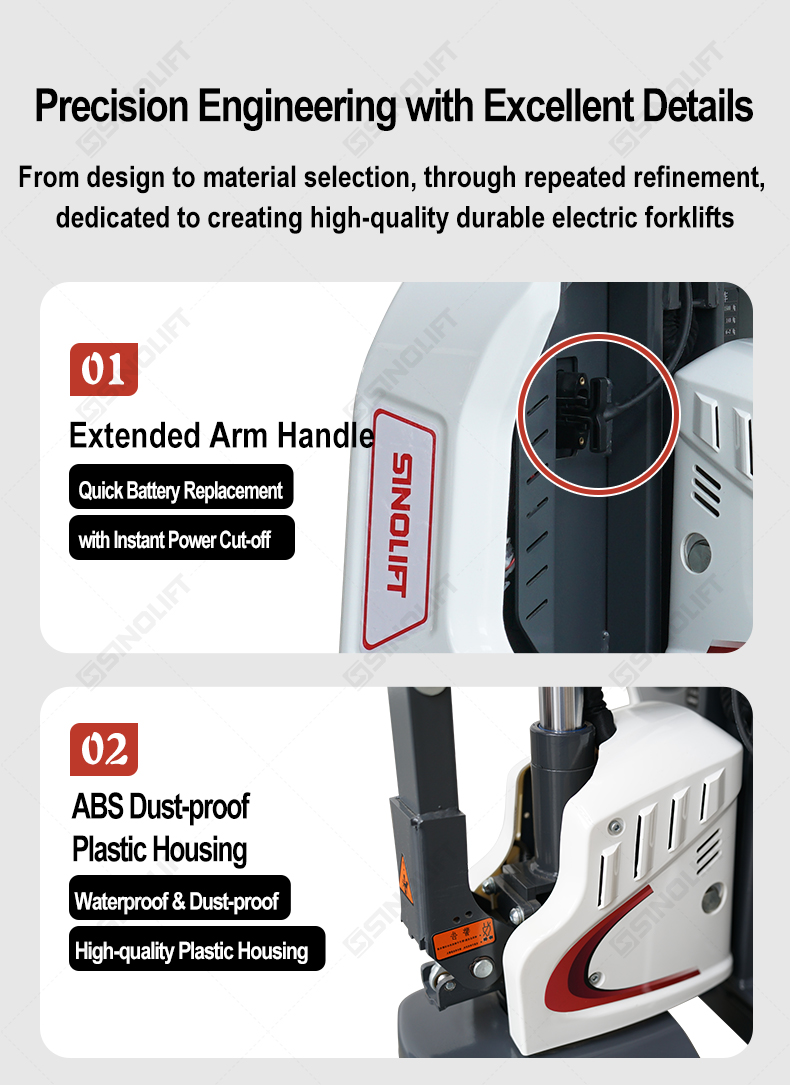

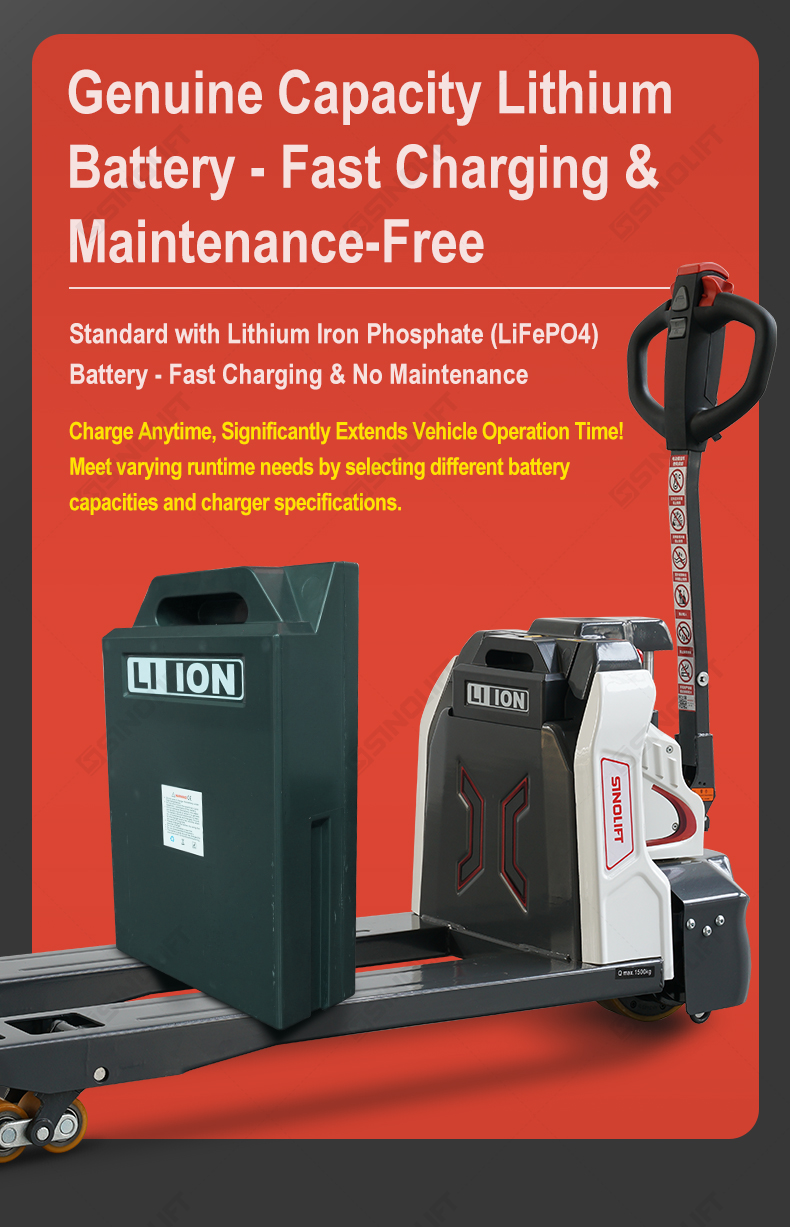

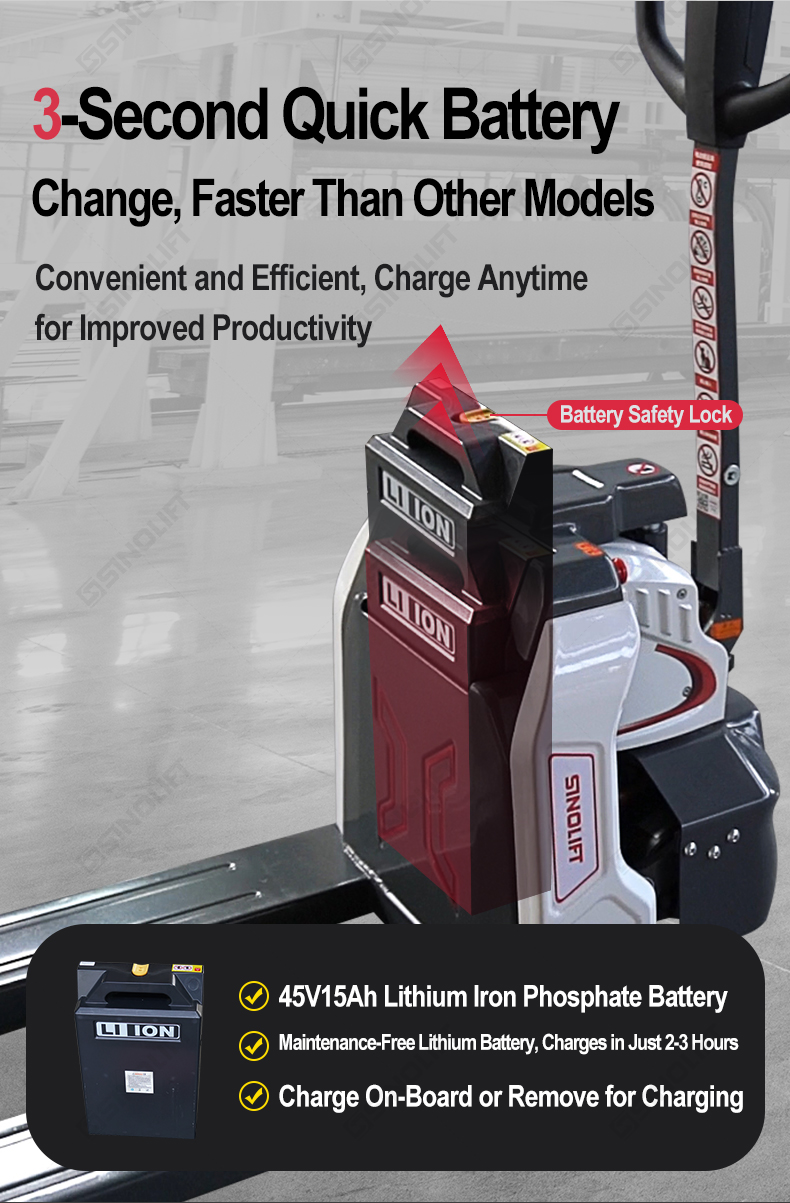

•  Rapid Battery Swap: 3-second change with 45V high-capacity LiFePO4 battery, supports opportunistic charging

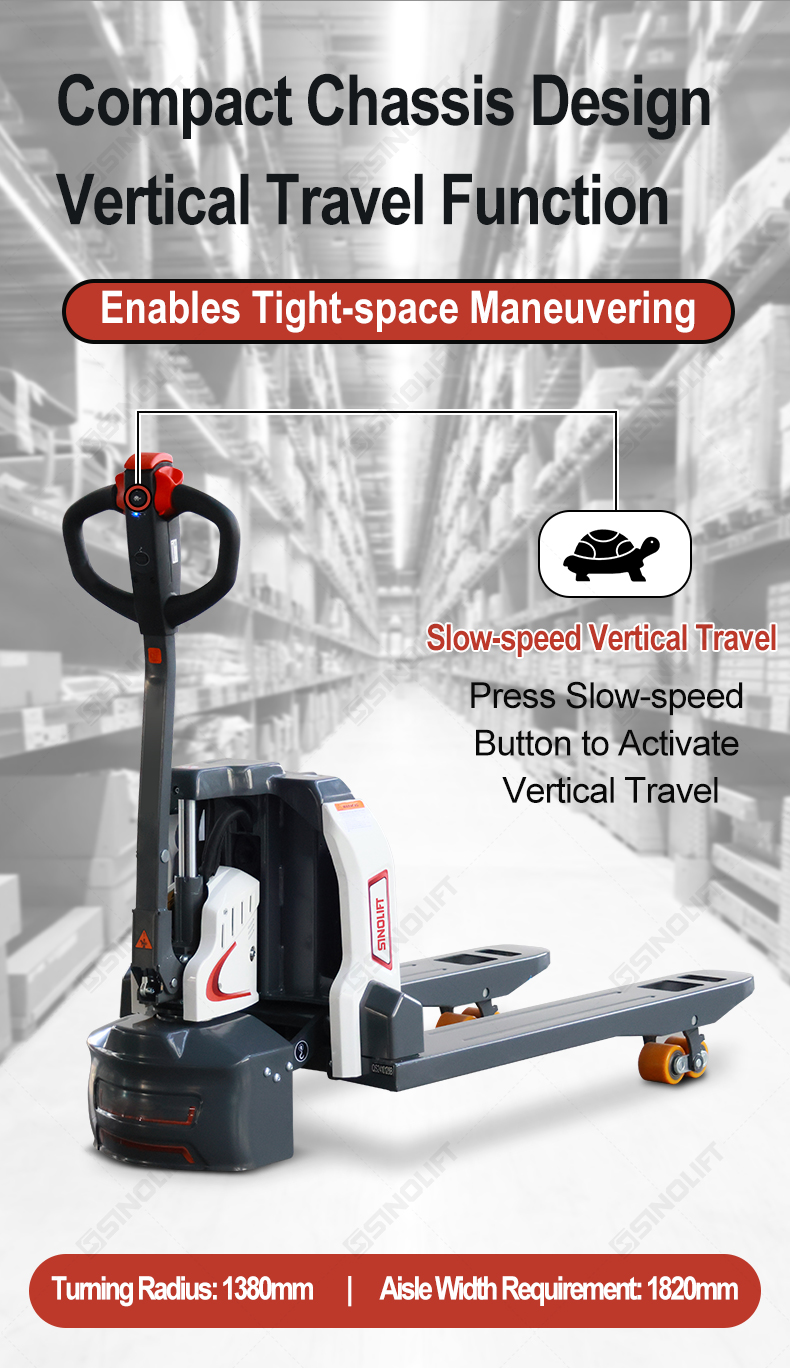

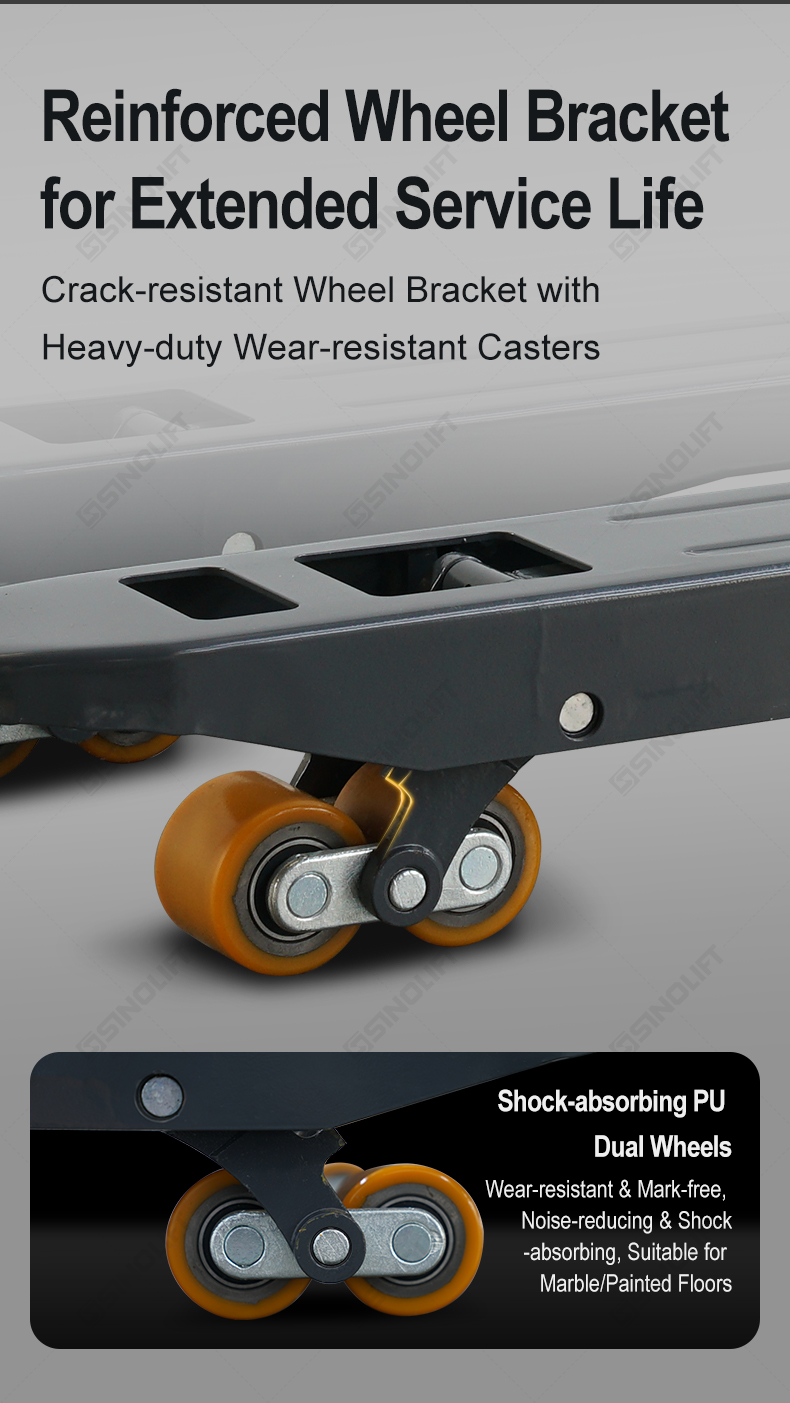

•  Precision Maneuvering: 1380mm ultra-tight turning radius + shock-absorbing PU wheels for confined space operation

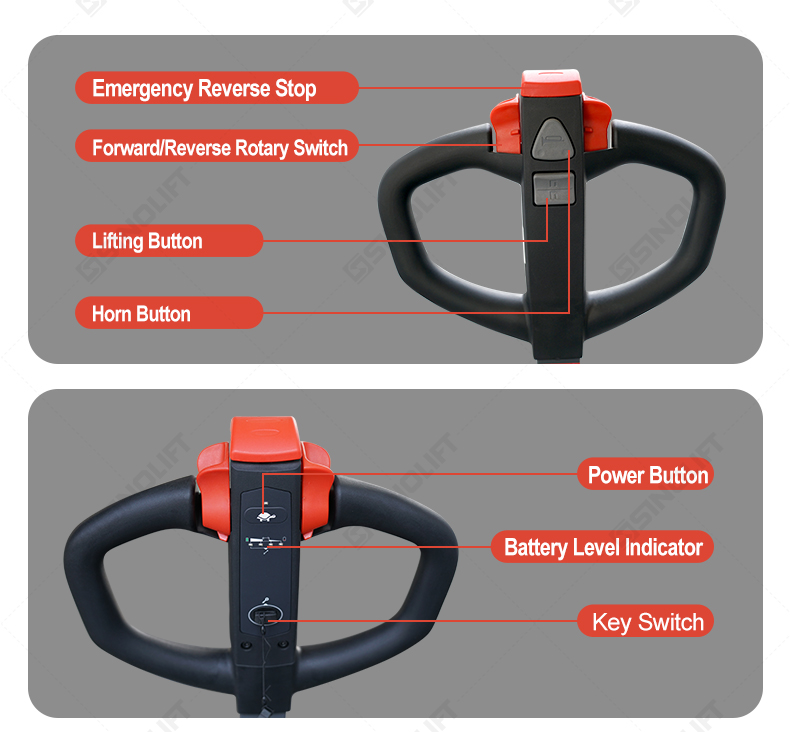

•  Smart Safety System: Emergency reverse brake + real-time battery indicator for secure and worry-free handling

Ideal Applications:
► Pallet transport in logistics warehouses
► Production line material feeding
► Loading platform cargo lifting
► Heavy shelf replenishment in supermarkets/cold storage

Model		EPT15V	EPT20V
Drive Type		Electric
Operation Mode		Walk-behind
Rated Load Capacity	kg	1500	2000
Load Center	mm	600
Front Overhang	mm	950
Wheelbase	mm	1270
Self-weight (with battery)	kg	142	145
Drive Wheel Size	mm	Mechanical Steering
Load Wheel Size	mm	180×70
Wheel Quantity (Front/Rear, X=Drive)	-	1X/4
Wheel Track (Load end)	mm	390/525
Lifting Height	mm	195
Handle Min/Max Height	mm	Mechanical Steering
Fork Lowest Height	mm	85
Overall Length	mm	1620
Underbody Length	mm	470
Overall Width	mm	550/685
Fork Dimensions	mm	50/160/1150
Fork Outside Width	mm	550/685
Ground Clearance at Wheelbase Center	mm	35
Aisle Width (1000×1200 pallet)	mm	1820
Aisle Width (800×1200 pallet)	mm	1870
Turning Radius	mm	1380
Travel Speed (Loaded/Unloaded)	km/h	4.2/4.5
Max Gradeability (Loaded/Unloaded)	%	6/10
Drive Motor Power	kW	0.75	0.9
Lift Motor Power	kW	0.5	0.5
Battery Voltage/Capacity	V/Ah	24/20	48/15
Battery Weight (±5%)	kg	5.5
Noise Level	dB(A)	≤70
Steering Type		Mechanical Steering
