EPT20-15ET Smooth Acceleration and Seamless Directional Control Electric Pallet Truck

EPT20-15ET Smooth Acceleration and Seamless Directional Control Electric Pallet Truck

EPT20-15ET
Quantity:
Contact Now
add to cart
All Products

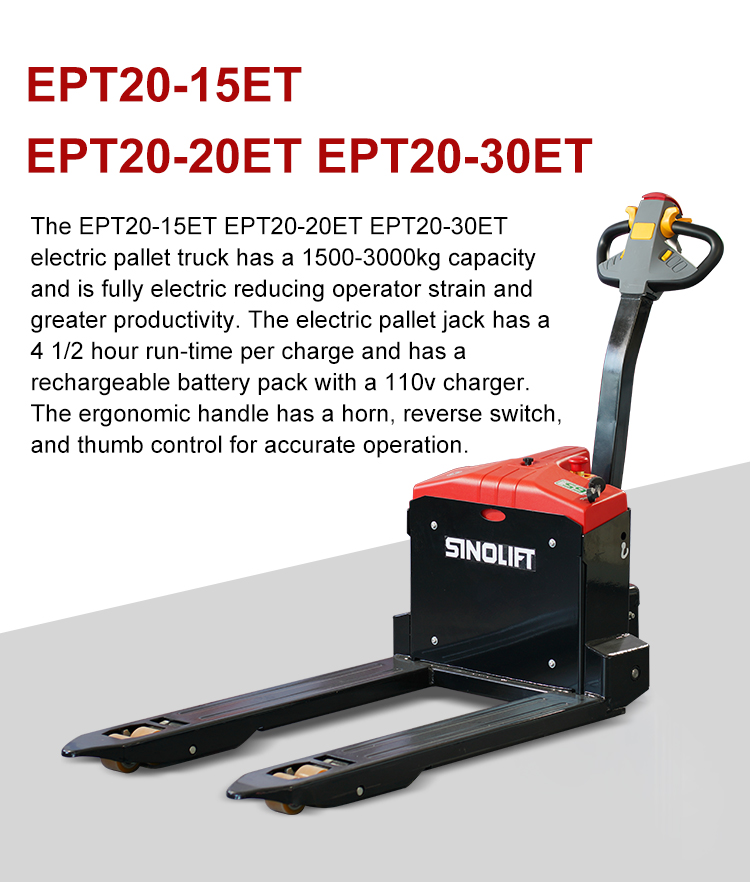

The EPT20-15ET EPT20-20ET EPT20-30ET electric pallet truck has a 1500-3,000kg capacity and is fully electric reducing operator strain and greater productivity. The electric pallet jack has a 4 1/2 hour run-time per charge and has a rechargeable battery pack with a 110v charger. The ergonomic handle has a horn, reverse switch, and thumb control for accurate operation.

FEATURES:

1. Creep speed

 The SINOLIFT Creep speed feature allows the truck to maneuver in confined areas with the tiller in an upright position, normally one of the braking zones. By activating the Creep speed button, easily accessible by either hand, a top speed of 1.5 km/h is set for the truck. The operator can then freely operate and easily maneuver the truck on a tail-lift while loading or unloading.

2. Power and Performance

Curtis solid state controllers provide smooth acceleration and seamless directional control. Its Regenerative Braking feature adds energy back to the battery to improve efficiency.

With AC Power, you will benefit from faster acceleration, more torque, higher efficiency, and lower maintenance costs due to the brush-less design.

3. Long tiller & low mounting

A long tiller arm with a low mounting point ensures a large safety clearance between operator and chassis, as well as providing light steering for sharp corners.

Robust construction

Our heavy duty construction utilizes thick plastic and a metal top cover, ensuring minimal damage, thus lowering lifetime costs. This low total cost of ownership makes our warehouse range perfect for even the toughest applications.

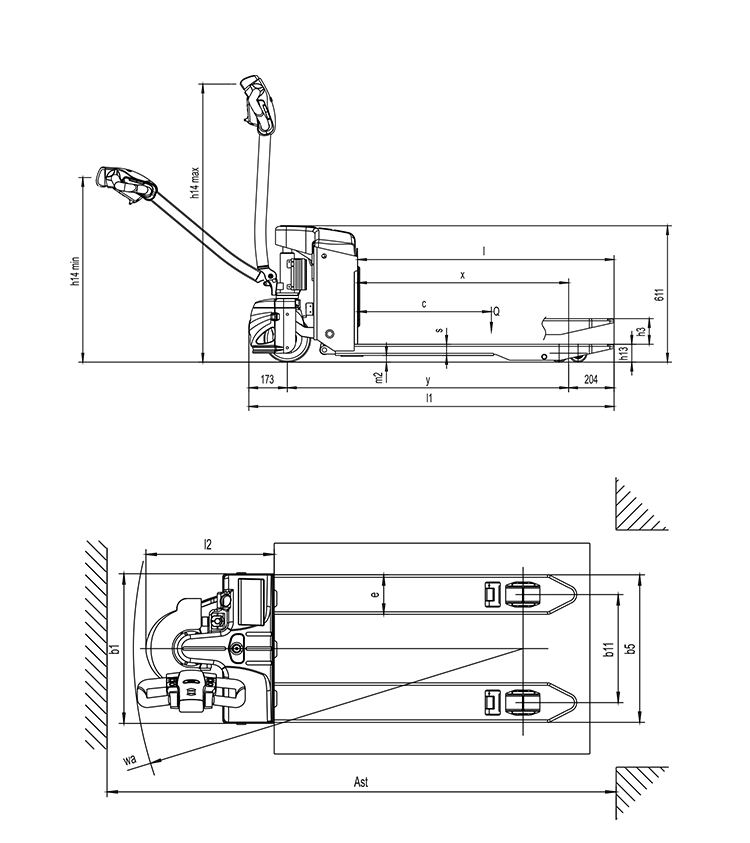

ModelEPT20-15ET
Fork widthmm560/685
Fork lengthmm1150
Minimum fork   heightmm85
Maxmum fork   heightmm200
Turning   radiusmm1460
Load Centermm600
Pump stations24V/0.8KW
Drive motor24V/0.75KW
Battery2*12V/65AH
Weight(without   battery)kg220(170)
Total   length(pedal down)mm1620
Overall widthmm560/685
Total heightmm1174
