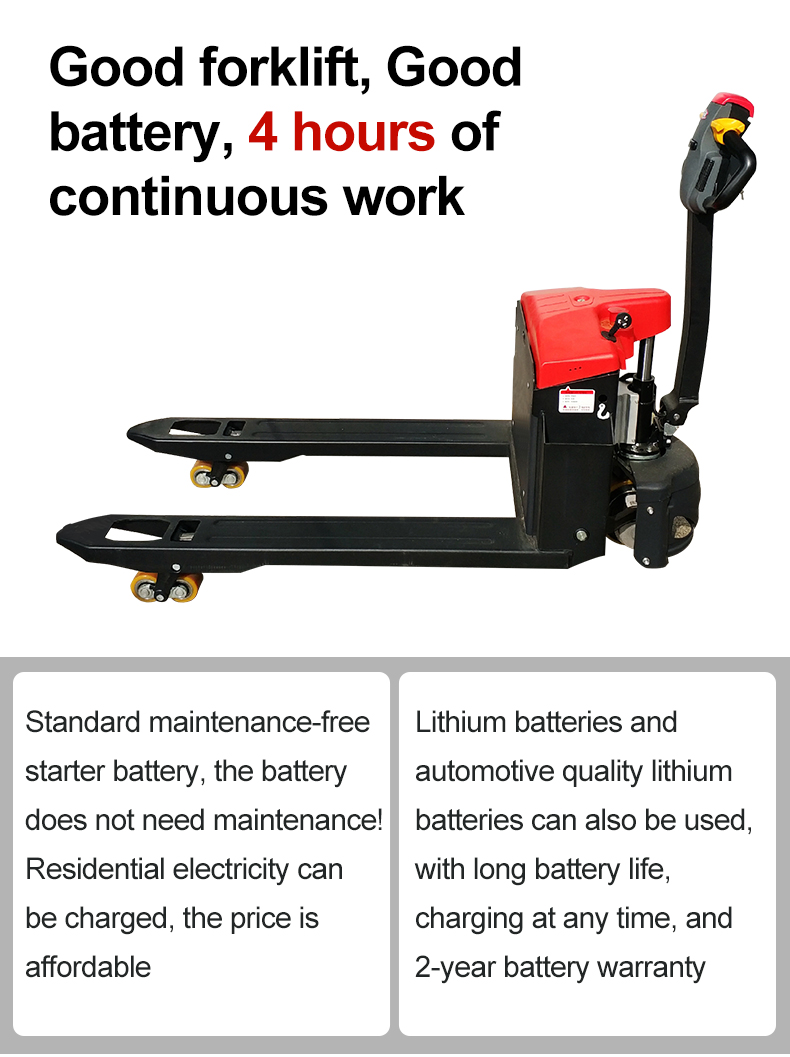

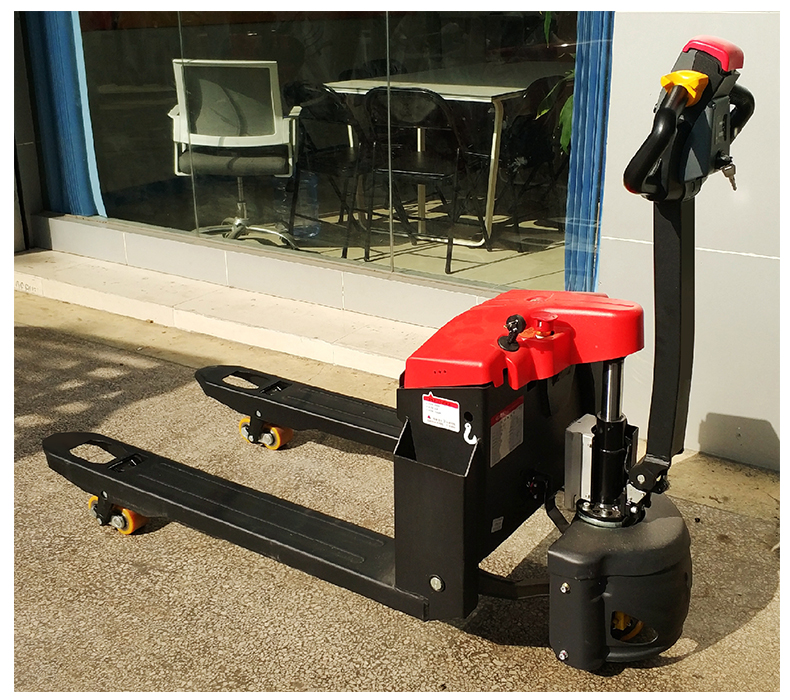

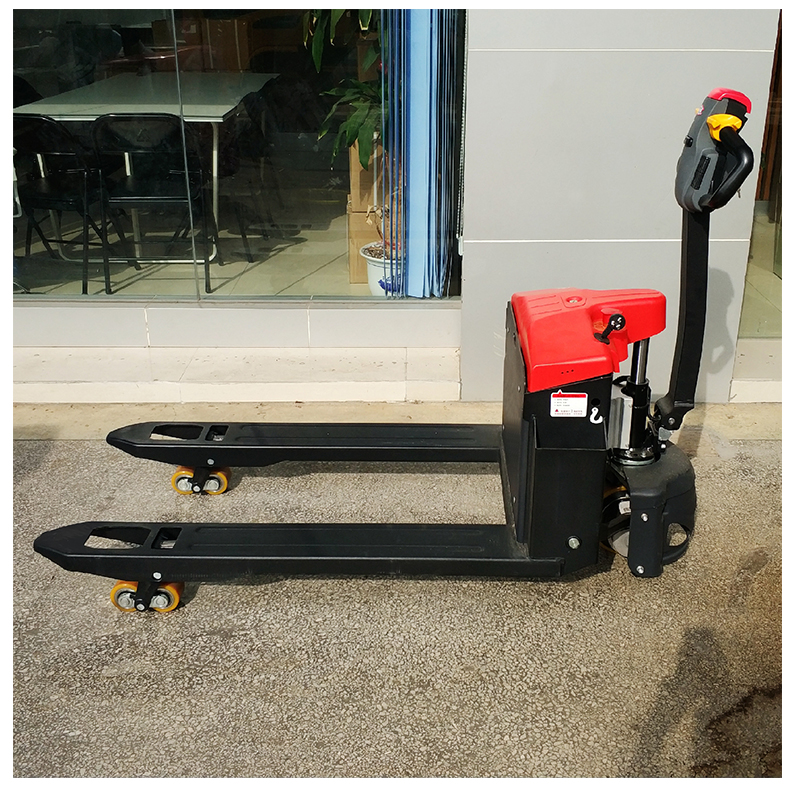

EPT20-15ET2L Lithium Battery Operated Pallet Jack

EPT20-15ET2L Lithium Battery Operated Pallet Jack

EPT20-15ET2L
Quantity:
Contact Now
add to cart
All Products

FEATURE

Low-voltage Protection Function Upgrade

Red indicator means that the truck is working normally.

Maintenance Convenience Improvement

Truck fault can be detected directly by the multi-meter, which can greatly improve the after-sales service.

Kits Versatility Upgrade

The controller and accelerator can be applied to both lead-acid version and li-ion version of EPT20-15ET2L.

Battery Fault Alarm Function Improvement

In case of battery failure, it can be directly judged according to the number and frequency of indicator light flashing.

ManufacturerEP
Model   designationEPT20-15ET2L
DriveElectric
Operator   typePedestrian
Load   capacityQkg1500
Load   center distancecmm600
Load   distance，centre of drive axle to forkxmm883/946
Wheelbaseymm1202/1261
Service   weightkg163
Axle   loading, laden front/rearkg534/1127
Axle   loading, unladen front/rearkg122/39
Tyre   typePolyurethane
Tyre   size, frontmmФ210x70
Tyre   size, rearmmФ80x61
Tread   width, rearb11mm410（535）
Lift   heighth3mm115
Height   of tiller handle in drive position min./max.h14mm750/1170

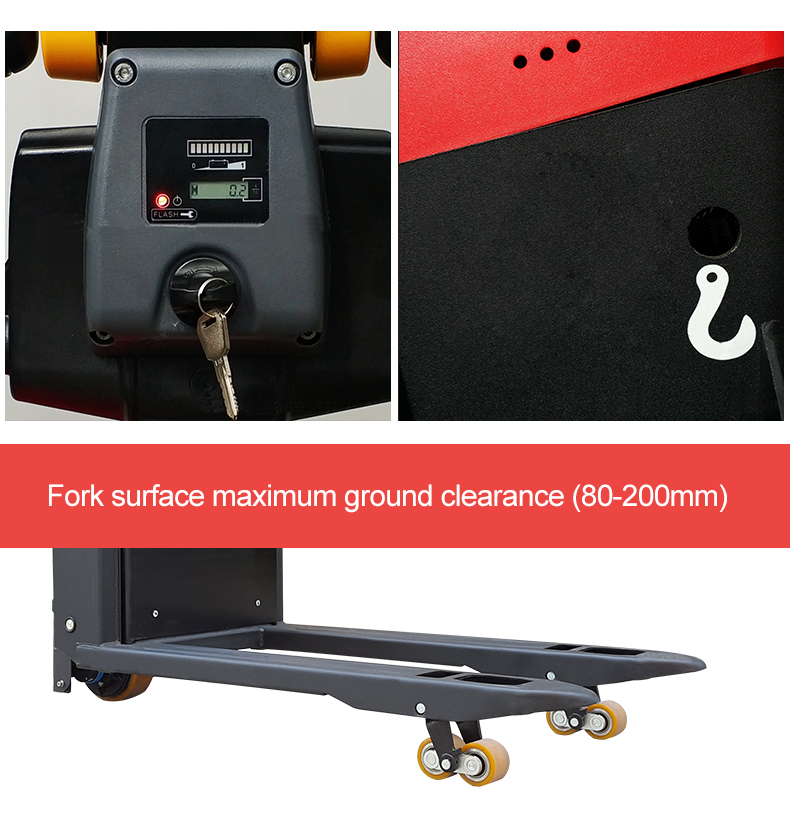

Lowered   heighth13mm80
Overall   lengthl1mm1638
Length   to face of forksl2mm488
Overall   widthb1/b2mm560（685）
Fork   dimensionss/e/lmm50/150/1150
Distance   between fork-armsb5mm560（685）
Ground   clearance, center of wheelbasem2mm30
Aisle   width for pallets 1000×1200 crosswaysAstmm2280
Aisle   width for pallets 800×1200 crosswaysAstmm2150
Turning   radiusWamm1475
Travel   speed, laden/unladenkm/h4.5/5
Lifting   speed, laden/unladenm/s0.027/0.038
Lowering   speed, laden/unladenm/s0.059/0.039
Service   brakeElectromagnetic
Drive   motor rating S2 60 minkW0.75
Lift   motor rating at S3 15%kW0.84
Battery   voltage/nominal capacityV/Ah24/50
Battery   weightkg11.5x1
Type of   drive controlDC
Steering   designMechanical
Sound   pressure level at the driver's eardB(A)74
