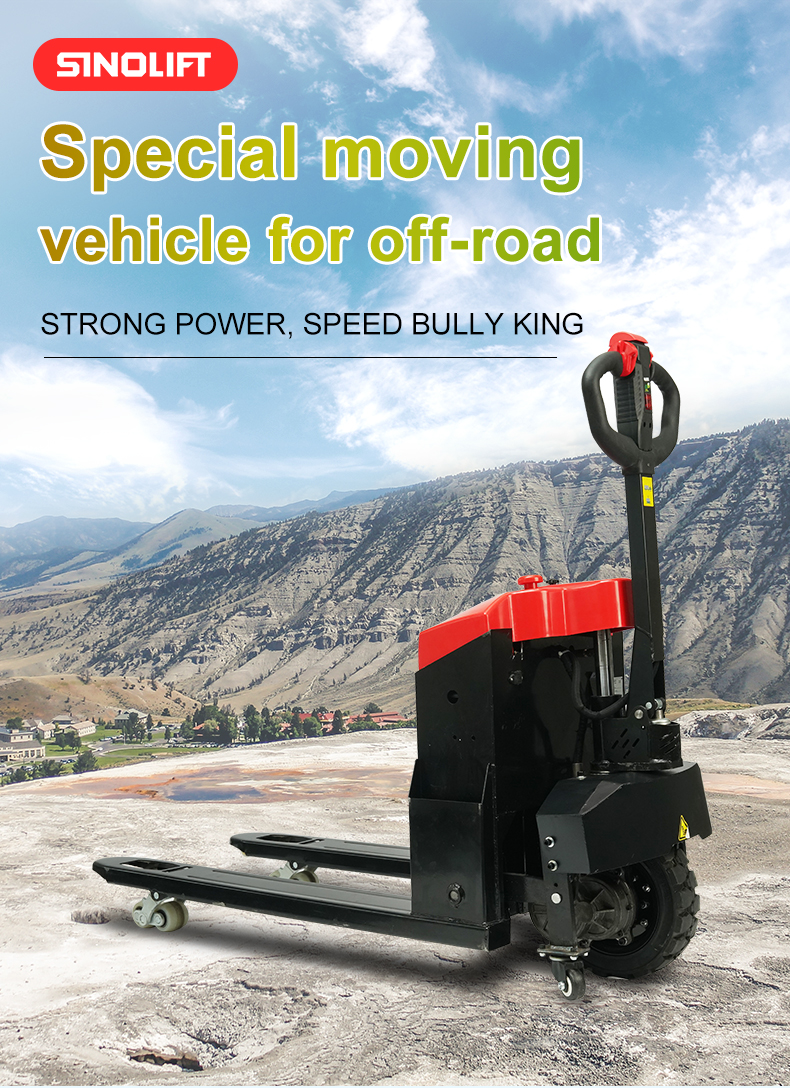

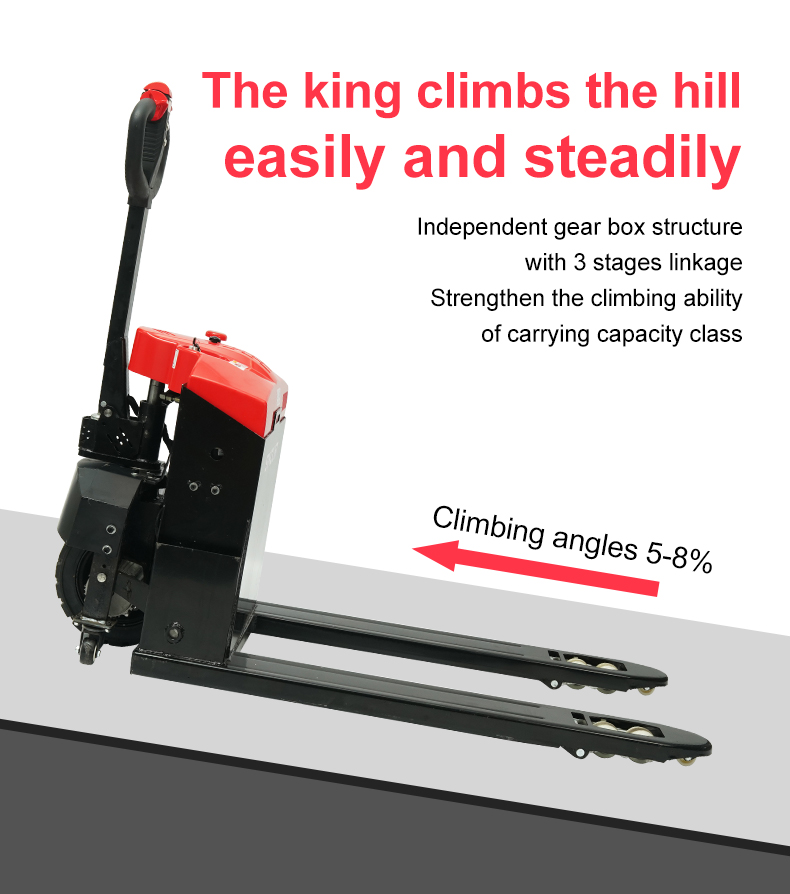

EPT20RT Rough Terrain Electric Pallet Jack
The SINOLIFT rough terrain electric pallet truck EPT20RT is designed to move pallets in irregular areas especially in the building sector.
It is appropriately homologated, meets the requirements and rule of the EC.

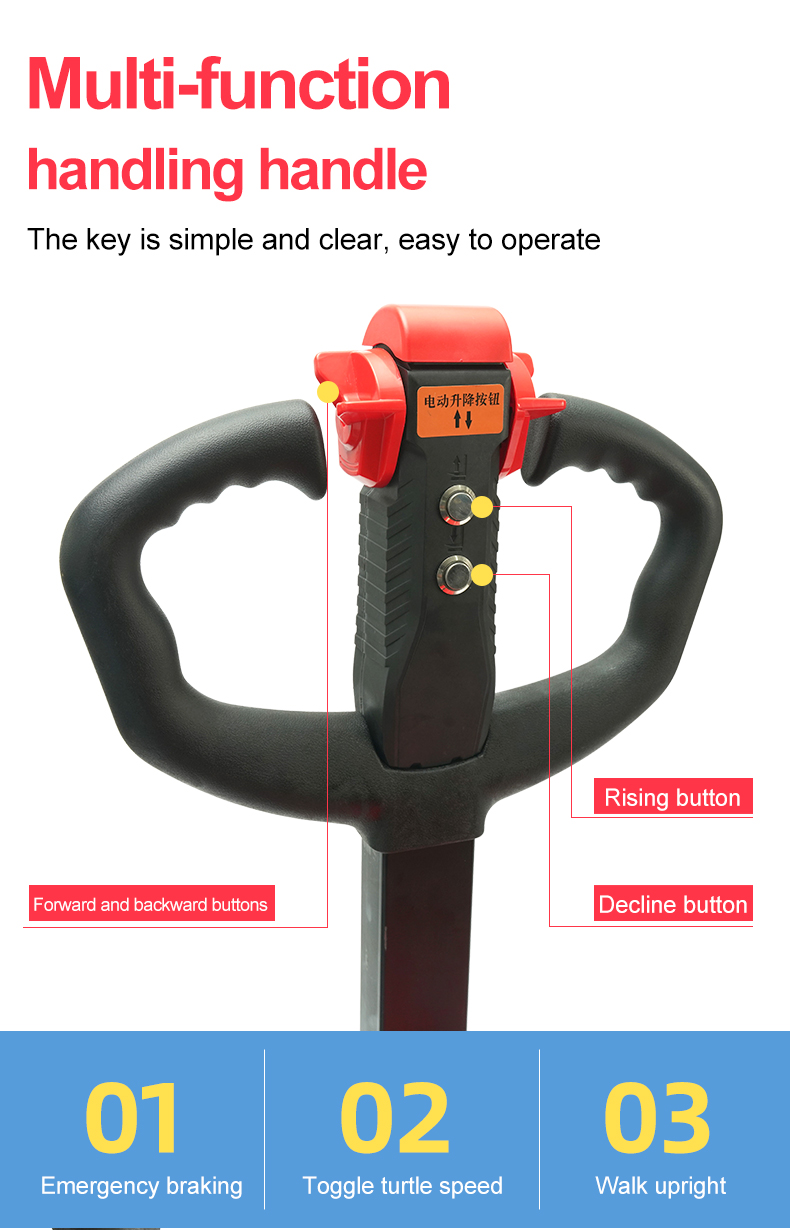

§ Electrical movement (forward – backward) and lifting

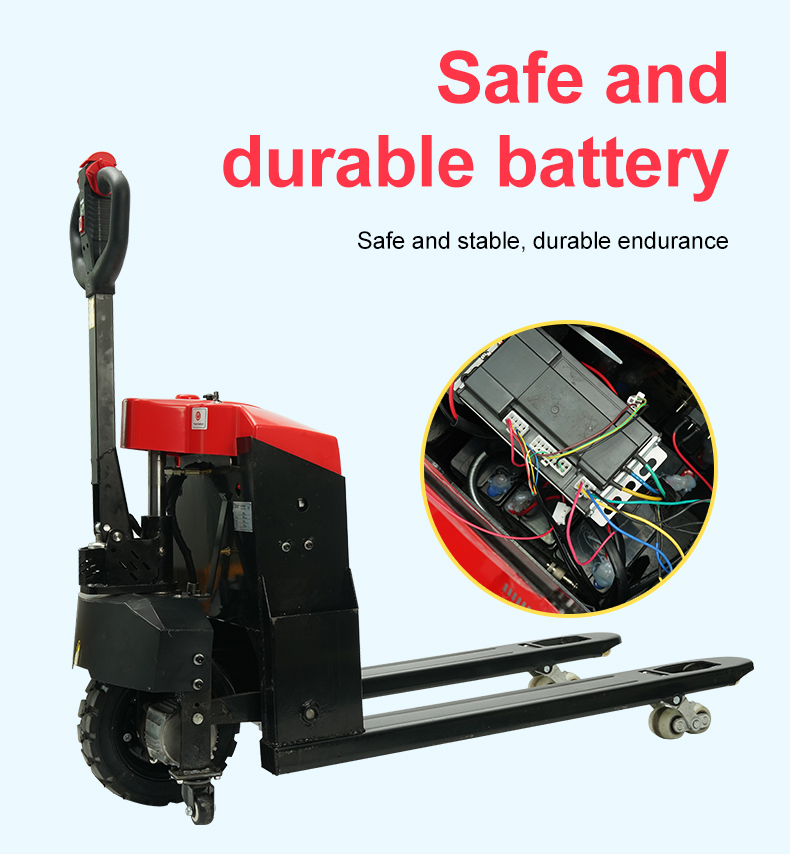

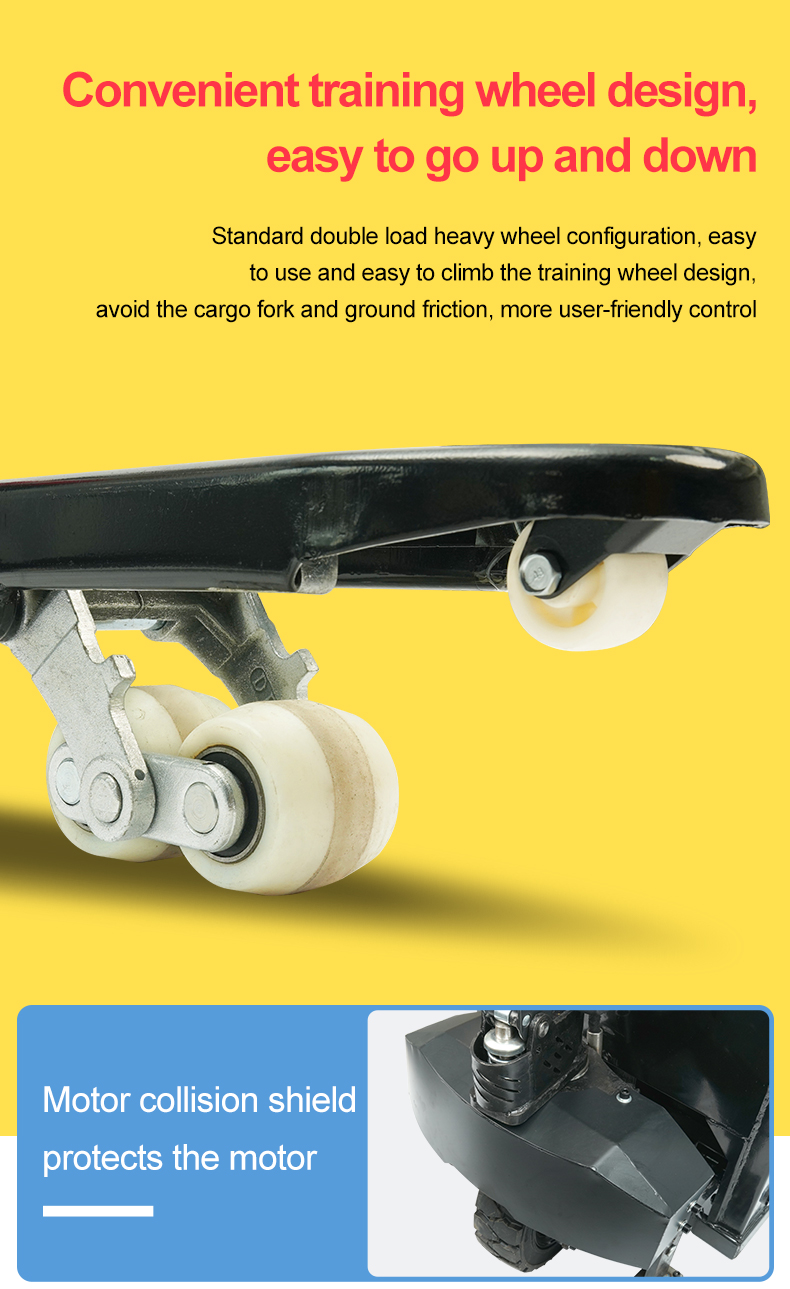

§ To protect from damage and impacts from the construction works, batteries and engines are sheltered in metallic boxes and cables, in sheltered tubes.

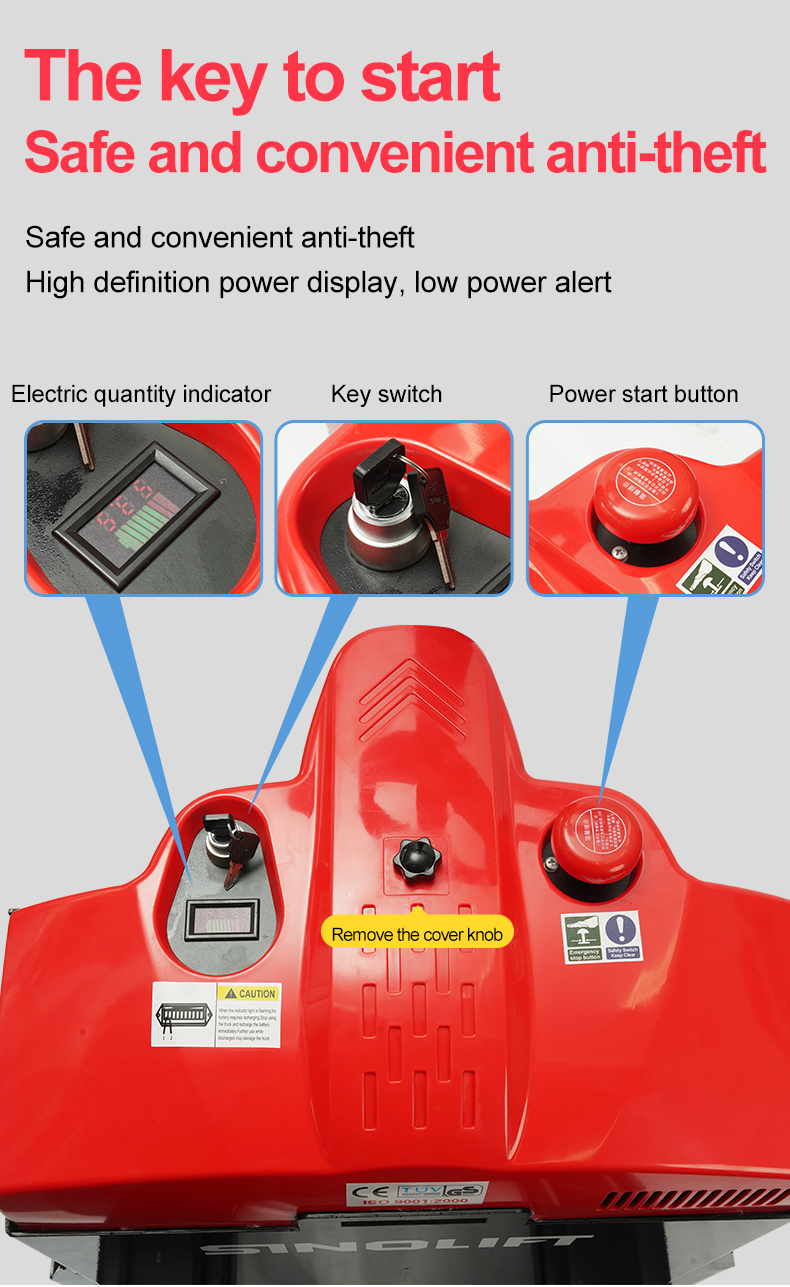

§ Connection with security key
§ Absence of contamination, as well as environmental acoustics; no sounds, no smoke.
§ Security brake (according to standards) to avoid entrapment or accidents.

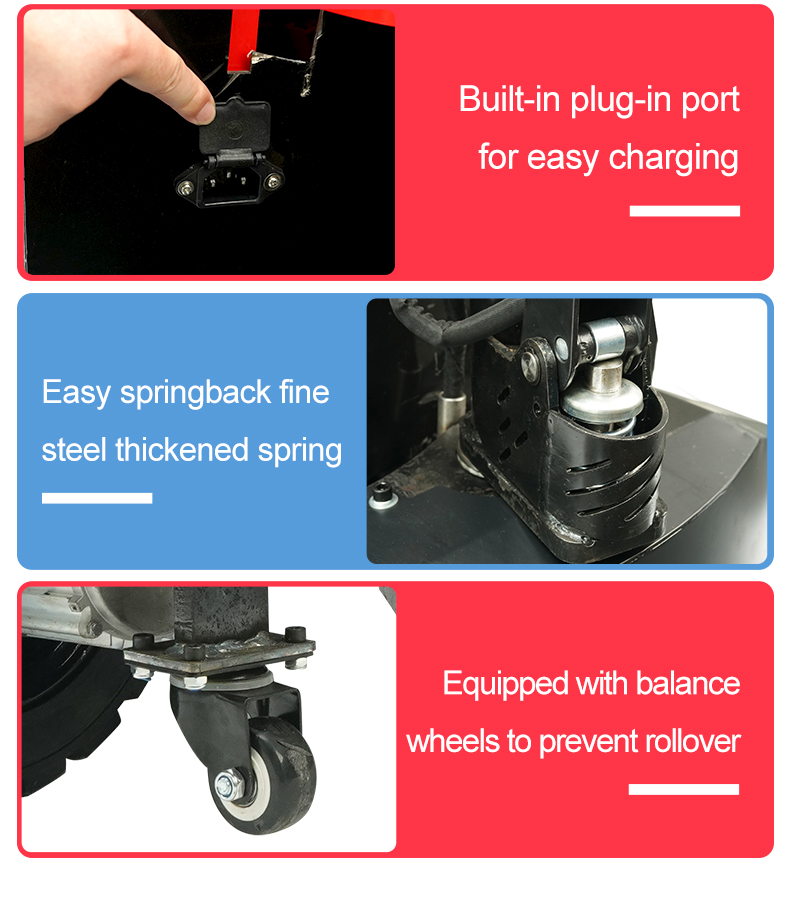

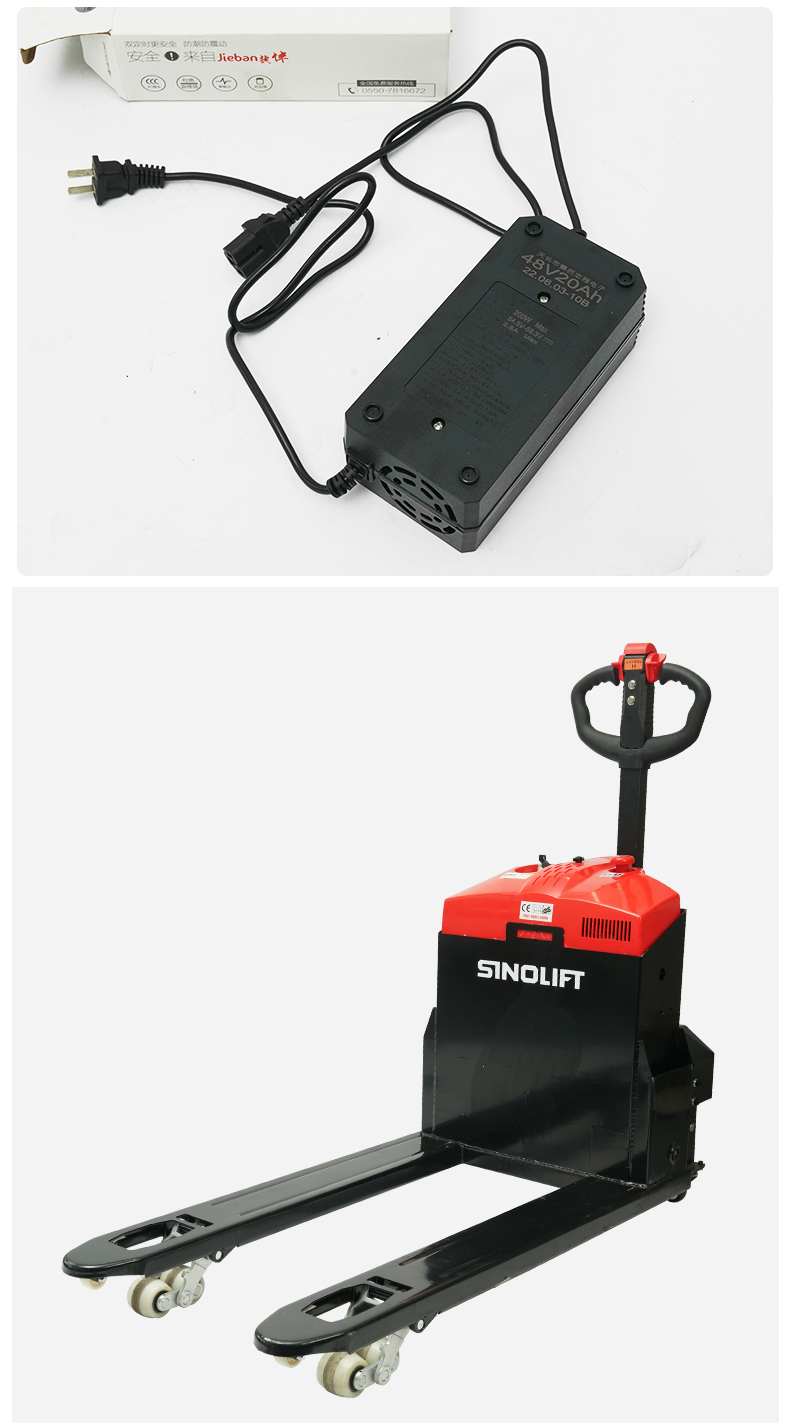

§ Easy maintenance. Just connect the batteries at night to the electricity network and the charge it will be more than enough for whole day working at its full capacity. We supplied with batteries charger.
§ Fast return: bricks distribution time slashed. The speed and easy operation turn it to almost essential.
| Model | EPT20RT | |
| Rated load | kg | 2000 |
| Load center | mm | 600 |
| Minimum height of fork H | mm | 85 |
| Maximum height of fork H1 | mm | 180 |

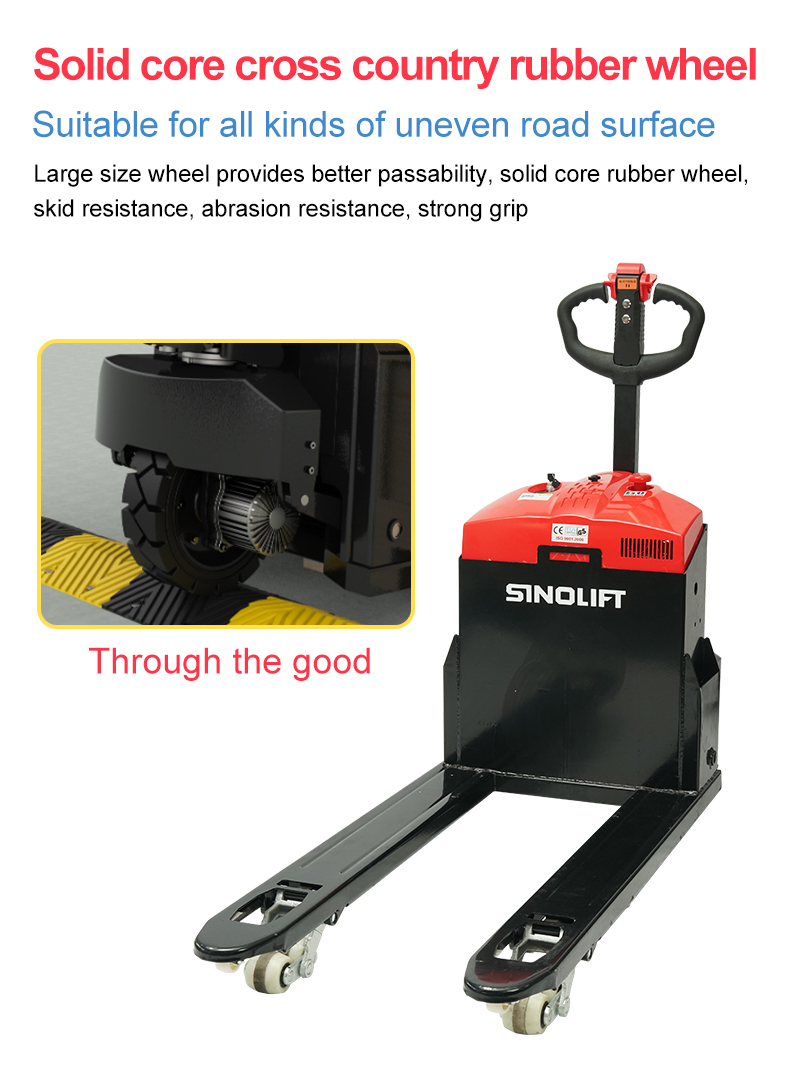

| Steering wheel | mm | Φ350x100 |
| Load-bearing wheel single wheel | mm | Φ82x93 |
| Load-bearing wheel with two wheels | mm | Φ80x70 |
| Cargo fork size e*s | mm | 160x70 |
| Total width of fork B | mm | 550/685 |
| The fork length is L | mm | 1100/1200 |
| Total length of L1 | mm | 1650/1750 |
| High total H1 | mm | 1430 |

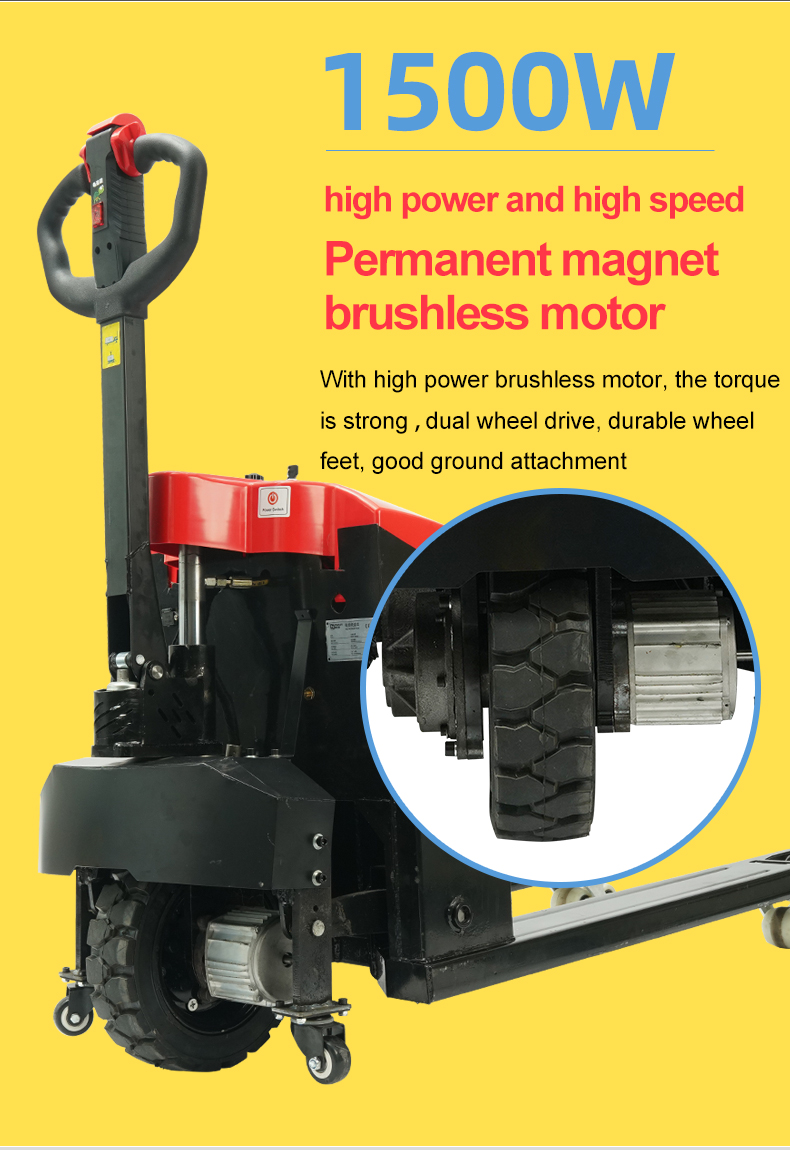

| Drive motor permanent magnet brushless | kw | 1.5 |
| Speed | km/h | 4-4.5 |
| Lifting motor | kw | 0.8 |
| Hoisting speed | cm/s | 2.2-3.3 |
| Weight | kg | 72-79a |
