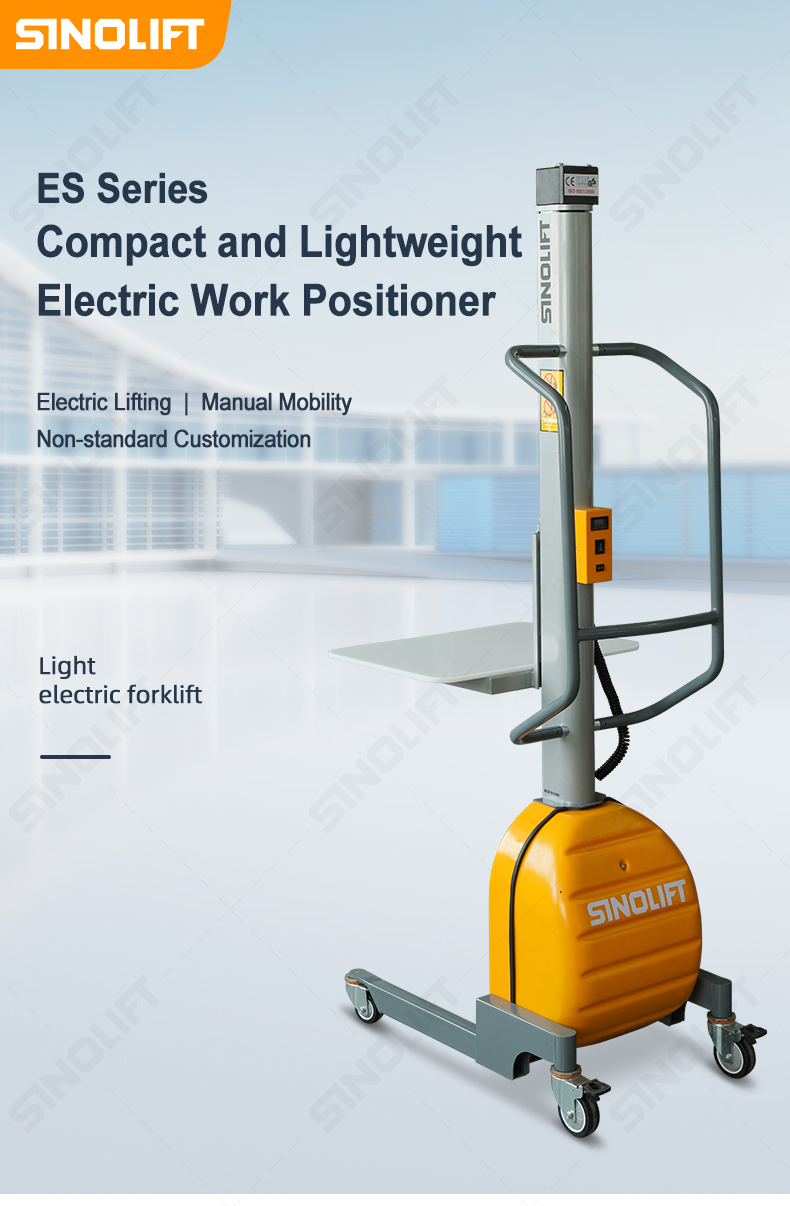

ES100 ES150 ES200 Compact and Lightweight Electric Work Positioner
ES100 ES150 ES200
Innovatively designed and compact, flexible operation, load capacity of 150KG, lifting height of 2 meters, equipped with universal front wheels, weighing only 76KG, easy to operate and move by one person, convenient for carrying.
Quantity:
Stable Lifting and Reliable Performance
The vehicle's columns are made of lightweight, high-strength aluminum profiles, ensuring portability and ease of use.

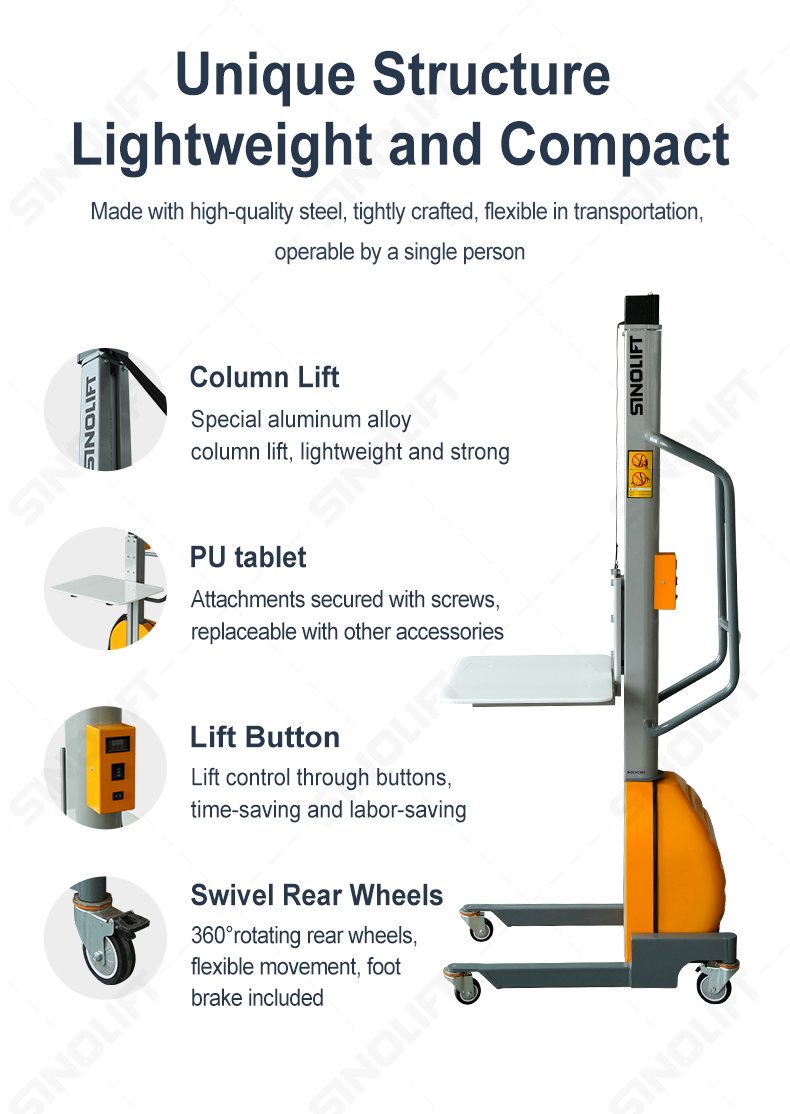

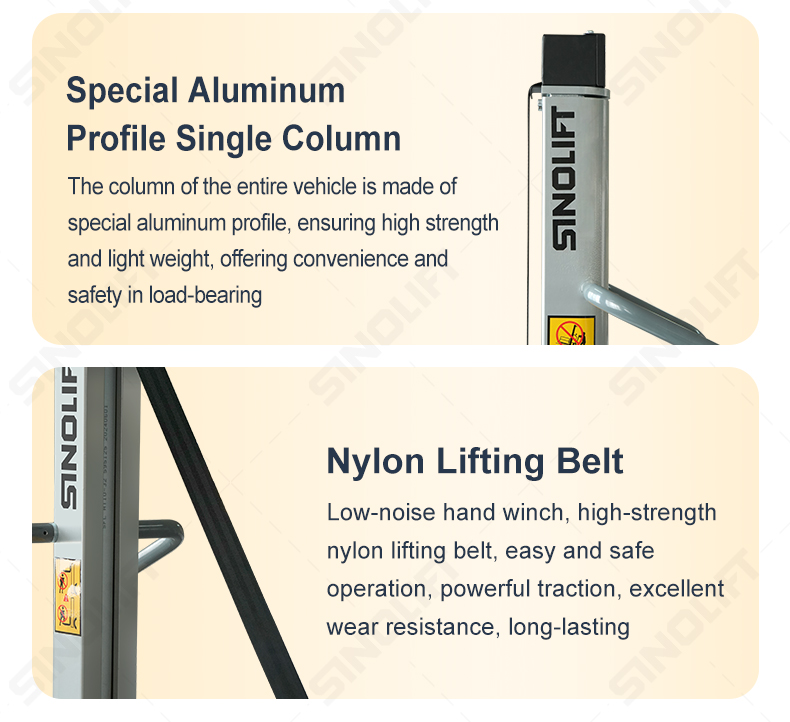

Special Aluminum Profile Single Column
The vehicle's columns are made of special aluminum profiles, which are high-strength and lightweight, ensuring portability and safe load-bearing.
Nylon Lifting Strap
- Low-noise hand-crank winch with high-strength nylon lifting strap, easy and safe operation, strong pulling force, excellent wear resistance, and longer service life.

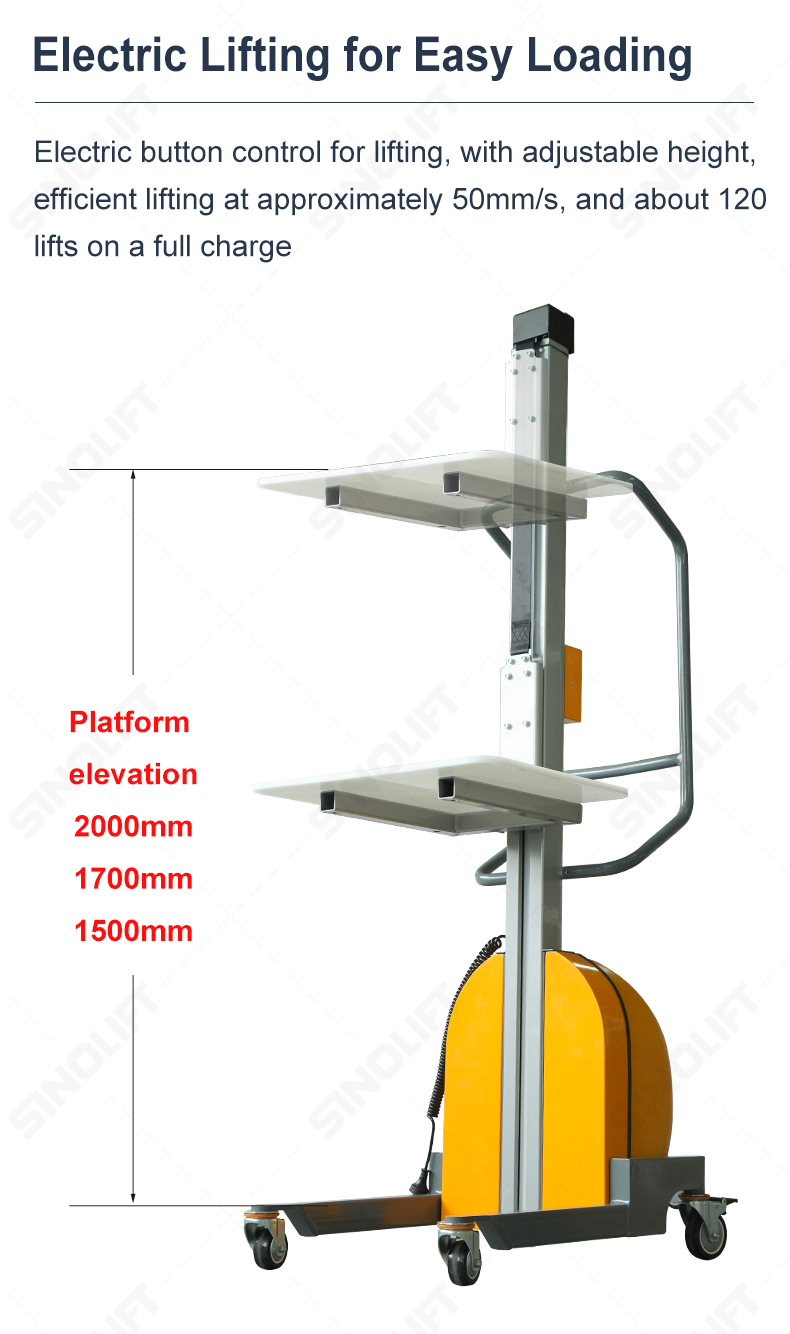

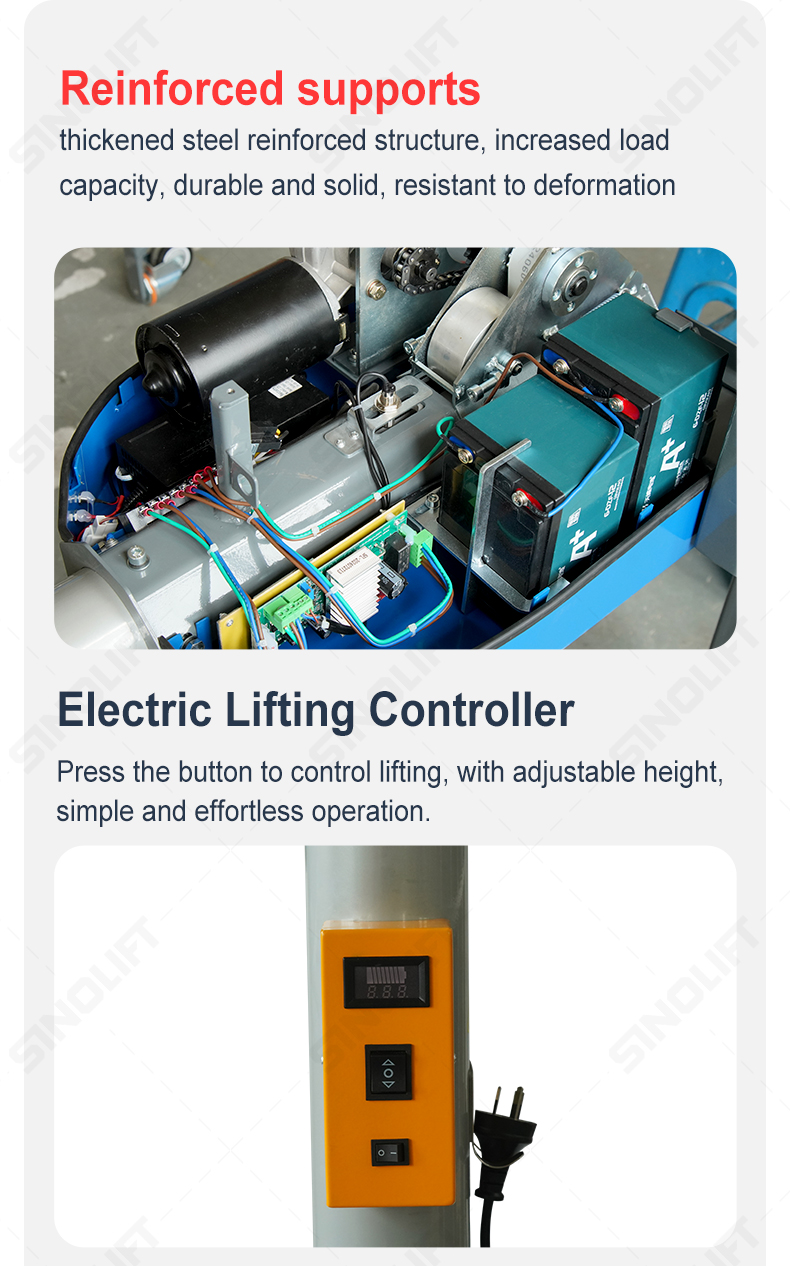

Electric Lifting for Easy Loading
- Electric button control for lifting, with adjustable height, efficient lifting at approximately 50mm/s, and about 120 lifts on afull charge.
| Model with Standard Platform | ES100 | ES150 | ES200 | |

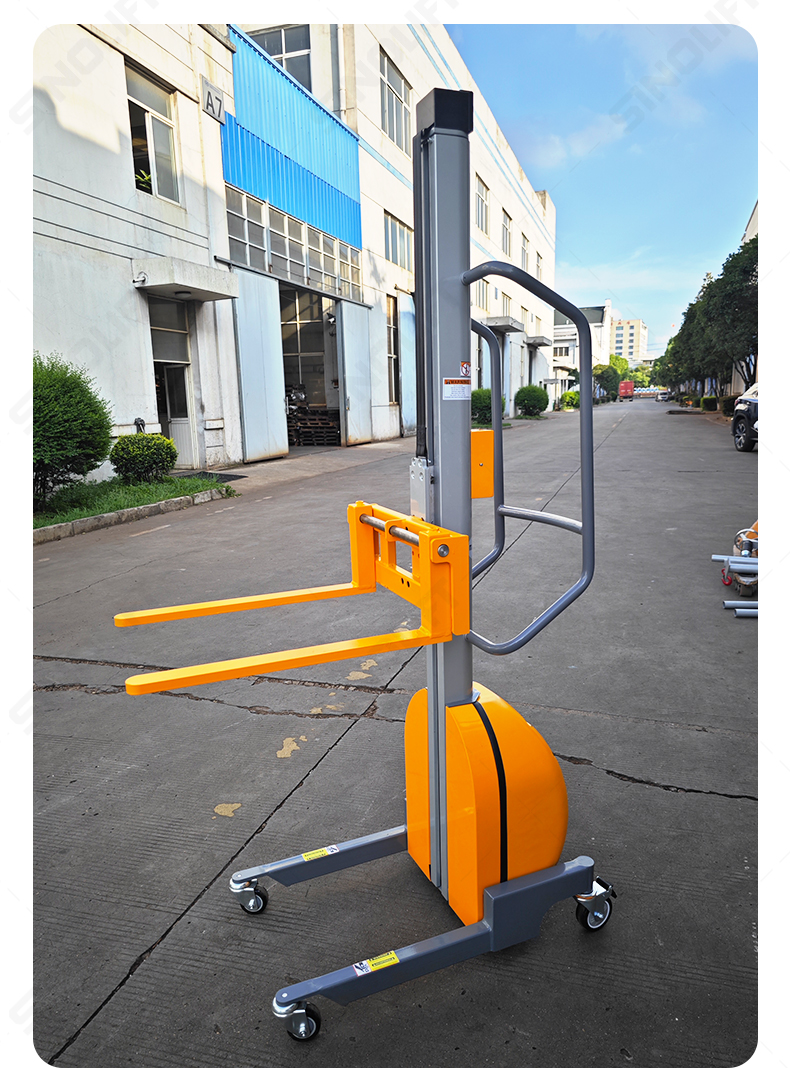

| Model with Adjustable Fork | ES100f | ES150f | ES200f | |
| Load Capacity | kg | 100 | 150 | 200 |
| Load Center | mm | 235 | 235 | 200 |
| Maximum Platform/Fork Height | mm | 1700/2000 | 1500/1700/2000 | 1500/1700/2000 |
| Standard Minimum Platform/Fork Height | mm | 130 | 130 | 130 |
| Optional Minimum Platform/Fork Height | mm | 85 | 85 | 85 |

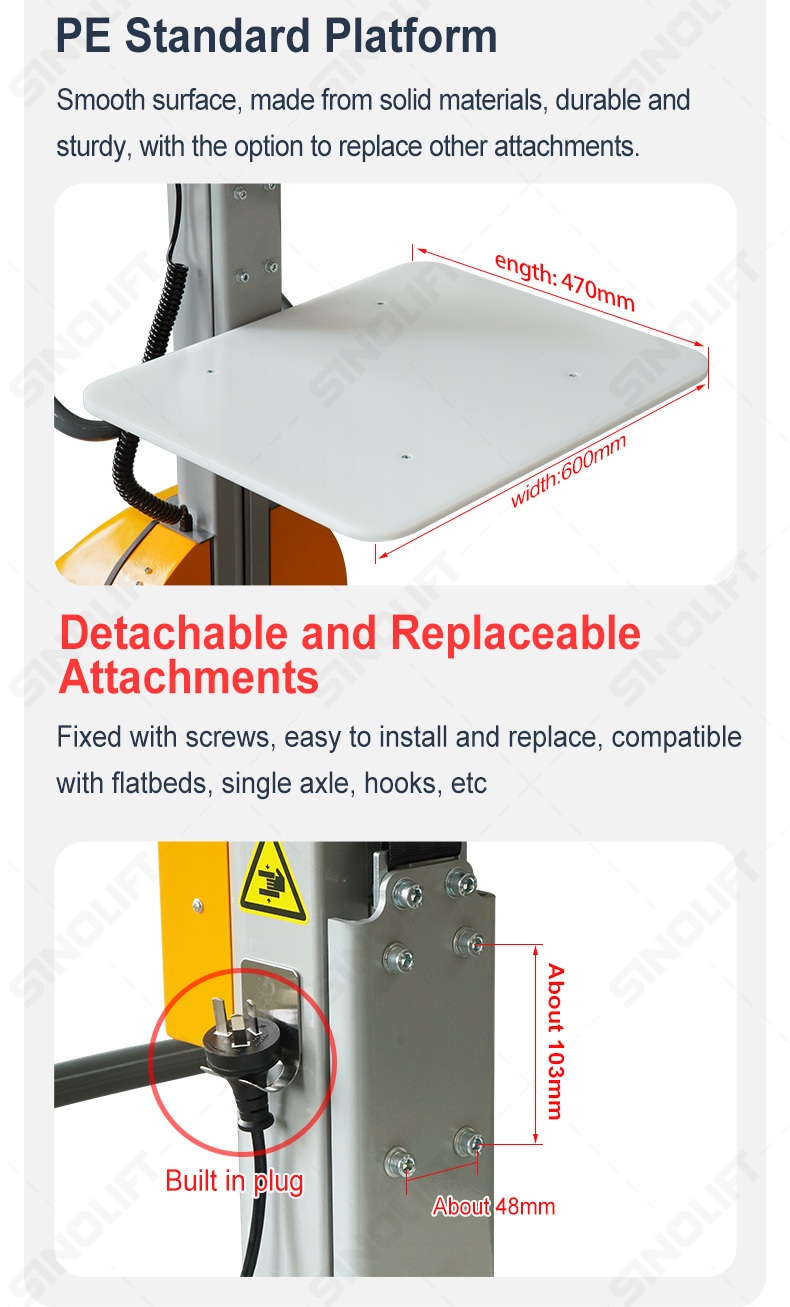

| Platform Size | mm | PVC600×470 | ||
| Fork Length | mm | 550 | ||
| Overall Fork Width | mm | 200~520 | ||
| Loading Roller Diameter | mm | 75×20 | ||
| Lifting/Lowering Speed | mm/s | 55 | ||
| Vehicle Length/Width | mm | 850×600 | ||
| Vehicle Height | mm | 2165/2465 | 1965/2165/2465 | 1965/2165/2465 |
| Net Weight | kg | 68/70 | 72/74/76 | 84/86/88 |
