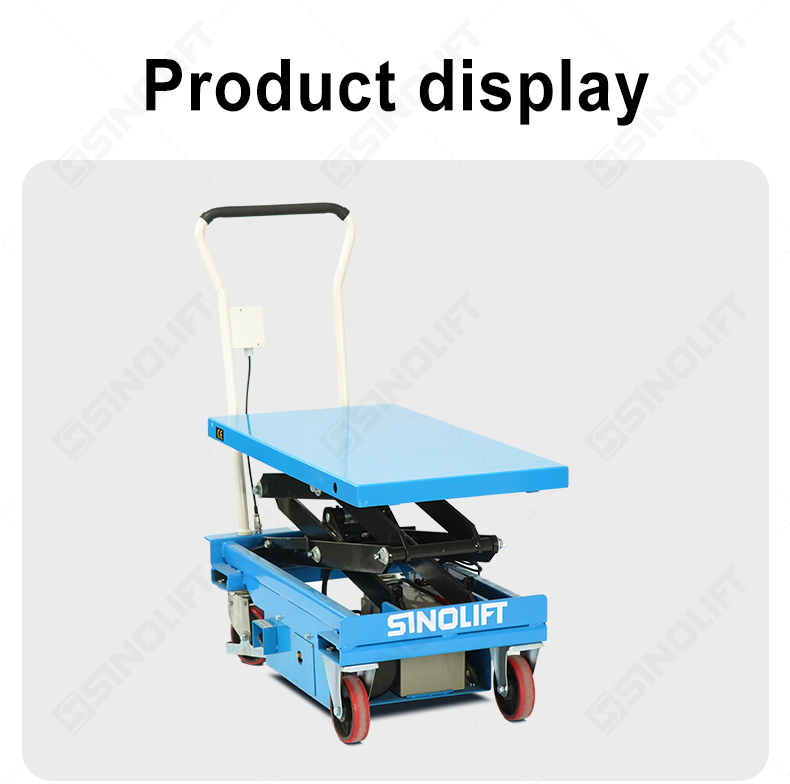

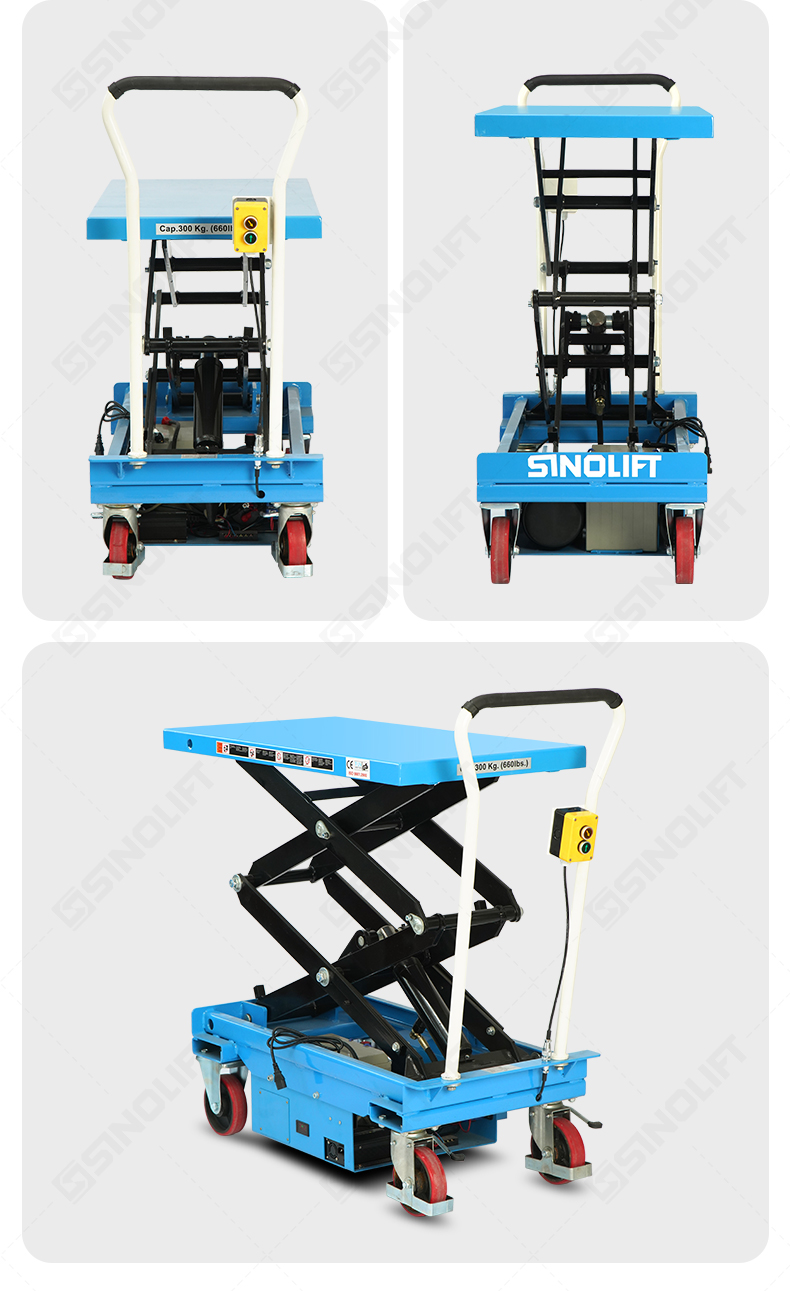

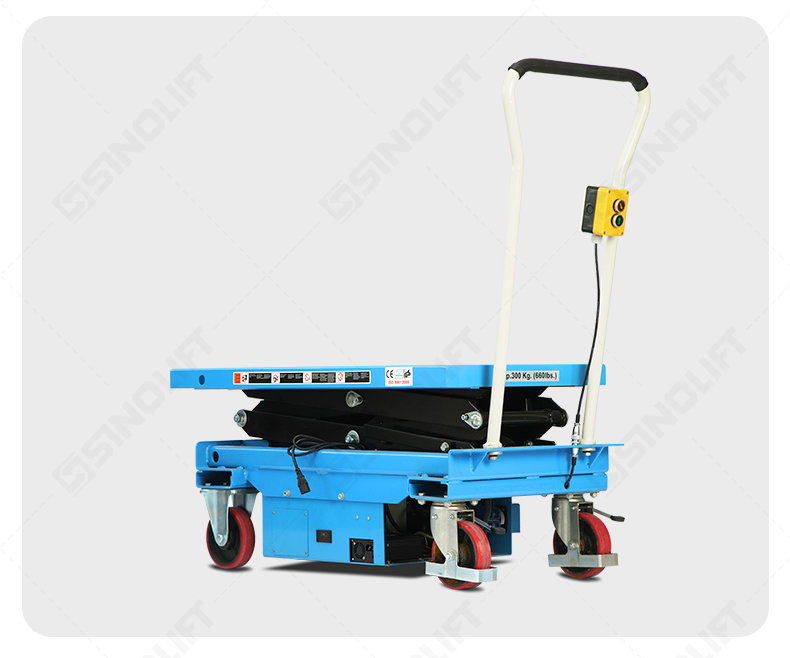

ESD Electric Double Scissor Lift Table
ESD
Quantity:

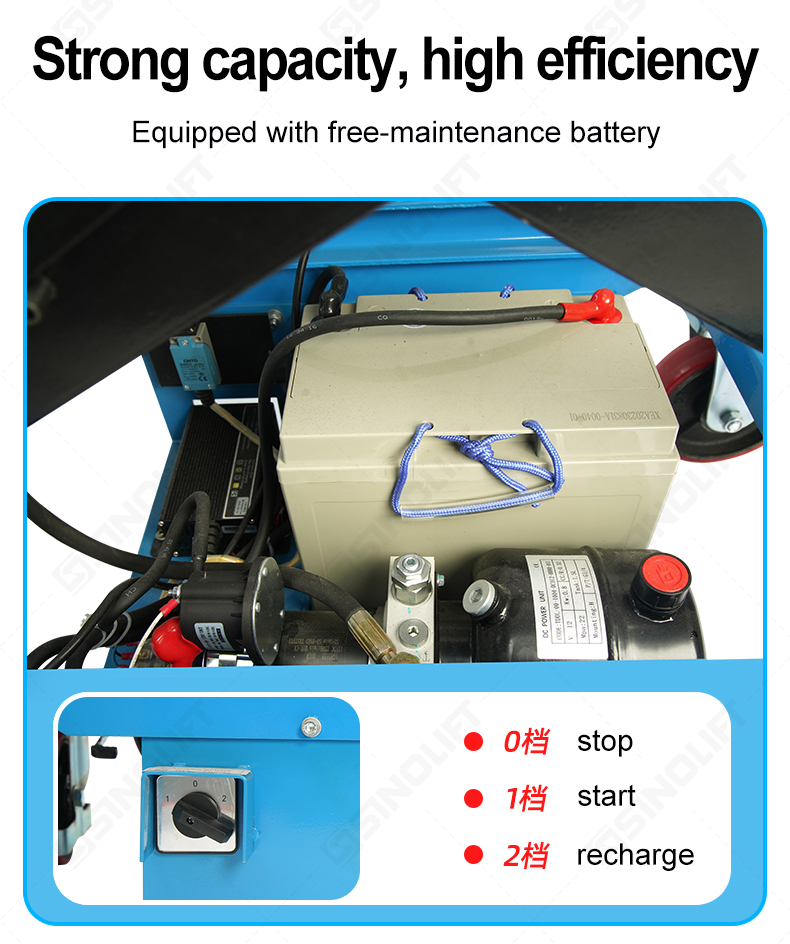

Battery electric powered operation
Time to maximum height: 14 - 17 seconds
Overall length including pedal: 1260mm
Can be used safely at any height
Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
Fitted with an overload valve

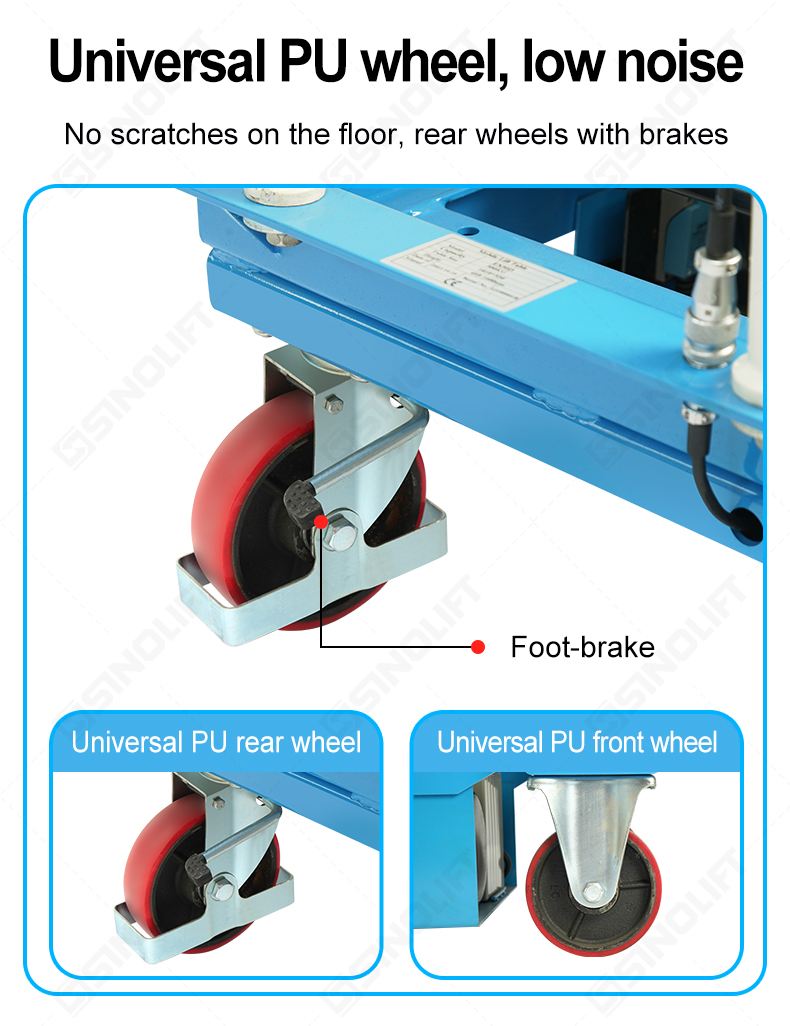

Hard wearing and non-marking polyurethane tyres prevent damage to floors
Swivel wheels fitted with thread guards
Epoxy powder coated finish for durability
| Model | ES30D | ES50D | ES80D | |
| Capacity | kg | 300 | 500 | 800 |
| Min.Height | mm | 495 | 495 | 510 |
| Max.Height | mm | 1600 | 1618 | 1460 |
| Handle Height | mm | 1185 | ||
| Platform Size | mm | 1010*520 | ||
| Overall Size | mm | 1260*520 | ||
| Wheel Size | mm | φ150*40 | ||
| Lifting Time | s | 15/15 | ||
| Net Weight | kg | 183 | 198 | 176 |
