Effortless material handling solution with a robust steel frame and global voltage charger.

ESG Lightweight Electric Platform Stacker with Screw Drive

ESG

Designed for narrow aisles and cleanroom environments, this electric stacker combines a lightweight aluminium mast with a precision lifting mechanism (0.5-50mm/s adjustable speed) for stable and accurate load handling. The oil-free operation and availability in stainless steel make it ideal for demanding sectors like food, pharmaceutical, and logistics, enhancing operational efficiency in confined spaces.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Key Features of ESG Lightweight Electric Screw Stacker:

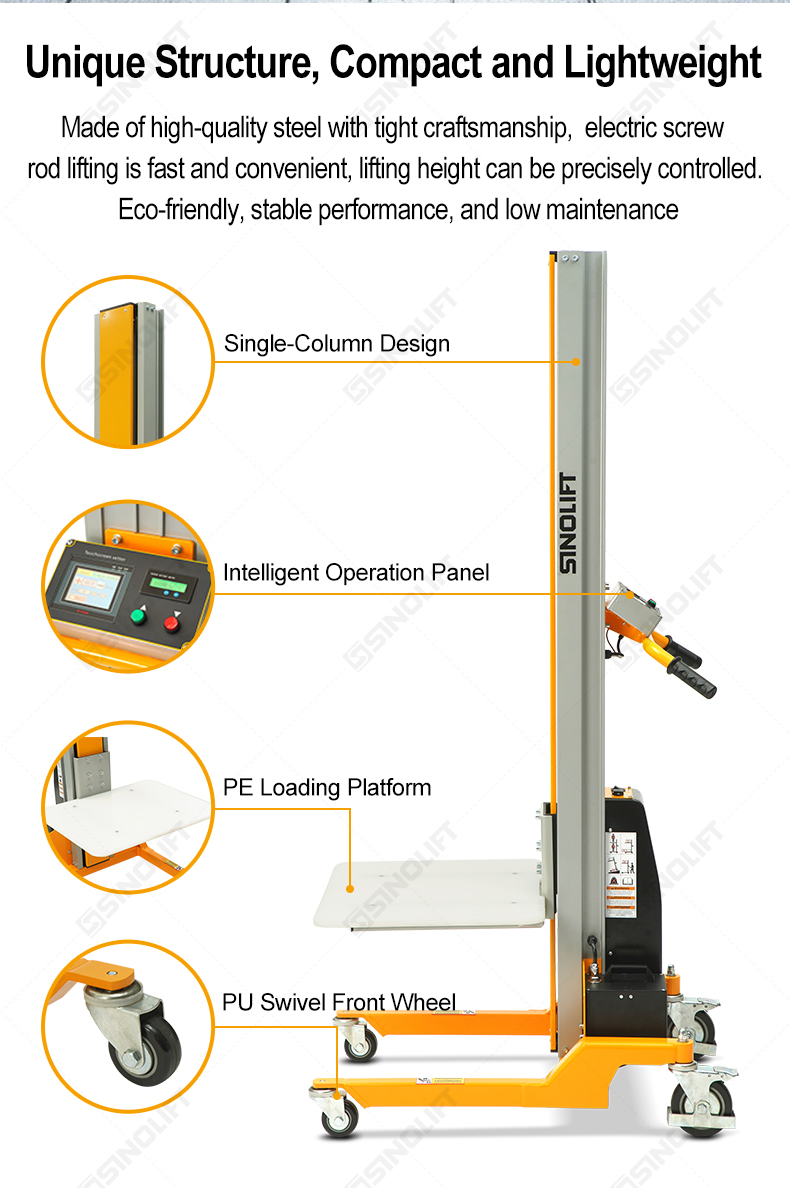

Compact & Maneuverable: Features a lightweight, single-column design with a small turning radius, allowing easy operation by one person in narrow aisles and confined spaces.

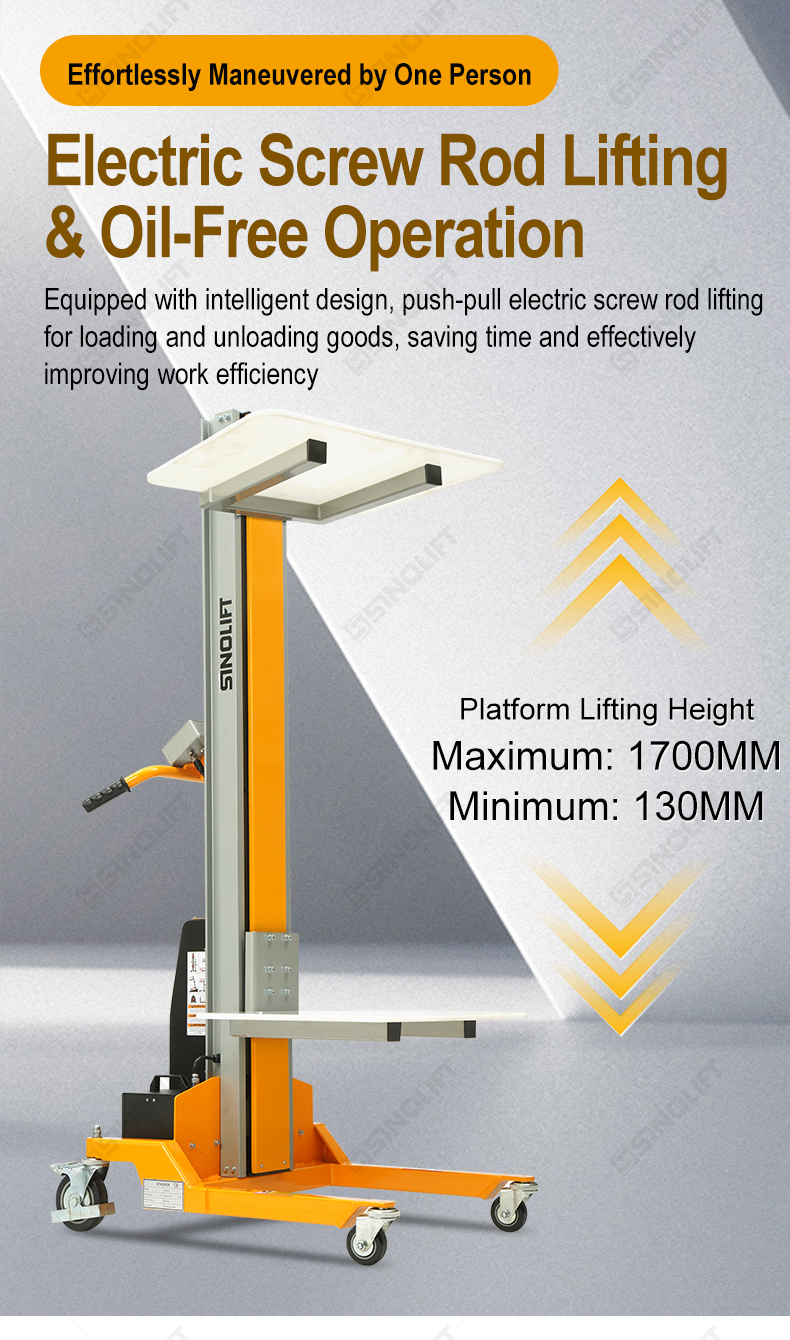

Precision Electric Lifting: Utilizes an electric screw rod system for stable, controlled lifting with adjustable speed (0.5-50mm/s), enabling precise height positioning for accurate material handling.

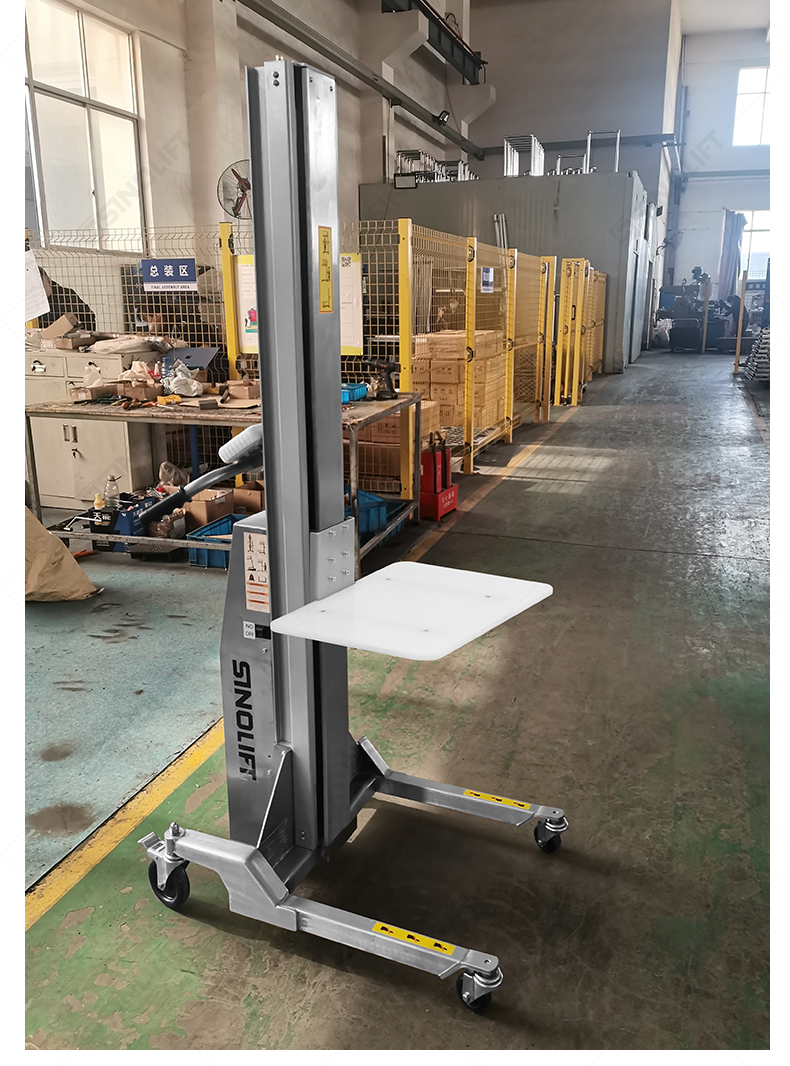

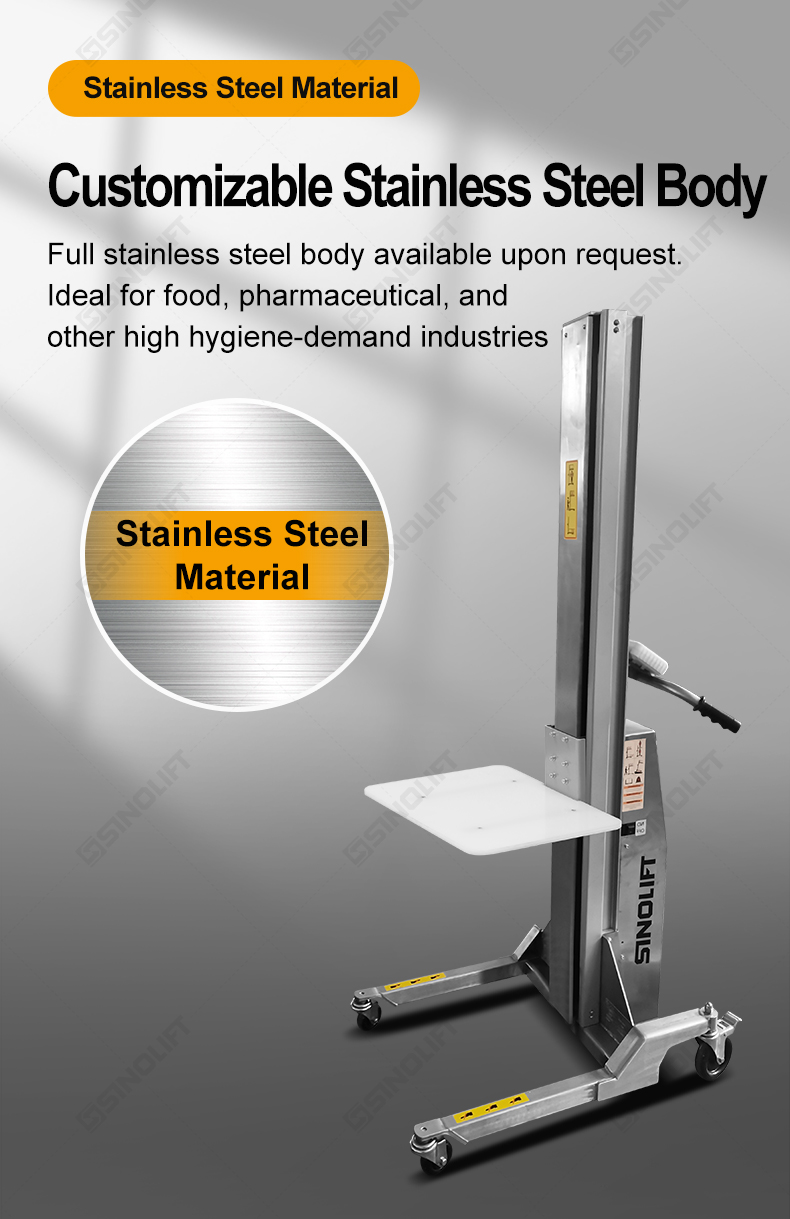

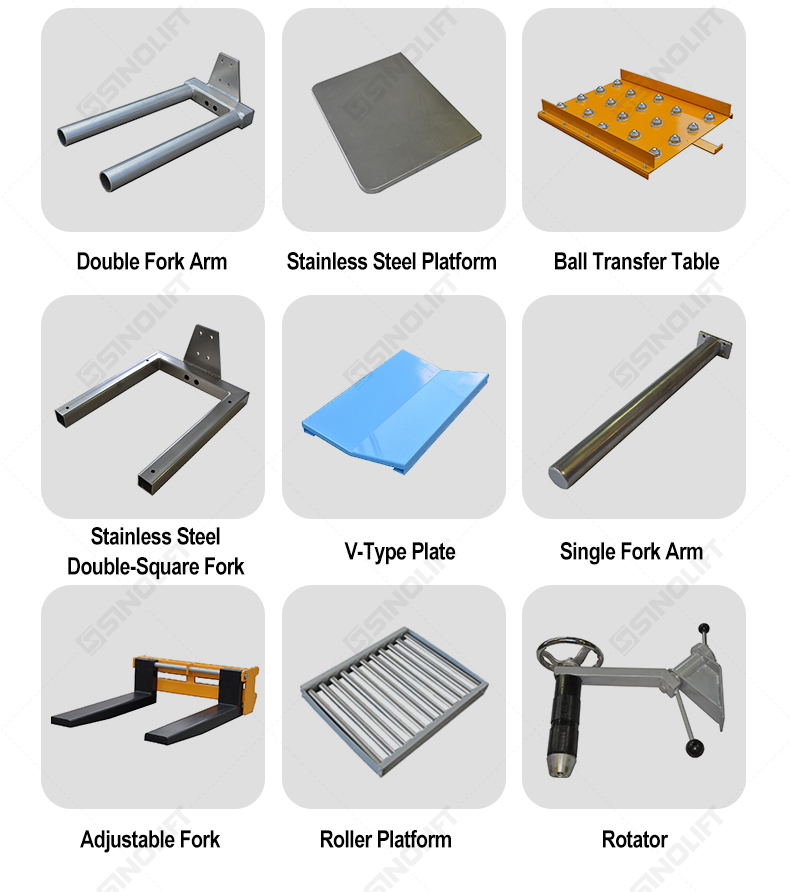

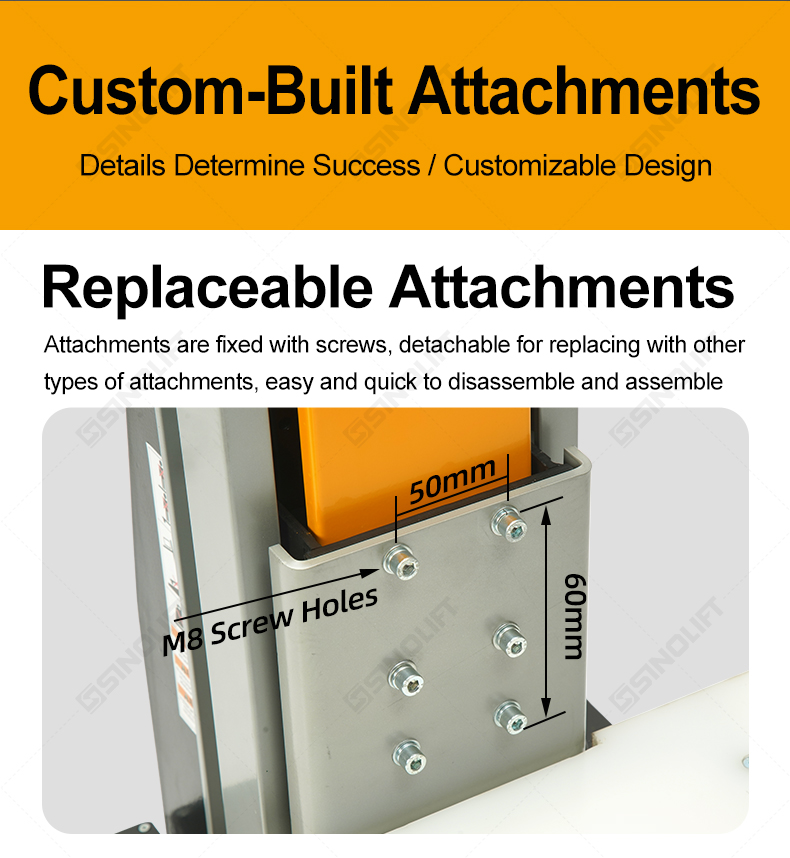

Clean & Versatile Operation: Offers oil-free, pollution-free performance suitable for cleanrooms. It supports customizable attachments (forks, platforms) and optional full stainless-steel construction for food/pharmaceutical industries.

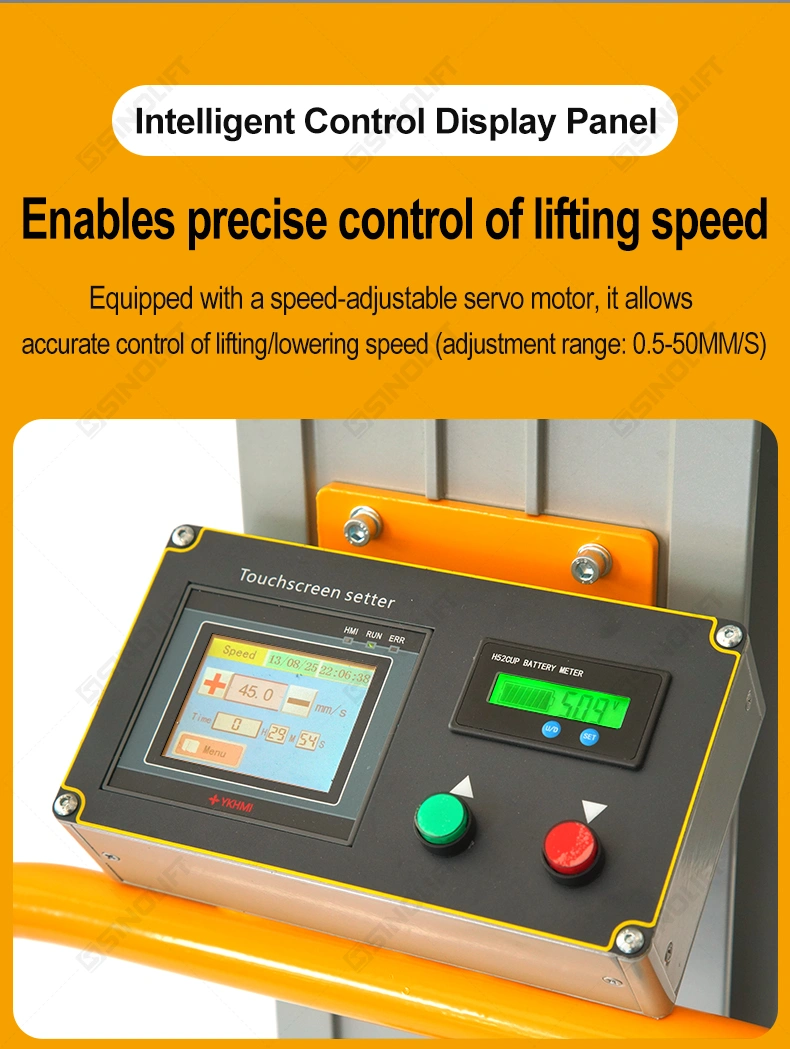

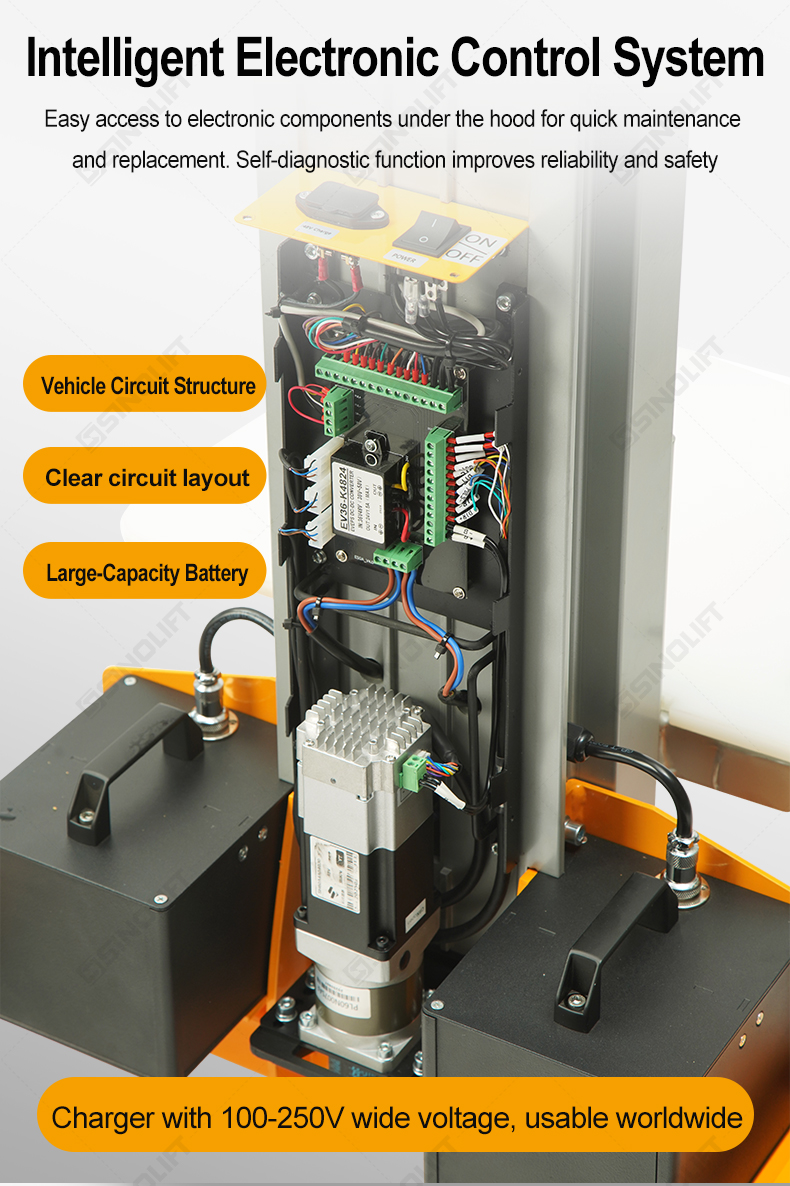

Robust & User-Friendly: Built with high-quality, reinforced steel for durability and strong load capacity (up to 150kg). It includes an intelligent control panel with self-diagnostics and large-capacity, globally-compatible batteries.

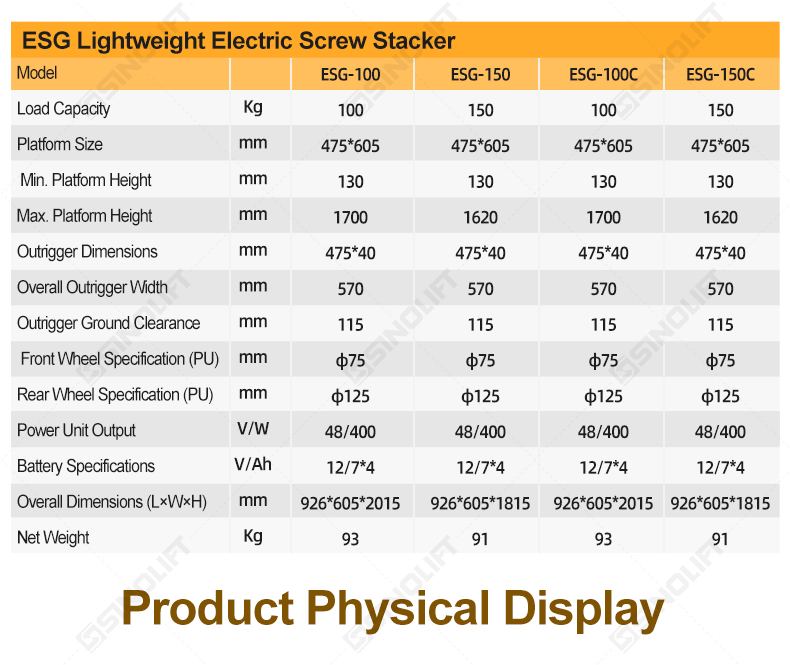

ESG Lightweight Electric Screw Stacker
Model		ESG-100	ESG-150	ESG-100C	ESG-150C
Load Capacity	kg	100	150	100	150

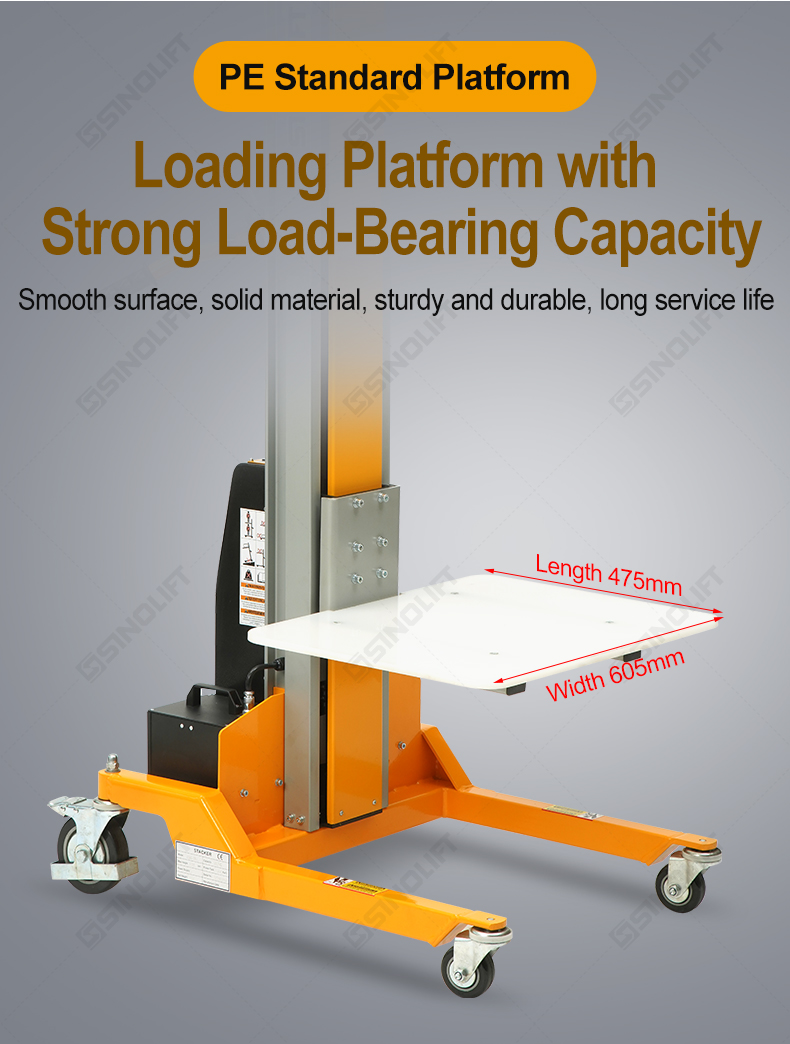

Platform Size	mm	475×605	475×605	475×605	475×605
Min. Platform Height	mm	130	130	130	130
Max. Platform Height	mm	1700	1620	1700	1620
Outrigger Dimensions	mm	475×40	475×40	475×40	475×40
Overall Outrigger Width	mm	570	570	570	570
Outrigger Ground Clearance	mm	115	115	115	115

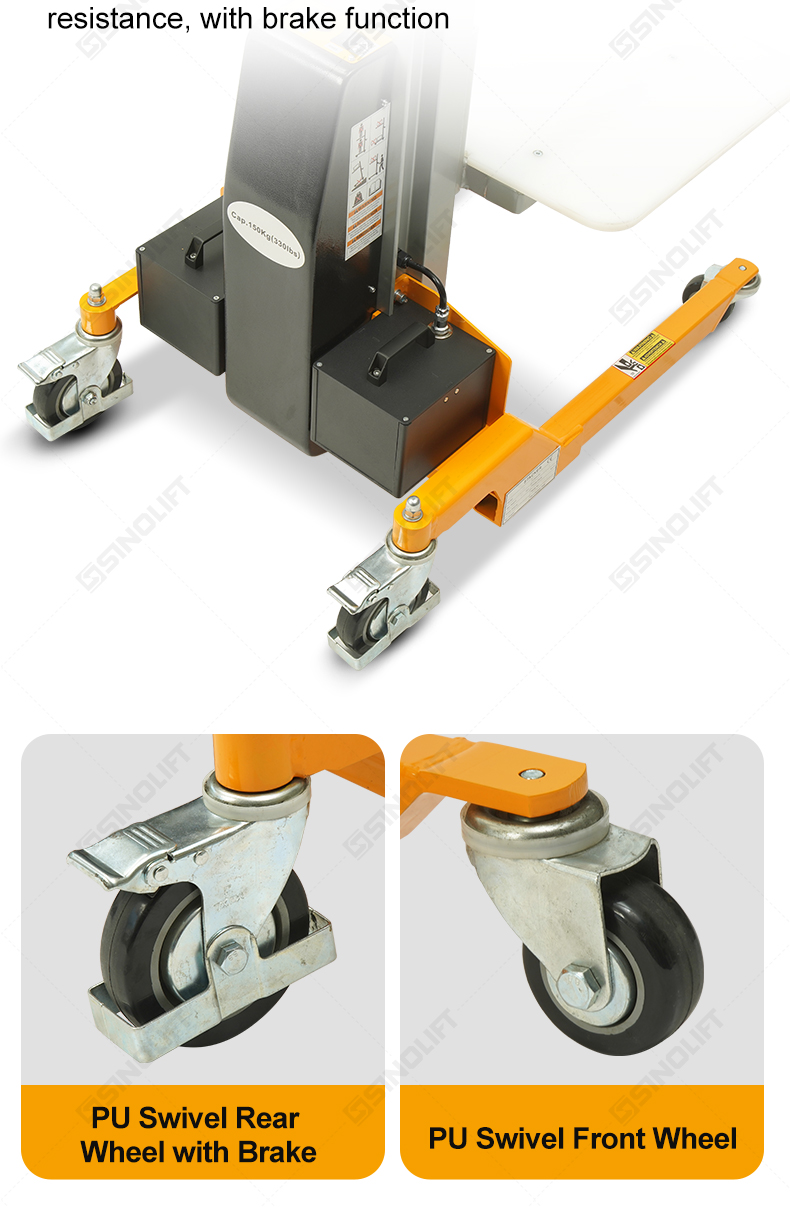

Front Wheel Specification (PU)	mm	Φ175	Φ175	Φ75	Φ75
Rear Wheel Specification (PU)	mm	Φ125	Φ125	Φ125	Φ125
Power Unit Output	V/W	48/400	48/400	48/400	48/400
Battery Specifications	V/Ah	12/7×4	12/7×4	12/7×4	12/7×4

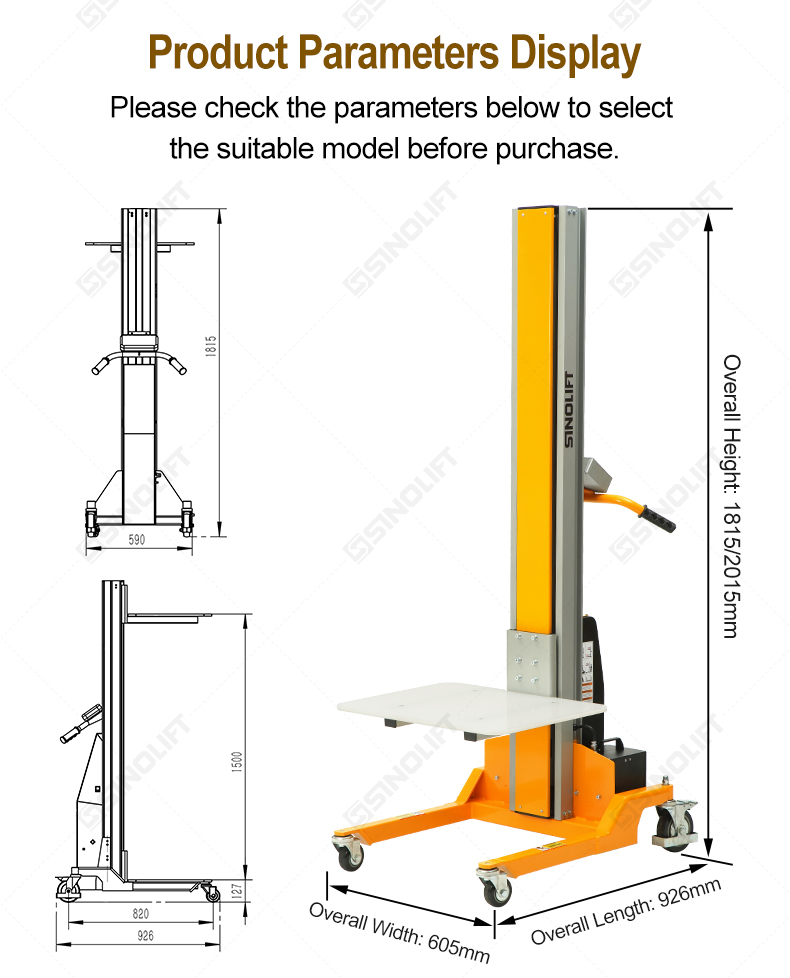

Overall Dimensions (L×W×H)	mm	926×605×2015	926×605×1815	926×605×2015	26×605×1815
Net Weight	kg	93	91	93	91

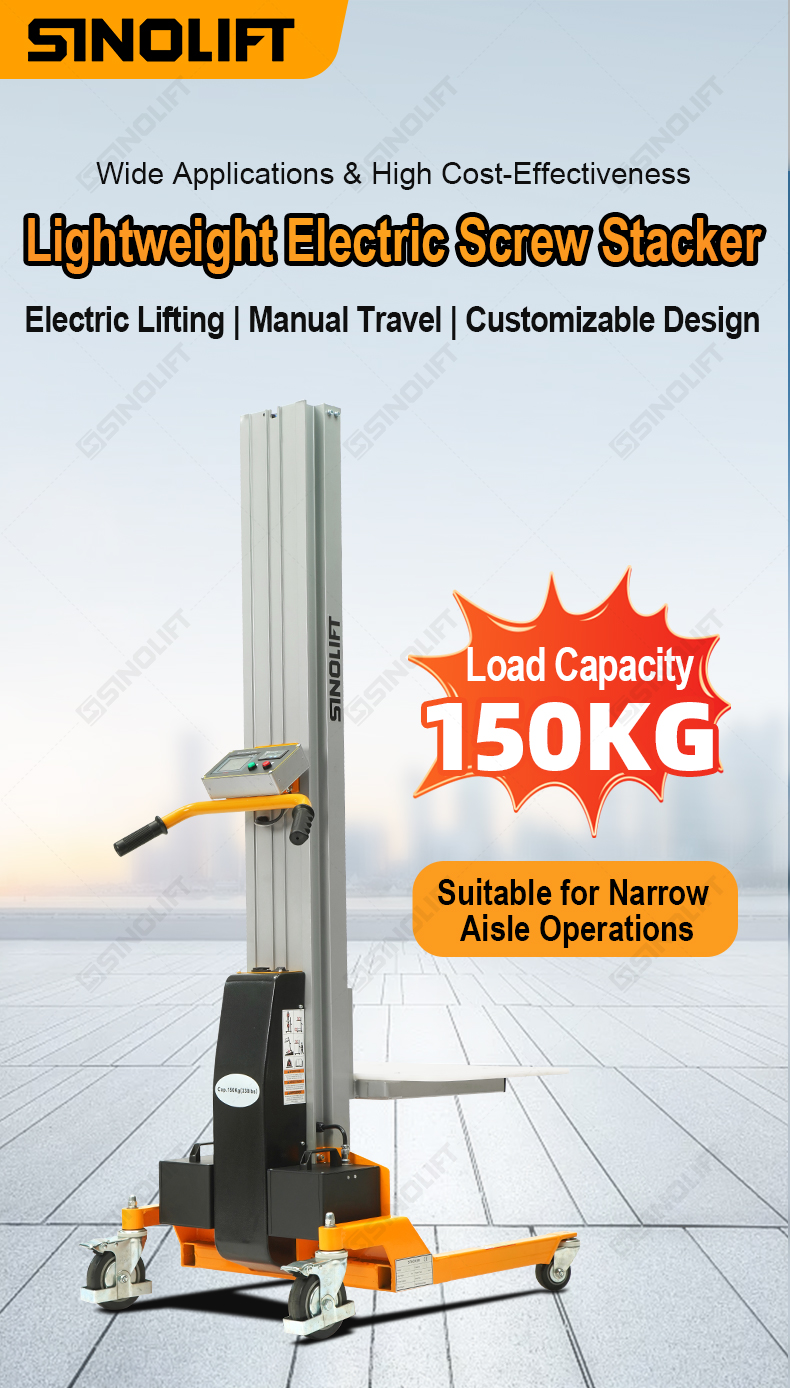

Versatile stacker supporting various attachments like fork arms and V-type plates.

ESG screw-driven stacker designed for accurate docking with equipment and production lines.

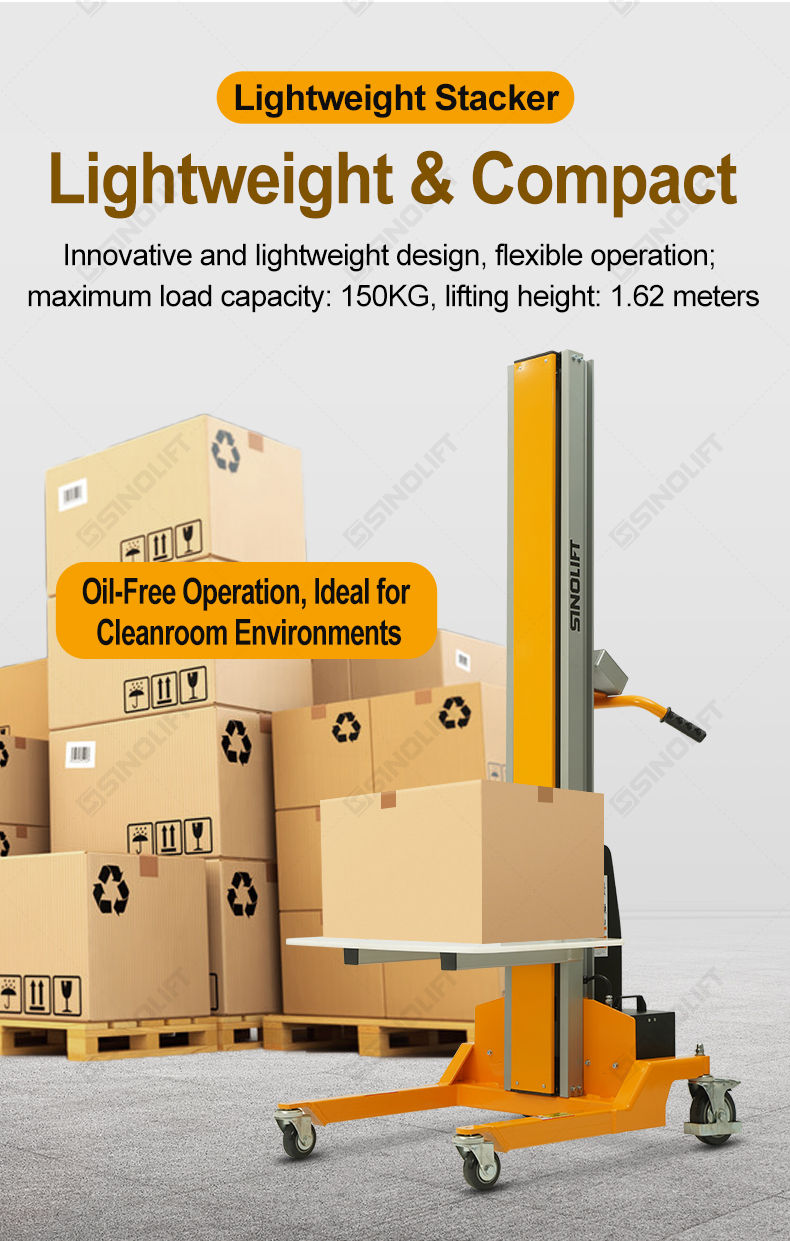

Reliable and durable electric stacker with a strong load capacity and minimal maintenance.

User-friendly electric stacker with self-diagnostic function and large-capacity battery.

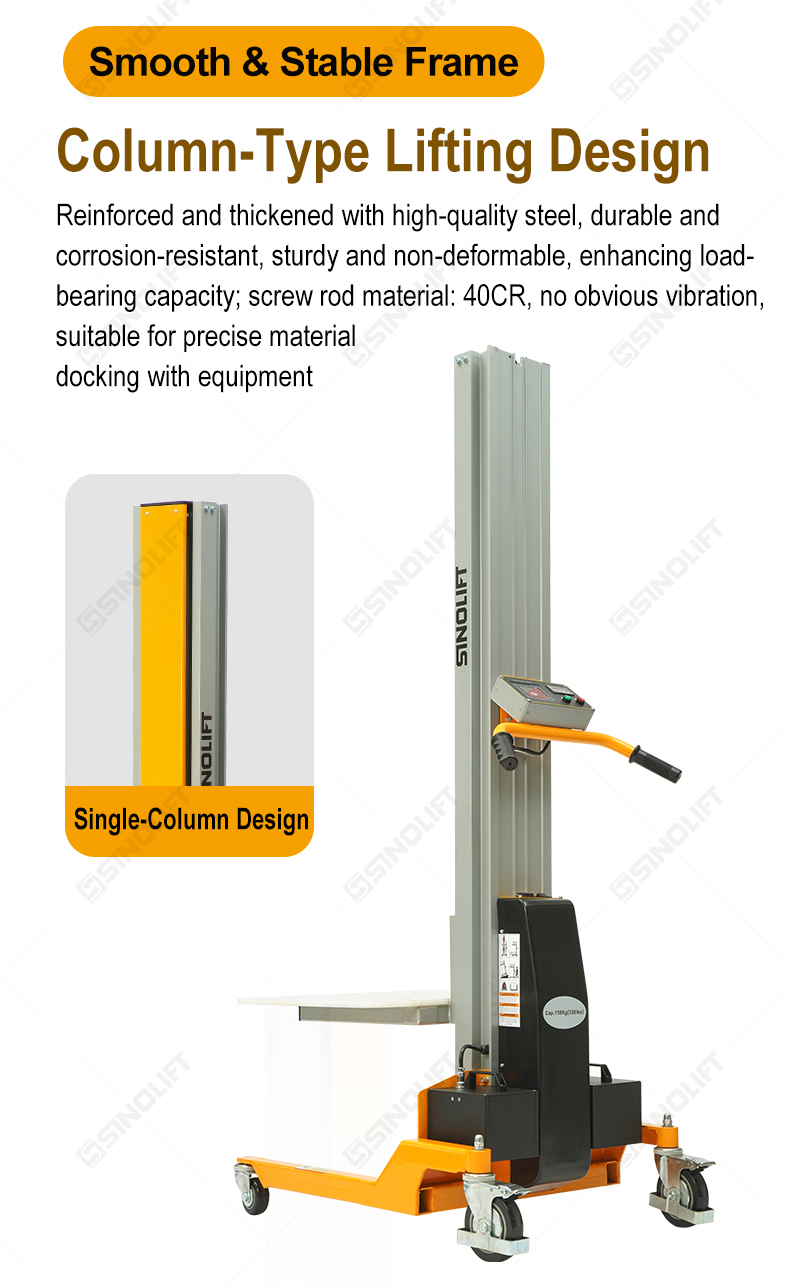

Innovative lightweight stacker with a small turning radius for enhanced warehouse logistics.

Hygienic oil-free electric stacker ideal for demanding sectors like healthcare and electronics.

Manufacturer-direct electric screw stacker built with quality materials for long life.

Space-saving stacker truck with a compact footprint for optimized storage facility layouts.

Ergonomically designed electric stacker reducing operator fatigue and improving efficiency.

A flexible lifting solution capable of handling various loads with interchangeable attachments.

ESG precision stacker ensuring stable and quiet operation for laboratory and workshop use.

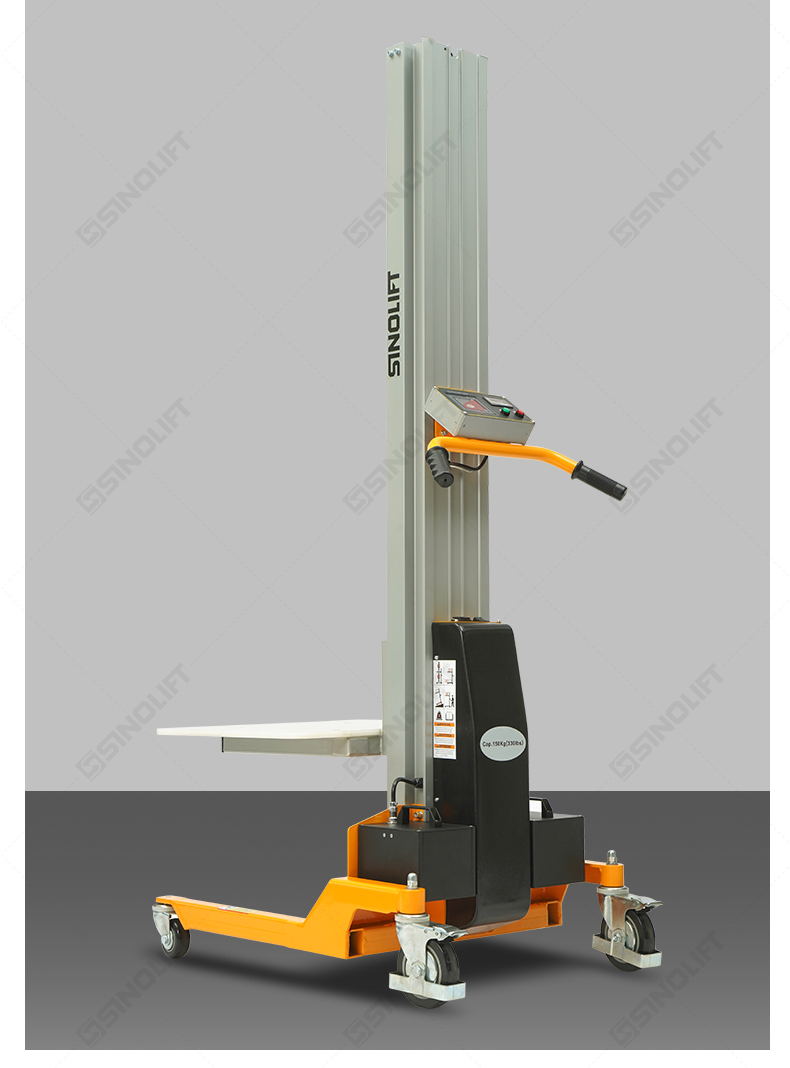

Compact electric screw stacker for narrow aisle material handling in warehouses and cleanrooms.

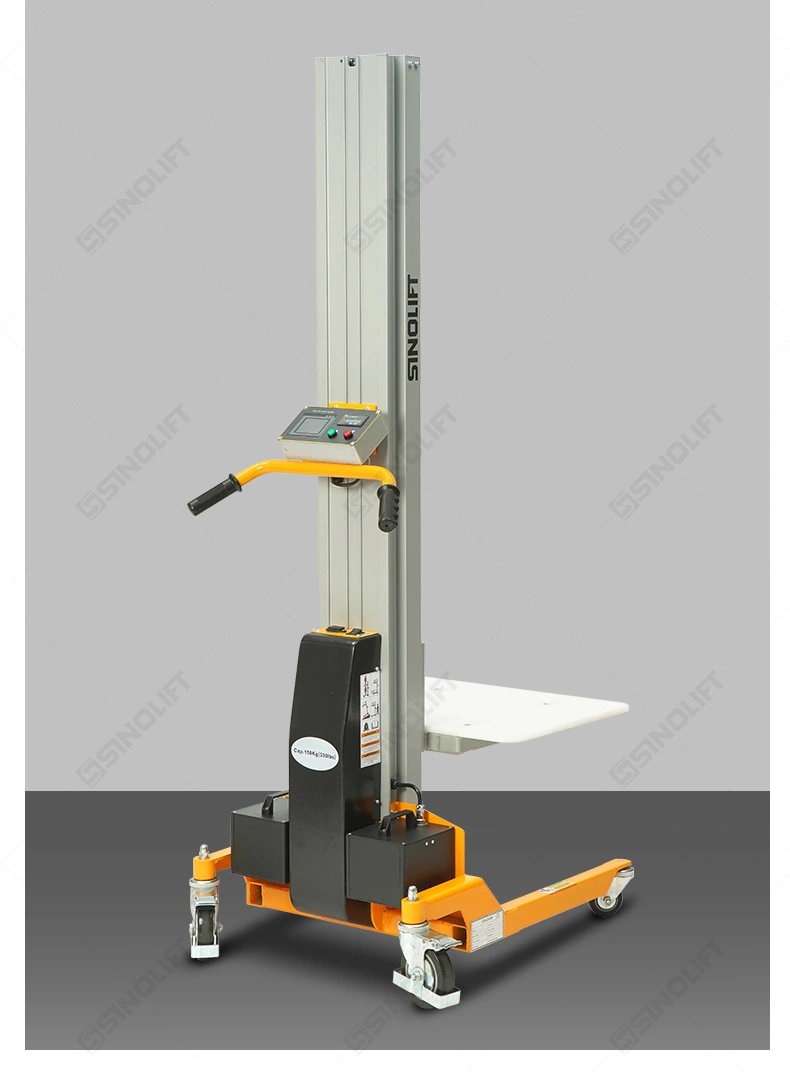

Lightweight and maneuverable stacker with precision electric lifting for sensitive environments.
