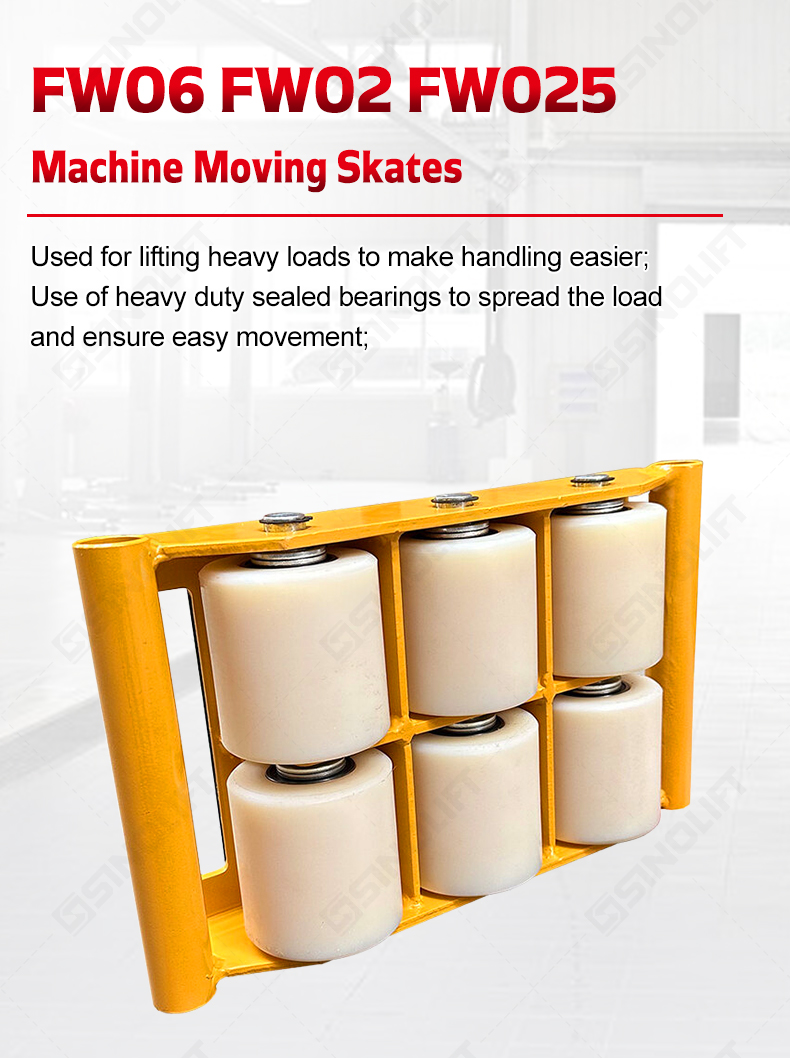

FW06 FW02 FW025 Machine Moving Skates
Key Features of FW06 FW02 FW025 Machine Moving Skates :
Superior Load Handling & Capacity: Engineered for industrial-grade applications, these skates are available in high load capacities, including 2000 kg, 2500 kg, and up to 6000 kg, allowing for the safe and efficient movement of extremely heavy machinery and equipment.

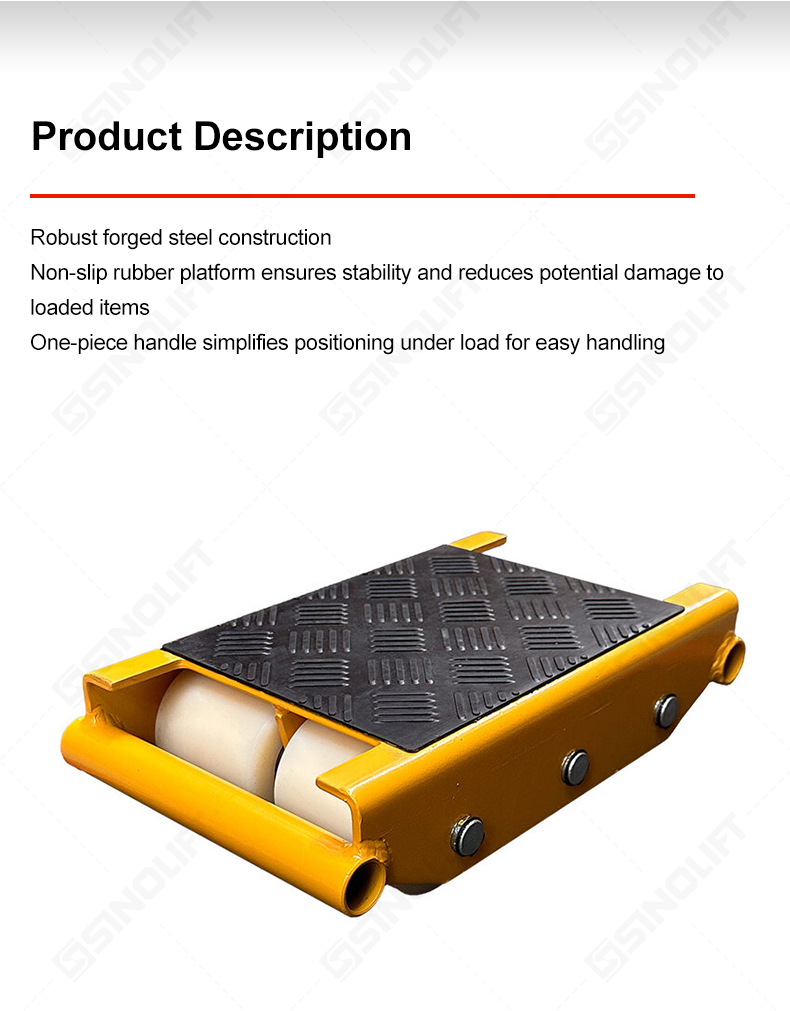

Durable and Robust Construction: Built with a forged steel frame, the skates offer exceptional strength and longevity, ensuring reliable performance under heavy loads and in demanding workshop or factory environments.

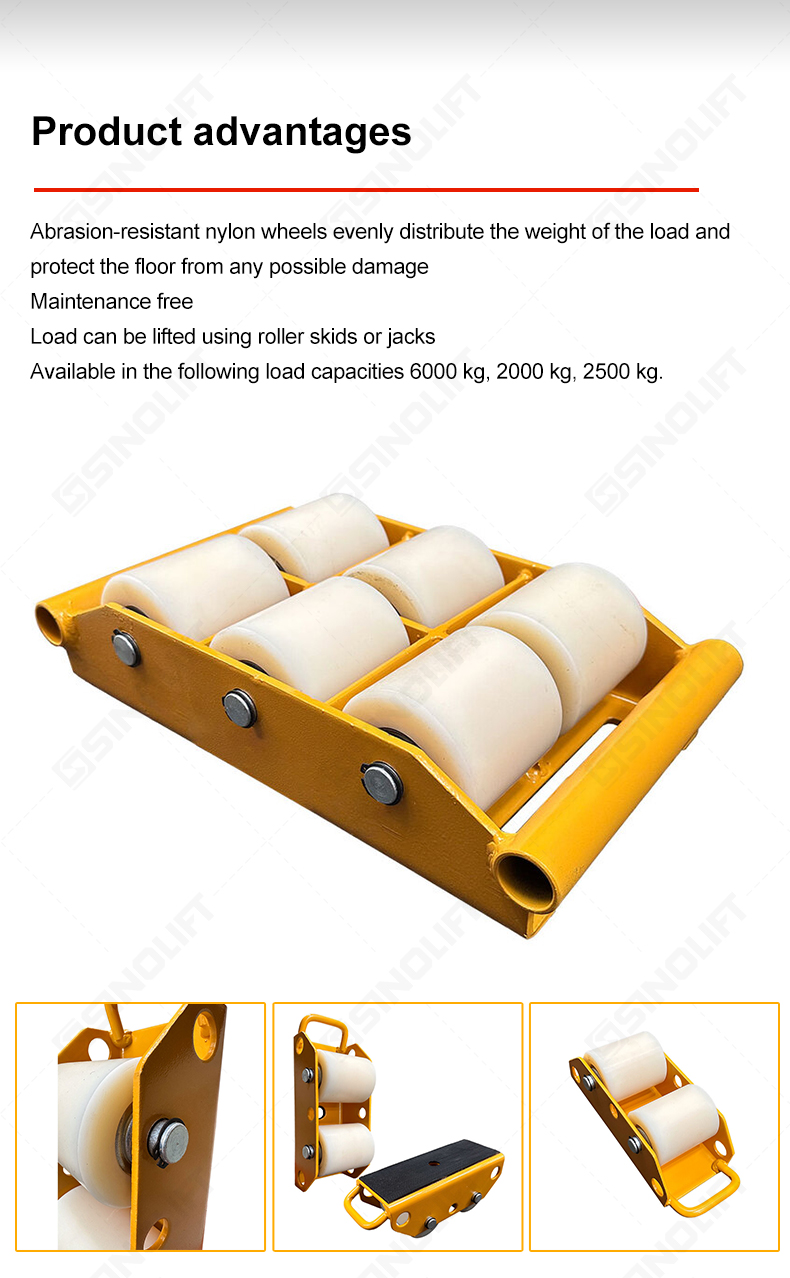

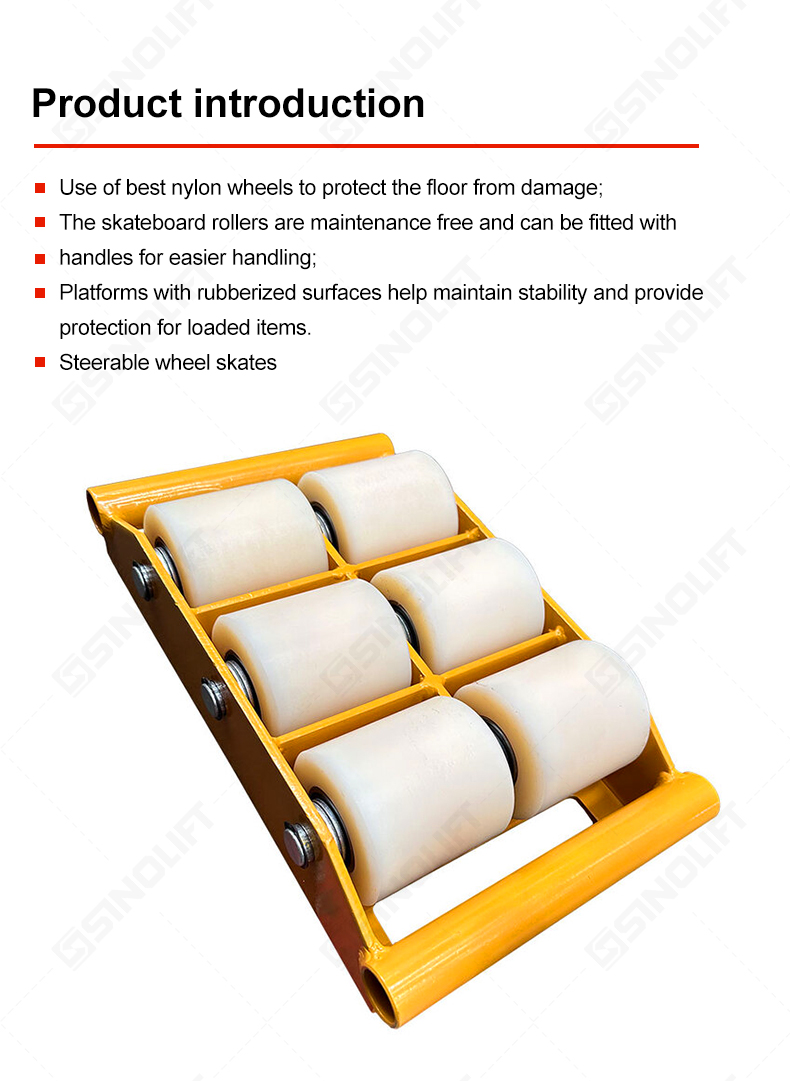

Floor Protection and Smooth Movement: The abrasion-resistant nylon wheels are designed not only for easy rolling but also to protect floor surfaces from scratches and damage. The use of heavy-duty sealed bearings helps distribute the load evenly and ensures smooth, effortless movement.
Enhanced Stability and Item Protection: Featuring a non-slip, rubberized platform surface, the skates provide superior stability during transit and prevent loaded items from shifting or sustaining damage, thereby safeguarding both the load and the operators.
User-Friendly and Maintenance-Free Design: Equipped with a one-piece handle for easy steering and positioning under loads, the skates are designed for straightforward operation. They are maintenance-free, requiring no ongoing upkeep, and can be used with jacks for simple lifting.

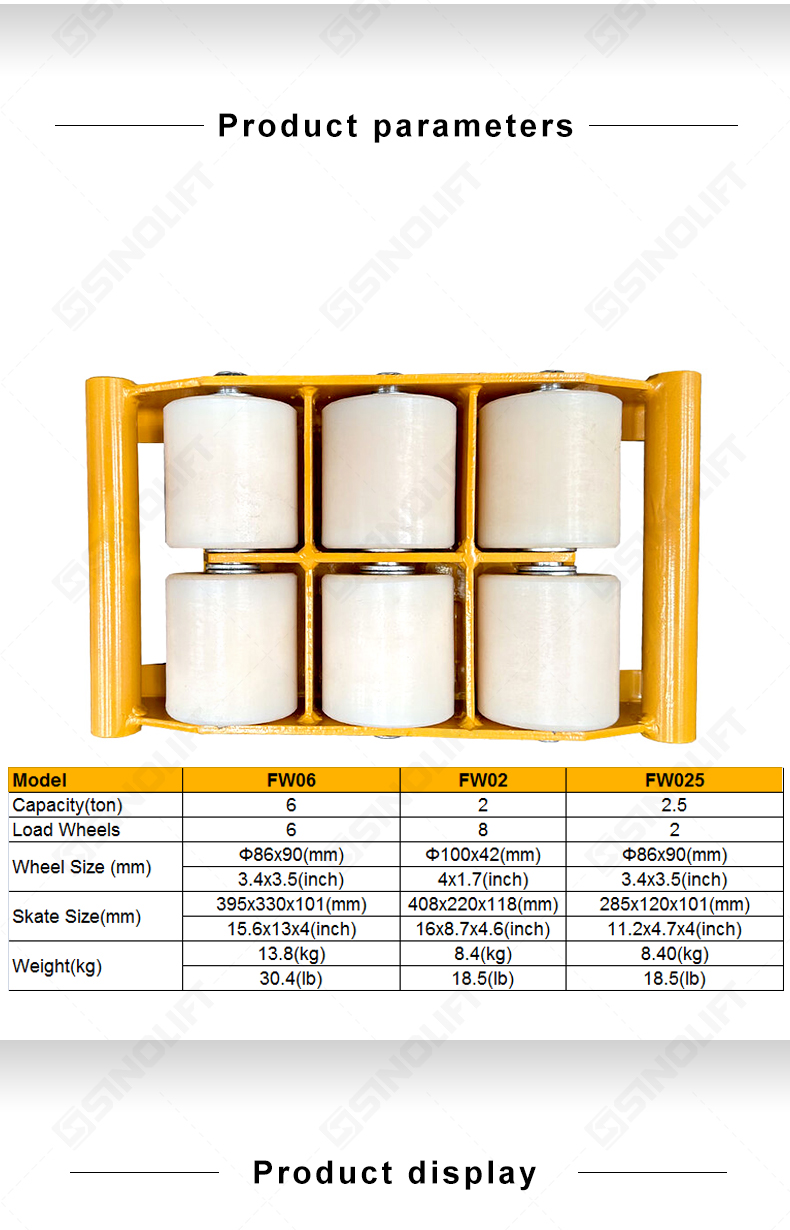

| Model | FW06 | FW02 | FW025 |
| Capacity(ton) | 6 | 2 | 2.5 |
| Load Wheels | 6 | 8 | 2 |
| Wheel Size (mm) | Φ86x90(mm) | Φ100x42(mm) | Φ86x90(mm) |
| 3.4x3.5(inch) | 4x1.7(inch) | 3.4x3.5(inch) | |
| Skate Size(mm) | 395x330x101(mm) | 408x220x118(mm) | 285x120x101(mm) |
| 15.6x13x4(inch) | 16x8.7x4.6(inch) | 11.2x4.7x4(inch) | |
| Weight(kg) | 13.8(kg) | 8.4(kg) | 8.40(kg) |
| 30.4(lb) | 18.5(lb) | 18.5(lb) |
