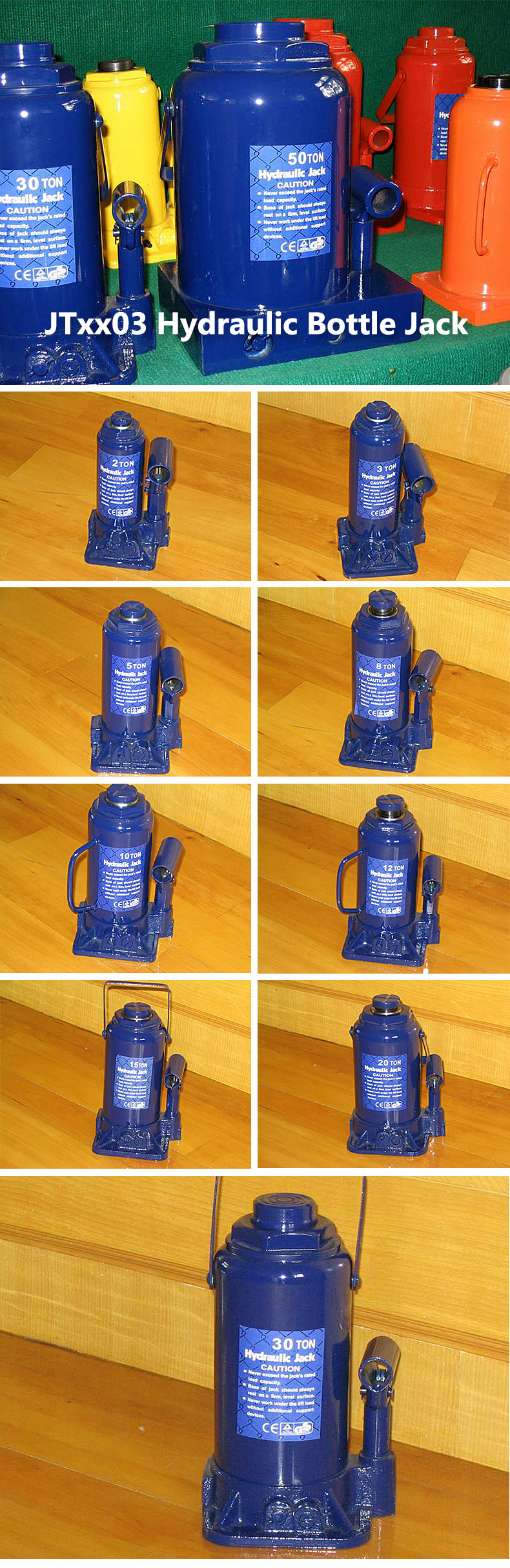

JTxx03 Hydraulic Bottle Jack
JTxx03
Quantity:
- Capacity: 2-50Ton
- Lifting Height: 90-180mm
- Versatile jacks can be used vertically (not upside down) or at any angle to no more than 5 degree from vertical position.
- Machined and polished cylinder walls ensure straight lifts preventing uneven wear.
- Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
- Patented bypass mechanism protects hydraulic cylinder from overpumped durable baked blue enamel finish.
Model | Order Model | Lifting Capacity | Min. height | Lifting Height | Adjust Height | Max. Height |
ton | mm | mm | mm | mm | ||
JT0203 | T010302 | 2 | 158 | 90 | 60 | 308 |
JT0303 | T010303 | 3 | 195 | 125 | 60 | 380 |
JT0503 | T010305 | 5 | 197 | 125 | 80 | 402 |
JT0803 | T010308 | 8 | 205 | 125 | 80 | 410 |
JT1003 | T010310 | 10 | 205 | 125 | 80 | 410 |
JT1203 | T010312 | 12 | 215 | 125 | 80 | 420 |
JT1503 | T010315 | 15 | 225 | 140 | 80 | 445 |
JT2003 | T010320 | 20 | 244 | 145 | 80 | 469 |
JT3003 | T010330 | 30 | 285 | 180 | / | 465 |
JT5003 | T010350 | 50 | 300 | 180 | / | 480 |
