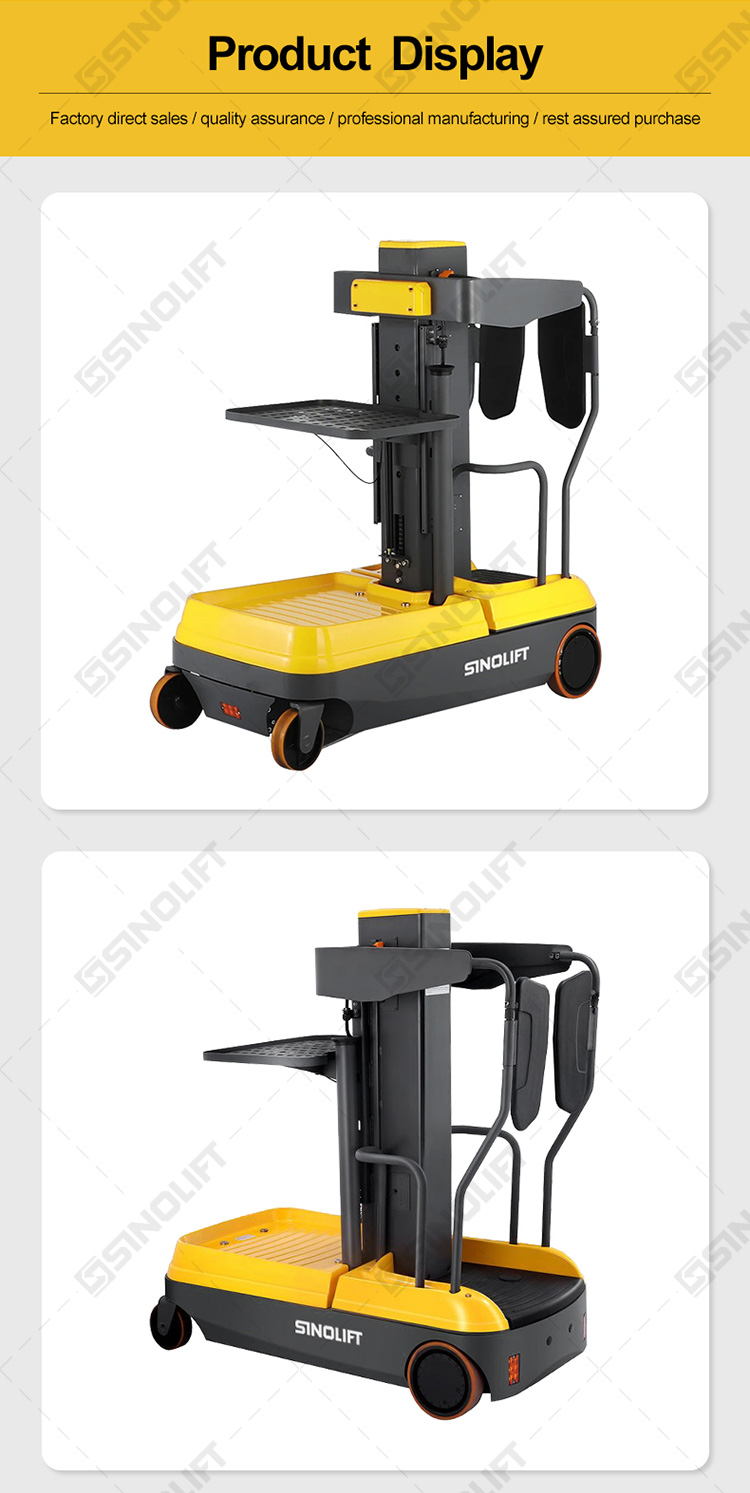

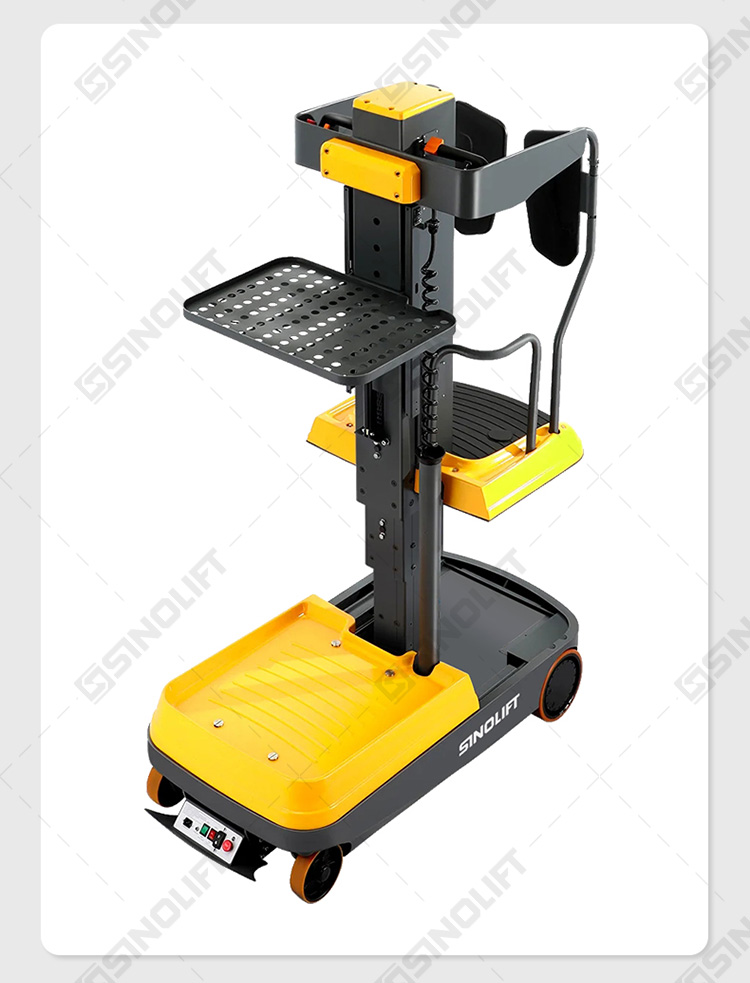

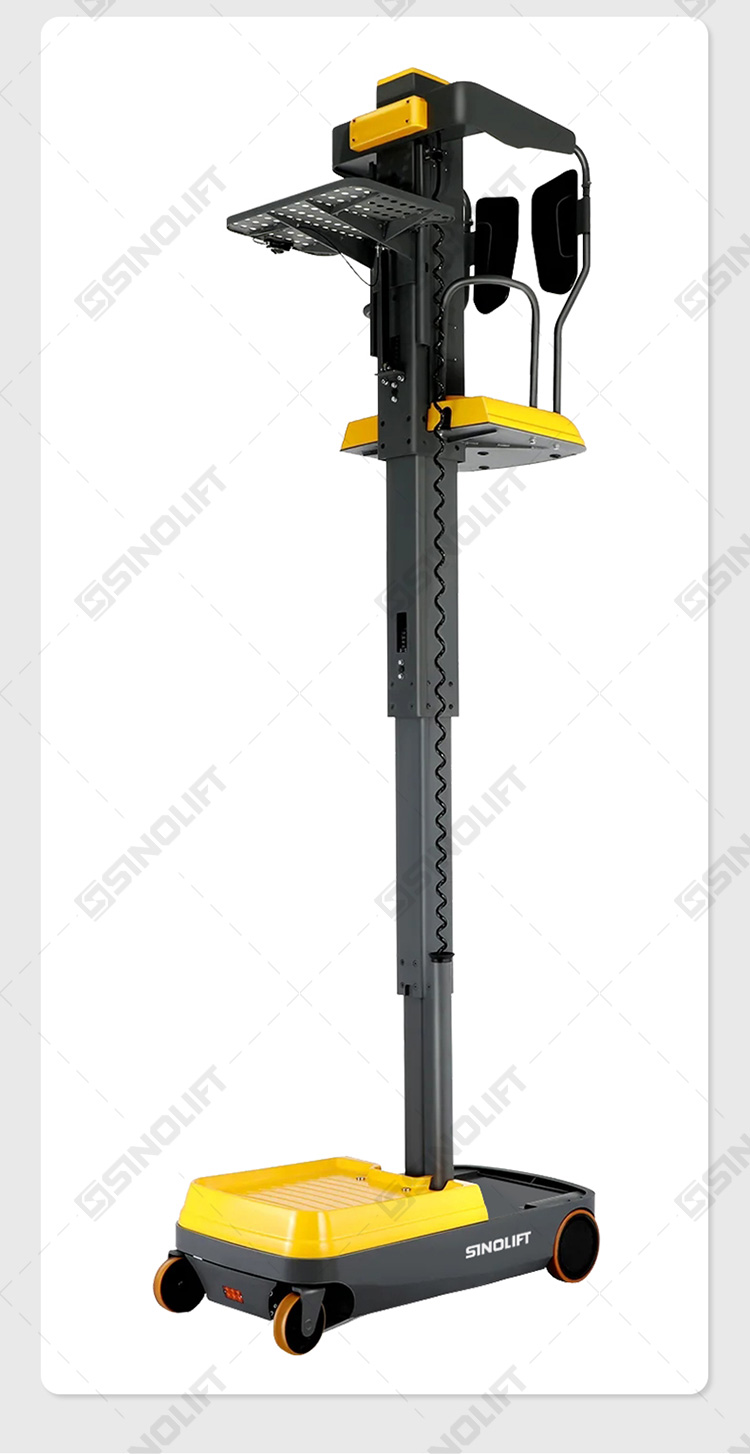

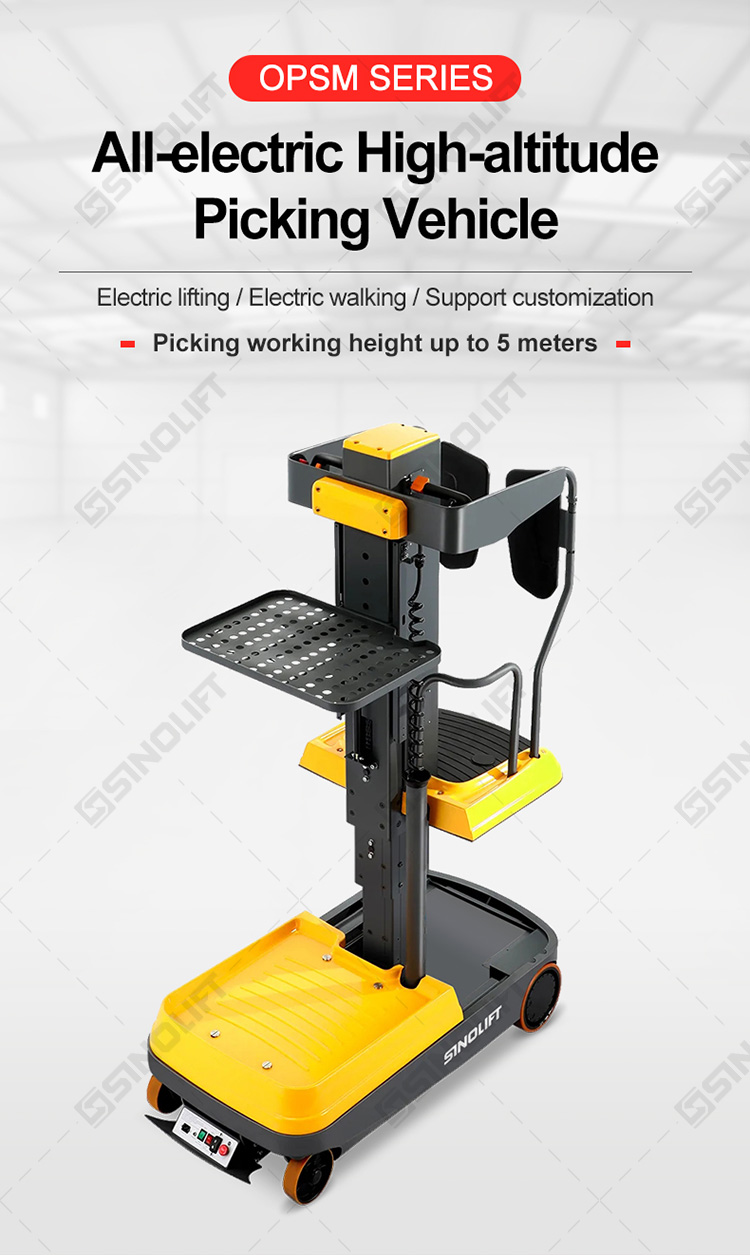

OPSM Low-Level Order Picker
OPSM

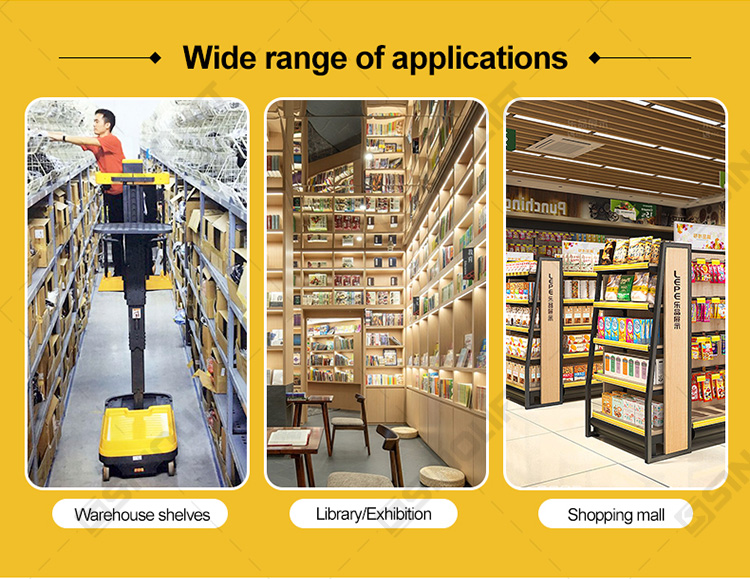

Four fixed-fork order pickers are ideally suited for picking bulky, oversized items or where extended platforms and industrial carts are used in place of pallets.
Two lifting-fork order pickers allow the operator to vary the load height to reduce the need for reaching and bending. This can be especially beneficial when the orders consist of many small or heavy items or where partial-pallet orders are picked.
Two lifting-fork order pickers allow the operator to vary the load height to reduce the need for reaching and bending. This can be especially beneficial when the orders consist of many small or heavy items or where partial-pallet orders are picked.
Quantity:
OPSM Low-Level Order Picker
Ample use of steel – from the mast to the side gates, and everything in between – means less sway and more operator certainty for greater all-around productivity.

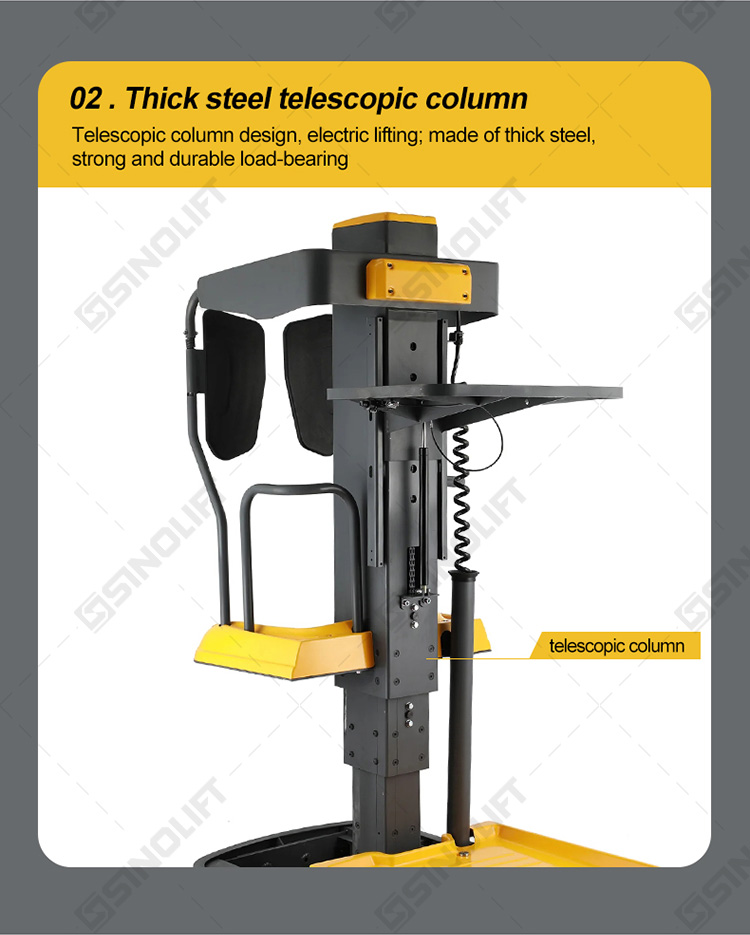

That’s why SINOLIFT engineers developed the most stable mast in the industry with heavy gauge steel, wide outer C-channels and inner I-beams, robust stabilizing angular cross members and exclusive vertical mast braces.
With SINOLIFT’s Stability Stance, operators have four points of solid contact with the stockpicker when stopping and starting from 3000mm in the air.
| Model | OPSM | |
| Driving Style | Standing | |
| Cargo Pallet Capacity | kg | 90 |
| Manned Platform Load Capacity | kg | 130 |
| Weight (Including Battery) | kg | 770 |
| Tire Type | Polyurethane PU | |
| Wheel Size ,Front | mm | 180*50 |
| After Wheel ,Size | mm | 250*60 |
| Number Of Wheels, (Front/Rear) | 2/2 | |
| Cargo Pallet Adjustment Height Range | mm | 260 |

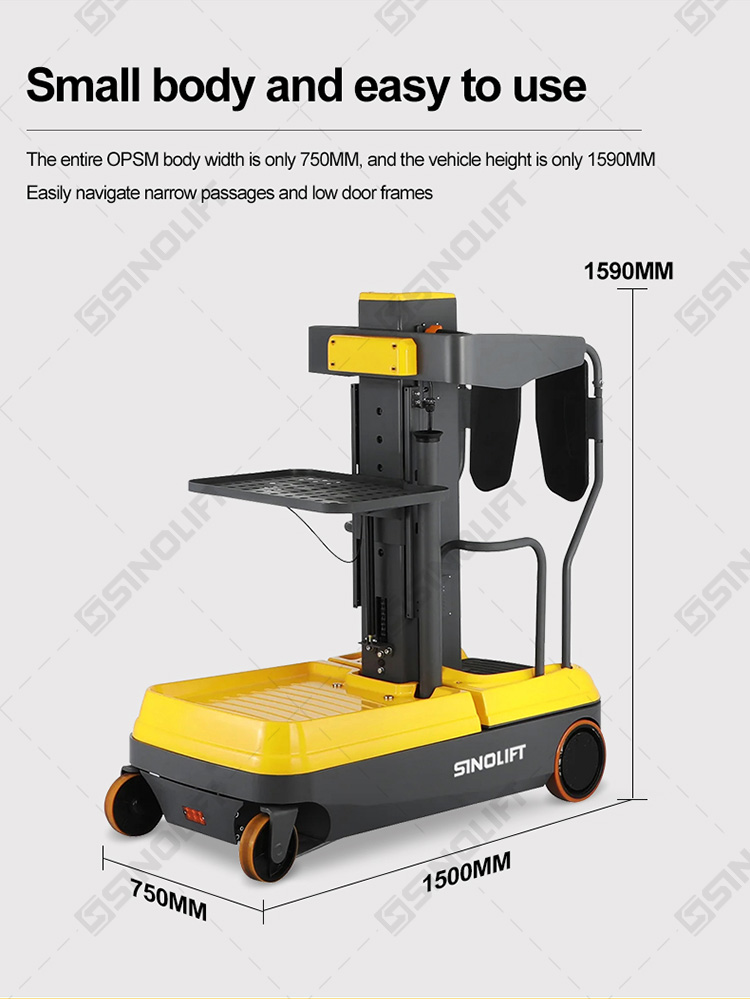

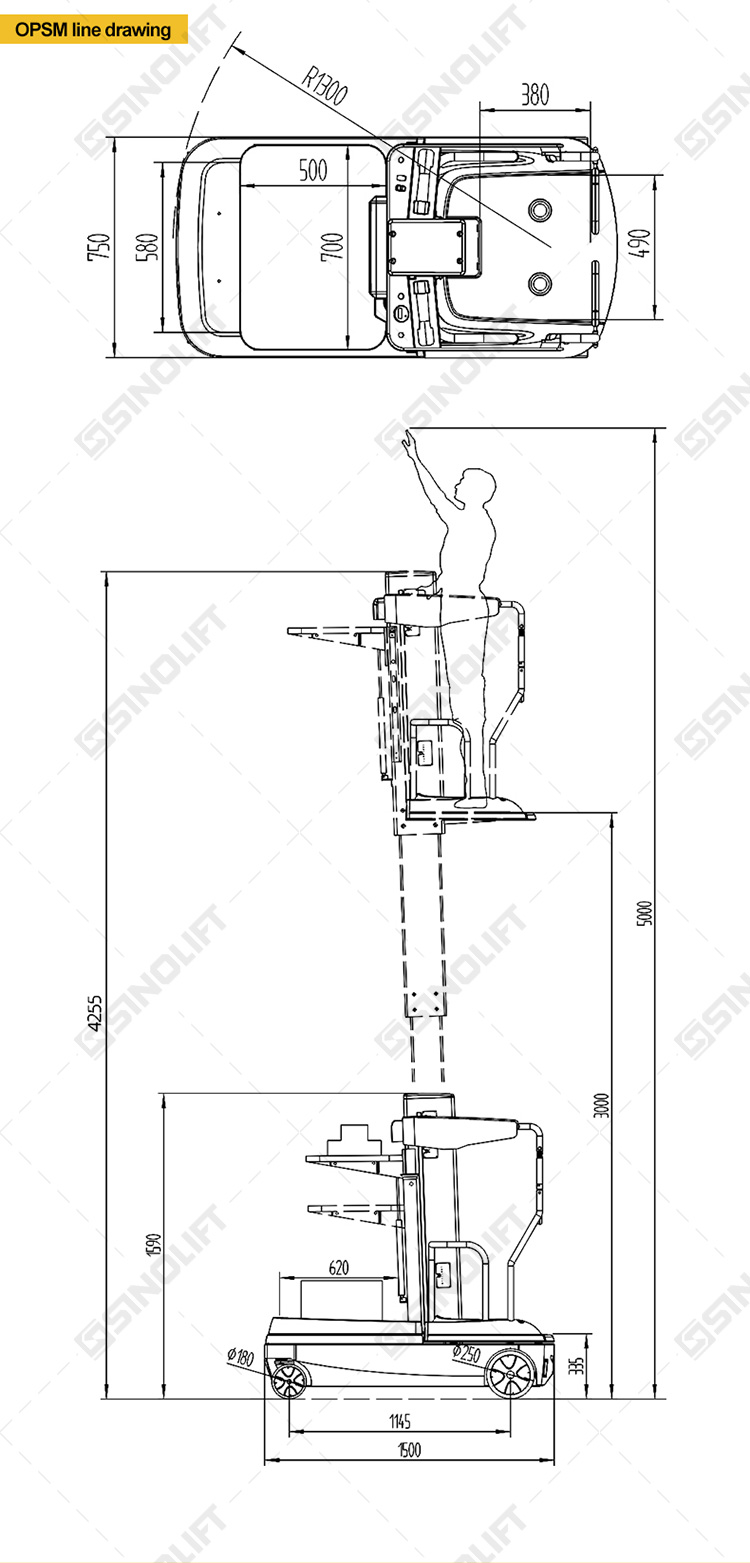

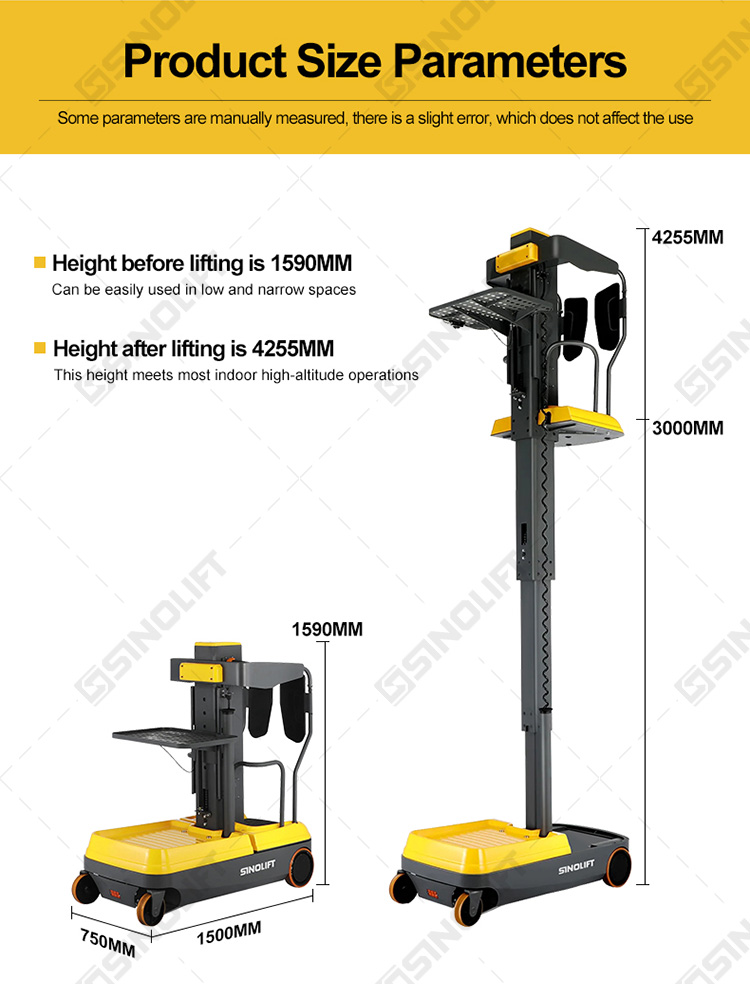

| Vehicle Height | mm | 1590 |
| Vehicle Length | mm | 1500 |
| Vehicle Width | mm | 750 |

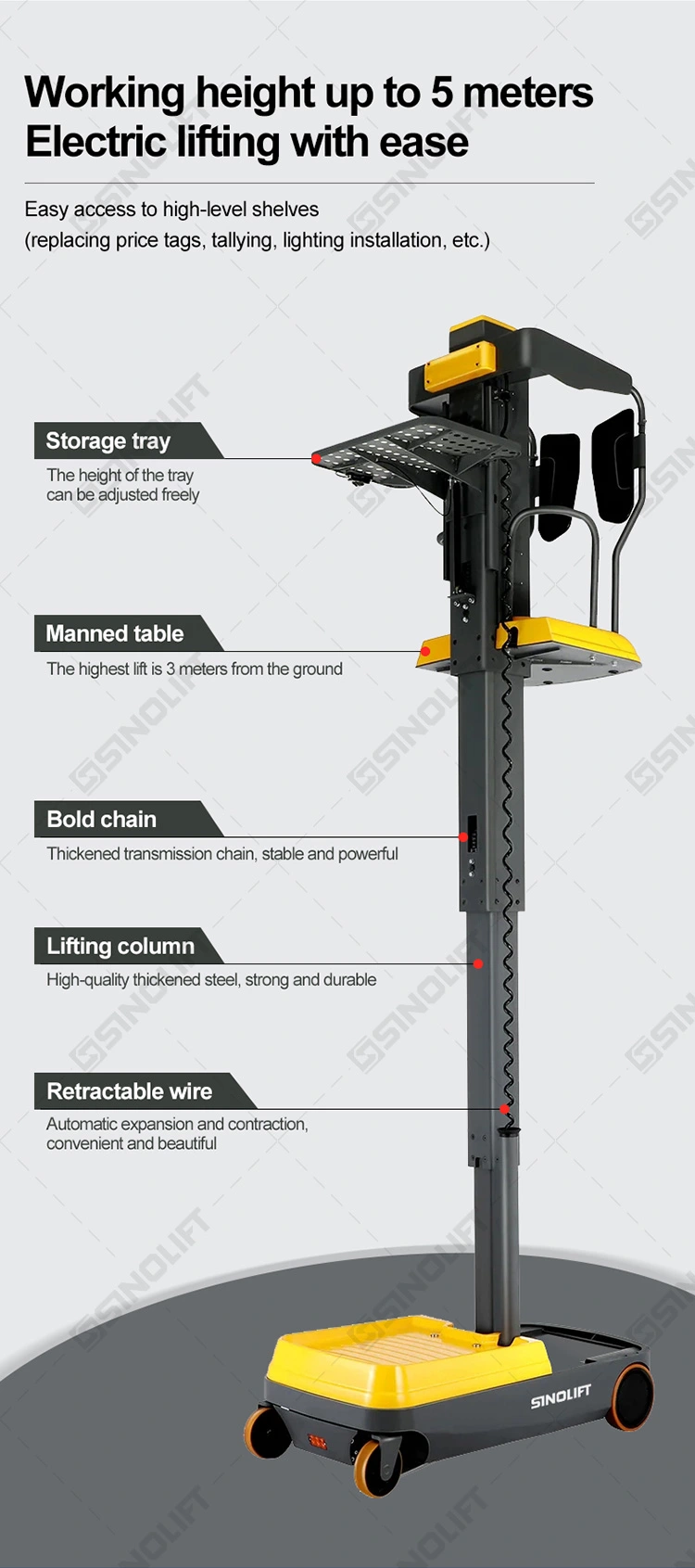

| Platform Lifting Height | mm | 3000 |
| Vehicle Height After Lifting | mm | 4255 |
| Pick-Up Height (Lifting Height + Hand Height) | mm | ≈5000 |
| Cargo Pallet Size | mm | 700*500 |

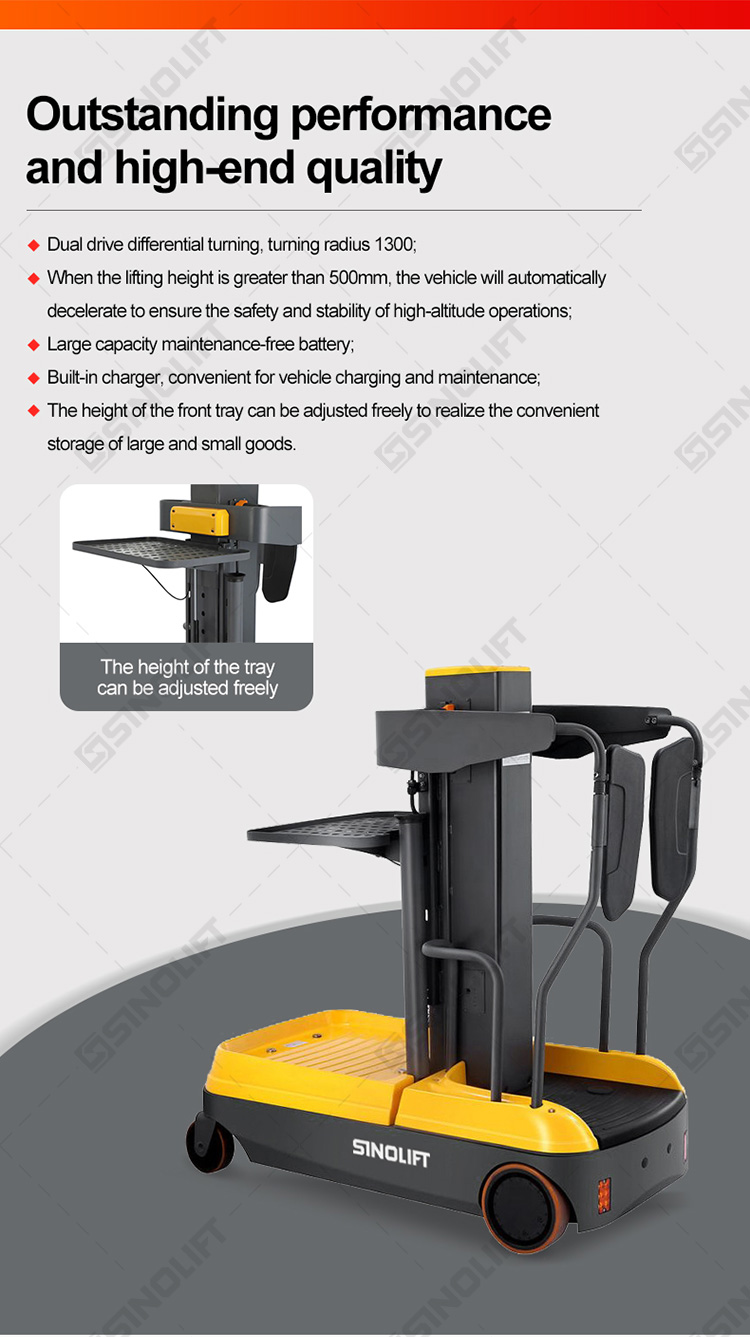

| Turning Radius | mm | 1300 |
| Channel Width | mm | 1750 |
| Wheelbase Center Ground Clearance | mm | 65 |
| Travel Speed, Full/Empty | Km/h | 1.2~4.5 |
| Lifting Speed, Full/Empty | m/s | 0.14 |
| Descending Speed, Full/Empty | m/s | 0.13 |
| Maximum Gradeability, Full Load/No Load | % | 5% |
| Service Brake Type | Electromagnetic brake | |
| Battery Voltage/Capacity (5 Hours Discharge Capacity) | V/Ah | 24/88 |
| Lifting Motor Power | Kw | 2.2 |
| Drive Motor Power | Kw | 0.5 |
| Controller Type | DC | |
| Steering | Electronic steering |
