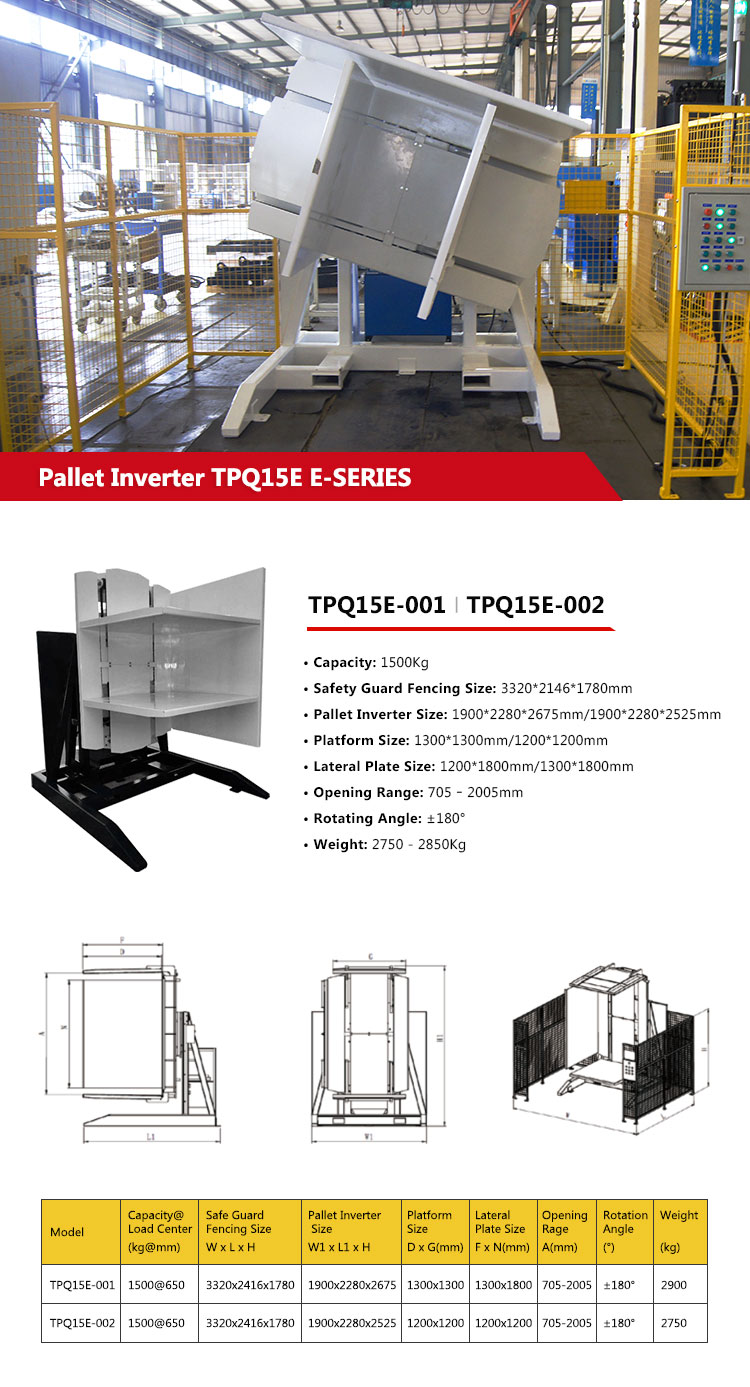

Pallet Inverter TPQ15E E-series
Key Features of Pallet Inverter TPQ15E E-series:
Floor-Flush Design – Enables smooth loading and unloading via pallet trucks, improving workflow efficiency.
Non-Inverting Operation – Specially designed to change pallets without turning the load, ensuring product integrity.
Wide Application – Ideal for transferring boxed, bagged, or canned products, and removing freezer spacers.
Damage Prevention – Facilitates safe replacement of damaged pallets or cartons without disturbing the load.
User-Friendly and Safe – Simple operation with a focus on safety and reliability, suitable for diverse industrial environments.
- Capacity: 1500Kg
- Safety Guard Fencing Size: 3320*2146*1780mm
- Pallet Inverter Size: 1900*2280*2675mm/1900*2280*2525mm
- Platform Size: 1300*1300mm/1200*1200mm
- Lateral Plate Size: 1200*1800mm/1300*1800mm
- Opening Range: 705 – 2005mm
- Rotating Angle: ±180°
- Weight: 2750 - 2850Kg
Recommend Hydraulic Flow: 20L/min
Pressure: 16 Bar
Model | Capacity@Load Center (kg@mm) | Safe Guard Fencing Size (WxLxH) | Pallet Inverter Size (W1xL1xH) | Platform Size DxG(mm) | Lateral Plate Size FxN(mm) | Opening Race A(mm) | Rotation Angle (°) | Weight (kg) |
TPQ15E-001 | 1500@650 | 3320x2416x1780 | 1900x2280x2675 | 1300x1300 | 1300x1800 | 705-2005 | ±180° | 2900 |
TPQ15E-002 | 1500@650 | 3320x2416x1780 | 1900x2280x2525 | 1200x1200 | 1200x1800 | 705-2005 | ±180° | 2750 |
