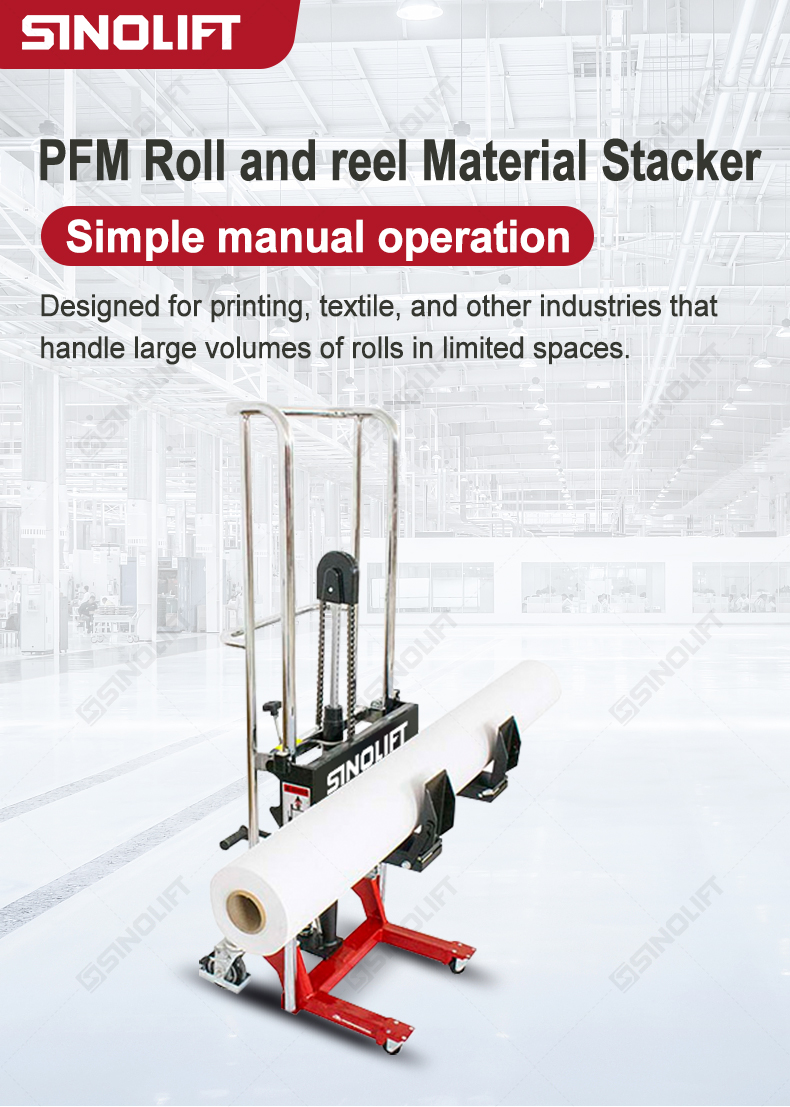

PFM Roll And Reel Material Stacker - Simple Manual Operation
Product Overview
The SINOLIFT PFM Manual Roll Lifter is engineered as a compact and ergonomic solution for the safe and efficient handling of large cylindrical materials, such as paper, film, and fabric rolls. Designed with space-constrained industrial environments in mind, it empowers a single operator to load, transport, and position heavy rolls with minimal effort. Its core design intent is to replace risky manual handling with a stable, labor-saving tool that enhances both workplace safety and operational precision in dynamic production settings.
Key Features & Design Highlights

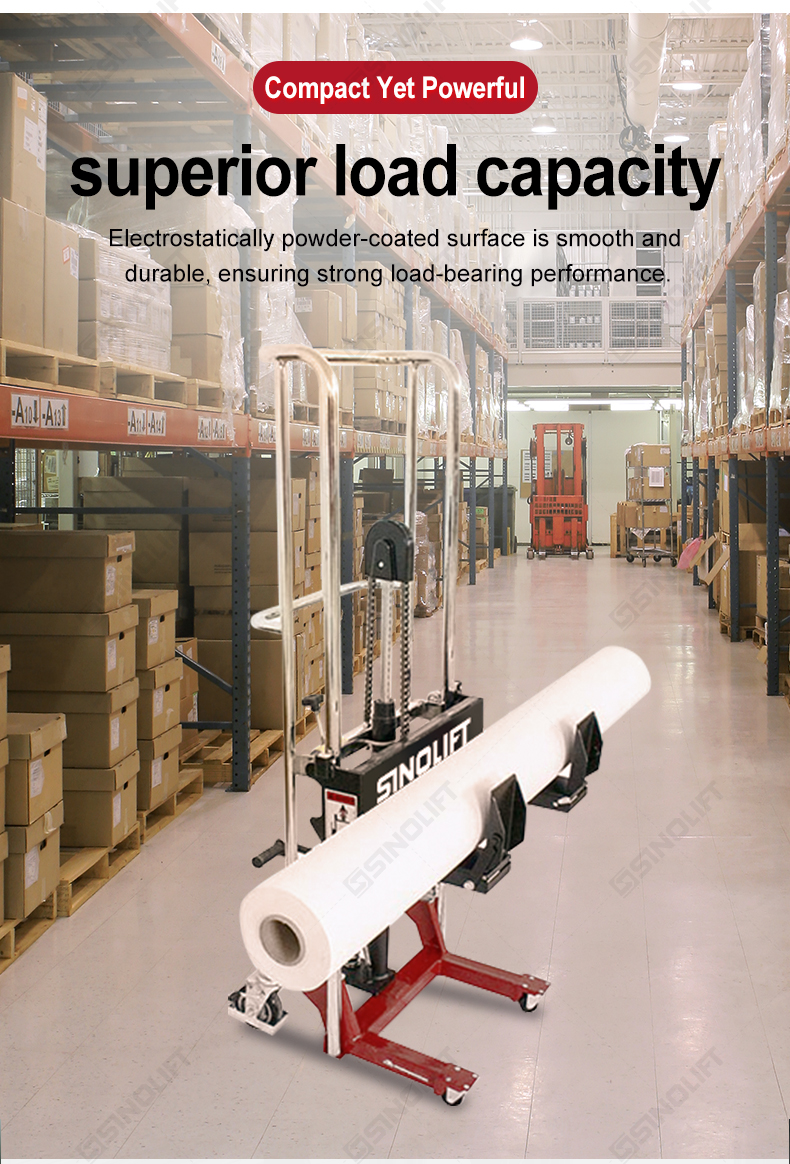

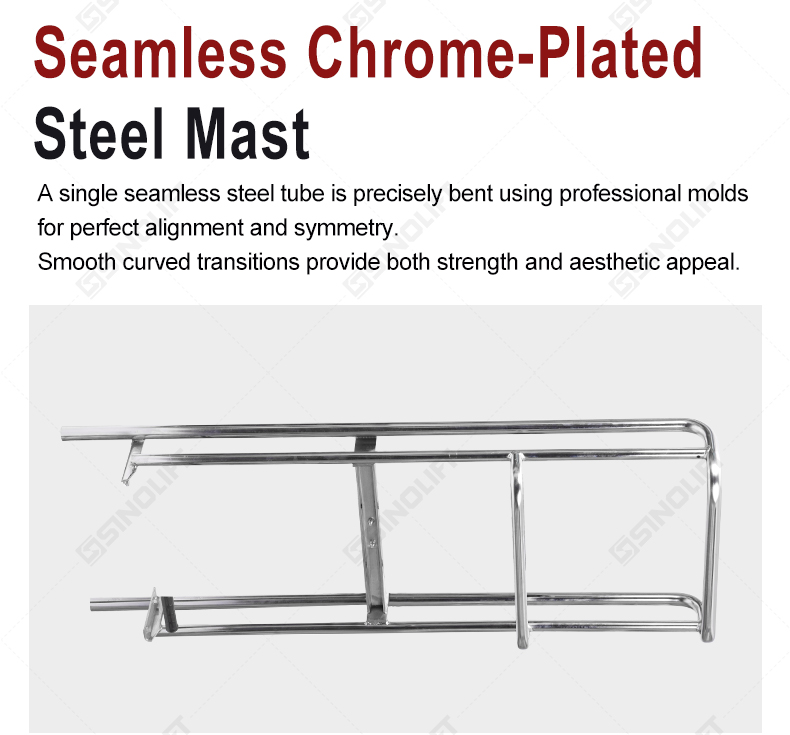

Robust & Durable Construction: Built with high-quality steel and a seamless chrome-plated mast for superior strength and load capacity. The electrostatic powder coating ensures a smooth, durable finish.

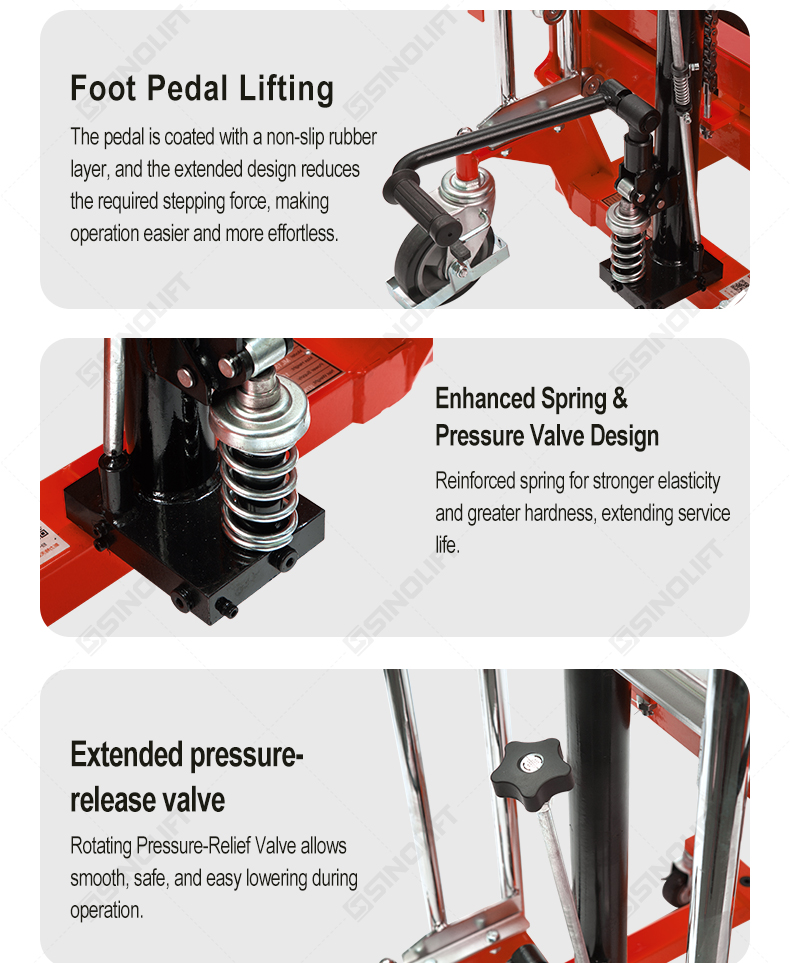

Ergonomic Manual Operation: Features a foot-pump hydraulic system for smooth, controlled lifting and lowering, eliminating the need for electrical power. An ergonomic auxiliary handle ensures comfortable pushing and maneuvering.

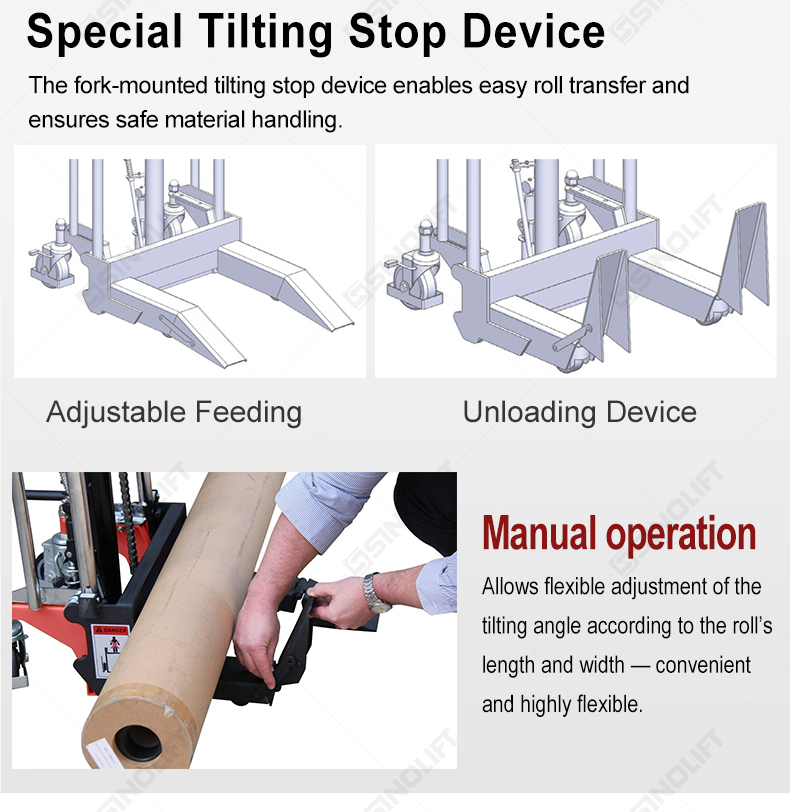

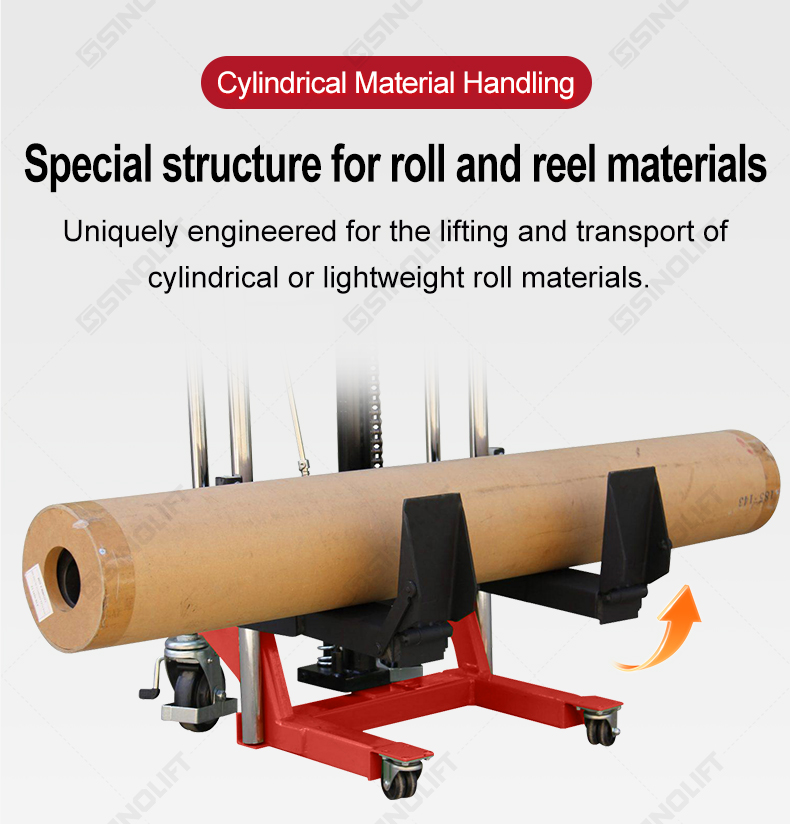

Specialized Roll Handling Design: Equipped with a grooved cradle tray and a unique tilting stop device on the fork to securely hold cylindrical rolls in place during transport and enable easy loading/unloading.

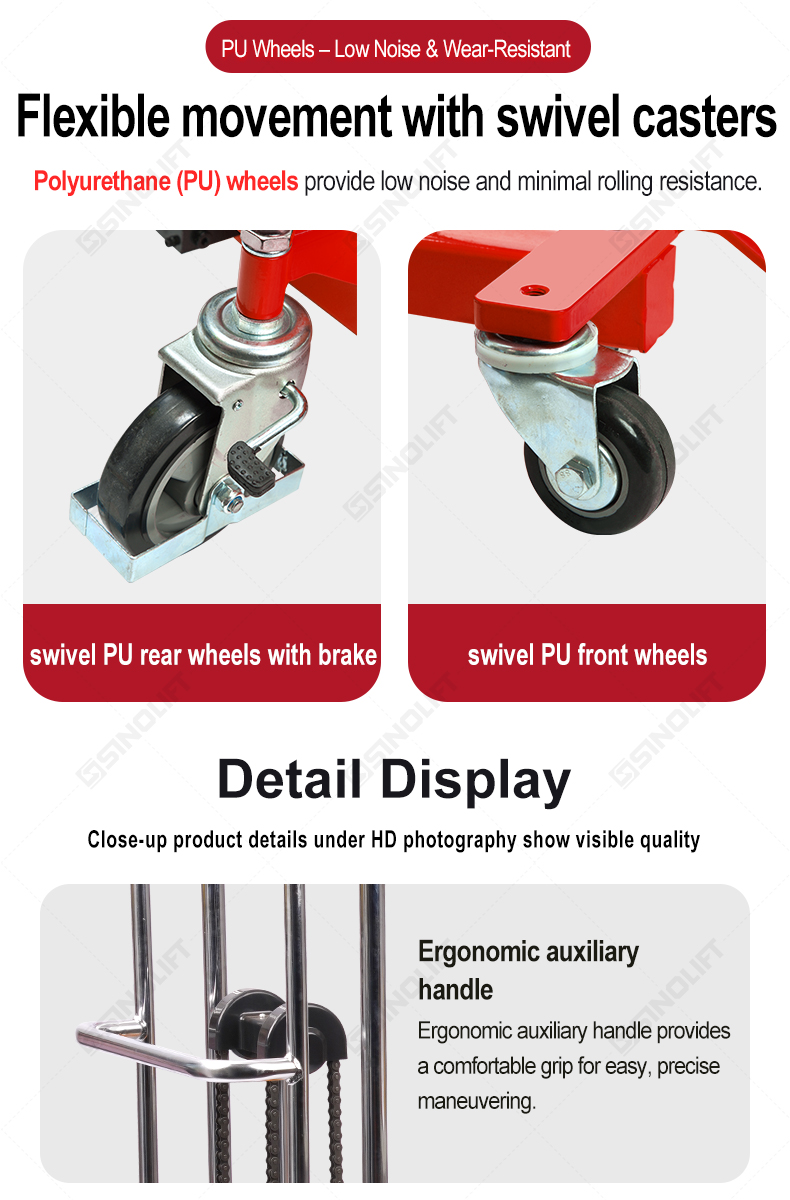

Enhanced Mobility & Safety: Fitted with polyurethane (PU) wheels for quiet, low-resistance movement and excellent floor protection. Swivel casters provide high maneuverability in narrow aisles.

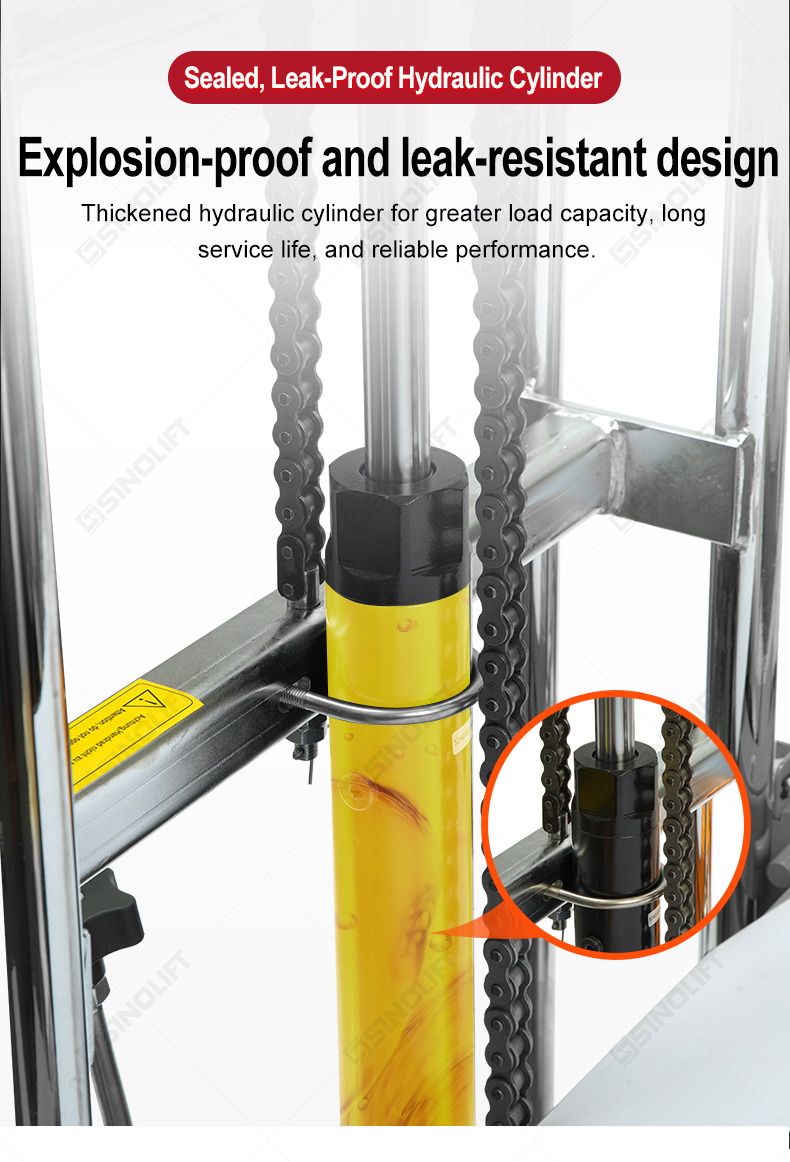

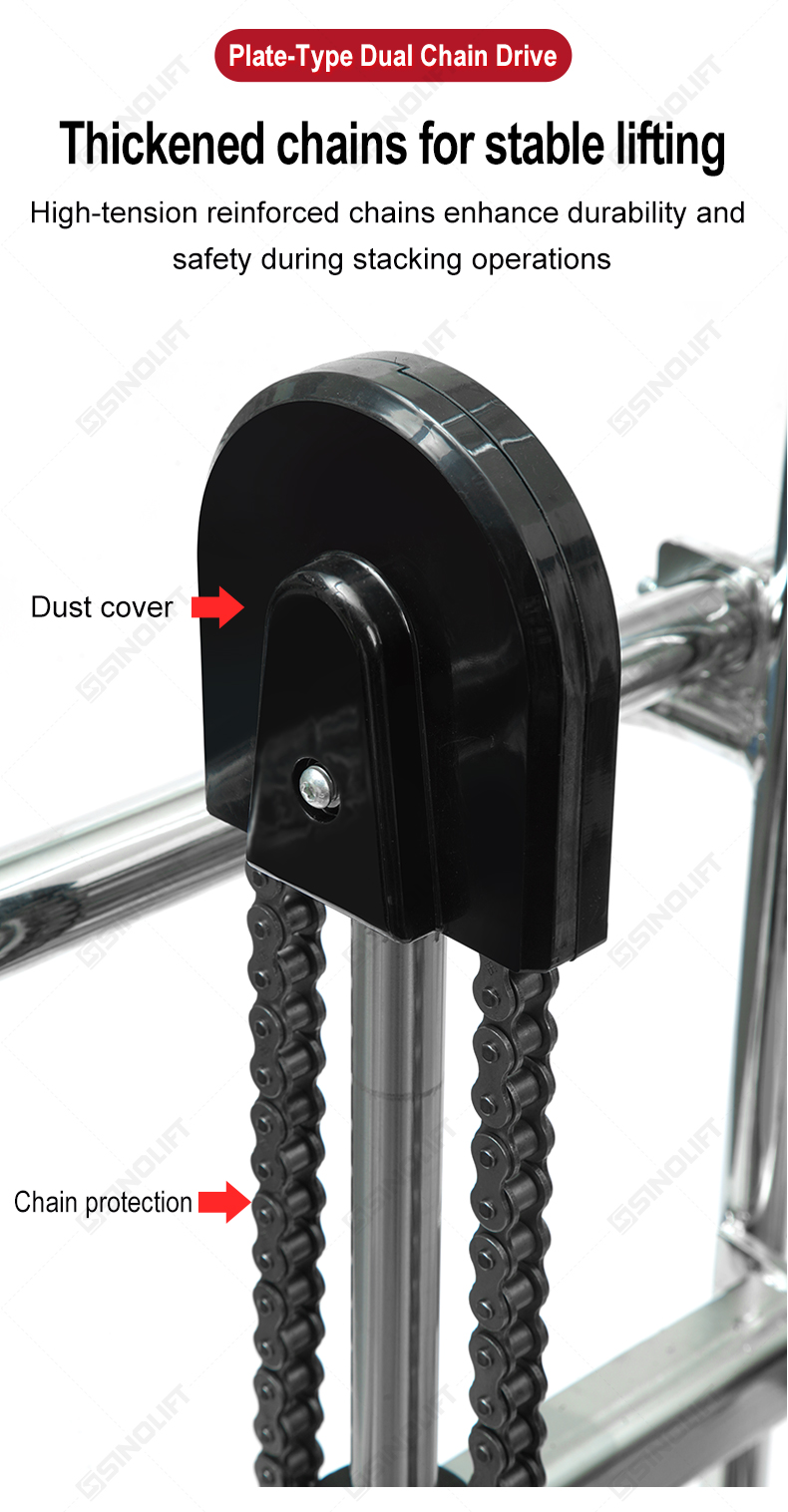

Reliable Core Components: Incorporates a sealed, leak-proof hydraulic cylinder and a plate-type dual chain drive with thickened chains for stable, dependable lifting performance and long service life.
Primary Applications
The PFM Lifter is the ideal choice for industries that regularly handle large, cylindrical media rolls in limited spaces. Its primary applications include:
Printing Industry: For safely loading and unloading large paper rolls onto and off of printing presses and finishing equipment.
Textile & Fabric Manufacturing: For transporting fabric rolls between weaving machines, dyeing lines, and storage areas.
Packaging & Film Production: For handling heavy rolls of plastic film, foil, or other flexible packaging materials.

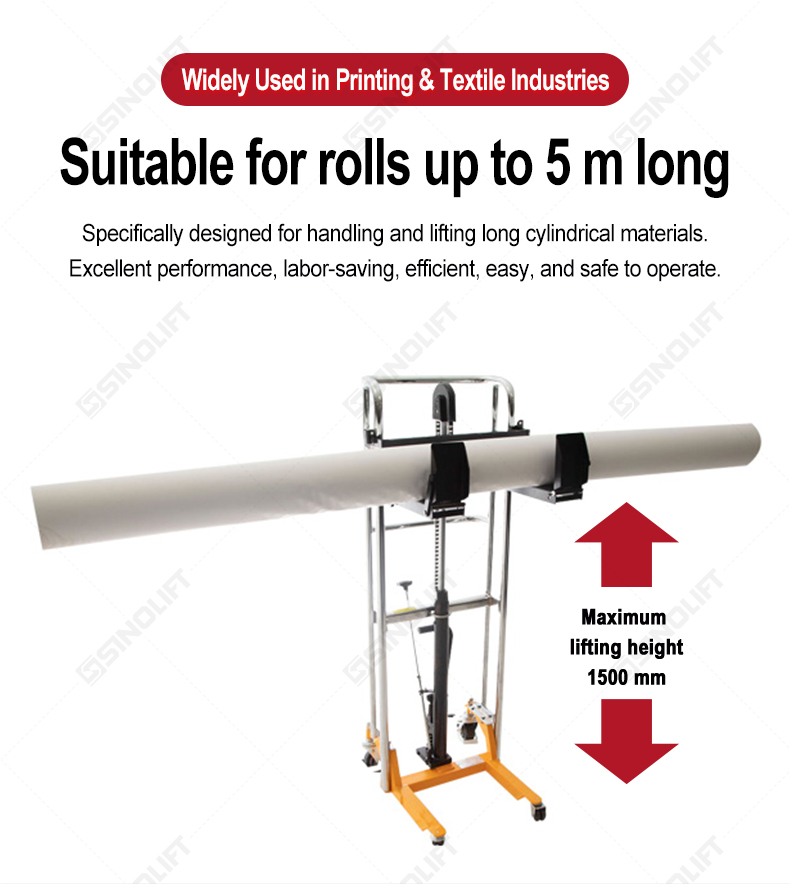

General Roll Handling: Any operational environment where long, heavy cylindrical materials (up to 5 meters) need to be moved and positioned ergonomically and safely.
| Model | PFM | |
| Vendor Export Code | 61581 | |
| Roll Weight Capacity | kg (lbs) | 200 (440) |
| Lift Height | mm (inch) | 1300 (51") |
| Max. Roll Width | mm (inch) | Ø1800 (71") |
| Max. Roll Diameter | mm (inch) | 305 (12") |
| Overall Media Lifter Dimensions (W x D x H) | mm | 570 x 650 x 1580 |
| inch | 22.5″x 25.5″Dx 63.25″ | |
| Media Lifter Weight | kg (lbs) | 80(175) |
| Bottom Fork Clearance | mm (inch) | 75/3" |
| Front Swivel Casters | mm (inch) | Ø50(2") |
| Rear Swivel Casters | mm (inch) | Ø125(5") |
