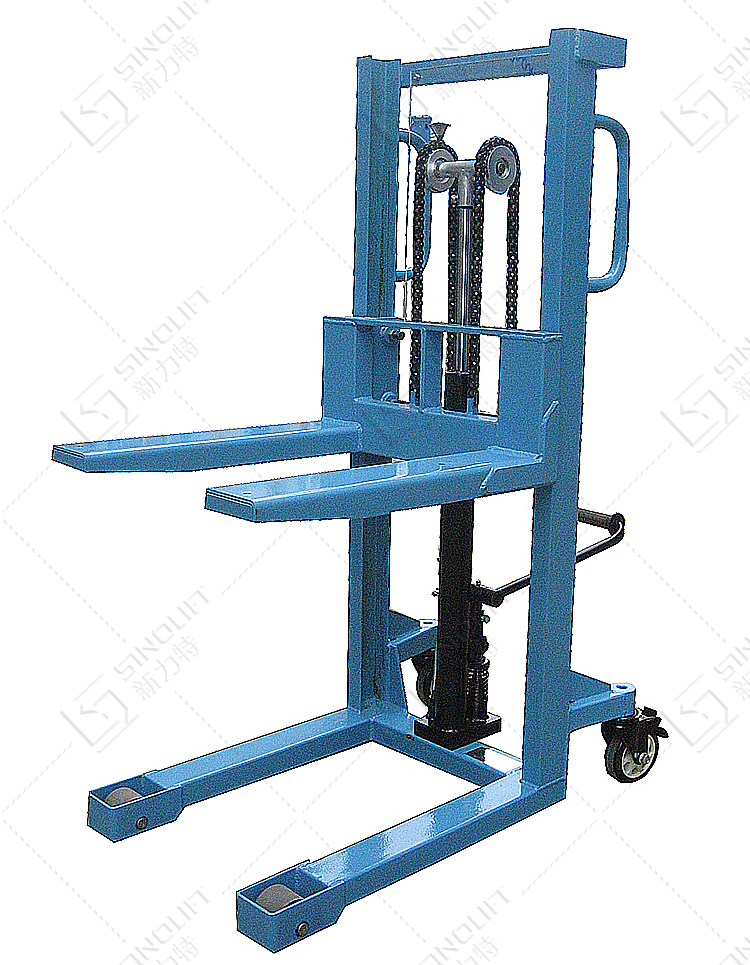

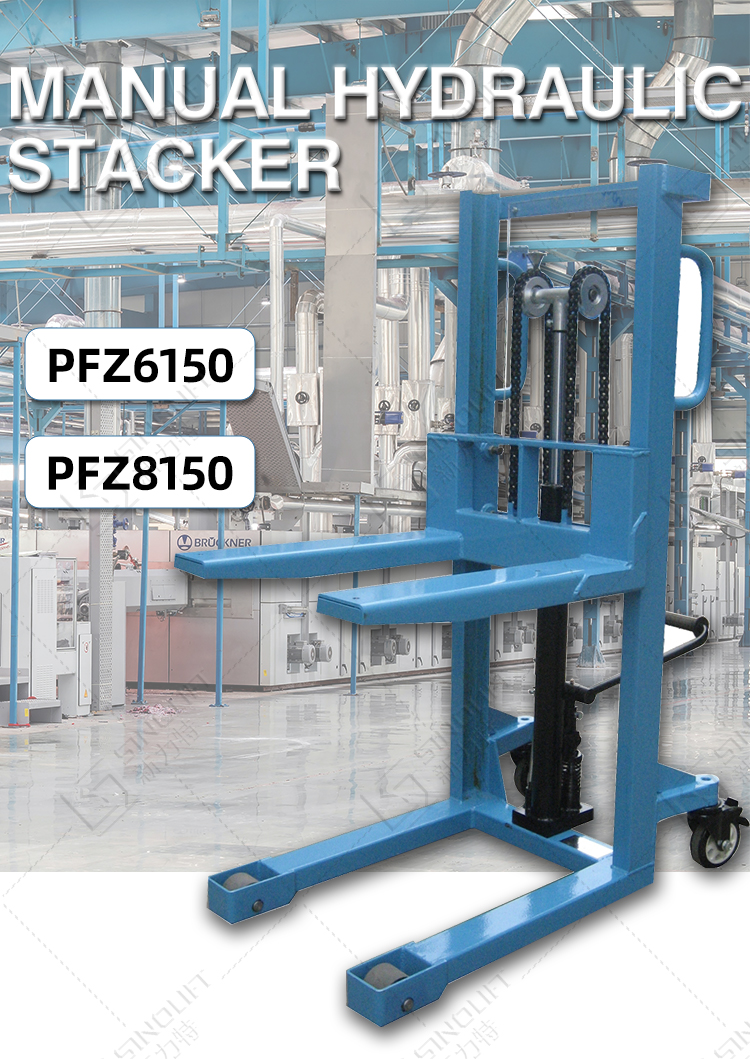

PFZ6150 PFZ8150 Manual Hydraulic Stacker

PFZ6150 PFZ8150
Smooth rolling on Ø125x50 (6" x 2") mold-on-rubber wheels on the back of the lift and Ø75mm (2" dia.) semi-steel wheels, Two swivel front wheels and floor lock are standard on every units. Wheels are also at the top of each truck to allow for easy accessibility into delivery trucks. Low Profile units have 6mm (1/4" )thick platform with 50mm (2" H. side lips. Horizontal load center is 10". FOB Shanghai Shipping Point.
Quantity:
Contact Now
add to cart
All Products
  • Easy to operate lifts are available in steel or aluminum construction for long life.
  • Lift and transport loads from delivery trucks, to docks, maintenance work or use in inventory items.

Smooth rolling on Ø125x50 (6"x 2") mold-on-rubber wheels on the back of the lift and Ø75mm (2"dia.) semi-steel wheels, Two swivel front wheels and floor lock are standard on every units. Wheels are also at the top of each truck to allow for easy accessibility into delivery trucks. Low Profile units have 6mm (1/4")thick platform with 50mm (2"H. side lips. Horizontal load center is 10". FOB Shanghai Shipping Point.

Manual Hydraulic Stacker is main active transfer machine in all transfer jobsites. And it suits transfer on upper floor which has load limiting. You can operate of the drive and the lift easily in safety by Centralized control hand device or Electric Device. It can handle any light duty pallets.

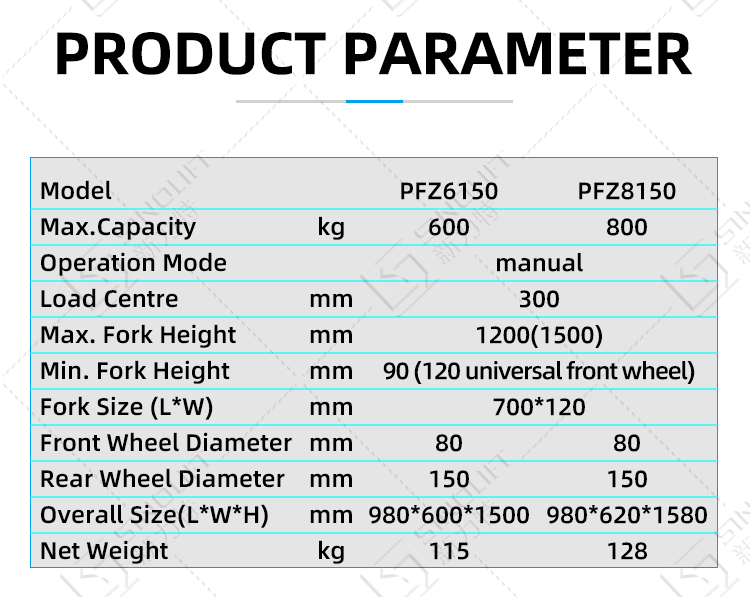

ModelPFZ6150PFZ8150
Max. Capacitykg600800
Operation Modemanual
Load Centremm300
Max. Fork Heightmm1200(1500)
Min. Fork Heightmm90 (120 universal front wheel)
Fork Size (L*W)mm700*120
Front Wheel Diametermm8080
Rear Wheel Diametermm150150
Overall Size(L*W*H)mm980*600*1500980*620*1580
Net Weightkg115128
