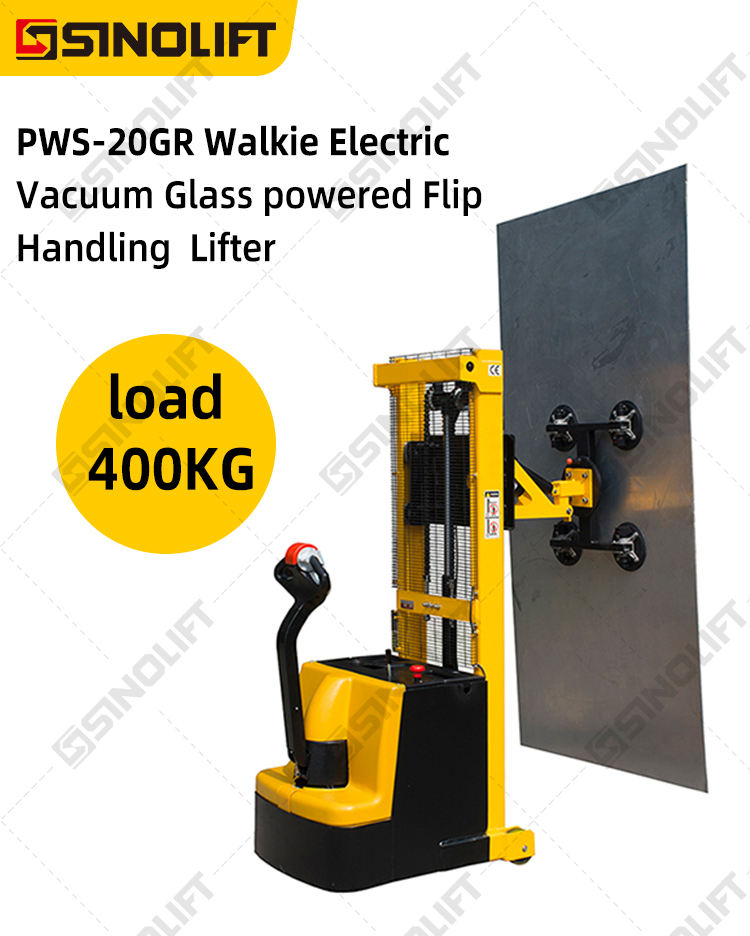

PWS-20GR Walkie Electric Vacuum Glass powered Flip Handling Lifter

PWS-20GR

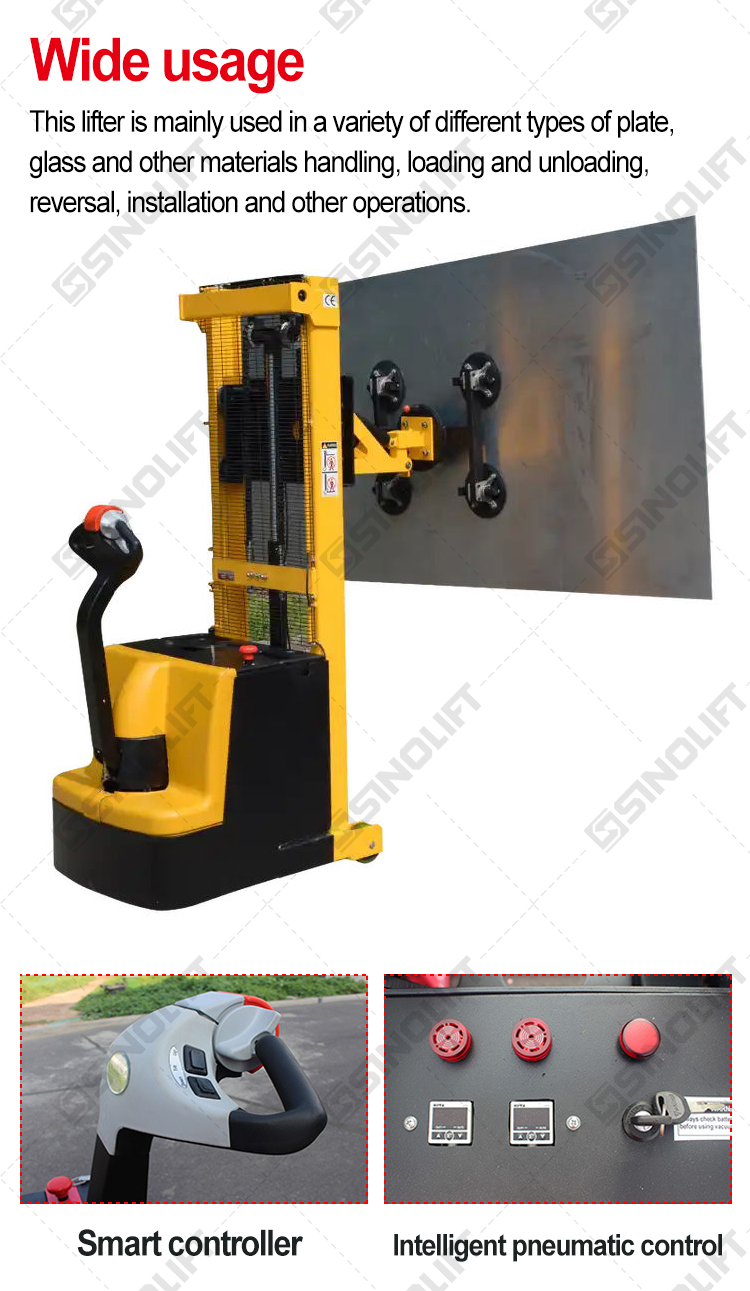

Wide usage
This lifter is mainly used in a variety of different types of plate, glass and other materials handling, loading and unloading, reversal, installation and other operations.
Quite operatation
Balanced suction cup handling mechanical vehicle, no front legs, no obstacles, product appearance small, convenient to enter the elevator. Equipped with glass
Quantity:
Contact Now
add to cart
All Products

Wide usage

This lifter is mainly used in a variety of different types of plate, glass and other materials handling, loading and unloading, reversal, installation and other operations.

Quiteoperatation

Balanced suction cup handling mechanical vehicle, no front legs, no obstacles, product appearance small, convenient to enter the elevator. Equipped with glass suction cups, fork and other devices, become a balanced stack high forklift and other handling and lifting equipment.

Highquality accessories

Use the European security standards, automatic inquiry section, control the work pressure, and to use the double pipe system, safety when control, to prevent accidents.

Various functions

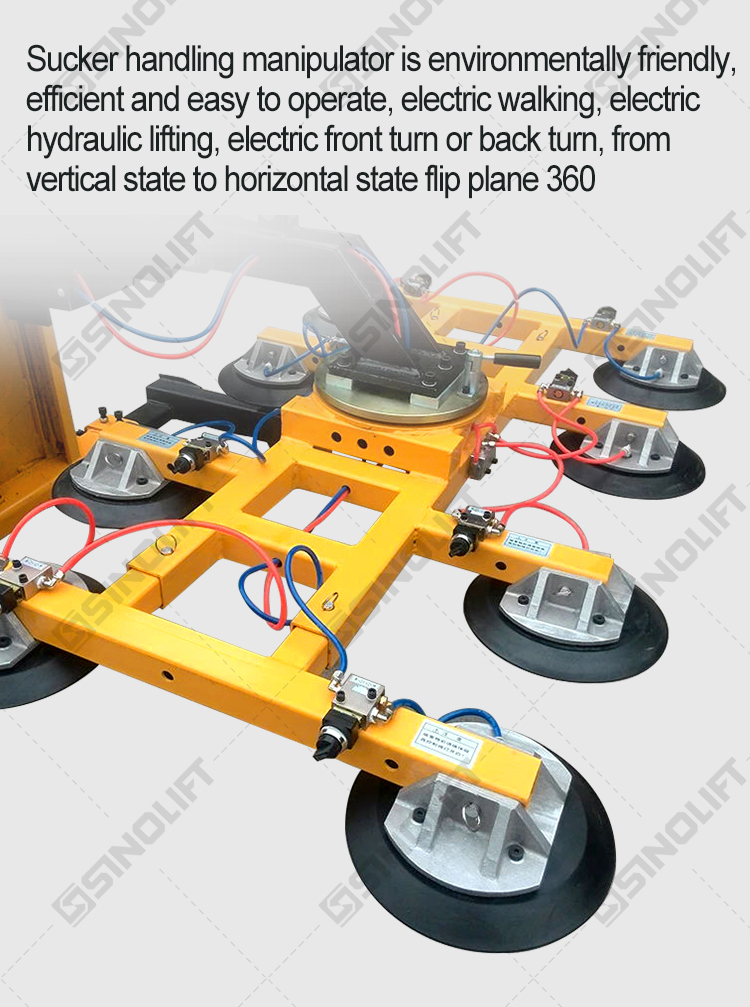

Sucker handling manipulator is environmentally friendly, efficient and easy to operate, electric walking, electric hydraulic lifting, electric front turn or back turn, from vertical state to horizontal state flip plane 360

A variety of models

Walking economy, standard folding slightly board station drive, balance and other configuration, equipped with intelligent ten level power display table

Multi-function control handle, simple operation, large capacity battery set, super battery life, smart computer charger.

Specification

Model:PWS-20GR
Capacity:400kg(Horizontal) 200kg(Vertical)
Suction cup frame adjustable width:1000 to 1400mm
Max height of the suction cup(Horizontal):1600mm/2500mm
Min height of the suction cup(Horizontal):140mm
Max height of the suction cup(Vertical):2268mm
Min height of the suction cup(Vertical):808mm
QTY of caps:4xφ30
The vertical direction can be turned down by 90 degrees.
The horizontal direction can be rotated 90 degrees to the left and right.
Battery:2x12V/70A
Charger:24V/10A
Lift motor:24V/2000W
Overall Length:1450mm
Overall Width:800mm
Overall Height:2000mm
Net Weight:425kg
Packing size:1550*1100*2100mm
Gross Weight:500kg
