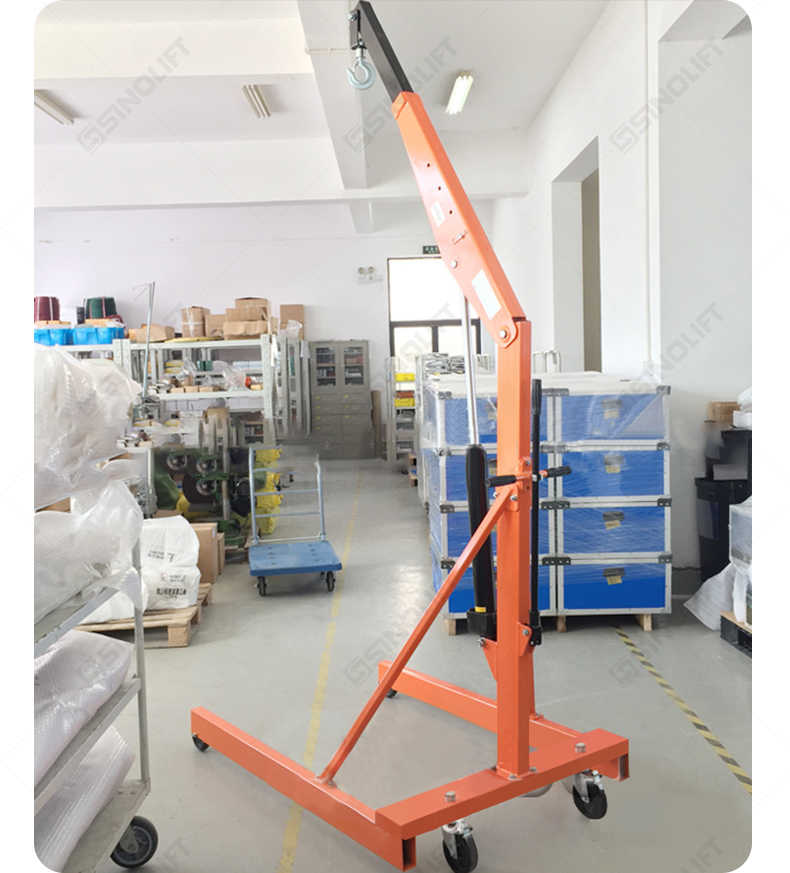

SA500 SA1000 Euro Heavy-Duty Shop Crane
Name: SA500 SA1000 Euro Heavy-Duty Shop Crane
Features of Shop Crane:

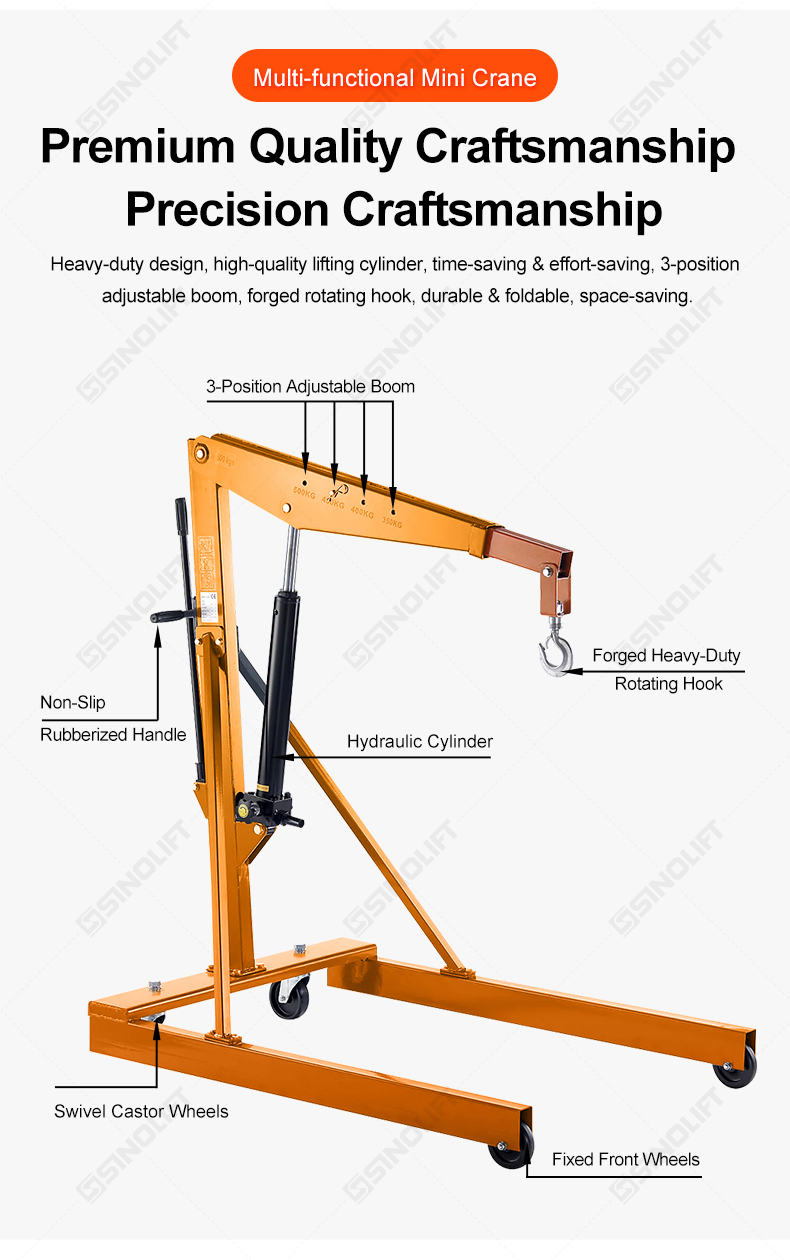

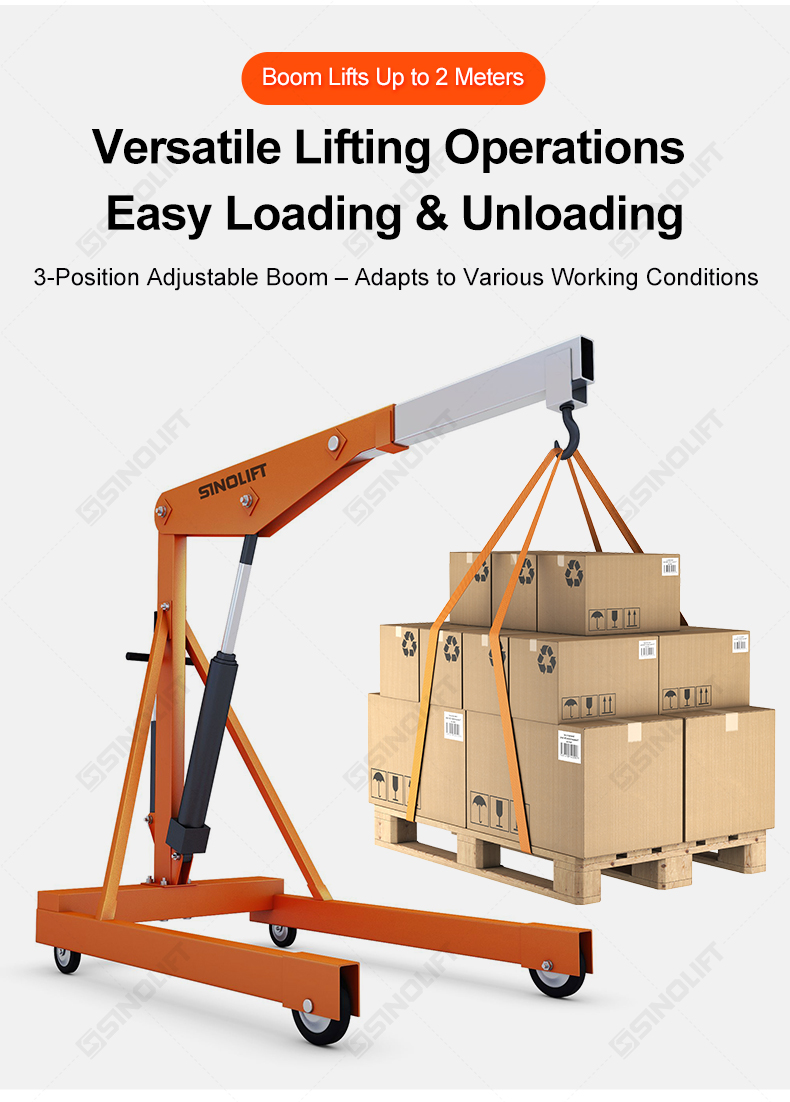

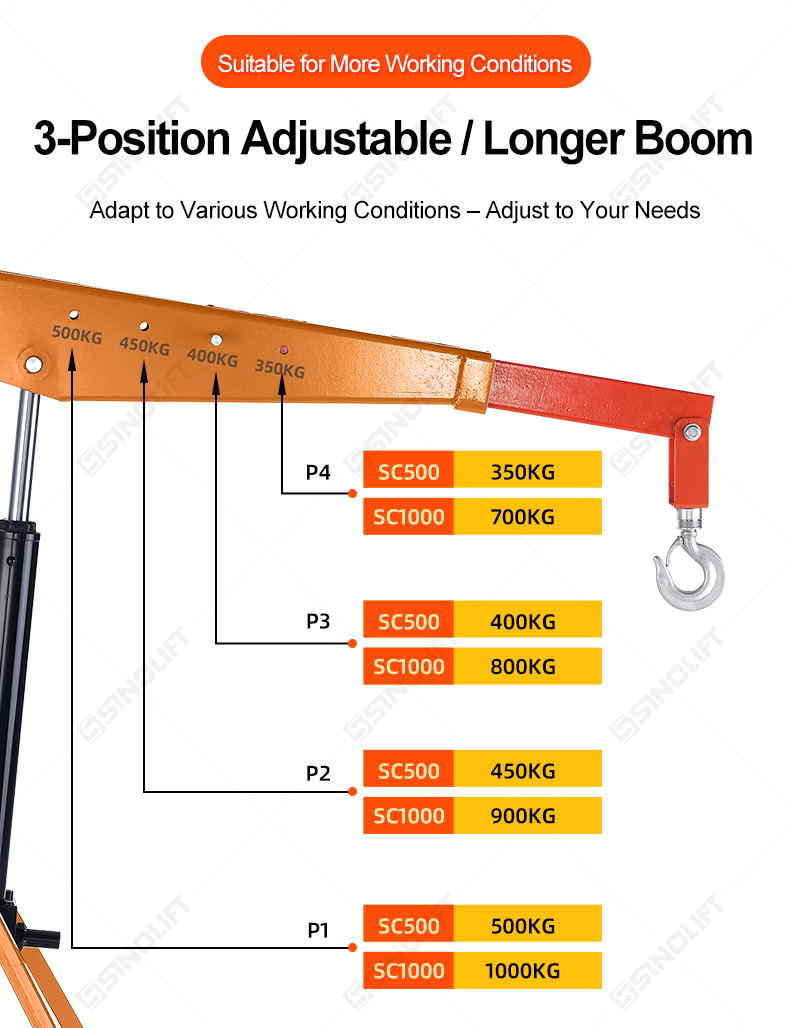

Flexible Boom Design: The boom offers three adjustable positions, easily covering short, medium, and long-range lifting needs. This design allows for precise and efficient lifting operations in confined spaces, making it ideal for dynamic work environments.

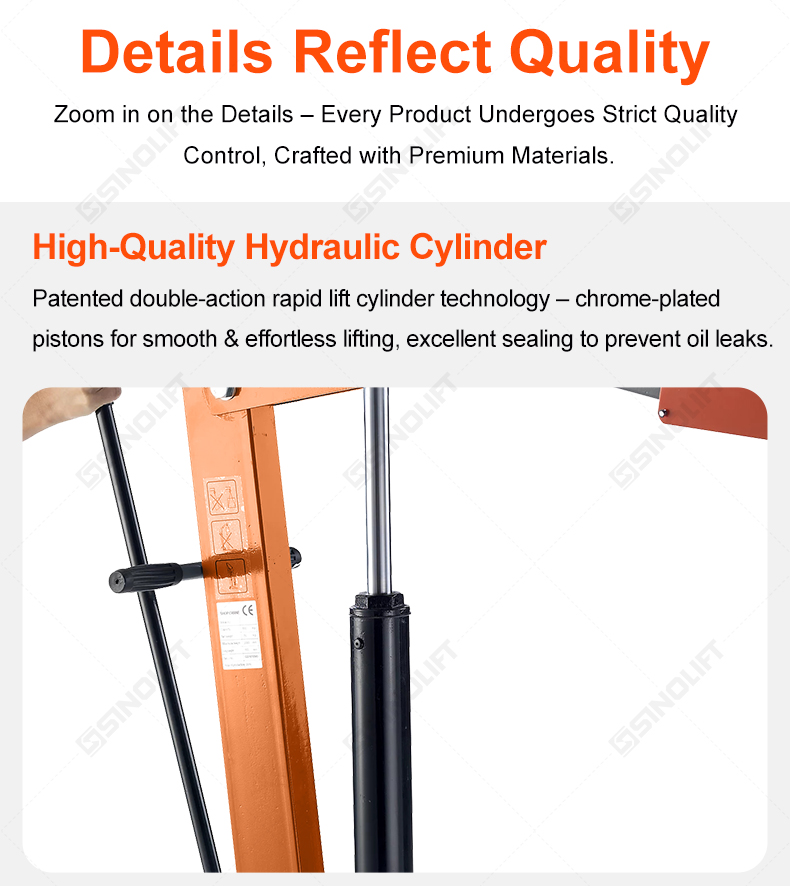

High-Efficiency Power System: Featuring a unique dual-action quick-lift hydraulic cylinder technology and a high-quality rapid-lifting cylinder, the system ensures effortless and fast lifting, improving efficiency and reducing labor intensity.

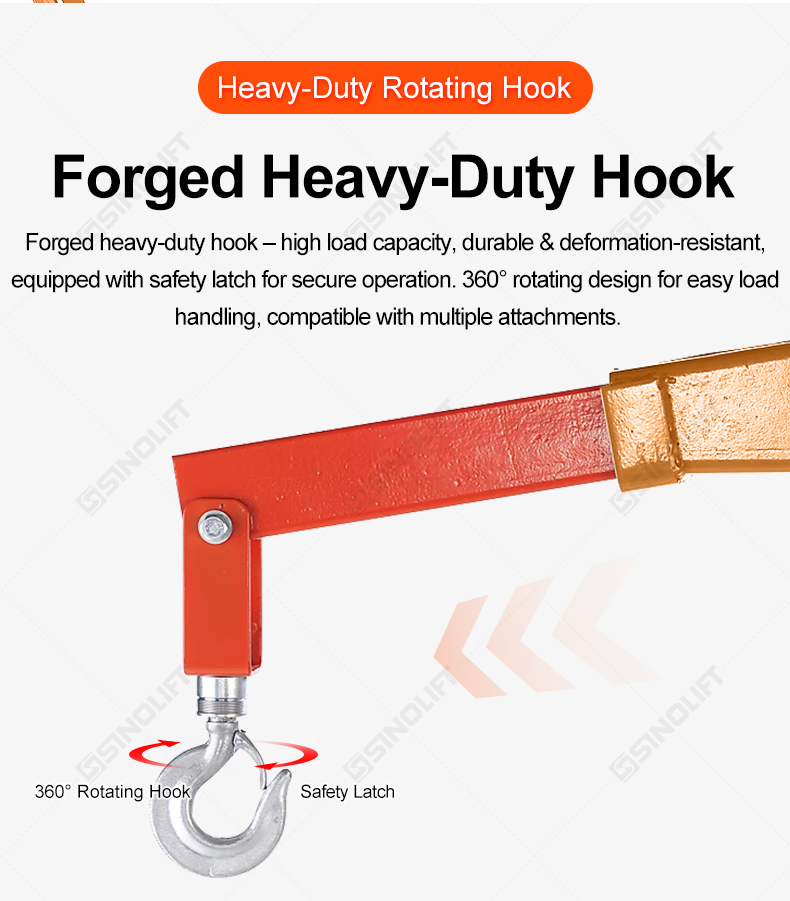

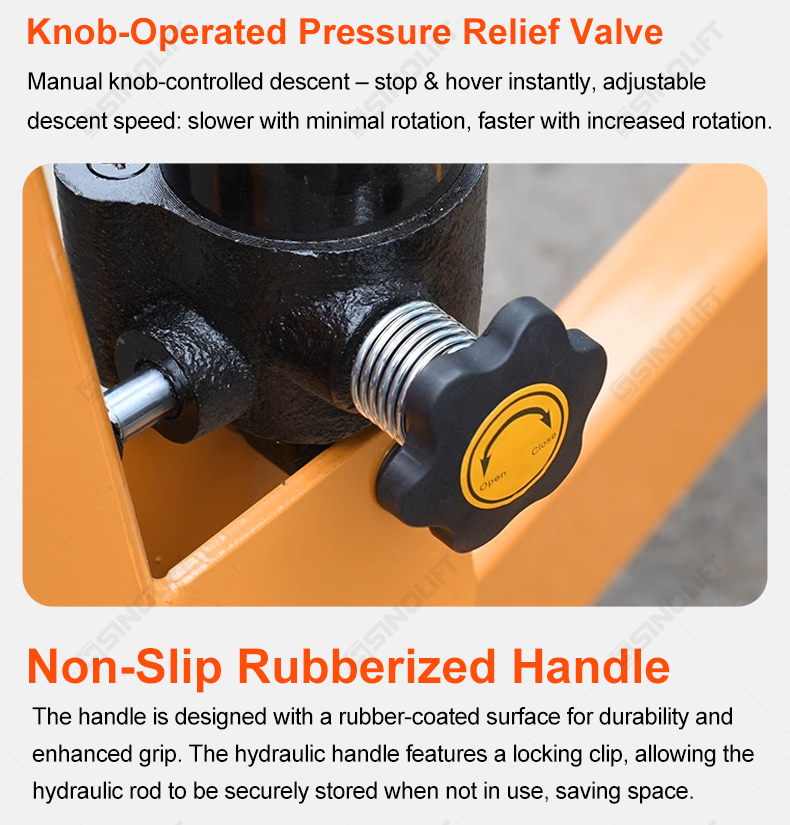

Safety Protection: Equipped with a heavy-duty rotating hook with a safety latch to prevent load slippage. Built-in dual overload protection (safety valve + 125% overload test) prevents excessive loading, ensuring both equipment and operator safety.

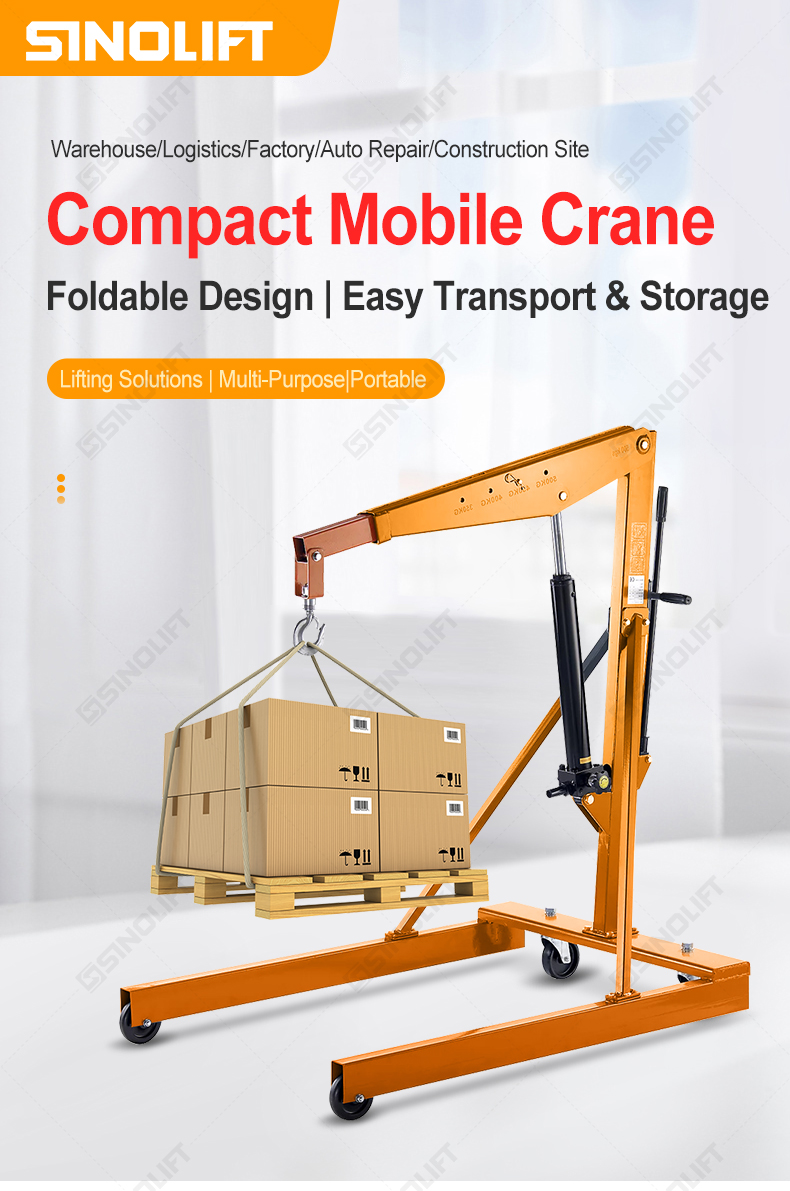

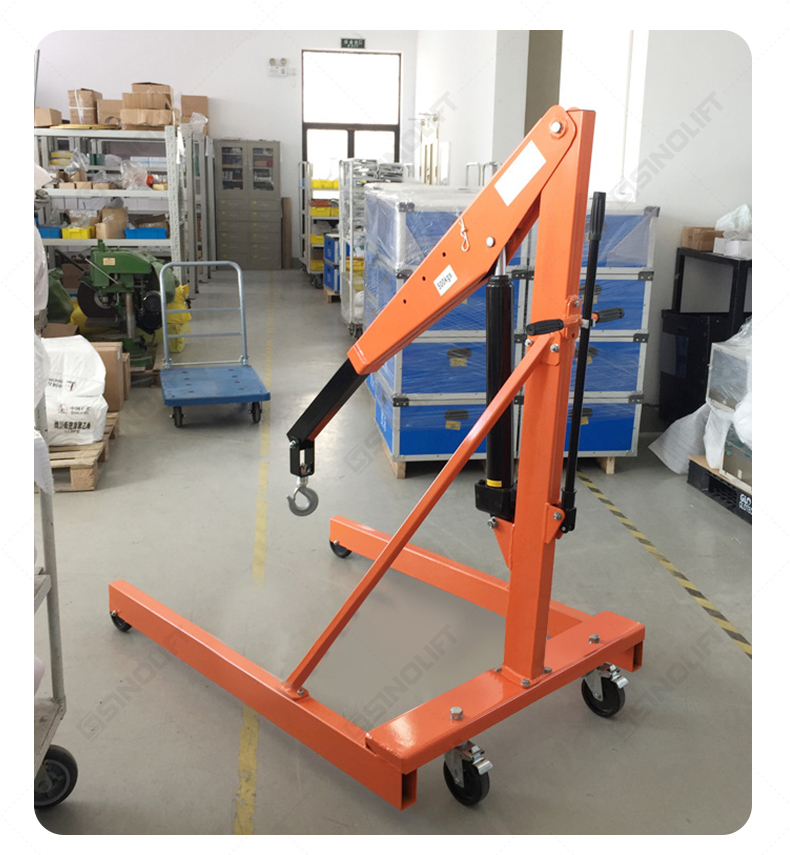

Compact design: Ideal for precise lifting near machine tools, equipment, or obstacles, excelling in confined spaces.

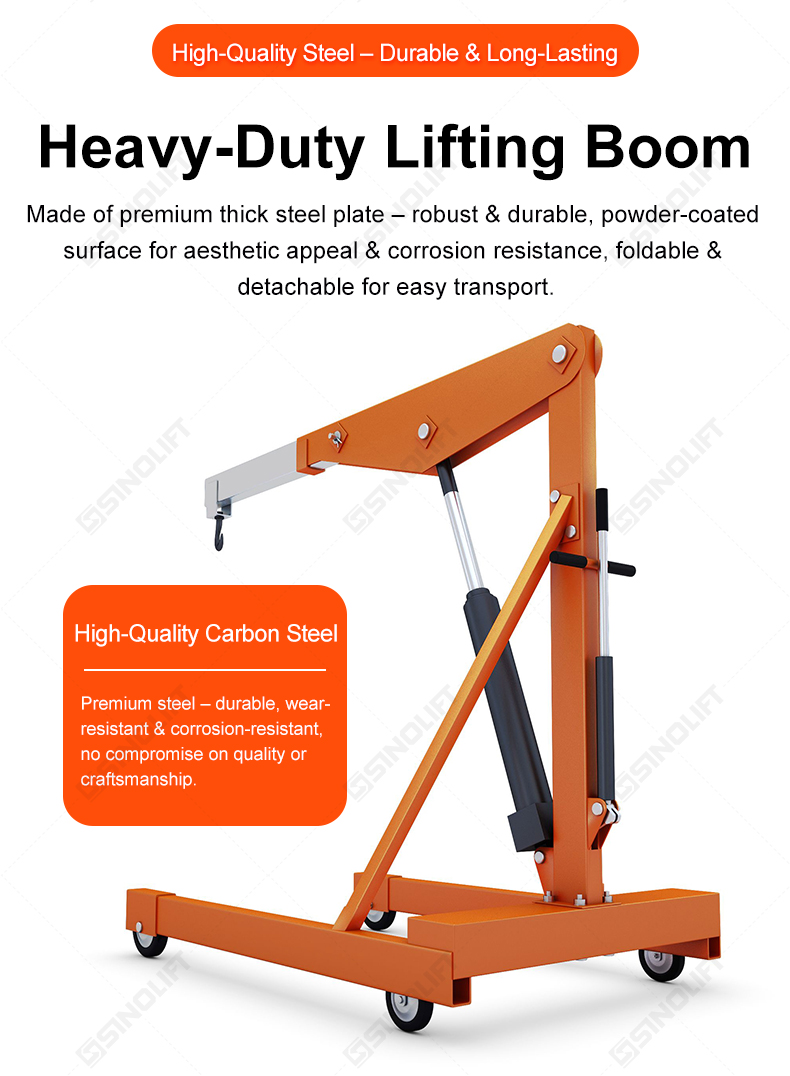

Compliance with International Safety Standards: CE-certified, constructed with high-strength steel for both lightweight durability and impact resistance. Key components, such as the piston rod, are chrome-plated for enhanced wear and corrosion resistance, extending service life.
Customization Support: Custom non-standard models are available to meet specific load, height, or environmental requirements.

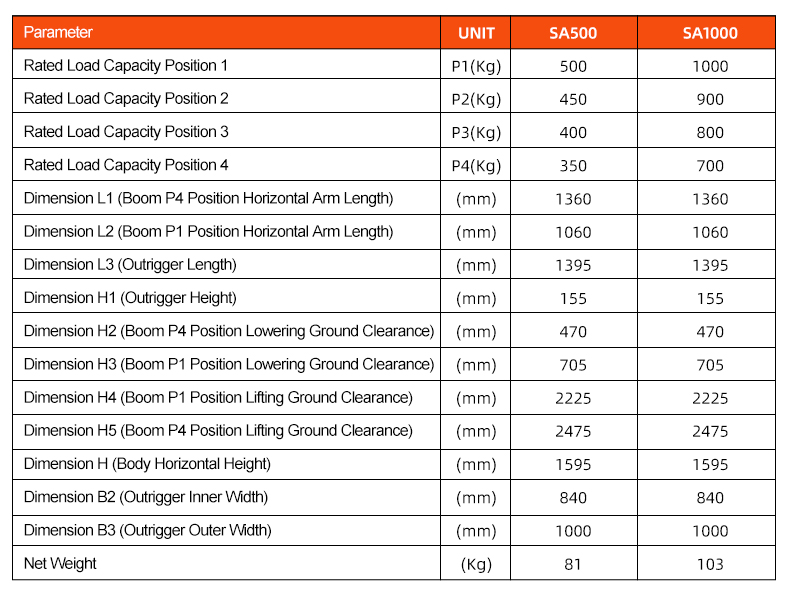

| Model | SA500 | SA1000 | ||
| Capacity at | Position 1 | (kg) | 500 | 1000 |
| Position 2 | (kg) | 450 | 900 | |
| Position 3 | (kg) | 400 | 800 | |
| Position 4 | (kg) | 350 | 700 | |
| L1 (Horizontal Arm Length at P4 Position) | (mm) | 1360 | 1360 | |
| L2 (Horizontal Arm Length at P1 Position) | (mm) | 1060 | 1060 | |
| L3 (Outrigger Length) | (mm) | 1395 | 1395 | |
| H1 (Outrigger Height) | (mm) | 155 | 155 | |
| H2 (Low Lifting Height at P4 Position) | (mm) | 470 | 470 | |
| H3 (Low Lifting Height at P1 Position) | (mm) | 705 | 705 | |
| H4 (High Lifting Height at P1 Position) | (mm) | 2225 | 2225 | |
| H5 (High Lifting Height at P4 Position) | (mm) | 2475 | 2475 | |
| H (Body Horizontal Height) | (mm) | 1595 | 1595 | |
| B2 (Outrigger Inner Width) | (mm) | 840 | 840 | |
| B3 (Outrigger Outer Width) | (mm) | 1000 | 1000 | |
| Net Weight | (kg) | 81 | 103 | |
