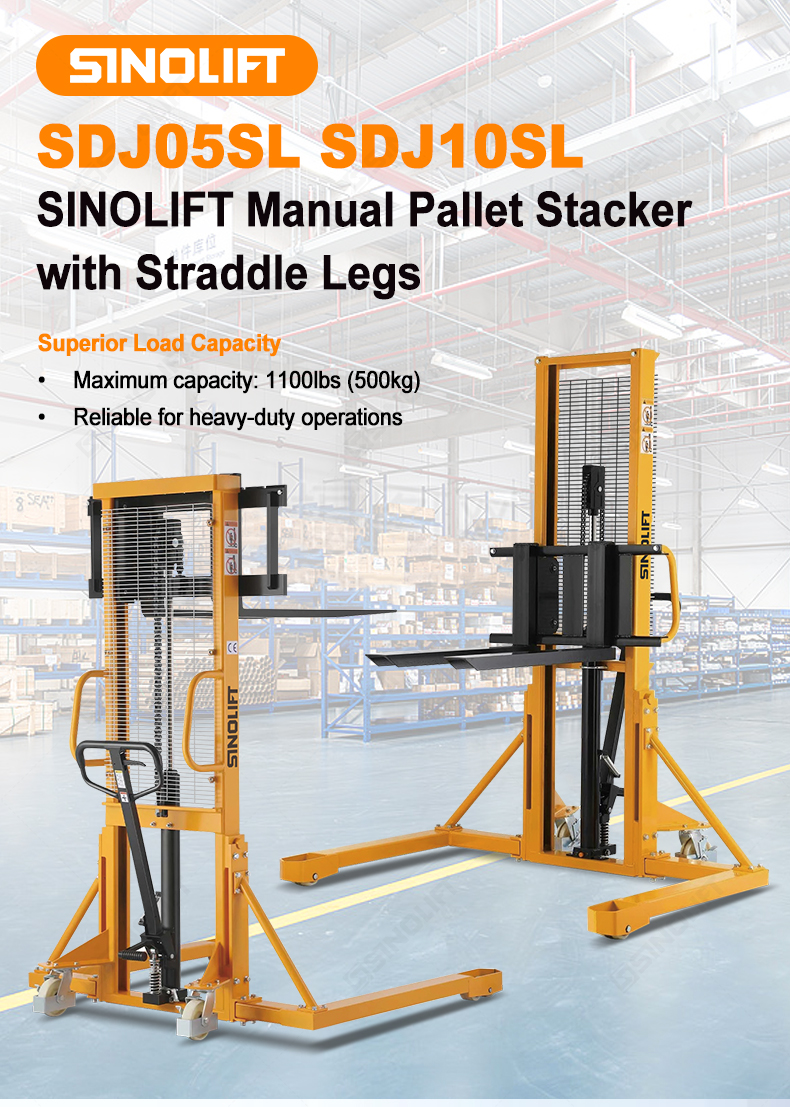

SDJ05SL SDJ10SL Manual Pallet Stacker with Straddle Legs
SDJ05SL SDJ10SL
The SINOLIFT Manual Pallet Stacker with Straddle Legs offers a perfect combination of efficiency, safety, and durability. It's an ideal choice for businesses looking to improve their material handling operations while maintaining cost-effectiveness.
Quantity:
Product Name: SINOLIFT SDJ05SL SDJ10SL Manual Pallet Stacker with Straddle Legs
Features of SDJ05SL SDJ10SL Manual Pallet Stacker with Straddle Legs:
Superior Load Capacity
- Maximum capacity: 1100lbs (500kg)
- Reliable for heavy-duty operations
Optimal Lift Height

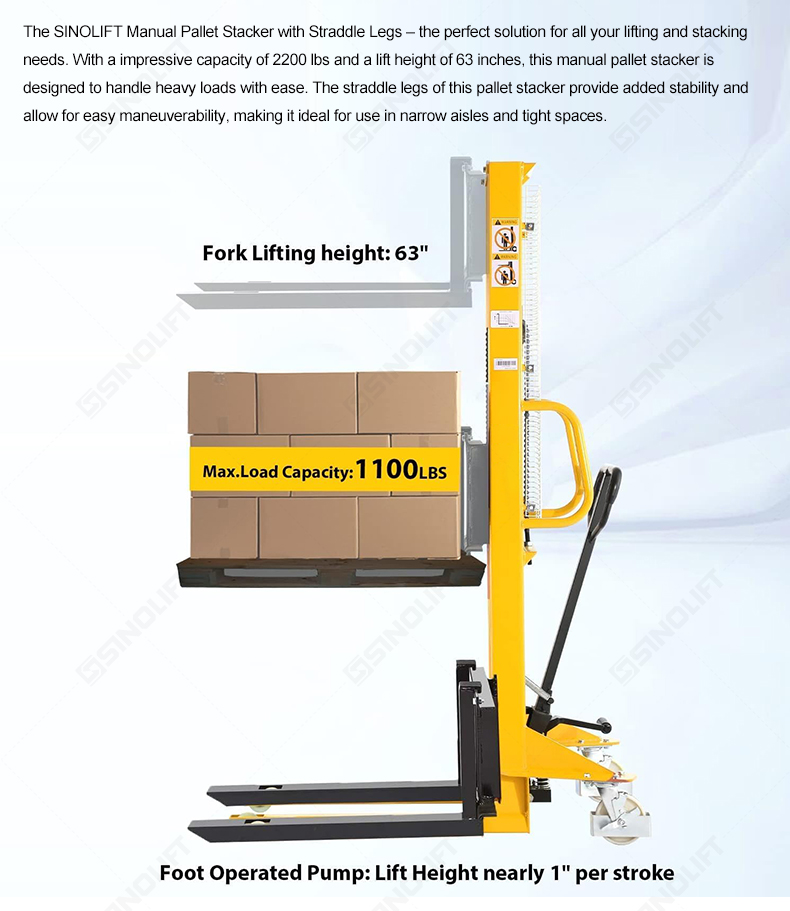

- Maximum lift height: 63"(1600mm)
- Perfect for various stacking requirements

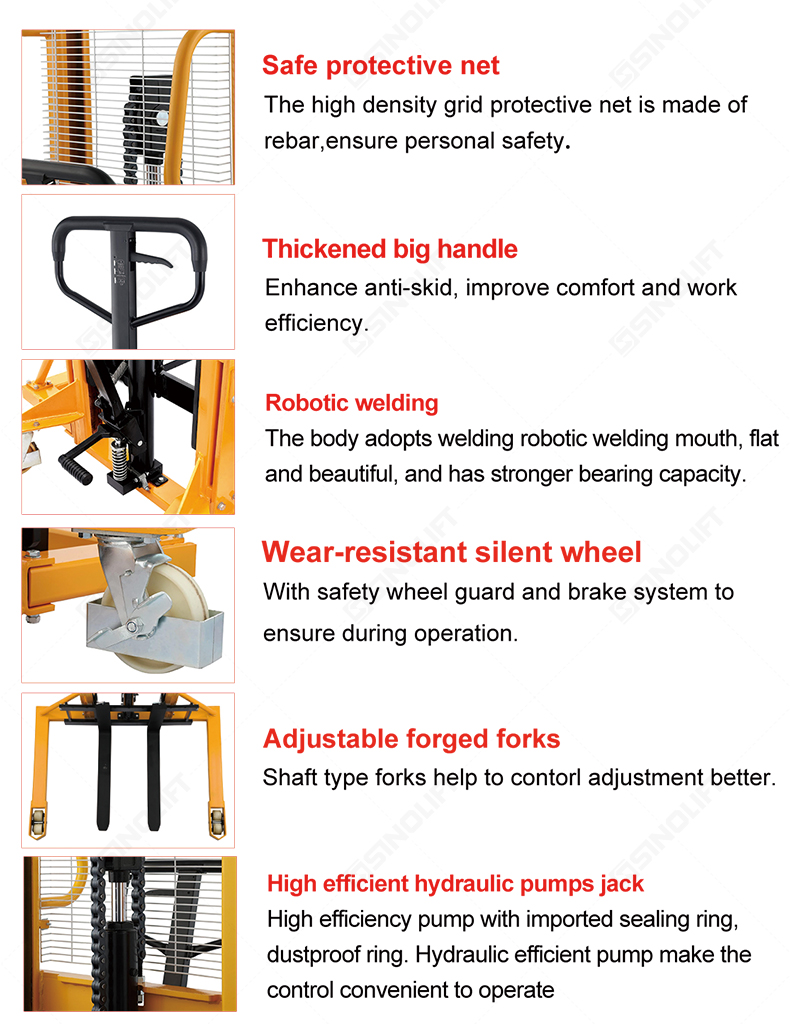

Robust Construction
- All-welded steel chassis
- Heavy-duty frame design
- Built for long-term durability
Versatile Fork Design
- Adjustable fork width: 7.9"-29.3"(200-745mm)
- Accommodates various pallet sizes
- Enhanced flexibility for different loads
Structural Advantages
- Solid steel construction
- Wear-resistant components
- Professional-grade materials
Specificationsof SDJ05SL SDJ10SL Manual Pallet Stacker with Straddle Legs:
| MANUAL STRADDLE STACKER | SDJ05SL | SDJ10SL | |
| Load Capacity | 2,200 lbs | 2,200 lbs | |
| Lifting Height | 63'' | 63'' | |
| Wheel Diameter | 5.8" | 5.8" | |
| Weight | 647 lbs. | 647 lbs. | |
| DIMENSIONS | |||
| Overall width | 60'' | 58'' | |
| Overall length | 52.7'' | 51.2'' | |
| Load center | 19.7'' | 19.7'' | |
| Recommended Aisle Width | 77.8" | 77.7" | |
| Turning radius | 47.2'' | 47.2'' | |
| MAST | |||
| Lifting height | 63'' | 63'' | |
| Mast lowered height | 78.7'' | 80.7'' | |
| Mast extended height | 82.7'' | 84.8'' | |
| FORKS | |||
| Adjustable width | 7.9-29.3'' | 7.9-37.4'' | |
| Thickness | 1.9'' | 1.2'' | |
| Width | 3.94'' | 3.94'' | |
| Length | 31.5'' | 31.5'' | |
| Fork lowered height | 2.8'' | 2.8'' | |
| STRADDLE LEGS | |||
| Inner width | 51.1'' | 49.2'' | |
| Height | 4.3'' | 4.3'' |
