SDYG Self-Loading Straddle Pallet Truck
SDYG
Quantity:

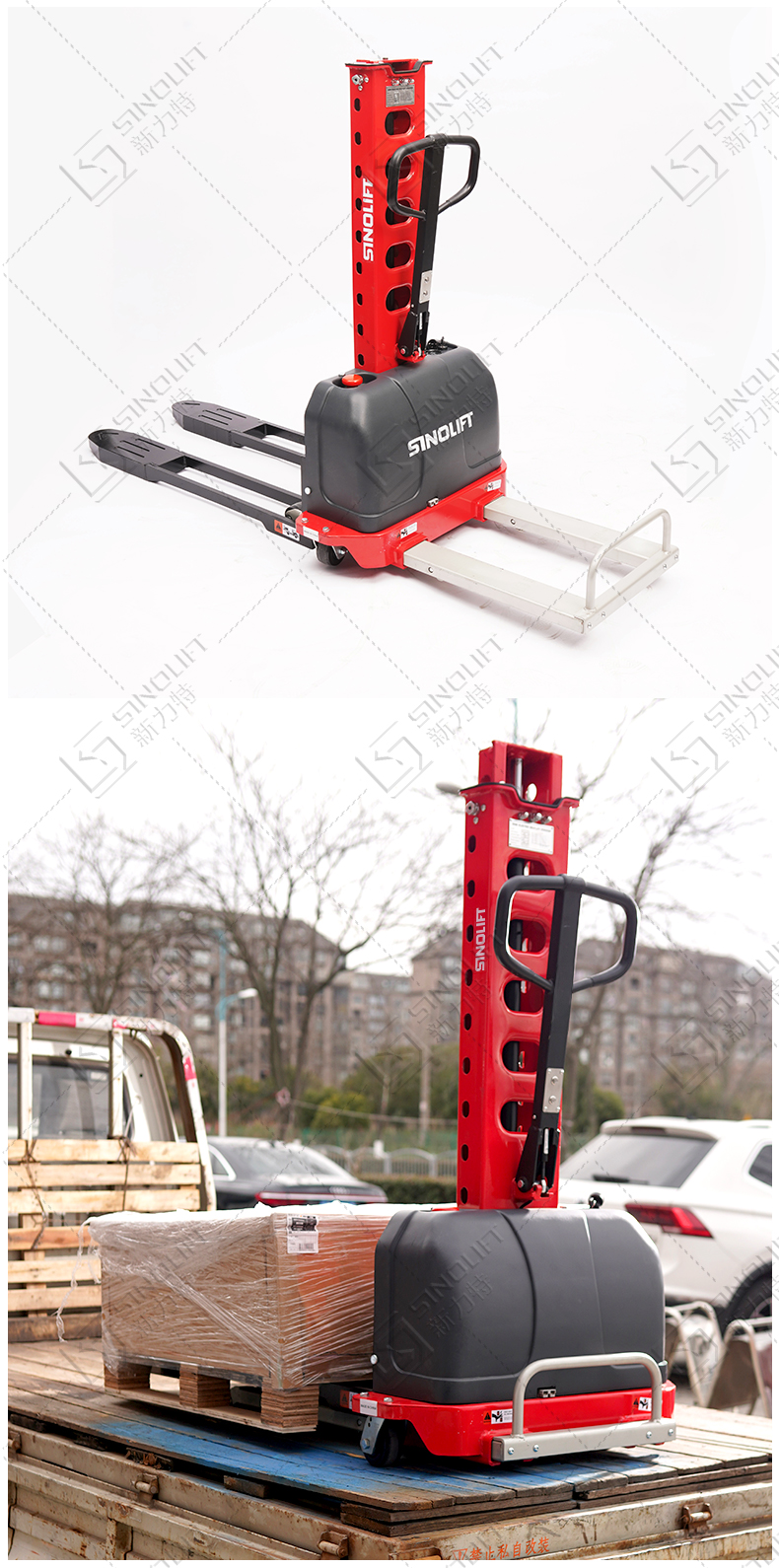

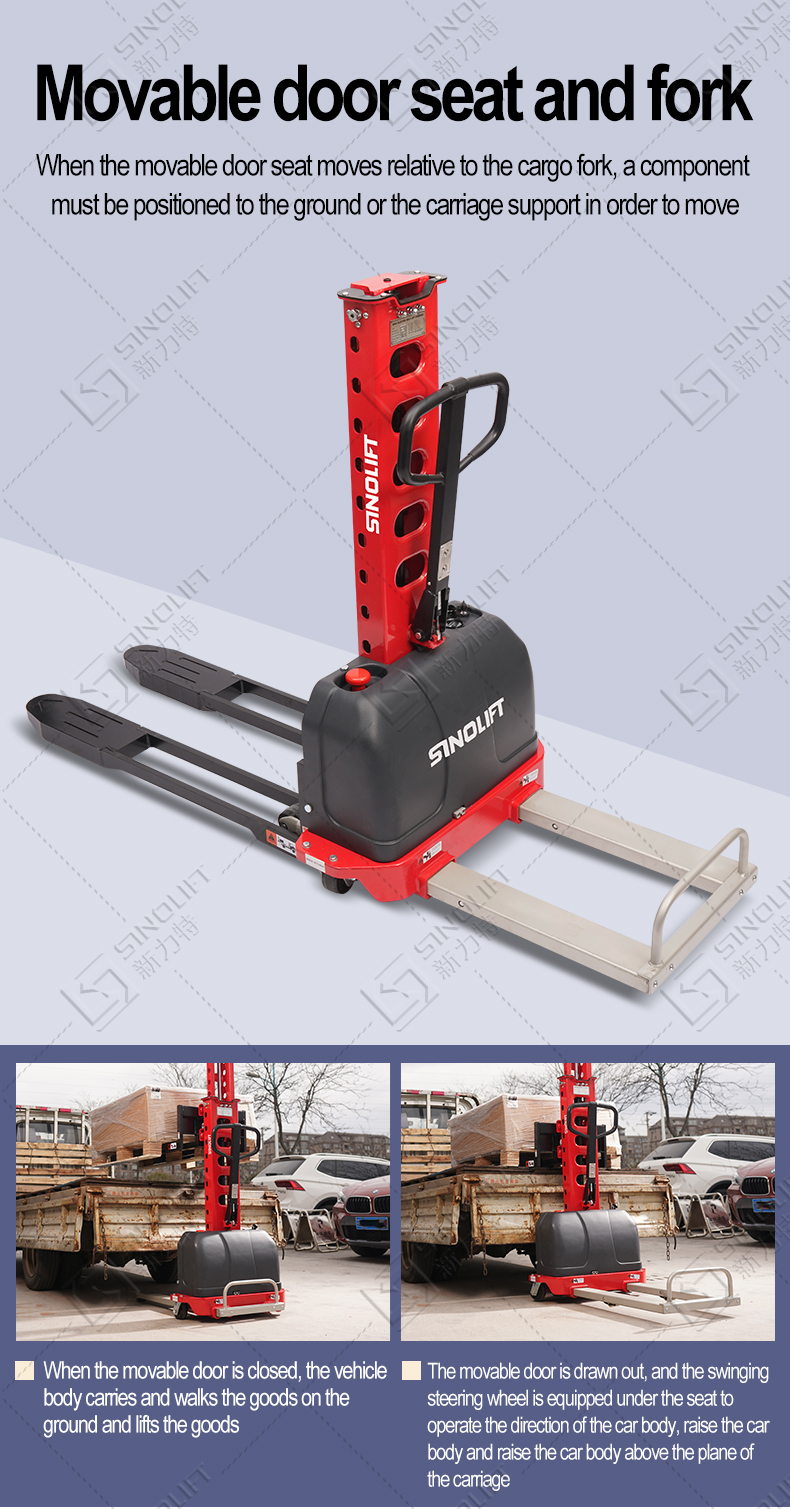

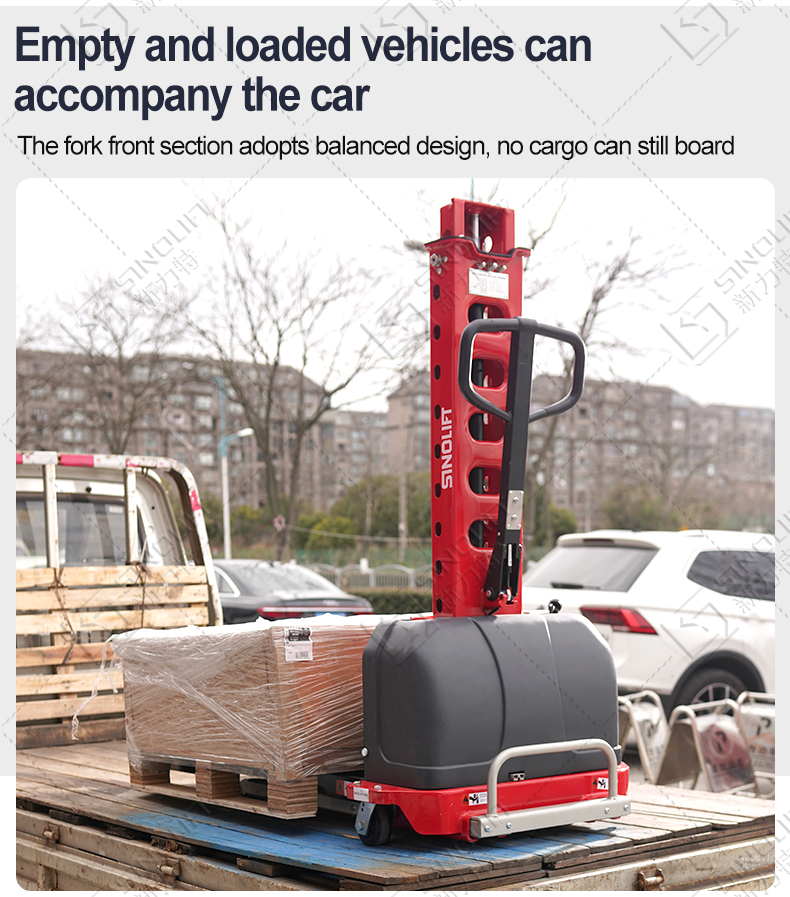

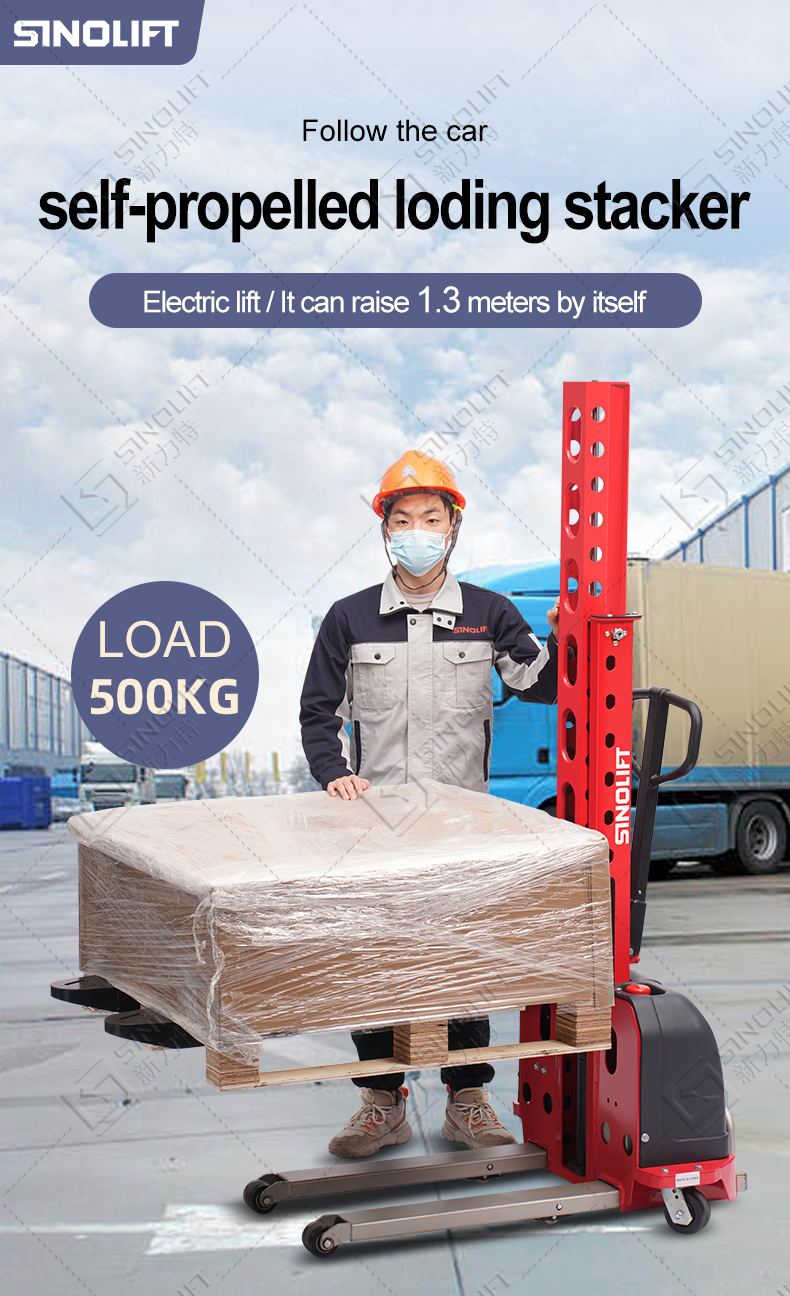

The Self-Loading Straddle Pallet Truck is the only manufactured lift loader that lifts itself in and out of the delivery vehicle! SINOLIFT quickly loads itself and its pallets onto the truck and unloads the truck at its destination, allowing the driver to operate completely independently of the warehouse staff and virtually eliminating manual loading and unloading. The huge advantage is that drivers don't have to lift heavy loads in often awkward situations, so from a health and safety perspective, SINOLIFT is the perfect answer. The time savings alone ensure that the SINOLIFT is cost effective, giving a quick return on a small investment. SINOLIFT China can also offer very competitive rental arrangements, maximizing tax savings on purchases, (subject to availability). The machines themselves are manufactured to very high standards, making them reliable and easy to operate and maintain. The efficiency of the design and production ensures that the SINOLIFT is affordable for any size business. It can lift up to 500 kg and up to 1300 mm.
| Model | SDYG-Z 0509 | SDYG-Z 0510 | SDYG-Z 0511 | SDYG-Z 0513 | |
| Rated Capacity | Q(Kg) | 500 | 500 | 500 | 500 |
| Load Center | C(mm) | 400 | 400 | 400 | 400 |
| Ways to lift | Electric | Electric | Electric | Electric | |
| Mode of operation | Walkie | Walkie | Walkie | Walkie | |
| material | Polyurethane | Polyurethane | Polyurethane | Polyurethane | |
| wheelbase | y(mm) | 860 | 860 | 860 | 860 |
| Front track | b11(mm) | 380 | 380 | 380 | 380 |
| Rear track | b10(mm) | 670 | 670 | 670 | 670 |
| Number of steering/load-bearing wheels/balance wheels | 37293 | 37293 | 37293 | 37293 | |
| Load bearing wheel size | mm | Ф70x60 | Ф70x60 | Ф70x60 | Ф70x60 |
| Steering wheel size | mm | Ф100x50 | Ф100x50 | Ф100x50 | Ф100x50 |

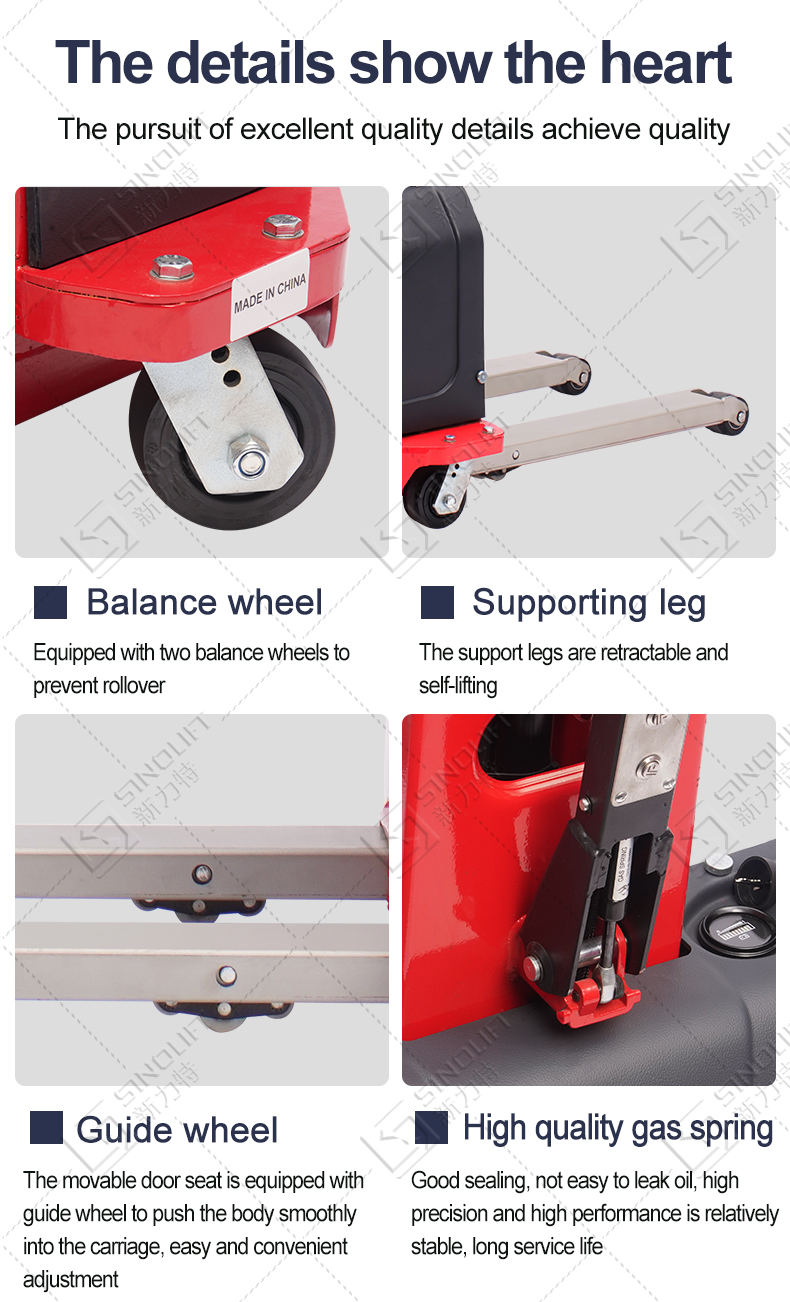

| Balance wheel size | mm | Ф40x26 | Ф40x26 | Ф40x26 | Ф40x26 |
| Auxiliary balance wheel size | mm | Ф30×26 | Ф30×26 | Ф30×26 | Ф30×26 |
| Minimum height of forks off the ground | mm | 90 | 90 | 90 | 90 |
| Maximum height after fork lifting | h3(mm) | 900 | 1000 | 1100 | 1300 |
| Fork outside width | mm | 535 | 535 | 535 | 535 |
| Fork inside width | mm | 225 | 225 | 225 | 225 |
| Fork working length | l(mm) | 1150 | 1150 | 1150 | 1150 |

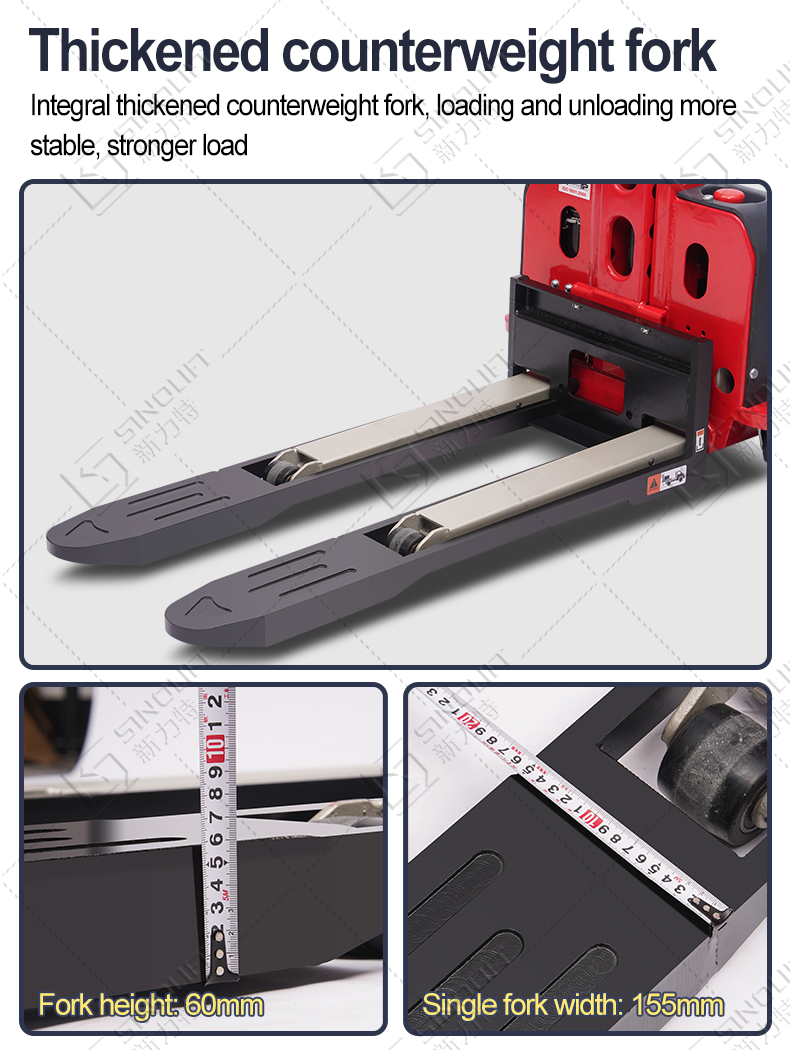

| Single-sided fork size | e/s(mm) | 155/60 | 155/60 | 155/60 | 155/60 |
| Vehicle length | L1(mm) | 1565 | 1565 | 1600 | 1600 |
| Vehicle width | b1(mm) | 790 | 790 | 790 | 790 |
| Vehicle height (when forks are lowered) | h1(mm) | 1195 | 1250 | 1400 | 1600 |
| The height of the vehicle after the mast is lifted | h4(mm) | 2100 | 2300 | 2500 | 2900 |
| Length to the vertical face of the fork | l2(mm) | 1150 | 1150 | 1150 | 1150 |
| Minimum turning radius | Wa(mm) | 1120 | 1120 | 1100 | 1120 |
| Maximum lifting speed (full/unloaded) | mm/s | 80/110 | 80/110 | 80/110 | 80/110 |
| Maximum descent speed (full/unloaded) | mm/s | 80/80 | 80/80 | 80/80 | 80/80 |
| Lifting motor | V/Kw | 12/0.8 | 12/0.8 | 12/O.8 | 12/0.8 |

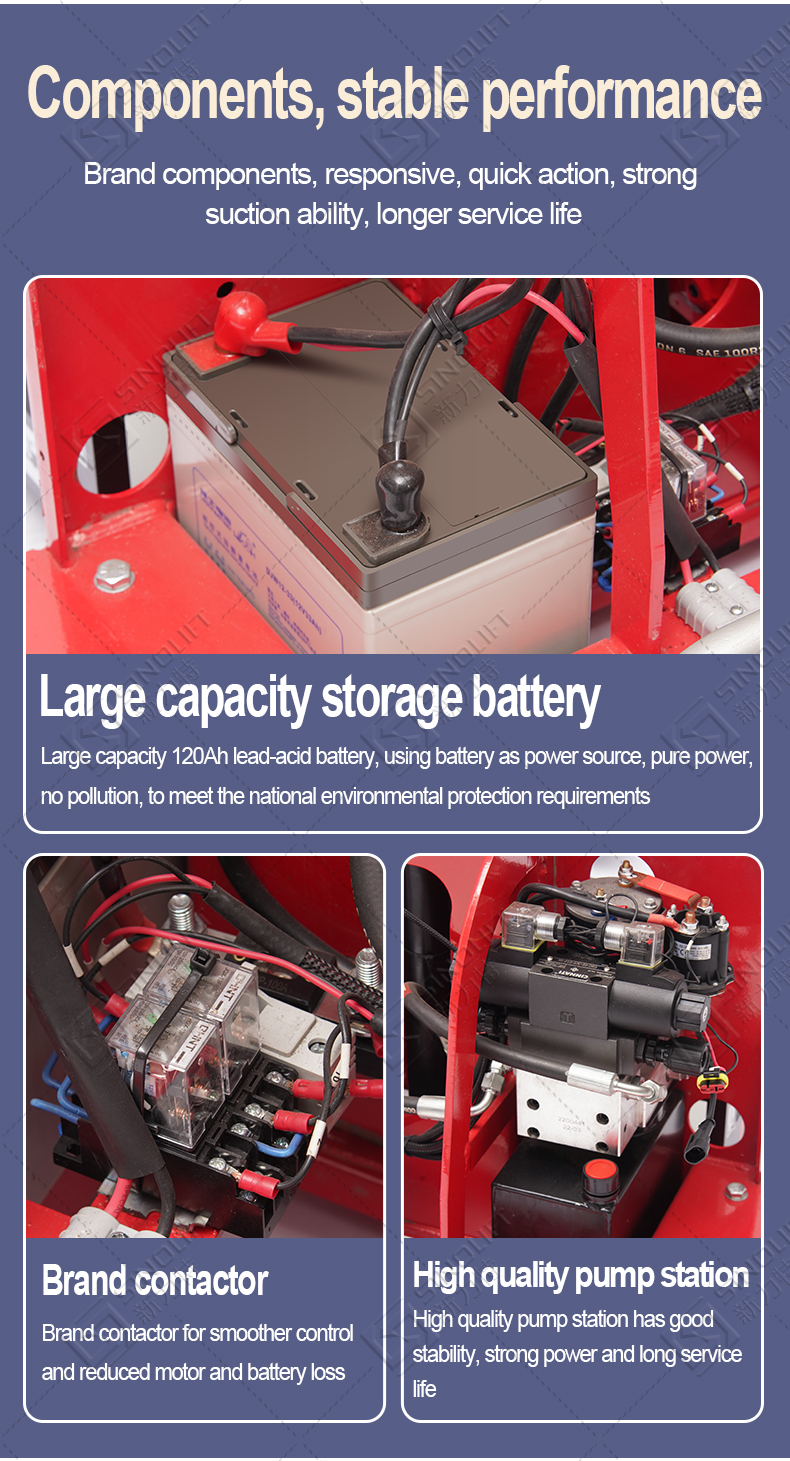

| Battery capacity | V/Ah | 12/33 | 12/33 | 12/33 | 12/33 |
| Battery weight | Kg | 10 | 10 | 10 | 10 |
| Weight | Kg | 175 | 186 | 197 | 219 |
