SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs

SFH22AG
This Hydraulic Stacker delivers robust loading capacity and effortless lifting up to 3 meters, ideal for factories, warehouses, and supermarkets. Its adjustable forged forks and reinforced steel frame ensure durability and adaptability across various pallet types. Designed with ergonomic features and safety enhancements, it combines efficiency with reliability in material handling.
Quantity:
Contact Now
add to cart
All Products

Key Features of the SFH22AG Manual Hydraulic Stacker:

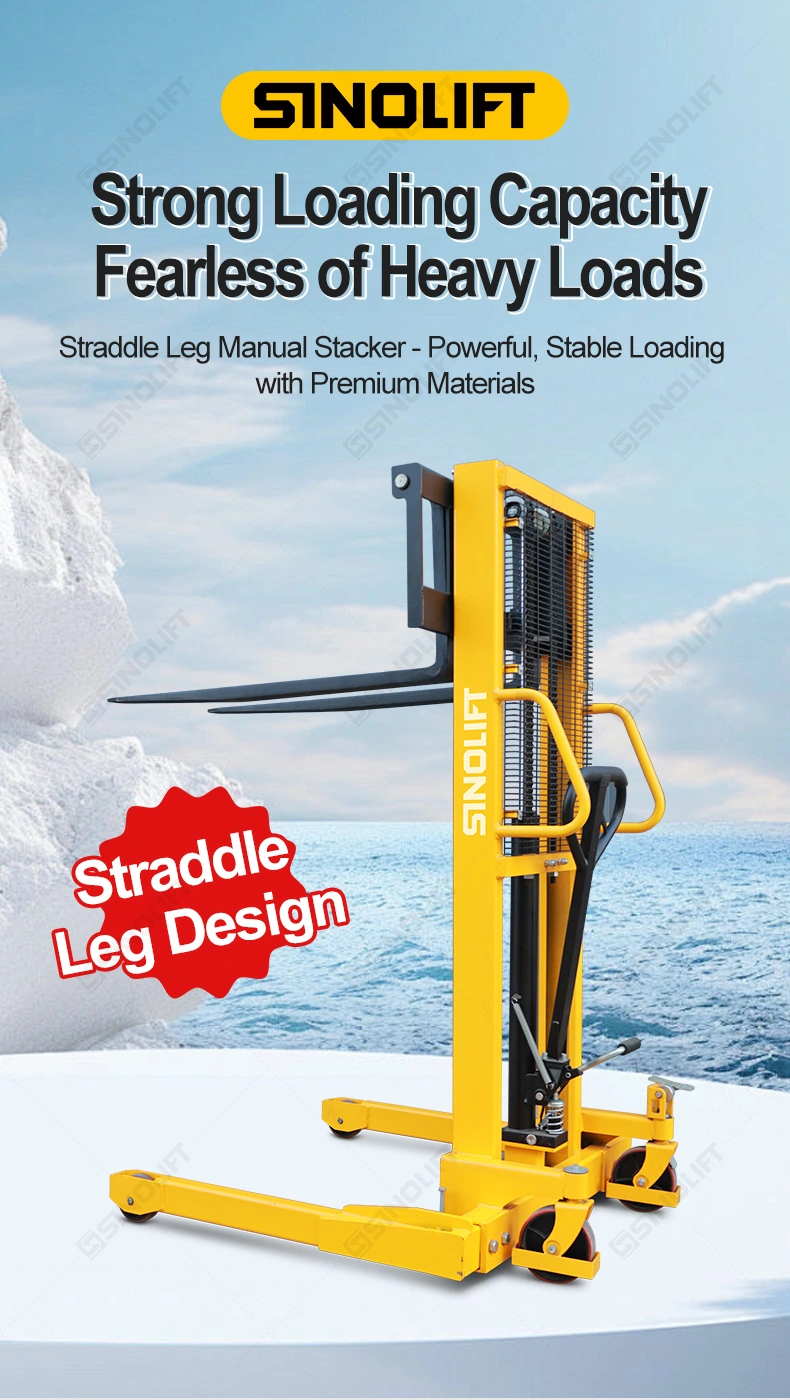

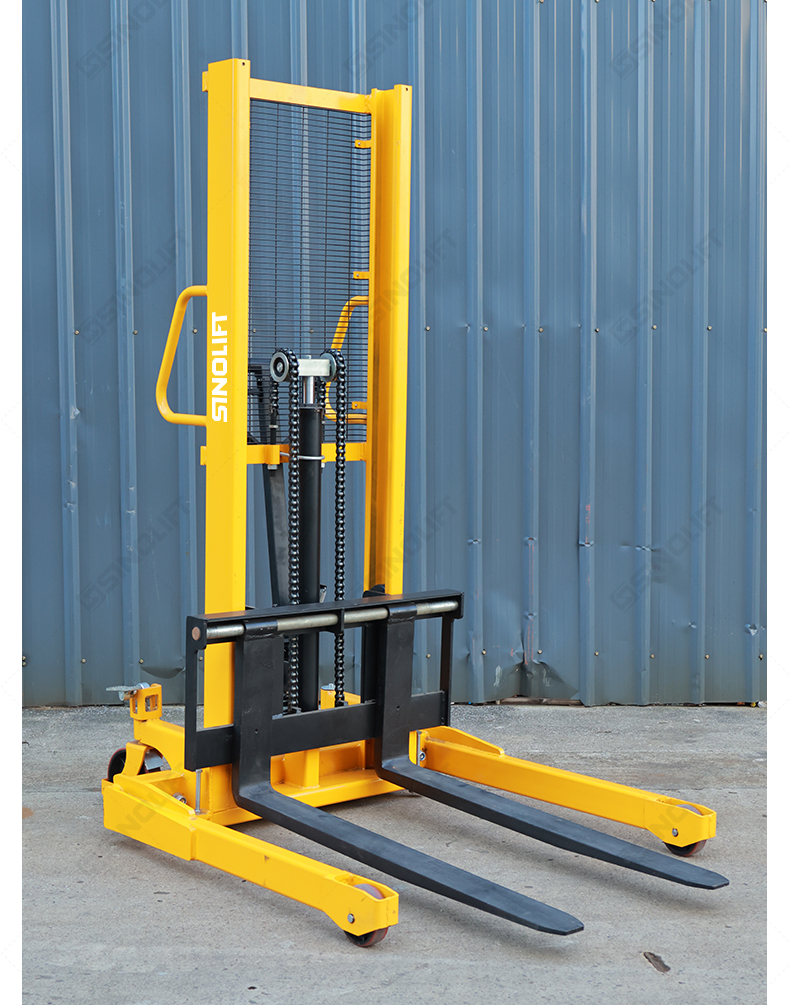

  1. Heavy-Duty Construction: Built with 6-8mm reinforced steel and a straddle leg design, offering exceptional stability and a long service life under heavy loads.

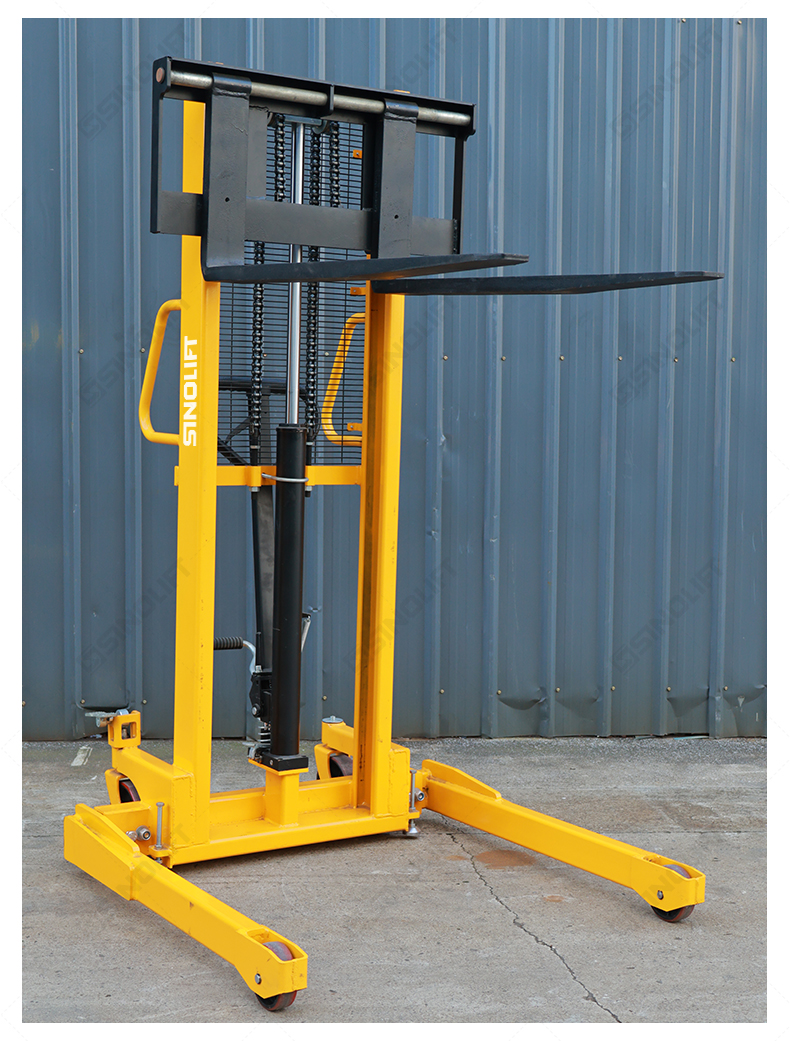

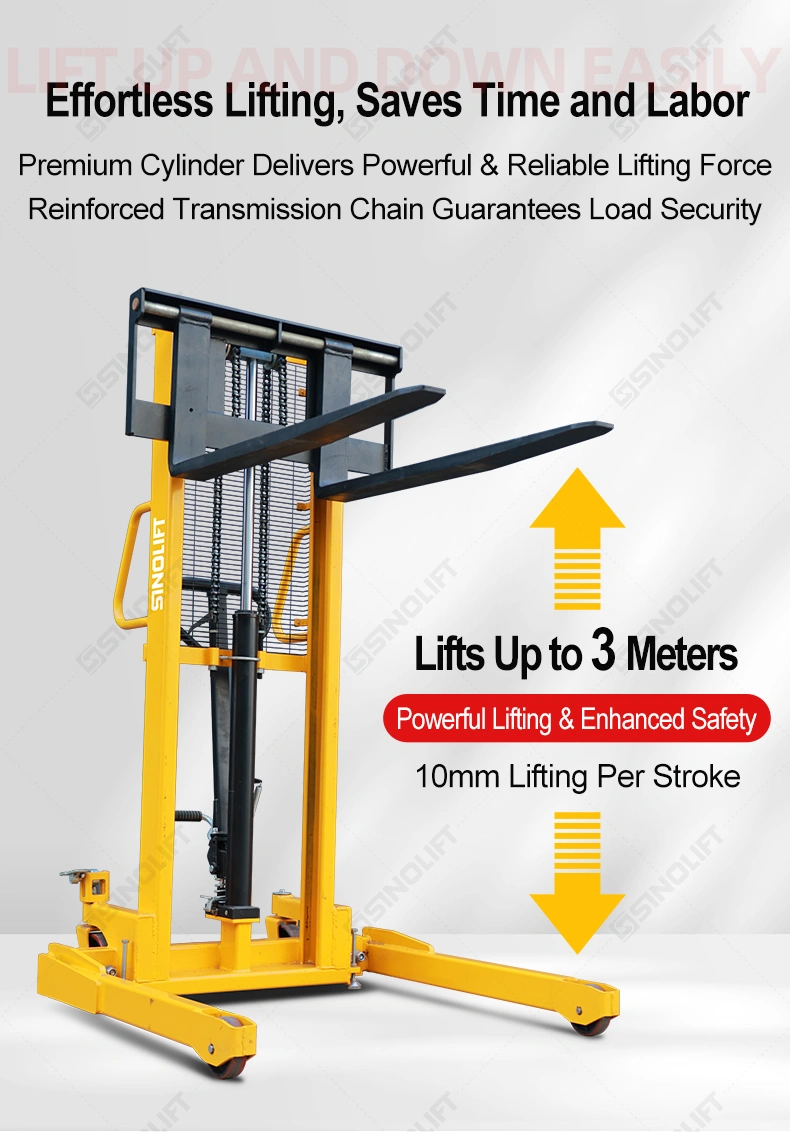

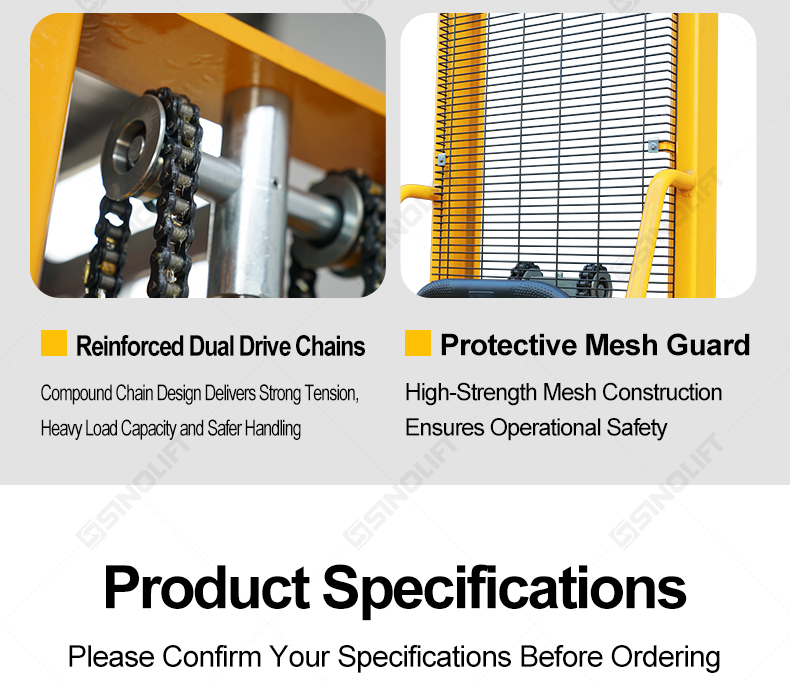

  2. Effortless & Safe Lifting: Features a sealed hydraulic cylinder and reinforced dual chains, providing smooth and reliable lifting up to 3 meters with enhanced safety.

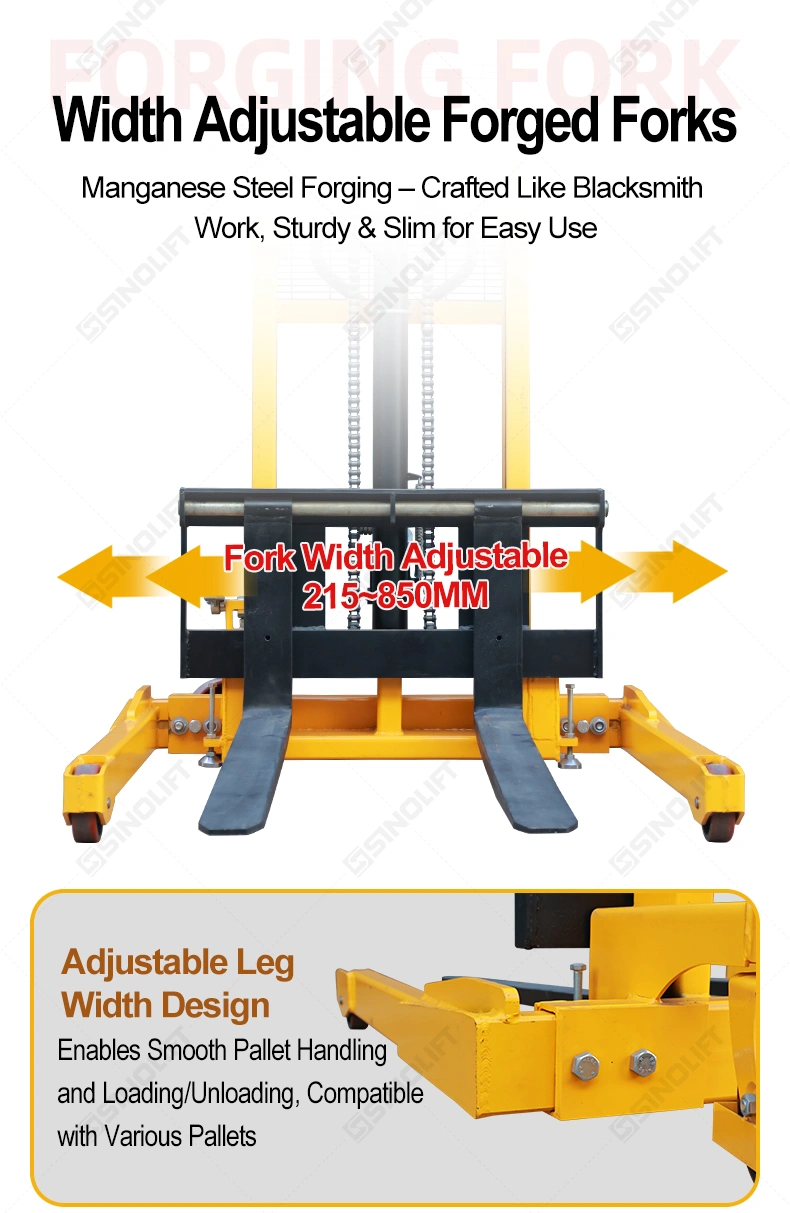

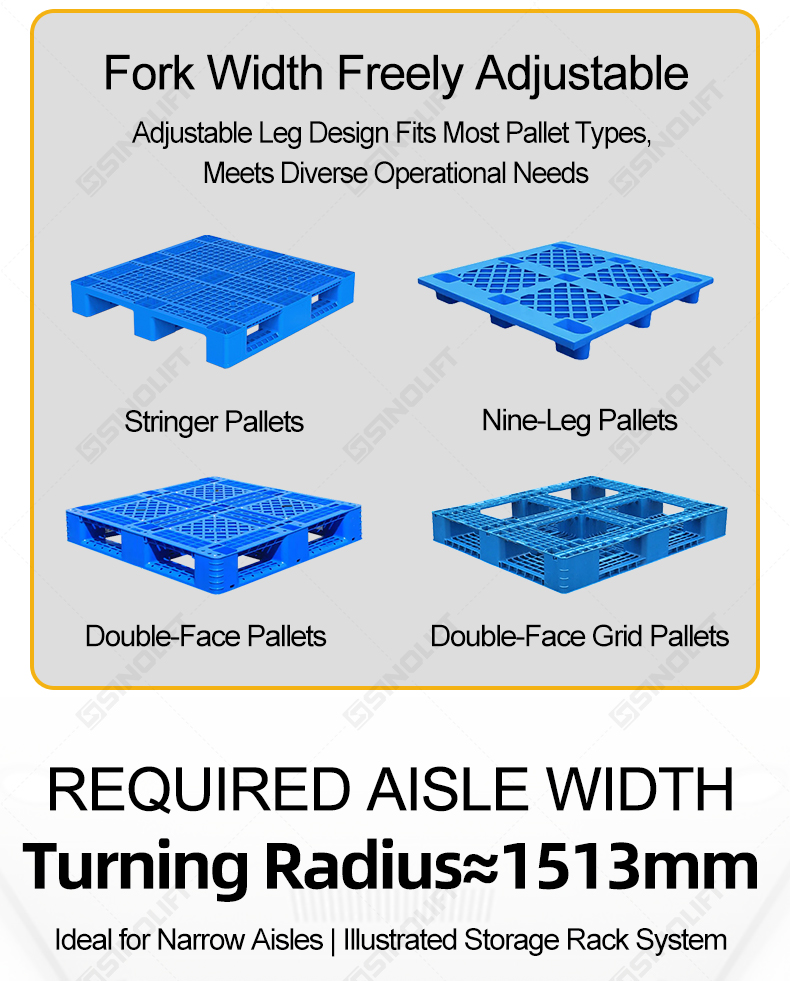

  3. Excellent Adaptability: Equipped with width-adjustable forged forks (215-850mm) and legs, making it compatible with various pallet types like stringer, double-face, and nine-leg pallets.

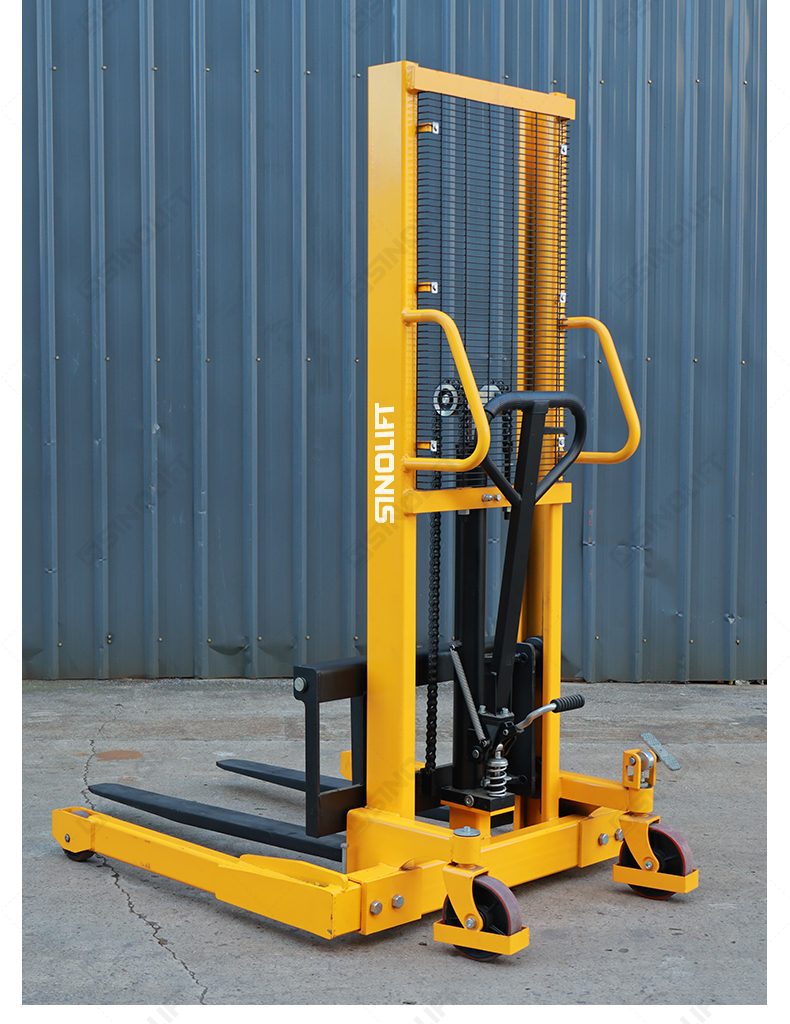

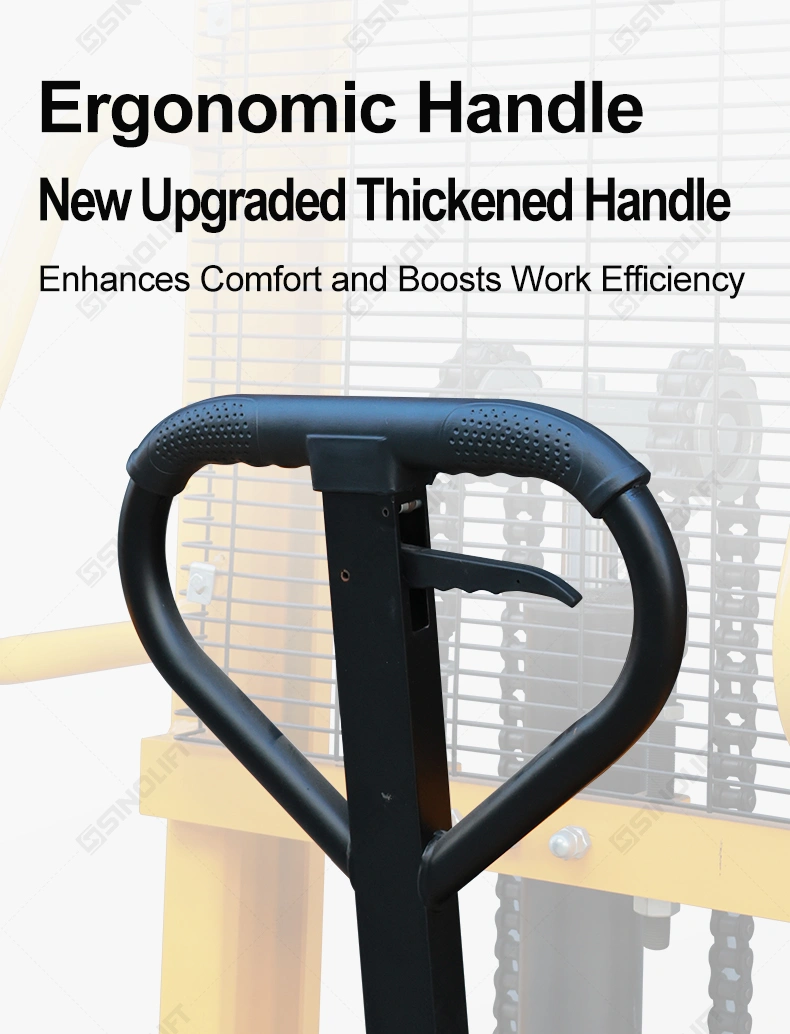

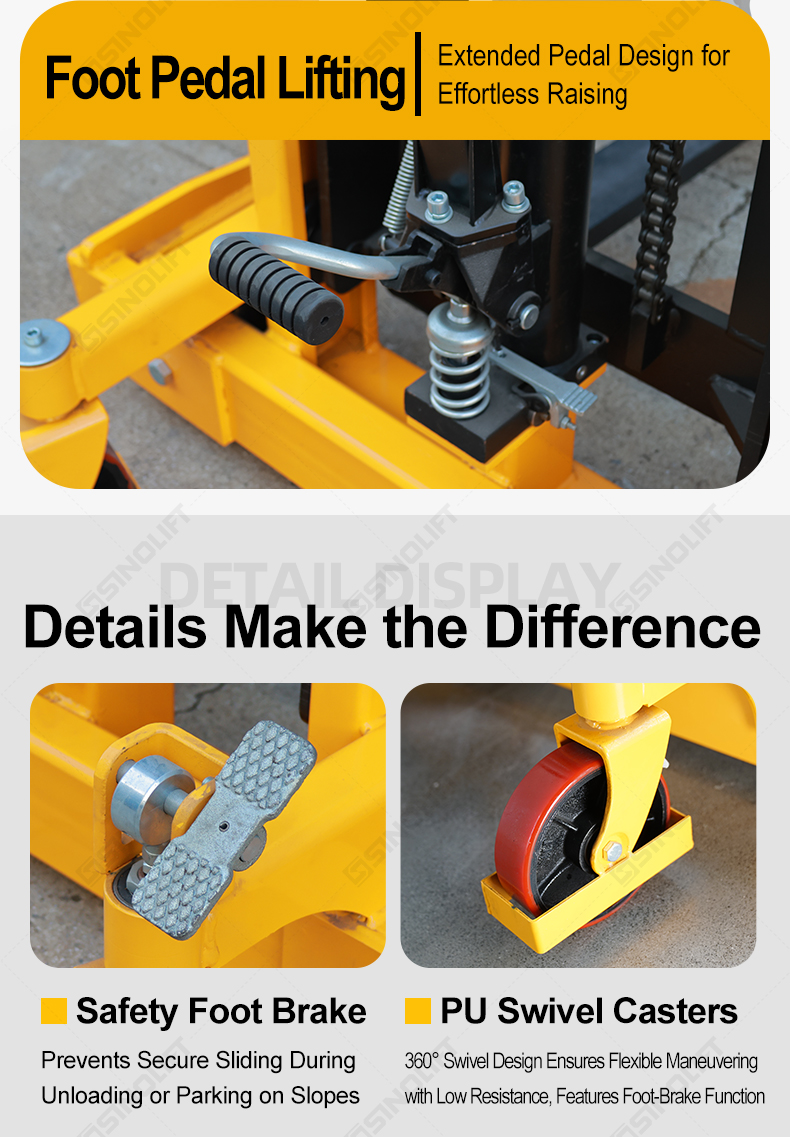

  4. User-Friendly Operation: Designed with an ergonomic handle, a foot pedal for easy lifting, and PU swivel casters with a foot brake for effortless and secure maneuvering.

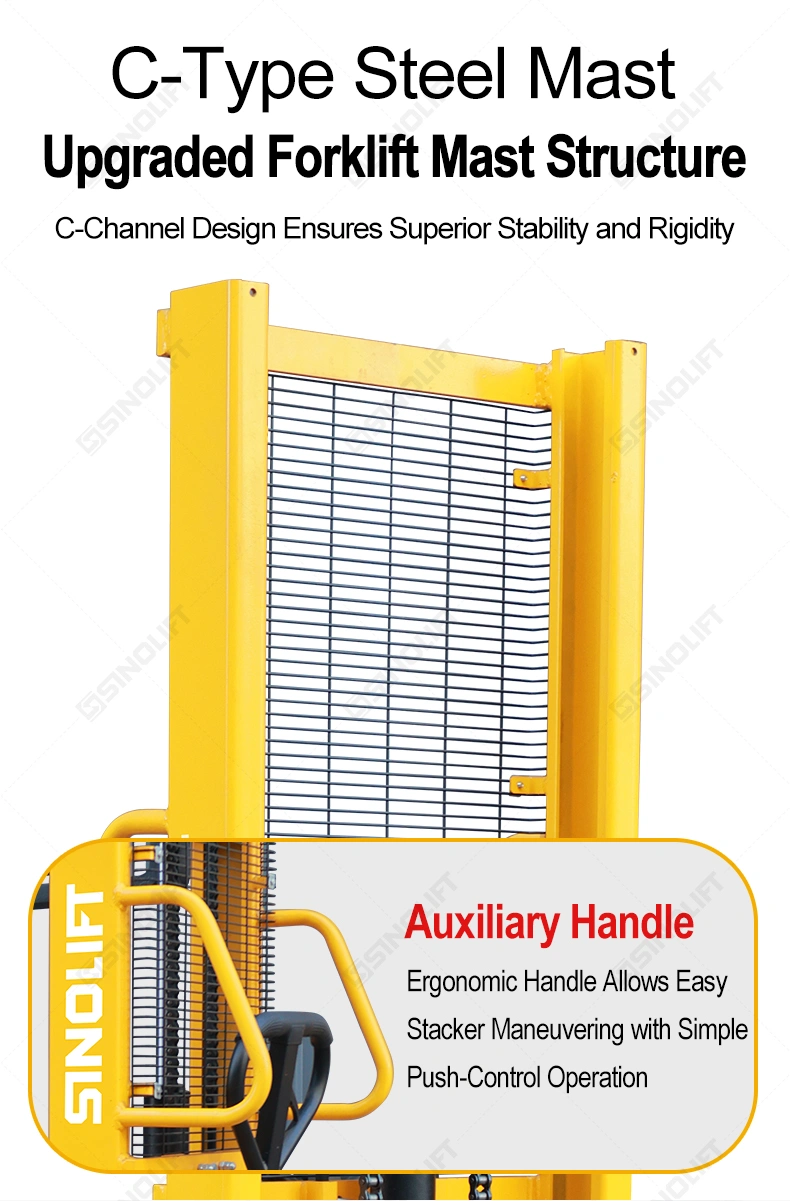

  5. Durable & Safe Design: Includes a protective mesh guard, explosion-proof cylinder, and a robust C-type steel mast, ensuring operator safety and reliable performance in diverse environments.

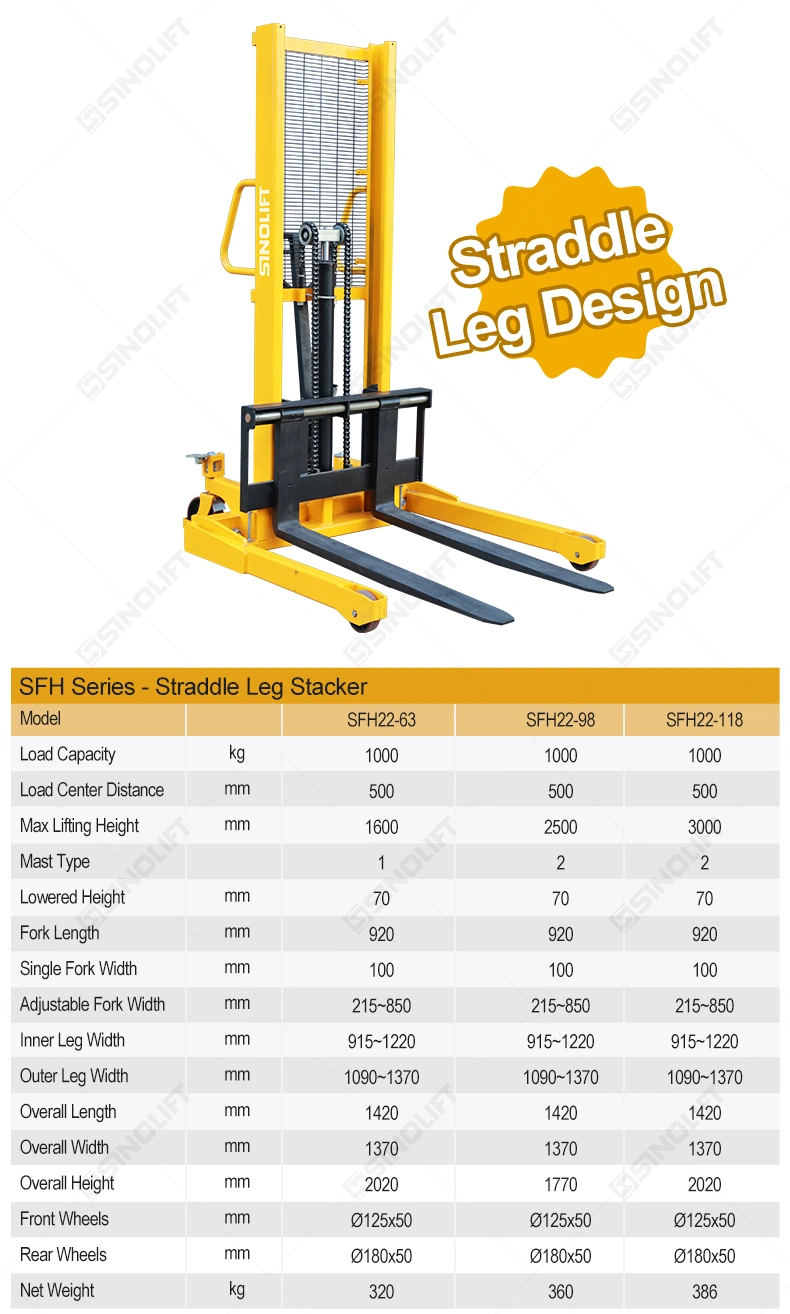

SFH Series - Straddle Leg Stacker
ModelSFH22-63SFH22-98SFH22-118
Load Capacitykg100010001000
Load Center Distancemm500500500
Max Lifting Heightmm160025003000
Mast Type122
Lowered Heightmm707070
Fork Lengthmm920920920
Single Fork Widthmm100100100
Adjustable Fork Widthmm215~850215~850215~850
Inner Leg Widthmm915~1220915~1220915~1220
Outer Leg Widthmm1090~13701090~13701090~1370
Overall Lengthmm142014201420
Overall Widthmm137013701370
Overall Heightmm202017702020
Front WheelsmmΦ125x50Φ125x50Φ125x50
Rear WheelsmmΦ180x50Φ180x50Φ180x50
Net Weightkg320360386
