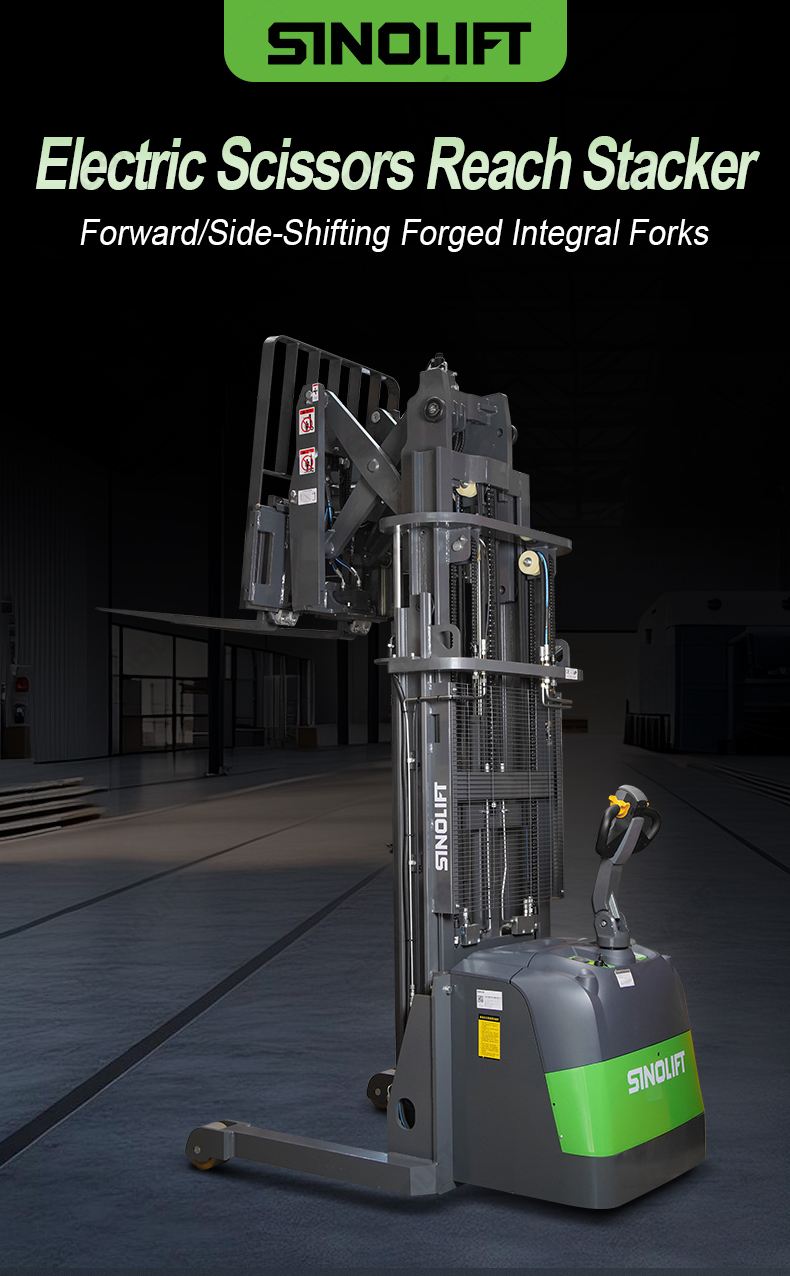

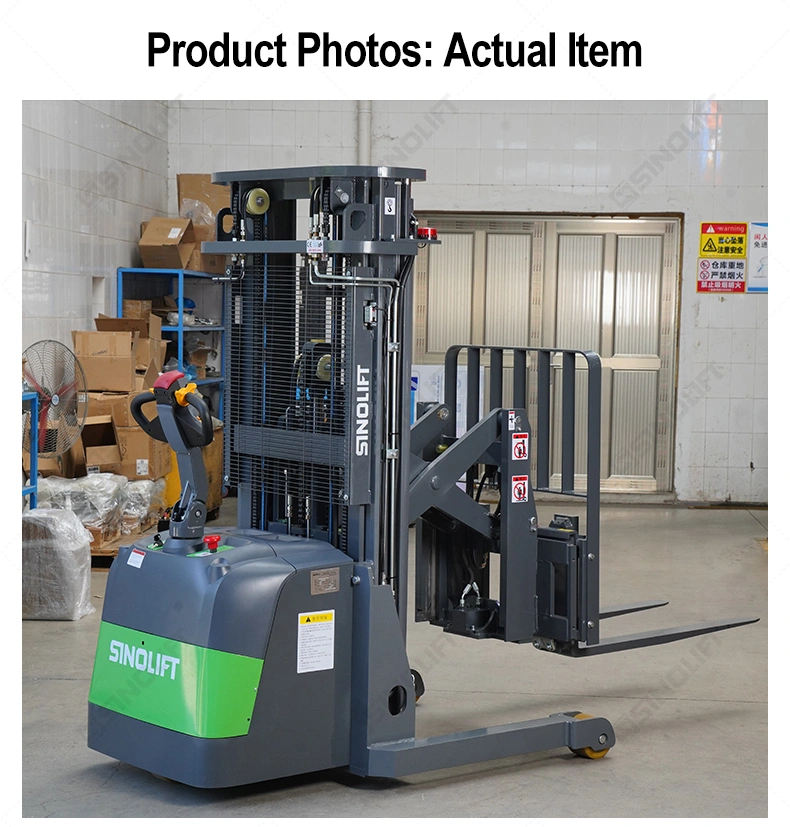

Sinolift CQDX15 & CQDX20: The Narrow-Aisle Specialist

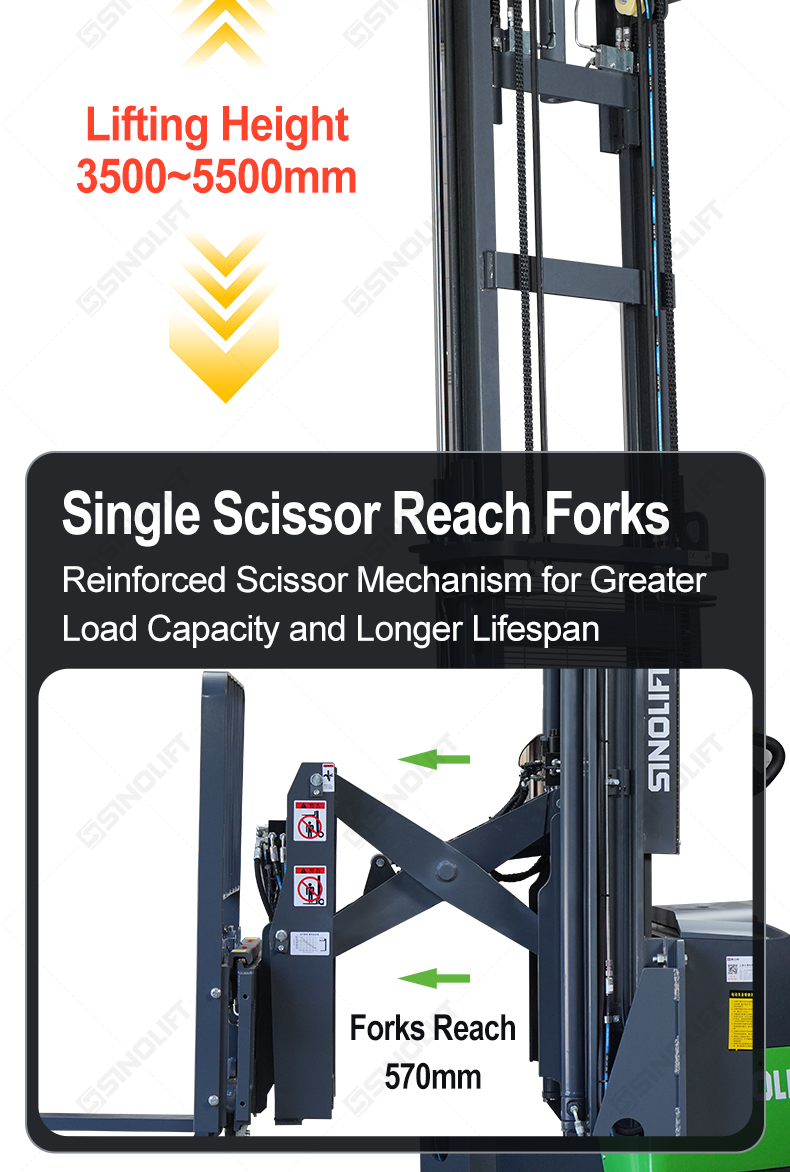

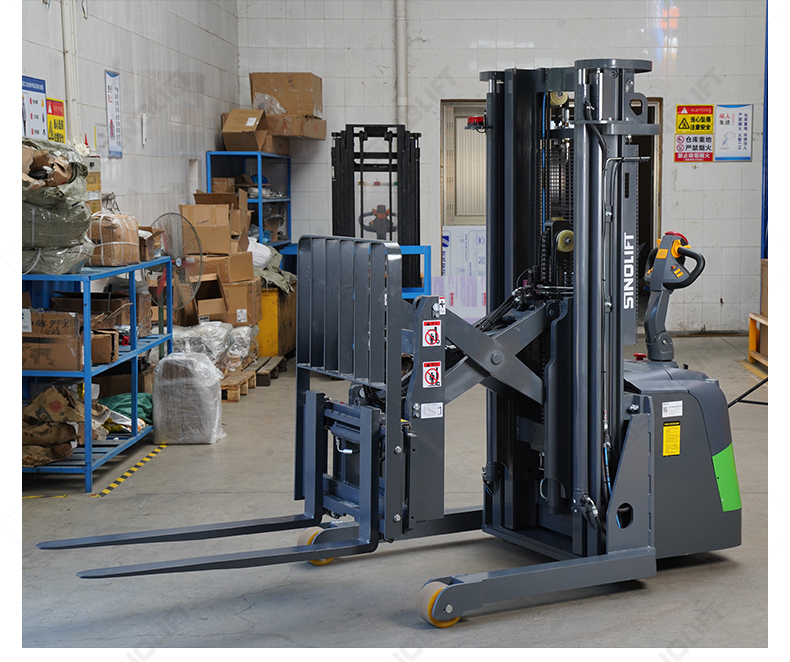

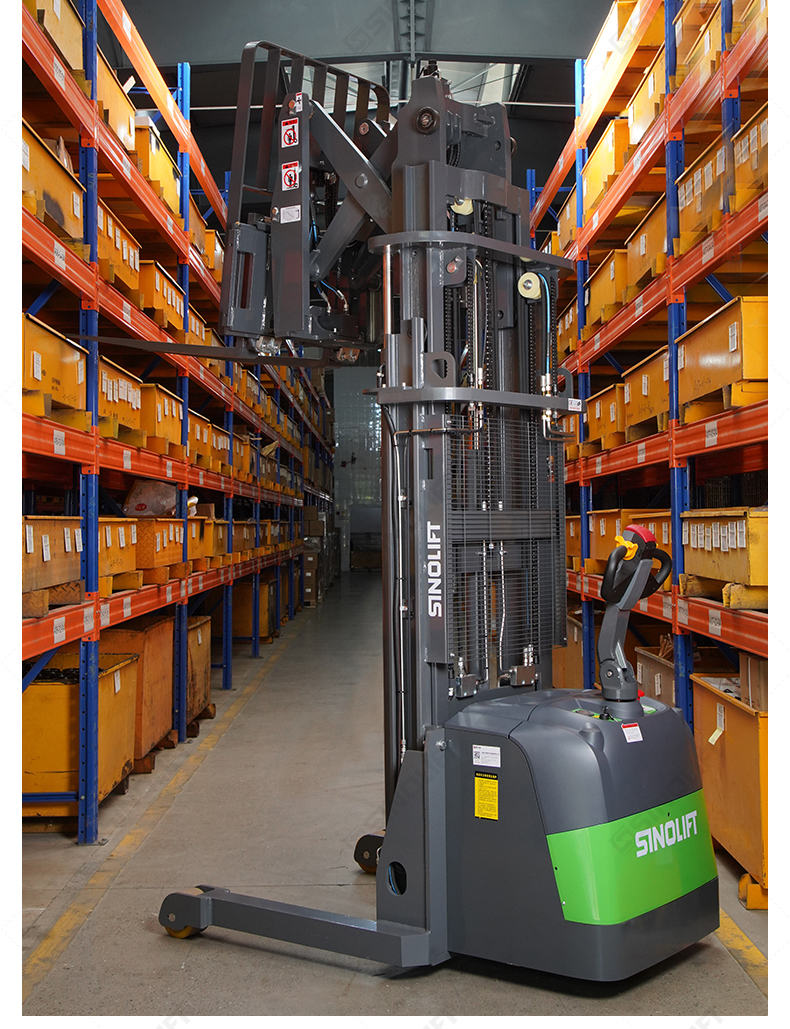

- Unmatched Maneuverability: Featuring a precise steering system and a unique scissor-forward reach function, this stacker delivers unparalleled agility for operating in the tightest aisles and confined spaces where other equipment cannot fit.

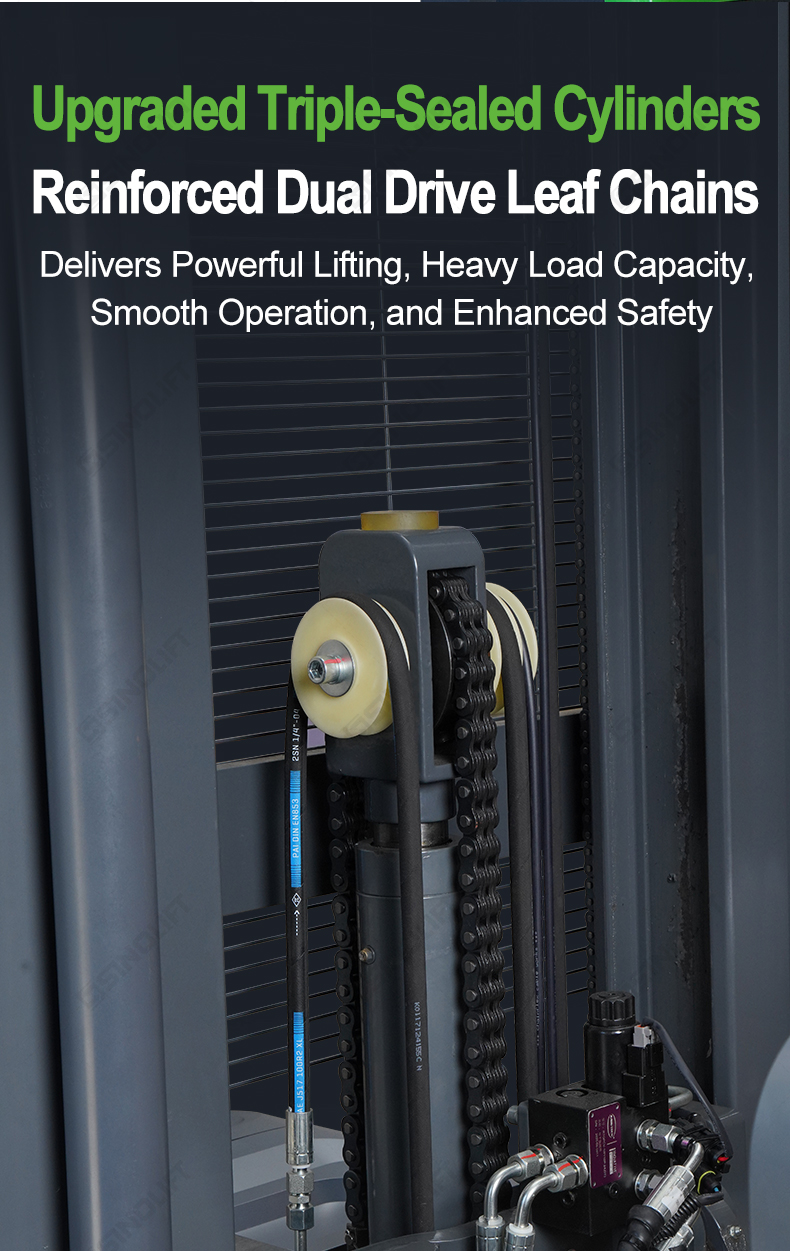

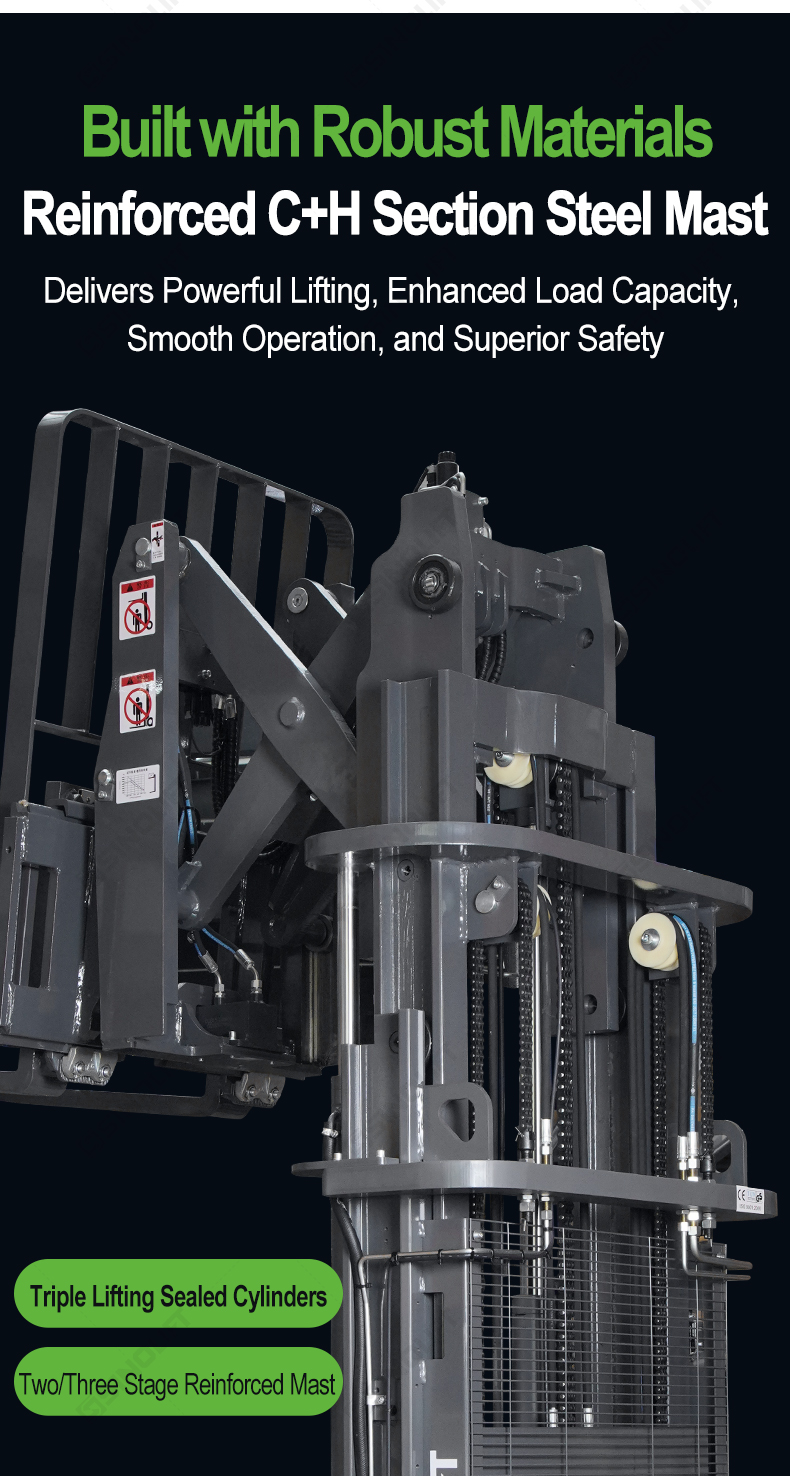

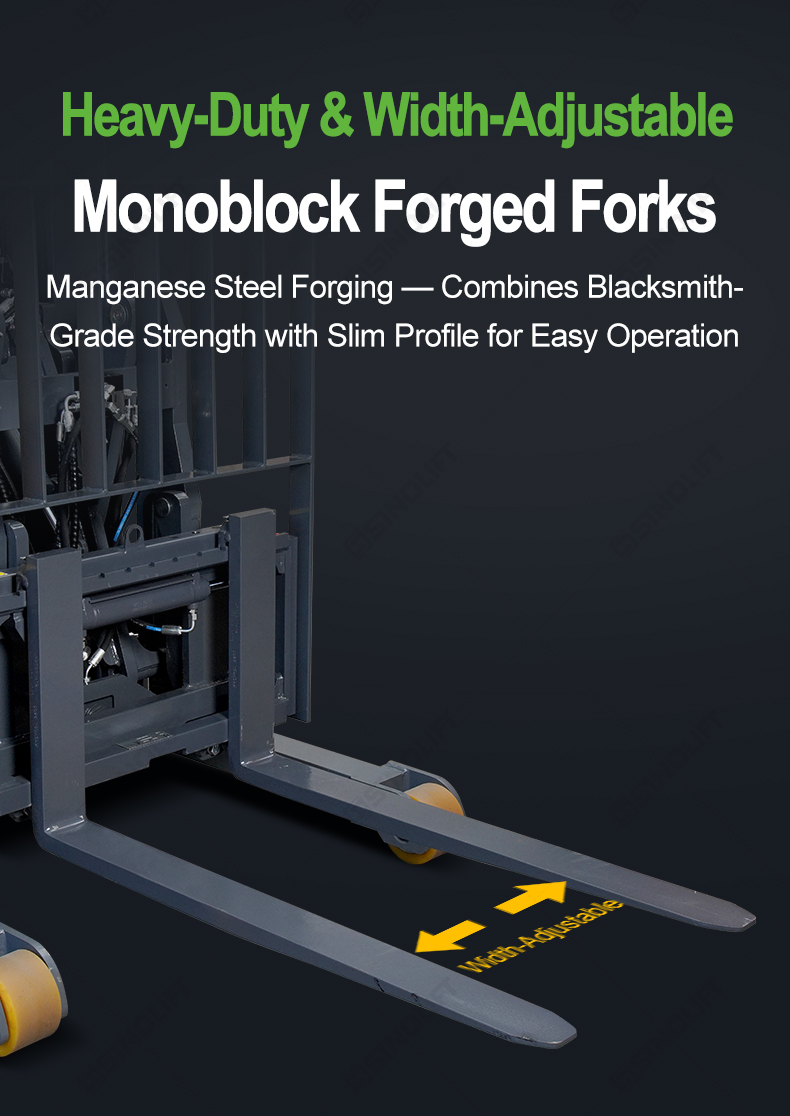

- Robust & Stable Performance: Engineered with a heavy-duty structure, including a reinforced C+H steel mast, triple-sealed cylinders, and reinforced chains, it ensures powerful, smooth, and safe lifting of loads up to 2 tons without deformation.

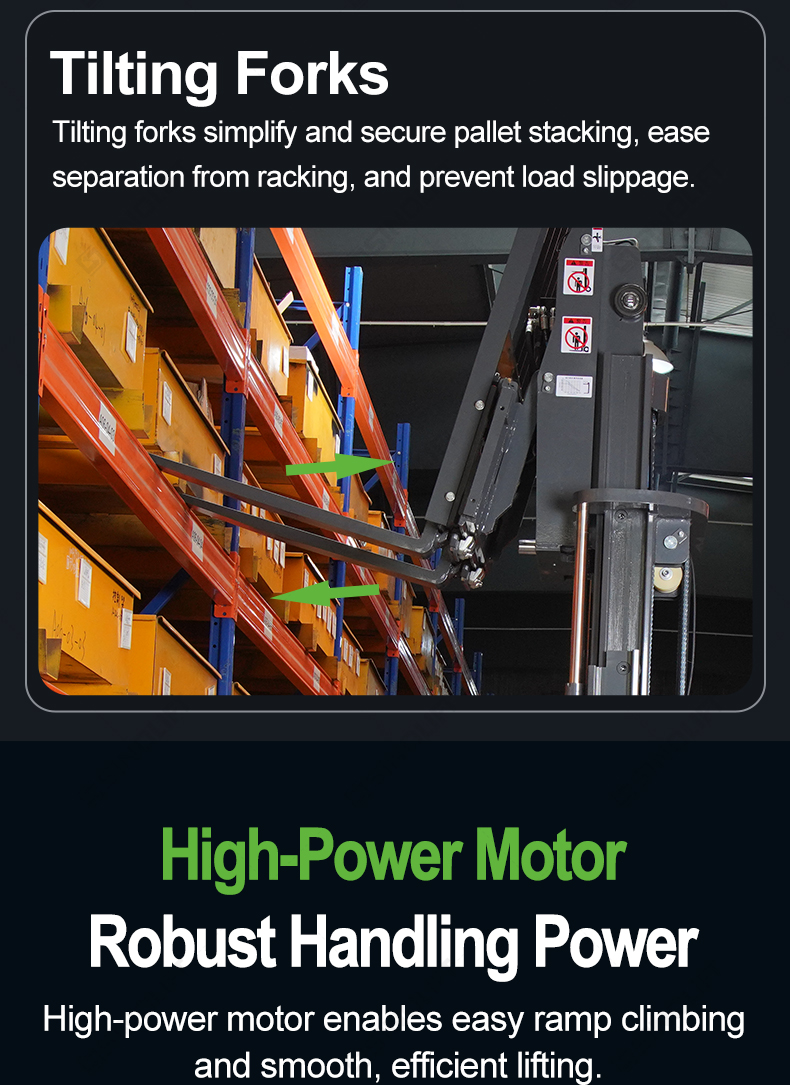

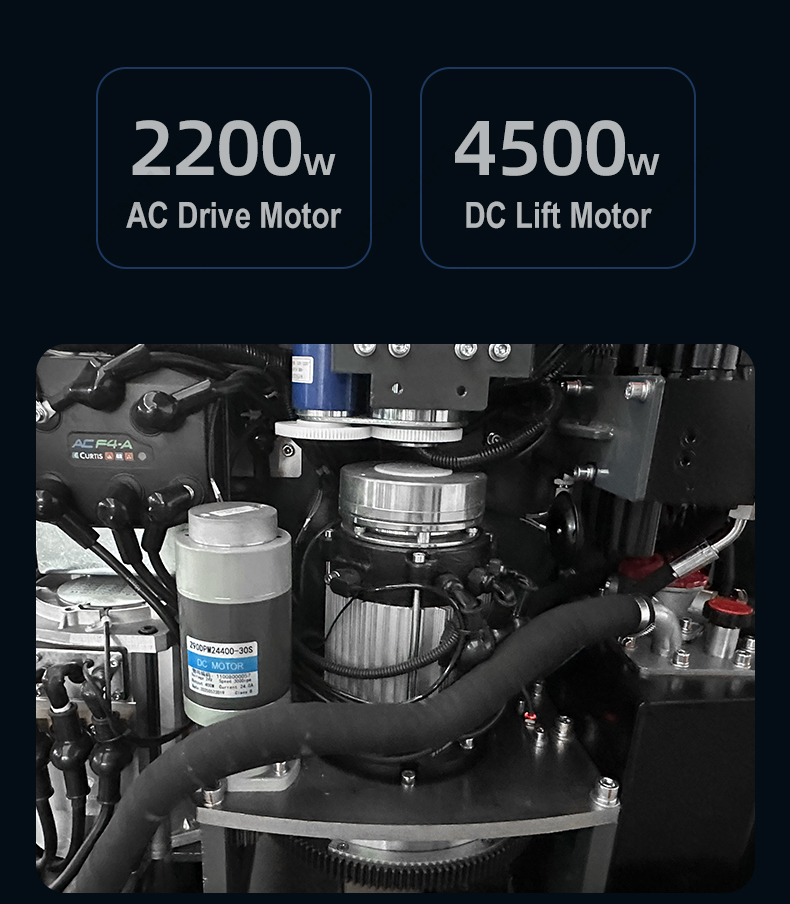

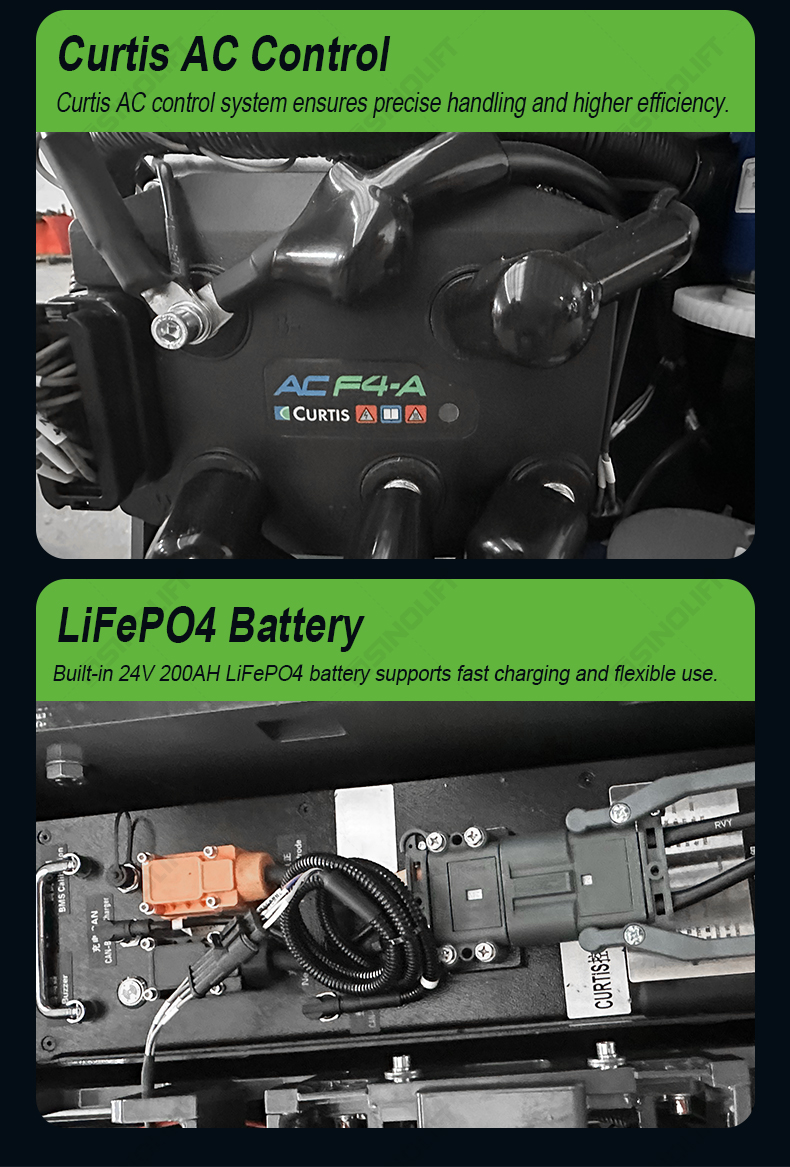

- Advanced Electric Control: The Curtis AC drive system and high-power motors provide responsive, efficient, and longer-lasting power for both travel and lifting, enabling easy ramp climbing and progressive speed control.

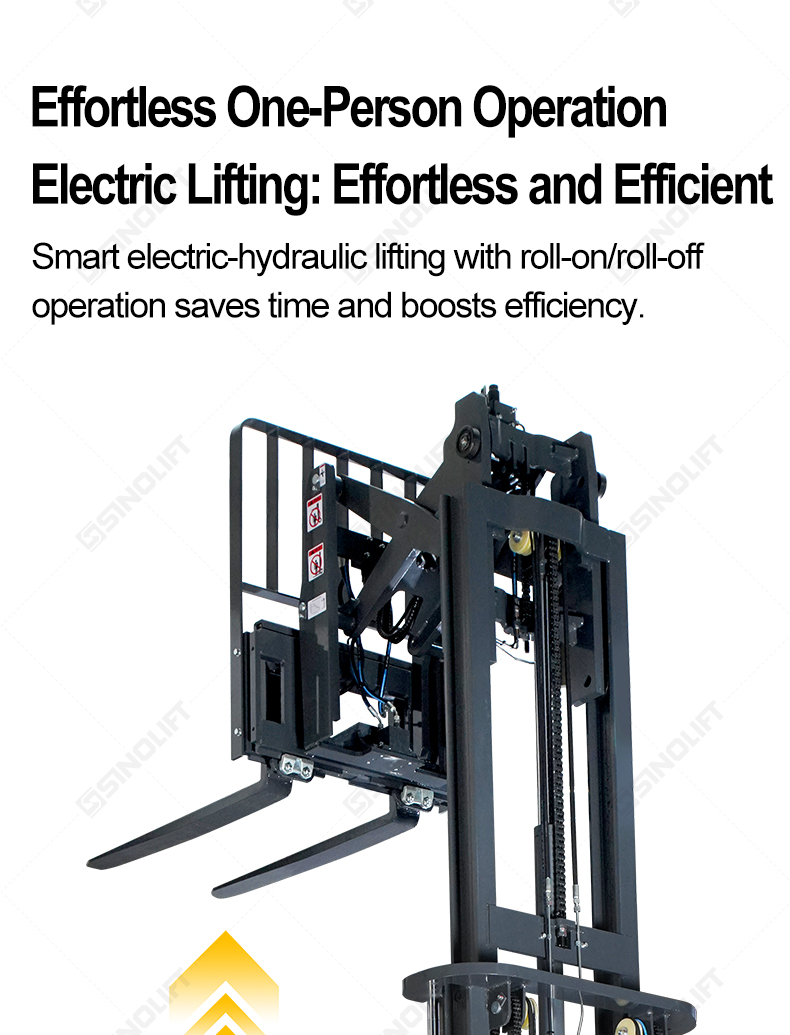

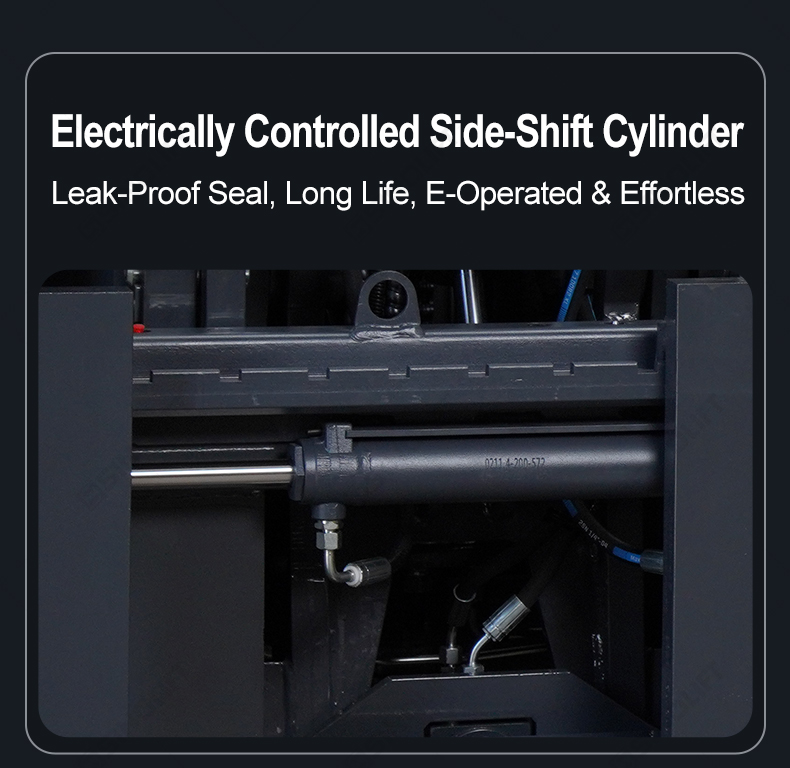

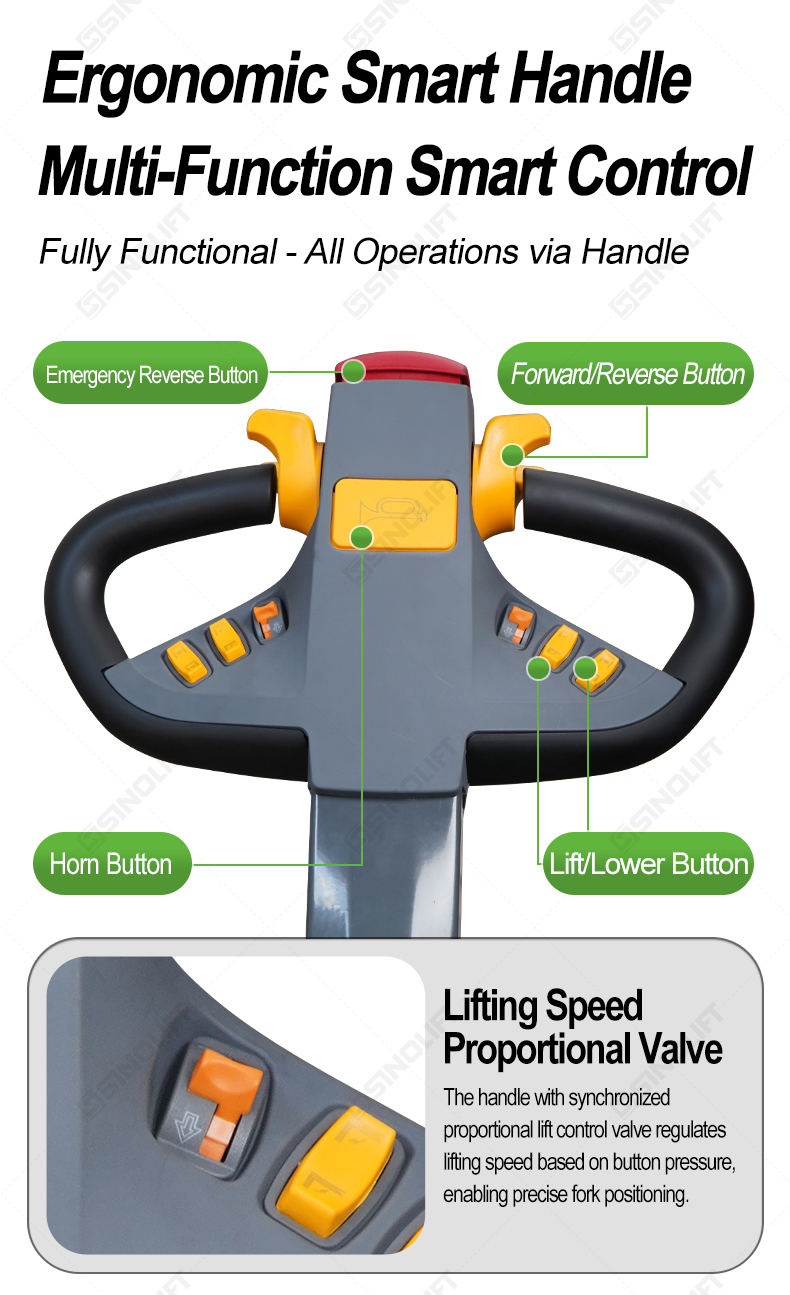

- Operator-Focused Design: An ergonomic smart handle with a proportional control valve allows for precise lifting via thumb pressure. Key functions like side-shift, tilt, and horn are all integrated for effortless, one-person operation.
- Durable & Low-Maintenance: Built with premium components like leak-resistant integrated cylinders, maintenance-free AC motors, and long-lasting polyurethane wheels, it guarantees high uptime and reduced operating costs.

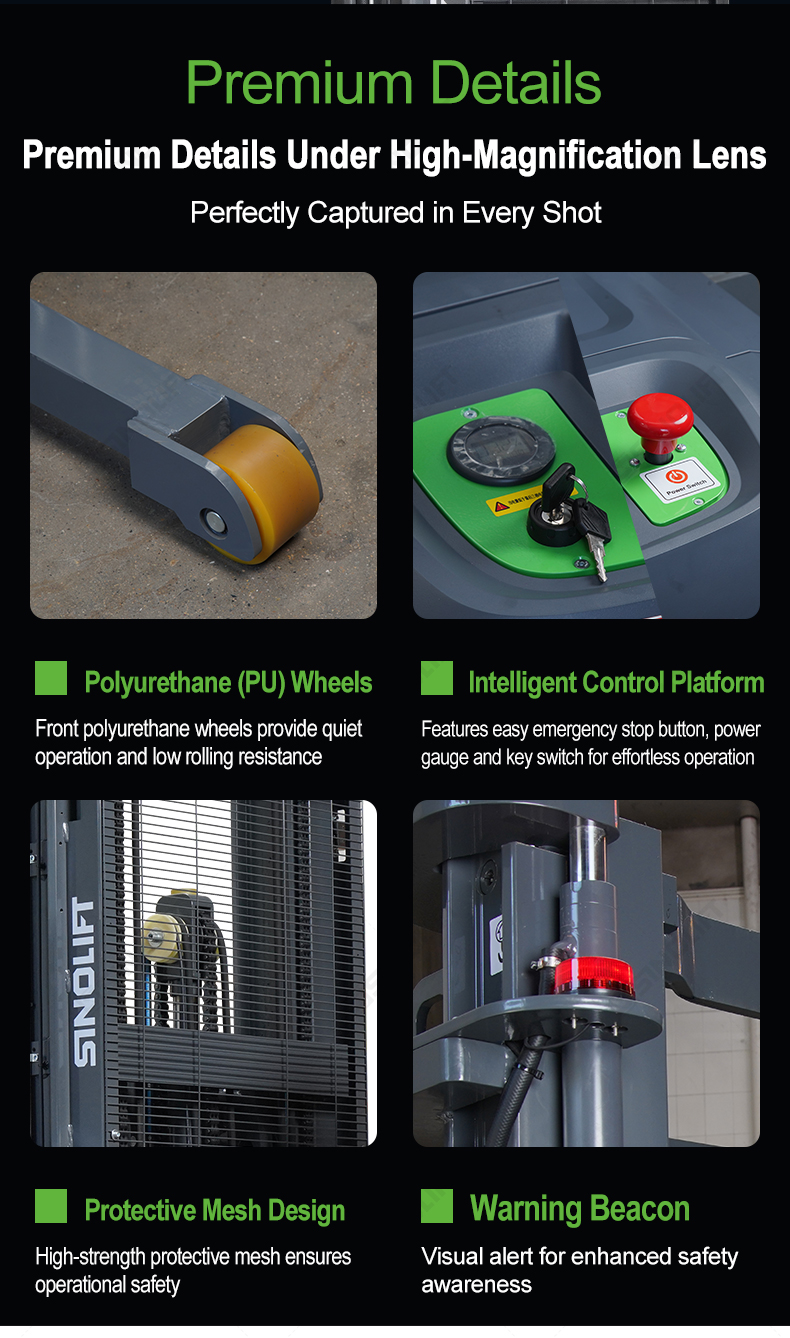

- Enhanced Safety Features: Standard safety elements include an emergency reverse button, a high-strength protective mesh, a warning beacon, and a hydraulic system designed to prevent mast drops in case of pressure loss.
Application Scenarios:

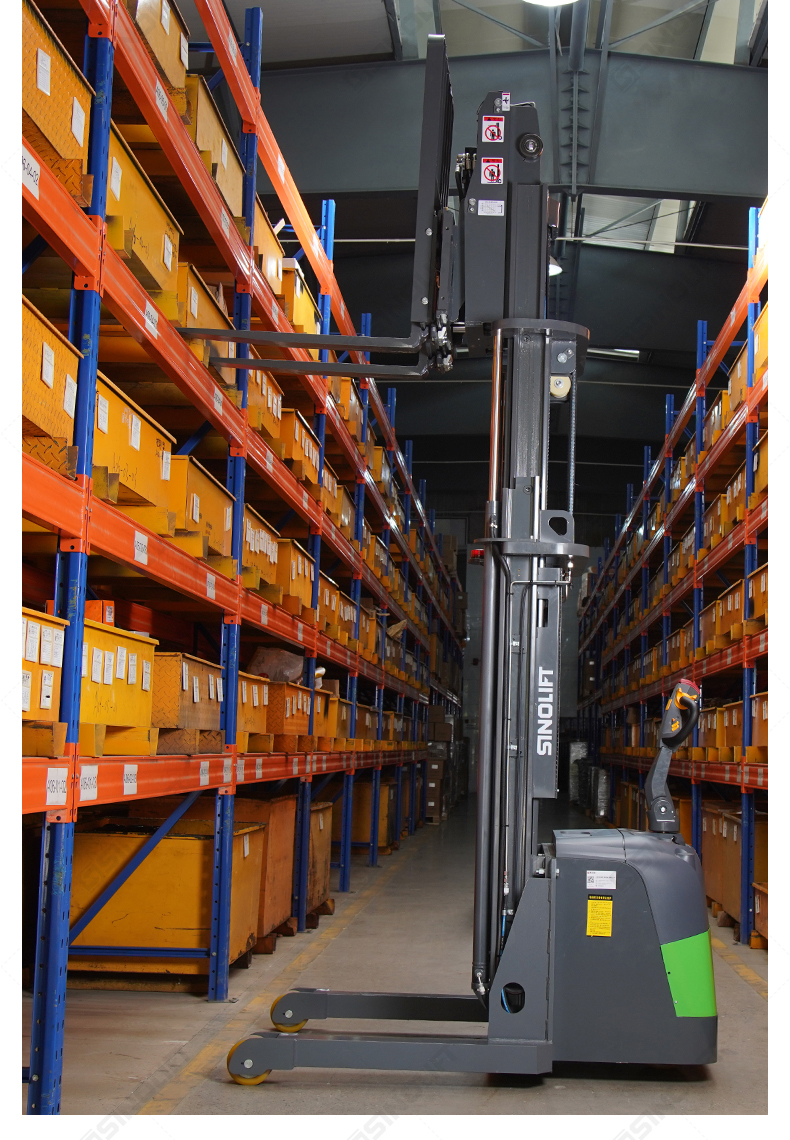

Ideal for maximizing space and efficiency in various material handling environments, including warehouse storage, retail stocking, dock handling, and express cargo logistics.
| Identification | 1.1 | Manufacturer | SINOLIFT | |||
| 1.2 | Model | CQDX15 | CQDX20 | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of Operation | Walkie | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Load Capacity/Rated Load | Q | kg | 1500 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 500 | 500 | |
| 1.8 | Load Distance, the center of drive axle to fork | x | 160 | 160 | ||
| 1.9 | Wheelbase | y | mm | 1415 | 1415 | |
| Weight | 2.1 | Total Weight (with Battery) | kg | 2065 | 2600 | |
| 2.2 | Axle Load (Laden):Drive side/Load-bearing Side | / | 1 | |||
| 2.3 | Axle Load (Unladen):Drive side/Load-bearing side | kg | / | / | ||
| Tyre | 3.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 3.2 | Tyre Size (Front) | mm | Ø150x100 | Ø150x100 | ||
| 3.3 | Tyre Size (Balance Wheel) | / | / | |||
| 3.4 | Tyre Size (Driving Wheel) | mm | φ248x75 | φ250x70 | ||
| 3.5 | Wheels Quantity, Front/Rear (x=Driving Wheels) | 2/1x | 2/1x | |||
| Dimension | 4.1 | Overall Length | L1 | mm | 2200 | 2140 |
| 4.2 | Overall Length (without Forks) | L4 | mm | 1655 | 1670 | |
| 4.3 | Chassis Length to Face of Forks | L2 | mm | 1130 | 1130 | |
| 4.4 | Lift Height | h3 | mm | 4500 | 4500 | |
| 4.5 | Height with Mast Lowered | h1 | mm | 2090 | 2100 | |
| 4.6 | Height with Mast Extended | h4 | mm | 5695 | 5705 | |
| 4.7 | Free Lift Height | h5 | mm | 1530 | 1520 | |
| 4.8 | Overalll Width (Chassis/Straddle Leg) | b1/b2 | mm | 820/1500 | 820/1500 | |
| 4.9 | Fork Dimension | l/e/s | mm | 1070×100×35 | 1070×100×35 | |
| 4.10 | Fork Spread Width | b5 | mm | 220-815 | 220-815 | |
| 4.11 | Fork Mounting Class | 2A | 2A | |||
| 4.12 | Fork Carriage Spread Width | b3 | mm | 835 | 835 | |
| 4.13 | Fork Carriage Tilt (forward/backward) | α/β | ° | 2/5 | 2/5 | |
| 4.14 | Fork Carriage Height | h6 | mm | 1160 | 1160 | |
| 4.15 | Inner Width of Straddle Leg | b4 | mm | 1220 | 1200 | |
| 4.16 | Reach Distance | L3 | mm | 570 | 590 | |
| 4.17 | Height of Fork Carriage | h6 | mm | 1160 | 1160 | |
| 4.18 | Ground Clearance at the Center of Wheelbase (Min.) | m1 | mm | 54 | 56 | |
| 4.19 | Turning Radius (Pedal Retracted/Expanded) | Wa | mm | 1610 | 1460 | |
| 4.20 | Min. Aisle Width (Pallet size 1000*1200) | Ast | mm | 2625 | 2556 | |
| 4.21 | Min. Aisle Width (Pallet size 800*1200) | Ast | mm | 2665 | 2615 | |
| Performance | 5.1 | Traveling Speed (Laden/Unladen) | km/h | 3.9/4 | 3.5/4 | |
| 5.2 | Lifting Speed (Laden/Unladen) | mm/s | 150/200 | 100/200 | ||
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 300/300 | 200/100 | ||
| Pantograph Reaching Spead (Laden/Unladen) | mm/s | 70/60 | 70/60 | |||
| 5.4 | Max. Gradient Performance S2 5min (Laden/Unladen) | % | 6/15 | 6/10 | ||
| 5.5 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating (AC) S2-60min | kw | 1.5 | 2.2 | |
| 6.2 | Lift Motor Rating (DC) S3 15% | kw | 4.5 | 4.5 | ||
| 6.3 | Battery Voltage/Capacity LiFEPO4 | V/Ah | 24/200 | 24/200 | ||
| 6.4 | Battery Weight | kg | 68 | 68 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | AC F4-A | AC F4-A | |||
| 7.3 | Sound Level at Driver's Ear According to EN12053 | dB | 70 | 70 | ||
