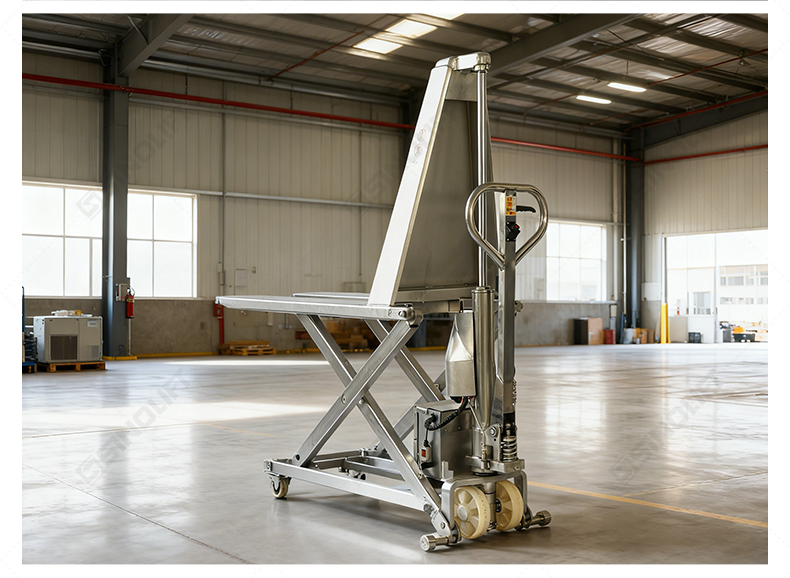

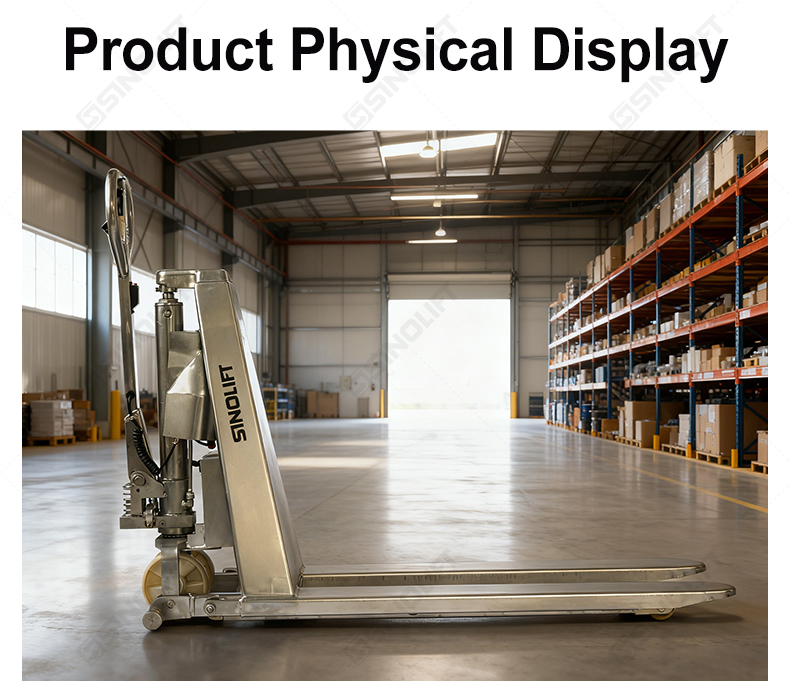

Sinolift EHLT15S-I Stainless Steel Electric High Lift Hydraulic Pallet Truck for Warehouses, Logistics & Medical Facilities
Key Features of the EHLT15S-I Stainless Steel High Lift Hydraulic Pallet Truck:

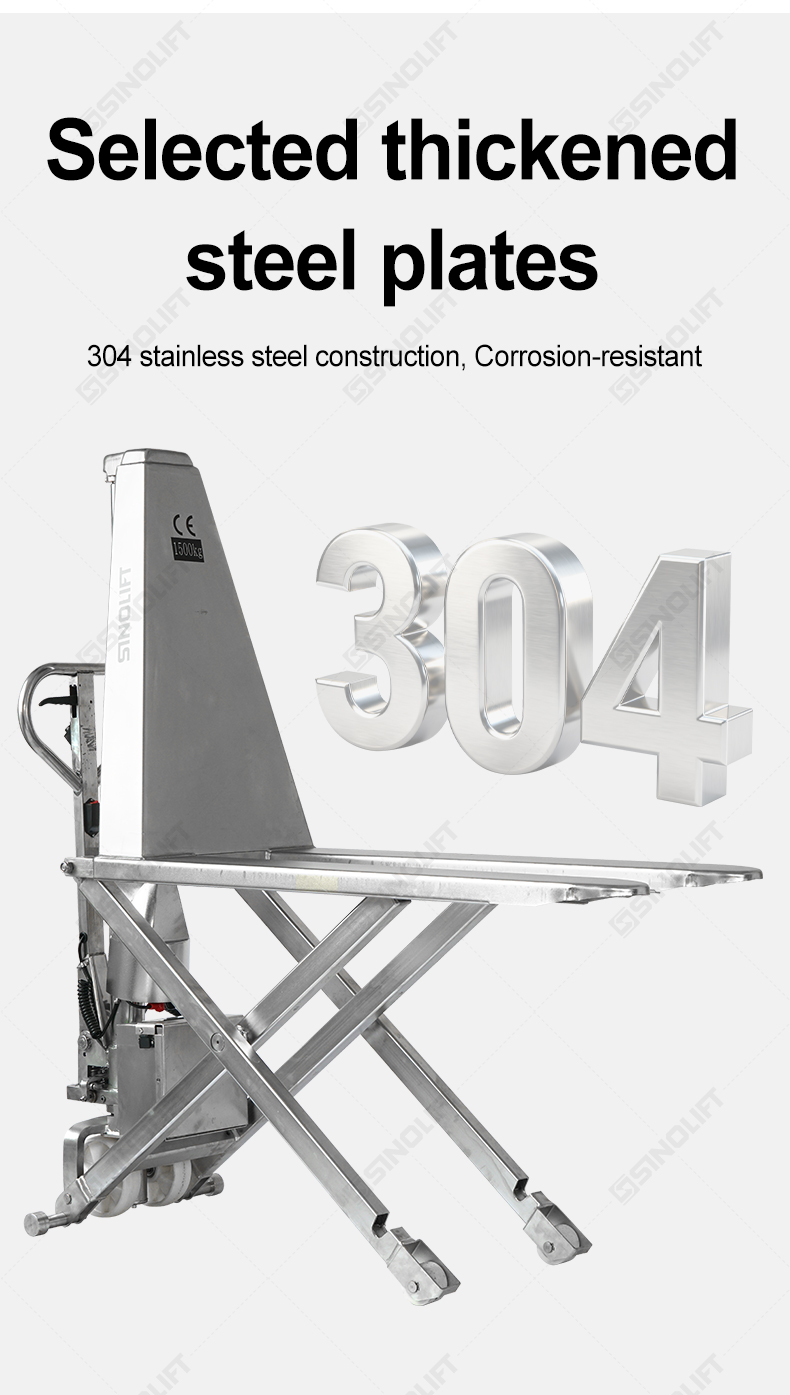

Full 304 Stainless Steel Construction: The entire truck is built from 304 stainless steel, providing excellent corrosion resistance for use in demanding environments like chemical plants, food processing, medical facilities, and moist warehouses, ensuring a long service life.

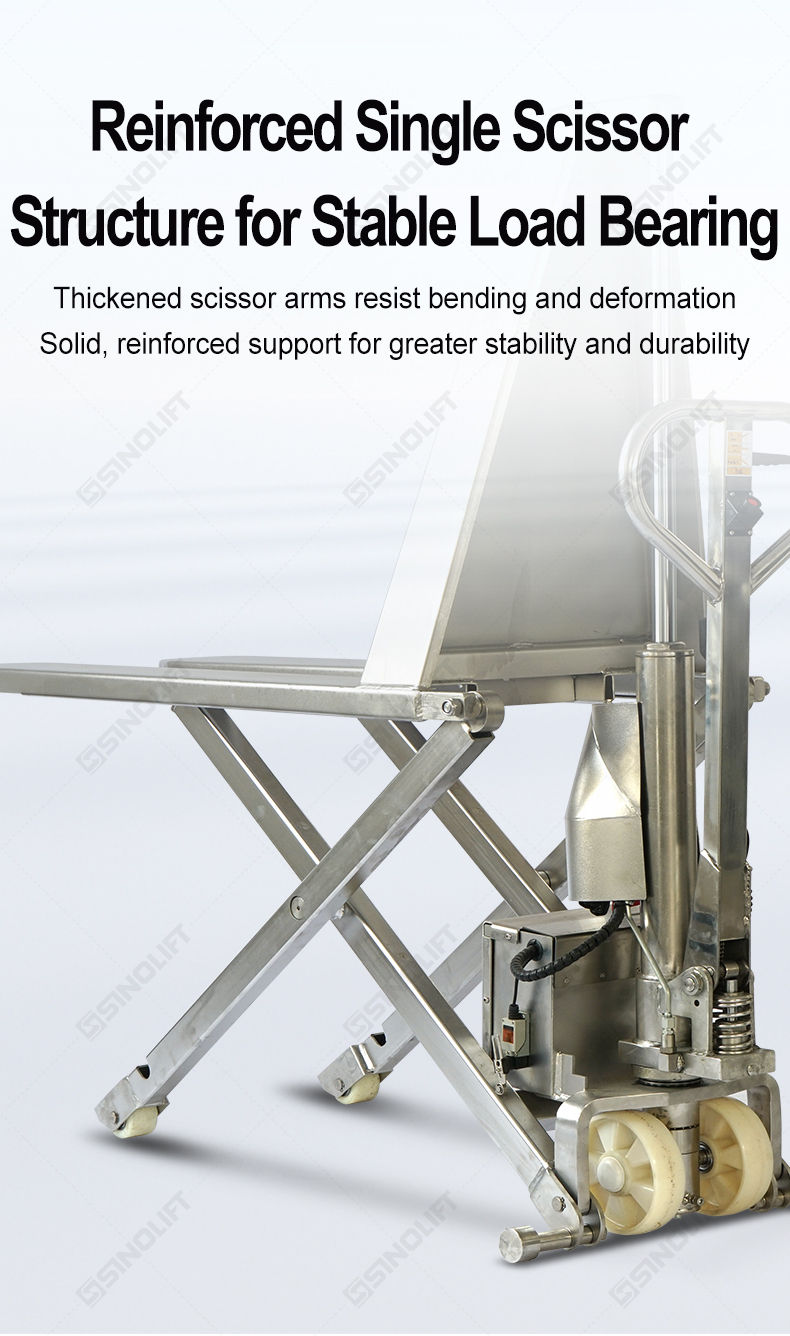

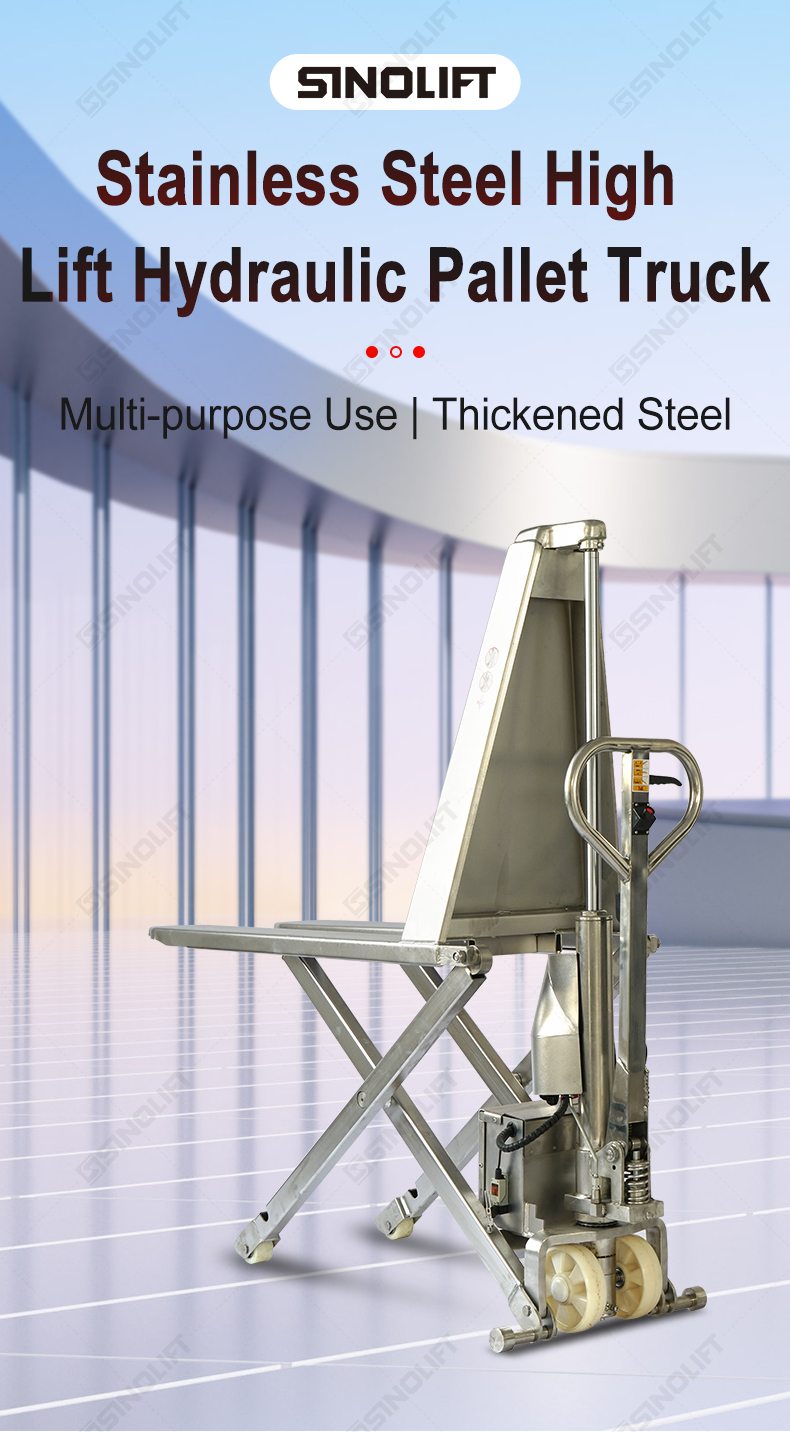

Reinforced Structural Design: It utilizes thickened steel plates and a reinforced single scissor mechanism. This design prioritizes load stability, resists bending, and enhances overall durability under heavy loads.

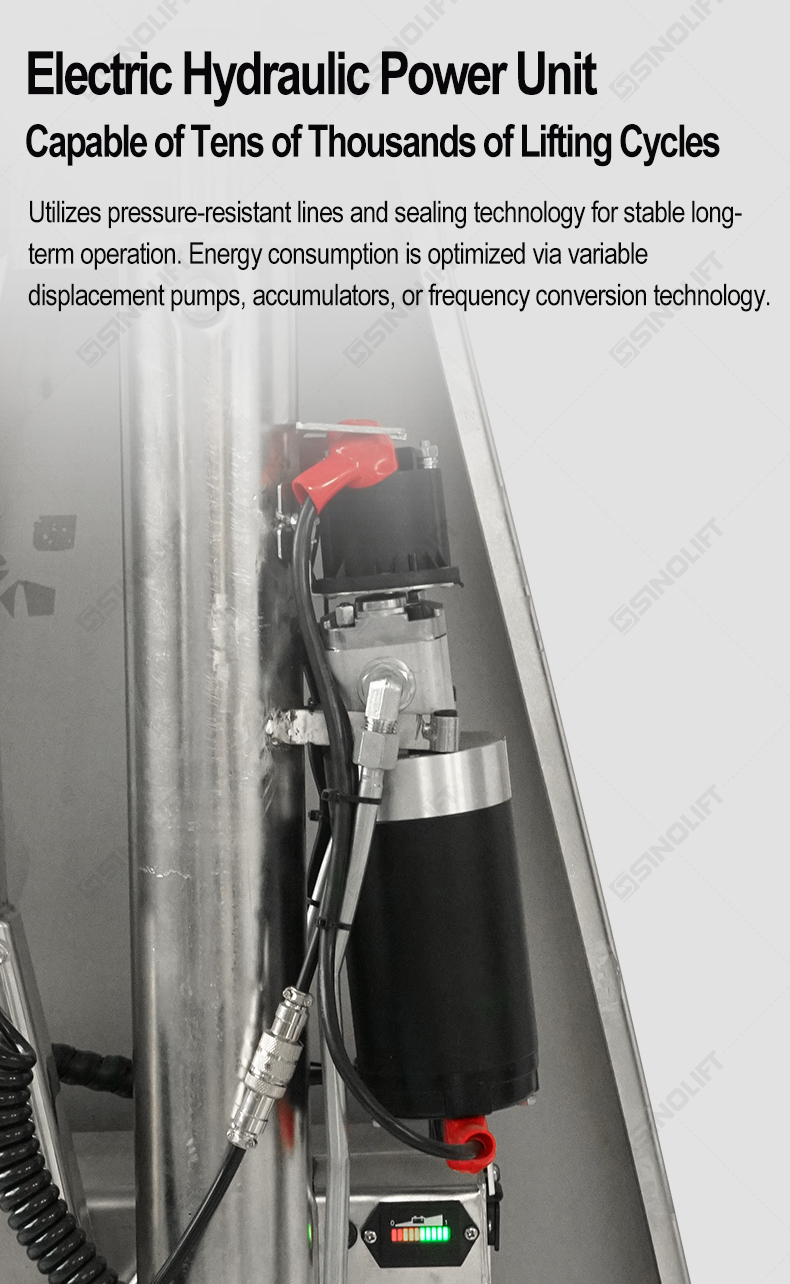

Electric Hydraulic Lifting System: Powered by an electric hydraulic pump unit, the truck offers effortless and efficient lifting. The system is designed for reliable, long-term operation with responsive control and is capable of thousands of lift cycles.

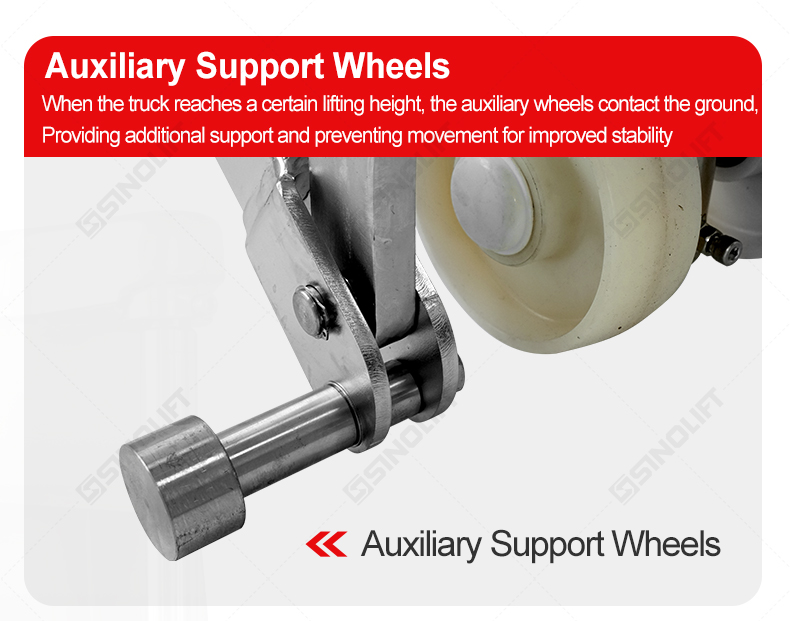

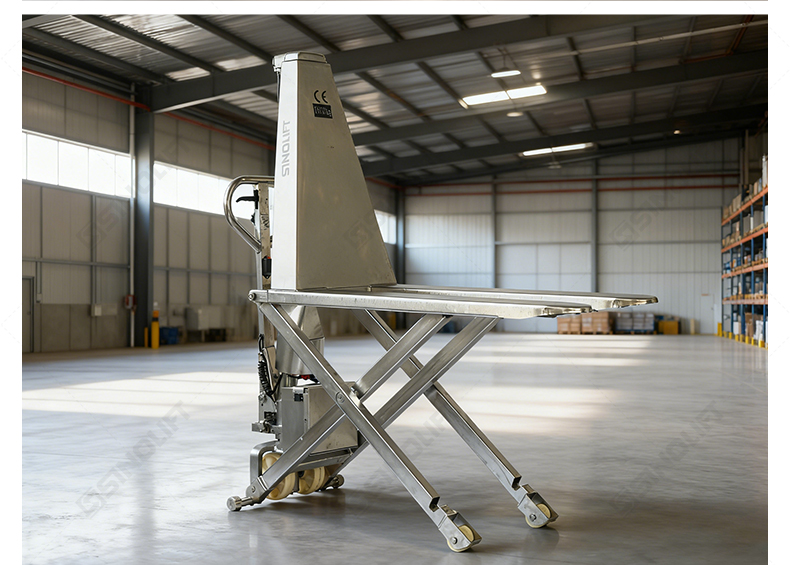

Integrated Auxiliary Support Wheels: When raised to a certain height, auxiliary support wheels automatically contact the ground. This feature provides additional stability by preventing the truck from moving during elevated loading or unloading operations.

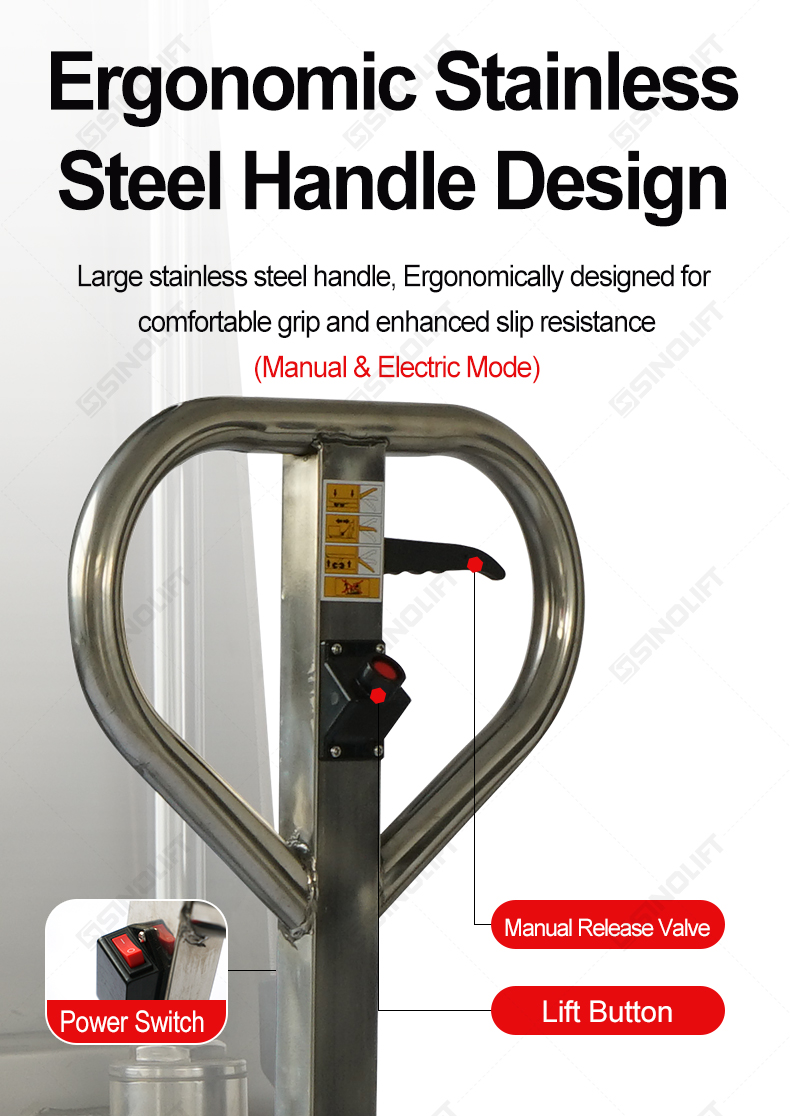

Ergonomic Operator Controls: Features a large, ergonomically designed stainless steel handle for a comfortable and secure grip. The control panel integrates essential functions including power switch, lift button, and manual lowering valve.

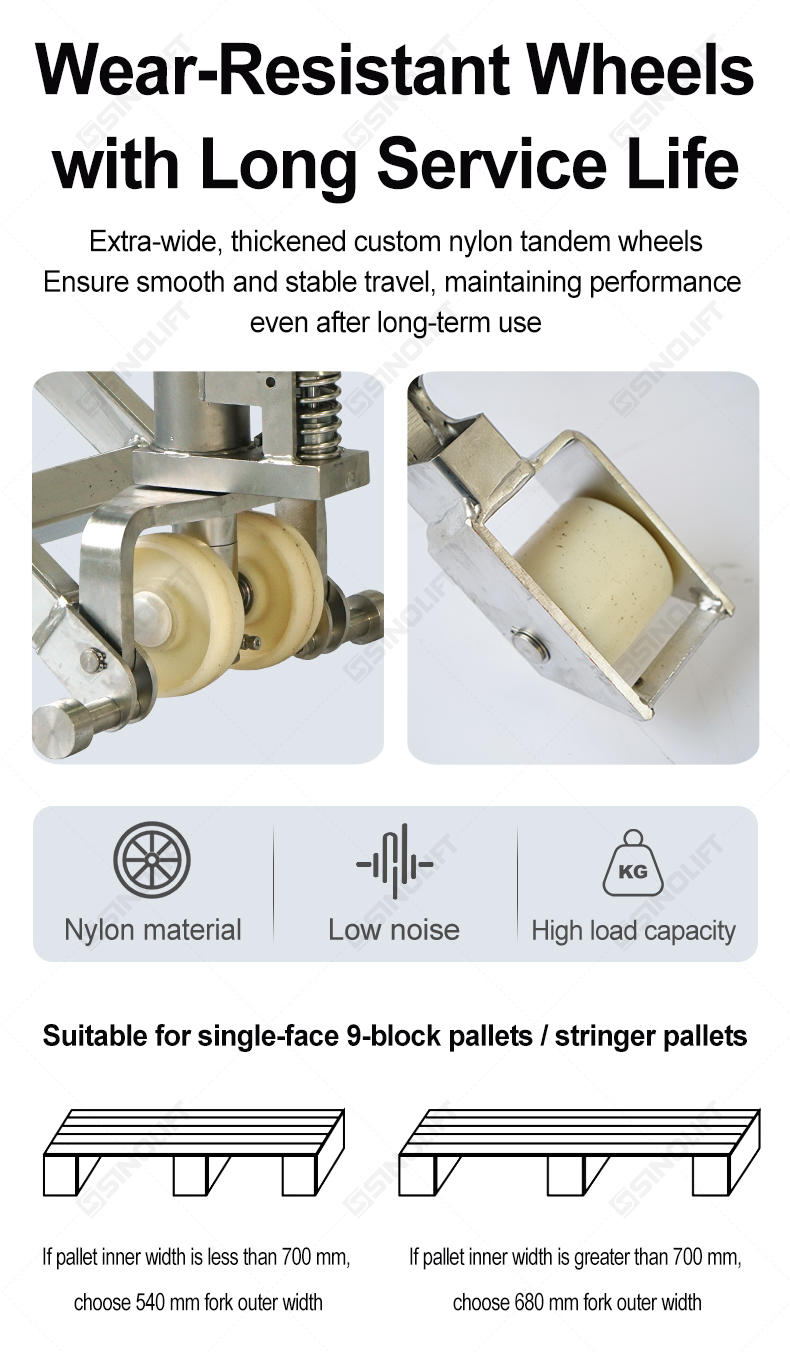

Versatile Pallet Compatibility: The truck is designed to handle common industrial pallet types, including single-face nine-block pallets and stringer pallets. Different fork width options (e.g., 540mm or 680mm outer width) are available to match specific pallet dimensions.
Primary Uses & Applications:
Transporting and lifting loaded pallets within facilities.
Ideal for workshops, warehouses, logistics centers, and ports.
Essential for industries requiring corrosion resistance, such as chemical, food processing, pharmaceuticals, and medical facilities.
Suitable for loading/unloading goods from different height platforms or vehicles.
| Model | EHLT15S-I | |
| Rated Load Capacity | kg | 1500 |

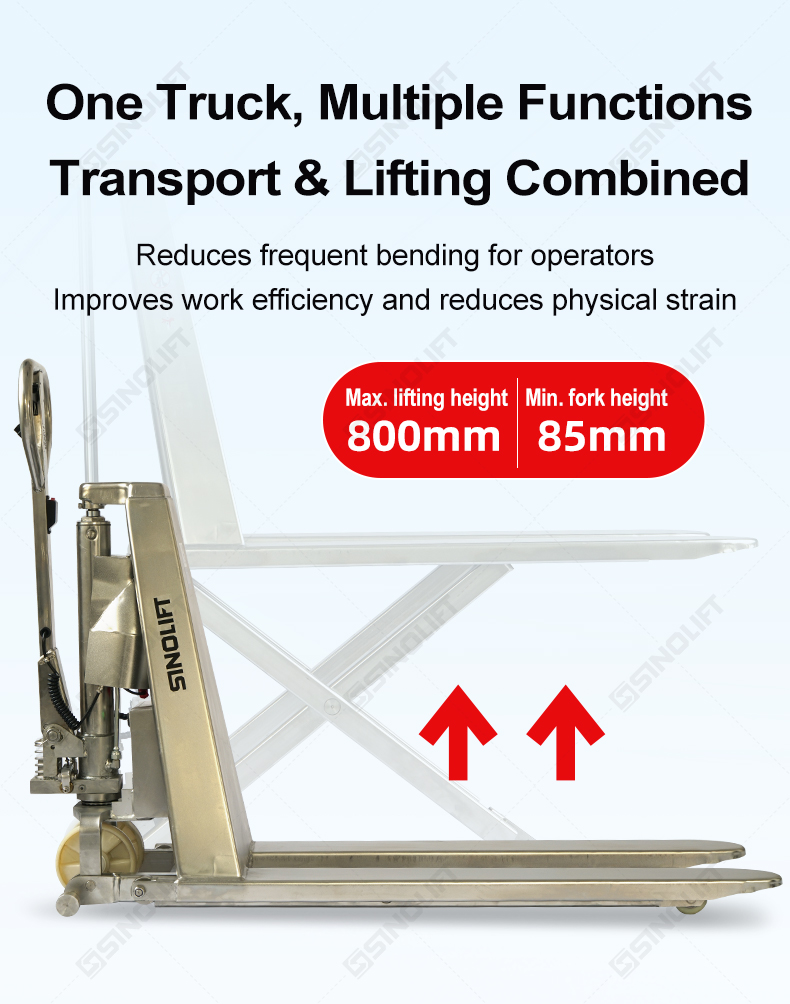

| Forks Minimum Height | mm | 85 |
| Forks Maximum Height | mm | 800 |
| Max. Lifting Stroke (F) | mm | >715 |
| Forks Outside Width | mm | 540/680 |
| Forks Inside Width | mm | 220/360 |
| Fork Dimensions | mm | 1150 |
| Single Fork Width | mm | 160 |
| Fork Thickness | mm | 50 |
| Overall Length | mm | 1640 |
| Overall Height | mm | 1640 |
| Load Wheel Size | mm | Φ80 × 70 |
| Steering Wheel Size | mm | Φ180 × 50 |
| Minimum Turning Radius | mm | 1260 |
| Lift Motor | V/KW | 1.2V/0.8 |
| Wheel Material | PU/Nylon | |
| Battery Capacity | V/AH | 12/65 |
| Net Weight | kg | 148/153 |
