Sinolift YLF120 series Full electric scissor lift table truck
YLF120
Quantity:
PRODUCT PRESENTATION:

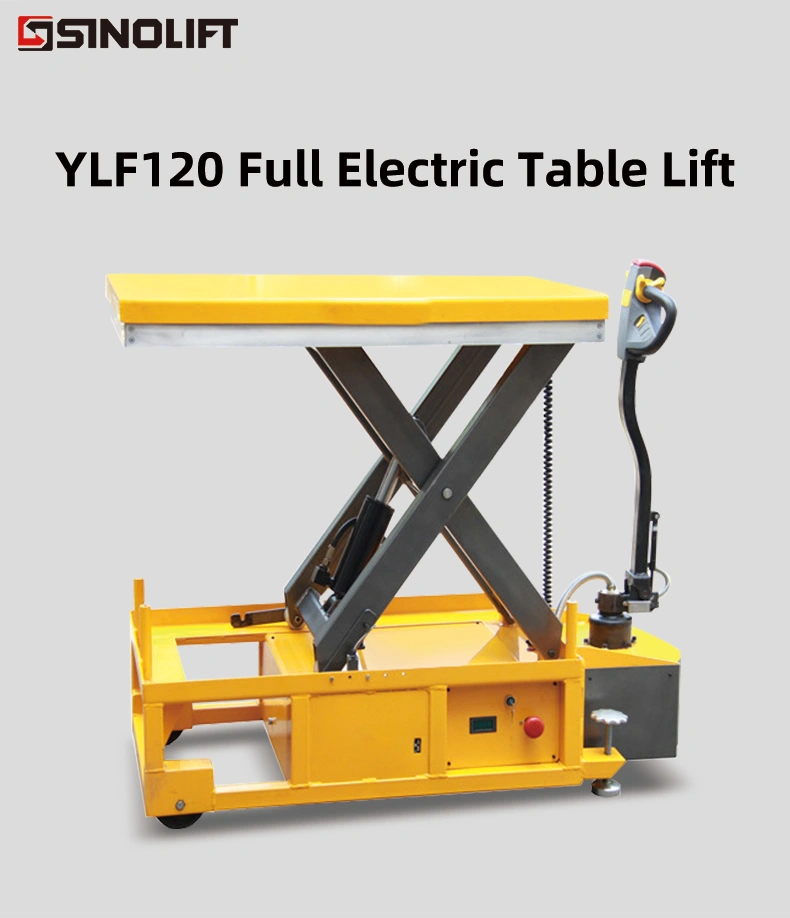

YLF120 Full Electric Table Lift

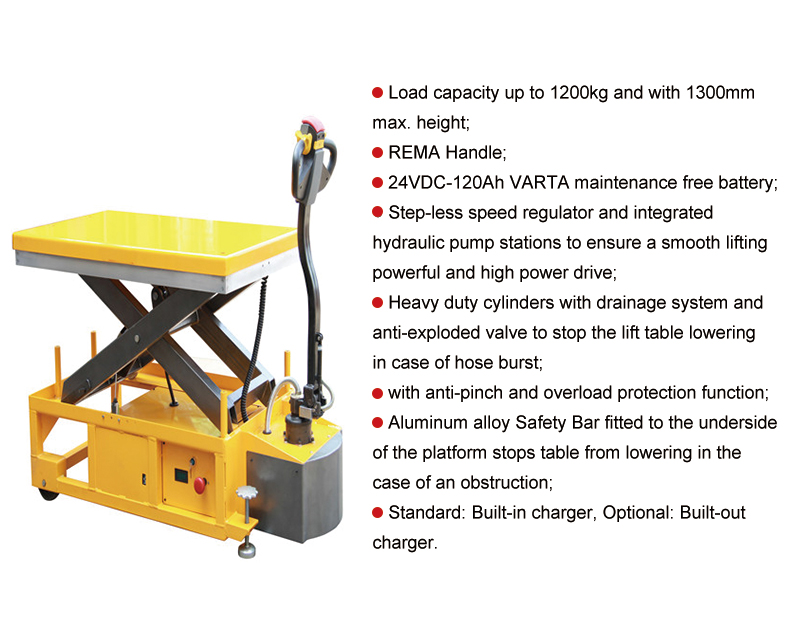

1. Load capacity up to 1200kg and with 1300mm max. height;
2. REMA Handle;
3.24VDC-120Ah VARTA maintenance free battery;
4. Step-less speed regulator and integrated hydraulic pump stations to ensure a
smooth lifting powerful and high power drive;
5. Heavy duty cylinders with drainage system and anti-exploded valve to stop the
lift table lowering in case of hose burst;
6. with anti-pinch and overload protection function;
7. Aluminum alloy Safety Bar fitted to the underside of the platform stops table
from lowering in the case of an obstruction;
8. Standard: Built-in charger,
Optional: Built-out charger.
YLF120 Full Electric Table Lift

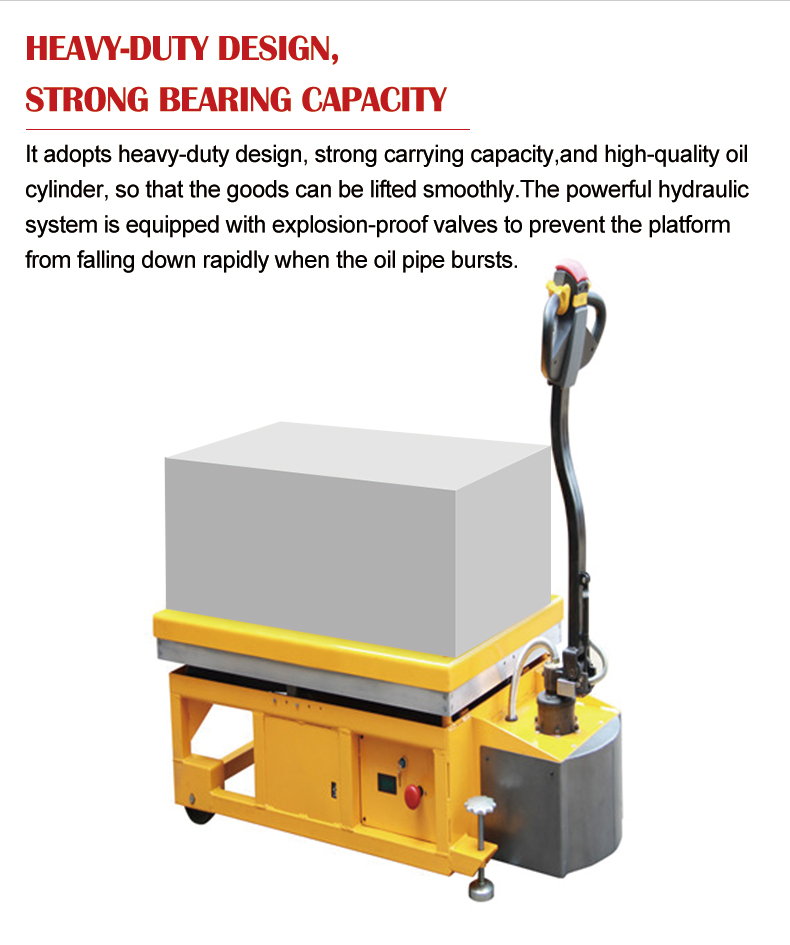

- Heavy-duty design, strong bearing capacity.It adopts heavy-duty design, strong carrying capacity,and high-quality oil cylinder, so that the goods can be lifted smoothly.The powerful hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.
- Special limit switch.Specially set the limit travel switch, when the raising range of the car exceeds the safe value,it will automatically stop the ascent to avoid excessive ascent and damage to the body.
- Fully sealed cylinder. Fully sealed oil cylinder, equipped with overload protection device, separate design of oil pump and oil cylinder, can provide lifting height, separate design makes the pump pressure light.

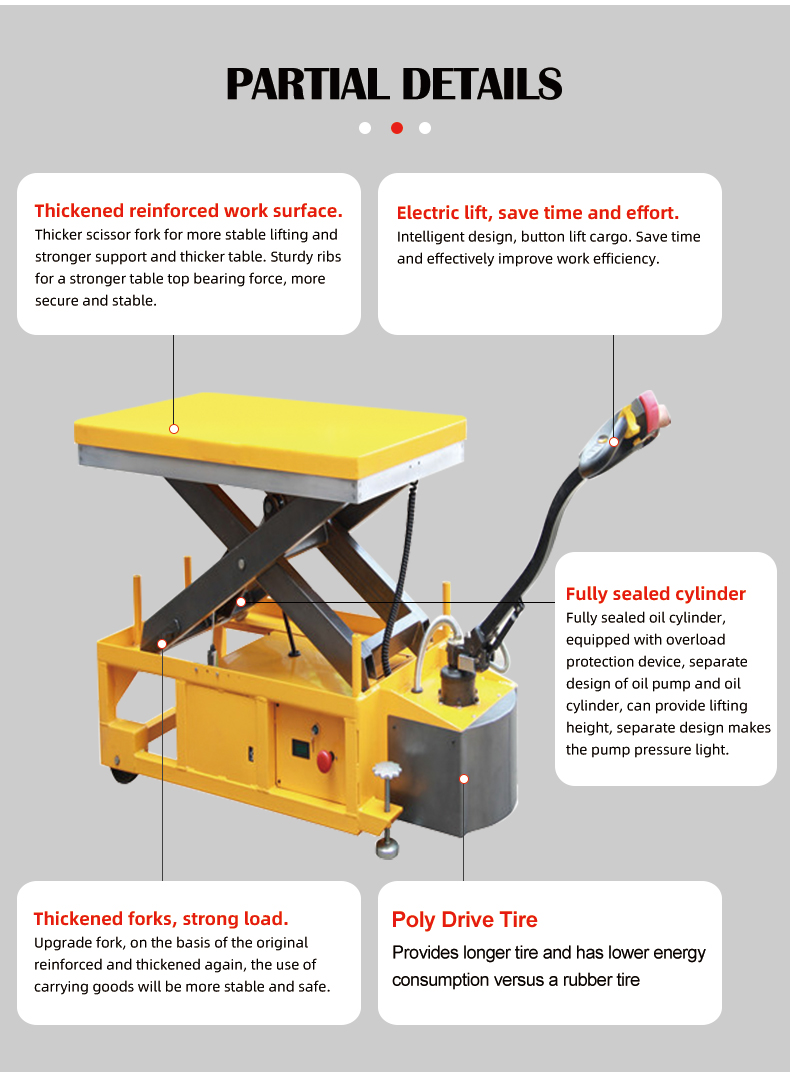

- Thickened reinforced work surface. Thicker scissor fork for more stable lifting and stronger support and thicker table. Sturdy ribs for a stronger table top bearing force, more secure and stable.
- Thickened baking lacquer countertop, strong and durable. Made of high quality steel color agent, with sufficient material, strong load-bearing force and high efficiency. Lastly, it adopts baking paint and plastic spraying treatment, which is anti-corrosion and rust-proof, durable and sturdy.
- Electric lift, save time and effort. Intelligent design, button lift cargo. Save time and effectively improve work efficiency.
- Thickened forks, strong load. Upgrade fork, on the basis of the original reinforced and thickened again, the use of carrying goods will be more stable and safe.
| Model | YLF120 | |
| Driving type | / | Electric |
| Operator type | / | Pedestrian |
| Capacity | kg | 1200 |
| Turning radius | mm | 1500 |
| Driving wheel material | / | PU |
| Driving wheel size | mm | 250*80 |
| Grade ability(laden/unladen） | % | '3/5 |
| Brake type | / | Electric magnetic |
| Drive motor power | Kw | 1.2 |
| Lifting motor power | Kw | 2.25 |
| Battery | V/Ah | 24/120 |
| Platform size | mm | 1300*820 |
| Min.height | mm | 540 |
| Max.height | mm | 1300 |
| Net weight | kg | 426 |
1. Load capacity up to 1200kg and with 1300mm max. height;
2. REMA Handle;
3.24VDC-120Ah VARTA maintenance free battery;
4. Step-less speed regulator and integrated hydraulic pump stations to ensure a
smooth lifting powerful and high power drive;
5. Heavy duty cylinders with drainage system and anti-exploded valve to stop the
lift table lowering in case of hose burst;
6. with anti-pinch and overload protection function;
7. Aluminum alloy Safety Bar fitted to the underside of the platform stops table
from lowering in the case of an obstruction;
8. Standard: Built-in charger,
Optional: Built-out charger.
