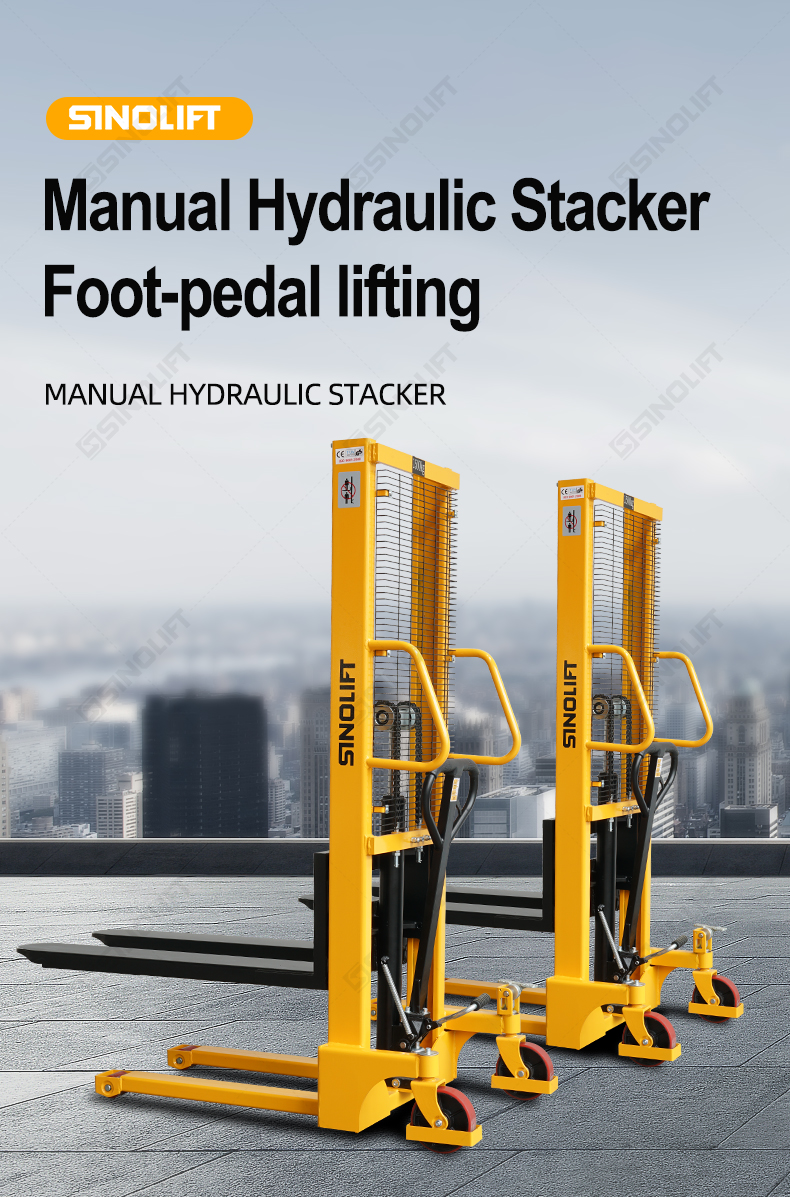

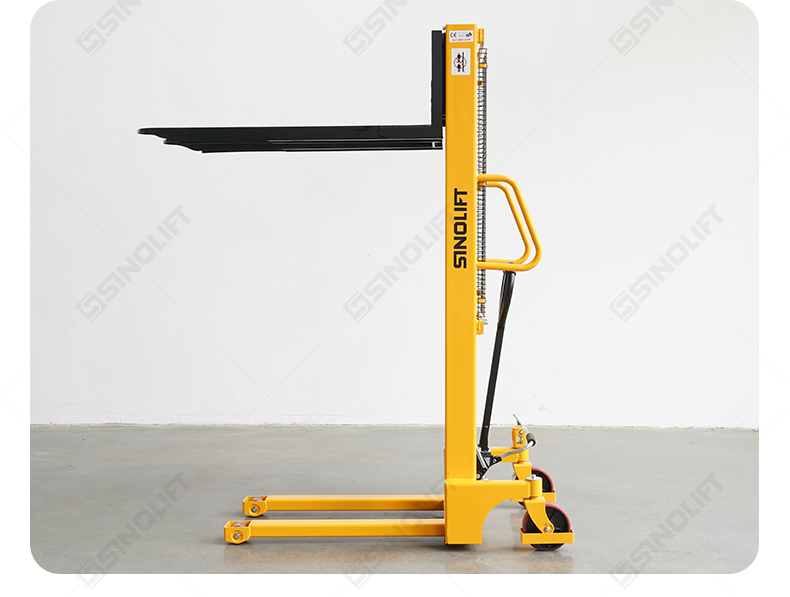

SMS Manual Hydraulic Pallet Stacker with Narrow Legs

Design Highlights:

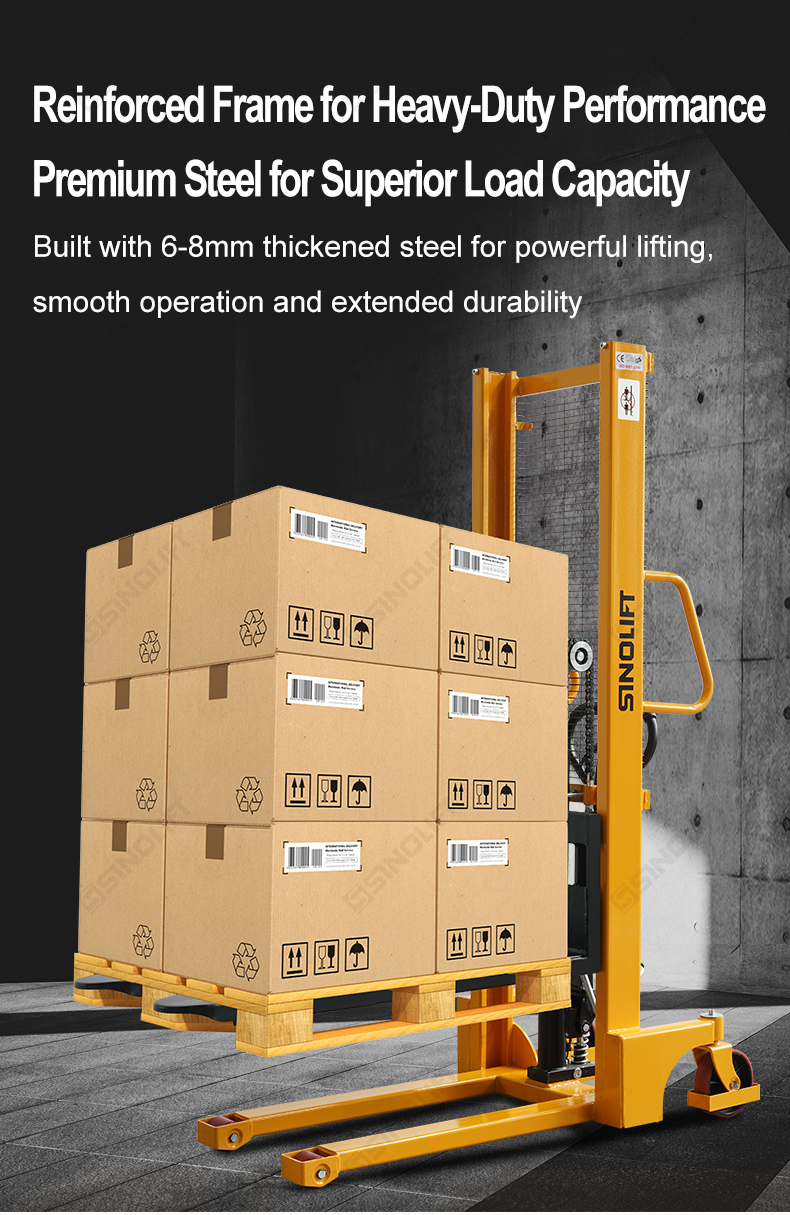

Heavy-Duty Construction - Built with reinforced 6-8mm thick steel for superior load capacity (500-2000kg) and long-term durability

Space-Saving Narrow Leg Design - Optimized for working in tight warehouse aisles and confined spaces

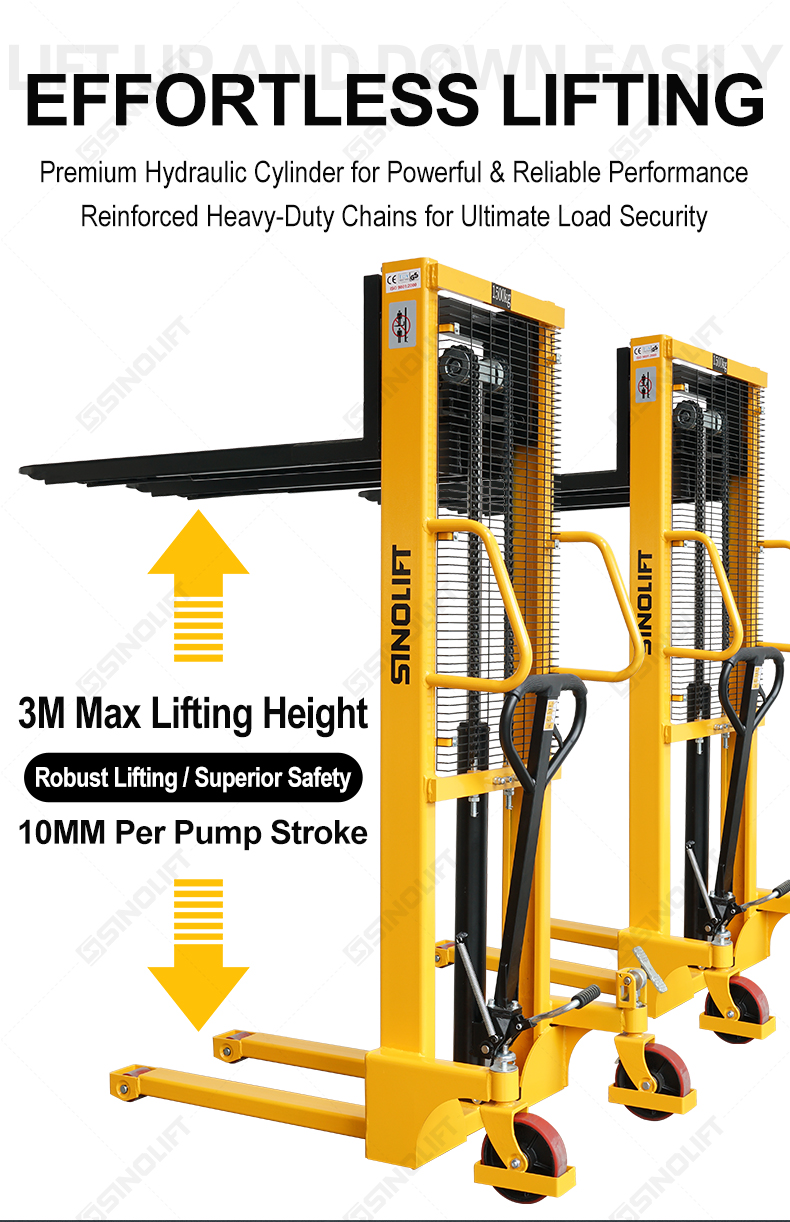

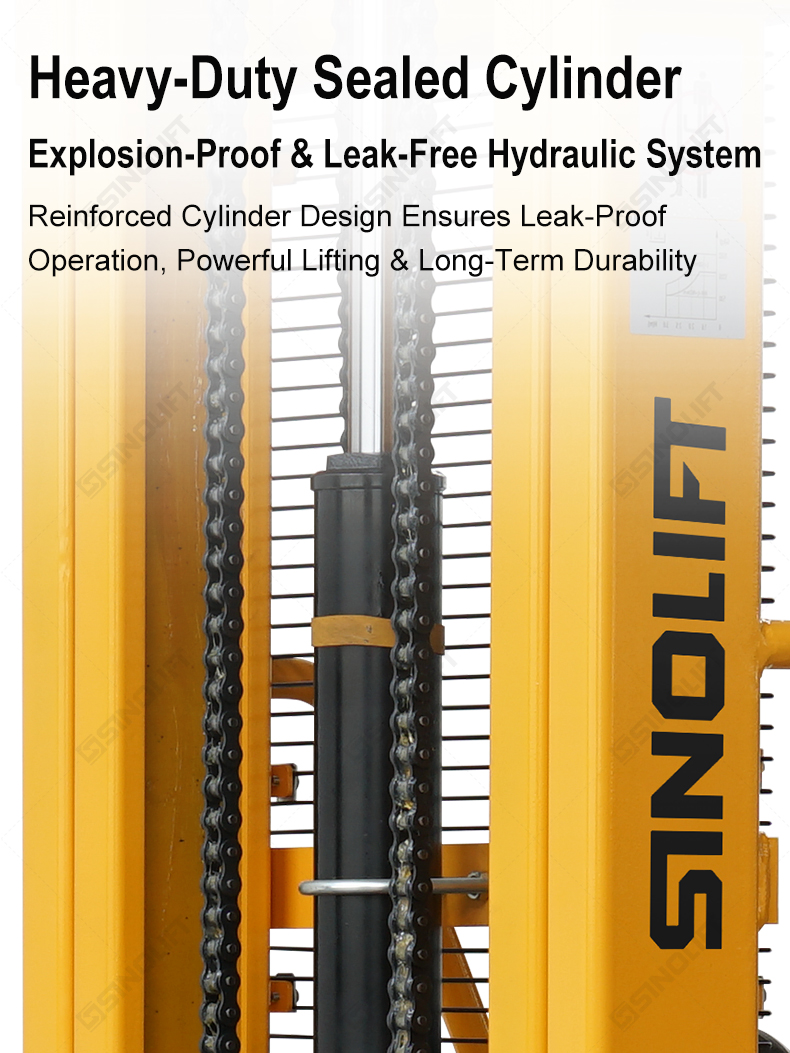

Premium Hydraulic System - Features a sealed, leak-proof cylinder for smooth lifting (up to 3m height) and reliable performance

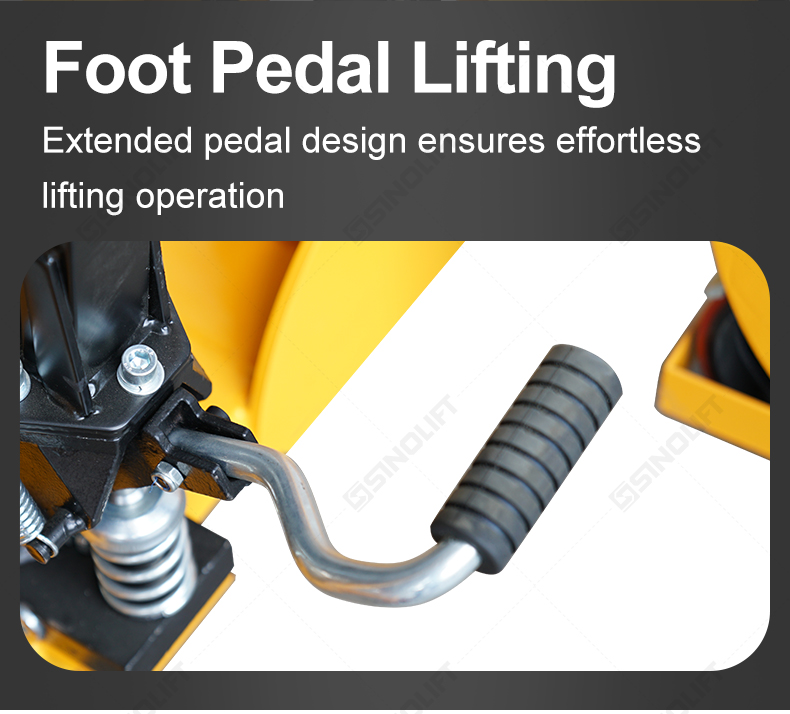

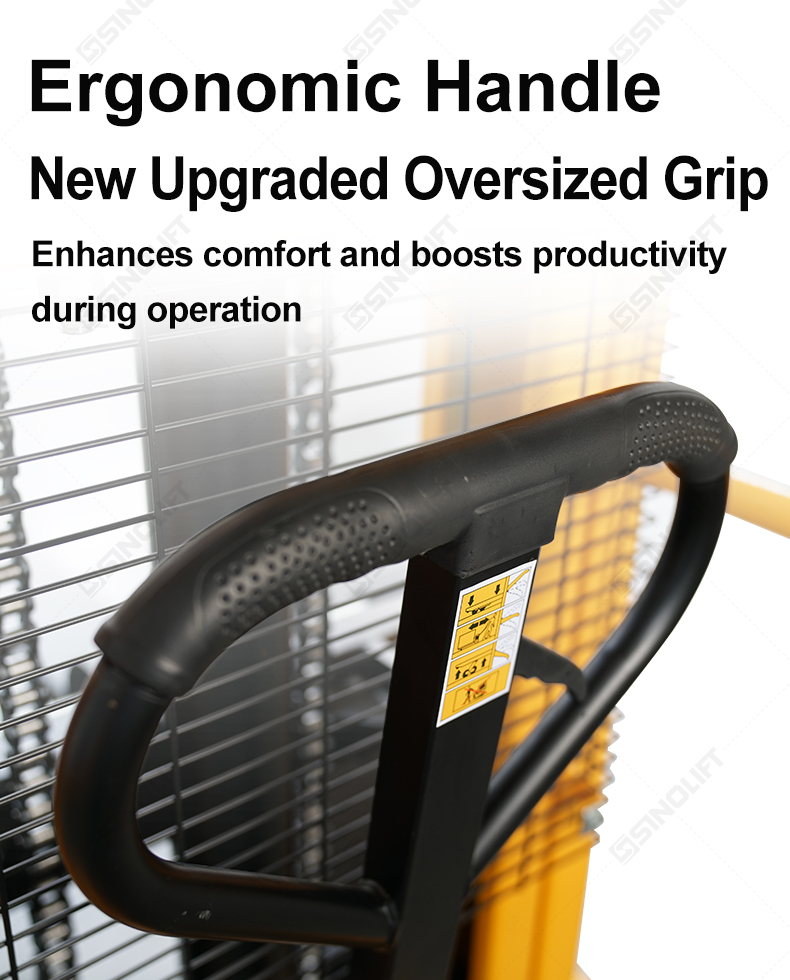

Ergonomic Operation - Foot pedal lifting mechanism and oversized handle reduce operator fatigue

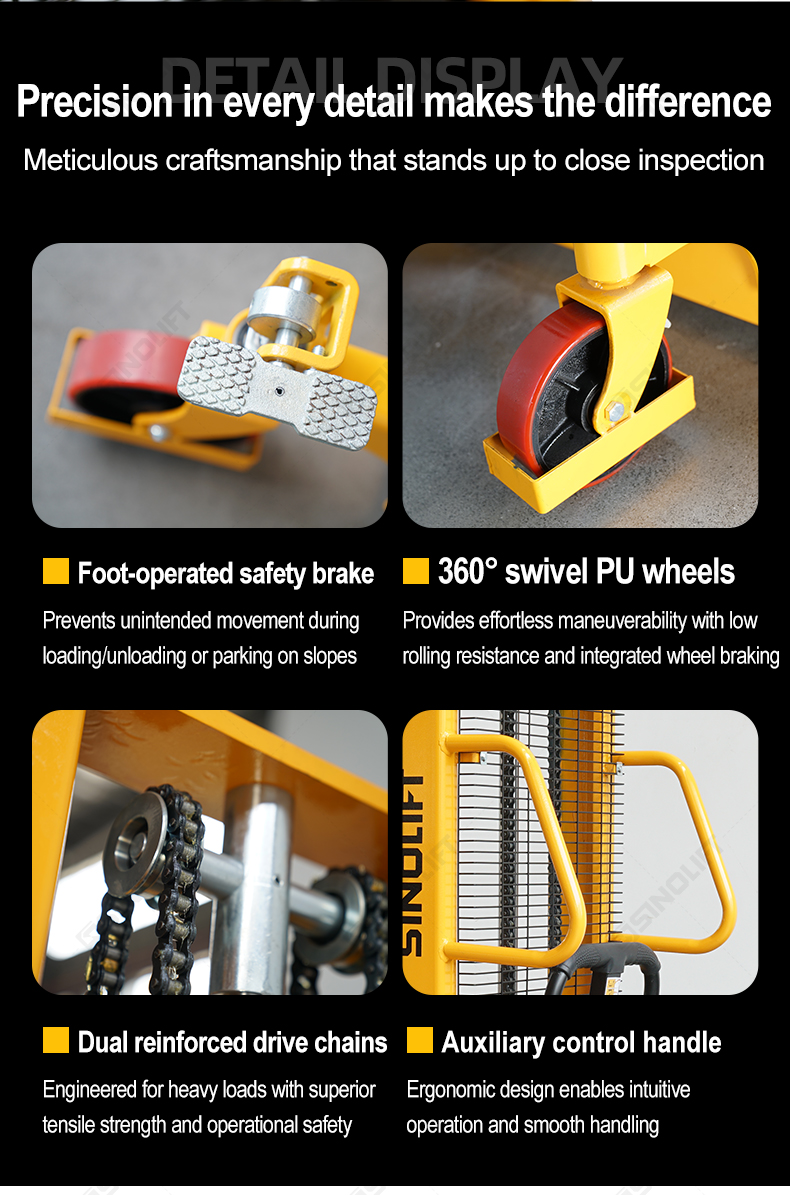

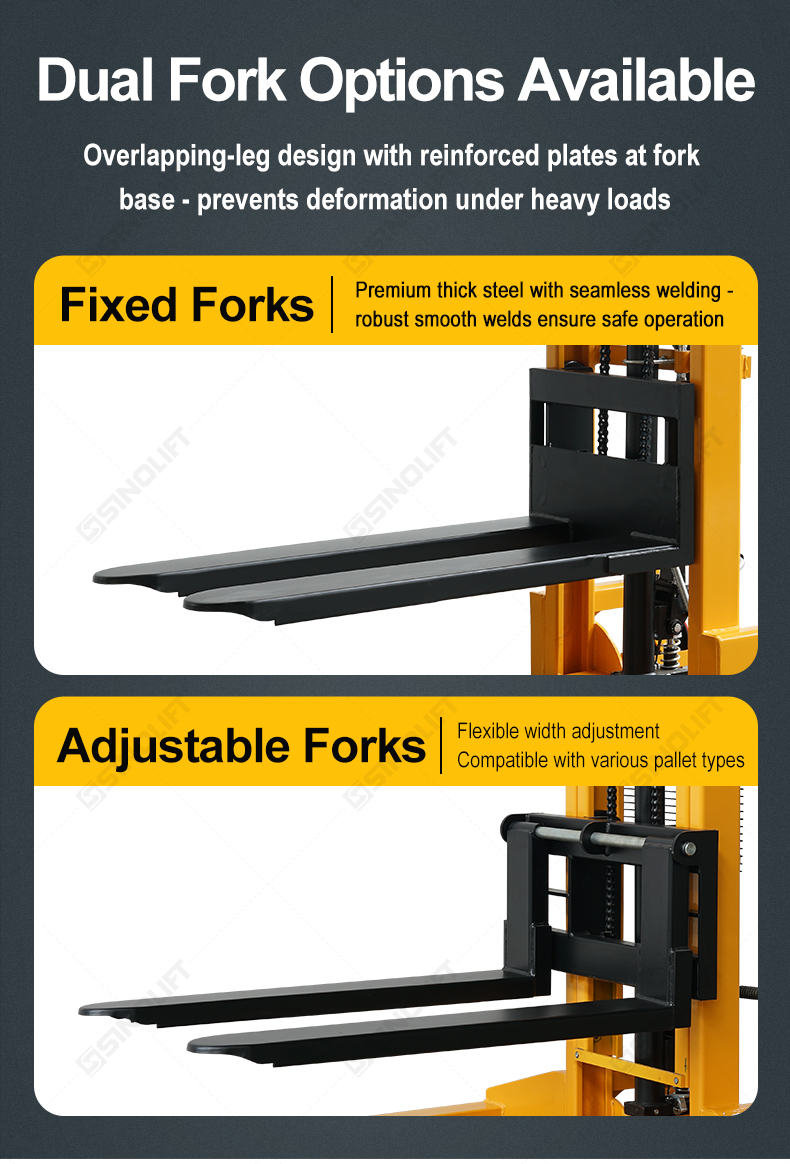

Enhanced Safety Features - Includes reinforced plate chains, fork reinforcement plates, and foot-operated brakes

Applications:

•Warehouse Operations - Ideal for stacking and transporting pallets in narrow aisles

•Retail & Supermarkets - Perfect for shelf restocking and inventory management

•Factory Floors - Efficient handling of materials in production areas

•Logistics Centers - Excellent for loading/unloading and short-distance transport

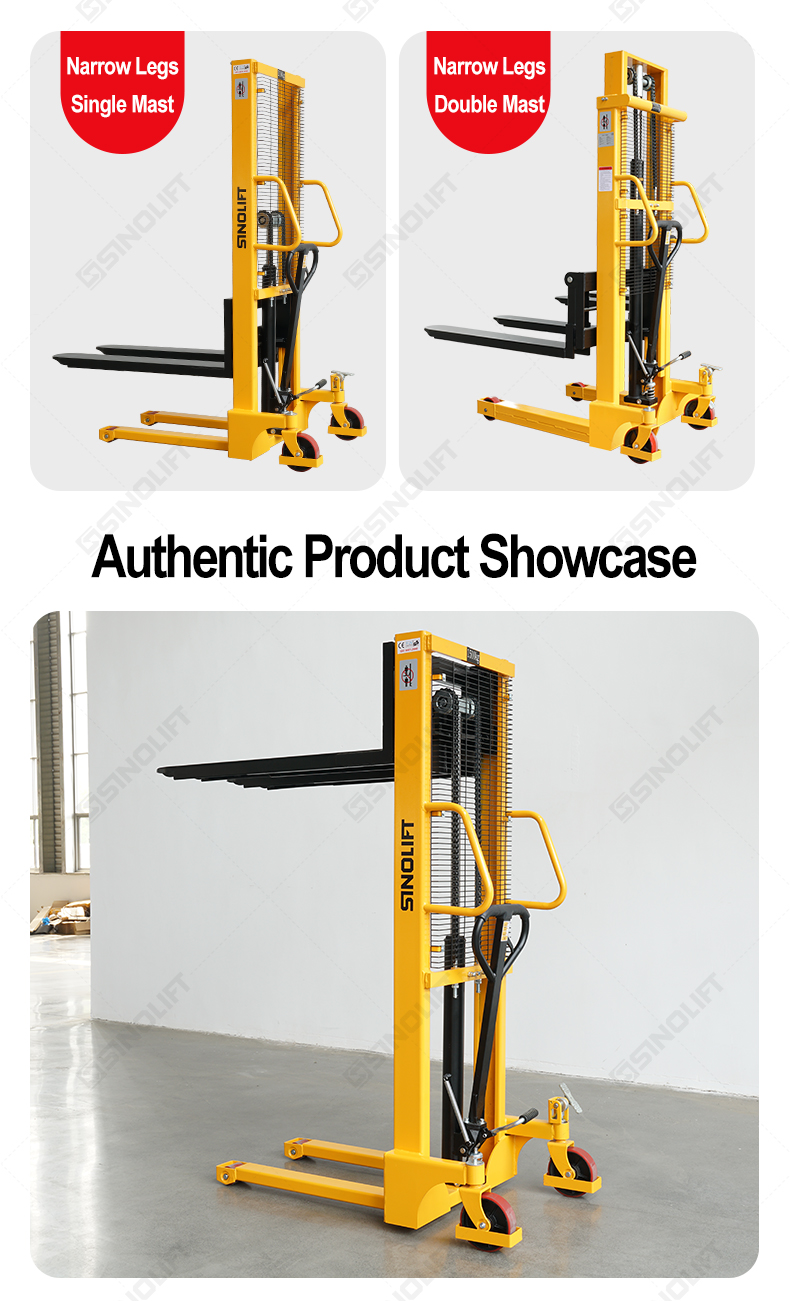

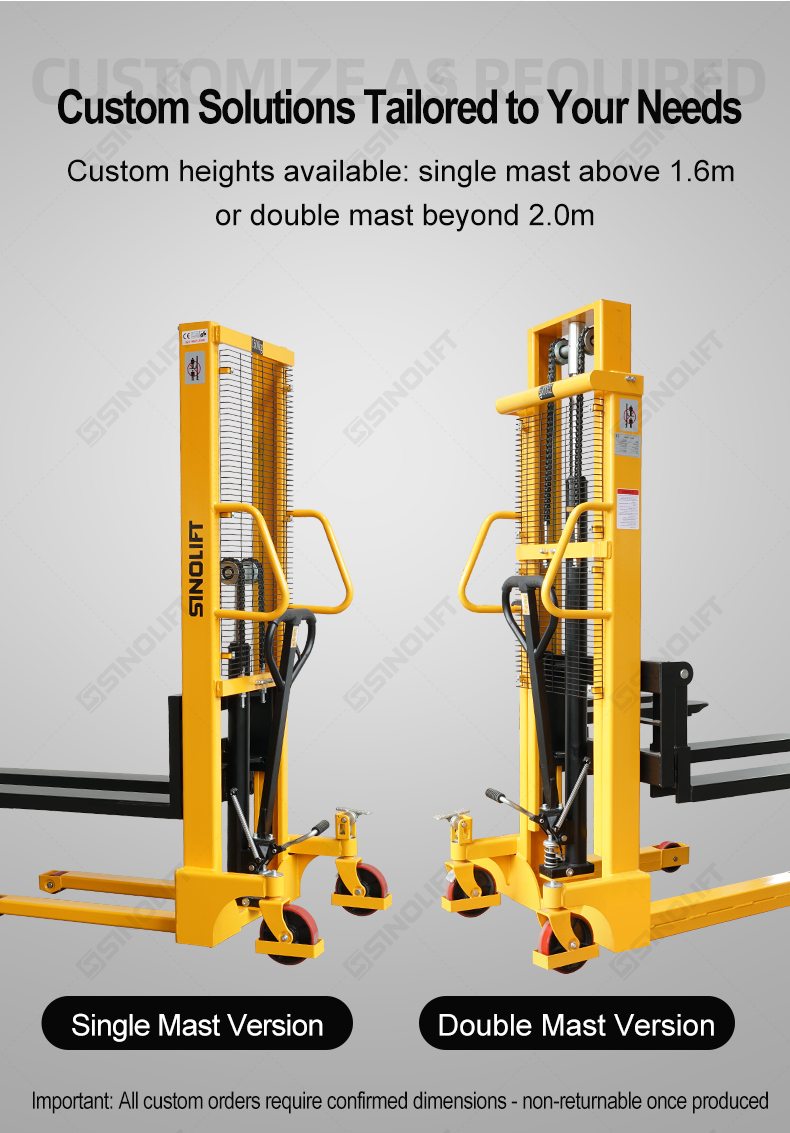

SMS Series - Narrow Leg Single Mast Stacker
Model		SMS0512	SMS1016	SMS1516	SMS2016
Load Capacity	kg	500	1000	1500	2000
Lifting Height	mm	1200	1600	1600	1600
Lowest Height	mm	85	85	85	85
Fork Length	mm	800	1000/1150	1000/1150	1000/1150
Fork Width	mm	330-590/550	330-740/550	330-740/550	330-740/550
Front Load Wheel	mm	Φ80×58	Φ80×58	Φ80×58	Φ80×58
Rear Guide Wheel	mm	Φ150×35	Φ180×50	Φ180×50	Φ180×50
Overall Length	mm	1300	1600	1600	1600
Overall Width	mm	760	760	760	760
Overall Height	mm	1540	2030	2030	2030
Net Weight	kg	100	224	240	270
