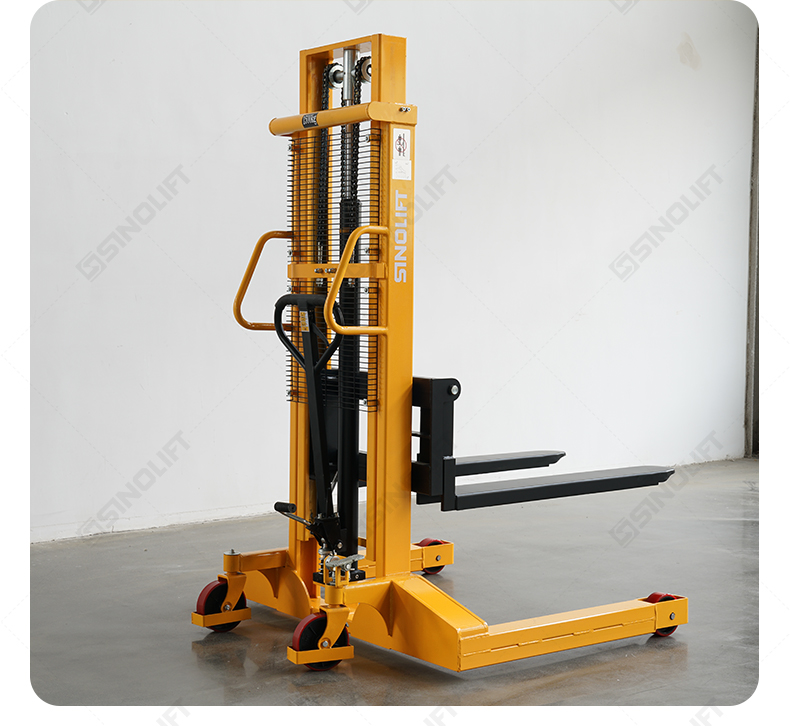

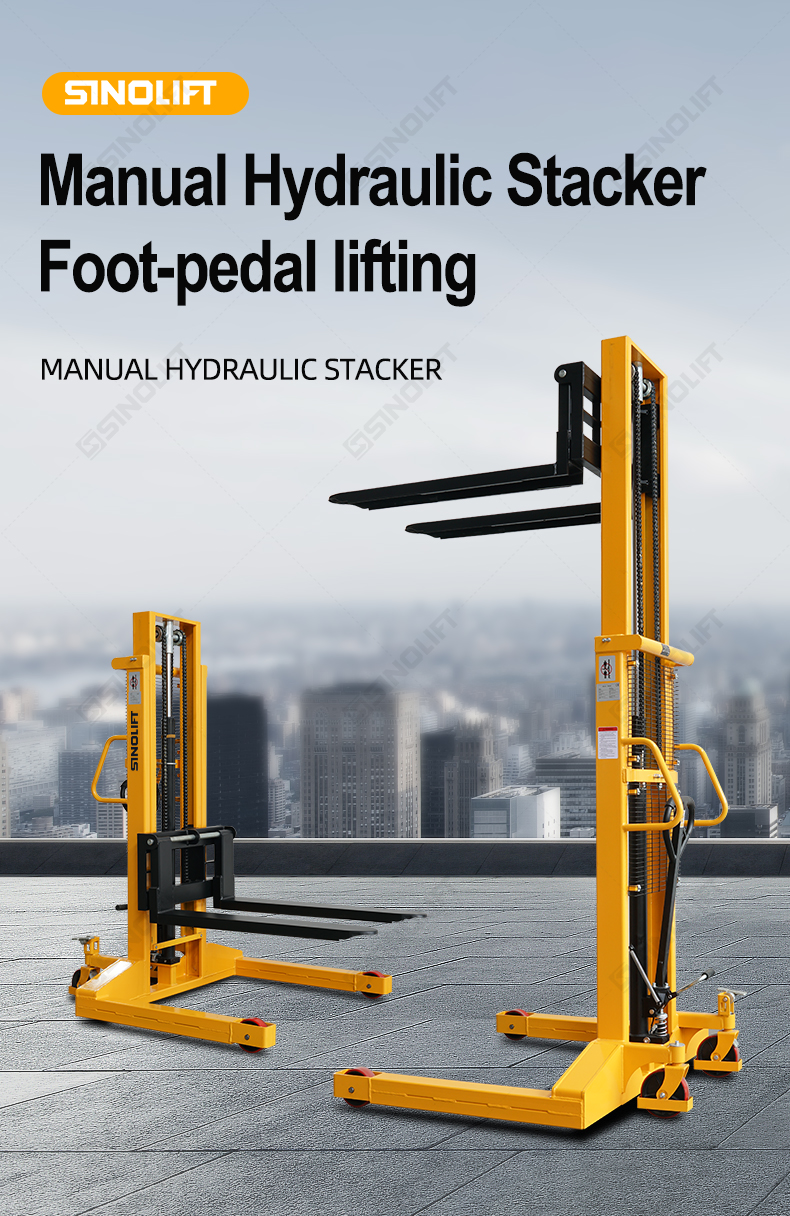

SMS-W Manual Hydraulic Stacker with Wide Legs

SMS-W

The SMS-W Manual Hydraulic Stacker delivers robust lifting performance (1000–2000 kg capacity) for demanding environments like warehouses, docks, and factories. Its unique trapezoidal wide-leg design increases the support area by 15%, ensuring exceptional stability even on uneven or complex surfaces such as factory floors and loading docks. Built with reinforced steel construction and dual mast options (up to 3m lift height), this stacker safely handles heavy loads with precision.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Key Design Highlights:

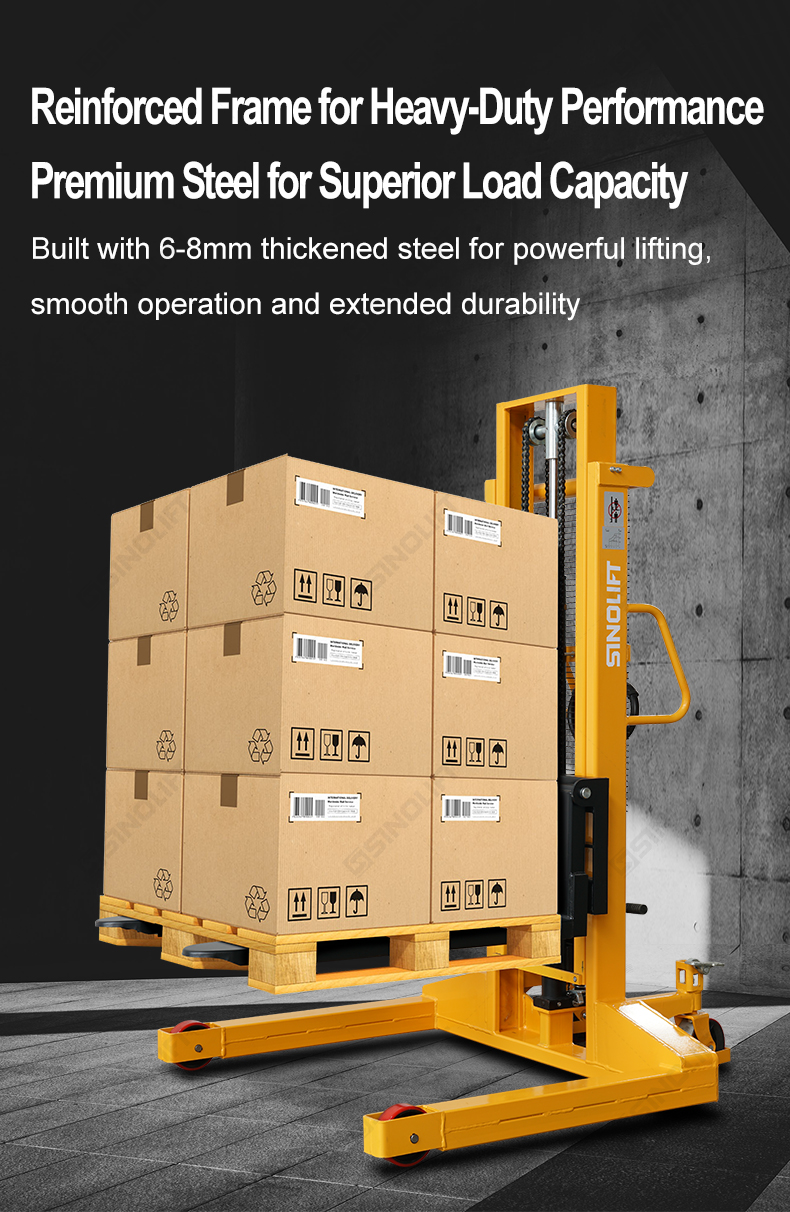

Heavy-Duty Construction – Reinforced 6-8mm steel frame and dual plate chains ensure stability and long-term durability.

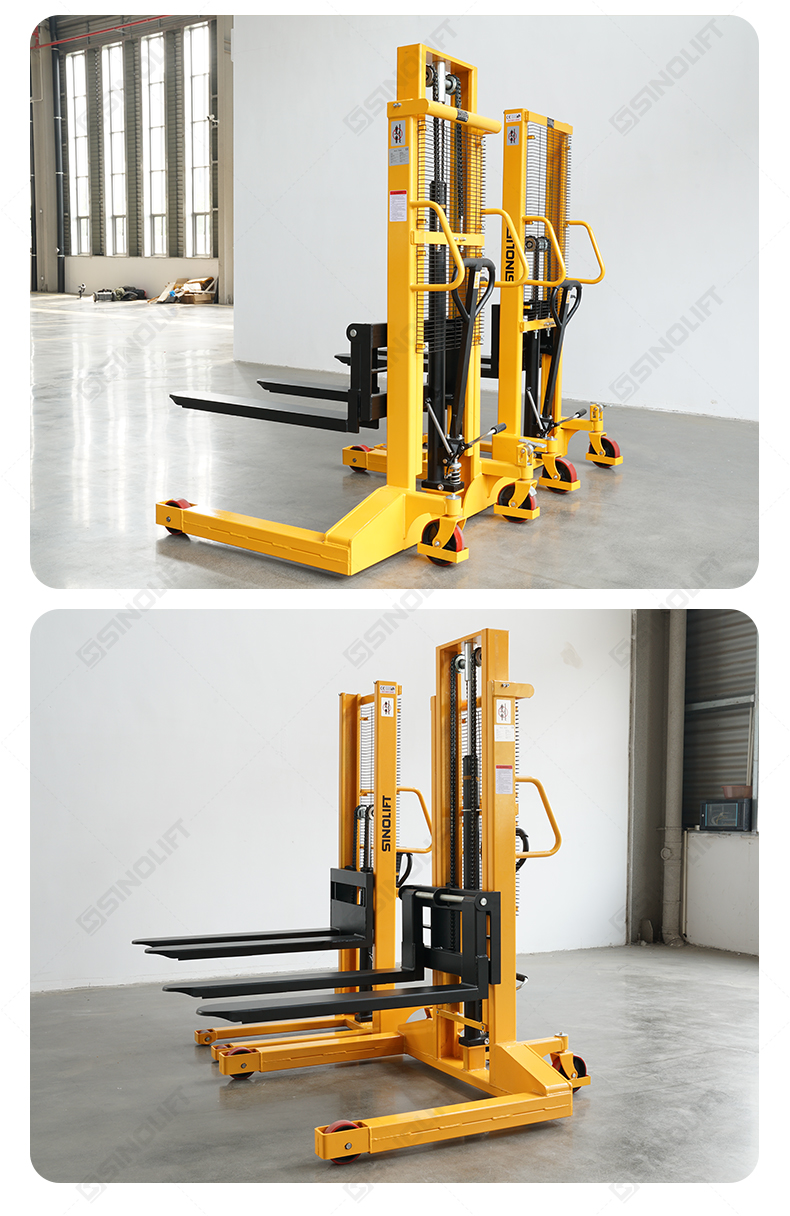

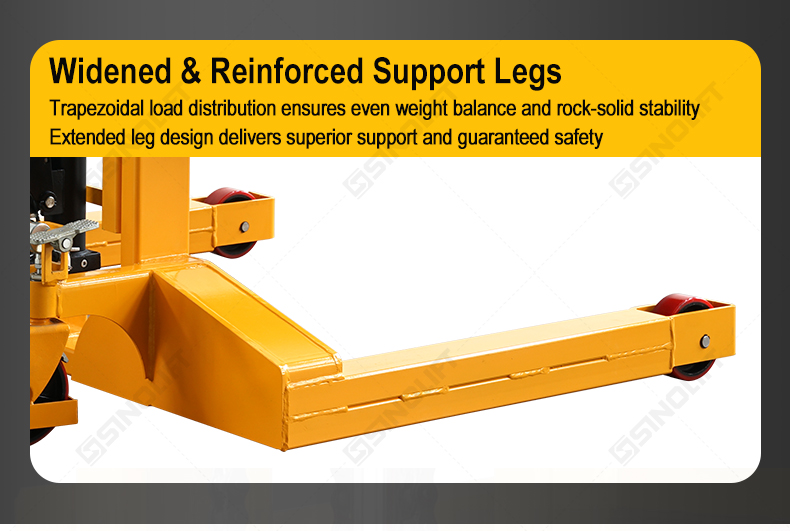

Wide-Leg Stability – The trapezoidal base design distributes weight evenly, preventing tipping during operation.

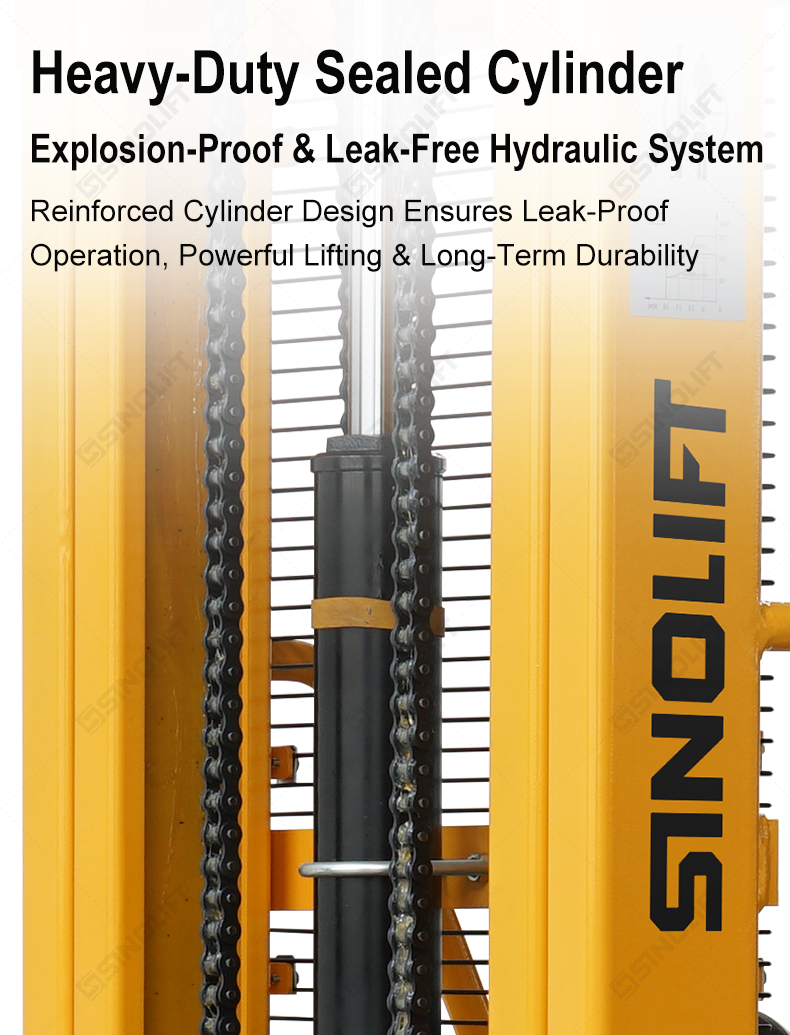

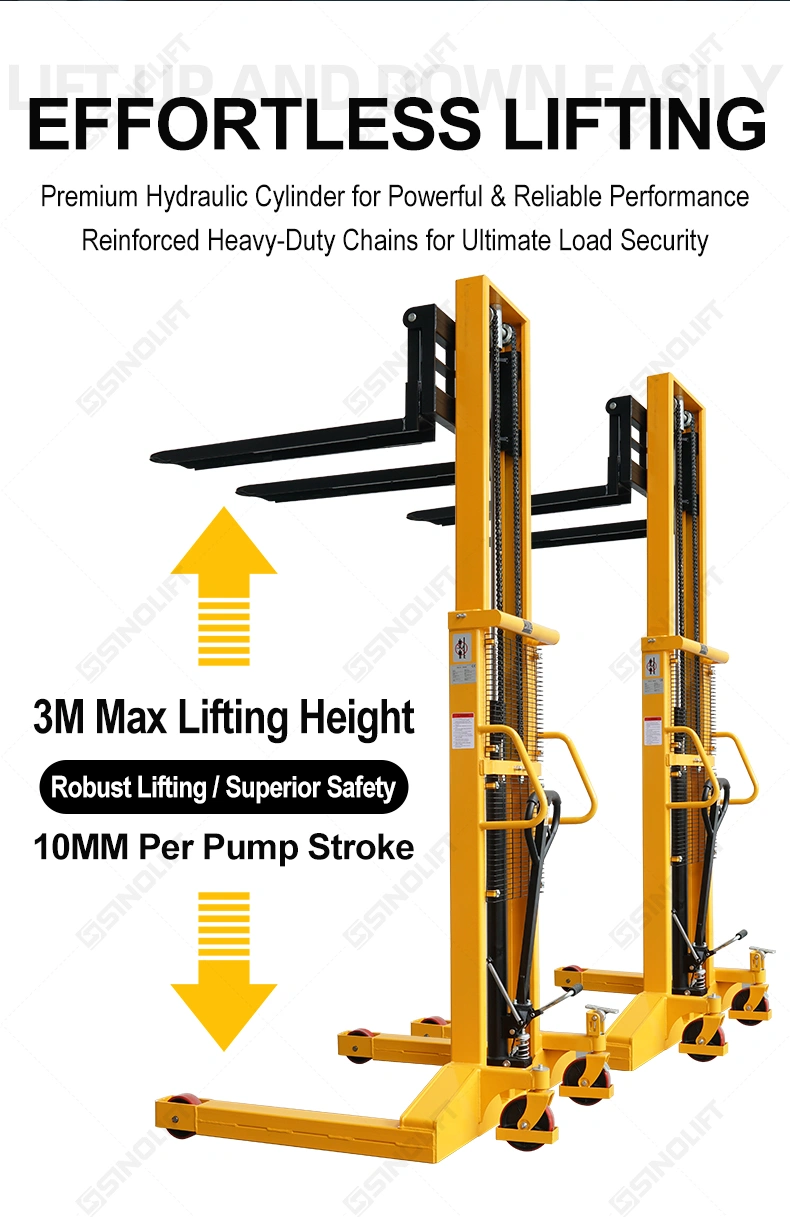

Smooth Hydraulic Lifting – A sealed, leak-proof oil cylinder delivers powerful, controlled lifting with minimal effort.

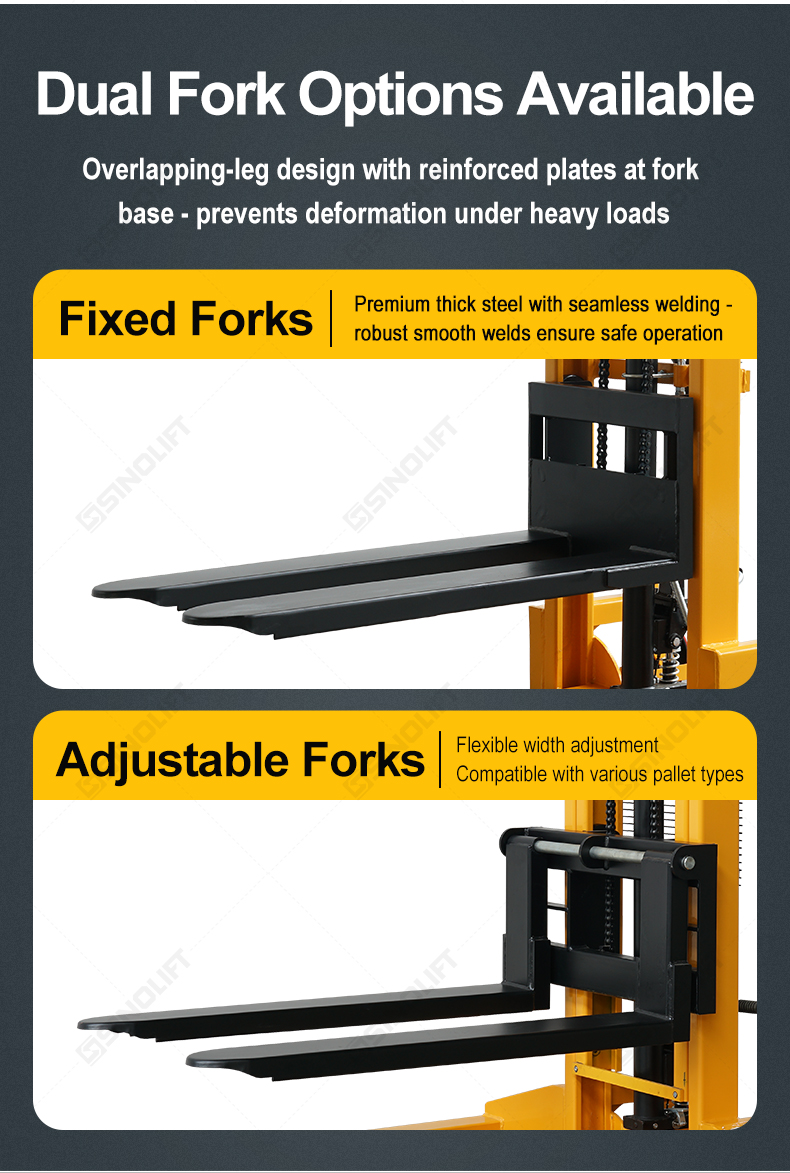

Adjustable Fork Options – Choose between fixed or movable forks (330–740mm width) for flexible pallet handling.

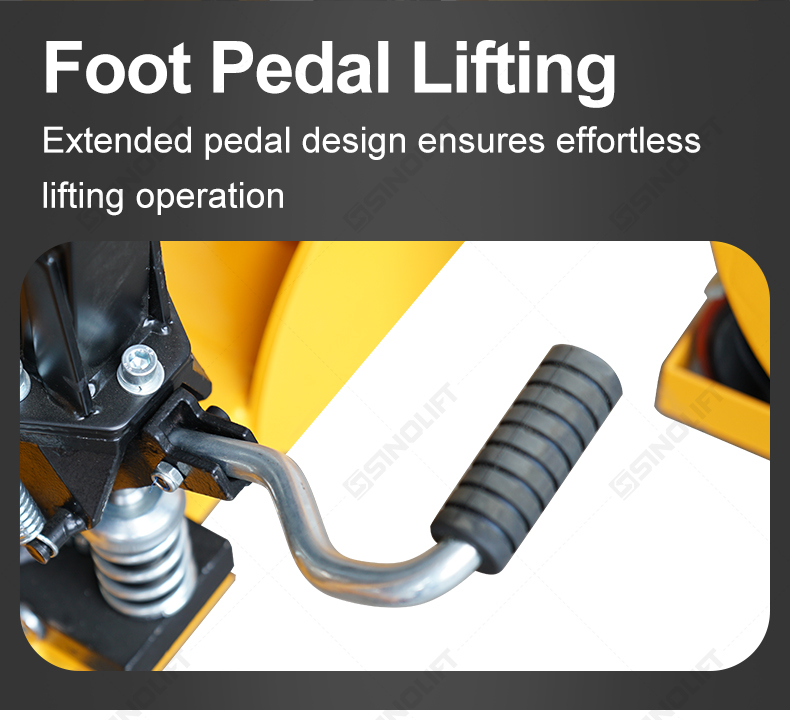

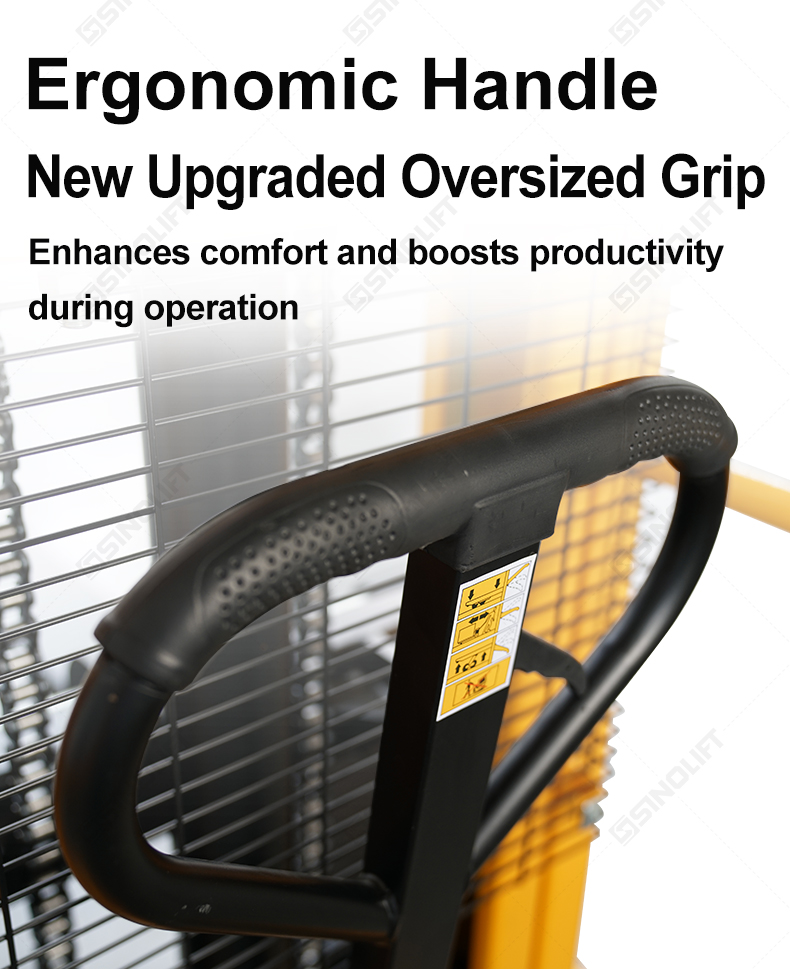

Ergonomic Operation – Oversized handle and foot-pedal lifting reduce operator fatigue, while PU swivel wheels ensure smooth maneuverability.

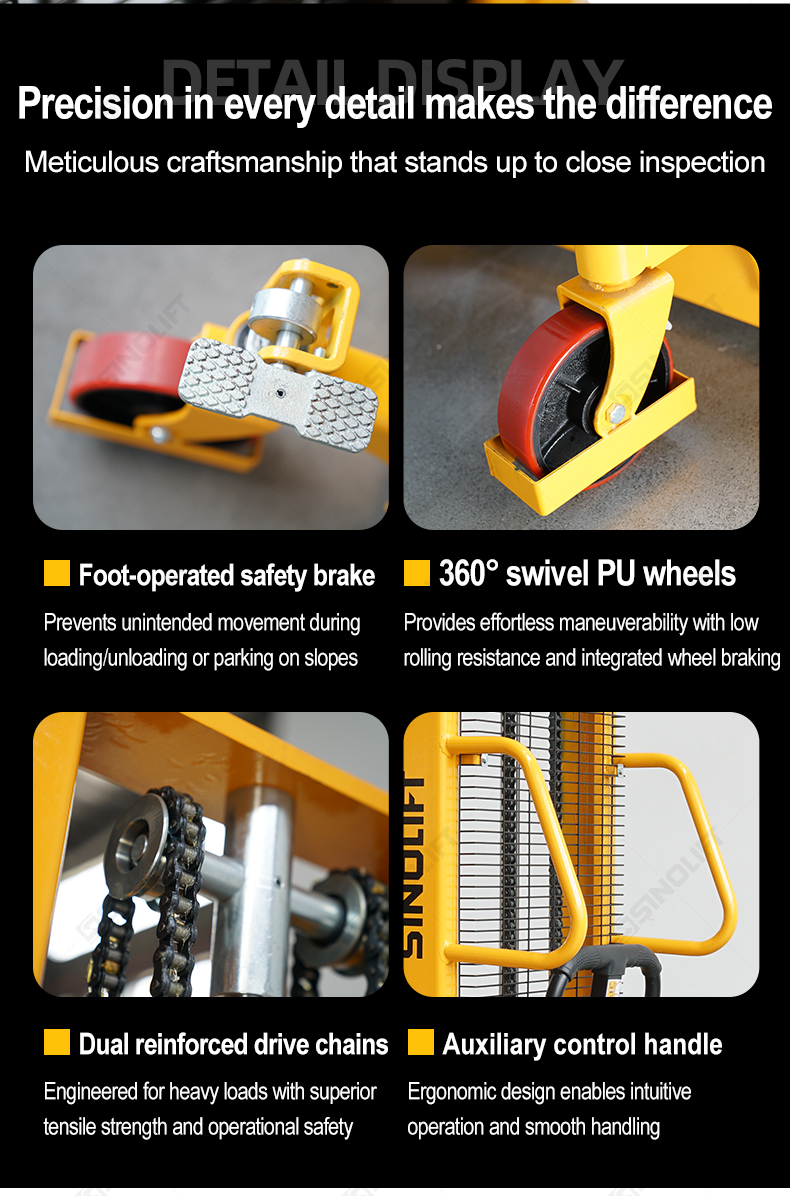

Safety Features – Foot-activated brake secures the stacker on slopes, and reinforced fork bases prevent deformation under heavy loads.

Ideal For:

•Warehouse Storage & Retrieval

•Factory & Dock Material Transport

•Supermarket & Retail Stocking

•Express & Logistics Loading

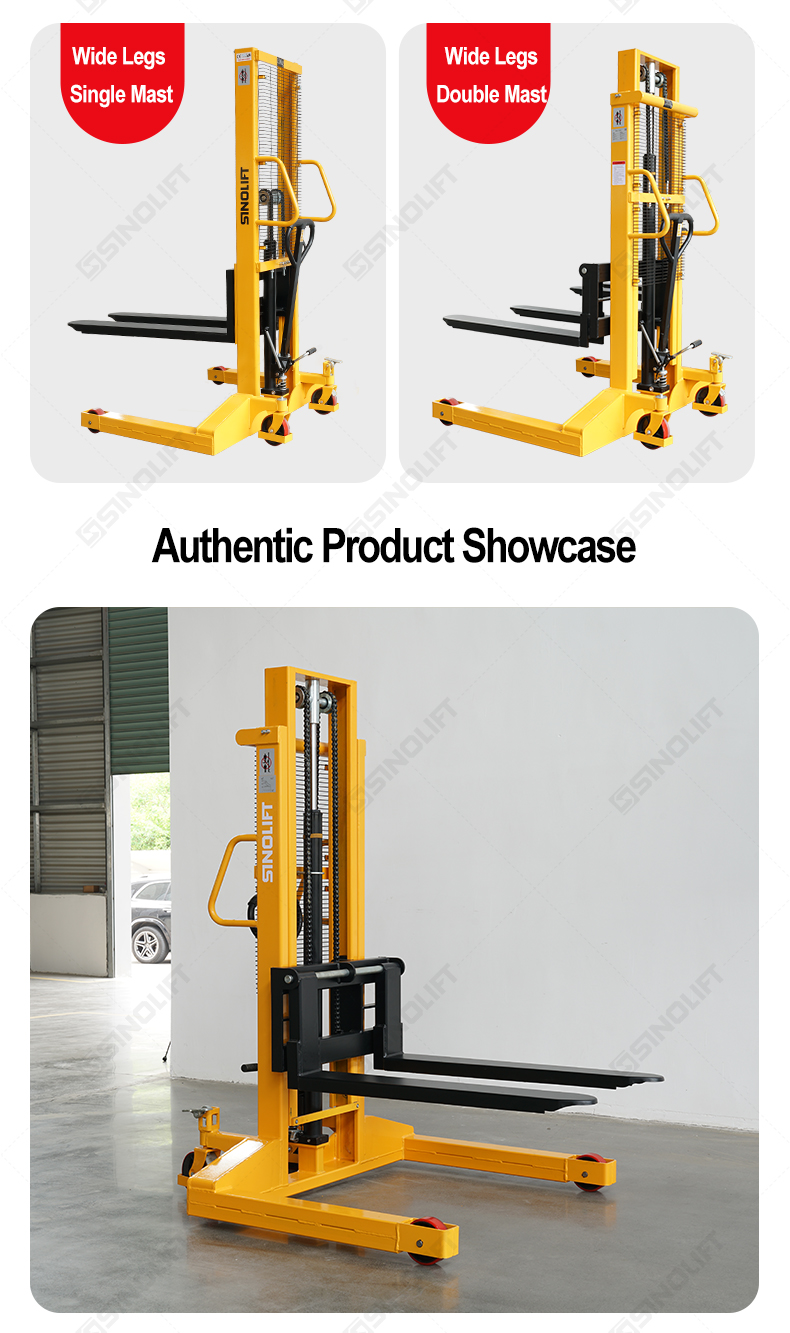

SMS-W Series - Wide Leg Single Mast Stacker
Model		SMS1016W1	SMS1016W2
Load Capacity	kg	1000	1000
Lifting Height	mm	1600	1600
Minimum Height	mm	85	85
Fork Length	mm	900/1150	900/1150
Fork Width	mm	330-740/550	330-740
Front Load Wheel	mm	Φ125×70	Φ125×70
Rear Guide Wheel	mm	Φ180×50	Φ180×50
Overall Dimensions	mm	160011501980	160013401980
Net Weight	kg	224	240

SMS-W Series - Wide Leg Double Mast Stacker
Model		SMS1020W	SMS1025W	SMS1030W	SMS1520W	SMS1525W	SMS1530W	SMS2020W
Load Capacity	kg	1000	1000	1000	1500	1500	1500	2000
Lifting Height	mm	2000	2500	3000	2000	2500	3000	2000
Minimum Height	mm	85	85	85	85	85	85	85
Fork Length	mm	900/1150
Fork Width	mm	330-740/550
Front Load Wheel	mm	Φ125×70
Rear Guide Wheel	mm	Φ180×50
Overall Length	mm	1600	1600	1600	1600	1600	1600	1600
Overall Width	mm	1350	1350	1350	1350	1350	1350	1350
Overall Height	mm	1580	1840	2080	1580	1840	2080	1580
Net Weight	kg	198	330	345	375	405	425	385

SMS-W wide-leg manual hydraulic pallet stacker with 2000kg capacity

Heavy-duty manual stacker with wide legs for warehouse and dock use

Wide-base hydraulic hand pallet stacker lifting up to 3 meters

Industrial manual pallet stacker with reinforced steel frame

Stable wide-leg stacker for heavy loads in factories and logistics

Manual hydraulic stacker with adjustable forks (330-740mm width)

SMS-W pallet lifter with leak-proof oil cylinder and foot pedal

Wide-leg pallet stacker for uneven surfaces and heavy materials

Durable manual stacker with 1000-2000kg capacity and 3m lift

Ergonomic hydraulic stacker with PU wheels and safety brake

Manual pallet truck with wide legs for stability in dock loading

Reinforced steel stacker for warehouses, factories, and ports

High-capacity manual stacker with dual mast and wide base

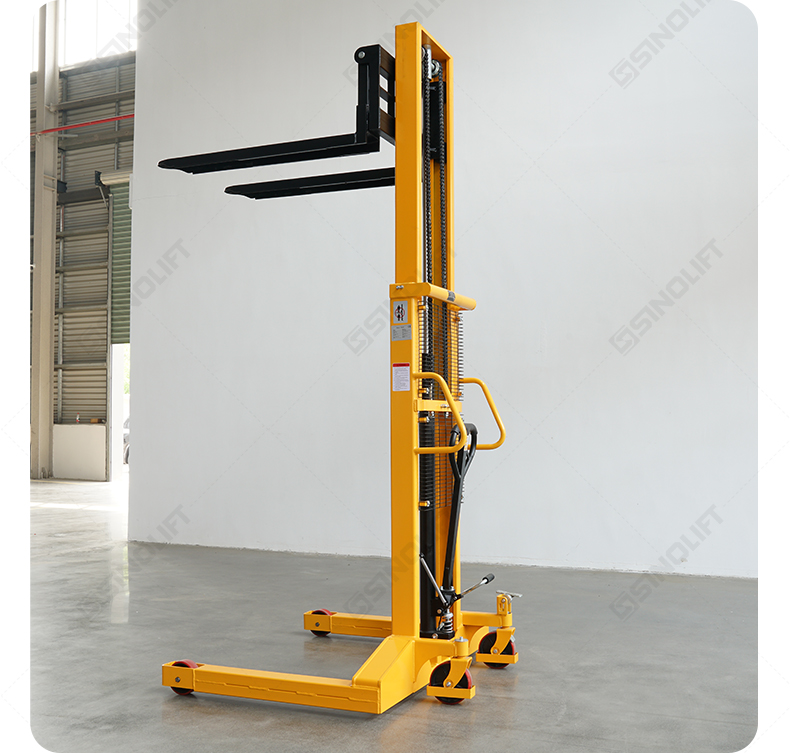

Customizable hydraulic pallet stacker for heavy-duty applications
