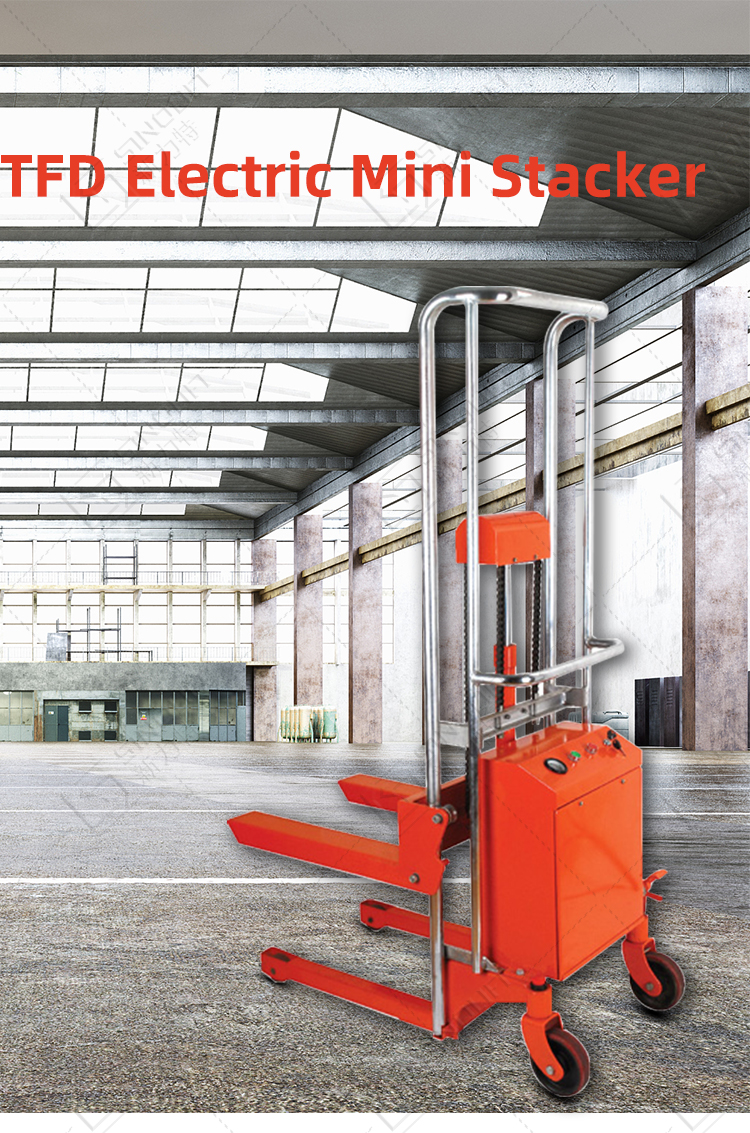

TFD Electric Mini Stacker
TFD

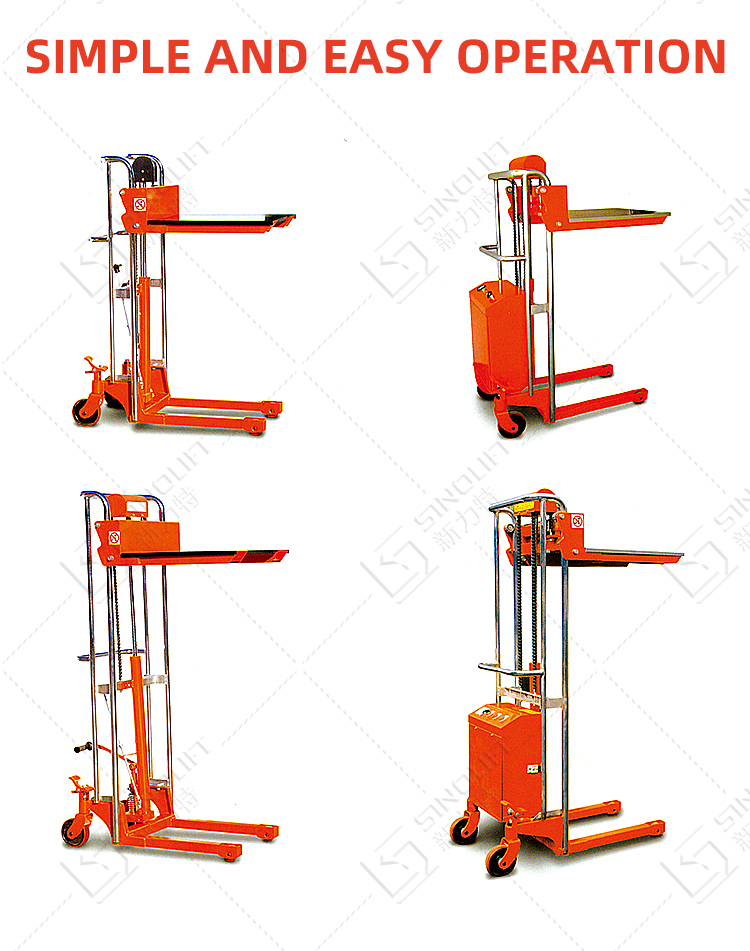

1）Simple and easy operation

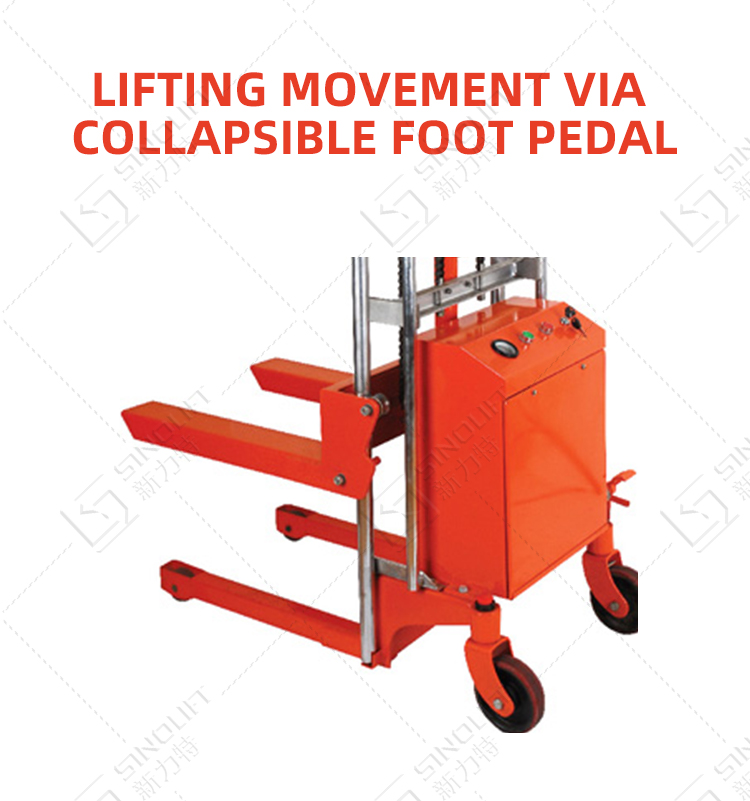

2) Lifting movement via collapsible foot pedal

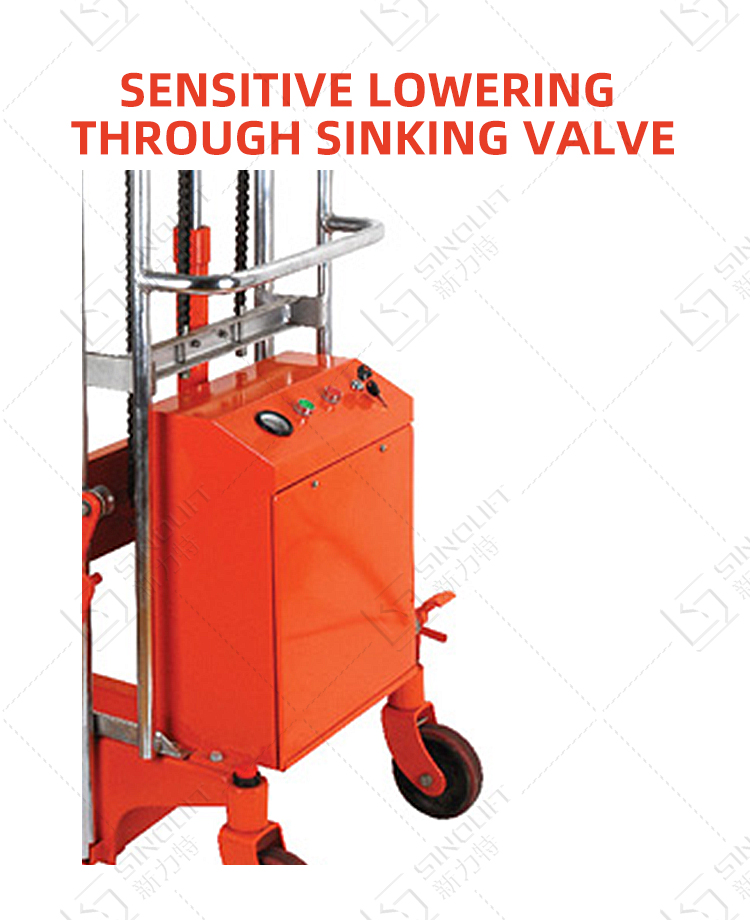

3) Sensitive lowering through sinking valve

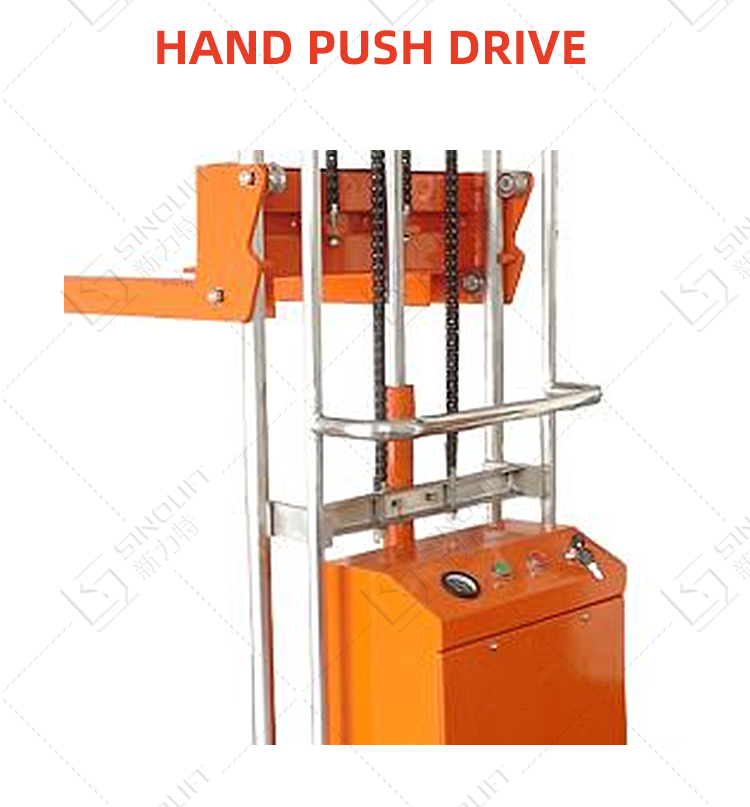

4) Hand push drive

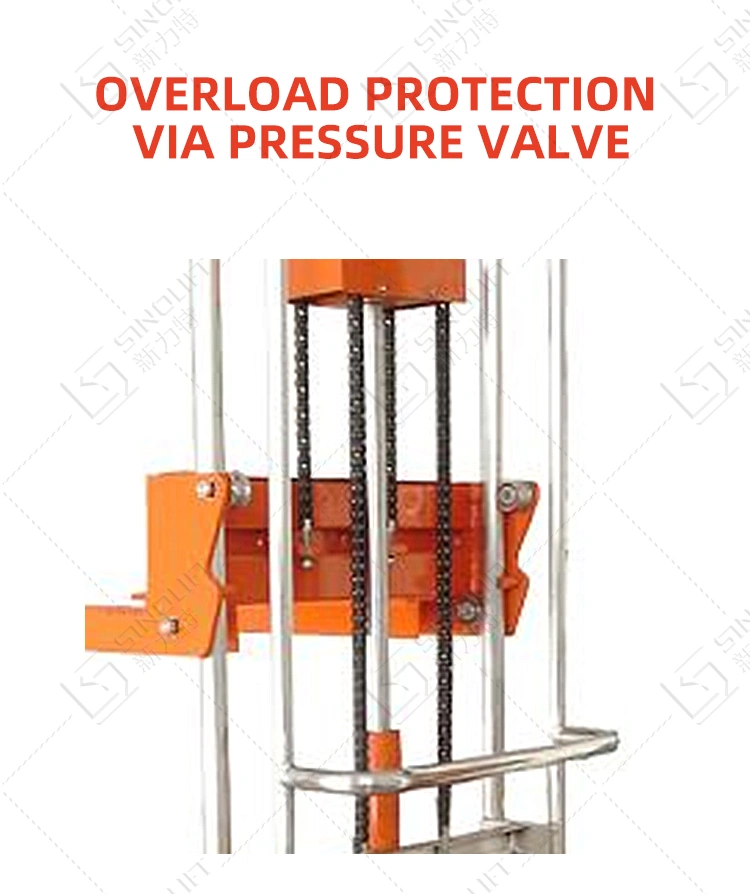

5) Overload protection via pressure valve
2) Lifting movement via collapsible foot pedal
3) Sensitive lowering through sinking valve
4) Hand push drive
5) Overload protection via pressure valve
Quantity:

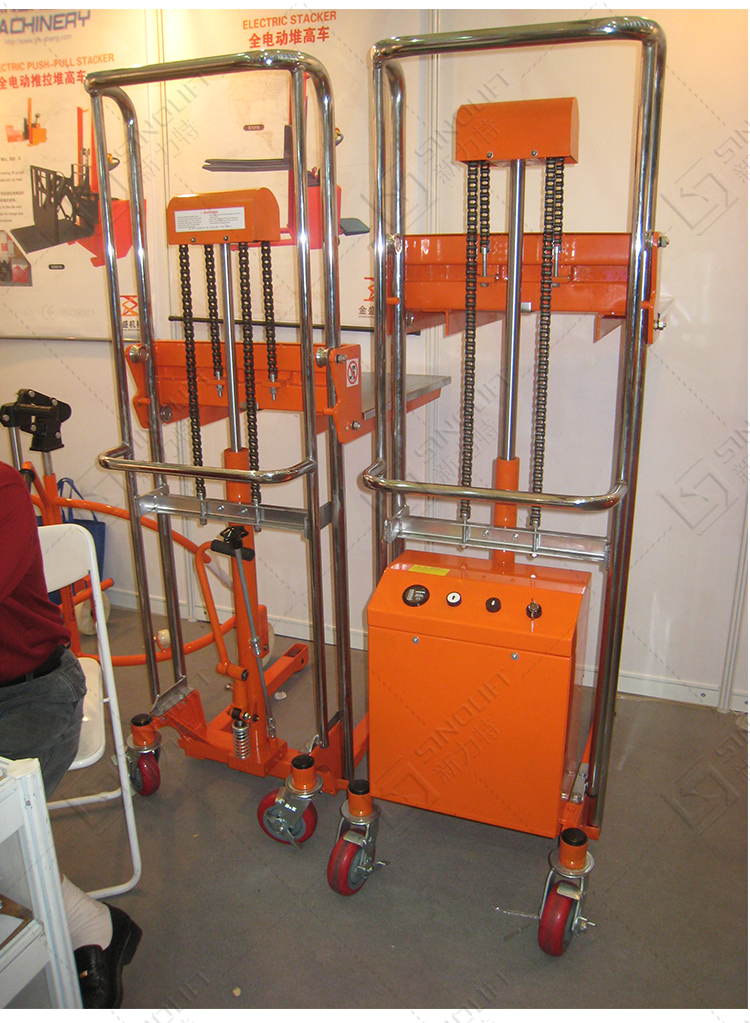

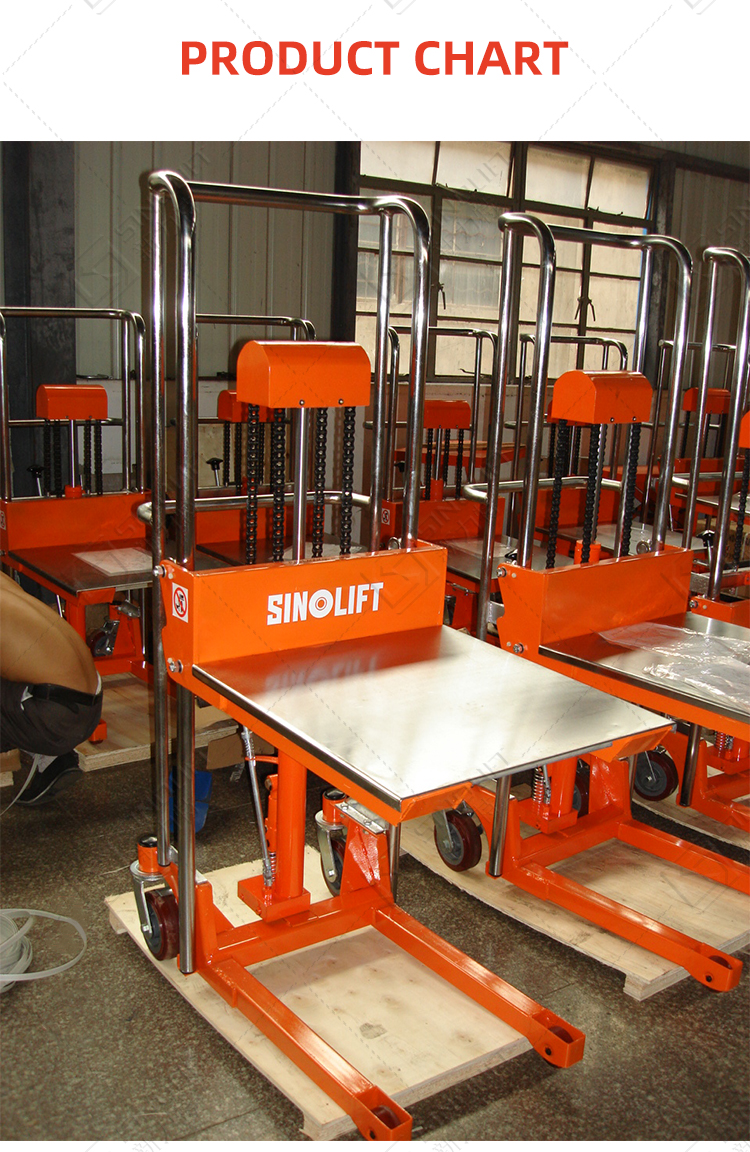

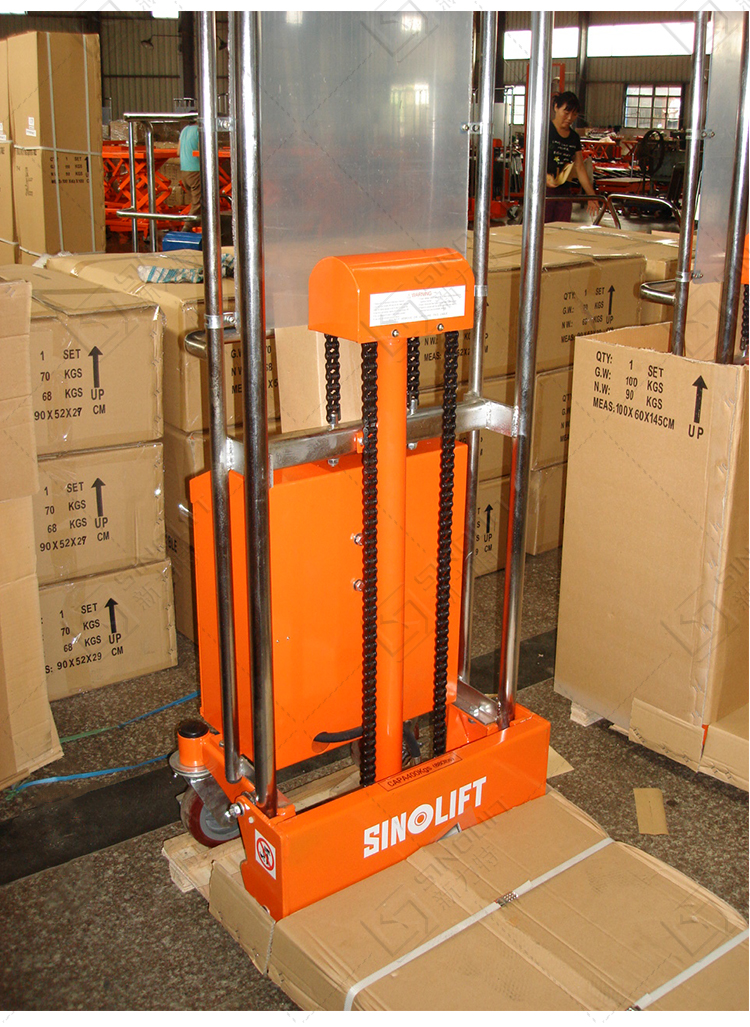

Electric Mini Stacker
1）Simple and easy operation
2) Lifting movement via collapsible foot pedal
3) Sensitive lowering through sinking valve
4) Hand push drive
5) Overload protection via pressure valve

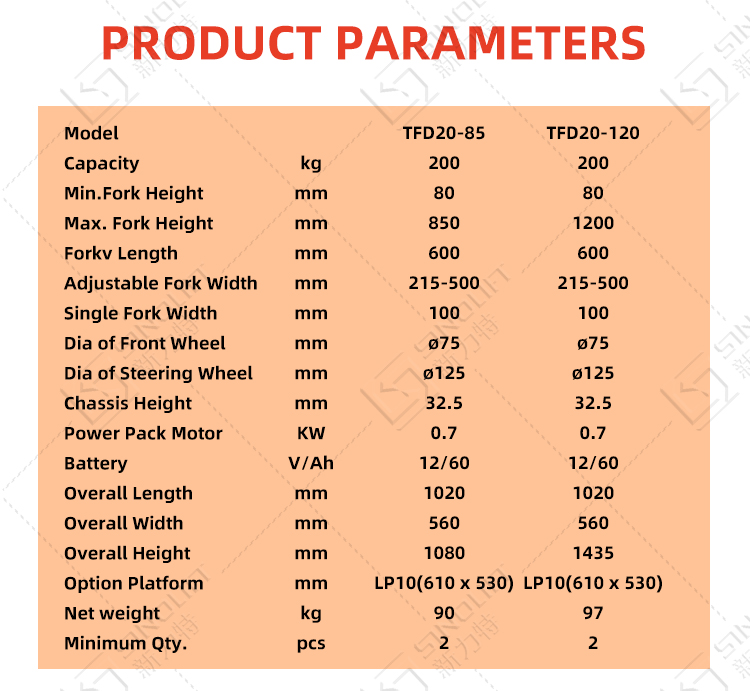

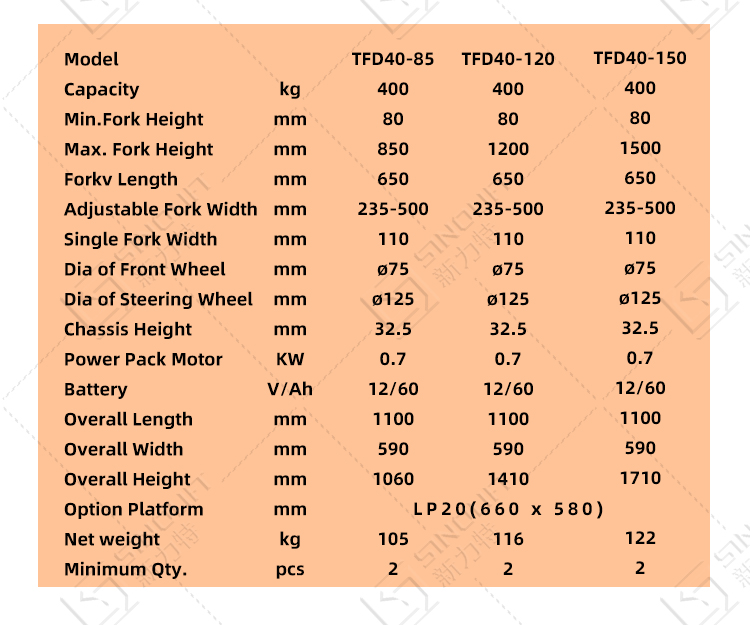

| Model | TFD20-85 | TFD20-120 | TFD40-85 | TFD40-120 | TFD40-150 | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Min. Fork Height | (mm) | 80 | 80 | 80 | 80 | 80 |
| Max. Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Forkv Length | (mm) | 600 | 600 | 650 | 650 | 650 |
| Adjustable Fork Width | (mm) | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 |
| Single Fork Width | (mm) | 100 | 100 | 110 | 110 | 110 |
| Dia of Front Wheel | (mm) | ø75 | ||||
| Dia of Steering Wheel | (mm) | ø125 | ||||
| Chassis Height | (mm) | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 |
| Power Pack Motor | (KW) | 0.7 | ||||
| Battery | (V/Ah) | 12/60 | 12/60 | 12/70 | 12/70 | 12/70 |
| Overall Length | (mm) | 1020 | 1020 | 1100 | 1100 | 1100 |
| Overall Width | (mm) | 560 | 560 | 590 | 590 | 590 |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| Option Platform | (mm) | LP10(610 x 530) | LP20(660 x 580) | |||
| Net weight | (kg) | 90 | 97 | 105 | 116 | 122 |
| Minimum Qty. | (pcs) | 2 | 2 | 2 | 2 | 2 |
