WCR-GR Glass Lifter and Glass Robot

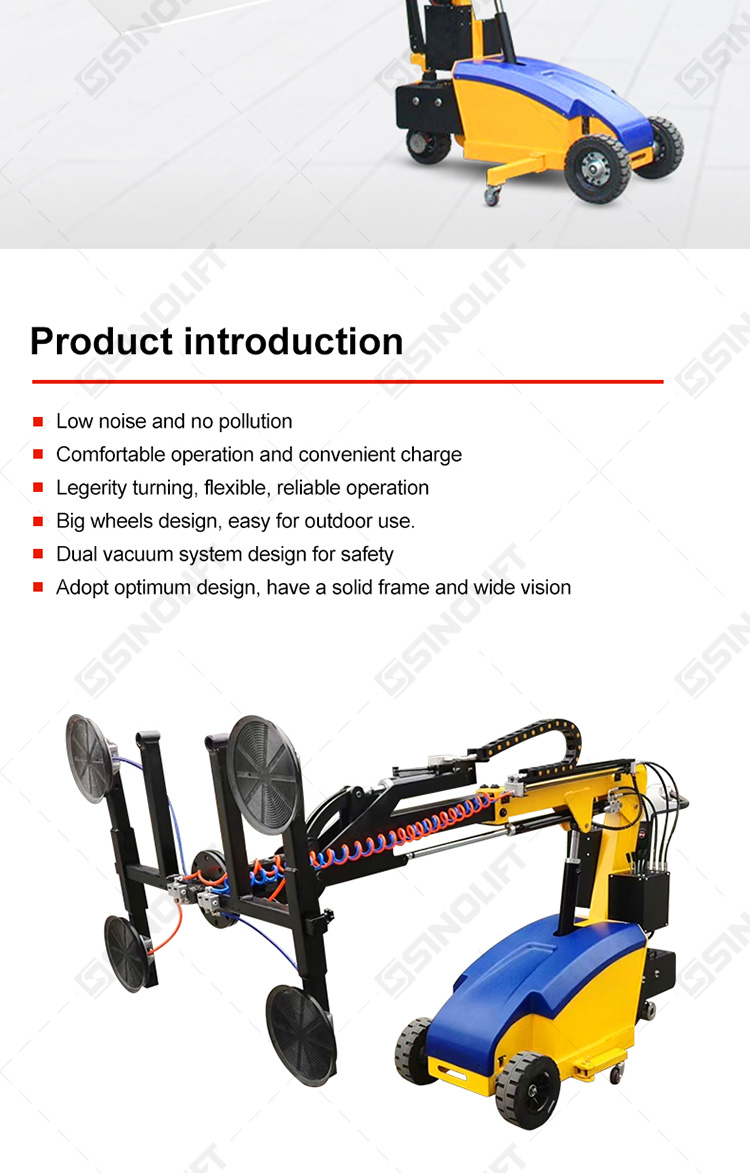

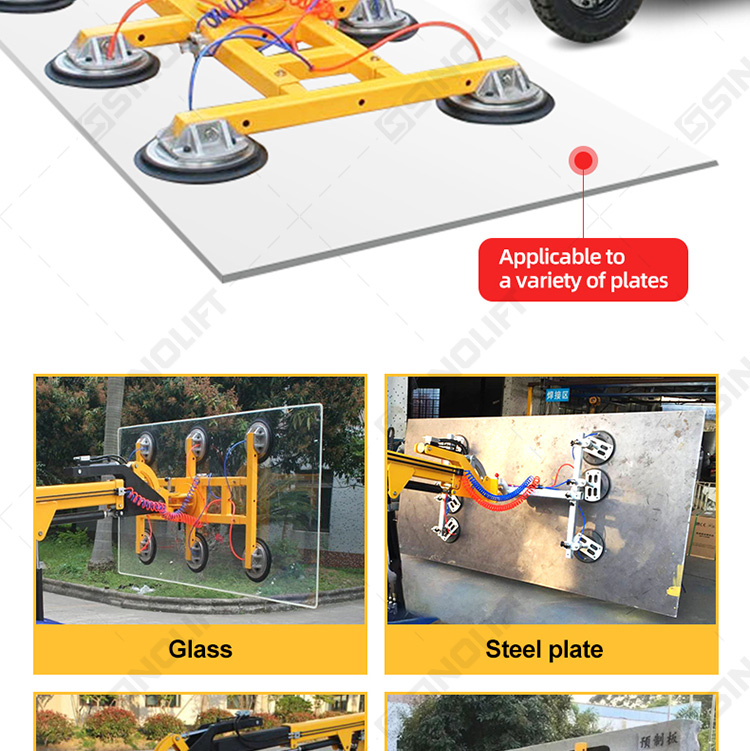

Electric glass robot vacuum lifter is designed to move various plates, glass, marble slabs or ceramic tiles. These items can be easily moved or lifted by vacuum pumps and suction cups. Vacuum glass suction cup adopts an electric vacuum pump to implement electric suction and deflation. And it has functions such as electric rotation, side turning, manual turning, etc., which can realize the transfer and handling of glass very easily. It is mainly used in the installation of outdoor glass curtain walls and the removal of indoor glass. Not only greatly improve the work efficiency of workers, but also ensure the safety of staff. And suction vacuum cup lifter is an adjustable design; you can change the position of the suction cup according to your needs to absorb glass of different shapes and sizes. If you also need glass suction cups, send us an inquiry now.

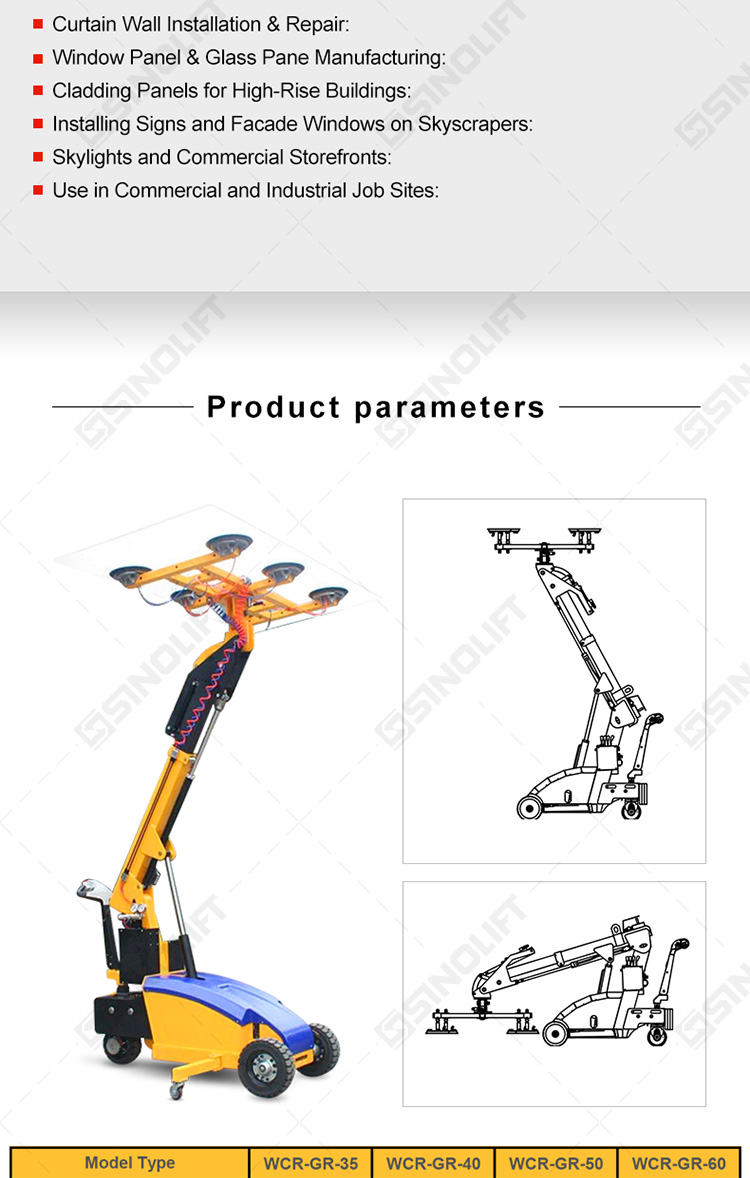

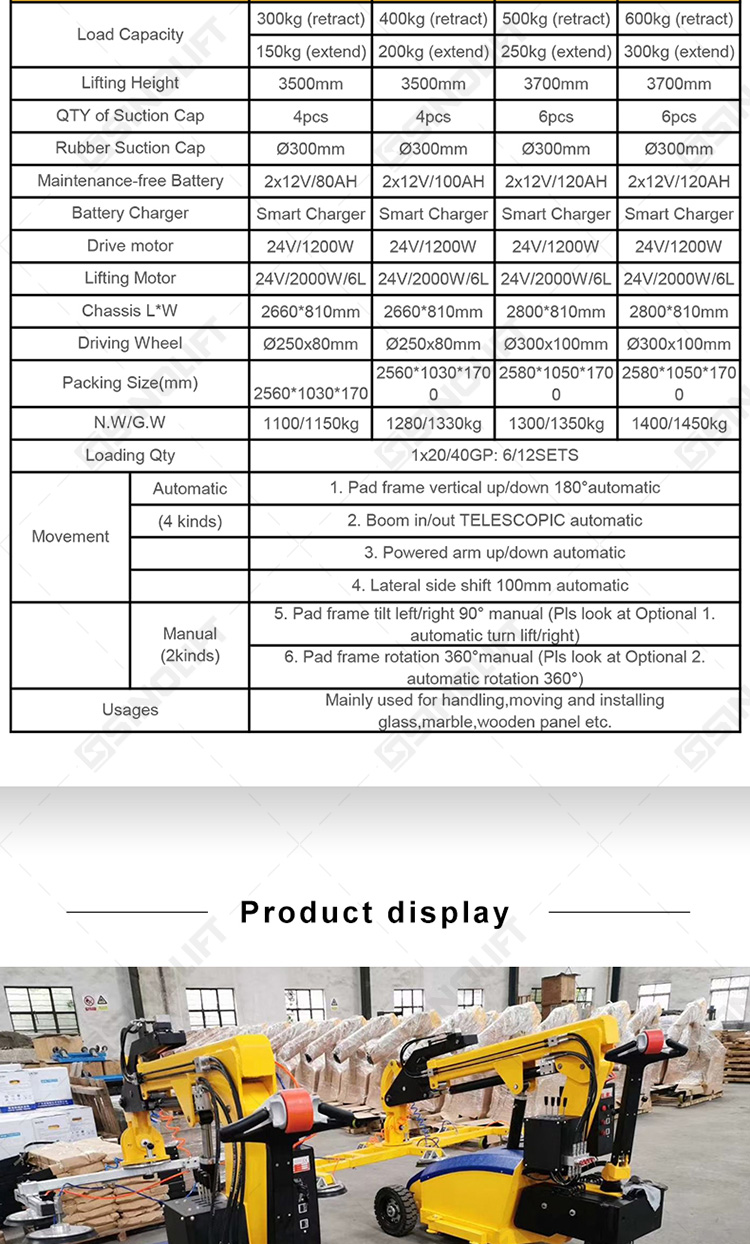

| Model Type | WCR-GR-35 | WCR-GR-40 | WCR-GR-50 | WCR-GR-60 | |
| Load Capacity | 300kg (retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | |

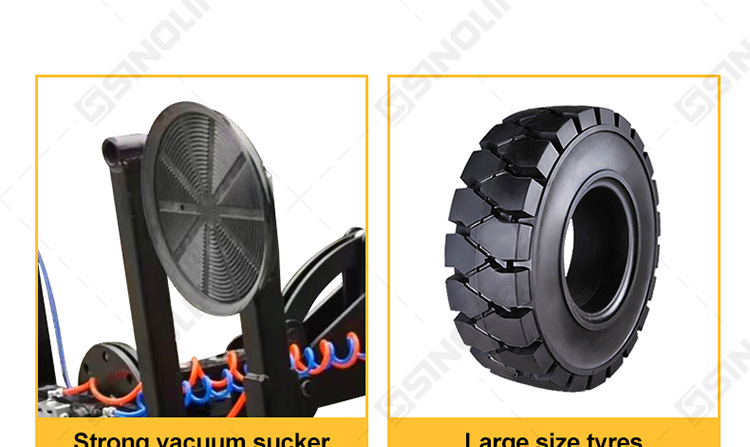

| Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | |
| Loading Qty | 1x20/40GP: 6/12SETS | ||||

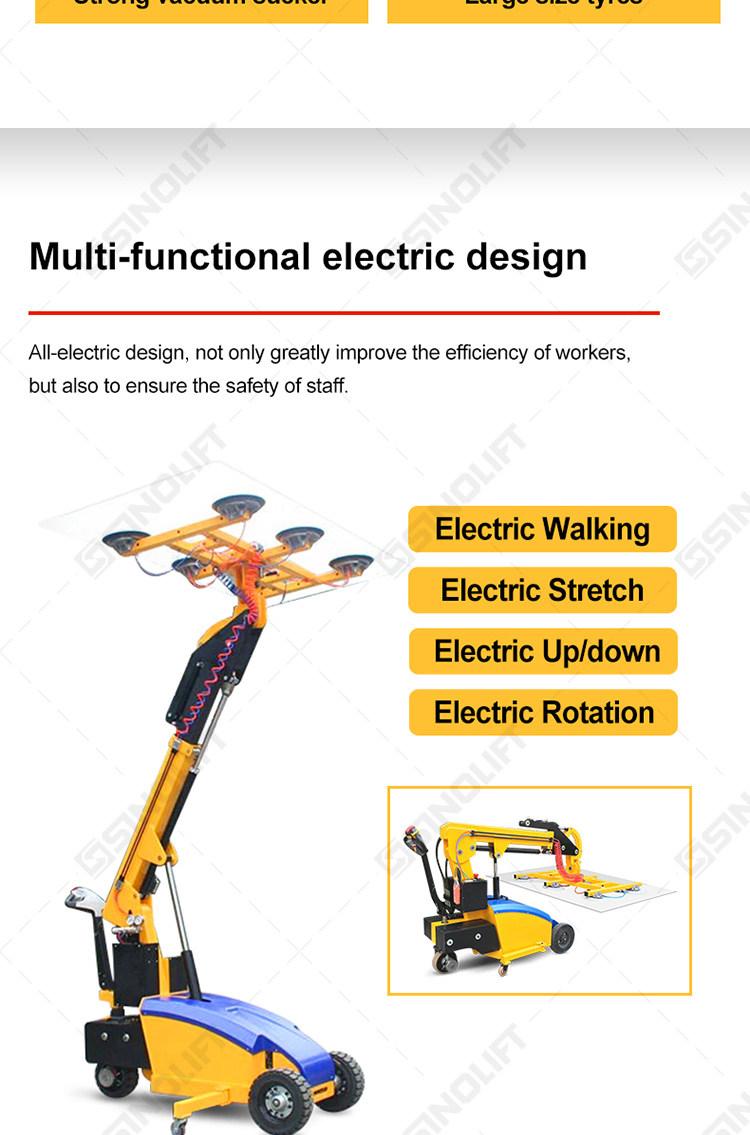

| Movement | Automatic | 1. Pad frame vertical up/down 180°automatic | |||
| (4 kinds) | 2. Boom in/out TELESCOPIC automatic | ||||
| 3. Powered arm up/down automatic | |||||
| 4. Lateral side shift 100mm automatic | |||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | ||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | |||||

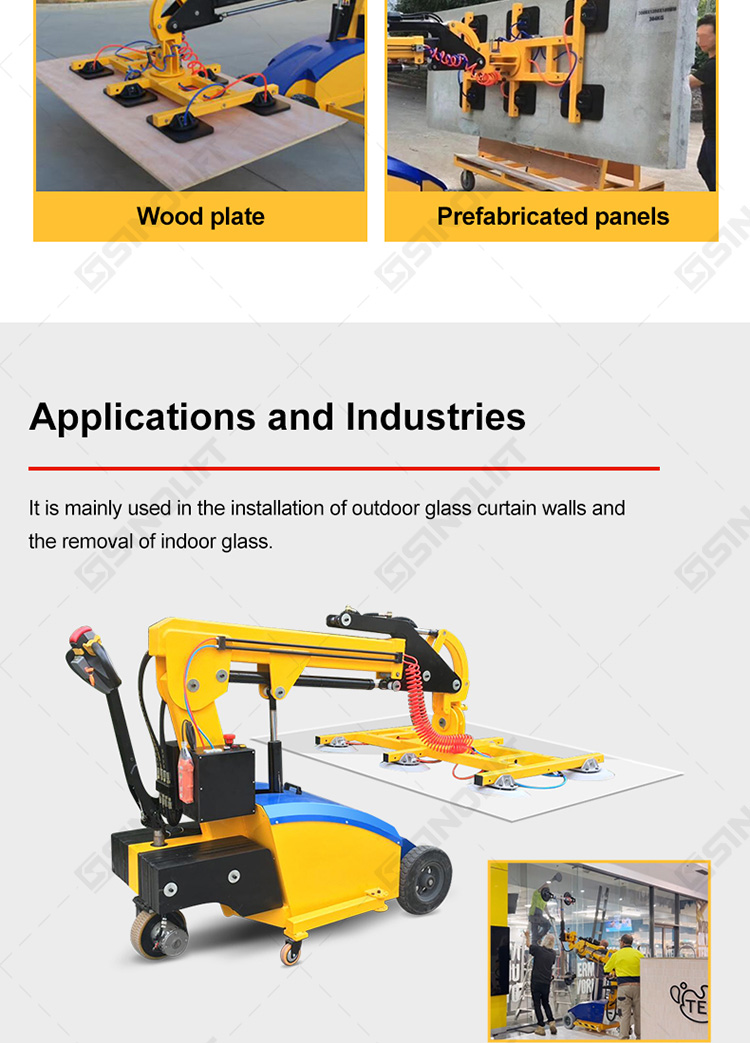

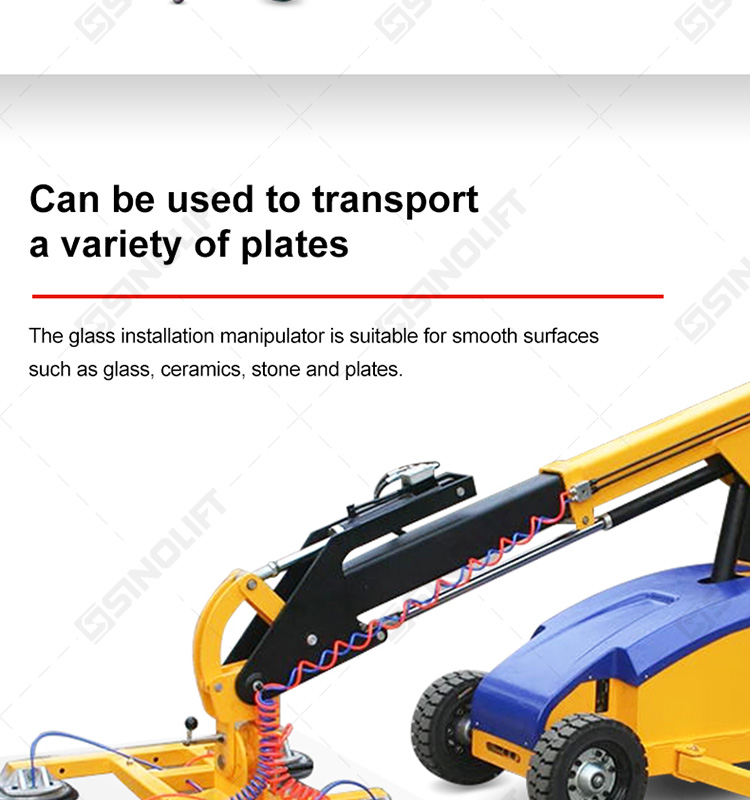

| Usages | Mainly used for handling,moving and installing glass,marble,wooden panel etc. | ||||
