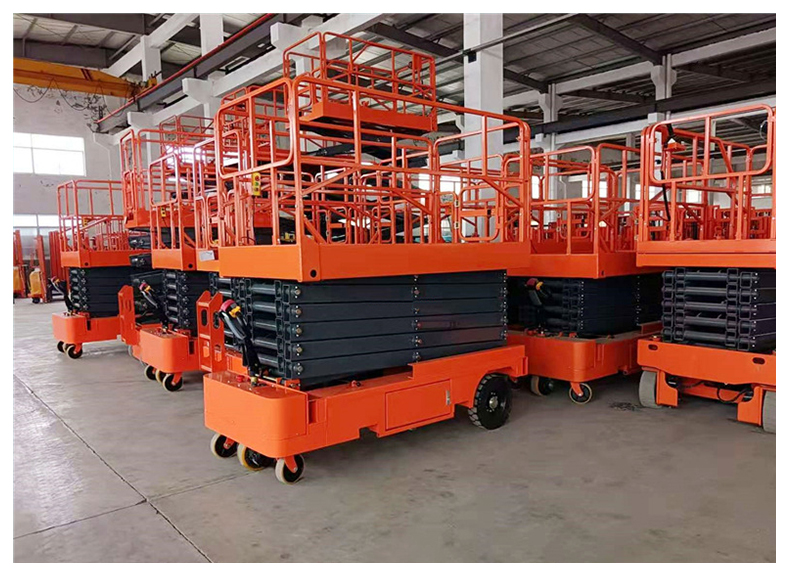

SJY0.5 Mobile Scissors Lift
SJY0.5
Quantity:
The SJY0.5 is a mobile aerial working platform, a very useful and versatile item. This model allows the user to operate safely from a working height of up to 12 metres.
Mobile working platforms are most commonly used in in shopping centres, hospital, warehouses and schools.
They are particularly useful in areas where health and are of paramount importance.

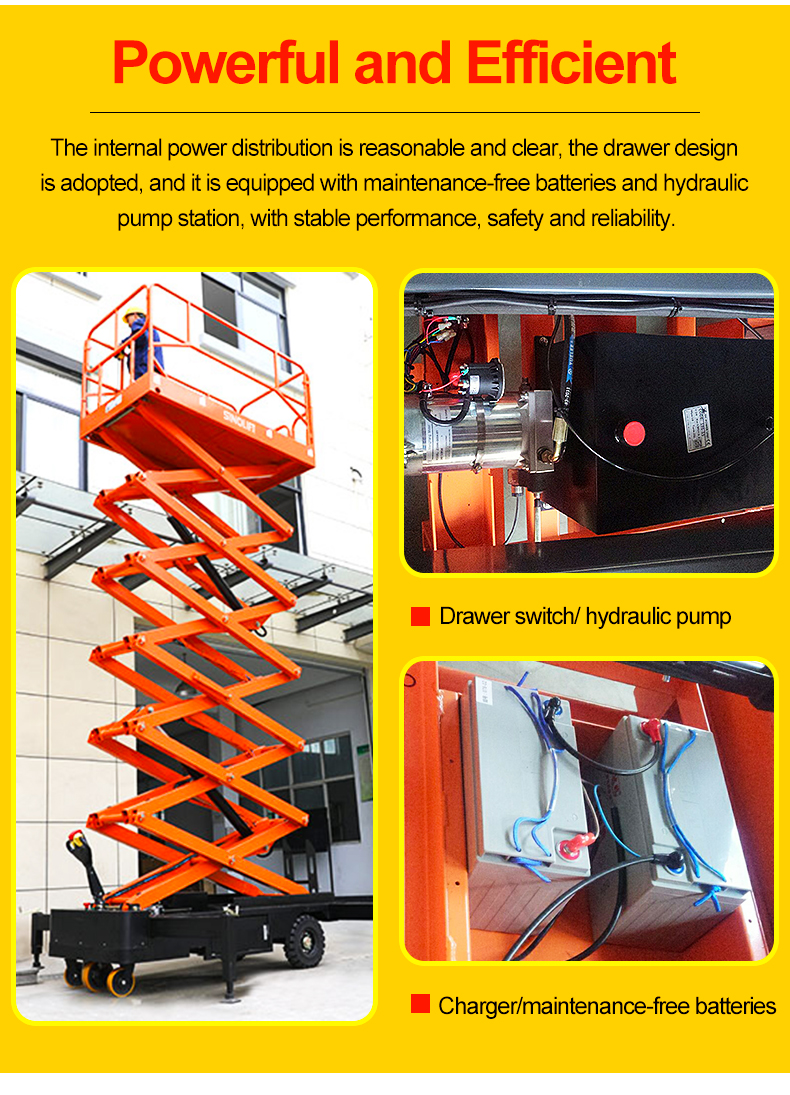

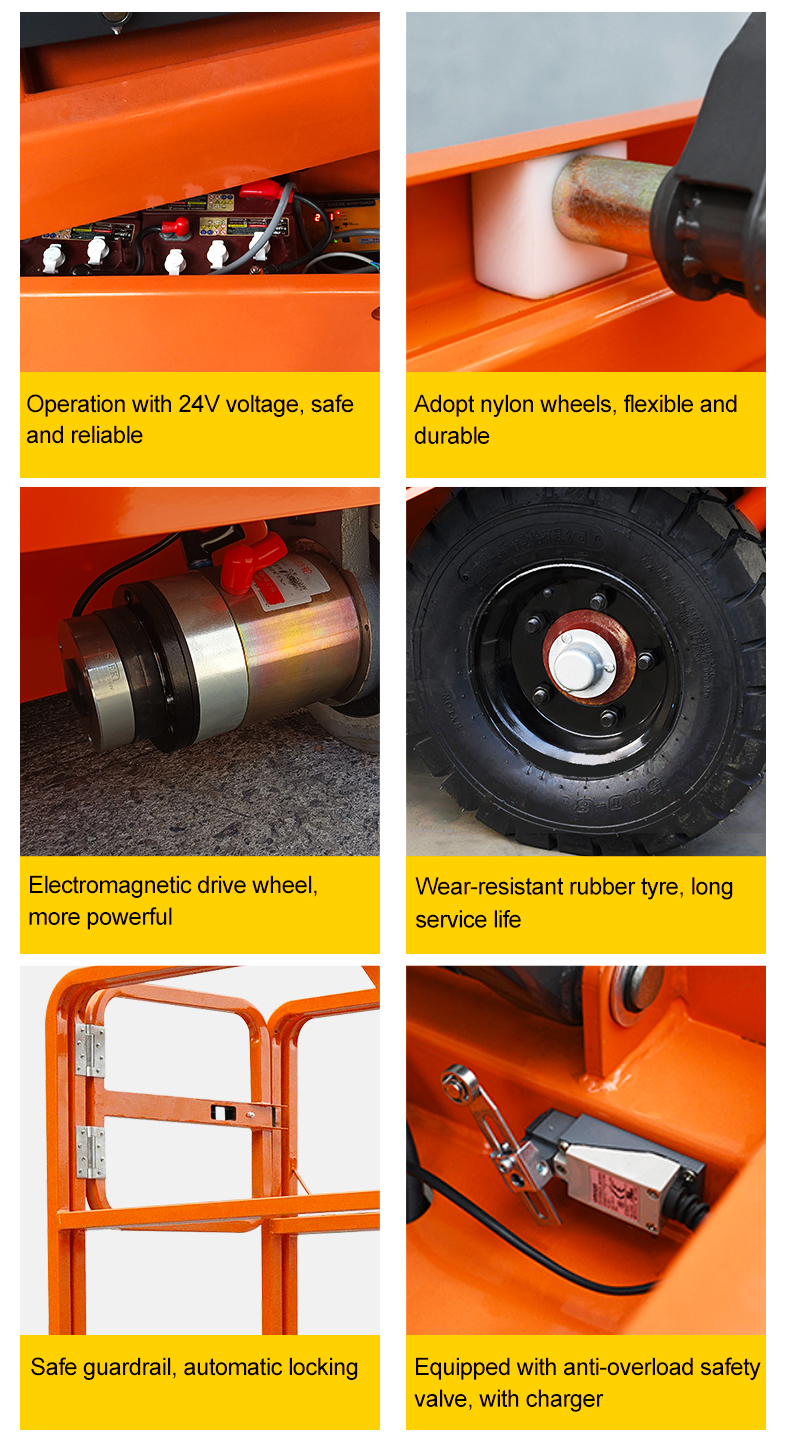

The aerial work platform is powered by a 24 volt battery, which is charged with an integral charging unit.
The access platform is also fitted with a battery charge.
| Model number | SJY0.5-6 | SJY0.5-8 | SJY0.5-10 | SJY0.5-12 | ||
| Max. platform height | mm | 6000 | 8000 | 10000 | 12000 | |
| Min. platform height | mm | 1050 | 1175 | 1300 | 1425 | |
| Platform size | mm | 2270*1500 | ||||
| Lift rated capacity | kg | 500 | ||||
| The developed dimension of legs | mm | 2700*2200 | ||||
| Elevating times | s | 50 | 50 | 80 | 80 | |
| Voltage | DC | V | 24 | 24 | 24 | 24 |
| AC | 220 | 220 | 380 | 380 | ||
| Electromotor power | kw | 2.2 | 2.2 | 3 | 3 | |
| Overall length | mm | 2540 | ||||
| Overall width | mm | 1300 | ||||
| Overall height(guardrail removed） | mm | 1730 | 1855 | 1980 | 2105 | |
| Overall net weight | kg | 1280 | 1460 | 1870 | 2050 | |
| The factory reserves the amending rtight for the materials | ||||||
| And technical specifications | ||||||
