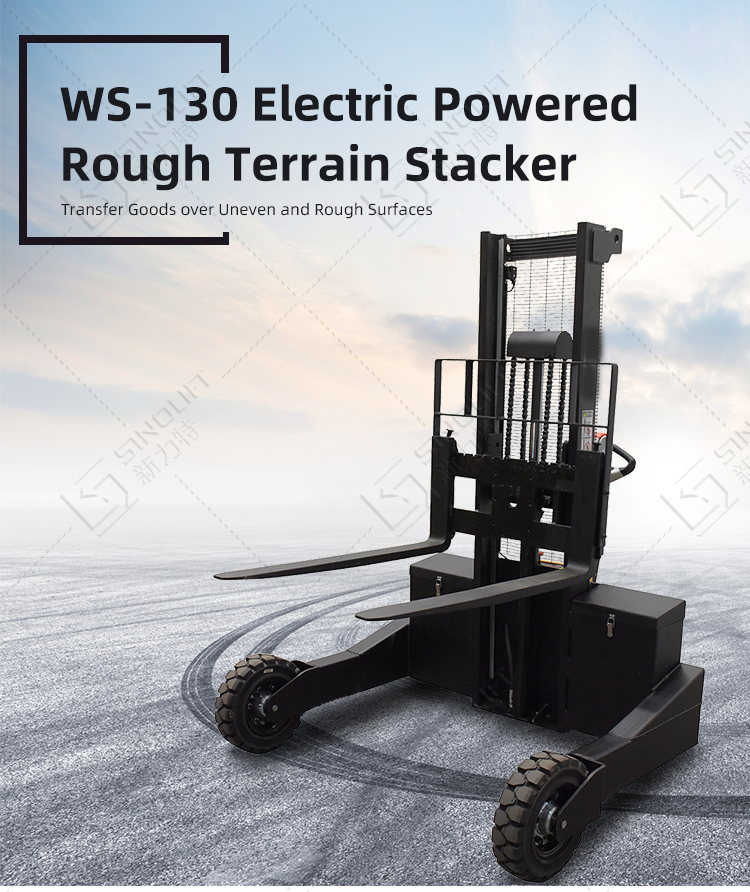

WS-130 Rough Terrain Stacker
Designed with 2 independently powered drive wheels.
This rough terrain stacker can travel inclines of up to 1500kg. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels.

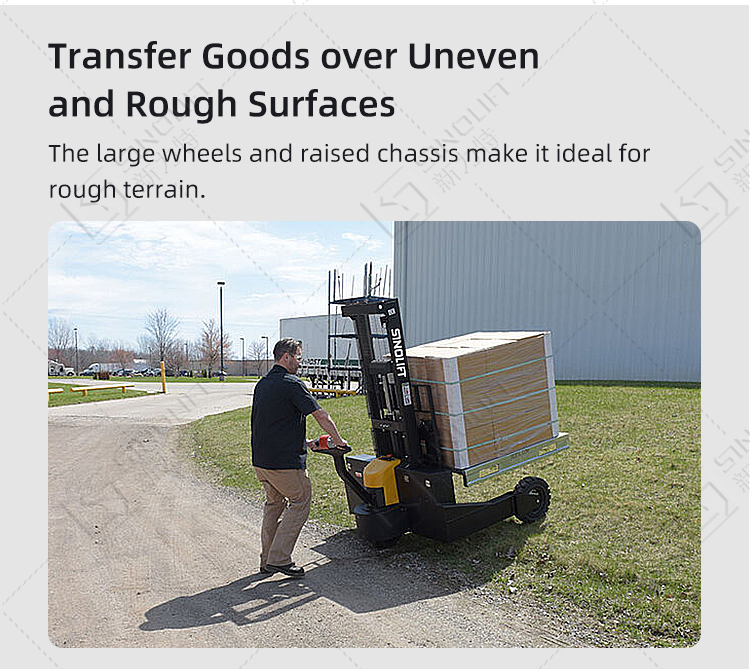

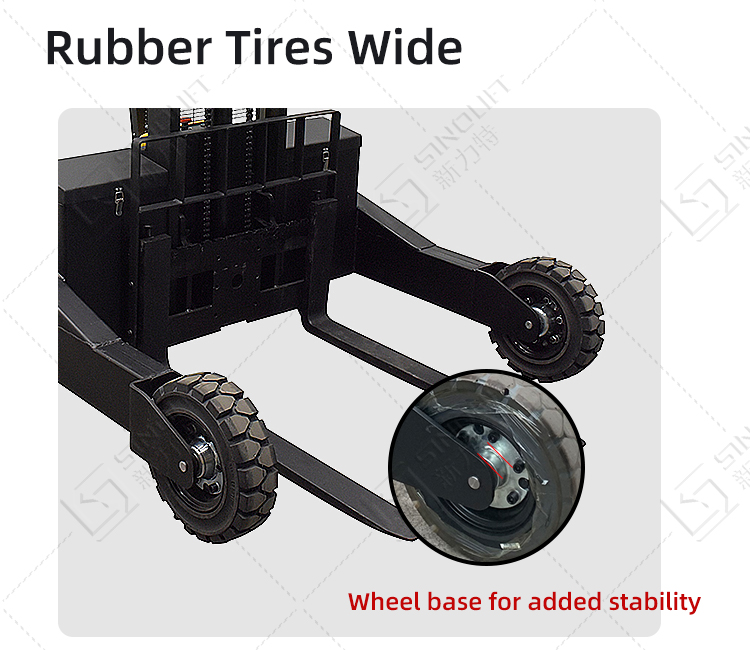

This pallet stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets.
Designed with 2 independently powered drive wheels.
This rough terrain stacker can travel inclines of up to 1500kg. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels.

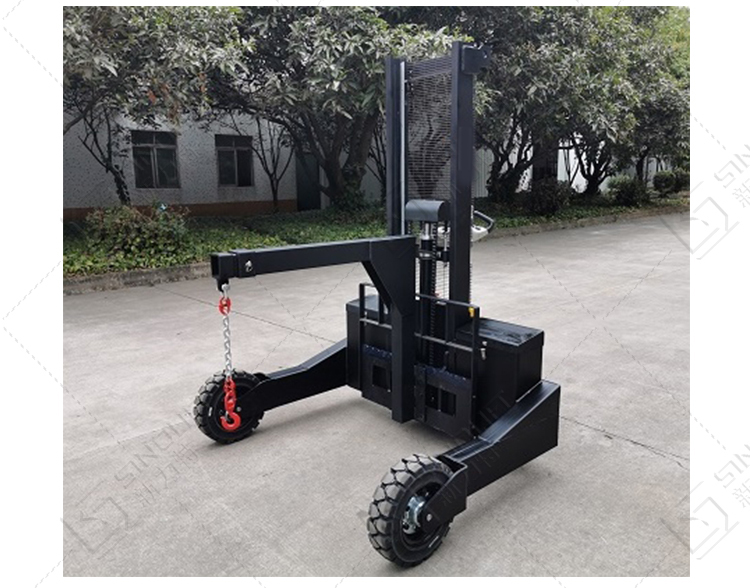

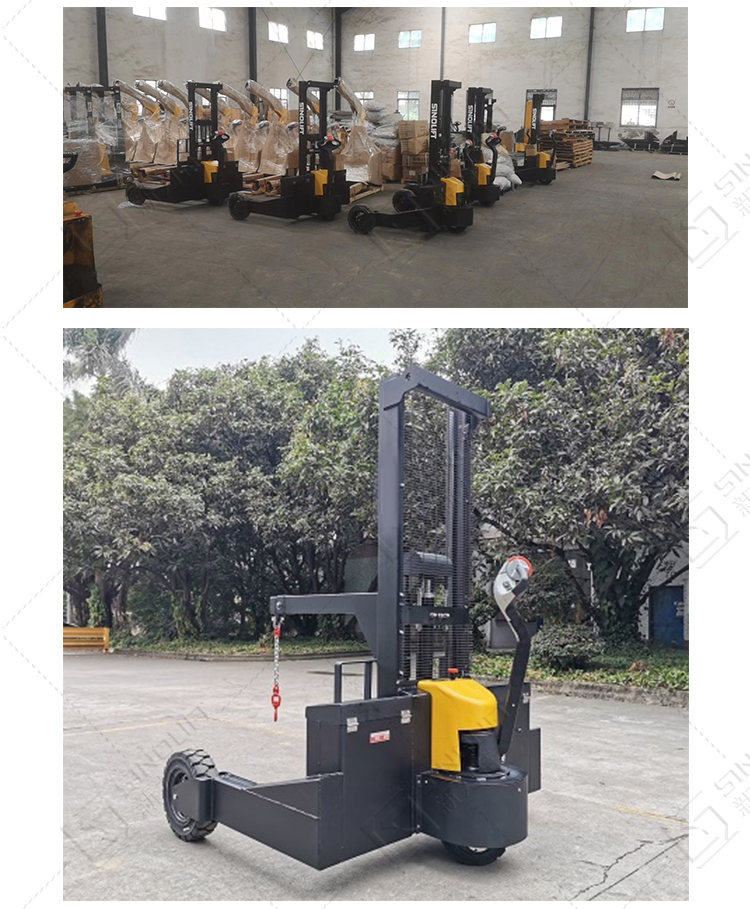

We can also offer special attachments such as crane jib, boom, drum clamp, load protectors, extended forks and sliding hook.

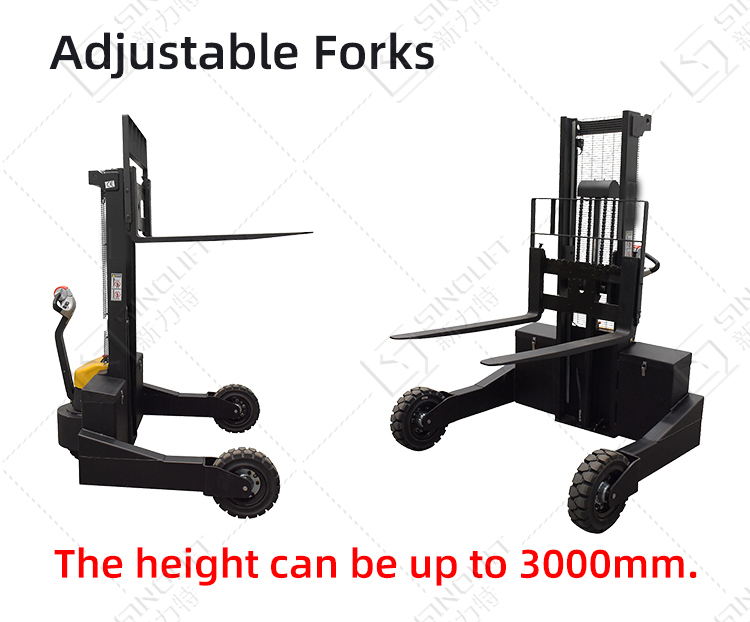

The Electric Rough Terrain Pallet Stacker is also available with raised fork heights of 3000mm. Please contact us for more information.

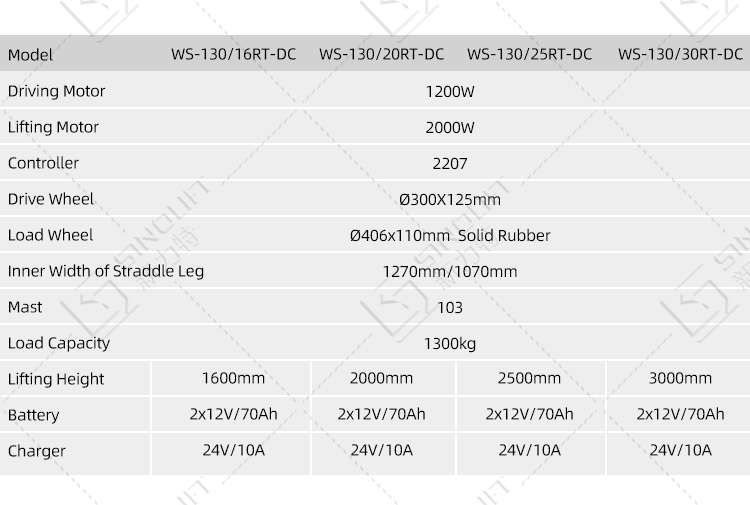

| MODEL NO. | WS-130/16RT-DC | WS-130/20RT-DC | WS-130/25RT-DC | WS-130/30RT-DC |
| Drive Motor | 1200W | |||
| Lifting Motor | 2000W | |||
| Controller | 2207 | |||

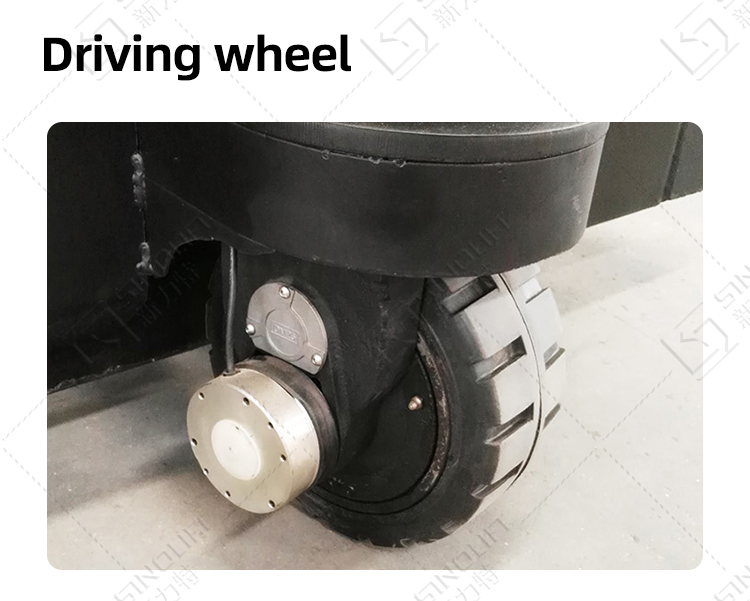

| Driving Wheel | 300x125mm | |||
| Load Wheel | Ø406x110mm | |||
| Inner Width of Straddle Leg | 1270mm/1070mm | |||
| Load Capacity | 1300kg | |||
| Lifting Height | 1600mm | 2000mm | 2500mm | 3000mm |
| Battery | 2x12V/70Ah | |||
| Charger | 24V/10A | |||
