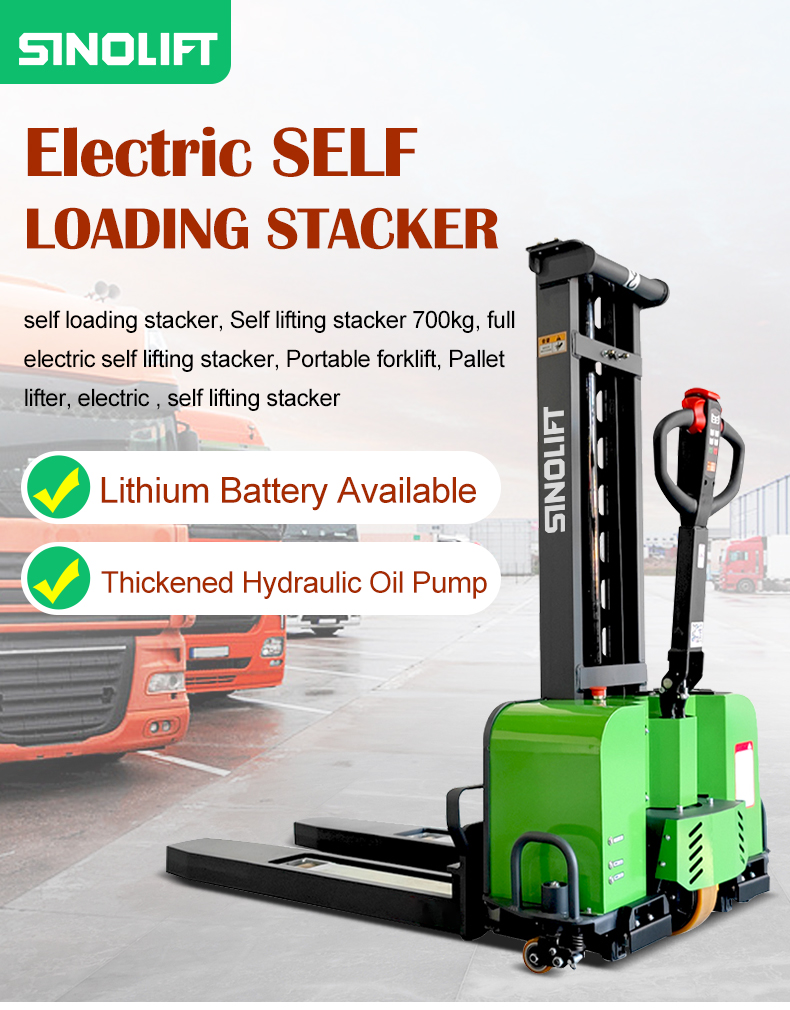

ZSL series Full-electric Self Loading Lifter

ZSL

This new and revolutionary FULL Electric trans pallet in addition to loading the pallets on the means of transport, allows the operator to load it on the vehicle with ease to be transported and reused in each subsequent phase of goods delivery. I

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

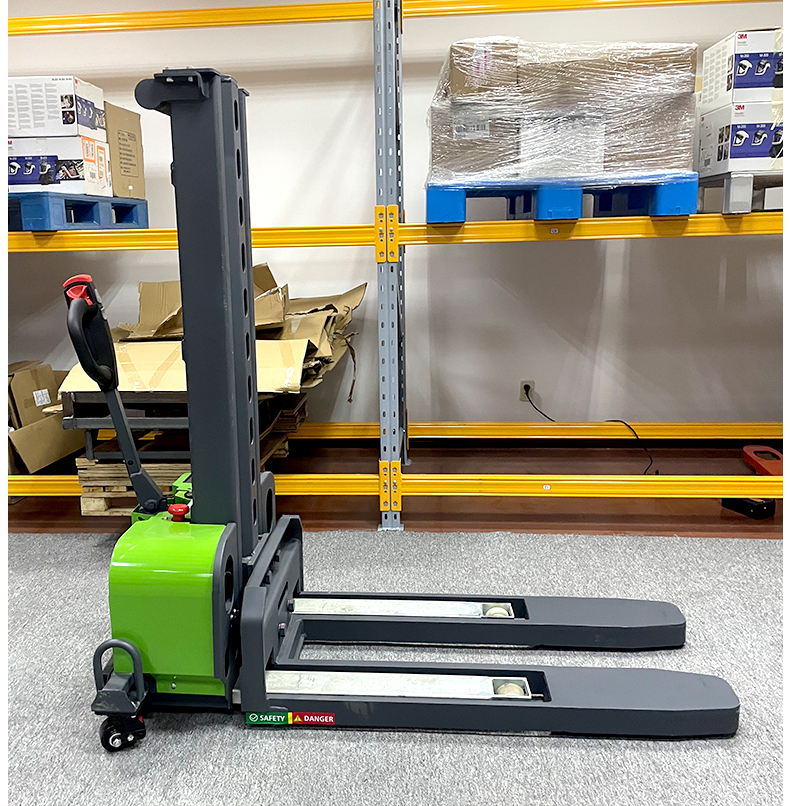

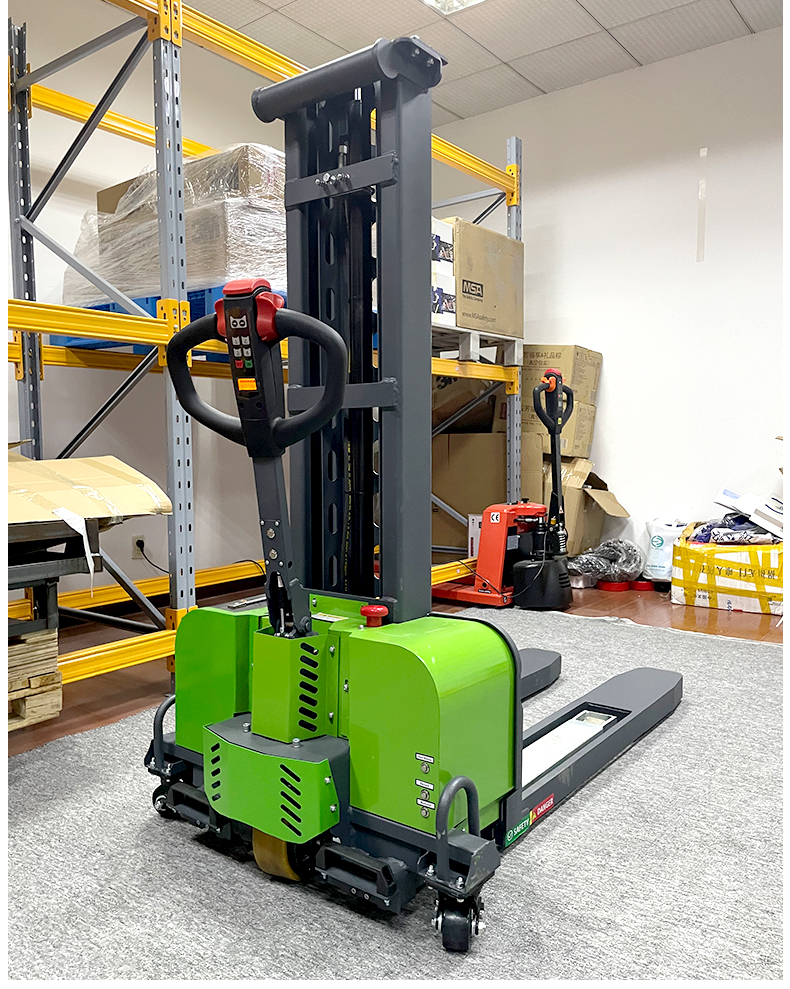

Name:Full-electric Self Loading Lifter

Features of Full-electric Self Loading Lifter

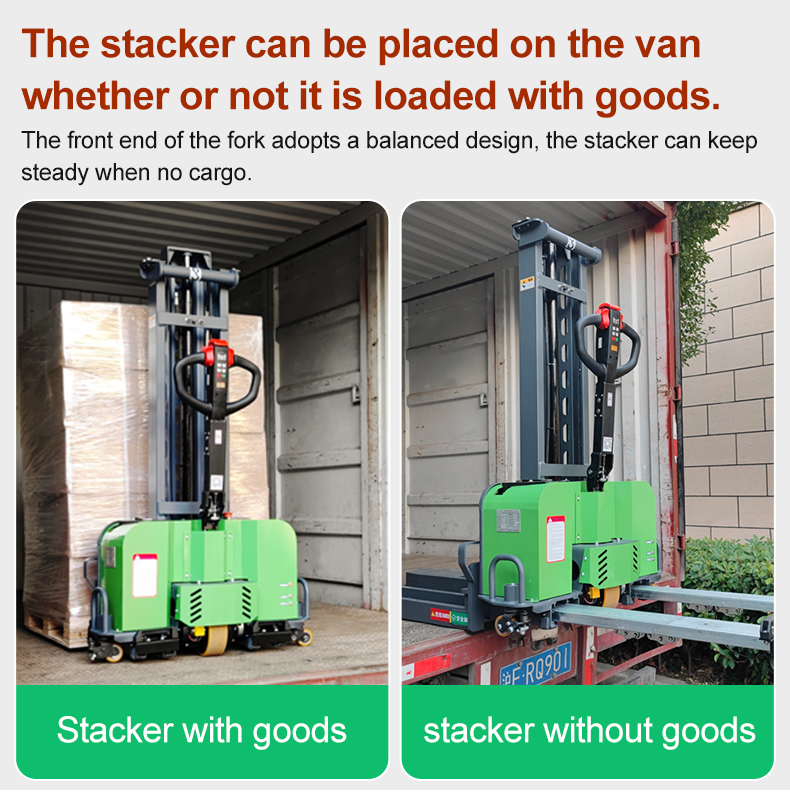

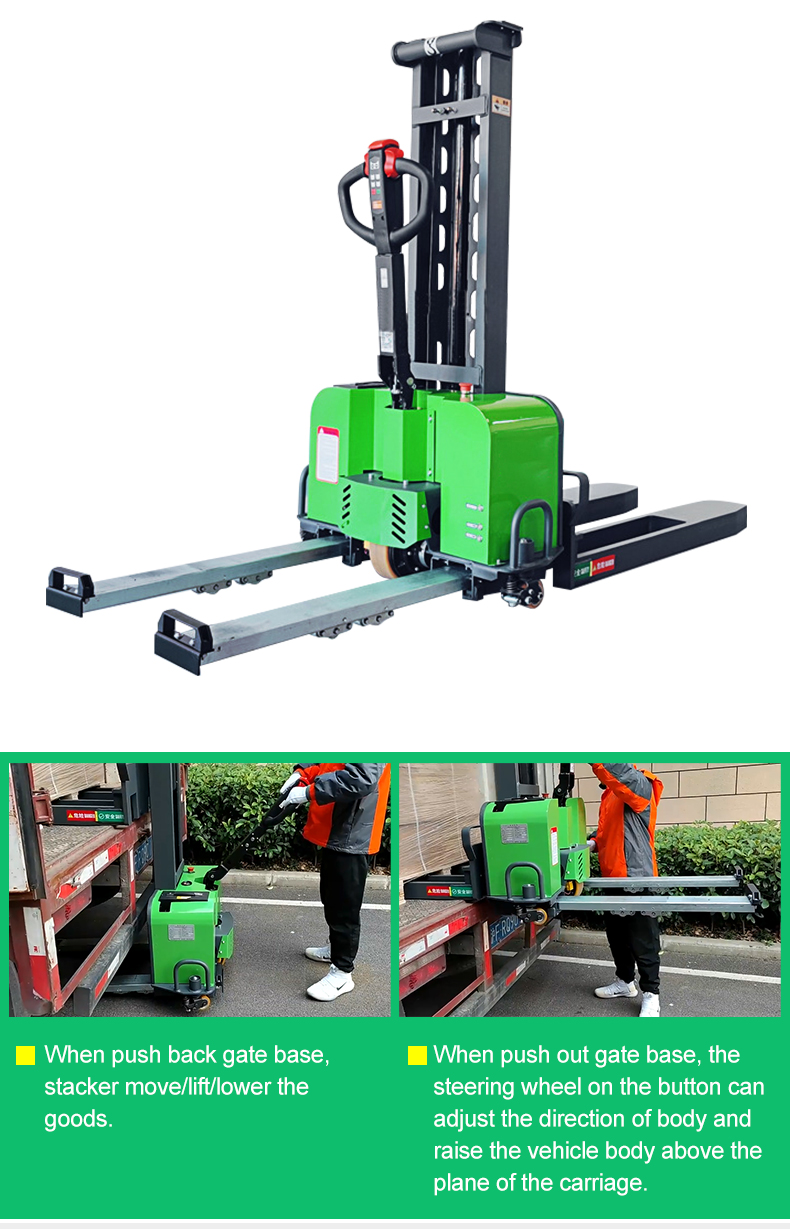

This new and revolutionary Self Loading Lifter in addition to loading the pallets on the means of transport, allows the operator to load Self Loading Lifter on the vehicle with ease to be transported and reused in each subsequent phase of goods delivery. Ideal for delivery / collection of goods on pallets, in places where there are no forklifts provided for the purpose and if you are not equipped with aSelf Loading Lifter. Self Loading Lifter height 1680 mm, Capacity 500 kg, Max lifting heigh of Self Loading Liftert 1300 mm, fork length of Self Loading Lifter 1250 mm. Self Loading Lifter has Certification CE.

	Model		Self Loading Lifter ZSL-05F/ZSL-07F								Self Loading LifterZSL-10F
Performance of Self Loading Lifter	Maximum load capacity	kg	500/700	500/700	500/700	500/700	500/700	500/700	500	500	1000	1000	1000	1000	1000	1000	700	700
	Load center	mm	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450	450
	Weight （with battery）	kg	310/320	313/325	319/330	325/340	330/345	327/342	349	357	379	383	391	400	409	413	420	428
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1700	1800	800	900	1100	1300	1500	1600	1700	1800
	Lifting speed (without load)	mm/s	140	140	140	140	140	140	140	140	65	65	65	65	65	65	65	65
	Lifting speed (with load)	mm/s	135	135	135	135	135	135	135	135	35	35	35	35	35	35	35	35
	Lowered speed (without load)	mm/s	140	140	140	140	140	140	140	140	65	65	65	65	65	65	65	65
	Lowered speed (with load)	mm/s	145	145	145	145	145	145	145	145	35	35	35	35	35	35	35	35
Dimensions of Self Loading Lifter	Overall length of frame	mm	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660	1660
	Overall width of frame	mm	878	878	878	878	878	878	878	878	885	885	885	885	885	885	885	885
	Mast lowered height	mm	1106	1206	1406	1606	1806	1906	2056	2156	1156	1256	1456	1656	1856	1956	2056	2156
	Max height(mast lifted with backrest	mm	2352	2452	2652	2852	3052	3152	3252	3352	2385	2485	2685	2885	3085	3185	3285	3385
	Wheelbase	mm	963	963	963	963	963	963	963	963	995	995	995	995	995	995	995	995
	Fork length	mm	1175	1175	1175	1175	1175	1175	1175	1175	1200	1200	1200	1200	1200	1200	1200	1200
	Fork outside width	mm	580	580	580	580	580	580	580	580	626	626	626	626	626	626	626	626
	Fork inside width	mm	190	190	190	190	190	190	190	190	236	236	236	236	236	236	236	236
	Fork thickness	mm	60	60	60	60	60	60	60	60	70	70	70	70	70	70	70	70
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1500	1500	1500	1500	1500	1500	1500	1500	1250	1250	1250	1250	1250	1250	1250	1250
	Min ground height	mm	20	20	20	20	20	20	20	20	32	32	32	32	32	32	32	32
	Fork lowered height	mm	90	90	90	90	90	90	90	90	70	70	70	70	70	70	70	70
	Minimum turning radius	mm	1200	1200	1200	1200	1200	1200	1200	1200	1300	1300	1300	1300	1300	1300	1300	1300
Tire of Self Loading Lifter	Front wheel	mm	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*50	80*51	80*51	80*51
	Hoist motor type	DC
	Rated output	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2

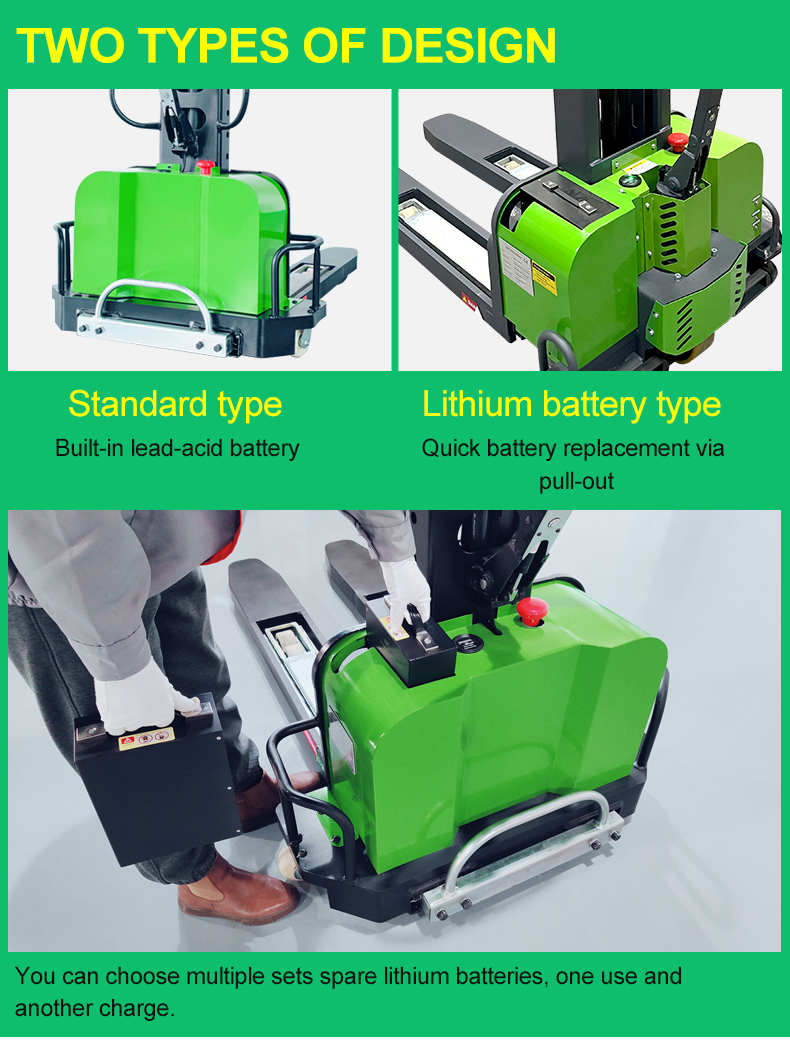

Battery of Self Loading Lifter	Battery type		Lithium battery								Lithium battery
	Voltage	V	48	48	48	48	48	48	48	48	24	24	24	24	24	24	24	24
	Capacity	AH	20	20	20	20	20	20	20	20	50	50	50	50	50	50	50	50
