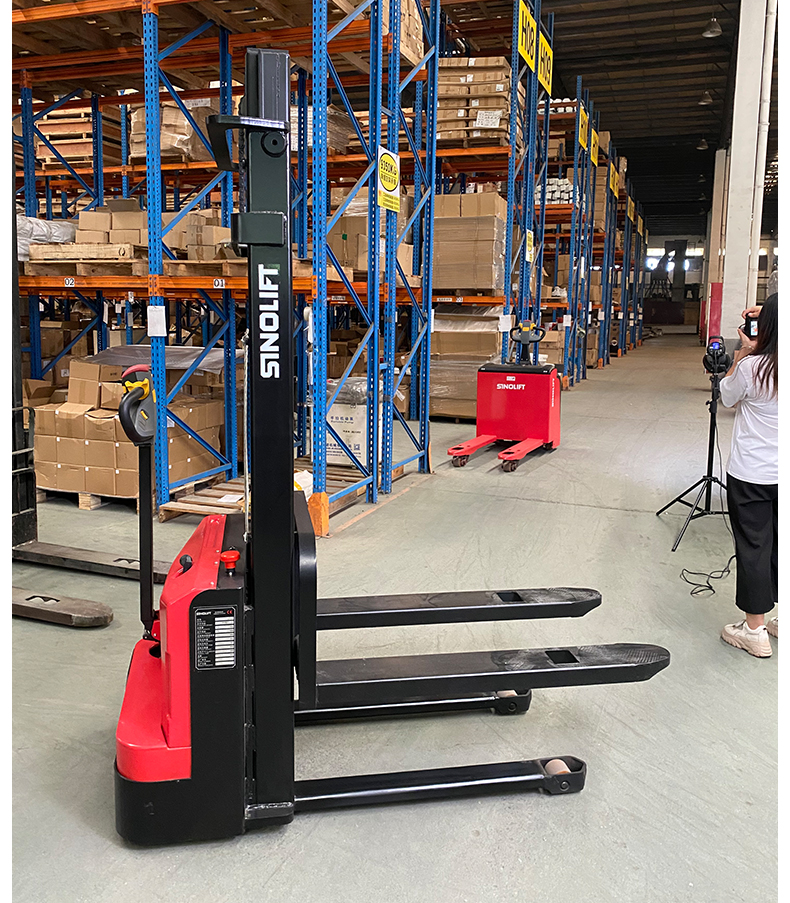

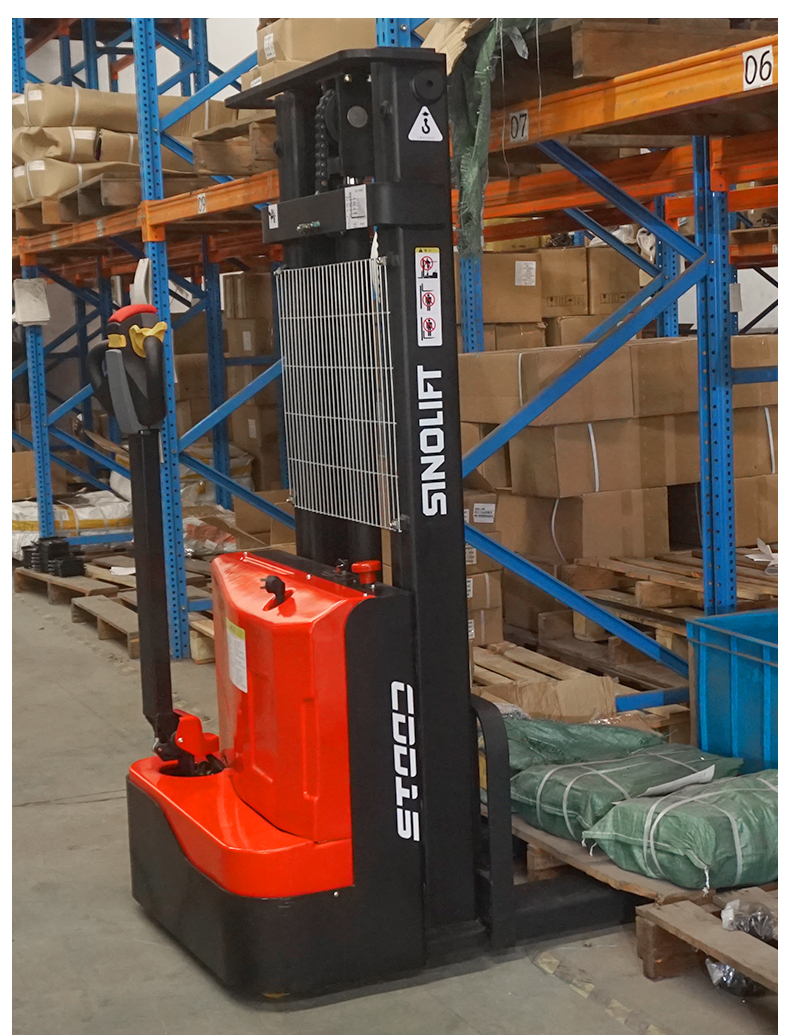

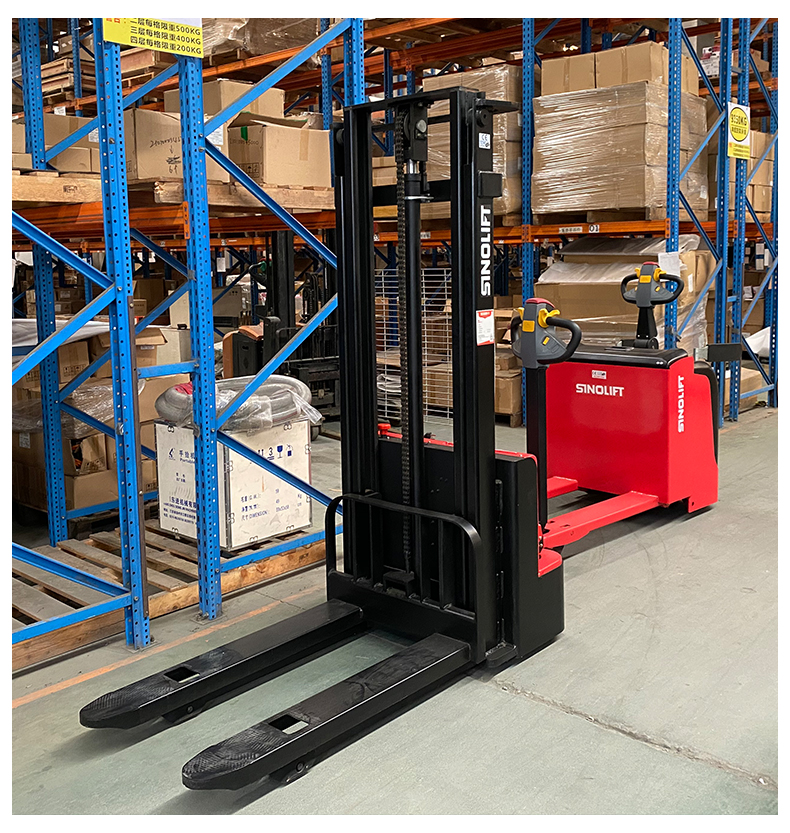

CDD12M CDD15M Walkie Electric Stacker
CDD12M CDD15M
Quantity:
CDD12M CDD15M Walkie Electric Stacker
Product Description
These innovative and affordable walk-behind stackers are great for lifting and stacking in light and heavy warehouses.
Light and heavy duty lifting and stacking in warehouses. The quality manufacturing and clever design, the compact chassis provide a tight turning circle, dynamic handling and excellent travel speed.
Travel speed. With the operator in mind, they also include a range of features that
provide a high level of comfort and safety to meet the needs of any busy warehouse.
Available in a variety of capacity cross-legged models, the M-Series Electric Stacker will increase productivity and promote efficiency in your business.
Light and heavy duty lifting and stacking in warehouses. The quality manufacturing and clever design, the compact chassis provide a tight turning circle, dynamic handling and excellent travel speed.
Travel speed. With the operator in mind, they also include a range of features that
provide a high level of comfort and safety to meet the needs of any busy warehouse.
Available in a variety of capacity cross-legged models, the M-Series Electric Stacker will increase productivity and promote efficiency in your business.
| Model | CDD12M | CDD15M | |||

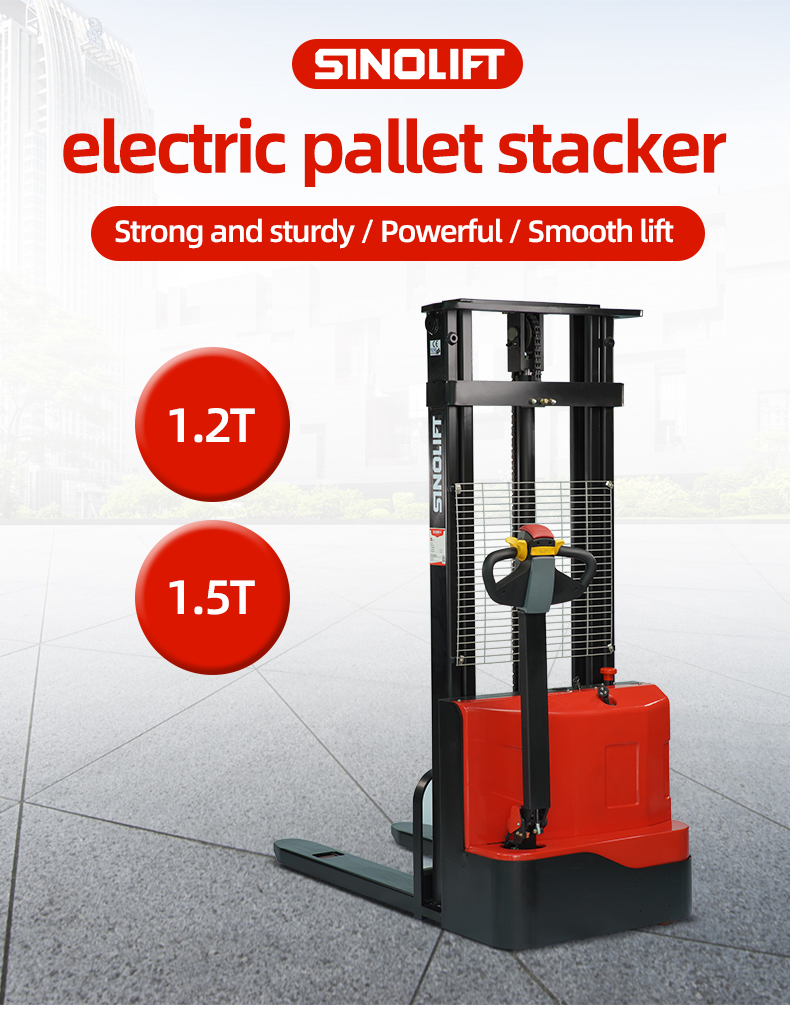

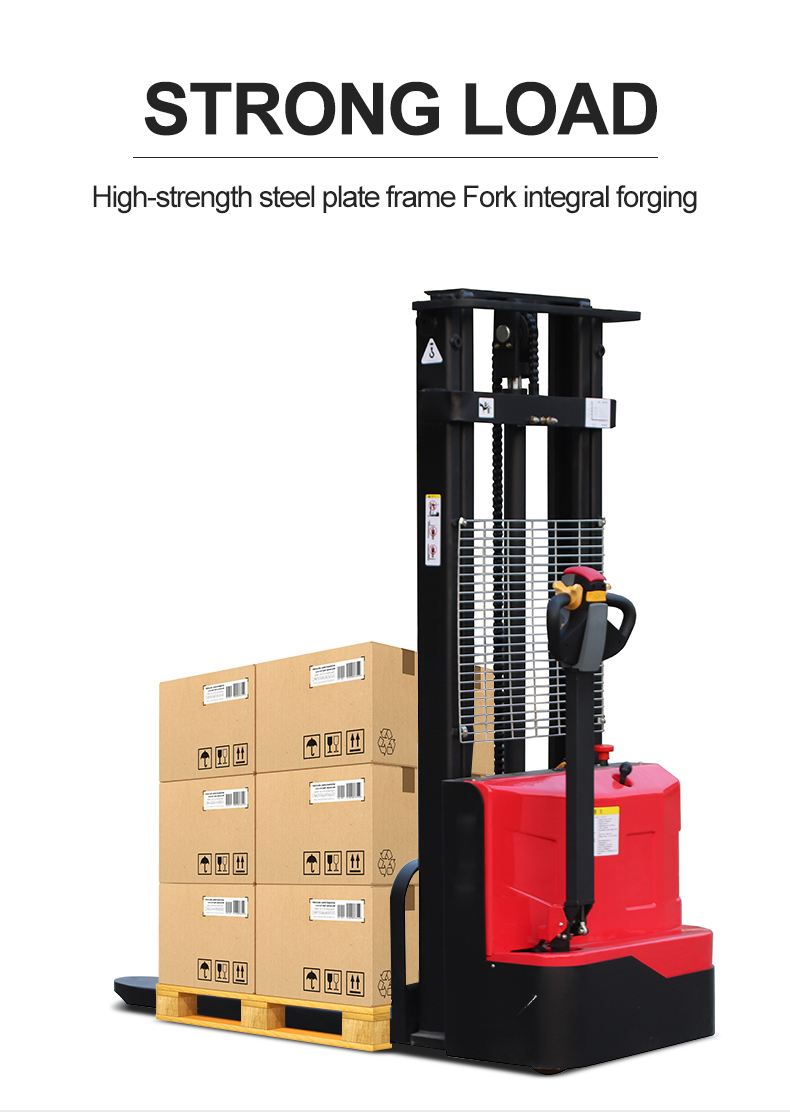

| Performance | Maximum load capacity | kg | 1200 | 1500 | |
| with load center at | Q | mm | 600 | 600 | |
| Weight （with battery） | kg | 620 | 620 | ||

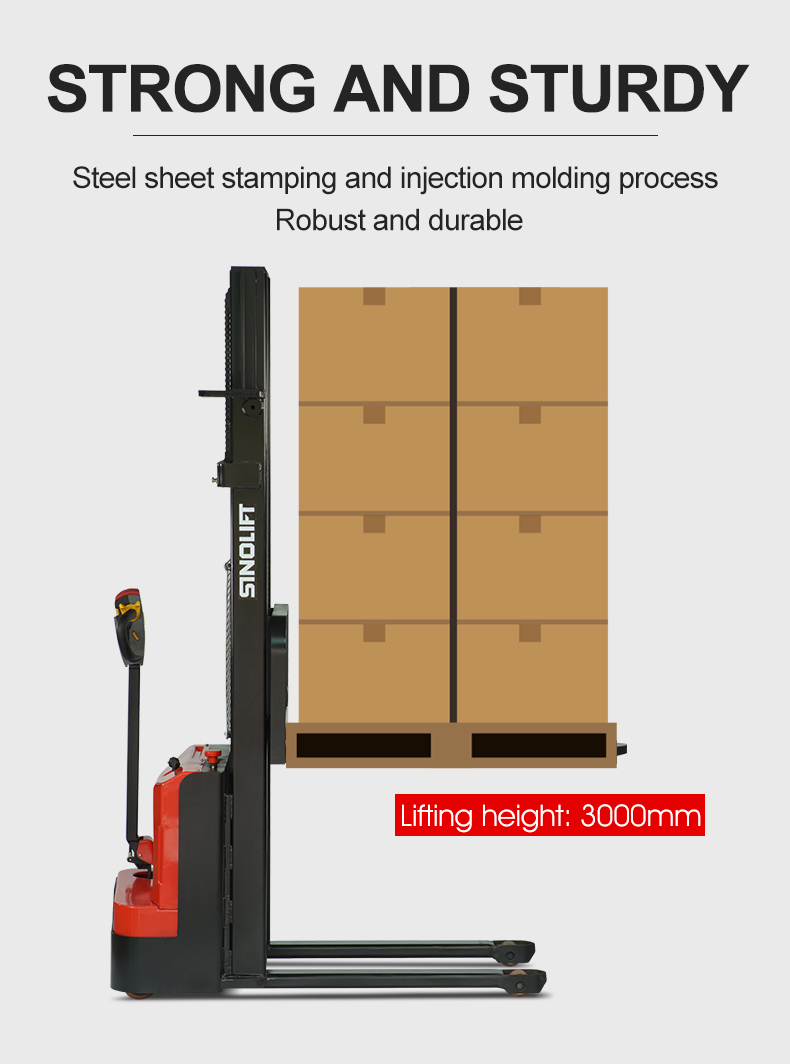

| Maximum lifting height | h1 | mm | 3000 | 3000 | |
| Travel speed (without load) | km/h | 3.3 | 3.3 | ||
| Travel speed (with load) | km/h | 3.2 | 3.2 | ||
| Lifting speed (without load) | mm/s | 135 | 135 | ||
| Lifting speed (with load) | mm/s | 100 | 100 | ||
| Lowered speed (without load) | mm/s | 150 | 150 | ||
| Lowered speed (with load) | mm/s | 155 | 155 | ||
| Ascend slope ability (without load ) | % | 5 | 5 | ||
| Ascend slope ability (with load ) | % | 3 | 3 | ||
| Overall length of frame | L | mm | 1740 | 1740 | |

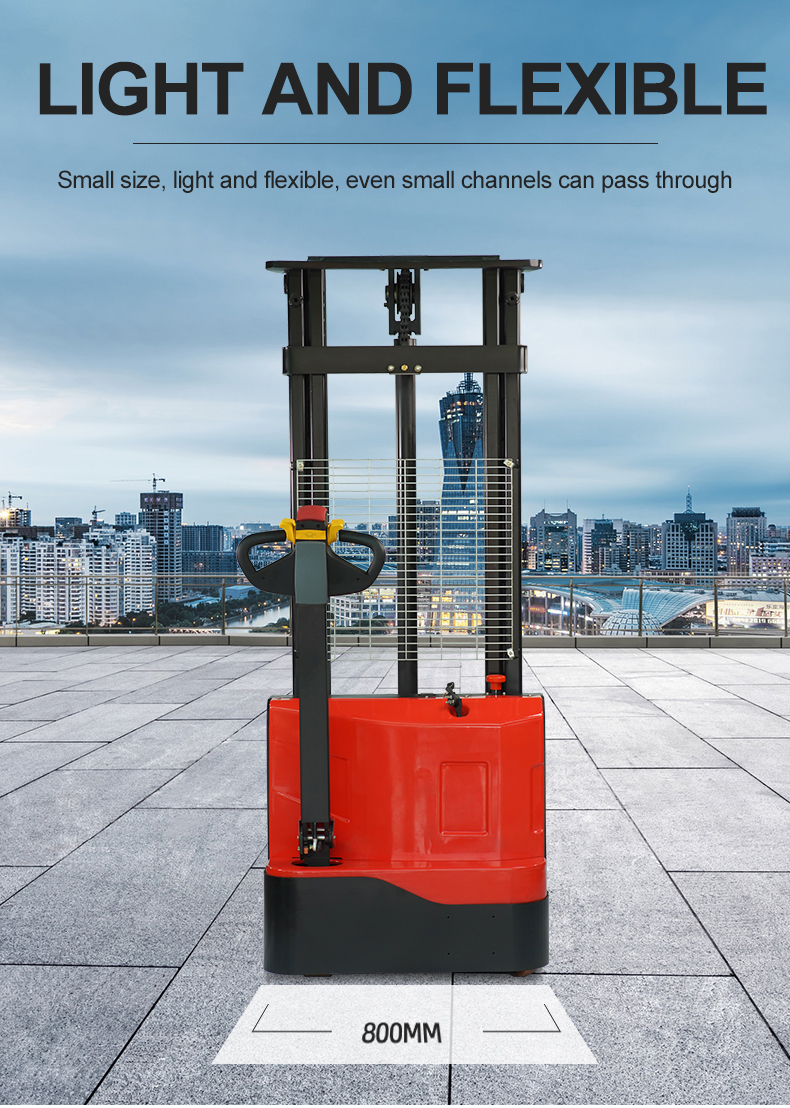

| Dimensions | Overall width of frame | B | mm | 800 | 800 |
| Wheelbase | Y | mm | 1215 | 1215 | |
| Fork length | mm | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 560/685 | 560/685 | |
| Fork inside width | B2 | mm | 240/365 | 240/365 | |
| Fork thickness | mm | 60 | 60 | ||
| Min frounf height | mm | 30 | 30 | ||
| Min intersecting aisle width 1000*1200 | mm | 2265 | 2265 | ||
| Fork lowered height | S | mm | 85 | 85 | |
| Minimum turning radius | Wa | mm | 1415 | 1415 | |
| Tire | Front wheel | mm | Ø80*70 | Ø80*70 | |
| Drive wheel | mm | 210*70 | 210*70 | ||
| Caster wheel | mm | 115*55 | 115*55 | ||
| Wheel material | polyurethane | ||||

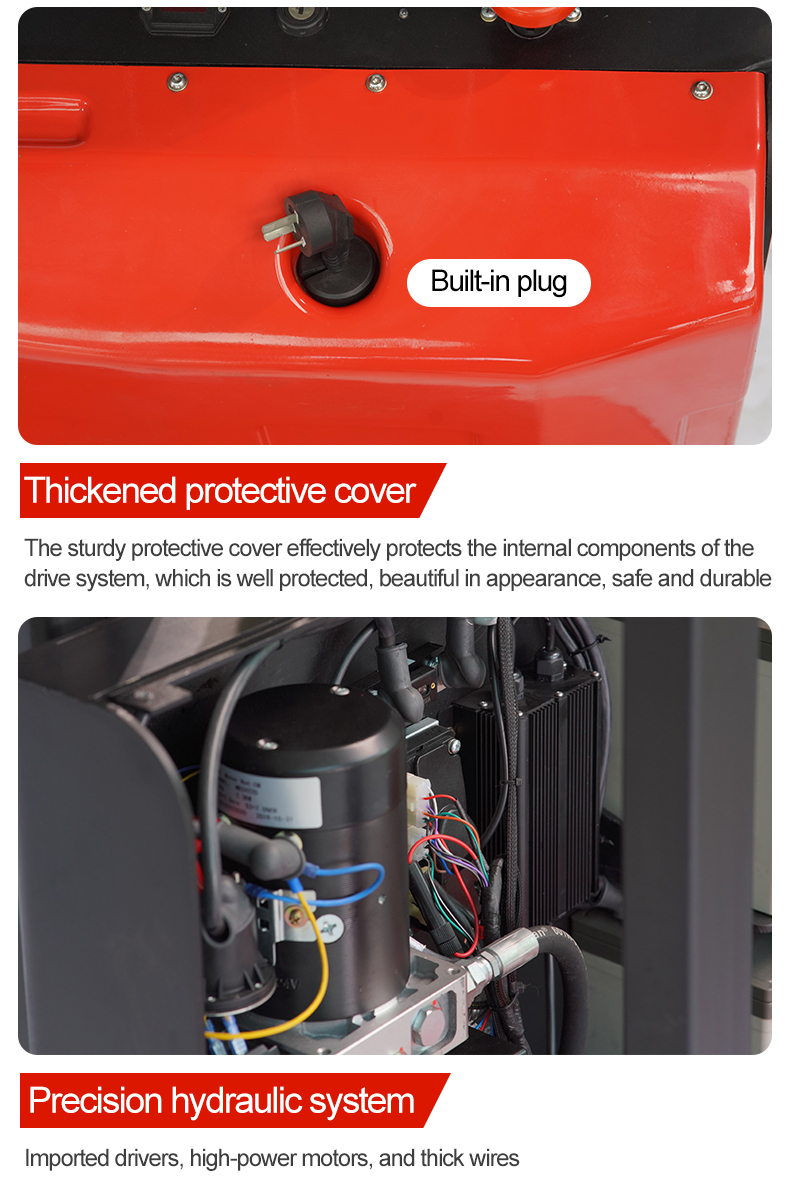

| Electrical components | Drive motor type | DC series motor | |||
| Rated output | kw | 0.75 | 0.75 | ||
| Hoist motor type | DC series motor | ||||
| Rated output | kw | 2.2 | 2.2 | ||

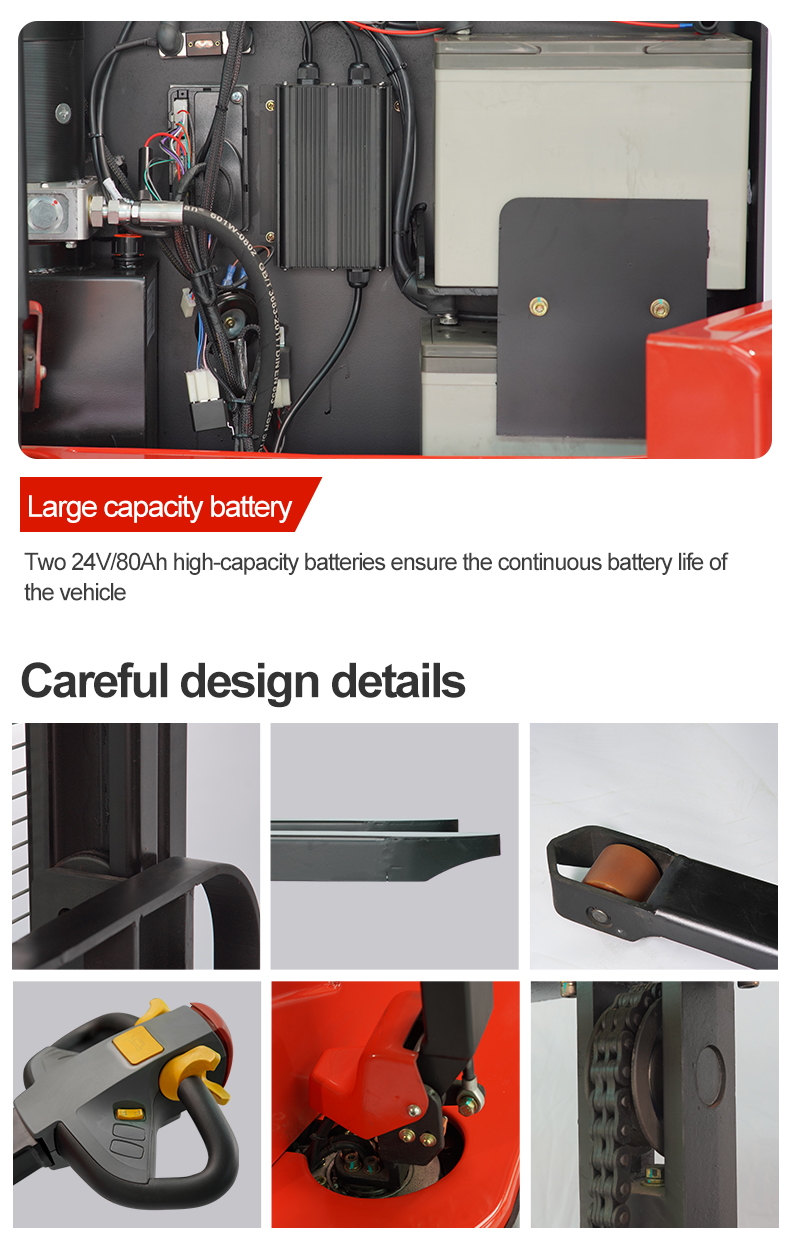

| battery | Voltag | V | 24 | 24 | |
| Capacity | AH | 100 | 100 | ||
| Weight | kg | 35*2 | 35*2 | ||
