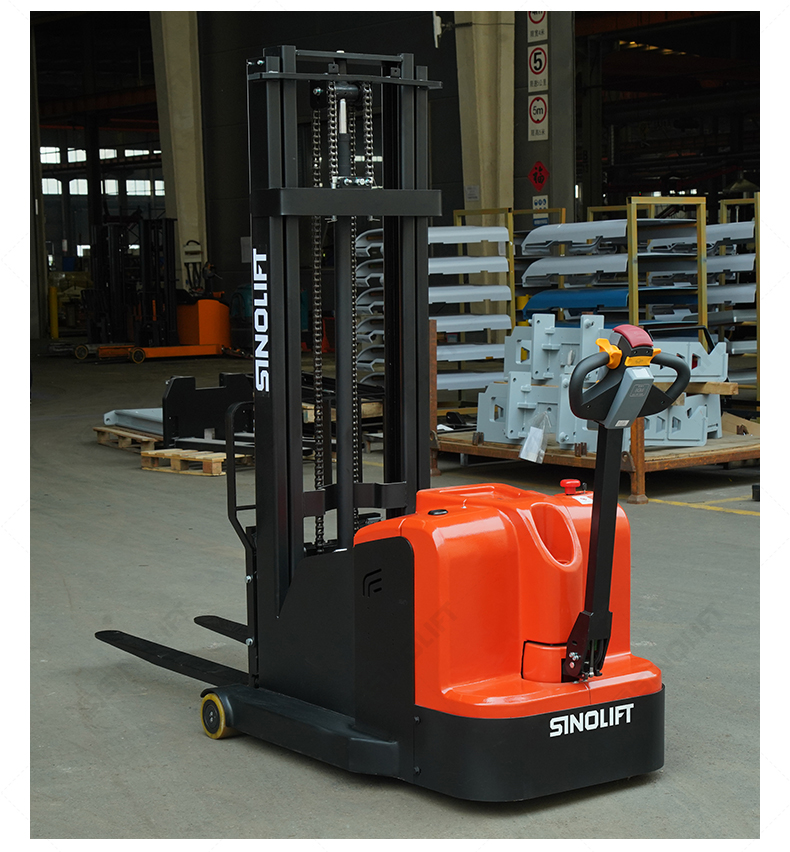

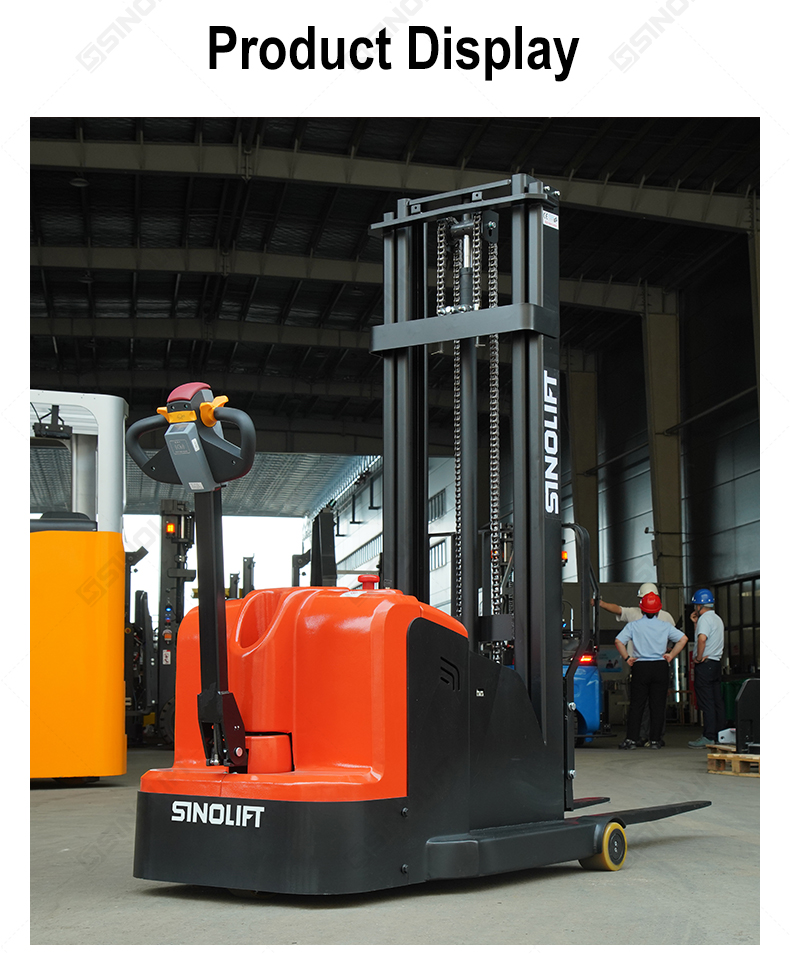

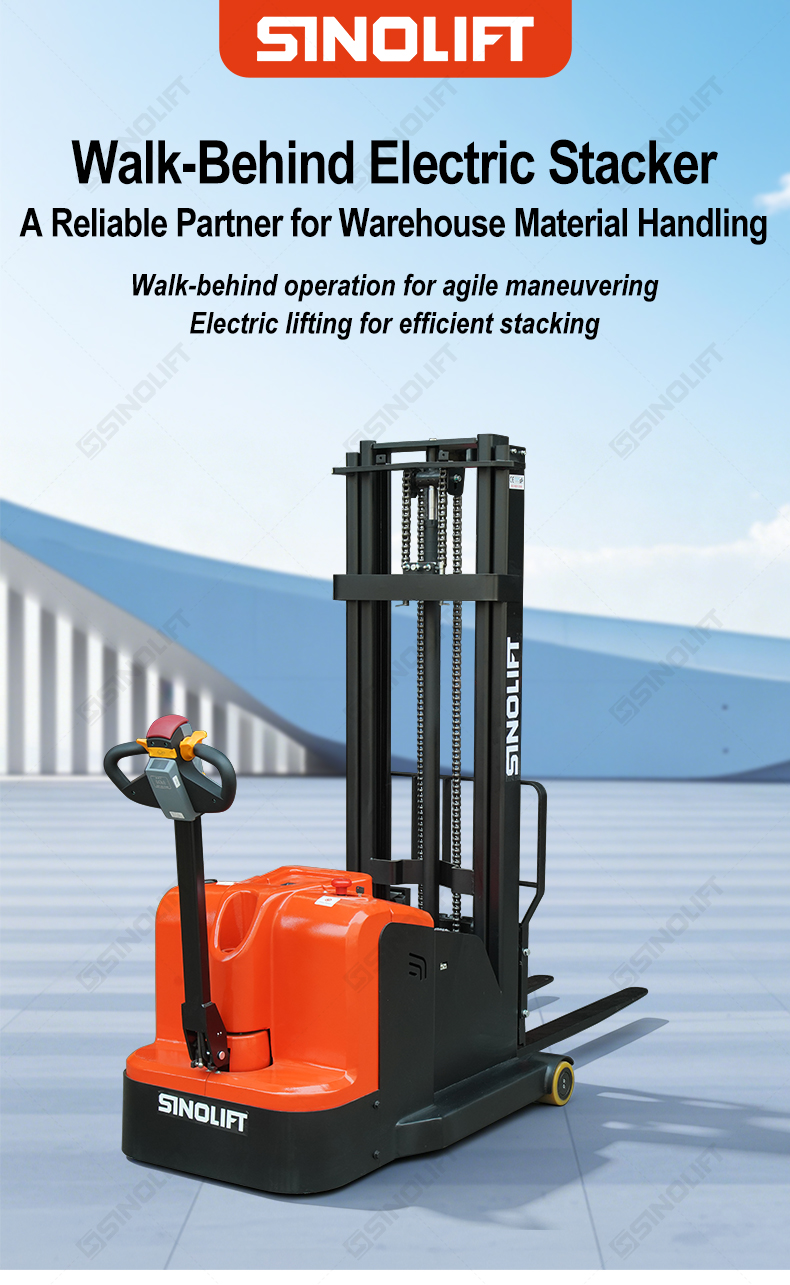

SINOLIFT CPDW10 CPDW12 Electric Counterbalanced Walkie Pallet Stacker

Versatile, Efficient, and Reliable Material Handling Solution

The CPDW10, CPDW12, CPDW10-Li, and CPD12-Li electric counter-balanced stackers are engineered to handle your most demanding dock-to-stock needs. With load capacities up to 1.2 tonnes and lift heights reaching 3.5 meters, this flexible handling solution accelerates cycle times and improves overall productivity in narrow warehouses.

Because of its counterbalanced design, there are no front straddle legs to get in the way, meaning these stackers seamlessly handle any pallet type. Equipped with a powerful AC drive motor, a robust C-channel steel mast, and intuitive ergonomic controls, our stackers ensure smooth, safe, and cost-effective operations every time.

Key Features & Advantages

Unmatched Versatility & Performance

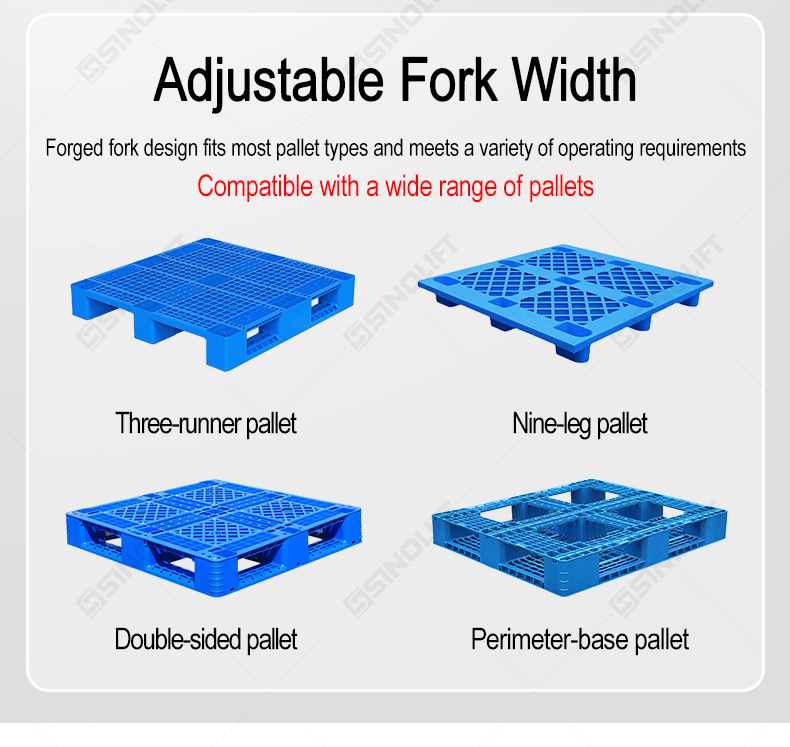

Universal Pallet Compatibility: The counterbalanced design combined with adjustable solid forged forks means this stacker does not pick and choose. It easily handles three-runner, nine-leg, double-sided, and perimeter-base pallets.

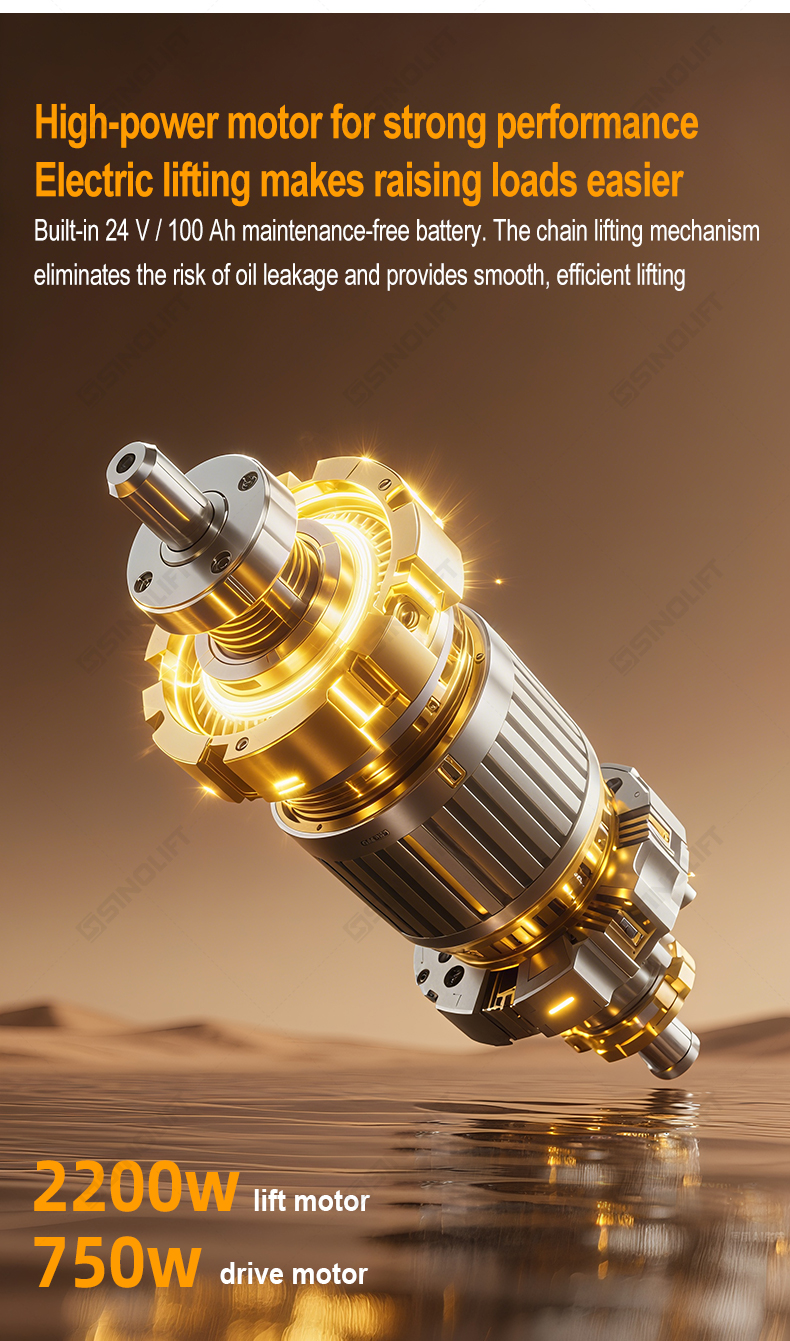

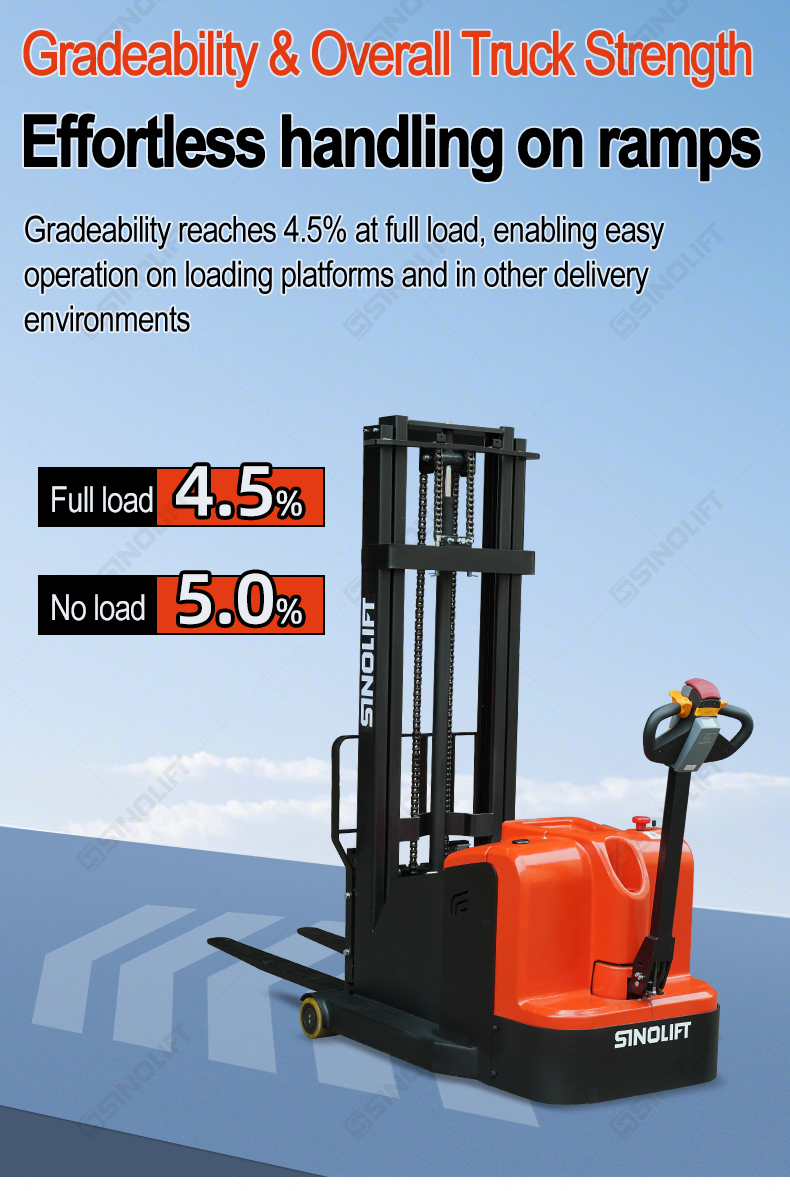

Powerful Drive System: Features a highly efficient 3-phase AC drive motor (750W) and a 2200W lift motor, delivering rapid acceleration, smooth direction changes, and impressive gradeability (up to 4.5% fully loaded).

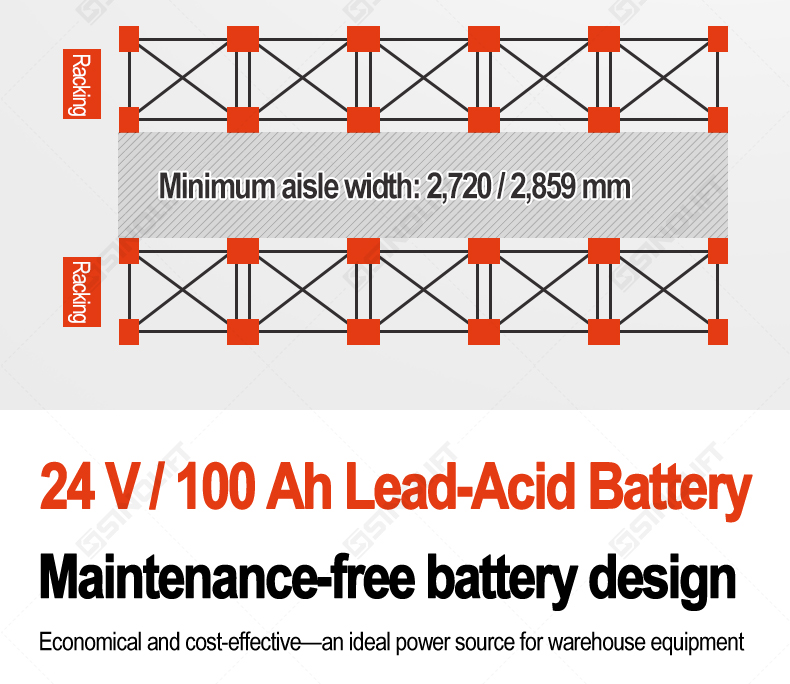

High-Efficiency Power Options: Choose between the economical 24V/100Ah maintenance-free lead-acid battery or the advanced Lithium-ion (Li-ion) upgrade for extended operational hours and faster charging.

Robust Durability & Reliability

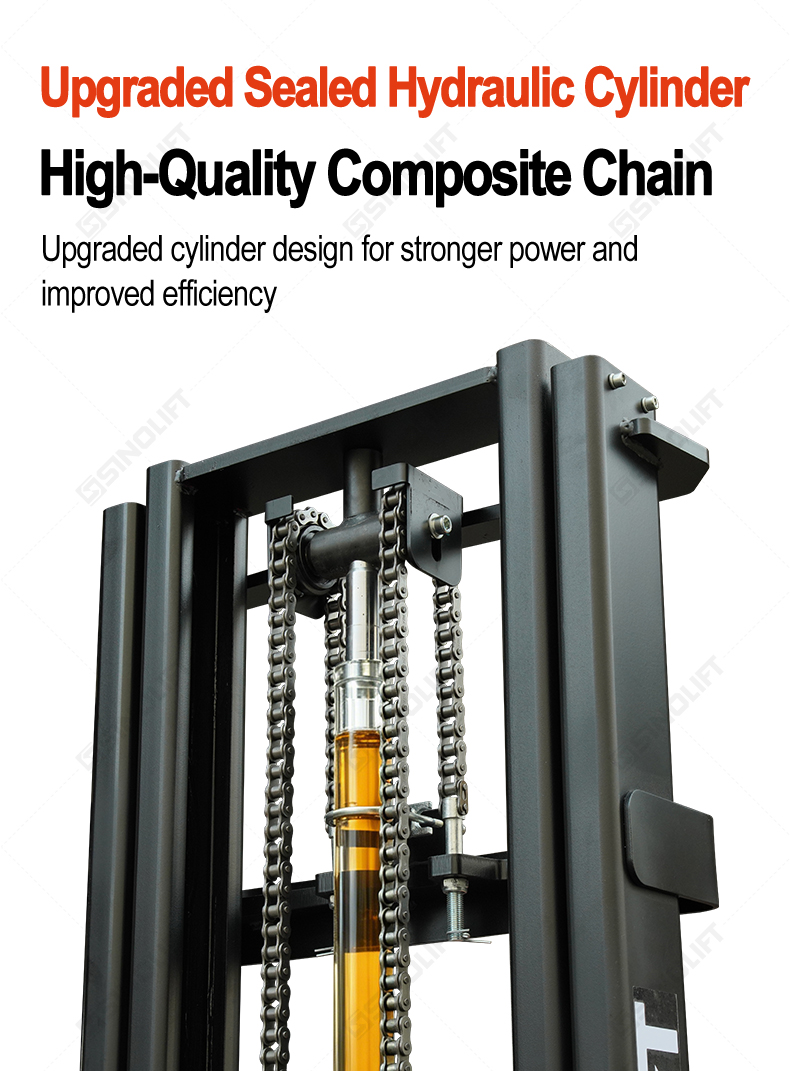

Heavy-Duty Construction: Built with a high-strength C-channel steel mast and an upgraded sealed hydraulic cylinder for exceptional stability, rigidity, and smooth lifting without oil leakage.

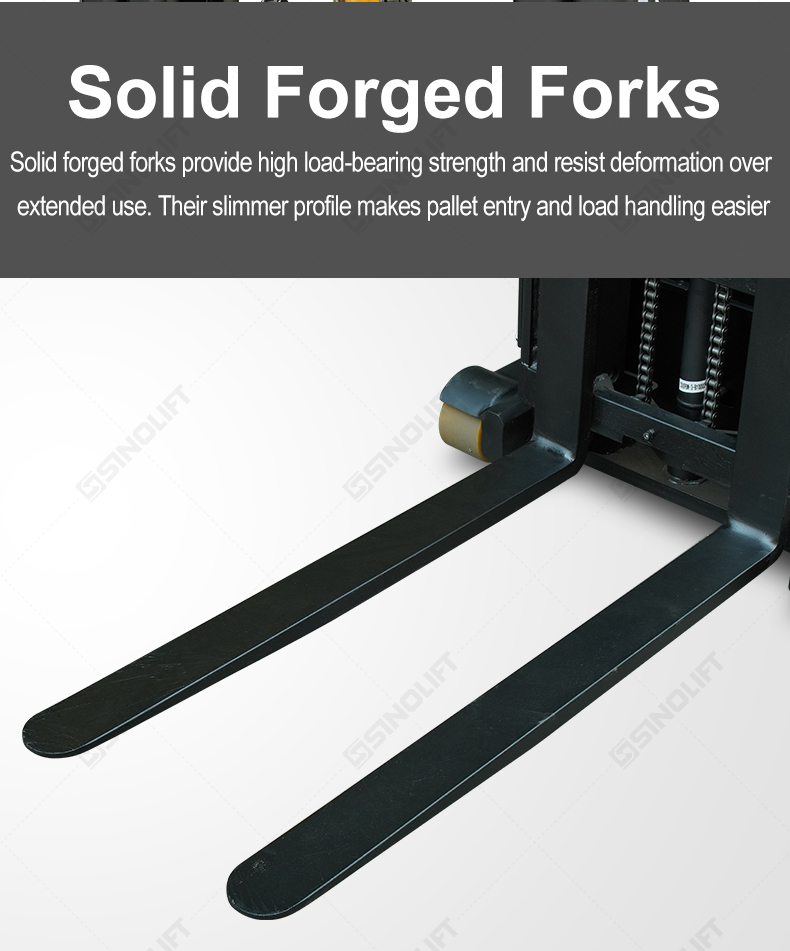

Solid Forged Forks: The slimmer fork profile makes pallet entry easier, while the solid forging ensures high load-bearing strength that resists deformation over extended use.

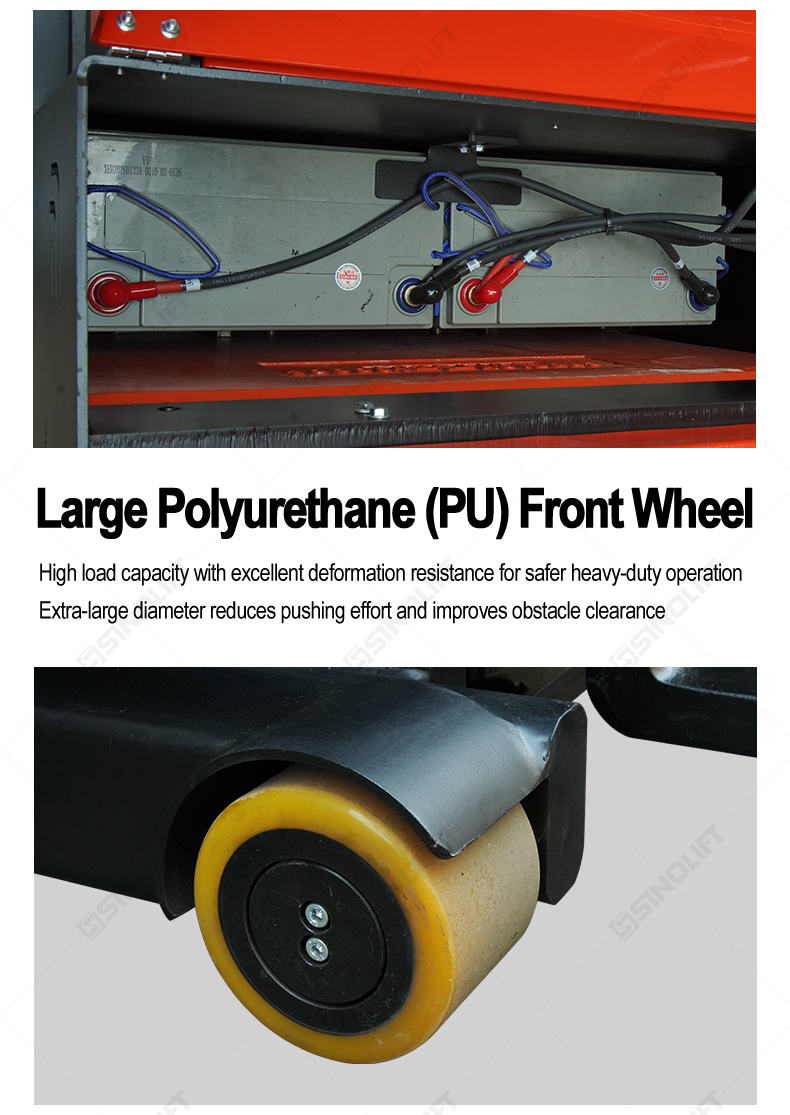

Large PU Front Wheel: The extra-large polyurethane front wheel reduces pushing effort, improves obstacle clearance, and guarantees high-capacity, deformation-free performance during heavy-duty tasks.

Smart Ergonomics & Ease of Use

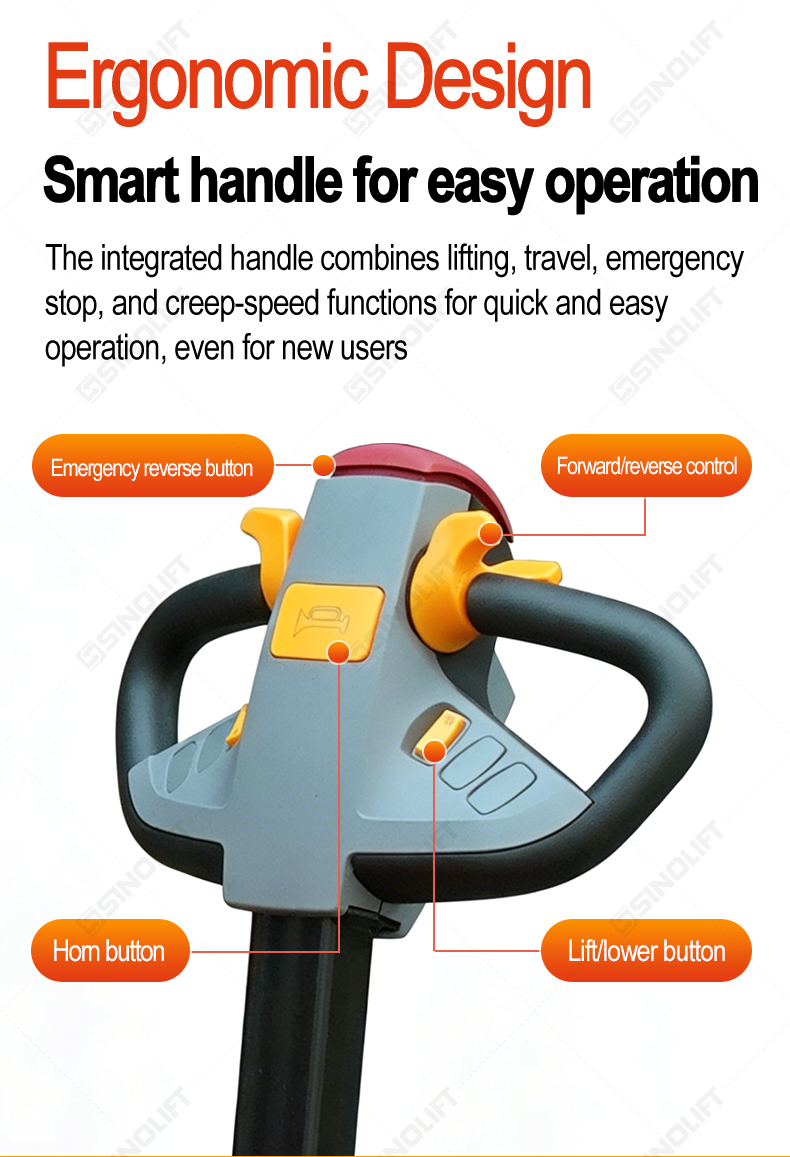

Multifunction Control Handle: An ambidextrous, integrated handle allows seamless, one-handed control of lifting, traveling, emergency stopping, and horn functions, making it incredibly easy for new operators to learn.

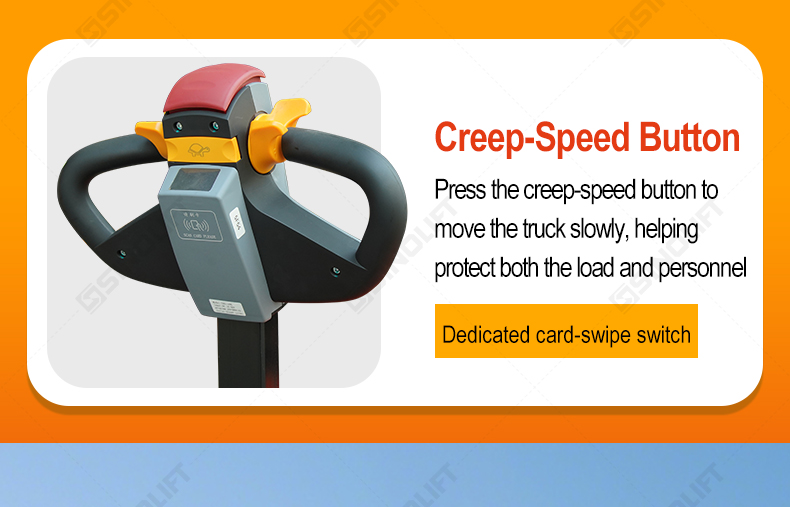

Creep-Speed Mode: A dedicated button instantly slows the truck's travel speed, allowing for precise and safe maneuvering in tight spaces to protect both the load and personnel.

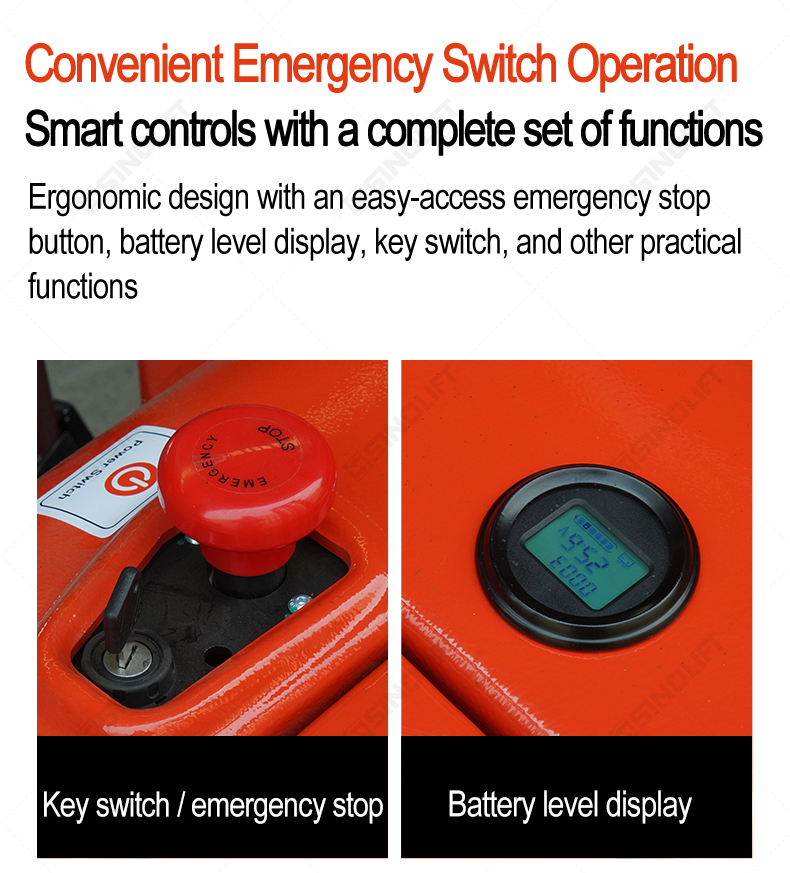

Convenient Access: Features a dedicated card-swipe switch for authorized use, alongside a standard key switch and a clear battery discharge indicator.

Advanced Safety Features

Comprehensive Protection: Equipped with an emergency reverse button on the tiller head, automatic braking upon control release, and standard anti-roll-back protection on gradients.

High-Visibility Mast: The mast design allows the operator to clearly see the fork tips and the wider work area, enhancing precision and reducing the risk of accidents.

Ideal Application Areas

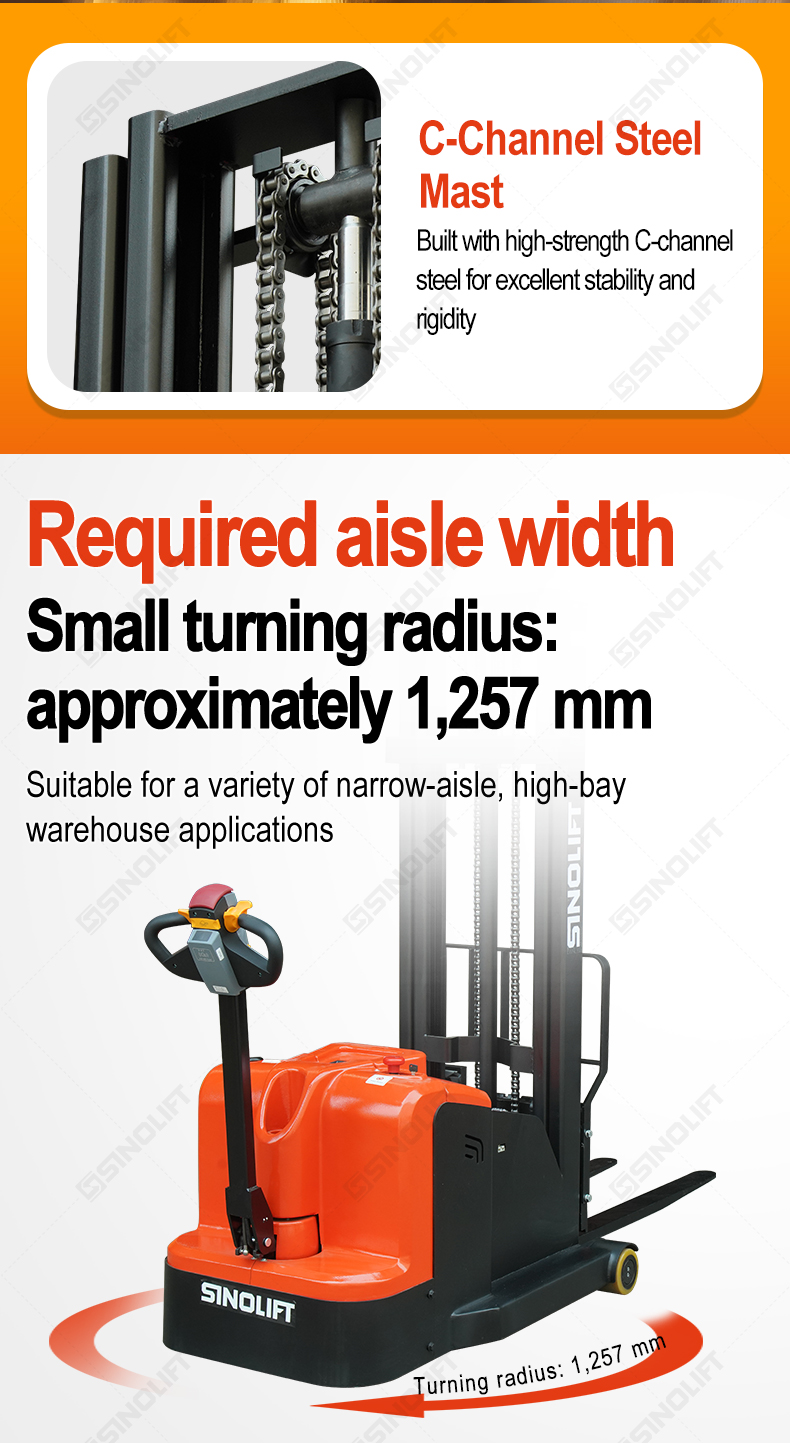

Narrow Aisle Warehouses: The compact chassis and highly responsive steering offer a minimal turning radius of just 1,257 mm, perfect for confined high-bay storage.

Loading Docks & Delivery: Navigates dock plates, boxcars, and trailers with ease, streamlining your loading and unloading processes.

Supermarket & Retail Storage: Quiet electric operation and smooth handling make it an excellent choice for backroom organization and shelf replenishment.

Express & Parcel Facilities: Accelerates cycle times for fast-paced sorting and heavy parcel movement.

Frequently Asked Questions (FAQ)

What types of pallets can this stacker handle? Unlike standard straddle stackers, the counterbalanced design of the CPDW series means there are no bottom support legs to interfere with the load. Combined with adjustable forged forks, it can handle virtually any pallet type, including closed-bottom, double-sided, and perimeter-base pallets.

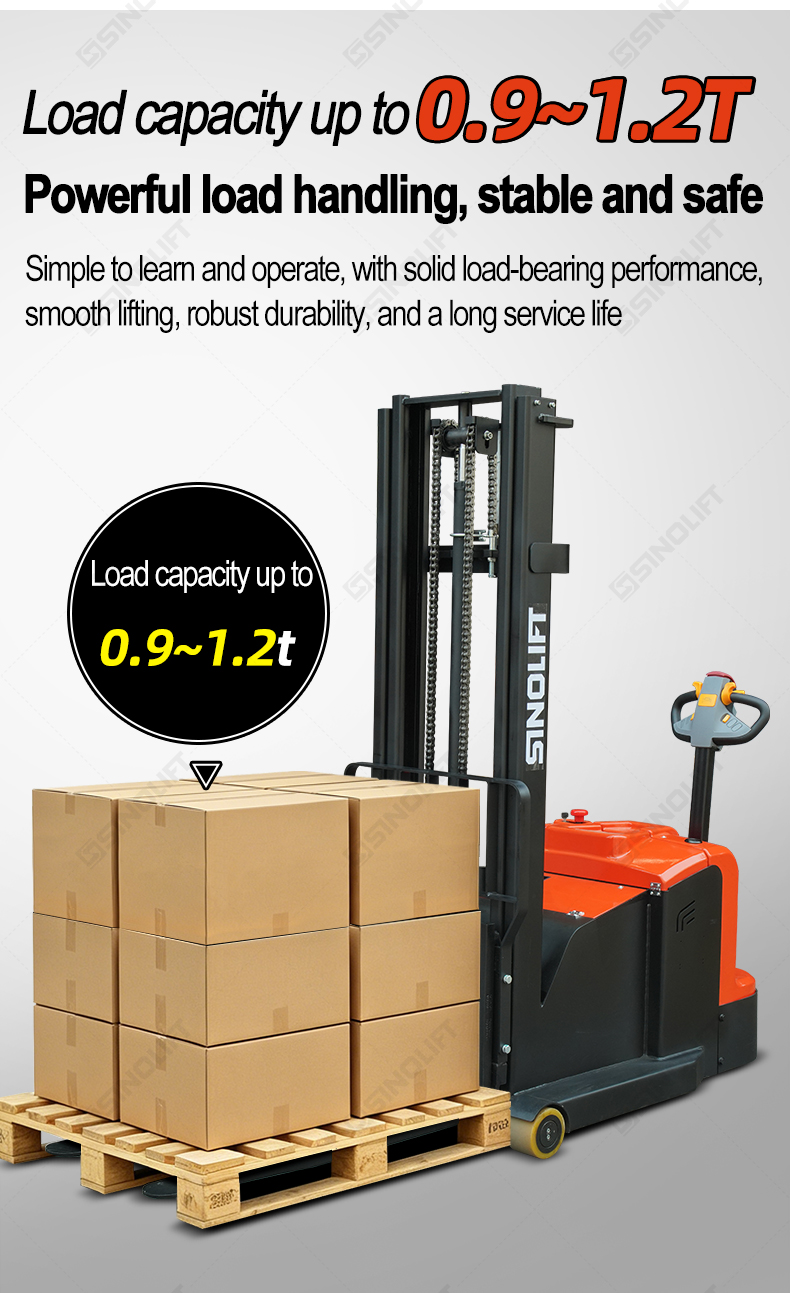

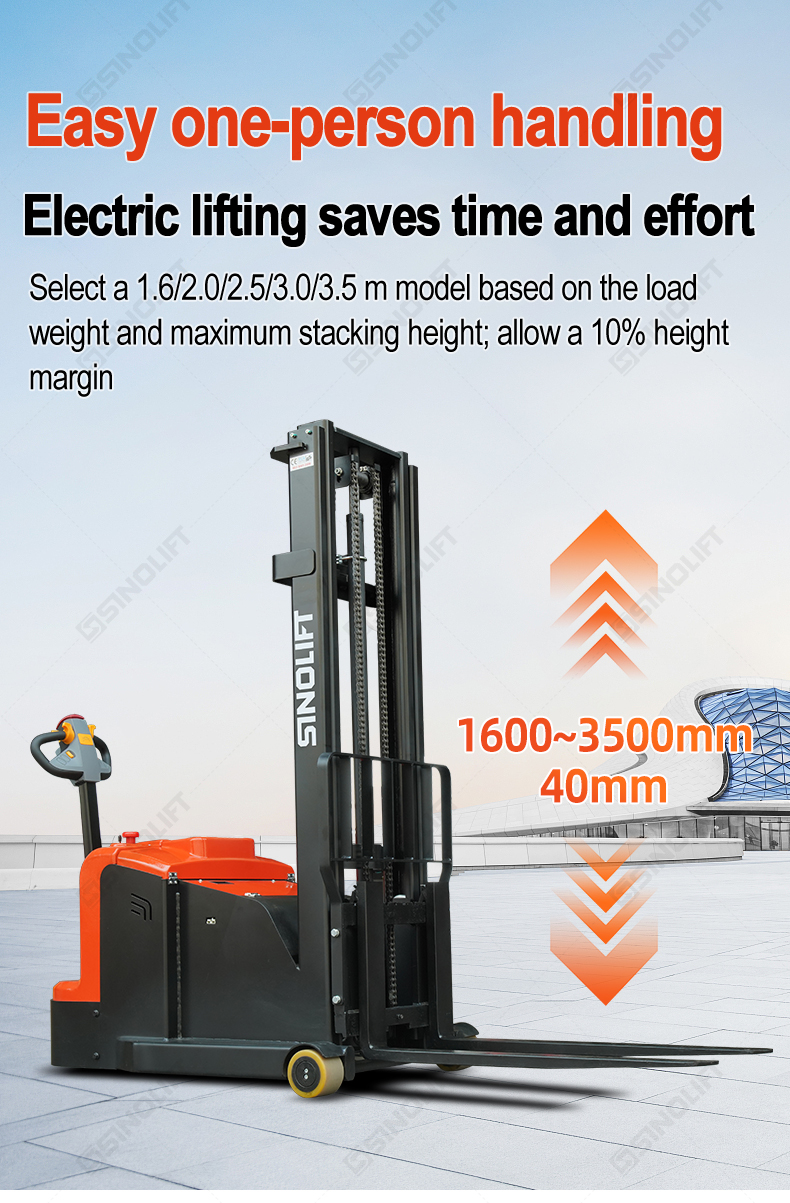

What is the maximum lifting height and load capacity? The series handles load capacities of 0.9 to 1.2 tonnes (900–1,200 kg). Depending on the specific mast configuration you select, the maximum free lift height can reach up to 3.5 meters (3,500 mm). We recommend leaving a 10% height margin when selecting your mast.

Is it easy to maneuver in tight warehouse spaces? Yes. The stacker is designed with a highly compact chassis featuring a turning radius of approximately 1,257 mm. It also includes a specialized creep-speed button on the handle, ensuring safe, slow-motion control when navigating narrow aisles or positioning loads.

What maintenance is required for the battery and lifting mechanism? The truck is equipped with a 24V/100Ah maintenance-free battery (with Li-ion options available), eliminating the need for daily battery watering. Additionally, the high-quality composite chain and upgraded sealed hydraulic cylinders provide smooth lifting with no risk of oil leaks, keeping your maintenance time and costs to a minimum.
