DG360 DG720 DG1080 DG1440 Forklift Mounted Drum Grab

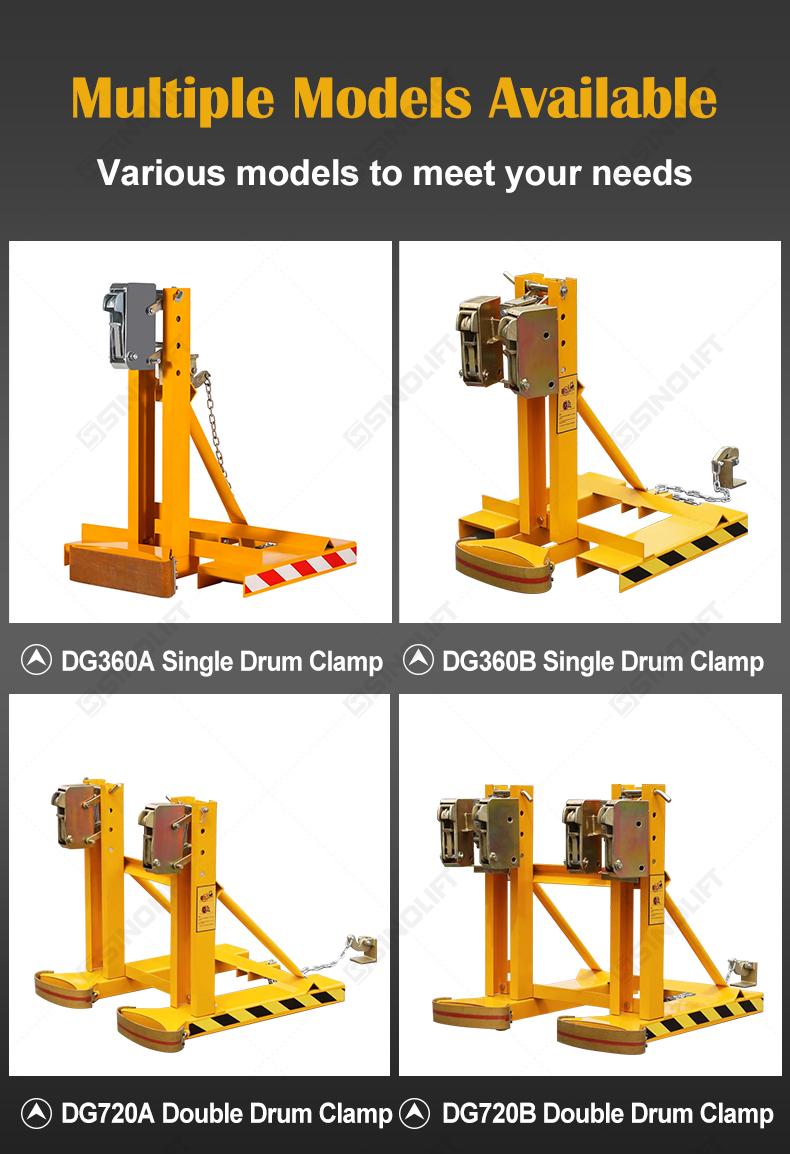

DG360 DG720 DG1080 DG1440
Quantity:
Forklift Mounted Drum Grab
*Purely mechanical design of single drum single head fixture can be easily mated with forklift, relying only on the movement of the forklift, no other power is required.
*Capable of handling a wider range of drum types, including steel, plastic, fiber and hooped open drums.
* Fully automatic mechanical operation, with the chuck adjustable up and down to accommodate different sizes of drums.
*Handles a wide range of sizes of open as well as closed drums.
| Model | Drum Grab DG360A | Drum Grab DG720A | Drum Grab DG1080A | Drum Grab DG1440A | |
| Capacity | kg | 360 | 360*2 | 360*3 | 360*4 |
| Net Weight | kg | 41 | 58 | 98 | 126 |
| Overall Size | mm | 780*670*850 | 780*910*850 | 1080*1520*850 | 2140*1080*850 |
| Load Center | mm | 1150 | 1150 | 1150 | 1150 |
| Grab Min. Height | mm | 525 | 525 | 525 | 525 |
| Grab Max. Height | mm | 750 | 750 | 750 | 750 |
| Grab Middle Height | mm | 675--600 | 675--600 | 675--600 | 675--600 |
| Foks leg (length*width) | mm | 150*55 | 150*55 | 150*55 | 150*55 |
| Straddle inner Width | mm | 340 | 430 | 670 | 670 |
| Staddle outline Width | mm | 660 | 750 | 990 | 990 |
| Straddle Length(mm) | mm | 600 | 600 | 900 | 900 |
