GTC-H Aluminum Vertical Aerial Work Platform
GTC-H

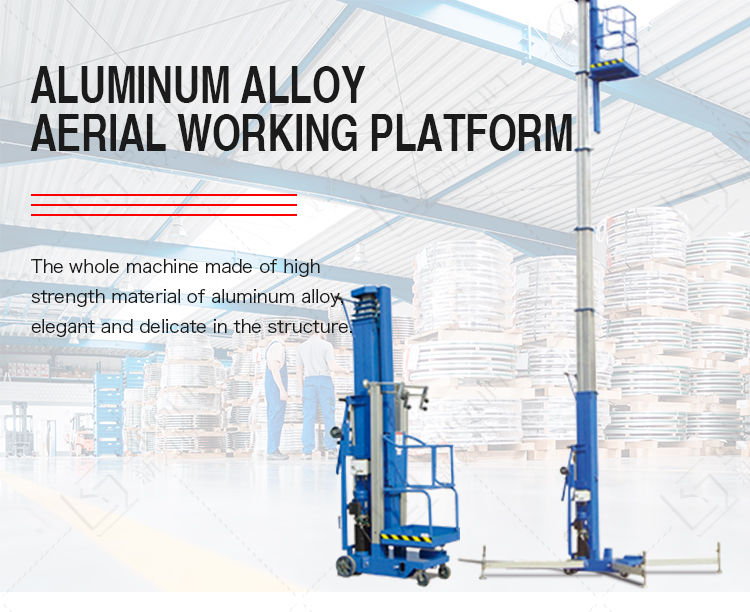

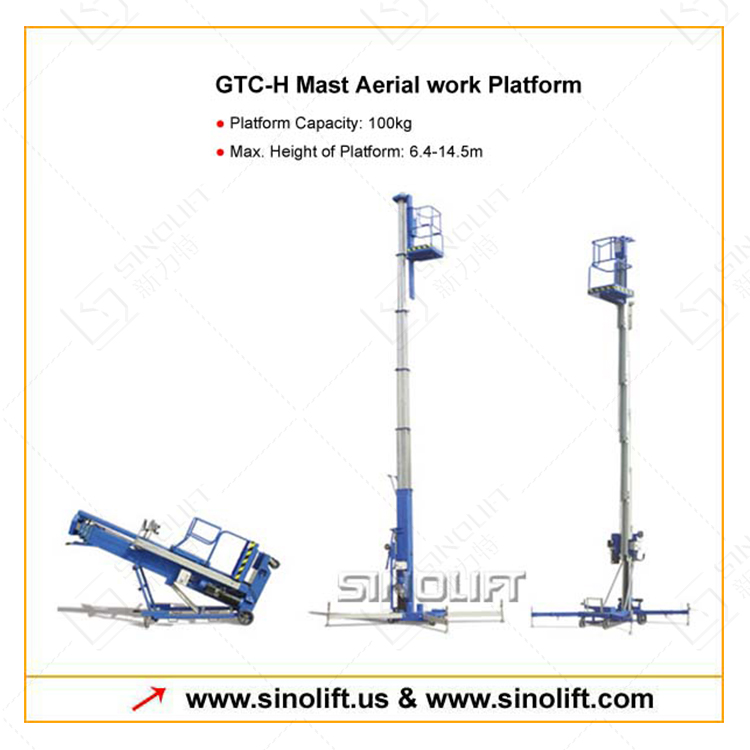

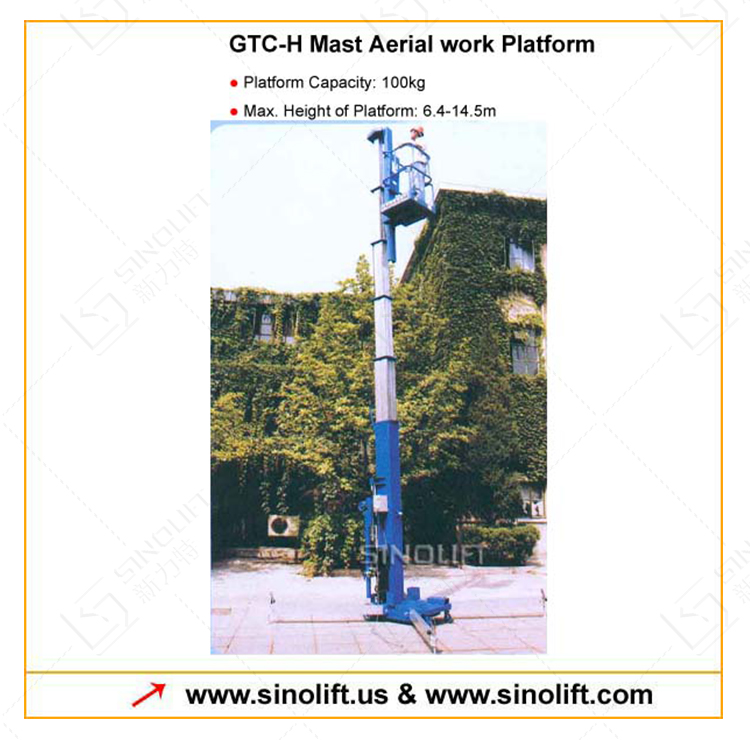

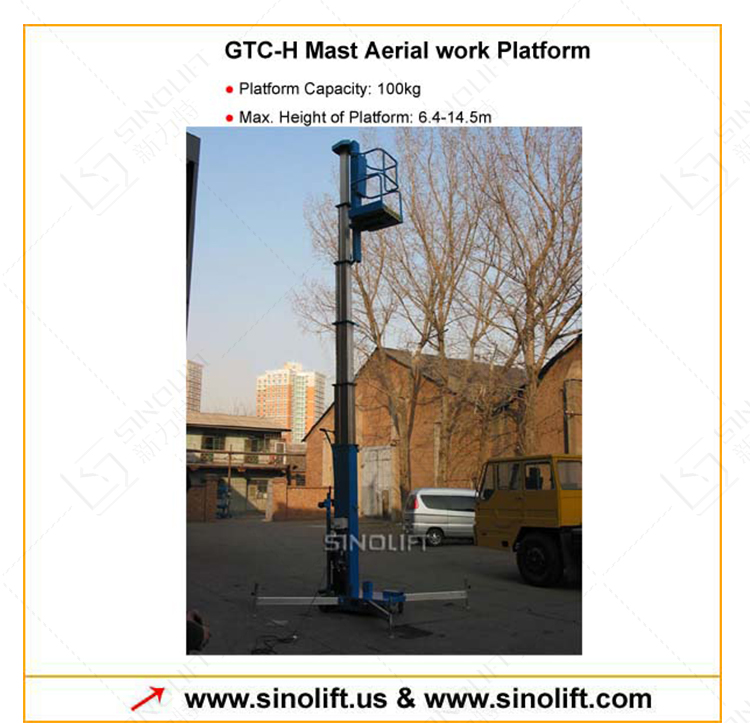

GTC-H Aluminum Vertical Aerial Work Platform

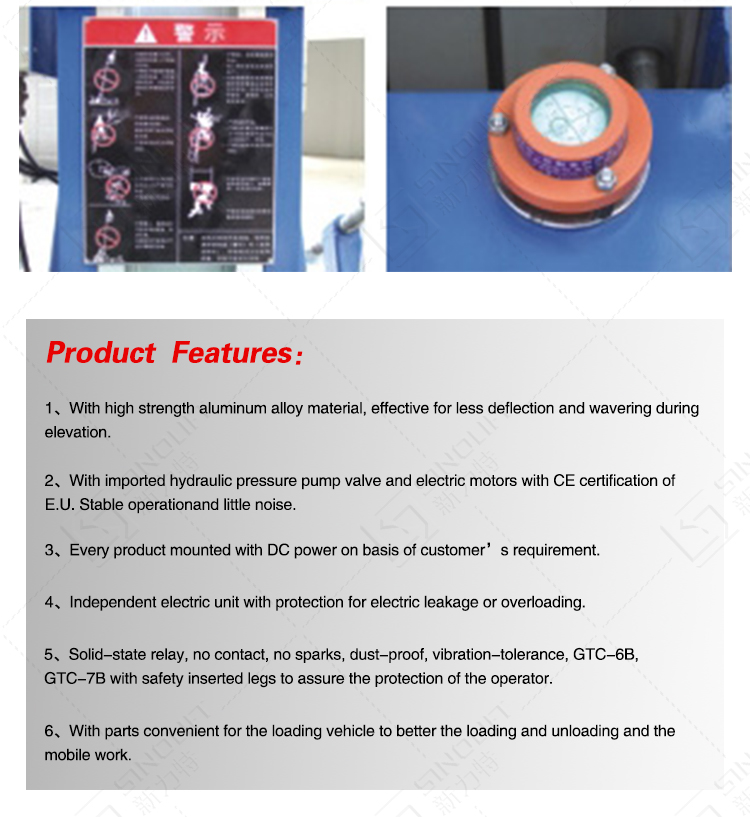

-With high strength aluminum alloy material, effective for less deflection and wavering during elevation.
-With imported hydraulic pressure pump valve and electric motors with CE certification of E.U. Stable operation and little noise
-Every product mounted with DC power on basis of customer’s requirement.
-Independent electric unit with protection for electric leakage or overloading.
-Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance, GTC-6B, GTC-7B with safety inserted legs to assure the protection of the operator.

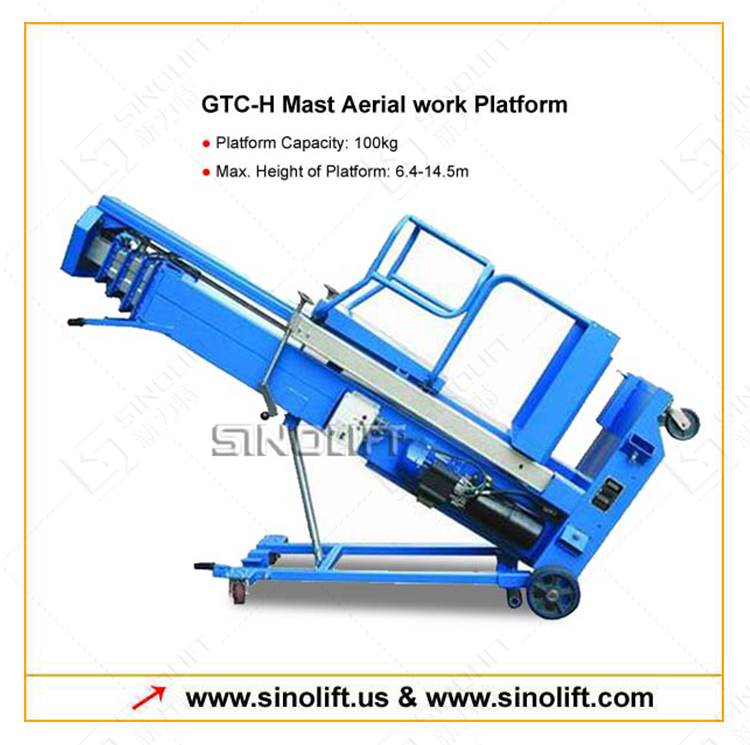

-With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.
-With high strength aluminum alloy material, effective for less deflection and wavering during elevation.
-With imported hydraulic pressure pump valve and electric motors with CE certification of E.U. Stable operation and little noise
-Every product mounted with DC power on basis of customer’s requirement.
-Independent electric unit with protection for electric leakage or overloading.
-Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance, GTC-6B, GTC-7B with safety inserted legs to assure the protection of the operator.
-With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.
Quantity:

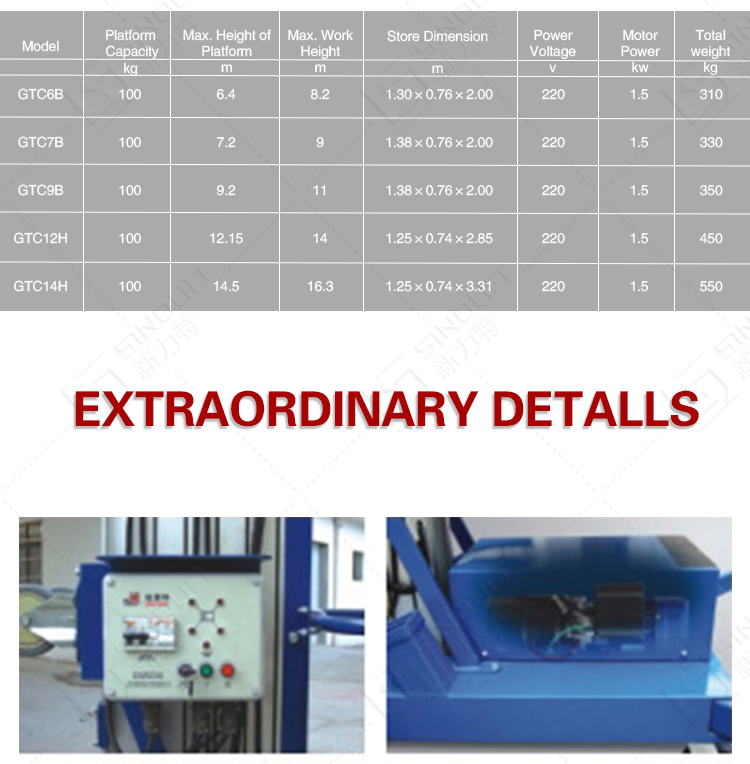

| Model | Platform Capacity | Max. Height of Platform | Max. Work Height | Store Dimension | Power Voltage | Motor Power | Total weight |
| kg | m | m | m | v | kw | kg | |
| GTC6B | 100 | 6.4 | 8.2 | 1.30×0.76×2.00 | 220 | 1.5 | 310 |
| GTC7B | 100 | 7.2 | 9 | 1.38×0.76×2.00 | 220 | 1.5 | 330 |
| GTC9B | 100 | 9.2 | 11 | 1.38×0.76×2.00 | 220 | 1.5 | 350 |
| GTC12H | 100 | 12.15 | 14 | 1.25×0.74×2.85 | 220 | 1.5 | 450 |
| GTC14H | 100 | 14.5 | 16.3 | 1.25×0.74×3.31 | 220 | 1.5 | 550 |
