Heavy-duty all-terrain manual pallet truck RP1000A/RP1250A with 1250kg capacity

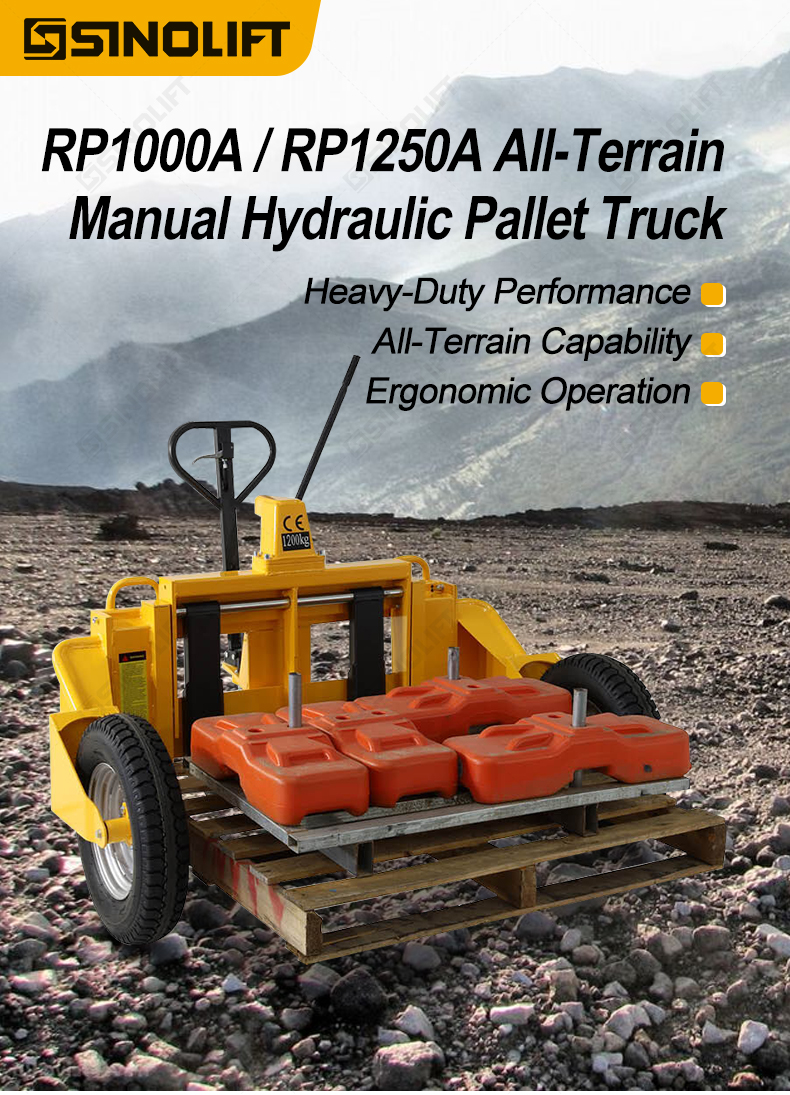

RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck

RP1000A  RP1250A
he RP1000A/RP1250A All-Terrain Manual Pallet Truck delivers heavy-duty performance (up to 1,250kg) with reinforced construction for rugged outdoor use. Its ergonomic design and adjustable forks ensure effortless handling on construction sites, warehouses, and nurseries, while IP54-rated protection and large pneumatic tires conquer uneven terrain.
Quantity:
Contact Now
add to cart
All Products

Key Features of RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck

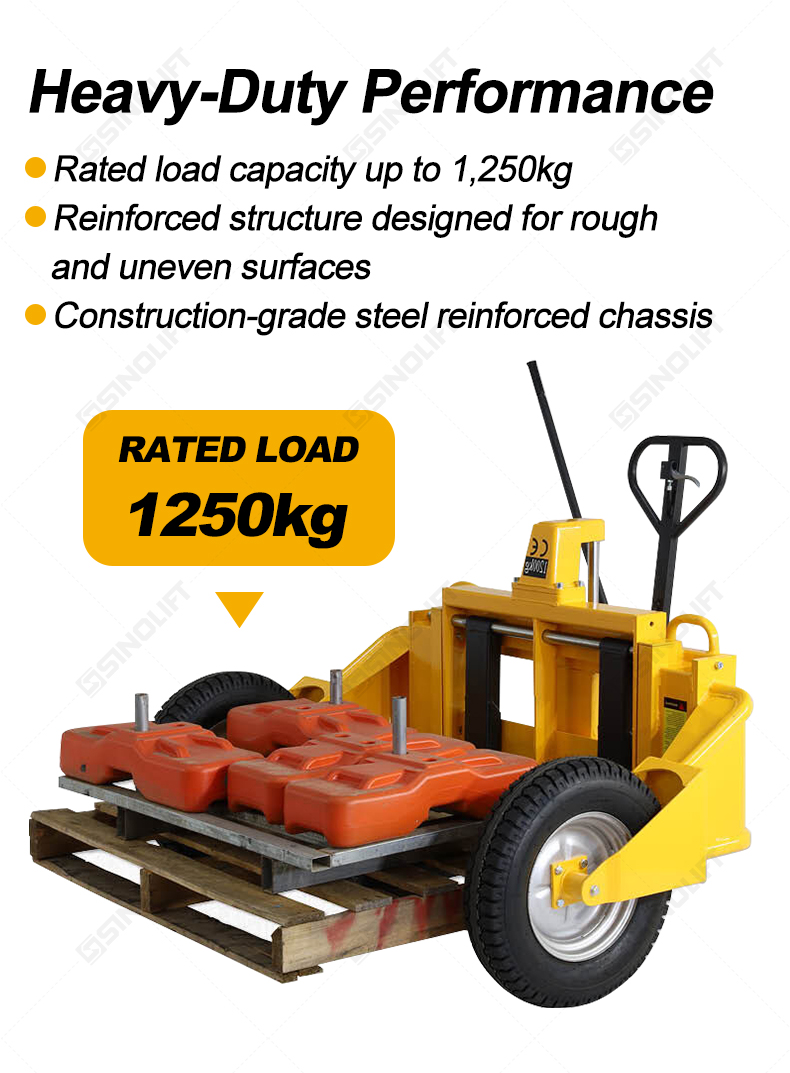

  1. Heavy-Duty Performance – Supports up to 1,250kg load capacity with a reinforced steel chassis for rugged use.

  2. All-Terrain Capability – Features IP54-rated dust/water resistance and 155mm low-pressure pneumatic tires with 20% better shock absorption for rough, uneven, or muddy surfaces.

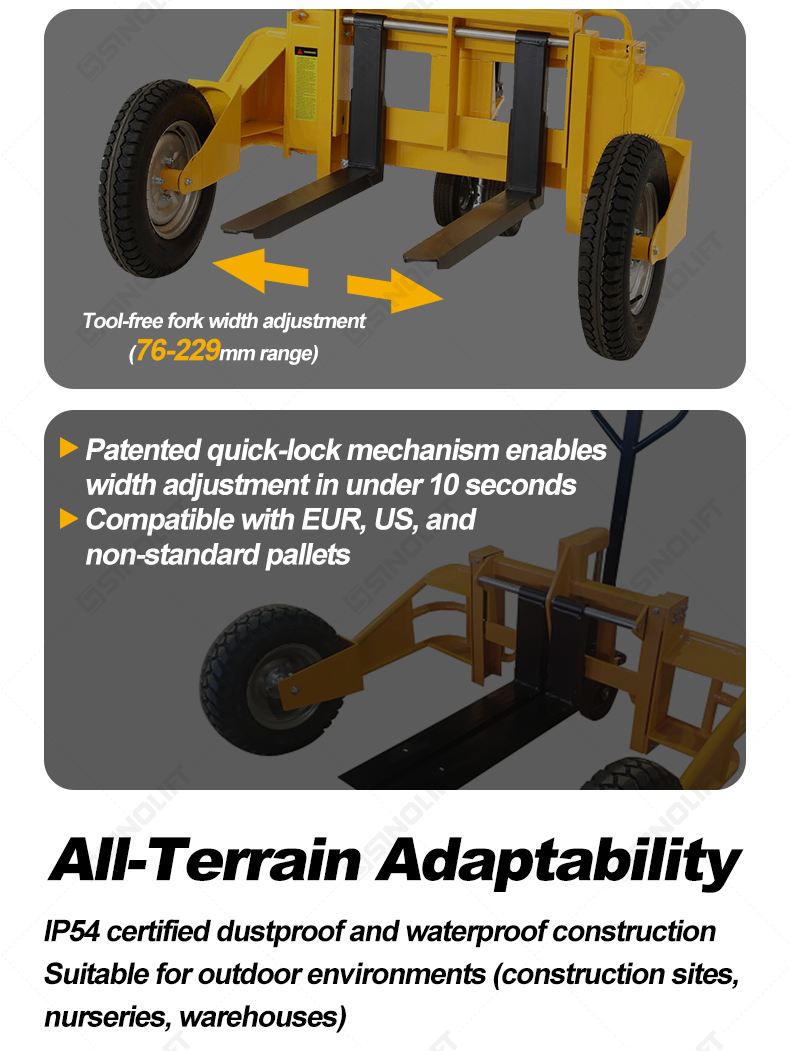

  3. Smart Adjustability – Tool-free fork width adjustment (76-229mm range) with a patented quick-lock mechanism (adjusts in under 10 seconds), compatible with EUR, US, and non-standard pallets.

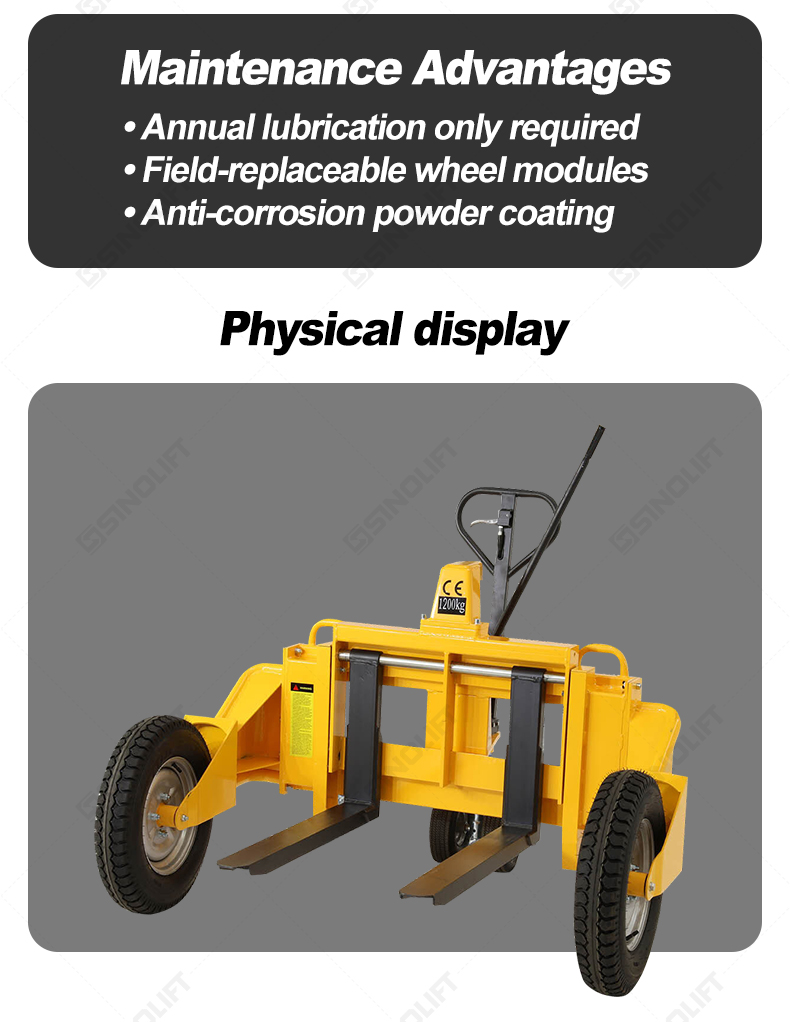

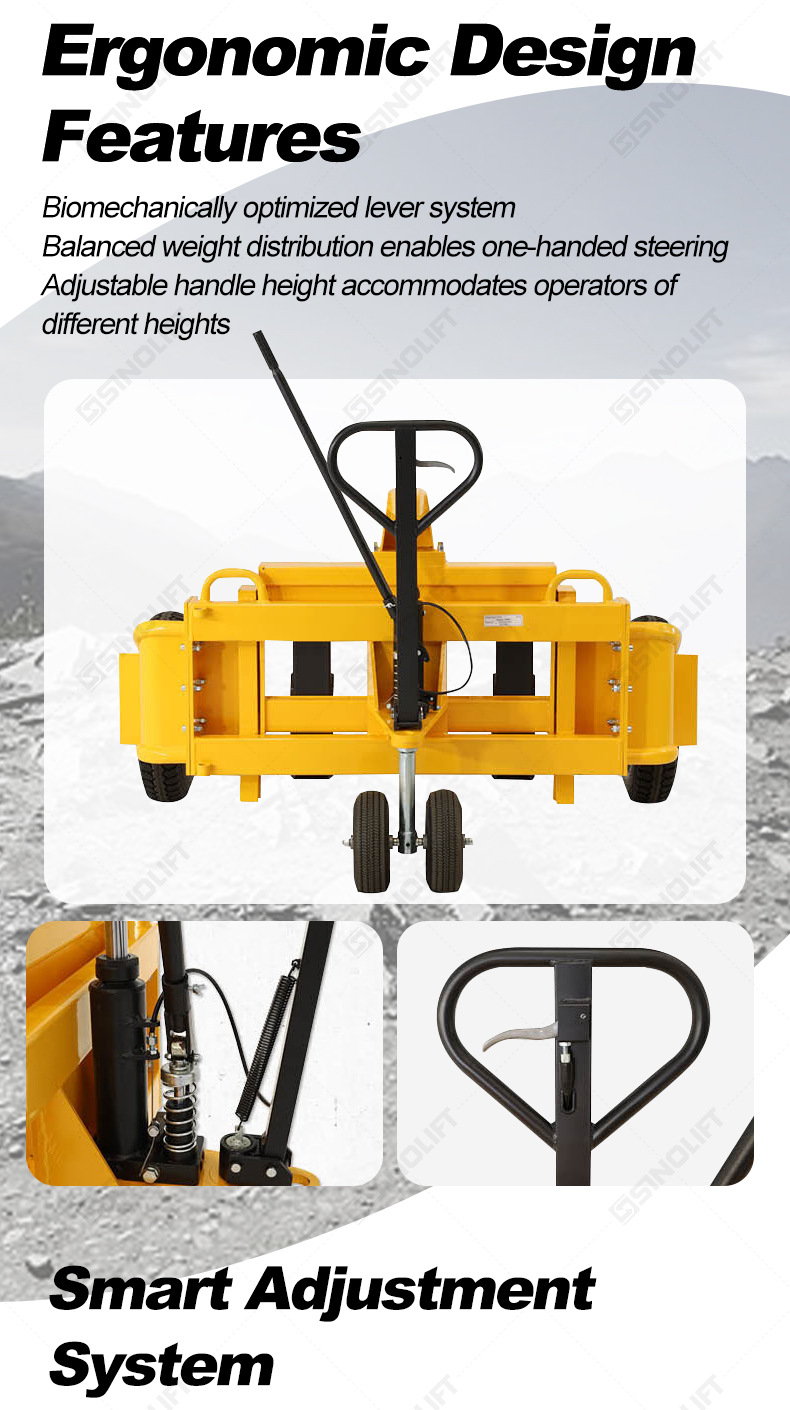

  4. Ergonomic Operation – Biomechanically optimized lever system for smooth handling, balanced weight distribution for one-handed steering, and height-adjustable handle for different user heights.

  5. Versatile Applications – Ideal for construction sites, warehouses, nurseries, agriculture, and factories, especially in tight spaces where traditional forklifts can’t operate.

Product Specifications

SpecificationUnitRP1000ARP1250A
Rated Capacity kg10001250
Max. Fork Height h1 mm240240
Min. Fork Height h mm7070
Fork Length l mm800 (860)800 (860)
Load Center C mm400 (430)400 (430)
Adjustable Fork Width mm216-680256-680
Individual Fork Width  b mm100120
Distance inside the Front Wheel B1 mm12301230
Axle Distance between front Wheel and rear steering wheel Y mm973973
Front Load Wheel (Dia.×Wid) mmØ568×145Ø568×145
Rear Steering Wheel (Dia.×Wid) mmØ250Ø250
Turn Radius Wa mm15001500
Overall Size (L×W×H) mm1406×1670×12801406×1670×1280
Net Weight kg210238
