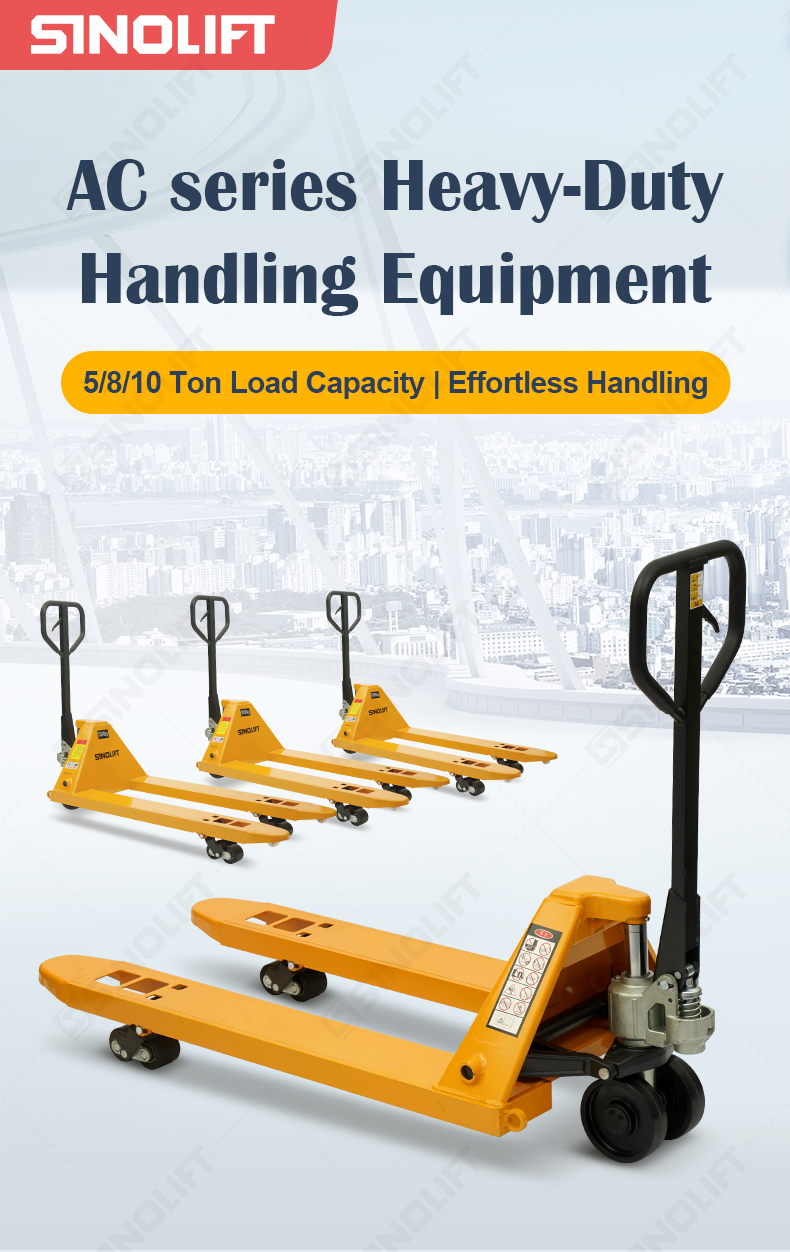

AC series Heavy-Duty Manual Hydraulic Pallet Truck

This pallet truck is Designed for efficient lifting and long-term dependability you can trust.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Key Features

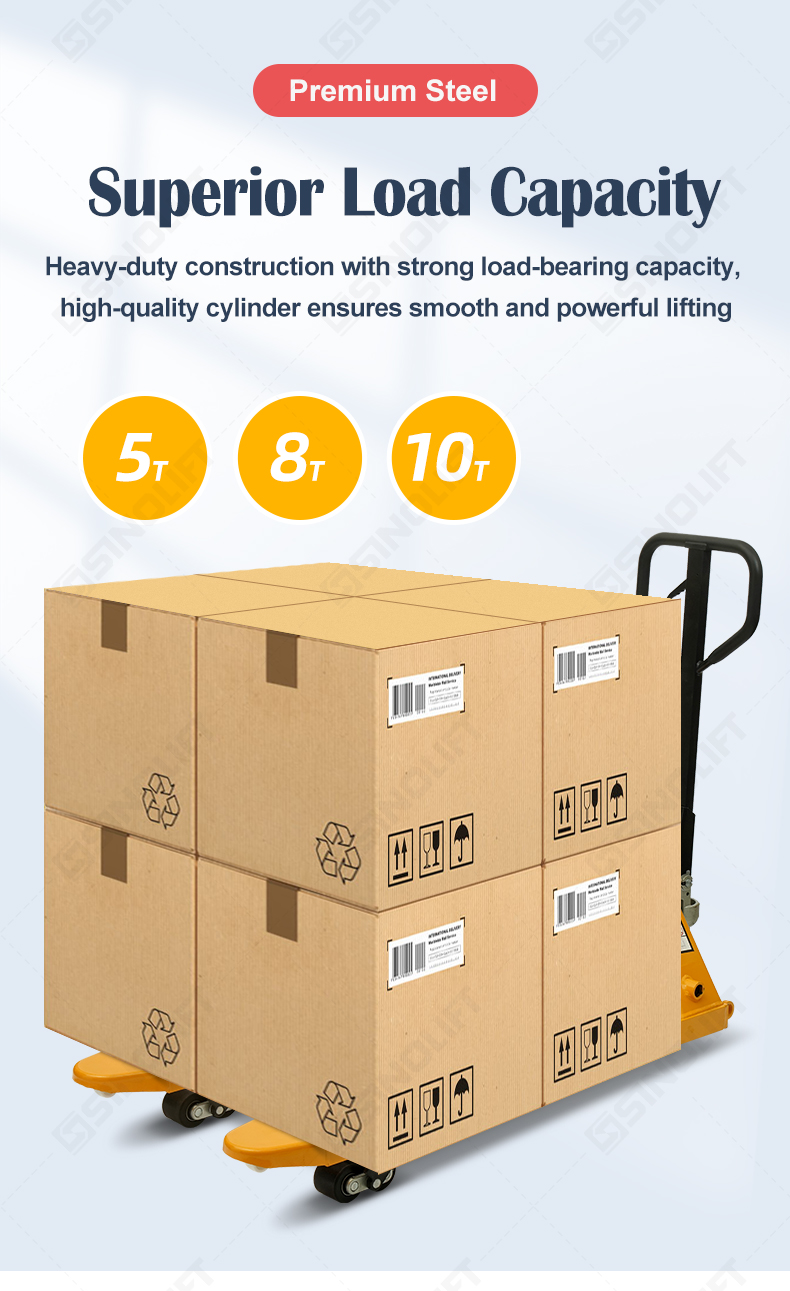

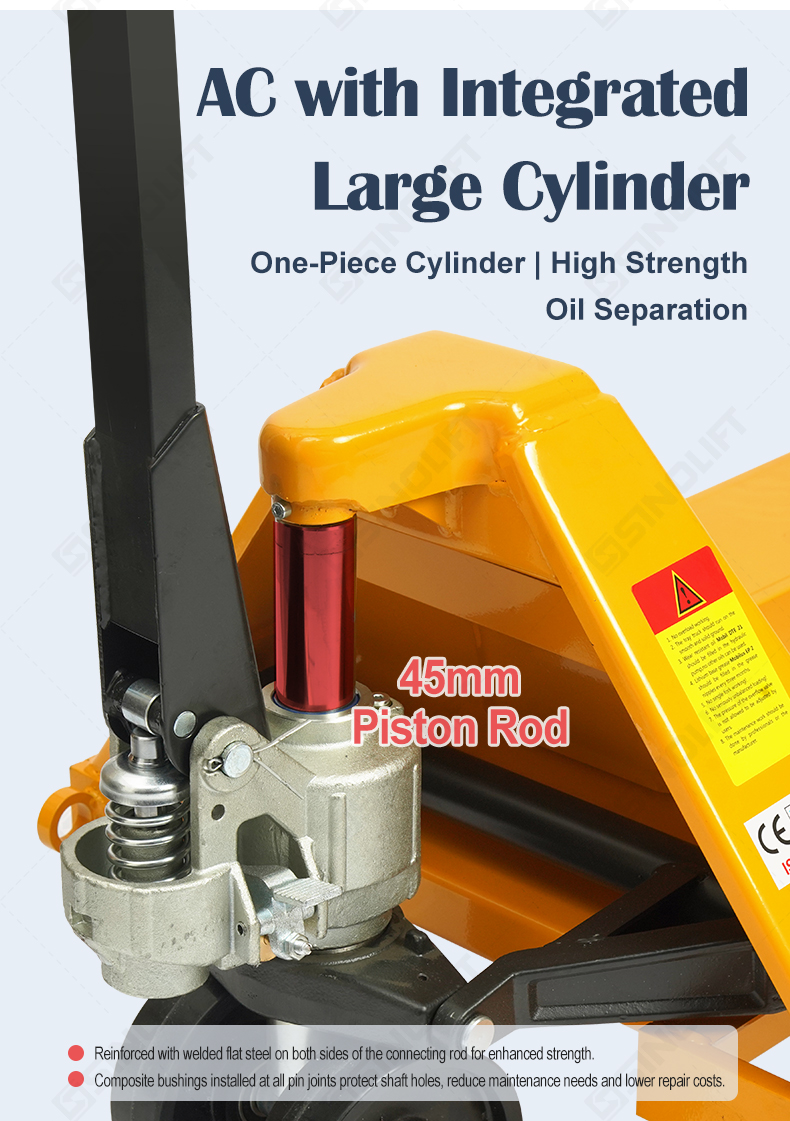

Heavy-duty construction with strong load-bearing capacity, high-quality cylinder ensures smooth and powerful lifting
Hydraulic system with anti-burst valve prevents sudden load drop in case of hose rupture.

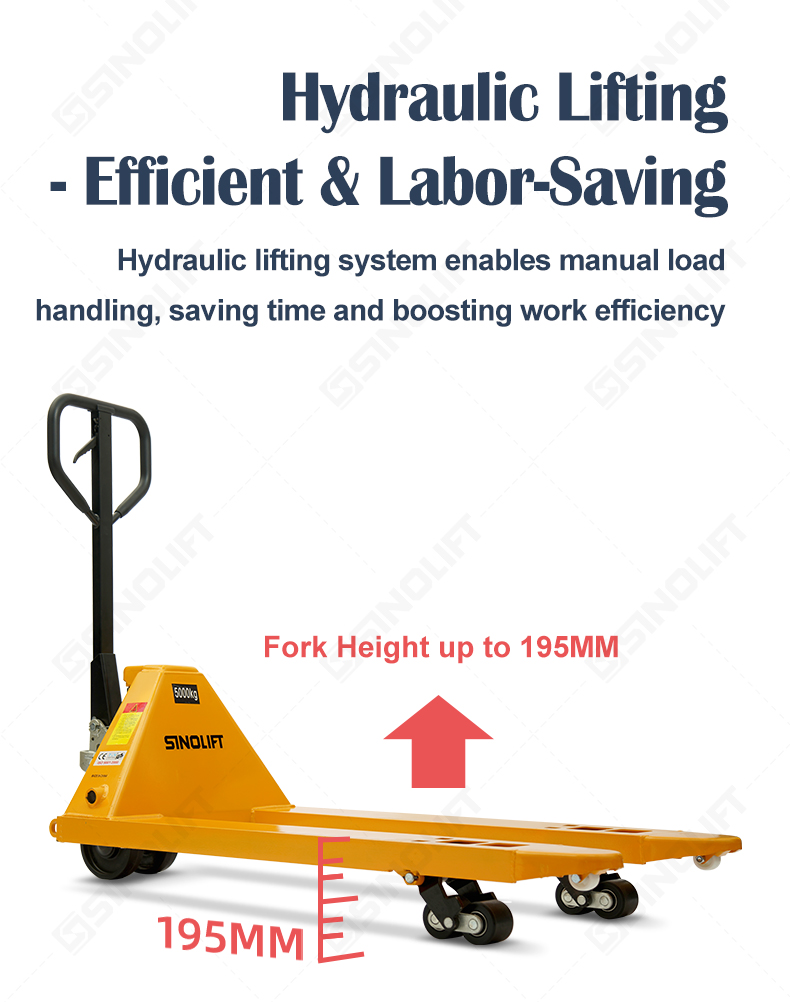

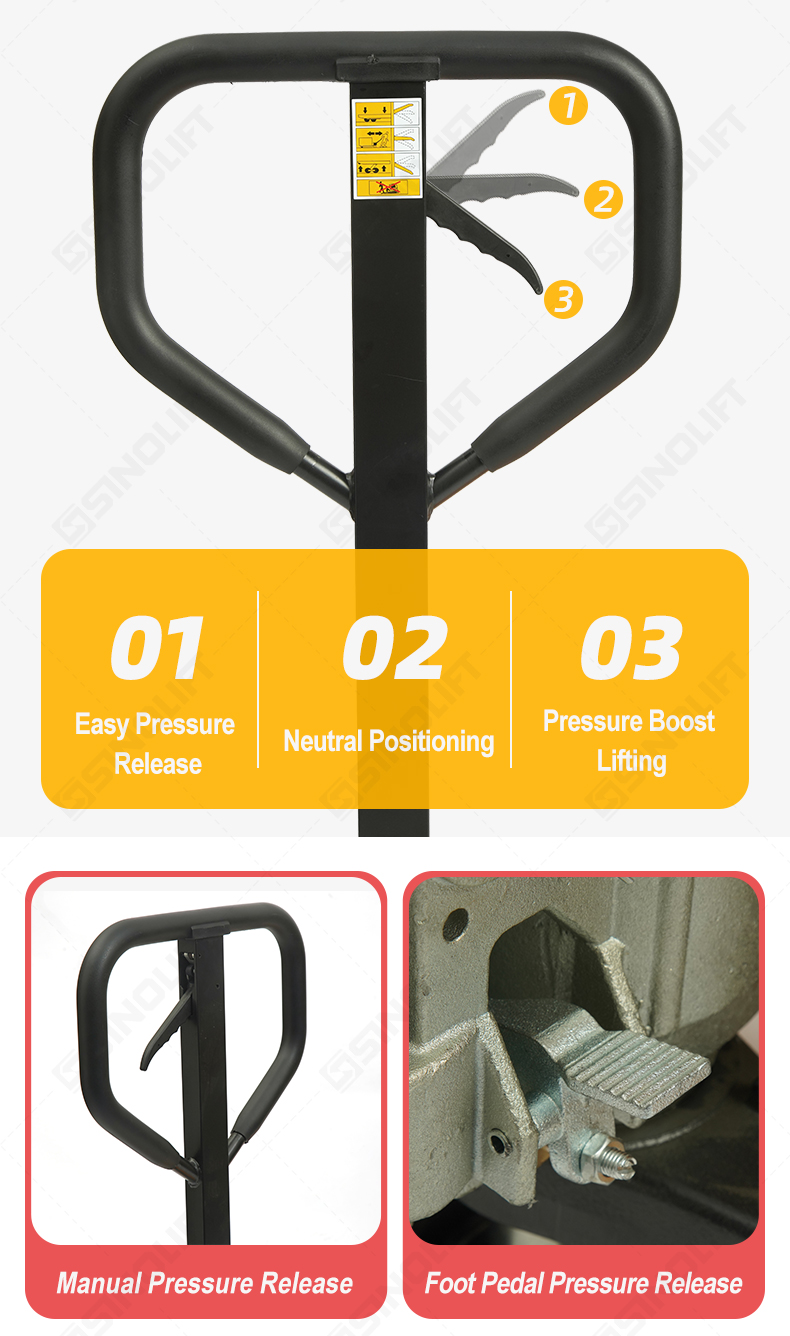

Hydraulic lifting system enables manual load handling, saving time and boosting work efficiency.

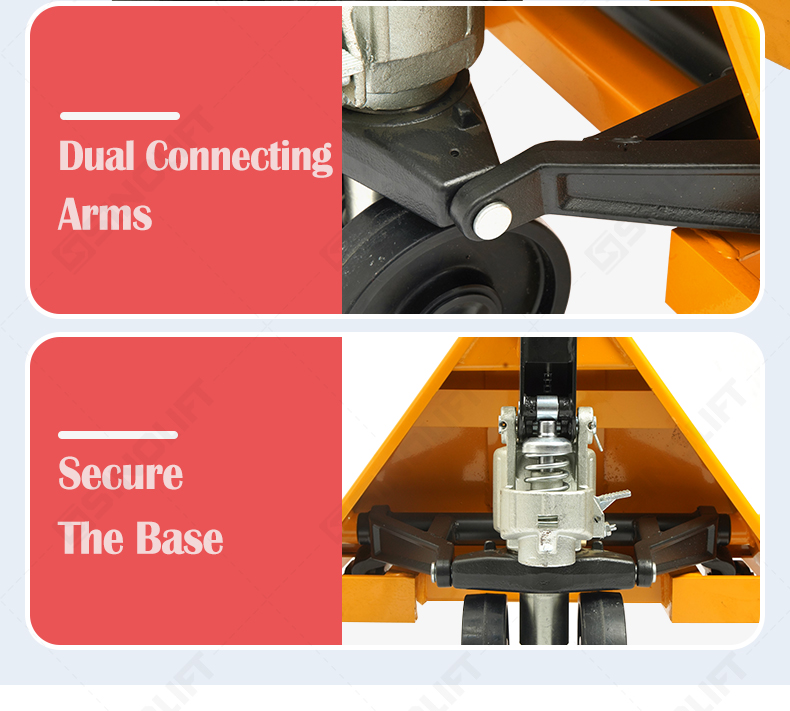

Composite bushings installed at all pin joints protect shaft holes, reduce maintenance needs and lower repair costs.

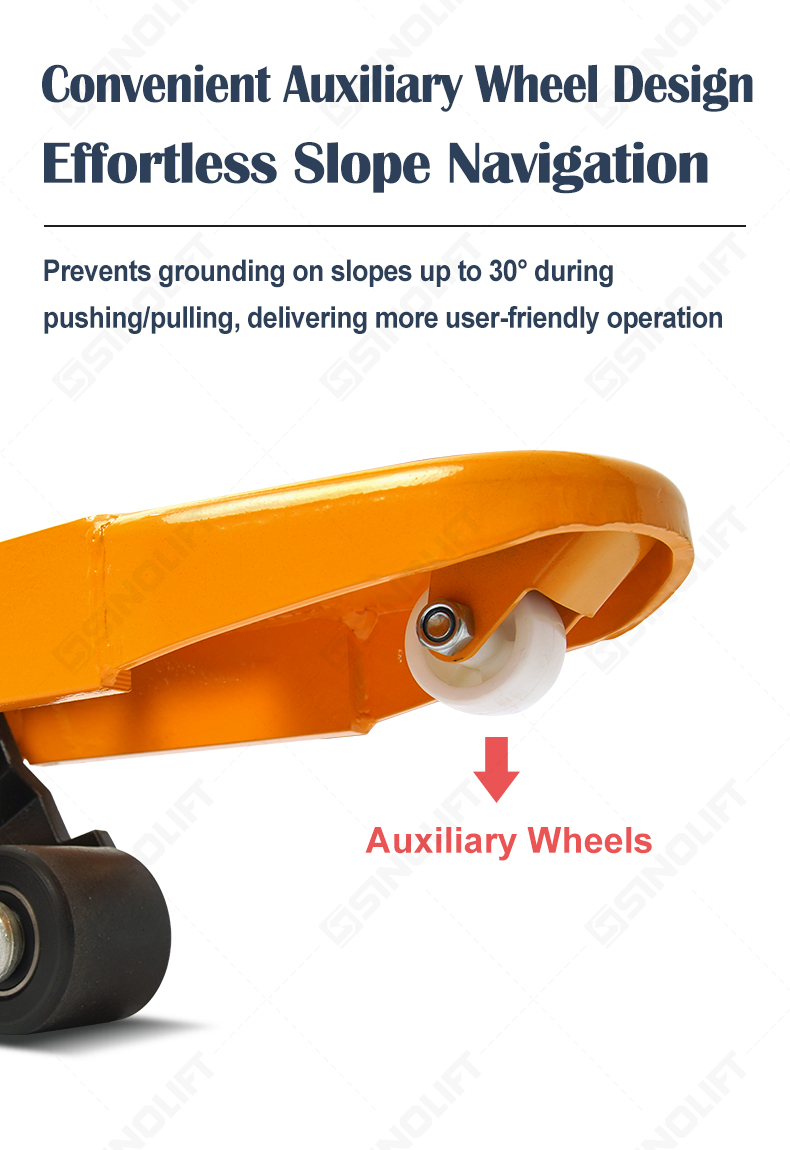

Prevents grounding on slopes up to 30° during pushing/pulling, delivering more user-friendly operation

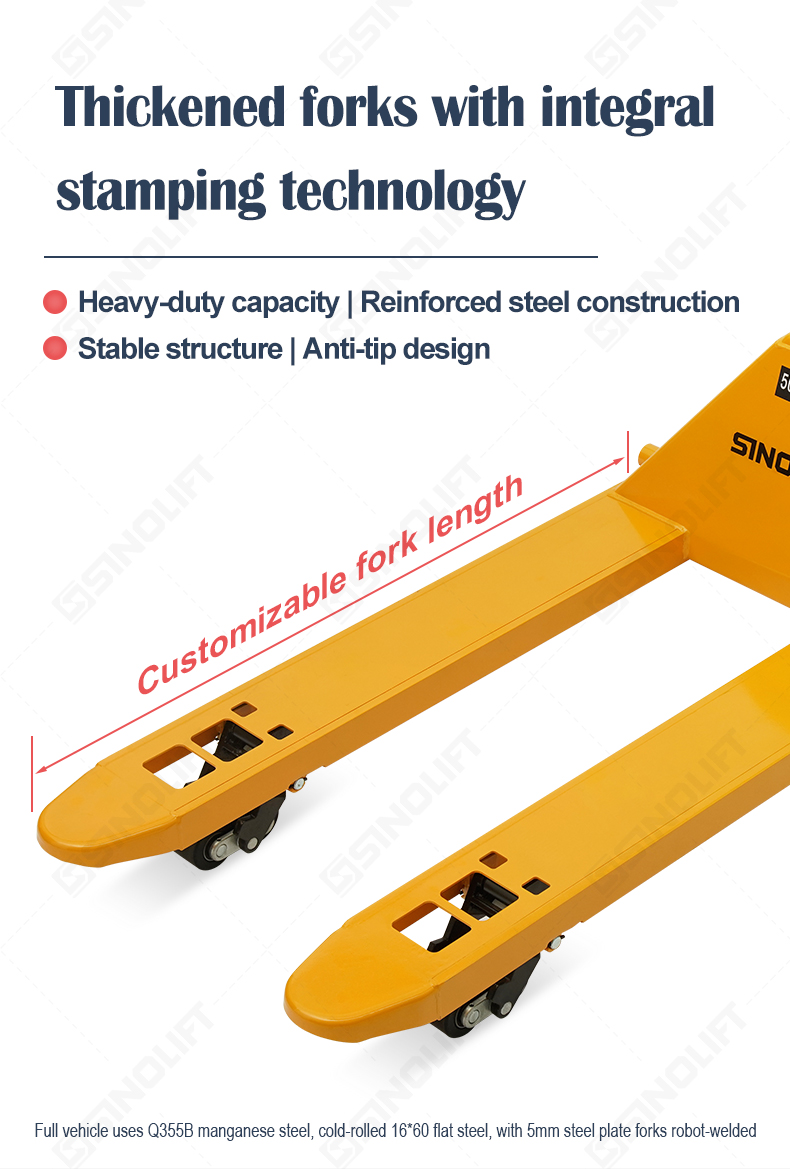

Full vehicle uses Q355B manganese steel, cold-rolled 16*60 flat steel, with 5mm steel plate forks robot-welded

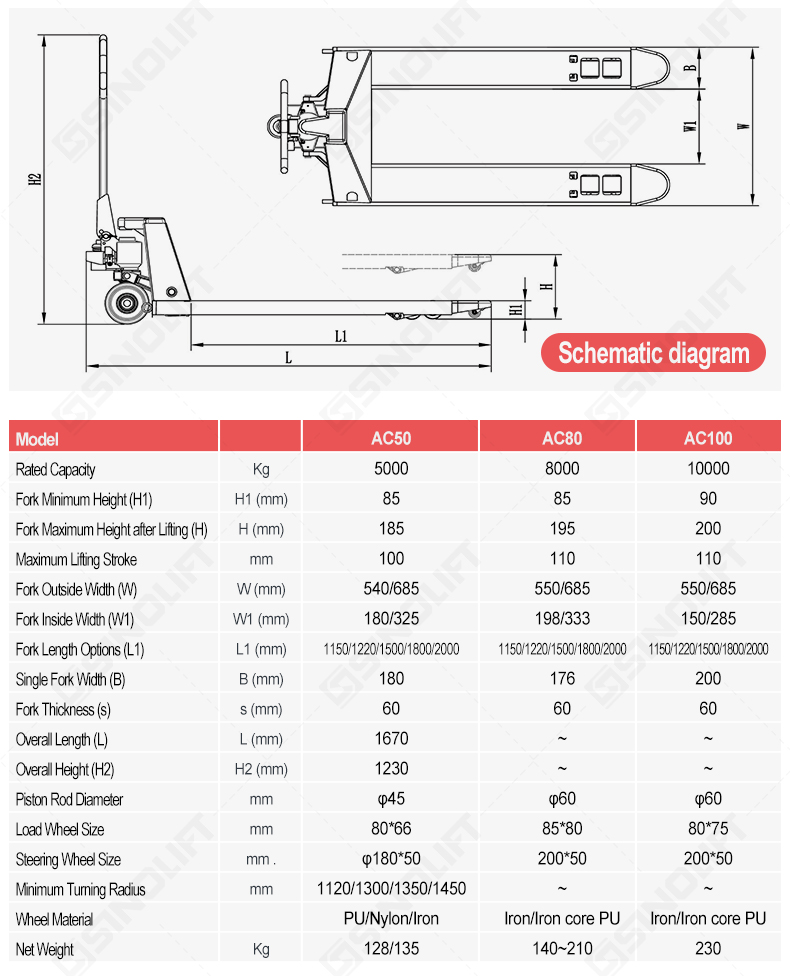

Product Specifications

Model	Unit	AC50	AC80	AC100
Rated Capacity	Kg	5000	8000	10000
Fork Minimum Height (H1)	mm	85	85	90
Fork Maximum Height after Lifting (H)	mm	185	195	200
Maximum Lifting Stroke	mm	100	110	110
Fork Outside Width (W)	mm	540/685	550/685	550/685
Fork Inside Width (W1)	mm	180/325	198/333	150/285

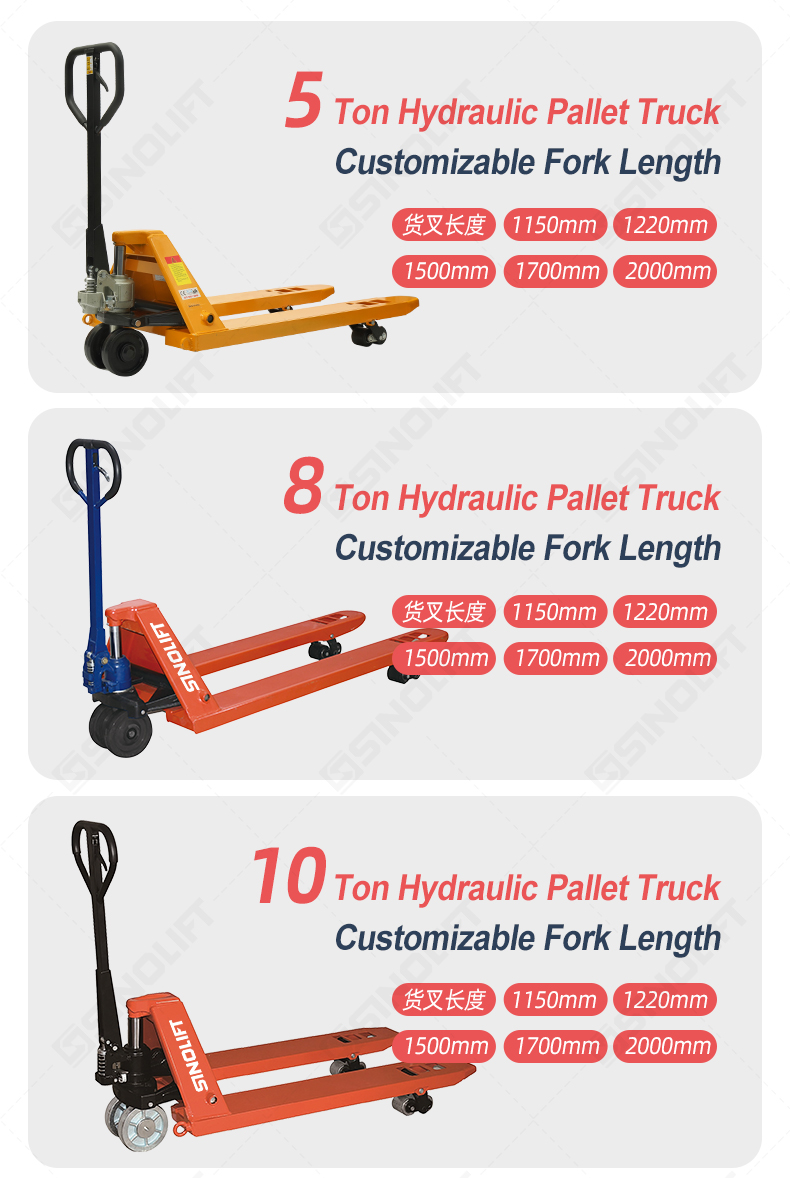

Fork Length Options (L1)	mm	1150/1220/1500/1800/2000	1150/1220/1500/1800/2000	1150/1220/1500/1800/2000
Single Fork Width (B)	mm	180	176	200
Fork Thickness (s)	mm	60	60	60
Overall Length (L)	mm	1670
Overall Height (H2)	mm	1230
Piston Rod Diameter	mm	φ45	φ60	φ60

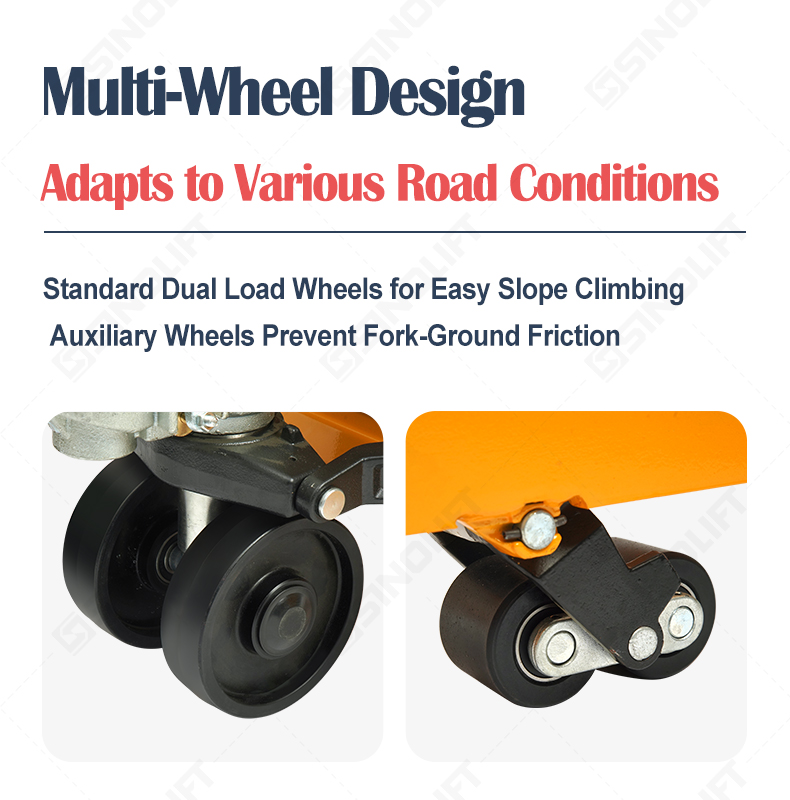

Load Wheel Size	mm	80*66	85*80	80*75
Steering Wheel Size	mm	φ180*50	200*50	200*50
Minimum Turning Radius	mm	1120/1300/1350/1450
Wheel Material		PU/Nylon/Iron	Iron/Iron core PU	Iron/Iron core PU
Net Weight	Kg	128/135	140~210	230
