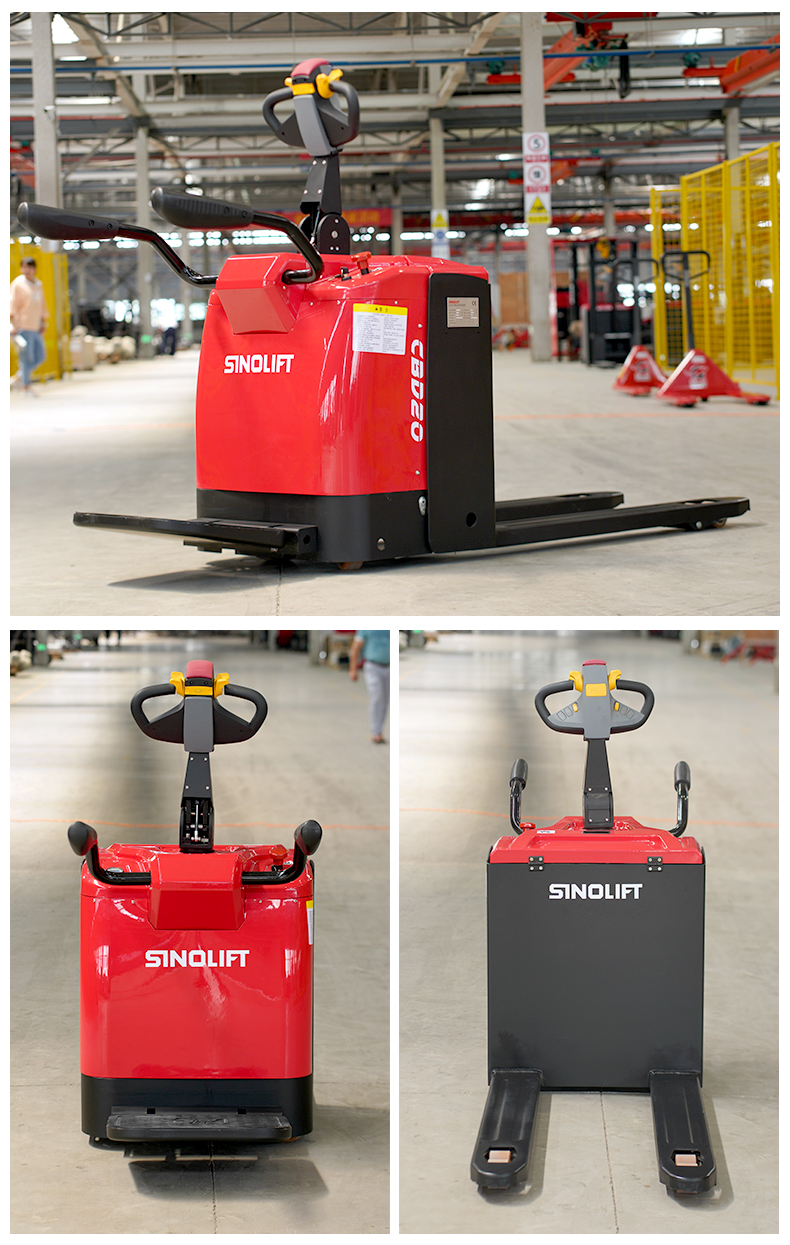

CBD20E CBD25E High Efficiency Lead-Acid Battery Operated Stand-on Electric Pallet Truck
CBD20E CBD25E
Quantity:
· Side arm support

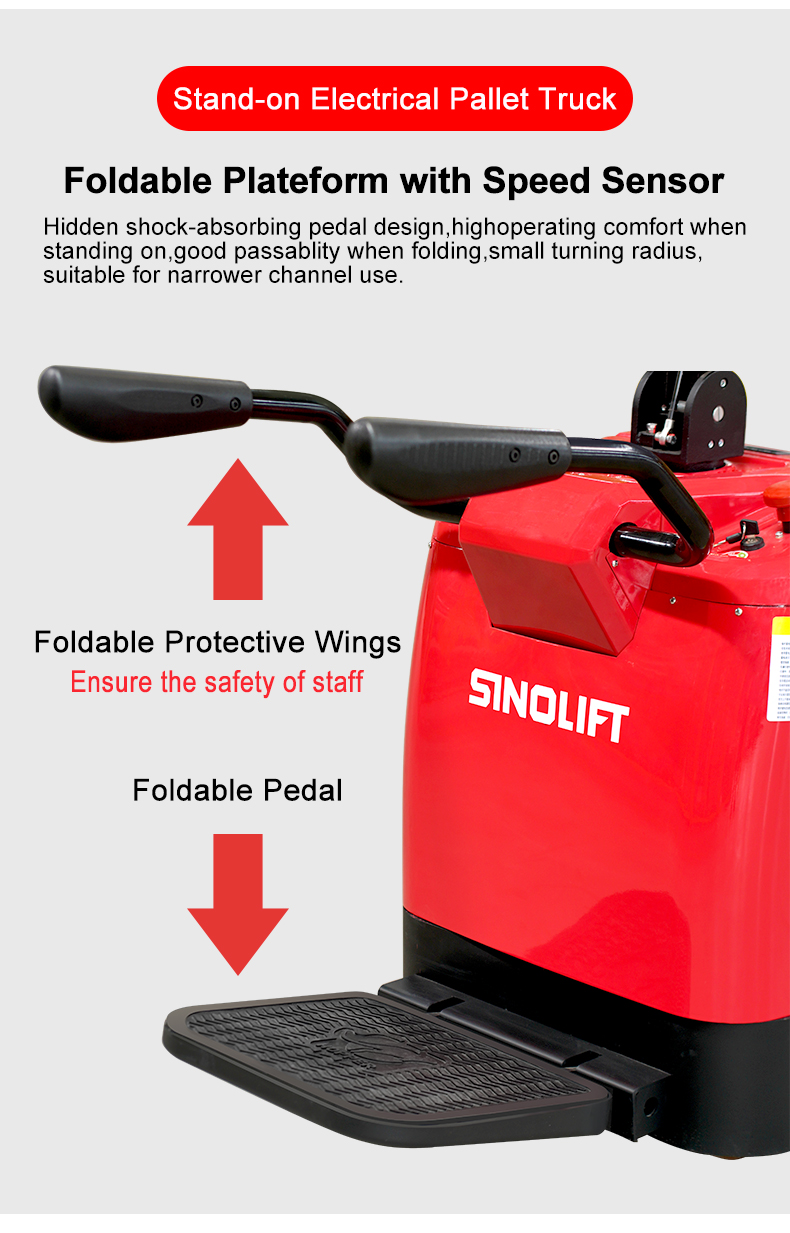

· Suspension Ride platform with Shock absorb
· Easy disassemble the auxiliary wheel without lifting the truck.

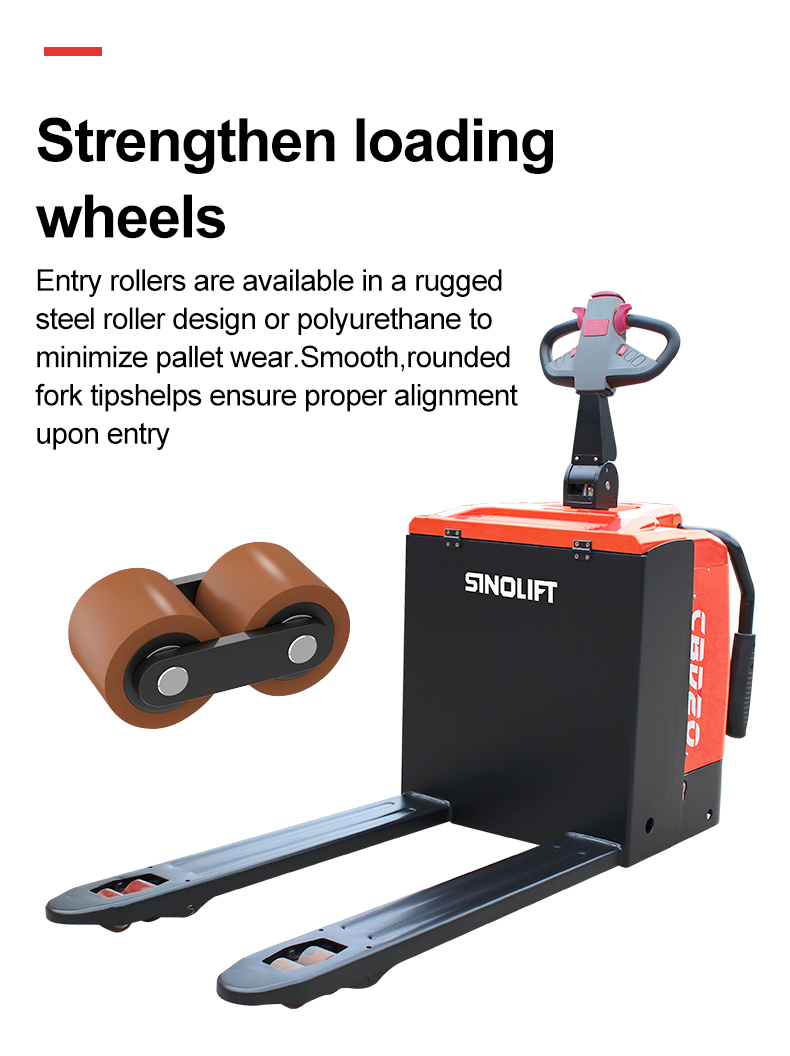

· Heavy duty tandem PU load wheel for heavy load tray move
· Full opened cover is easy for service accessibility.
· Side rail lifting structure reduces wearing and improves power efficiency

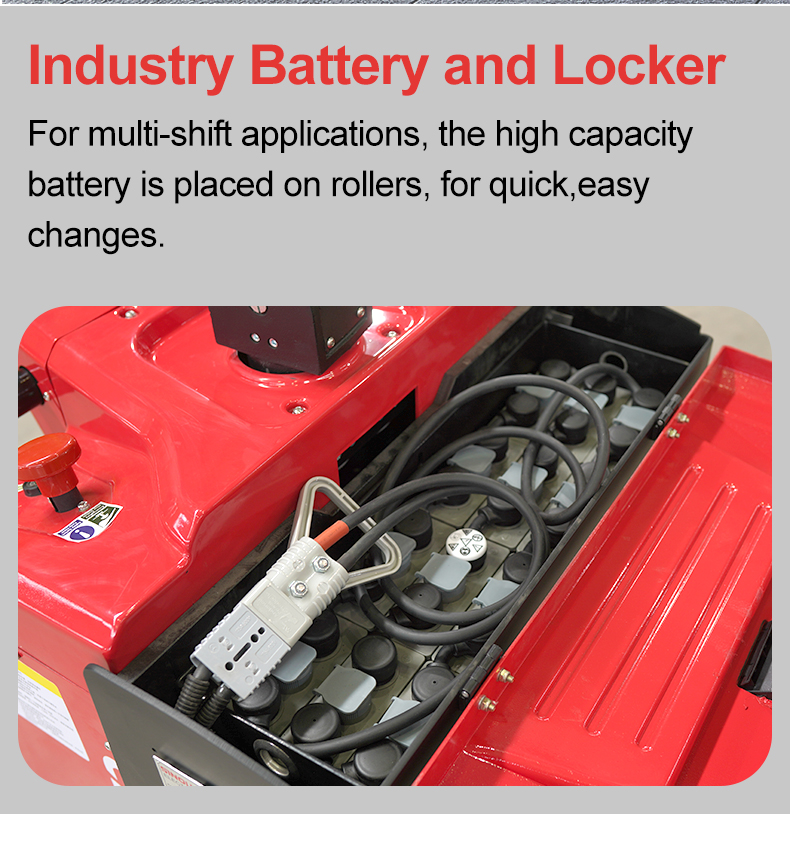

· 210 Ah high Capacity Lead acid Battery, Separate exterior Charger
| model | CBD20E | CBD25E | |
| Power type | electric | electric | |
| Driving style | Stand-on | Stand-on | |
| Steering method | Electric steering | Electric steering | |
| Rated load | kg | 2000 | 2500 |
| Load center distance | mm | 600 | 600 |
| Wheelbase | mm | 1400 | 1400 |
| Weight (including battery) | kg | 585 | 585 |
| Axle load at full load, drive side/load side | kg | 885/1700 | 885/1700 |
| Axle load at no load, drive side/load side | kg | 490/95 | 490/95 |
| Vehicle length (pedal stowed/expanded) | mm | 1850/2265 | 1850/2265 |
| Vehicle width | mm | 720 | 720 |
| Fork size | mm | 1200×160×50 | 1200×160×50 |
| Outer width of fork | mm | 540/685 | 540/685 |
| Minimum height of fork surface | mm | 85 | 85 |
| Lifting height | mm | 205 | 205 |
| Body clearance | mm | 35 | 35 |
| Minimum/maximum height of handle lever in operating position | mm | 1000/1450 | 1000/1450 |
| Turning radius (pedal retracted/expanded) | mm | 1675/2110 | 1675/2110 |
| Right-angle aisle width (tray 1000x1200) (pedal retracted/expanded) | mm | 2410/2845 | 2410/2845 |
| Right-angle aisle width (tray 800x1200) (pedal retracted/expanded) | mm | 2320/2755 | 2320/2755 |
| Tyre type | Polyurethane | Polyurethane | |
| Front wheel size | mm | φ80*60 | φ80*60 |
| Balance wheel size | mm | φ115*55 | φ115*55 |
| Drive wheel size | mm | φ230*75 | φ230*75 |
| Number of wheels, front/rear (x=driving wheels) | 4/1x+2 | 4/1x+2 | |
| Drive damping method | / | / | |
| Driving speed (full load/no load) | Km/h | 6 | 6 |
| Lifting speed (full load/no load) | mm/s | 20/25 | 20/25 |
| Lowering speed (full load/no load) | mm/s | 30/26 | 30/26 |

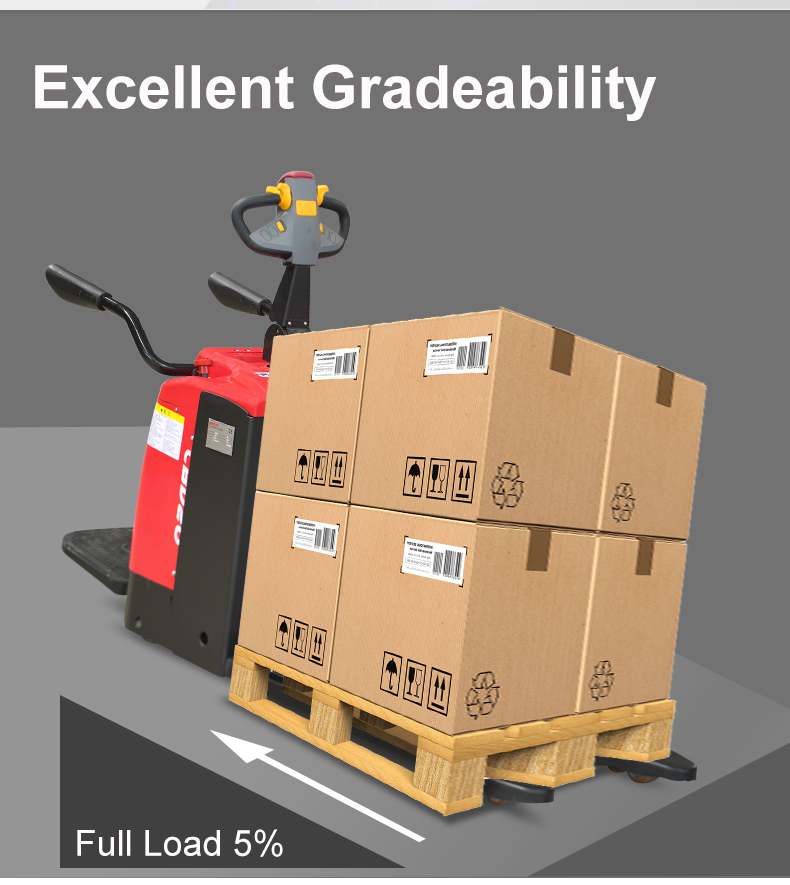

| Maximum gradeability (full load/no load) | % | 5/10 | 5/10 |
| Service brake type | Electromagnetic/regeneration | Electromagnetic/regeneration | |
| Parking brake type | Electromagnetic | Electromagnetic | |

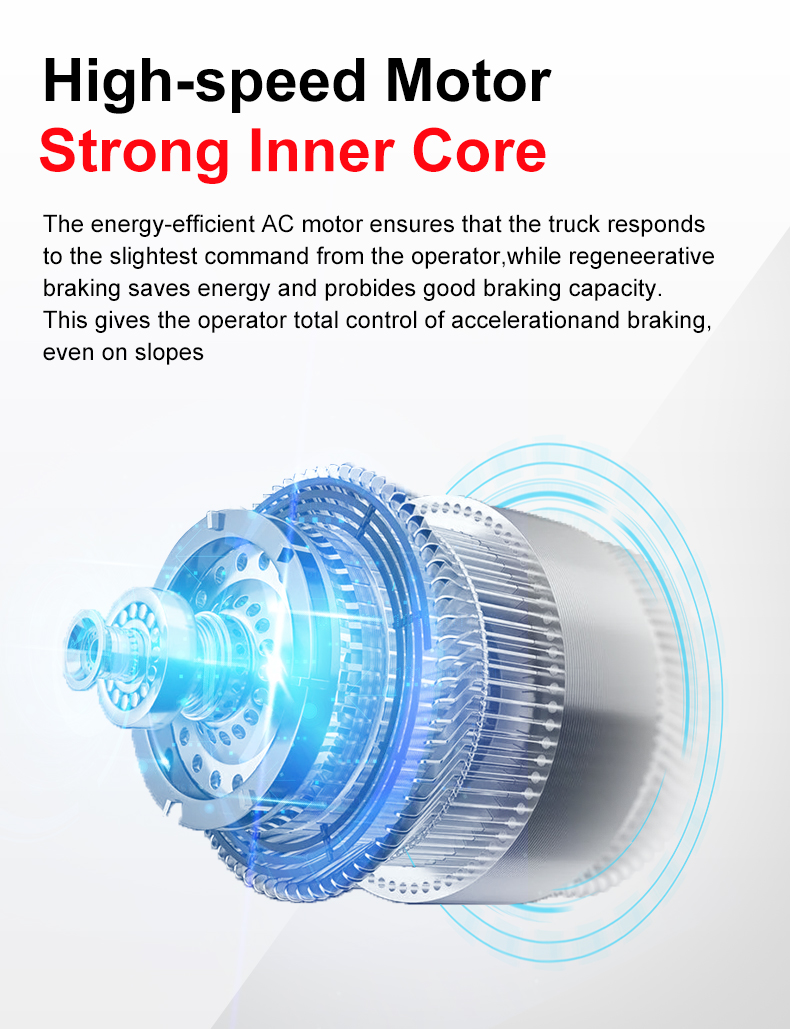

| Drive motor power (AC) S2-60min | kW | 1.2 | 1.2 |
| Lifting motor power (DC) S3-15% | kW | 0.8 | 0.8 |
