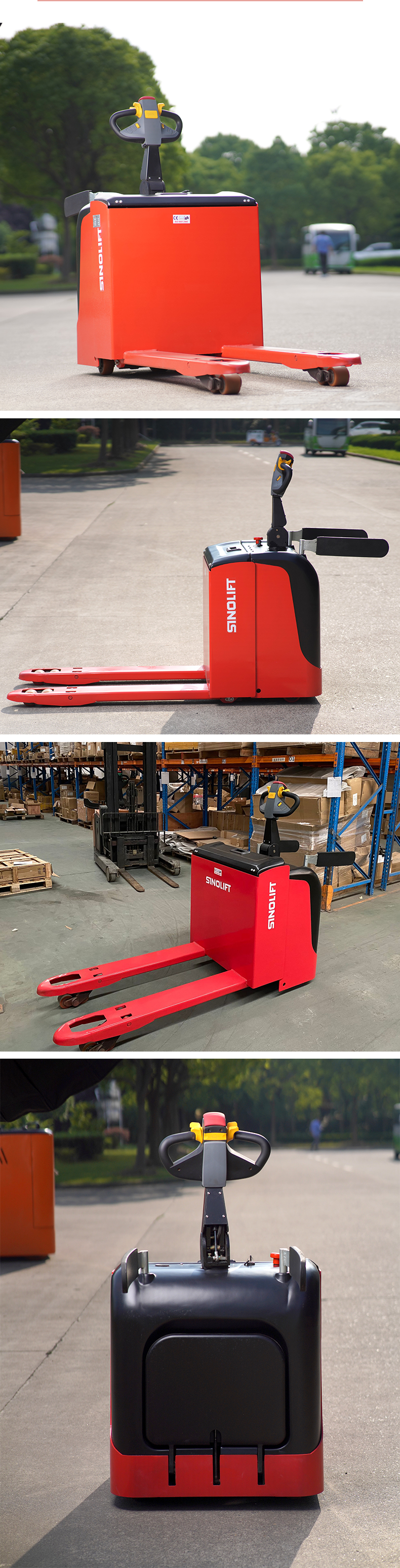

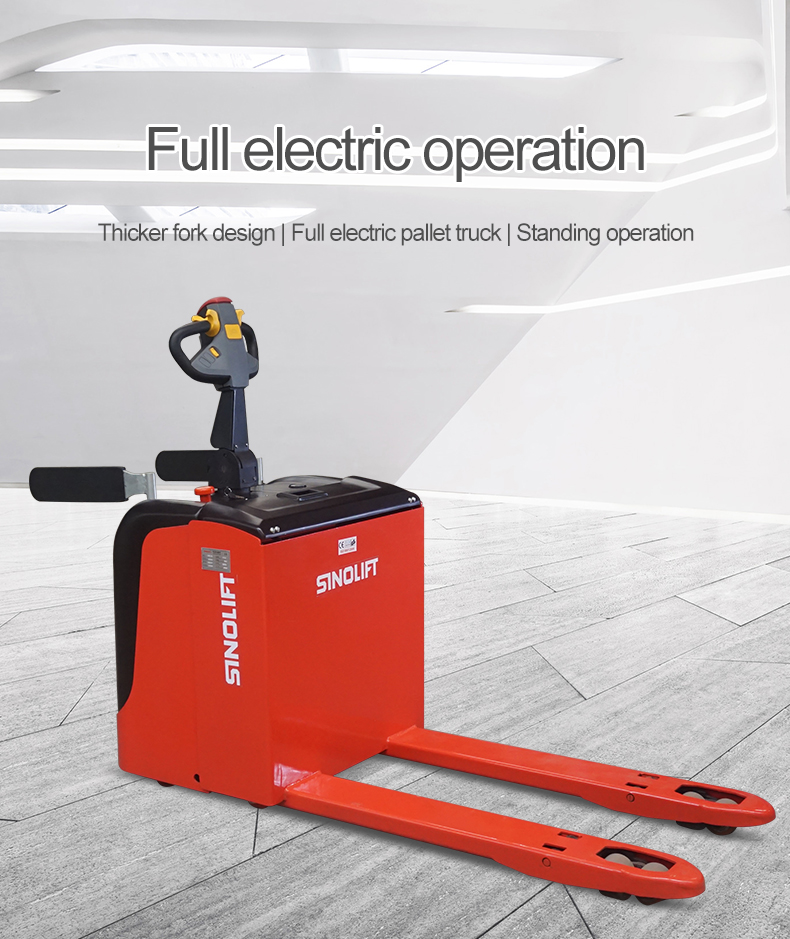

CBD20M CBD25M CBD30M Electric Pallet Truck
CBD20M CBD25M CBD30M

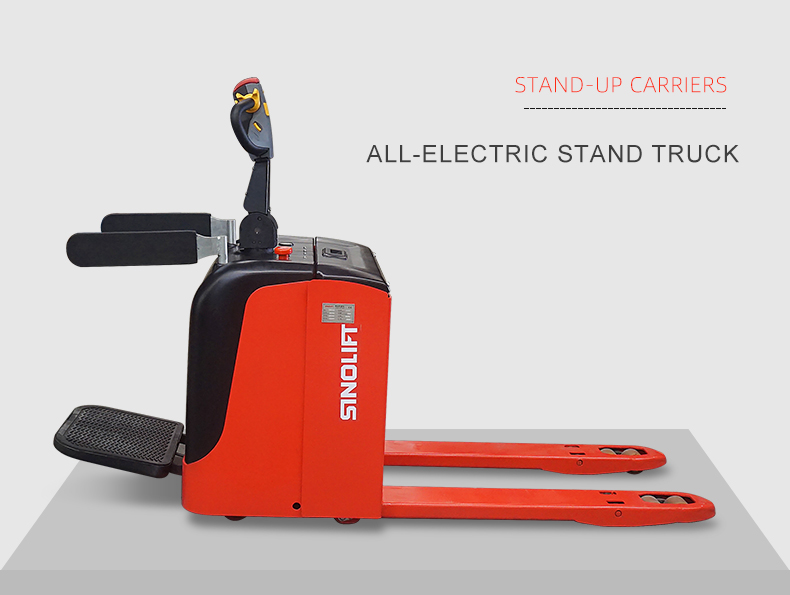

The Stand-on Low-Lift Pallet Transporter is designed for medium to long-distance transport, loading/unloading with dock levellers, and occasional low-level order picking. Ideal for medium to high-intensity operations, it features a robust chassis and advanced AC drive technology for smooth acceleration, high efficiency, and low maintenance.
Quantity:
Product Description
The CURTIS state controller provides smooth acceleration and seamless directional control. Its regenerative braking function feeds energy back to the battery for increased efficiency.
The CURTIS state controller provides smooth acceleration and seamless directional control. Its regenerative braking function feeds energy back to the battery for increased efficiency.

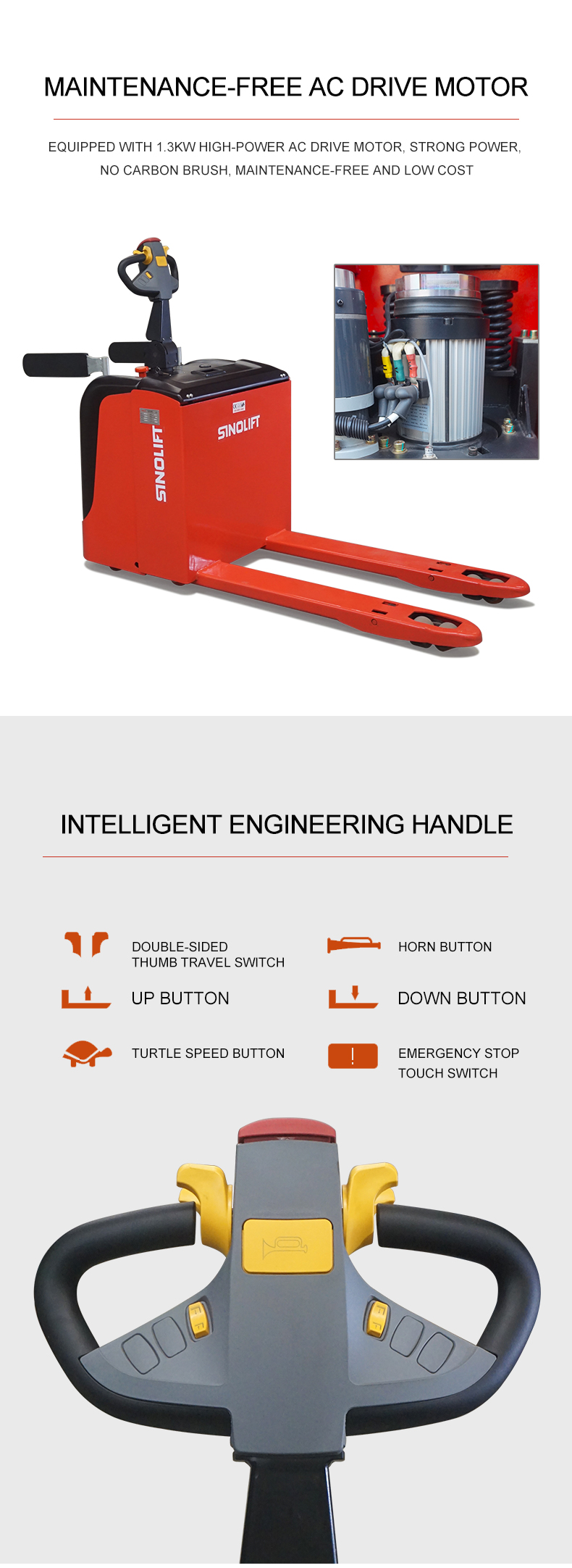

Power and Performance
The AC drive motor benefits provide you with faster acceleration, more fatigue, higher efficiency and lower maintenance costs because it is a brushless design.
The AC drive motor benefits provide you with faster acceleration, more fatigue, higher efficiency and lower maintenance costs because it is a brushless design.
Easy maintenance checks
All SINOLIFT Electric Pallet Truck storage units come standard with an hour meter/battery discharge indicator, so you can keep track of battery life and reserve power at a glance.
All SINOLIFT Electric Pallet Truck storage units come standard with an hour meter/battery discharge indicator, so you can keep track of battery life and reserve power at a glance.
Easy to operate
Our electric pallet trucks have a convenient storage box for the items the operator needs to get the job done.
Our electric pallet trucks have a convenient storage box for the items the operator needs to get the job done.
| Model | CBD20M | CBD25M | CBD30M | ||
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Stand-on | Stand-on | Stand-on | ||
| Steering Mode | Electric Power Steering | ||||
| Load Capacity | Q | kg | 2000 | 2500 | 3000 |
| Load Center | C | mm | 600 | 600 | 600 |
| Wheelbase | y | mm | 1410 | 1410 | 1410 |
| Total Weight(With Battery) | kg | 650 | 650 | 650 | |
| Axle Load( Loaded)：rear/front | kg | 900/1750 | 1070/2080 | 1245/2425 | |
| Axle Load( Unloaded)：rear/front | kg | 545/105 | 545/105 | 545/105 | |
| Overall Length | L1/L2 | mm | 1800/2265 | 1800/2265 | 1800/2265 |
| Overall Width | W1 | mm | 810 | 810 | 810 |

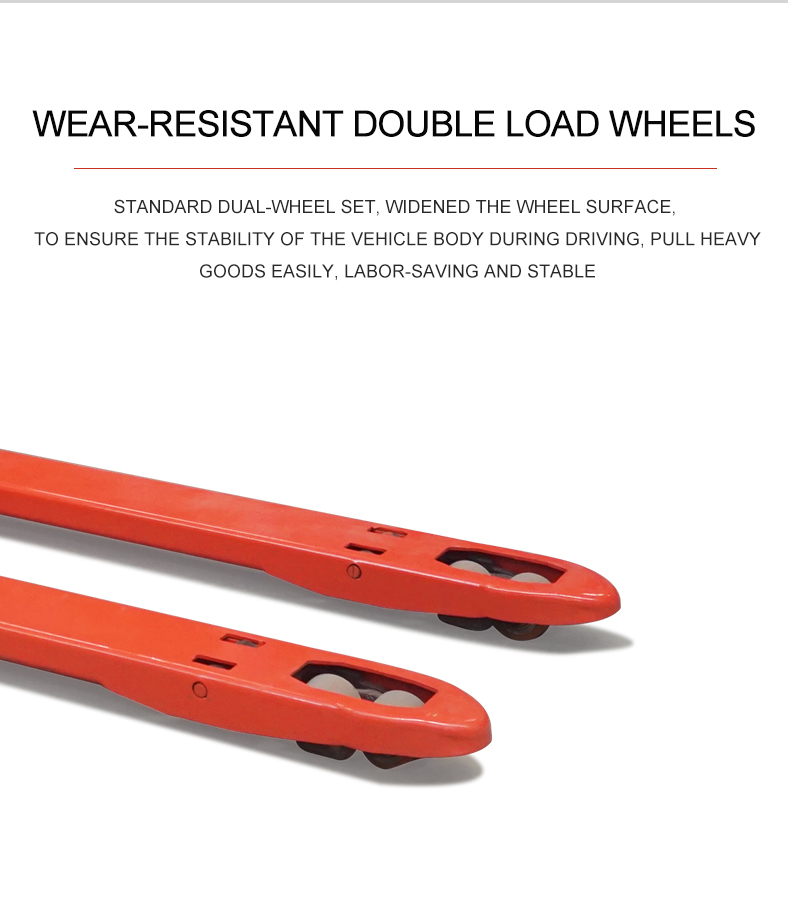

| Fork Size | l/e/s | mm | 1150×170×55 | 1150×170×55 | 1150×170×55 |
| Width of Fork | b2 | mm | 540/685 | 540/685 | 540/685 |
| Ground Clearance at Fork | h3 | mm | 85 | 85 | 85 |
| Lifting Height | h2 | mm | 205 | 205 | 205 |
| Ground Clearance at center of wheelbase | m1 | mm | 55 | 55 | 55 |
| Height of Operating Handlebar(Min./Max.) | h14 | mm | 1000/1380 | 1000/1380 | 1000/1380 |

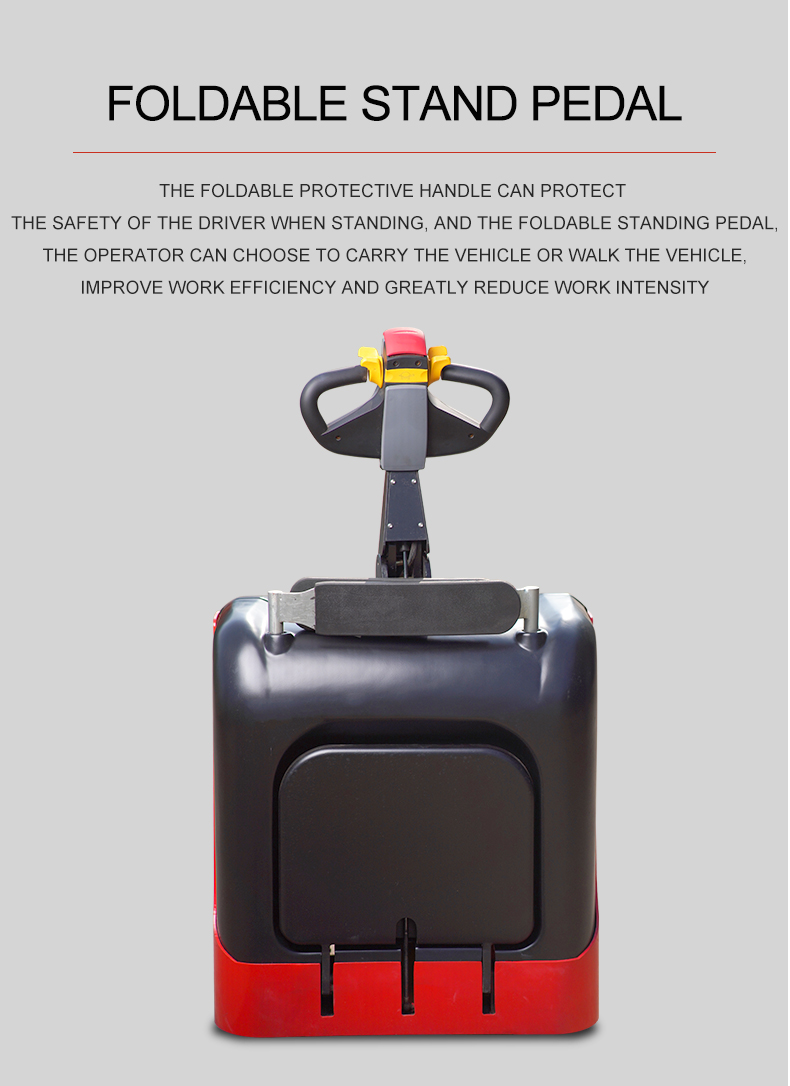

| Turning Radius(Footboard Fold/Unfold) | Wa | mm | 1660/2100 | 1660/2100 | 1660/2100 |
| Right Stack Aisle Width | Ast | mm | 2400/2840 | 2400/2840 | 2400/2840 |
| (Pallet size 1000*1200,Footboard Fold/Unfold) | |||||
| Right Stack Aisle Width | Ast | mm | 2315/2755 | 2315/2755 | 2315/2755 |
| (Pallet size 800*1200,Footboard Fold/Unfold) | |||||
| Tyre Type | Polyurethane | Polyurethane | Polyurethane | ||
| Tyre Size(Front) | mm | Φ85*70 | Φ85*70 | Φ85*70 | |
| Tyre Size(Balance Wheel) | mm | Φ115*55 | Φ115*55 | Φ115*55 | |
| Tyre Size(Driving Wheel) | mm | Φ230*75 | Φ230*75 | Φ230*75 | |
| Tyres Number front/rear(x=drive wheel) | 4/1x+2 | 4/1x+2 | 4/1x+2 | ||
| Drive Damping Method | Drive frame integral rail type spring shock absorption | ||||
| Traveling Speed（Loaded/Unloaded） | Km/h | 7.5/8 | 6.0/7 | 5.0/7 | |
| Lifting Speed（Loaded/Unloaded） | mm/s | 22/35 | 22/30 | 22/30 | |
| Lowering Speed（Loaded/Unloaded） | mm/s | 30/26 | 30/26 | 30/26 | |

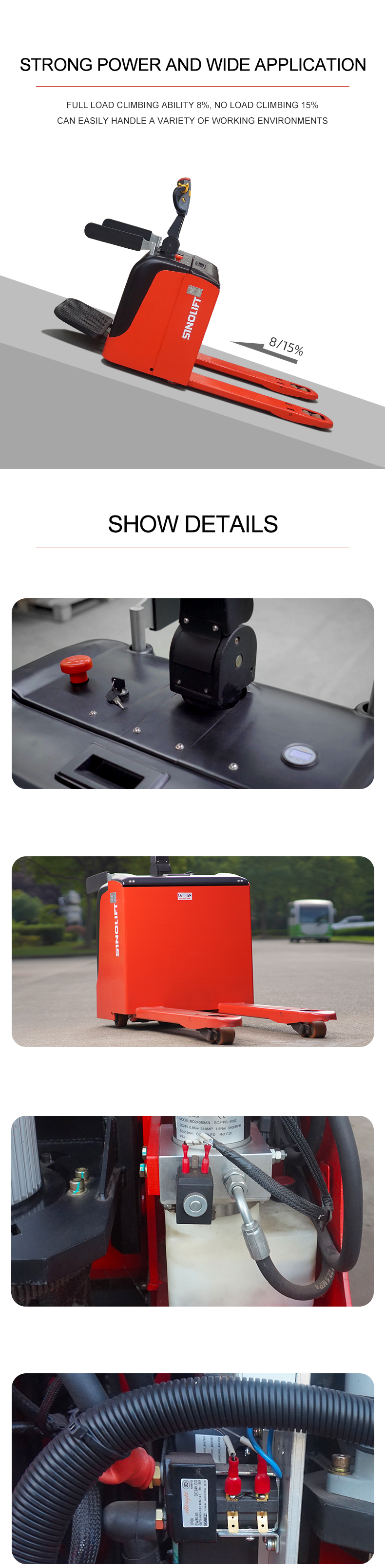

| Max. Gradeability（Loaded/Unloaded） | % | 8/15 | 8/15 | 6/15 | |
| Service Brake Type | Electromagnetic/Regeneration | ||||
| Parking Brake Type | Electromagnetic | ||||
| Drive Motor Power(AC) | KW | 1.5 | 1.5 | 1.5 | |
| Pump Motor Power(DC) | KW | 0.8 | 0.8 | 2.2 | |

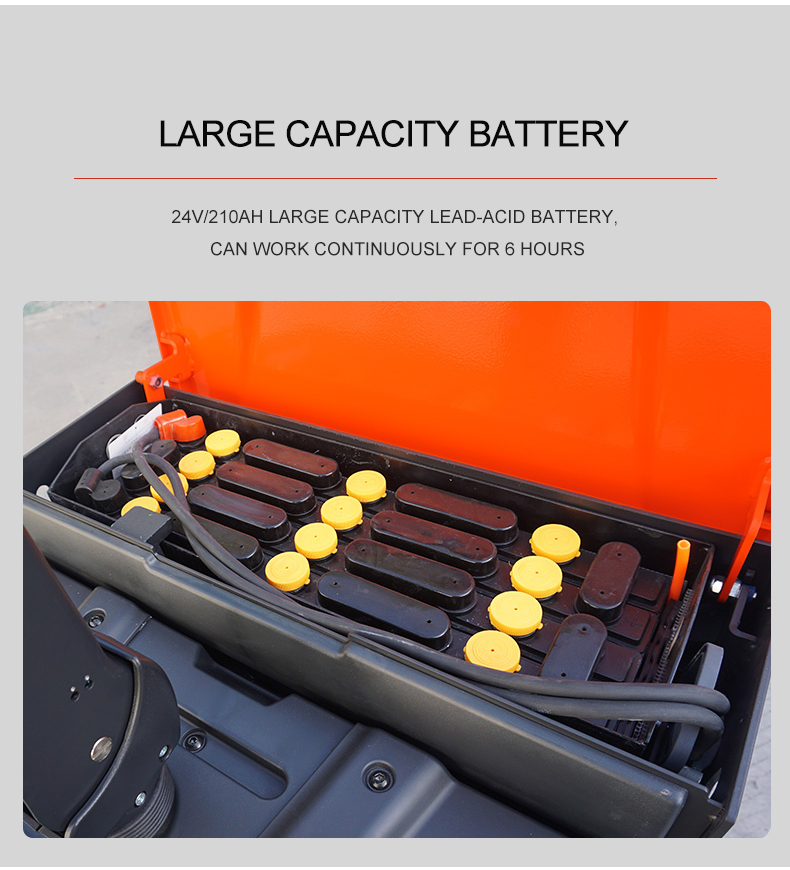

| Battery Voltage/Capacity K5 | V/Ah | 24V/210 | 24V/210 | 24V/240 | |
| Battery Weight | kg | 188 | 188 | 210 | |
| Controller Brand | CURTIS | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | 1232E | ||
| Noise Level | dB | 70 | 70 | 70 | |
