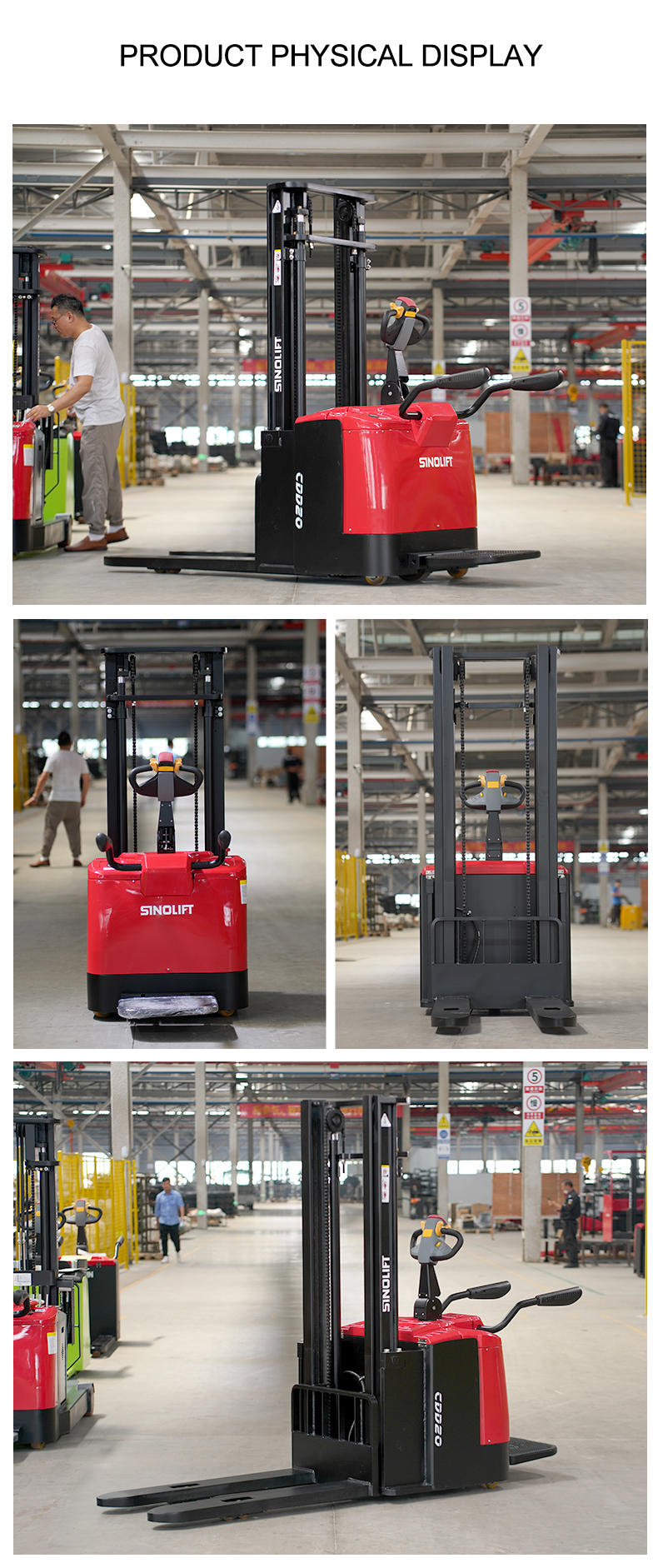

CDD16M CDD20M Pedestrian Electric Stacker
CDD16M CDD20M

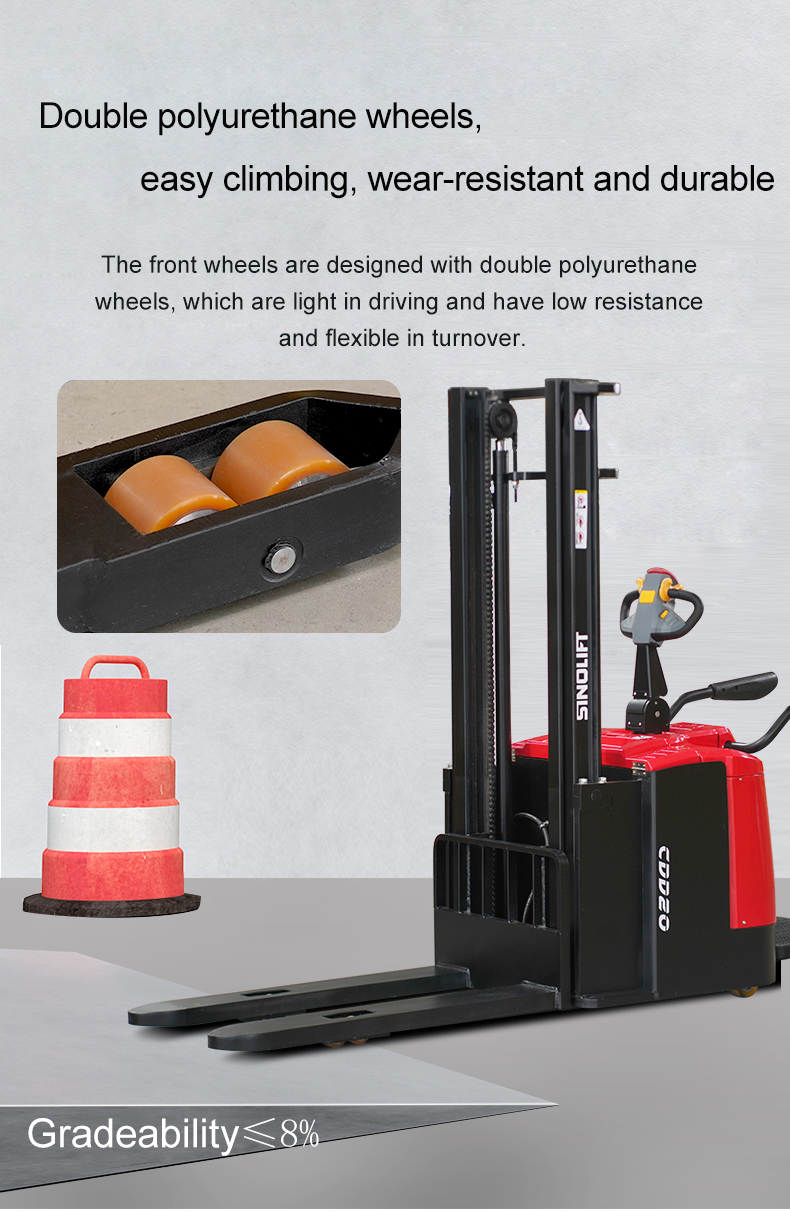

The compact CDD16M and CDD20M series stackers are high-performance pedestrian electric stackers designed for efficient material handling in warehouses, factories, and confined spaces. Ideal for short-distance transport and precise pallet stacking, these stackers feature durable polyurethane load wheels, regenerative braking, and an AC traction motor for smooth and reliable operation.
Quantity:
CDD16M CDD20M Pedestrian Electric Stacker

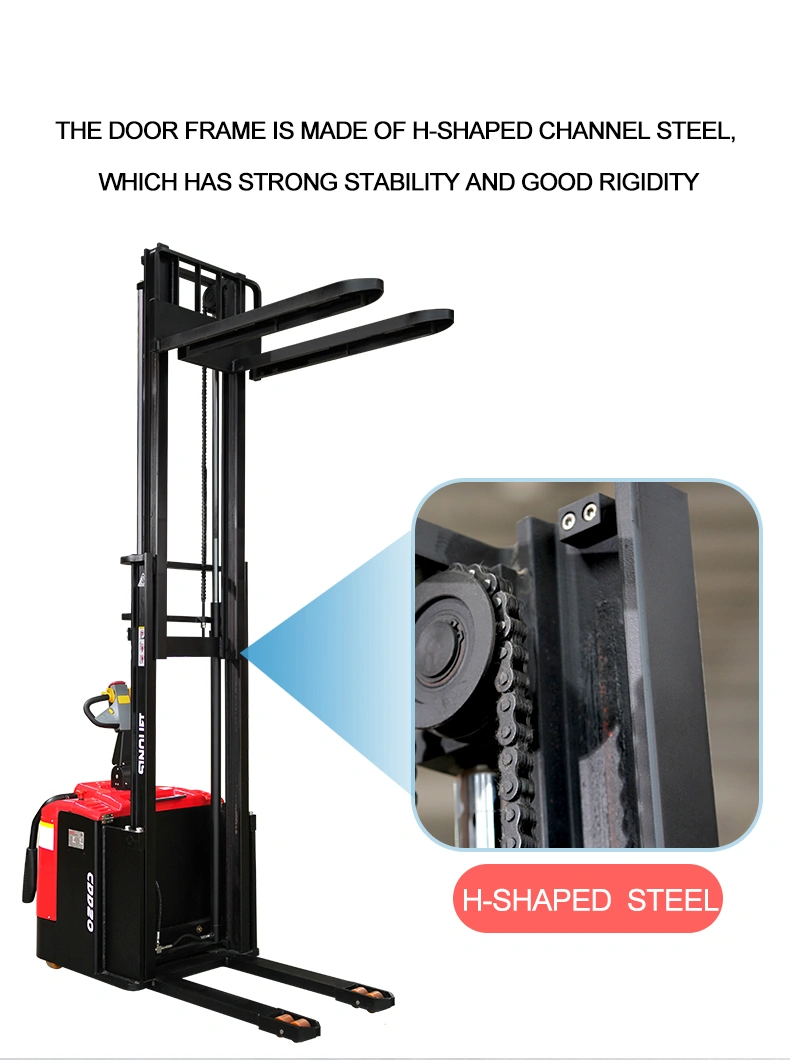

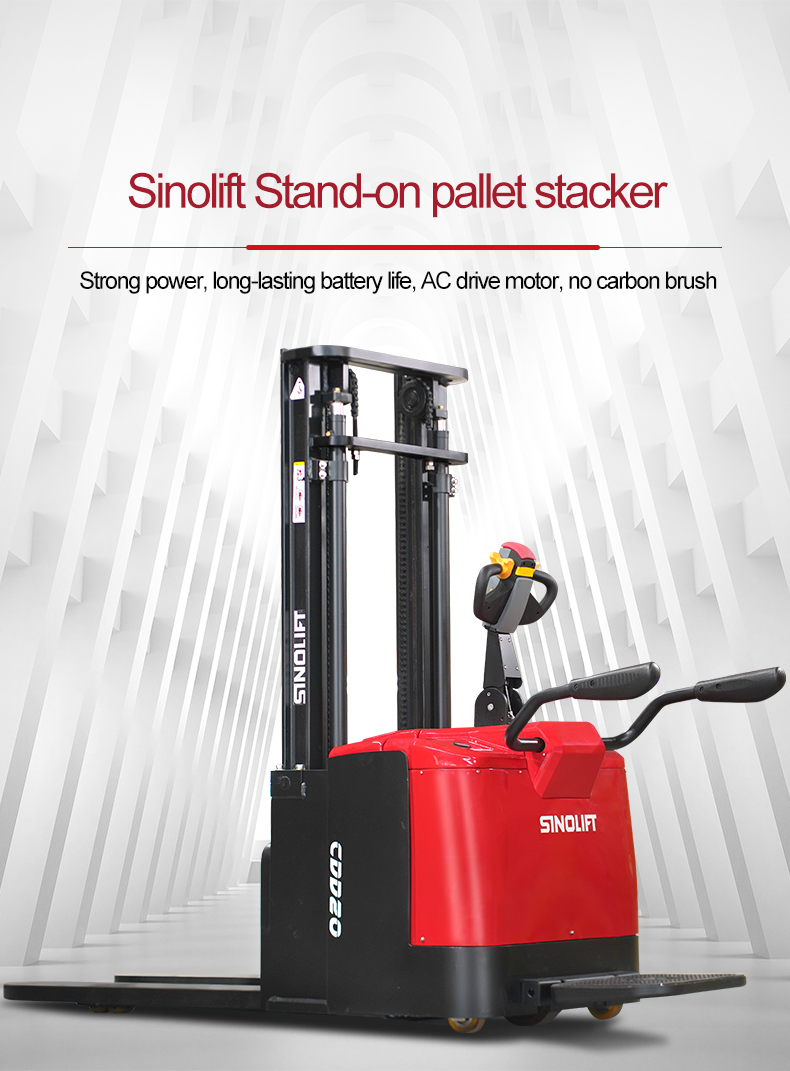

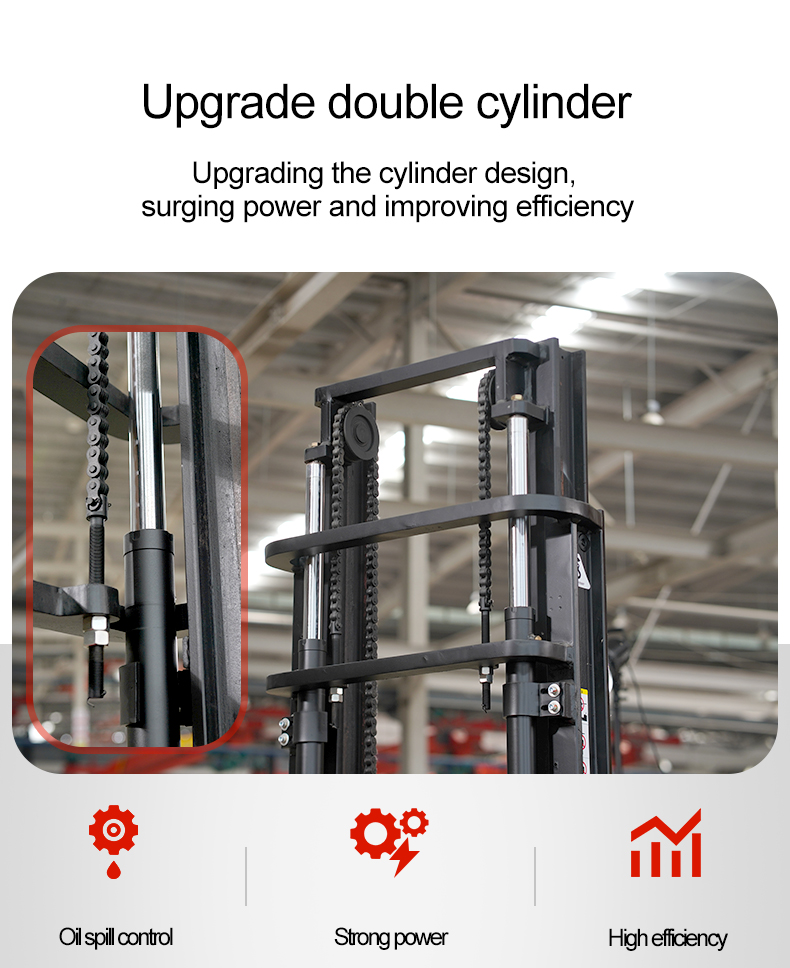

The CDD16M CDD20M Electric Stacker is the entry model for electric stackers. Designed for applications that promote internal material flow, it is particularly suitable for operating in tight spaces thanks to its compact design. It is equipped with a double telescopic mast that allows easy storage and retrieval of pallets.
| Manufacture's type designation | SINOLIFT | |||
| Model | CDD16M | CDD20M | ||
| Power Type | Electric | |||
| Type of Operation | Stand-on | |||
| Steering Mode | Electric Power Steering | |||

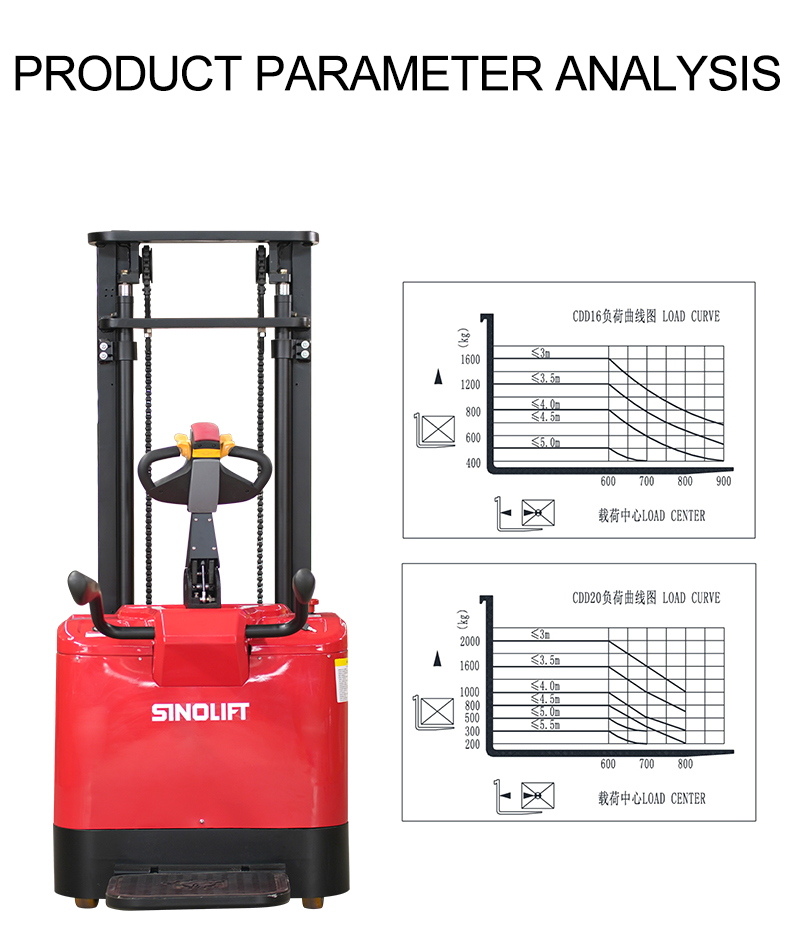

| Load capacity/Rated load | Q | kg | 1600 | 2000 |
| Load Center Distance | C | mm | 600 | 600 |
| Wheelbase | y | mm | 1500 | 1500 |
| Total Weight (with battery) | kg | 1300 | 1350 | |
| Axle Load(laden):Drive side/Load-bearing side | kg | 1115/1785 | 1285/2065 | |
| Axle Load(unladen):Drive Side/Load-bearing side | kg | 947/353 | 985/365 | |

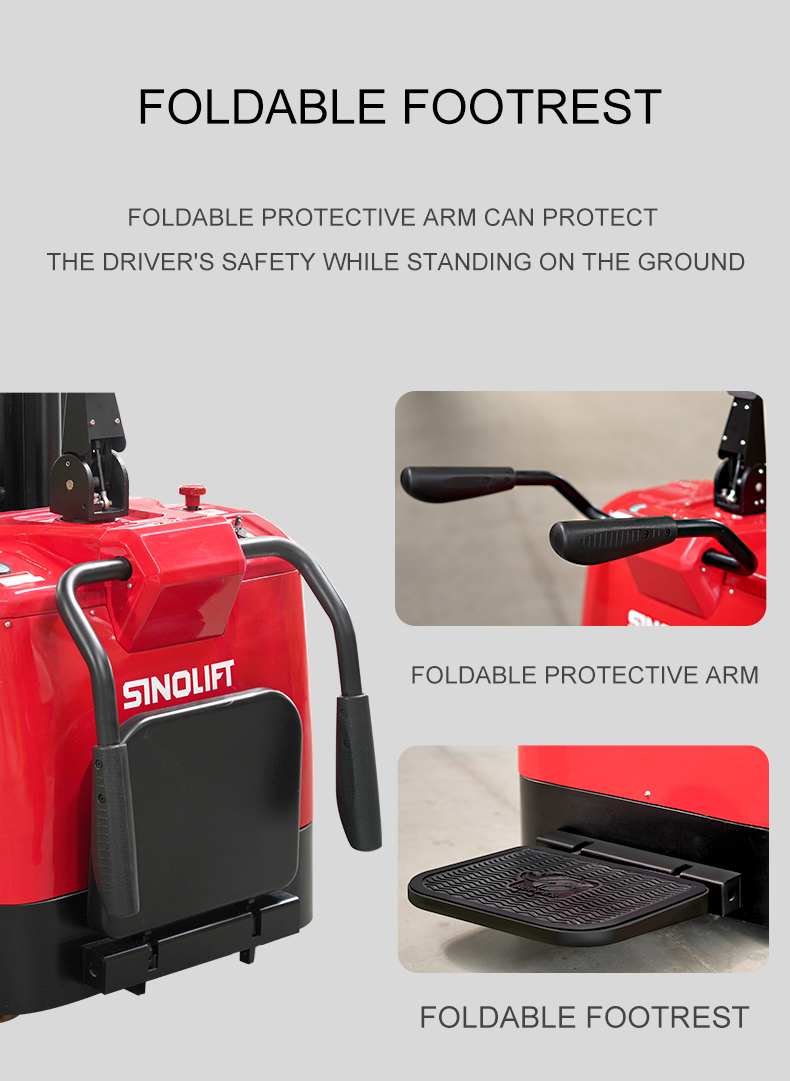

| Overall Length (Pedal Retracted/Expanded) | L1/L2 | mm | 2210/2645 | 2210/2645 |
| Overall Width | W1 | mm | 880 | 880 |
| Lift Height | h1 | mm | Refer to mast parameter | |
| Lowered Mast Height | h2 | mm | Refer to mast parameter | |
| Extended Mast Height | h4 | mm | Refer to mast parameter | |
| Free Lift Height | h5 | mm | Refer to mast parameter | |

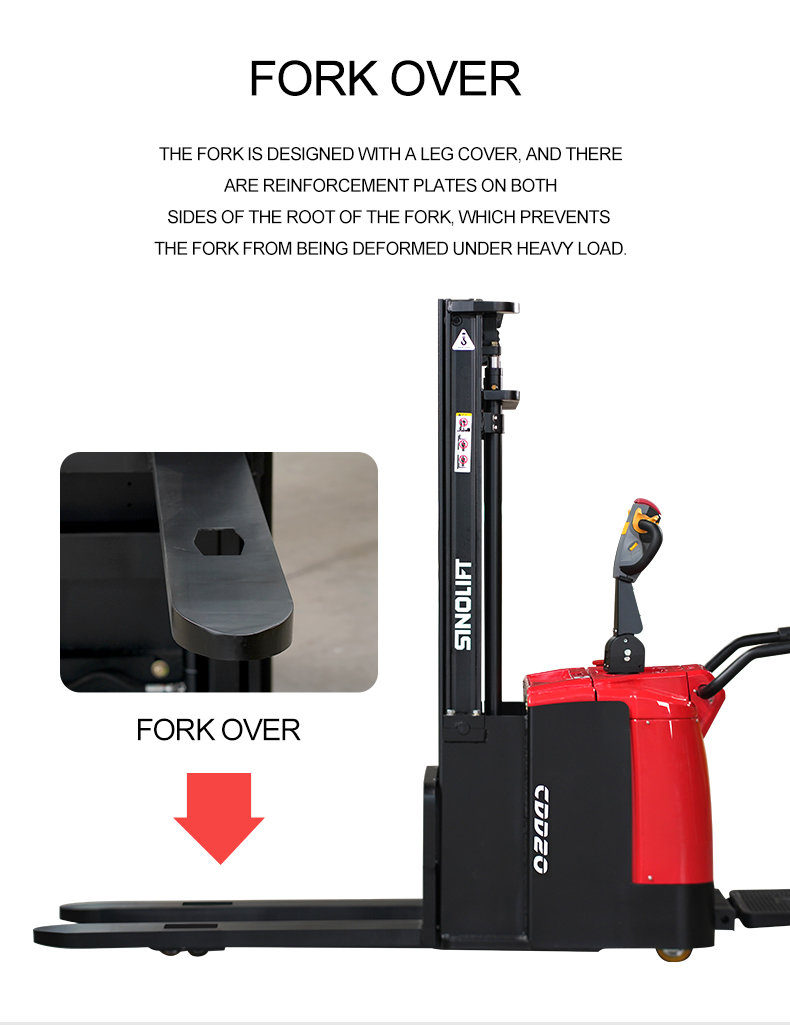

| Fork Dimension | l/e/s | mm | 1220×185×55 | 1220×185×55 |
| Width of Fork | b2 | mm | 560/685 | 560/685 |
| Min.Fork Height | h3 | mm | 85 | 85 |
| Ground Clearance at Center of Wheelbase (Min) | m1 | mm | 30 | 30 |

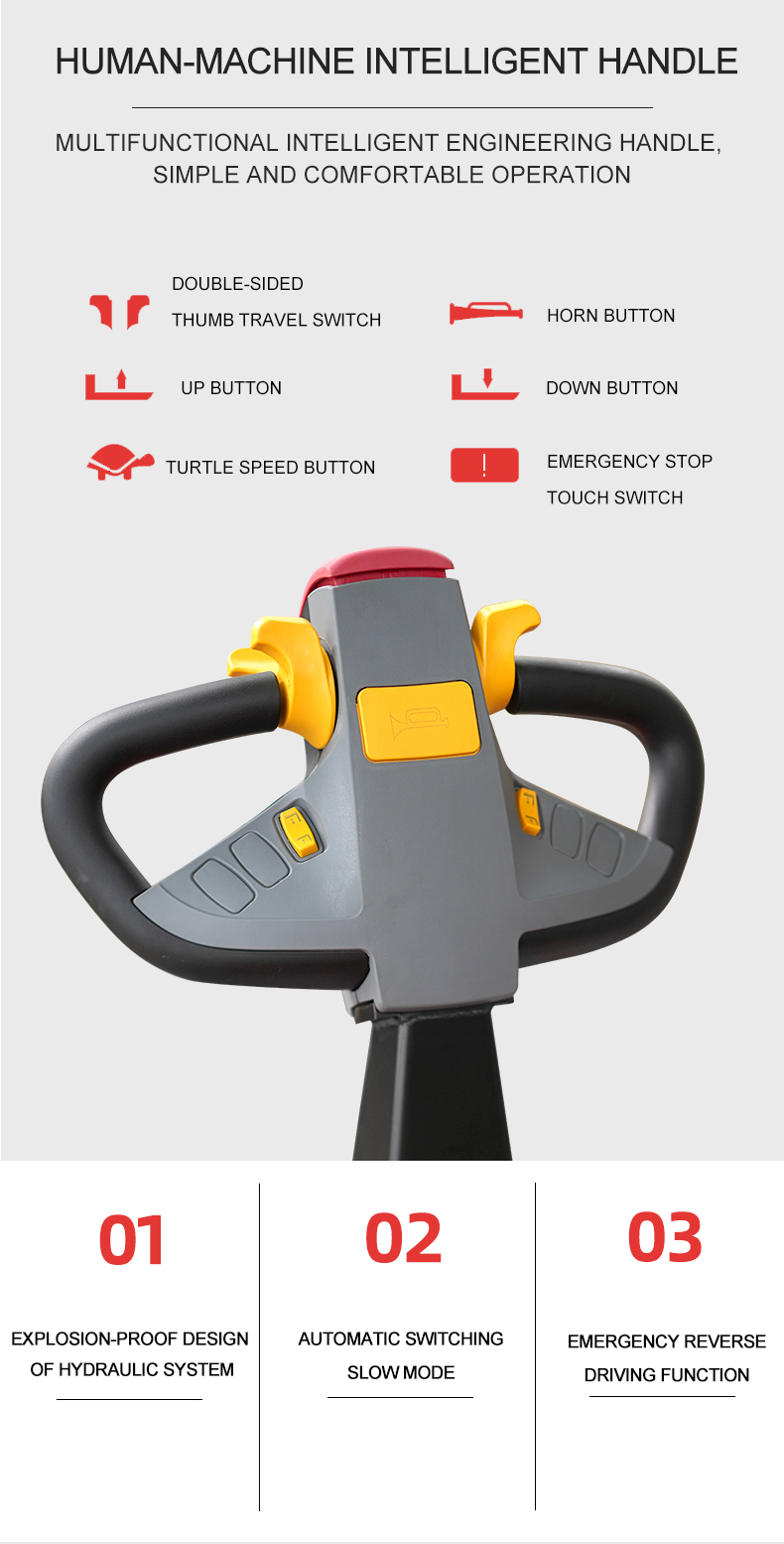

| Height of Operating Handle bar(Min./Max) | h14 | mm | 1000/1550 | 1000/1550 |

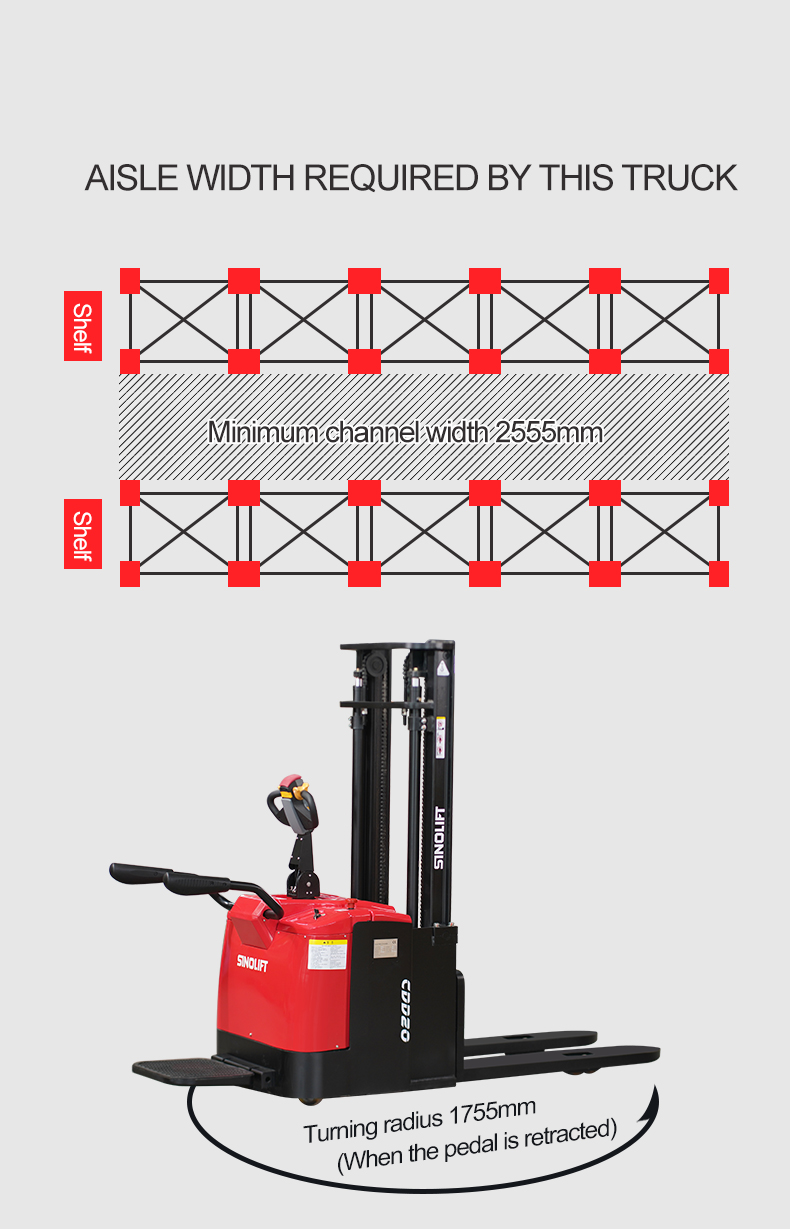

| Turning Radius | Wa | mm | 1755/2200 | 1755/2200 |
| Min. Aisle width for pallets 1000×1200 (Pedal Retracted/Expanded) | 2630/3085 | 2630/3085 | ||
| Min. Aisle width for pallets 800×1200 (Pedal Retracted/Expanded) | 2555/3010 | 2555/3010 | ||
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front Load Wheel) | mm | φ80x60 | φ80x60 | |
| Tyre Size (Auxiliary Wheel) | mm | φ115x55 | φ115x55 | |
| Tyre Size (Driving Wheel) | mm | φ230x75 | φ230x75 | |
| Wheels Quantity, front/rear (x=Driving Wheels) | 4/1x+2 | 4/1x+2 | ||
| Traveling Speed (laden/unladen) | Km/h | 5/5.5 | 5/5.5 | |
| Lifting Speed(laden/unladen) | mm/s | 95/135 | 95/135 | |
| Lowering Speed(laden/unladen) | mm/s | 100/130 | 100/130 | |
| Max.Gradient Performance (laden/unladen) | % | 5/8 | 5/8 | |
| Service Brake Type | Electromagnetic | |||
| Parking Brake Type | Electromagnetic | |||
| Drive Motor Rating (AC) S2 -60min | kW | 1.5 | 1.5 | |
| Lift Motor Rating (DC) S3-15% | kW | 3 | 3 | |

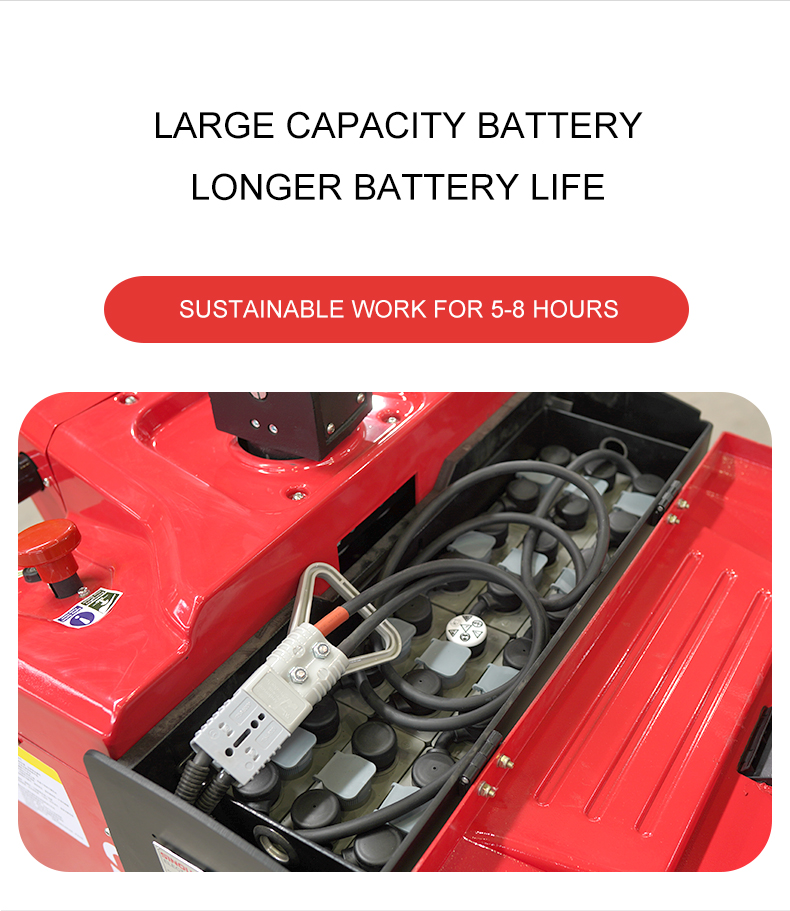

| Battery Voltage/Capacity K5 | V/Ah | 24/210 | 24/210 | |
| Battery Weight | kg | 188 | 188 | |

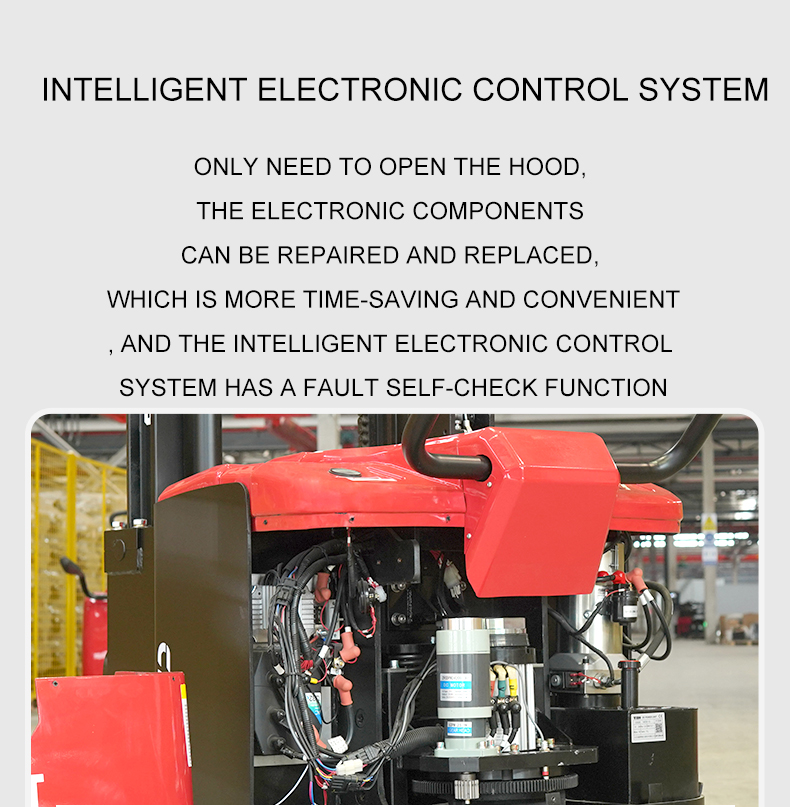

| Controller Brand | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | ||
| Sound level atdriver's ear according to EN 12 053 | dB | 70 | 70 | |
