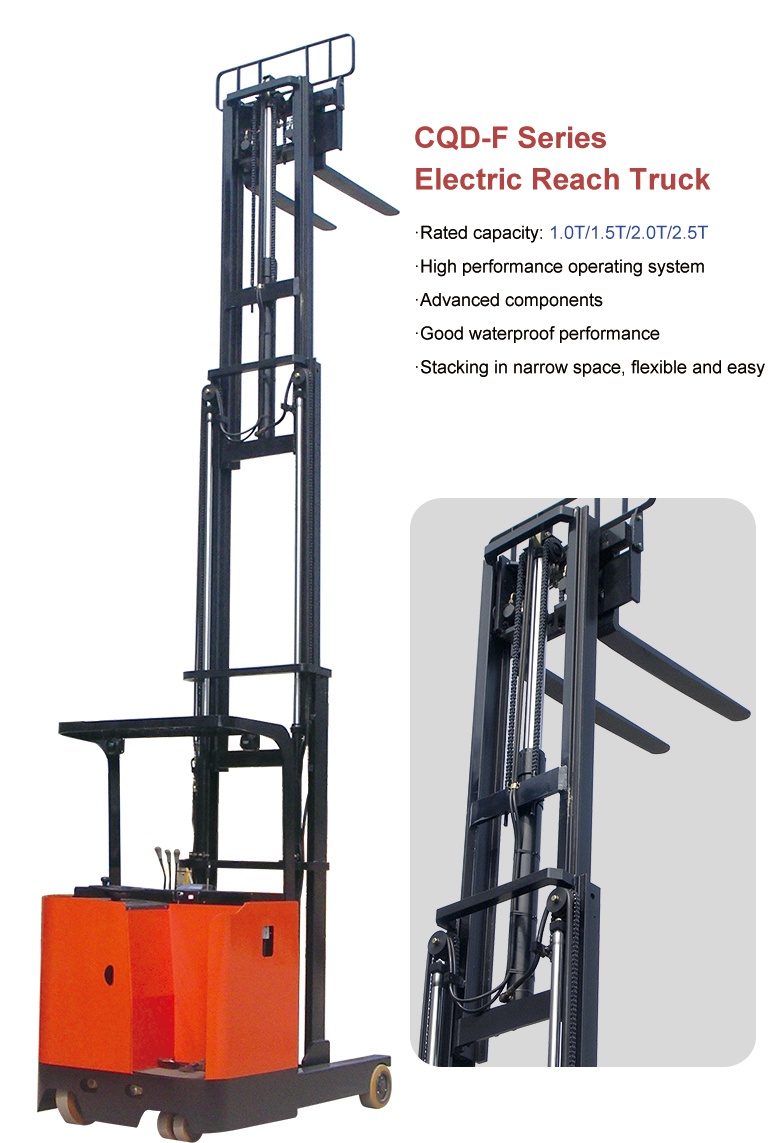

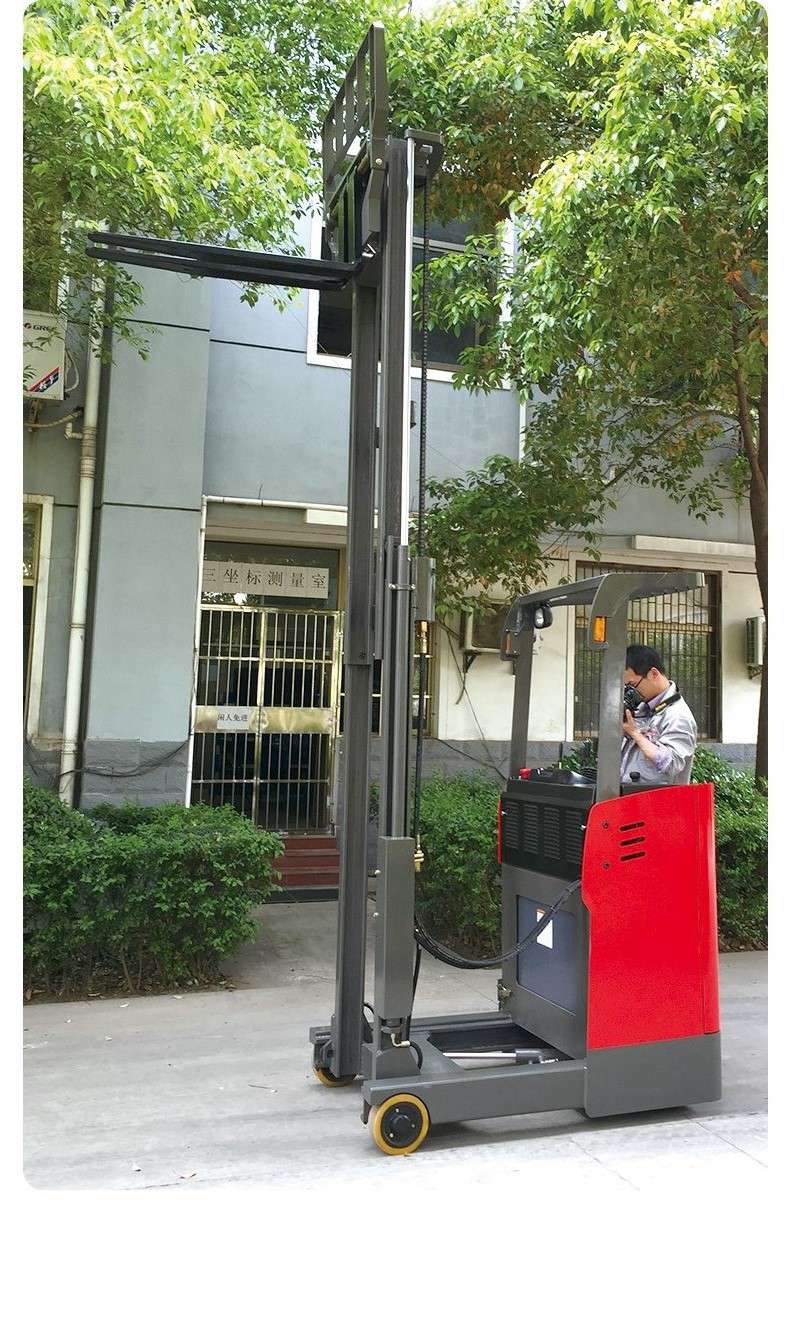

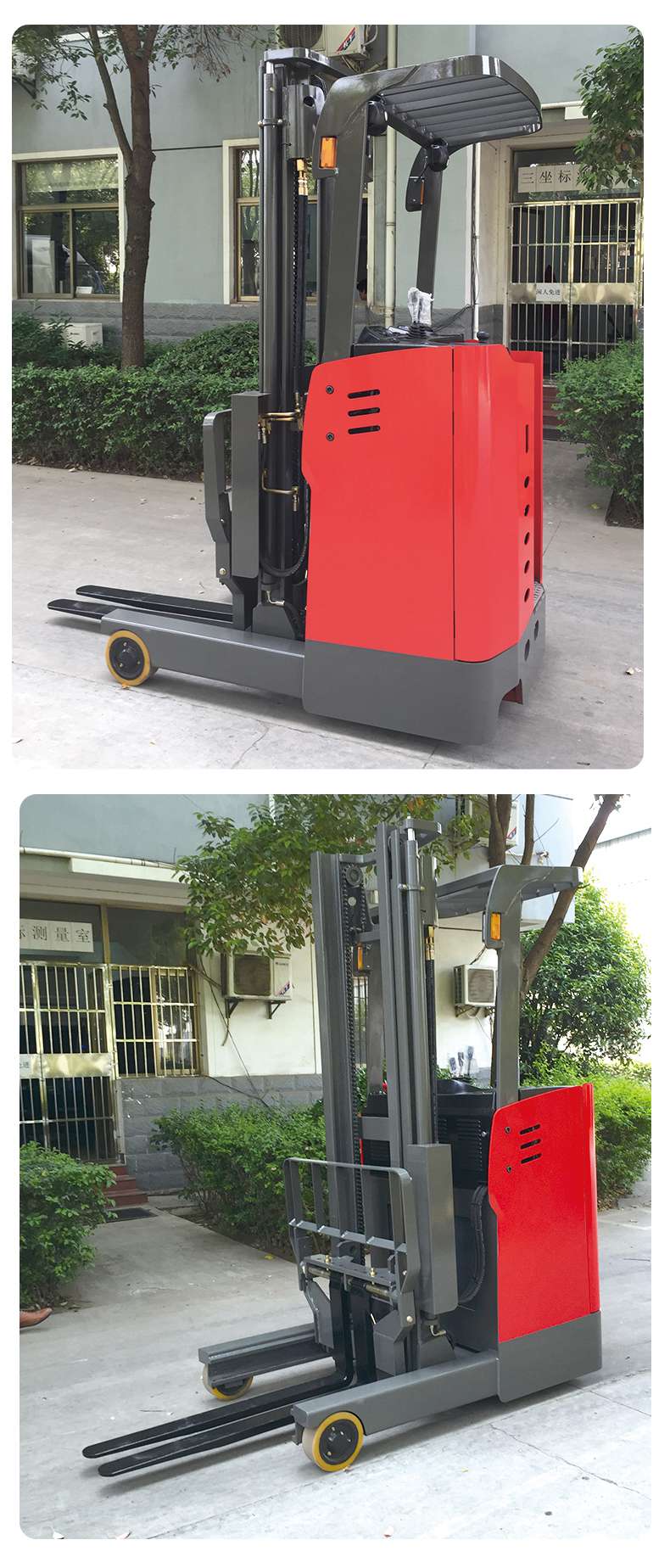

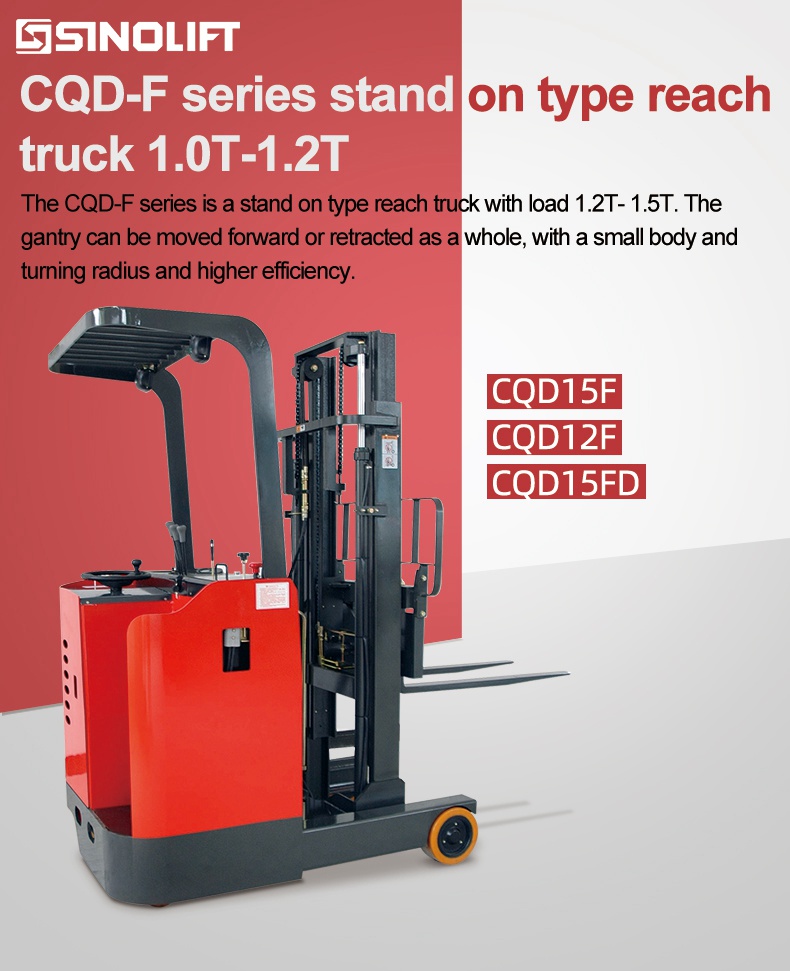

CQD15F CQD20F Reach Truck Electrical Forklift Truck

CQD15F CQD20F Reach Truck Electrical Forklift Truck

CQD15F CQD20F
Quantity:
Contact Now
add to cart
All Products

Standing trucks are fitted with arms that extend outward underneath the forks in order to support a load. This type of forklift requires room for the straddle arms at the base of the racking you are using. Standing trucks are typically less expensive than a regular counterbalance or narrow aisle lift truck. We have a large dealer network available to find whatever fork truck you are looking for. We handle all major brands, makes, models, years and everything from an electric pallet jack to larger trucks. If you need it, we can find it.

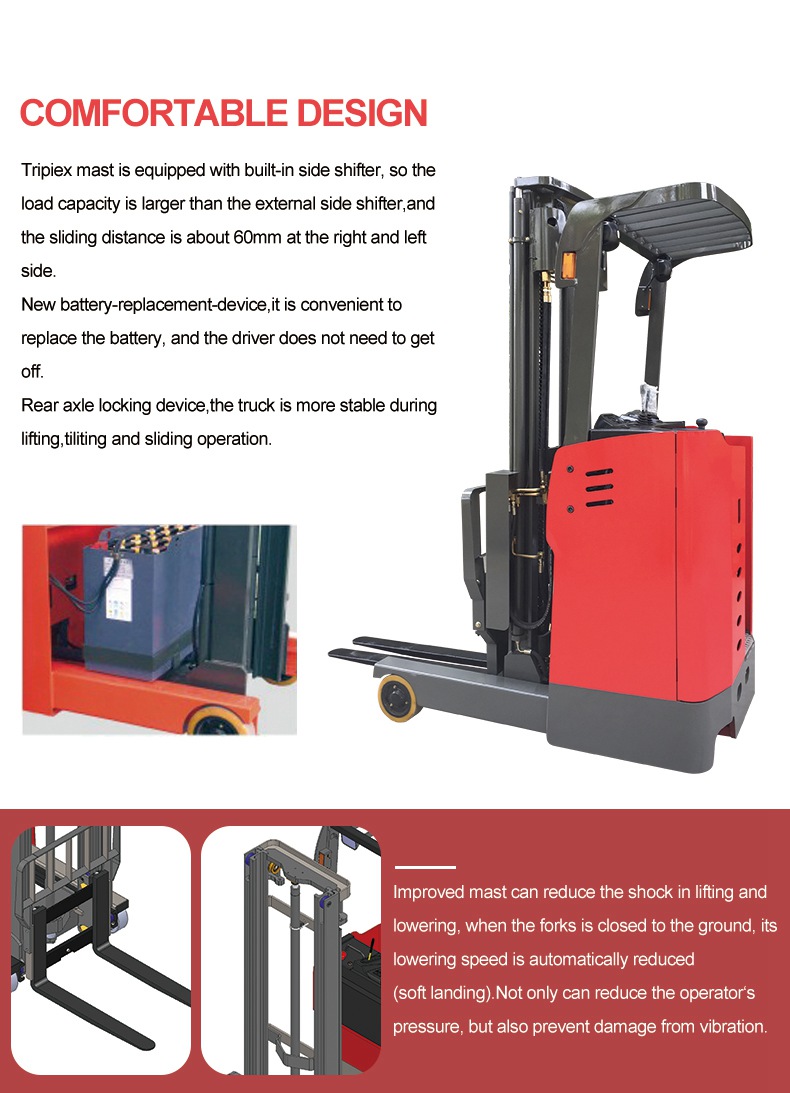

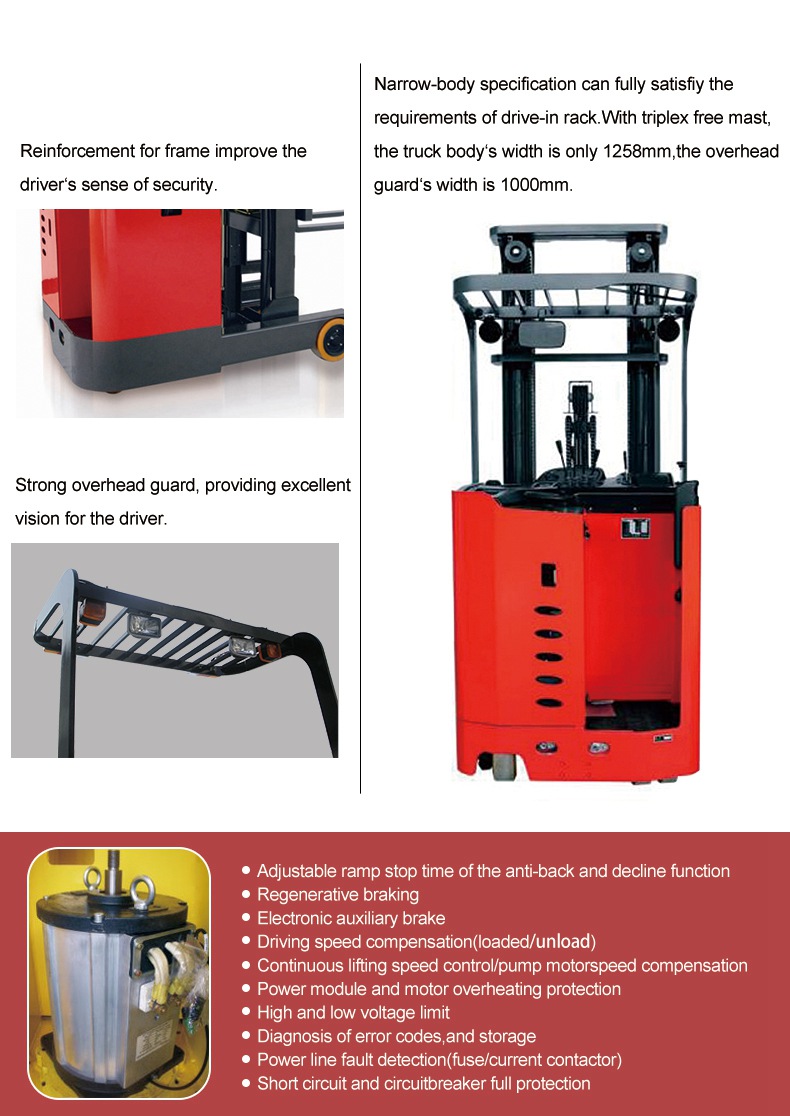

Features:

1.Standard AC drive and EPS electric power steering, better feel and lower energy consumption.

2.With the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators.

3.Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function.

4.Strong endurance:AC drive motor, some models use AC lift motor, which is efficient and energy efficient.Meet many job requirements under heavy working conditions.

ManufacturerSINOLIFTSINOLIFT
ModelCQD15FCQD20F
Power typeBatteryBattery
Operate typeStand onStand on
Service weight(incl.battery)kg24502750
Load capacityQ(kg)15002000
Load centerC(mm)500500
Lift heighth3(mm)30003000
Fork sizel/e/s(mm)1070/100/351070/100/40
Front overhangx(mm)180180
Turning radiusWa(mm)15941784
Max.gradeability10%10%
Traveling speed, laden/unladenkm/h9/109/10
Lifting speed,Laden/unladenmm/s240/400220/380
Lowering speed,Laden/unladenmm/s300/270310/260
