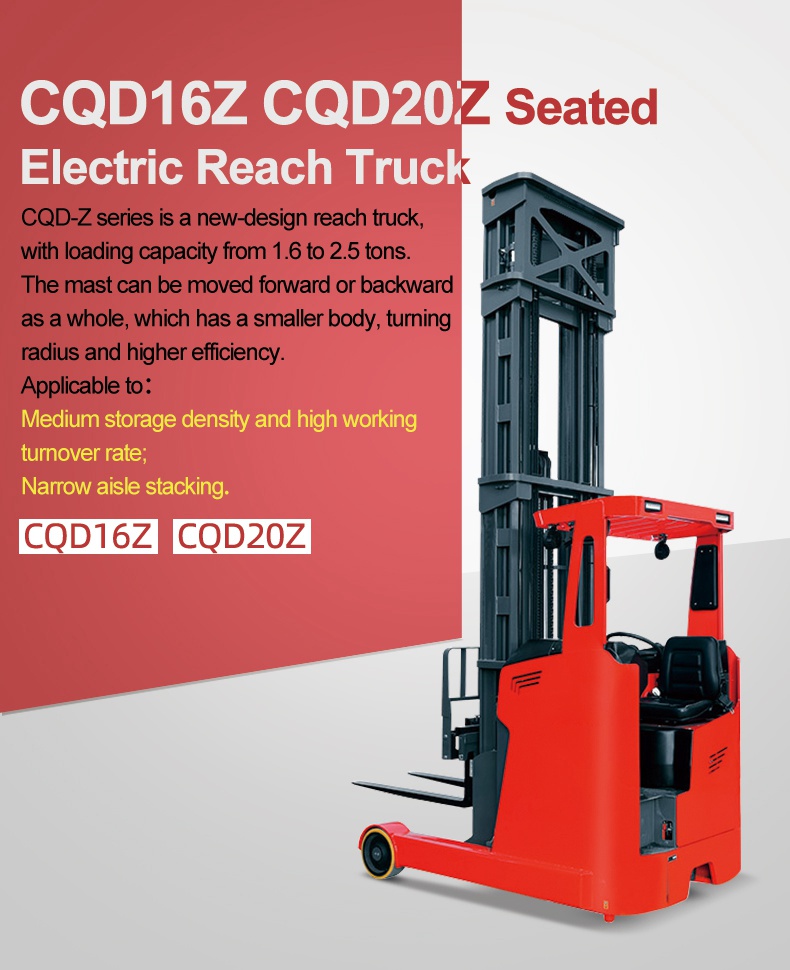

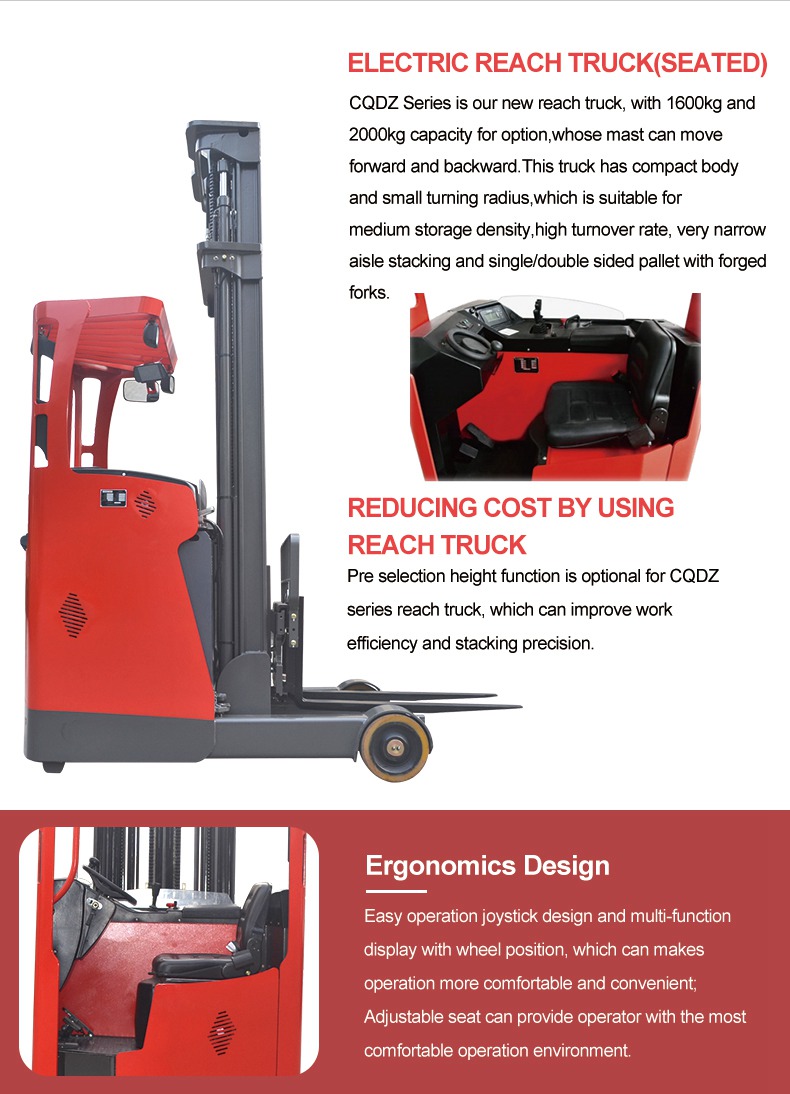

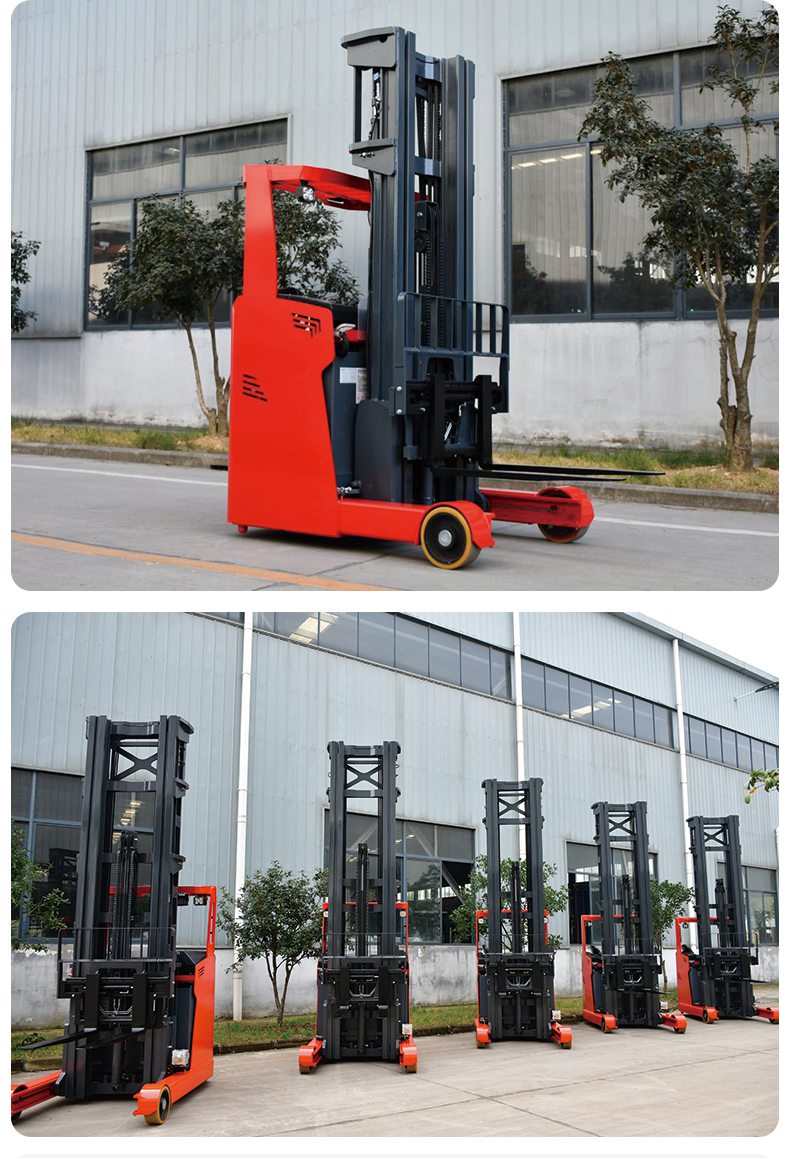

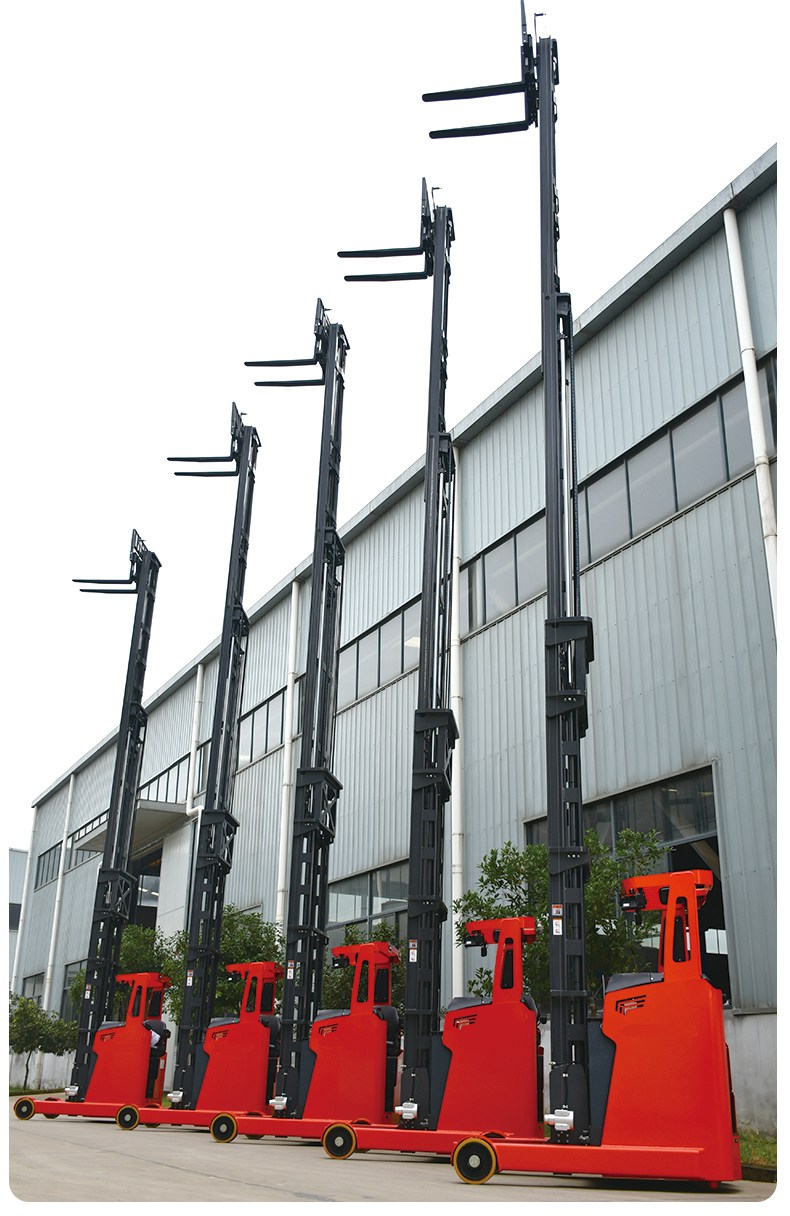

Sinolift CQD16Z CQD20Z Environmentally Friendly Narrow Aisle Seated Electric Reach Truck

Sinolift CQD16Z CQD20Z Environmentally Friendly Narrow Aisle Seated Electric Reach Truck

CQD16Z CQD20Z
Quantity:
Contact Now
add to cart
All Products

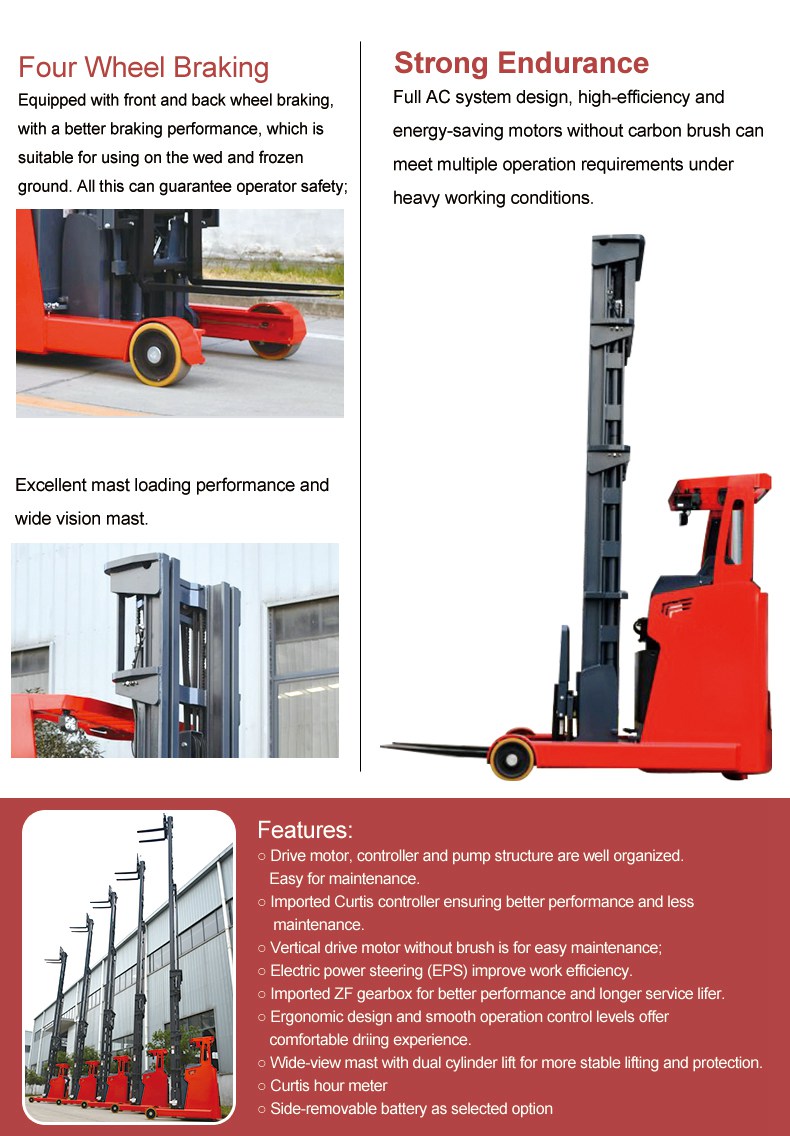

Features:

Drive motor, controller and pump structure are well organized. Easy for maintenance.

Imported Curtis controller ensuring better performance and less maintenance.

Vertical drive motor without brush is for easy maintenance;

Electric power steering (EPS) improve work efficiency.

Imported ZF gearbox for better performance and longer service lifer.

Ergonomic design and smooth operation control levels offer comfortable driing experience.

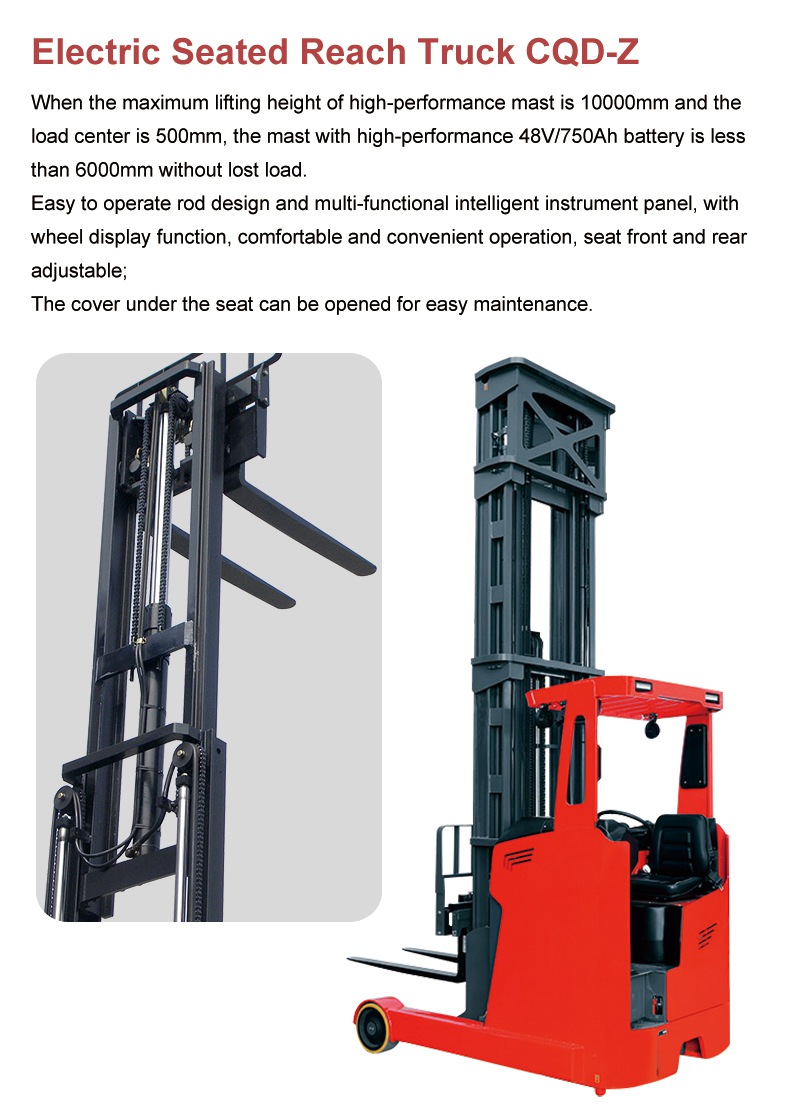

Wide-view mast with dual cylinder lift for more stable lifting and protection.

Curtis hour meter.

Side-removable battery as selected option.

ManufacturerSINOLIFTSINOLIFTSINOLIFTSINOLIFT
ModelCQD16ZCQD16Z-SQHCQD20ZCQD20Z-SQH
Power typeBatteryBatteryBatteryBattery
Operation TypeSeatedSeatedSeatedSeated
Service weight(incl. battery)kg3250435040004670
Rated capacityQ(kg)1600160020002000
Load centerC(mm)500500500500
Lift heighth3(mm)3000600030006000
Fork dimensionl/e/s(mm)1070/100/351070/100/401070/100/401070/100/40
Front overhangx(mm)220205215205
Turning radiusWa(mm)1700187217981872
Max. gradeability10%10%10%10%
Travelling speed ,laden/unladenkm/h8.5/108.5/108.5/108.5/10
Lifting speed ,laden/unladenmm/s210/340200/300210/340260/360
Lowering speed,laden/unladenmm/s300/250300/250300/250300/250
