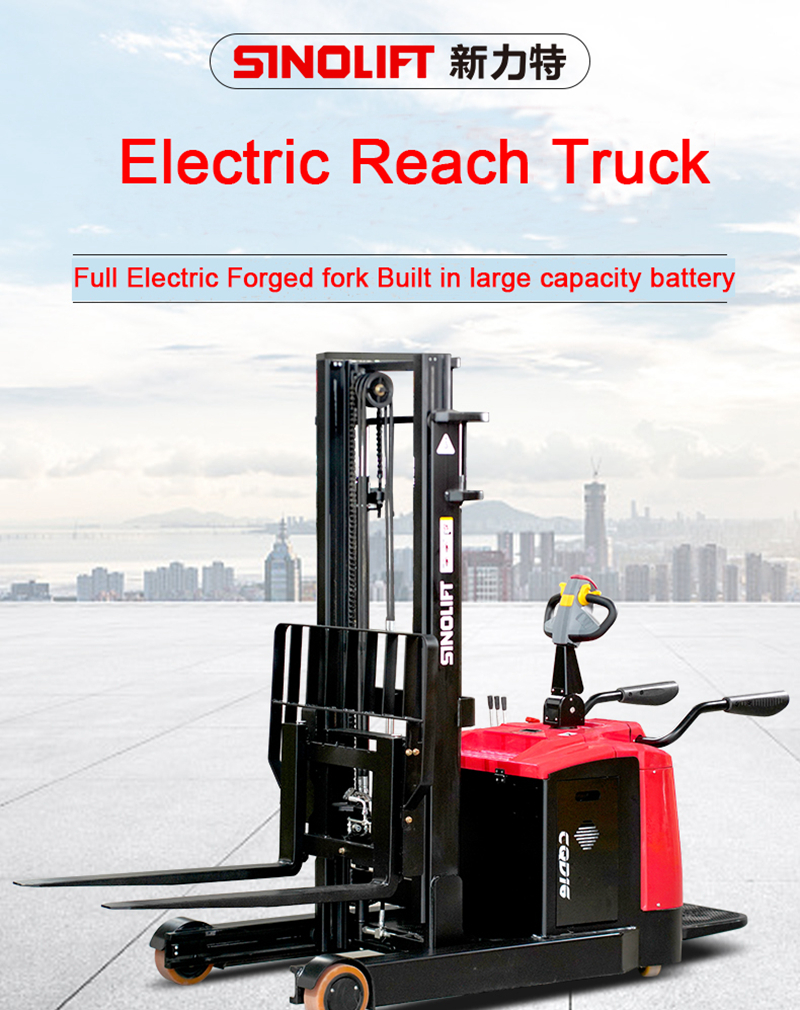

CQD16M CQD20M Electric Reach Stacker
CQD16M CQD20M
The CQD16M-20M reach trucks are engineered for lifting pallets weighing 1600kg to 2000kg in confined racking and warehouse spaces. Featuring the smallest turning radius in its class, these trucks excel in narrow aisles, maximizing storage efficiency.
Quantity:
CQD16M CQD20M Electric Reach Stacker

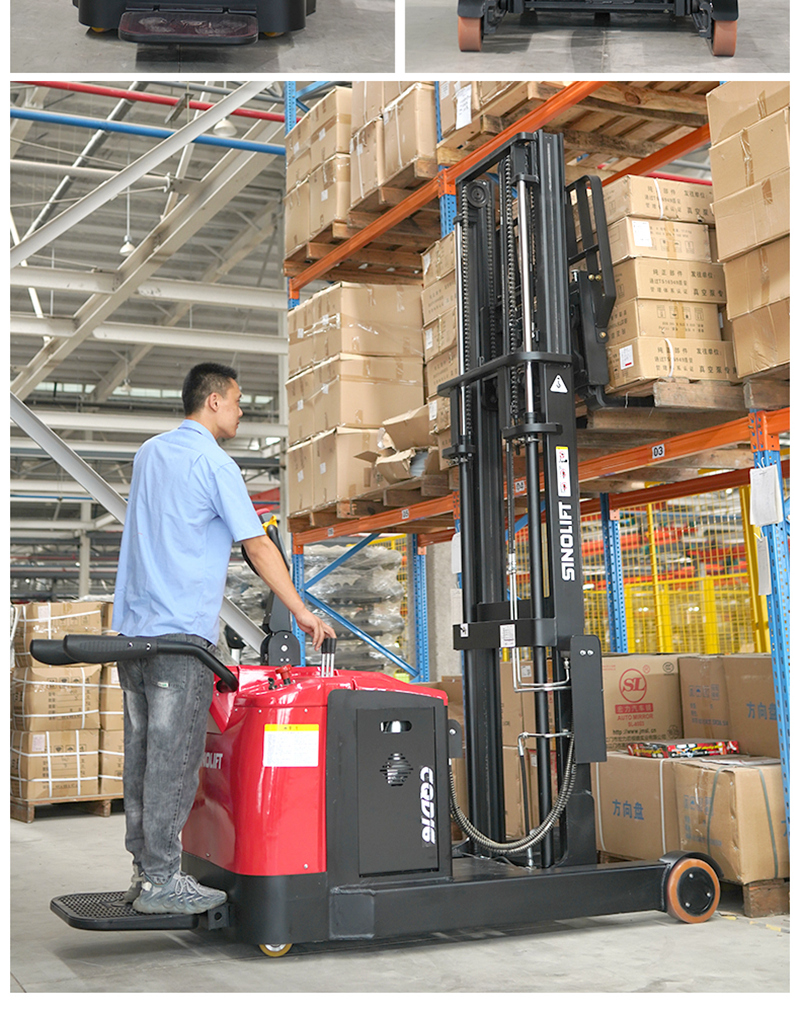

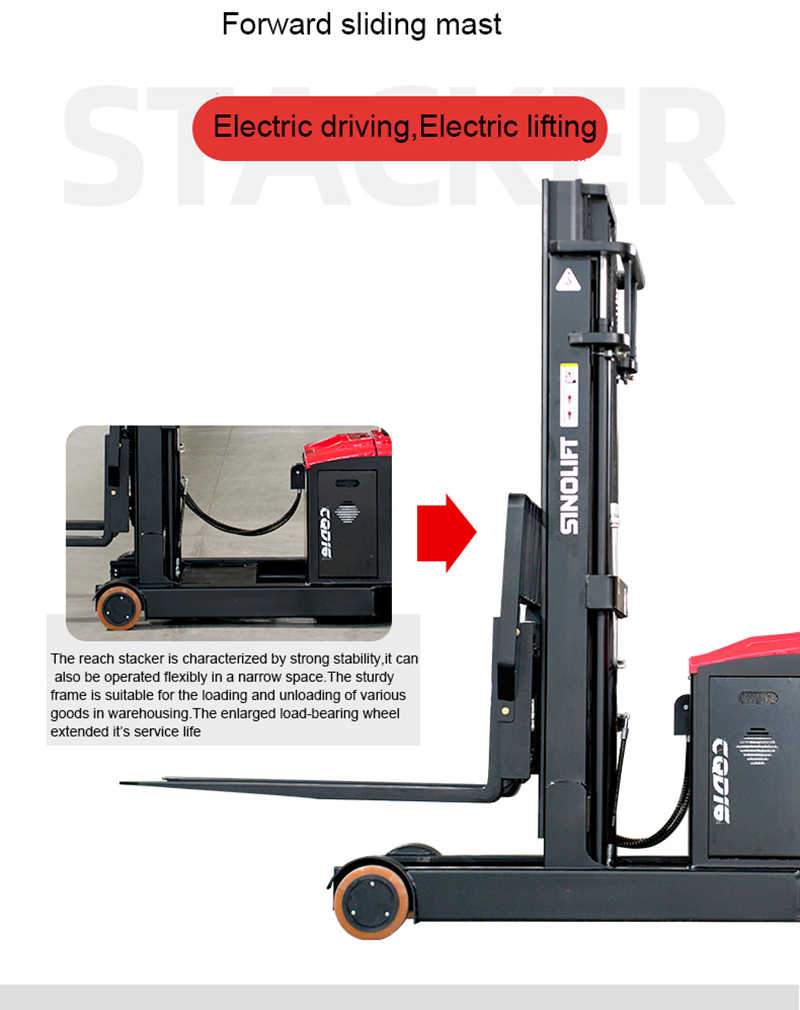

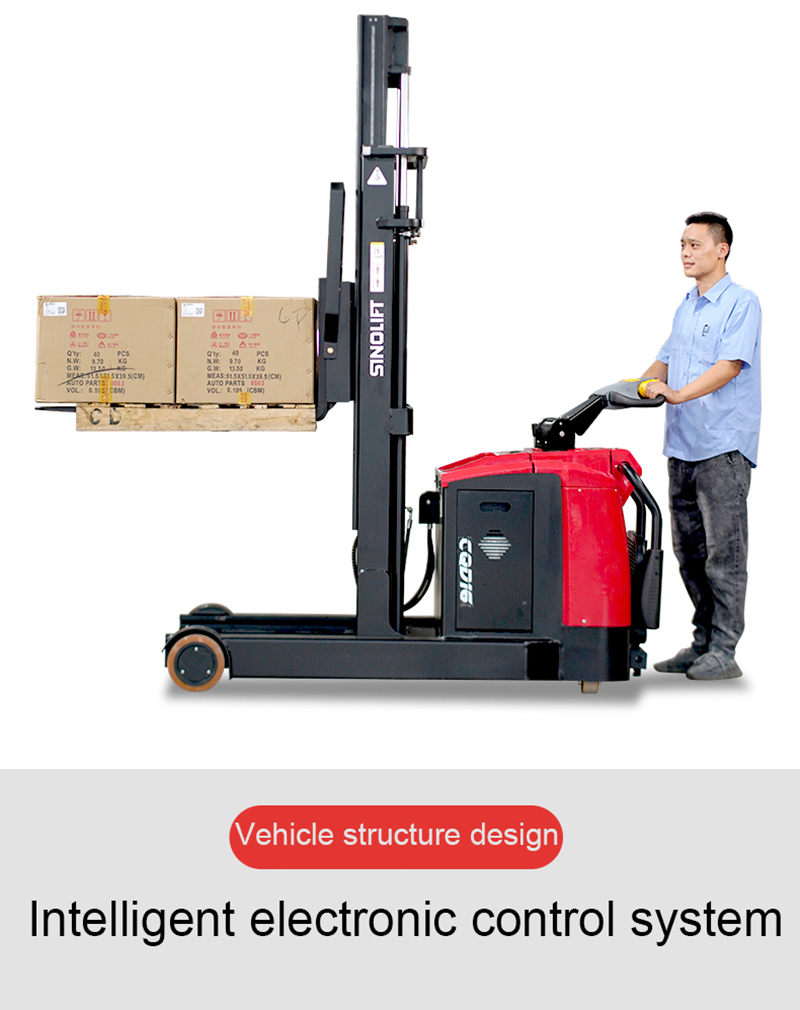

This fully Electric Reach Stacker has a forward extending mast and a counterbalance built into the back. This moves the forks beyond the front legs, allowing it to drive directly onto the racking without touching the racking legs or pallets on the floor. This Electric Reach Stacker features an electric lift and drive that eliminates all effort on the part of the operator to move heavy loads. Similar to a forklift, this Electric Reach Stacker has an inclined mast that provides greater stability when lifting and transporting loads.
| Manufacture's type designation | SINOLIFT | |||
| Model | CQD16 | CQD20 | ||
| Power Type | Electric | |||
| Type of Operation | Stand-on | |||
| Steering Mode | Electric Power Steering | |||

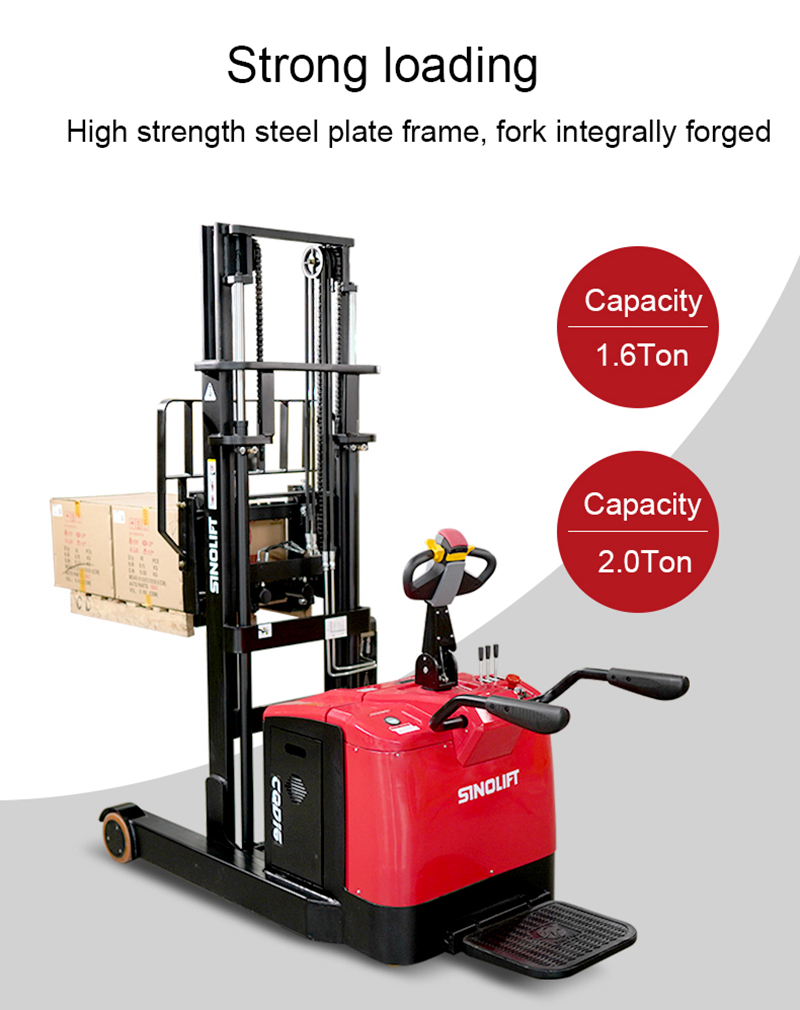

| Load Capacity/Rated Load | Q | kg | 1600 | 2000 |
| Load Center Distance | C | mm | 600 | 600 |
| Load distance, the center of drive axle to fork | x | 160 | 160 | |
| Wheelbase | y | mm | 1440 | 1610 |
| Total Weight (with Battery) | kg | 1980 | 2000 | |
| Axle Load (laden):Drive side/Load-bearing side | / | 1 | ||
| Axle Load (unladen):Drive side/Load-bearing side | kg | / | / | |
| Overall Length (Pedal Retracted/Expanded) | L1/L2 | 2335/2750 | 2435/2870 | |
| Overall Width | W1/W2 | mm | 880/1030 | 880/1030 |
| Lift Height | h1 | mm | 3000 | 3000 |
| Height with Mast Lowered | h2 | 2040 | 2040 | |
| Height with Mast Extended | h4 | mm | 3855 | 3855 |
| Free Lift Height | h5 | / | / | |
| Fork Dimension | l/e/s | mm | 1070×100×40 | 1070×122×40 |
| Fork Mounting Class | 2A | 2A | ||
| Fork Carriage Spread Width | b2 | mm | 220-690 | 220-690 |

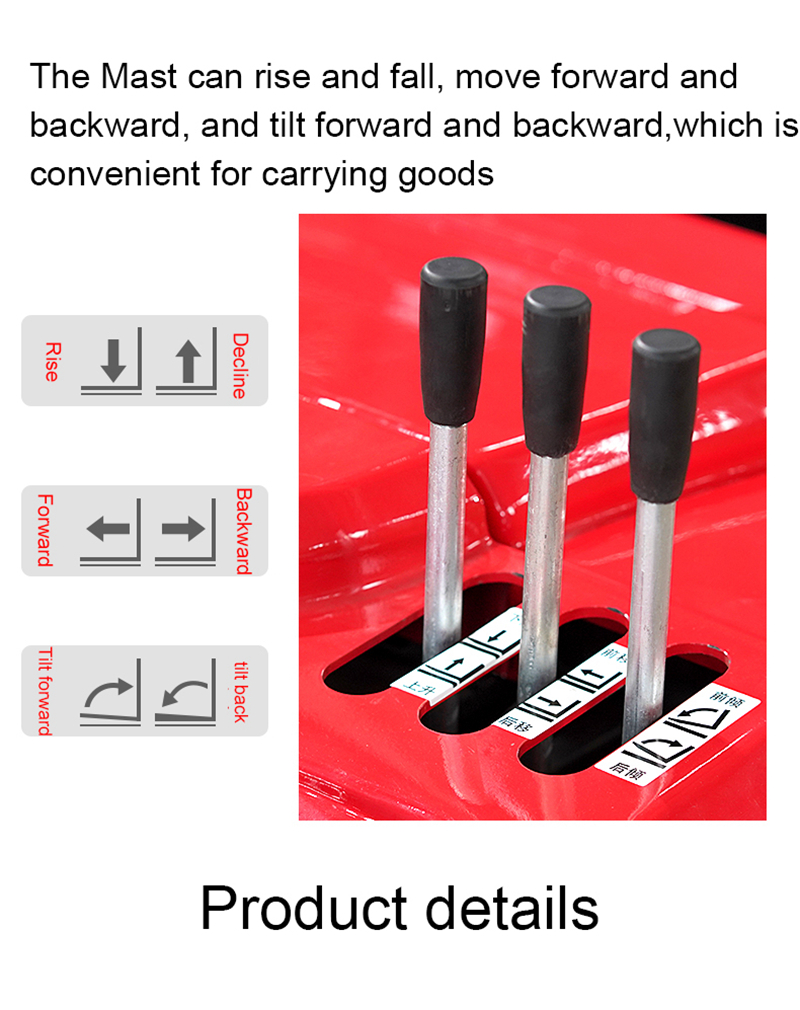

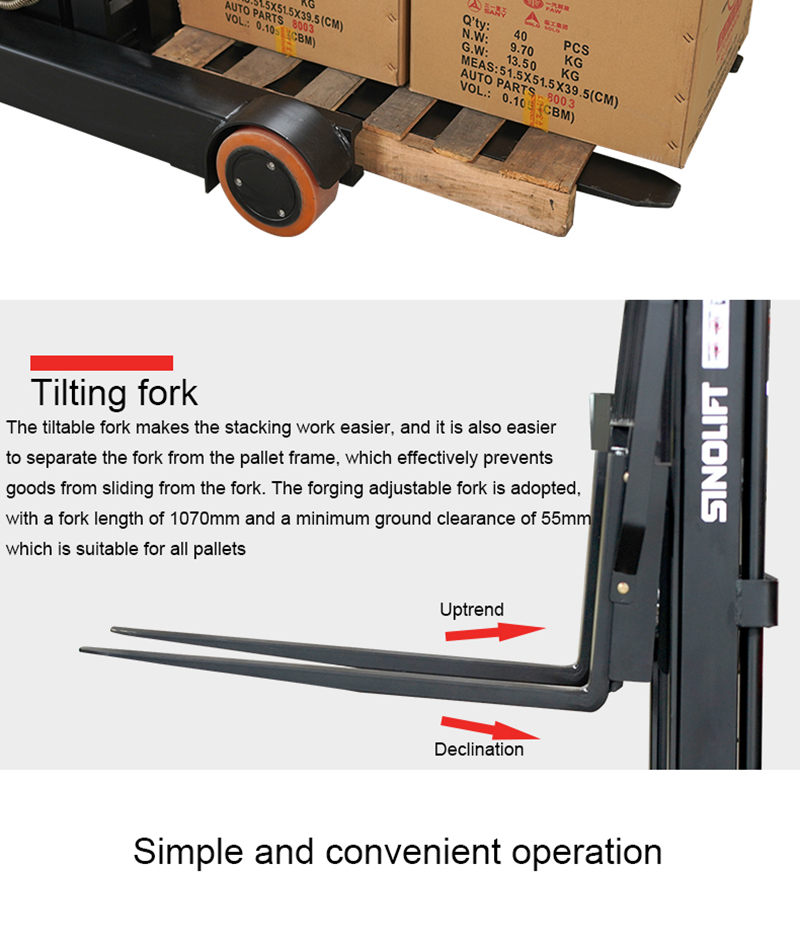

| Fork Carriage Tilt forward/backward | α/β | ° | 2/4 | 2/4 |
| Inner Width of Straddle Leg | b3 | 748 | 748 | |
| Reach Distance | L3 | mm | 580 | 680 |
| Height of Straddle Leg | h6 | mm | 235 | 235 |
| Ground Clearance at the Center of Wheelbase (Min.) | m1 | 55 | 55 | |

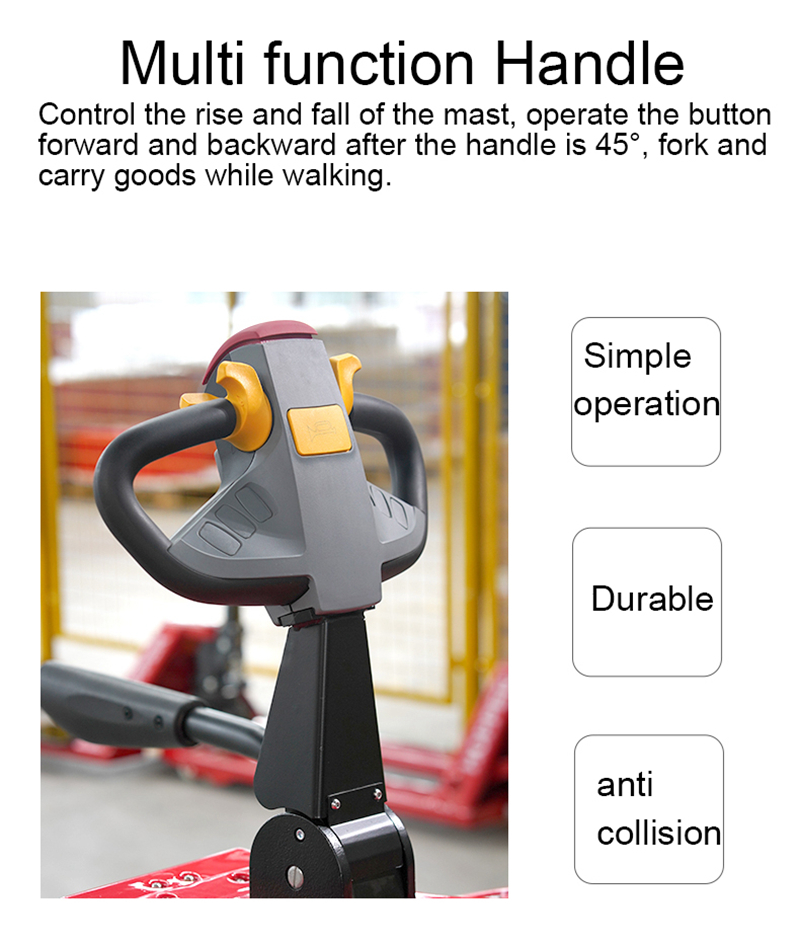

| Height of Operating Handlebar (Min./Max) | h14 | mm | 1000/1450 | 1000/1450 |
| Turning Radius (Pedal Retracted/Expanded) | Wa | 1710/2145 | 1910/2340 | |
| Min.Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded) | Ast | mm | 2835/3270 | 2955/3485 |
| Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded) | Ast | mm | 2785/3220 | 2900/3330 |
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | φ210x85 | φ210x85 | ||
| Tyre Size (Balance Wheel) | mm | φ115x55 | φ115x55 | |
| Tyre Size (Driving Wheel) | mm | φ230x75 | φ230x75 | |
| Wheels Quantity, Front/Rear (x=Driving Wheels) | 2/1x+2 | 2/1x+2 | ||
| Traveling Speed (Laden/Unladen) | Km/h | 5/5.5 | 4/5 | |
| Lifting Speed(Laden/Unladen) | mm/s | 80/130 | 80/130 | |
| Lowering Speed (Laden/Unladen) | mm/s | 150/100 | 150/100 | |
| Max. Gradient Performance S2 5min (Laden/Unladen) | % | 5/8 | 4/8 | |
| Service Brake Type | Electromagnetic | Electromagnetic | ||
| Parking Brake Type | Electromagnetic | Electromagnetic | ||
| Drive Motor Rating (AC) S2-60min | 1.5 | 1.5 | ||
| Lift Motor Rating (DC) S3 15% | kW | 3 | 3 | |

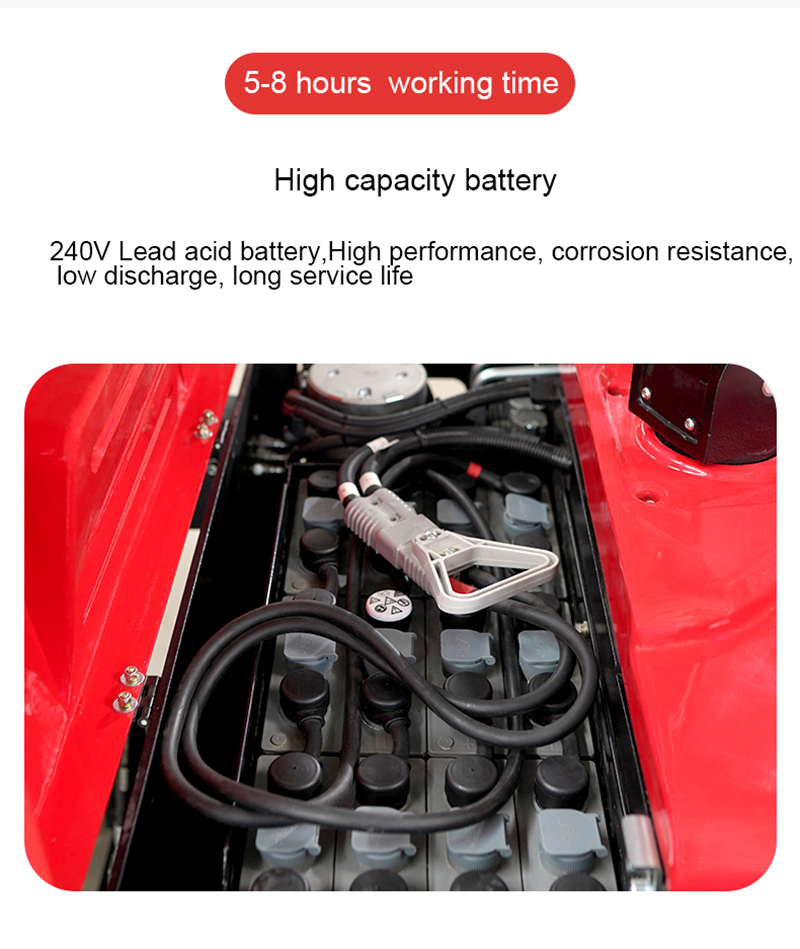

| Battery Voltage/Capacity K5 | V/Ah | 24/240 | 24/240 | |
| Battery Weight | kg | 200 | 200 | |
| Controller Brand | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | ||
| Sound Level at Driver's Ear According to EN12053 | dB | 70 | 70 | |
