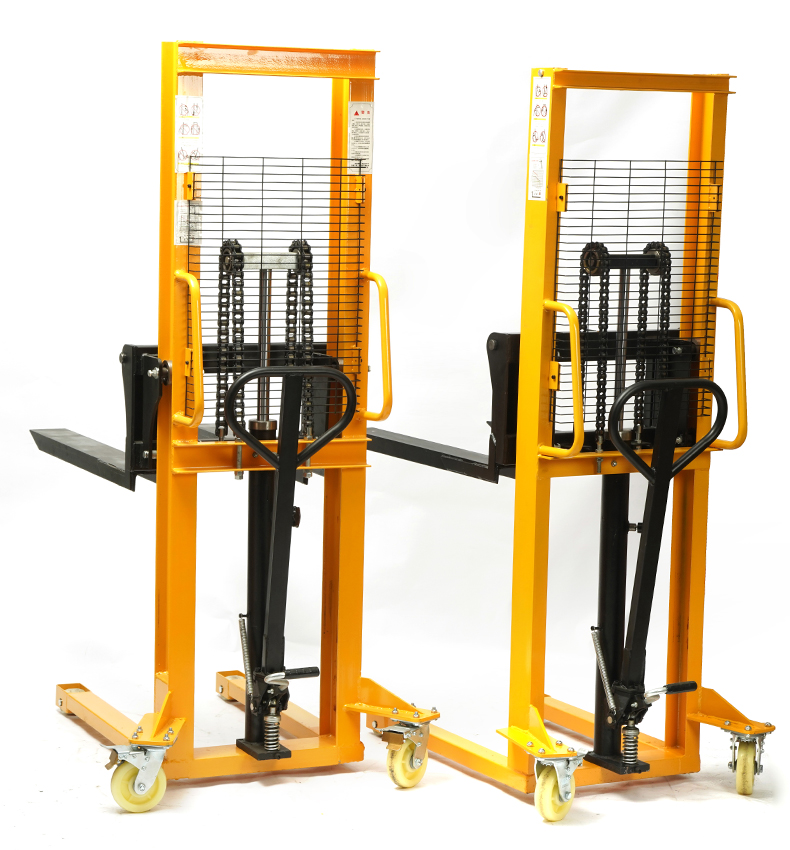

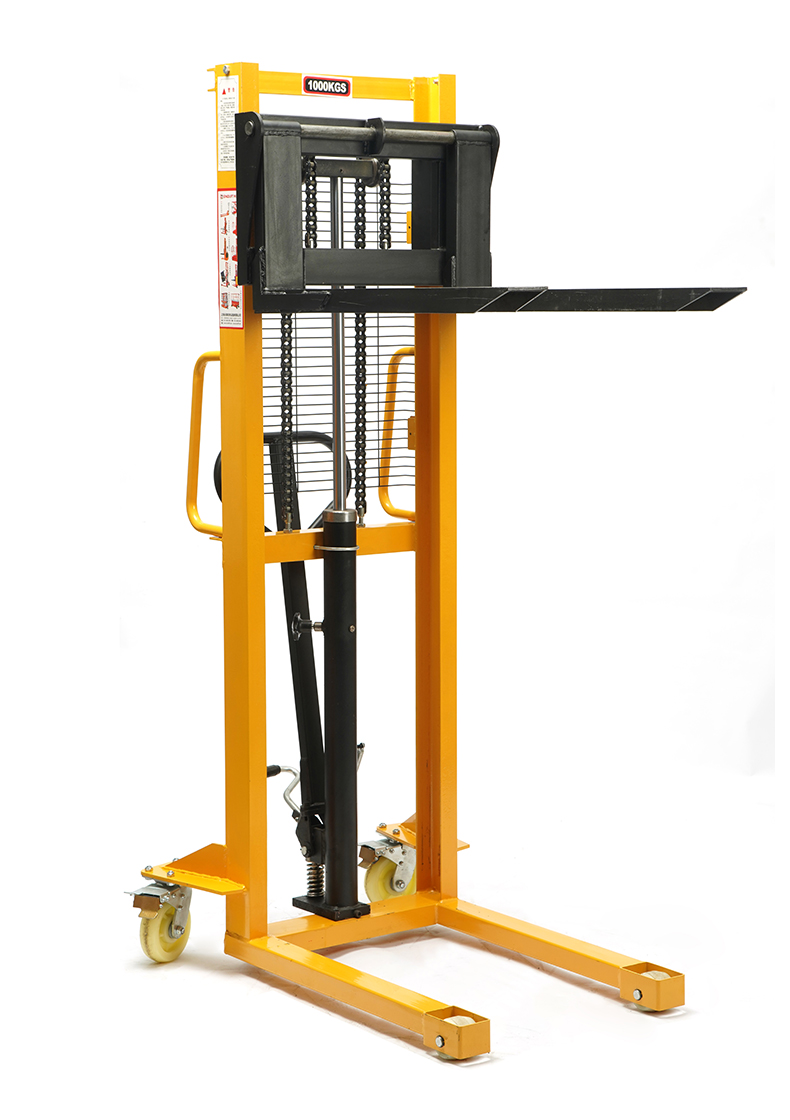

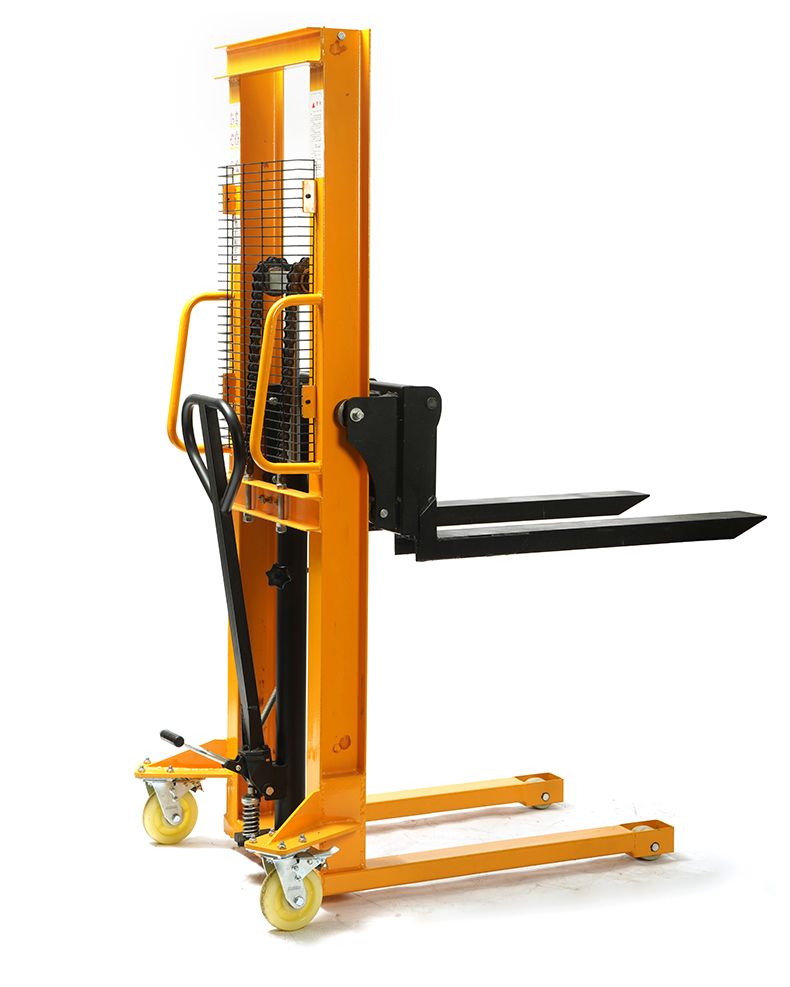

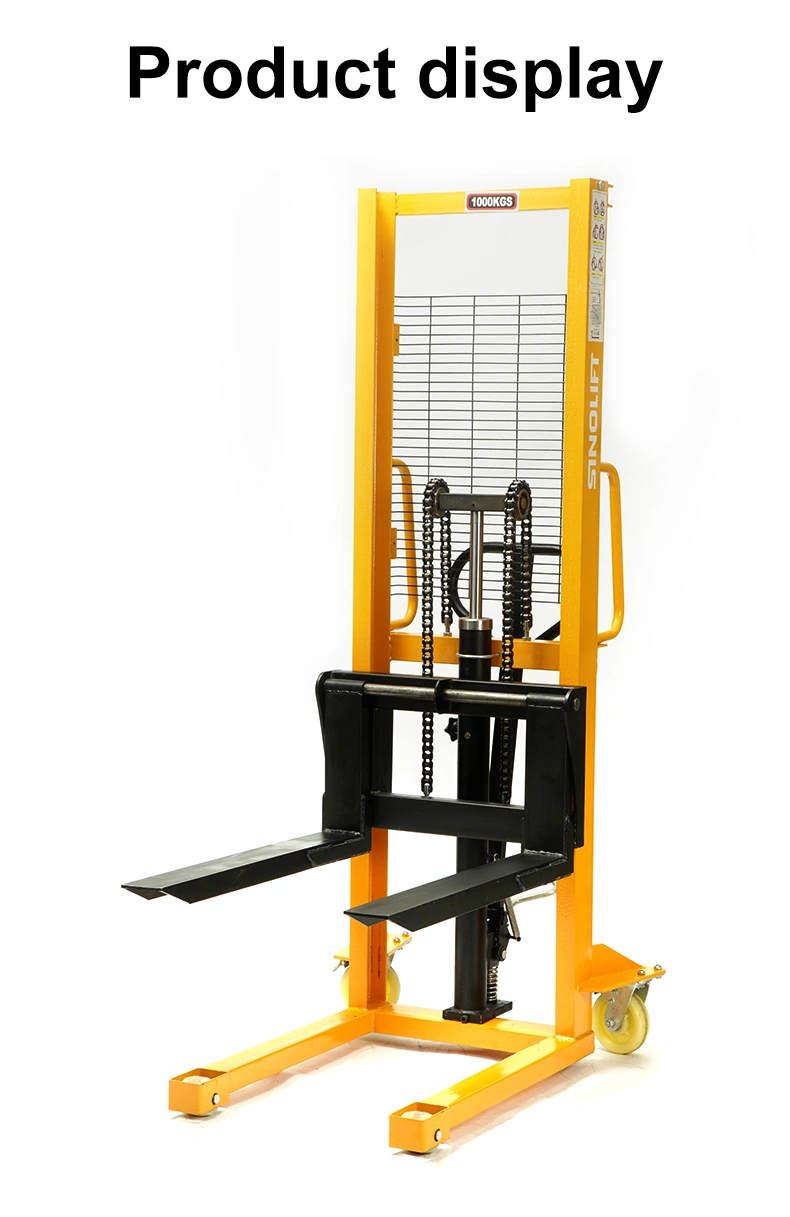

DHC manual hydraulic stacker
DHC
Equipped with a constantly velocity controlling value, variations of load will not affect forks lowering speed.
Good quality hydraulic pump and cylinder.
Compact design and strong steel construction.
Good quality hydraulic pump and cylinder.
Compact design and strong steel construction.
Quantity:
The main features of SINOLIFT manual stacker as below：

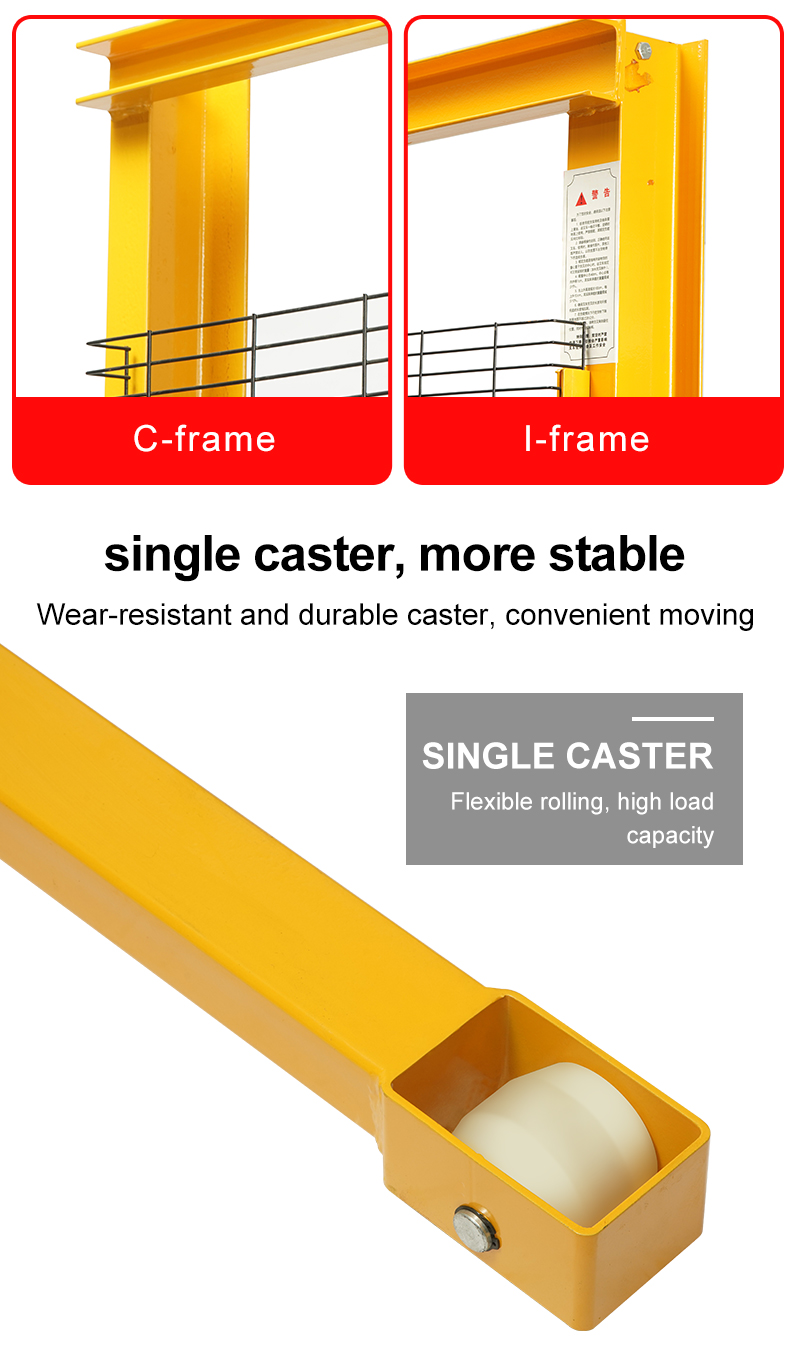

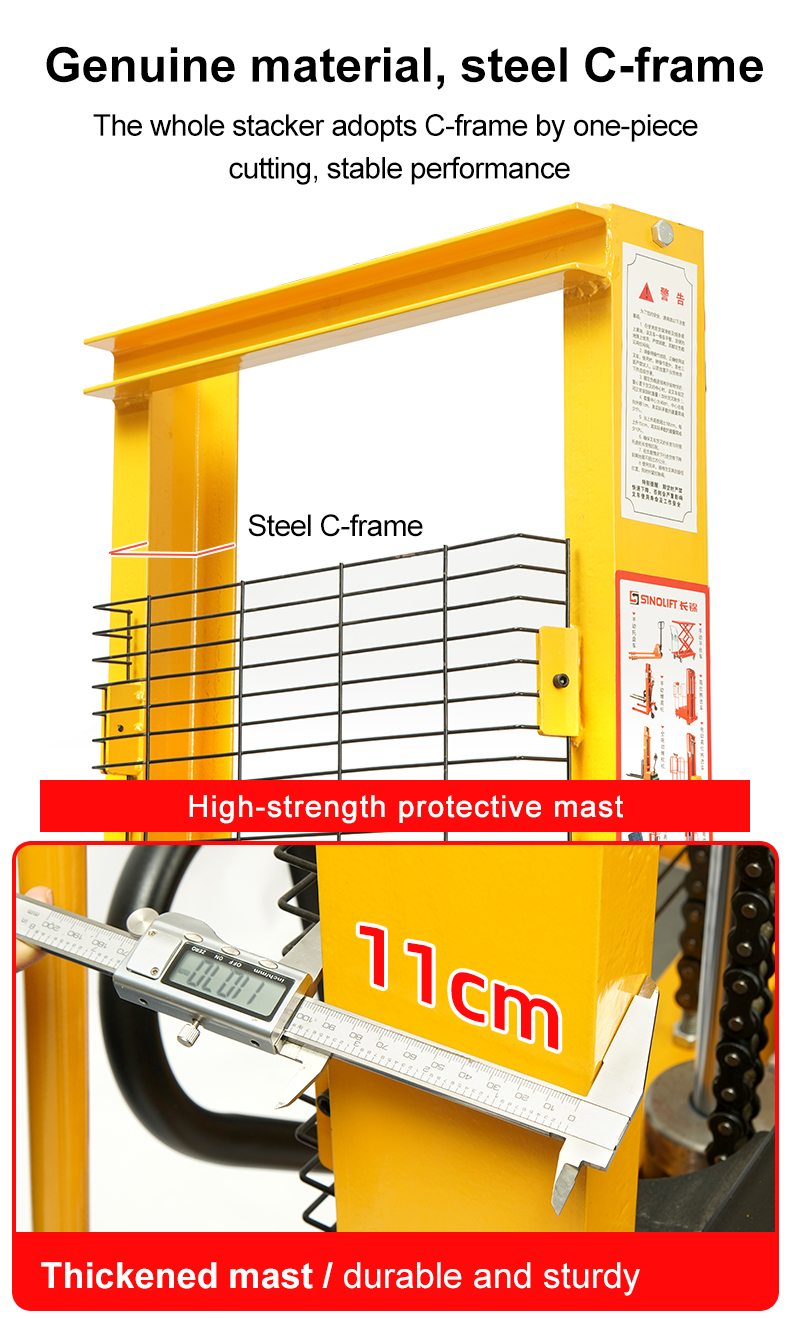

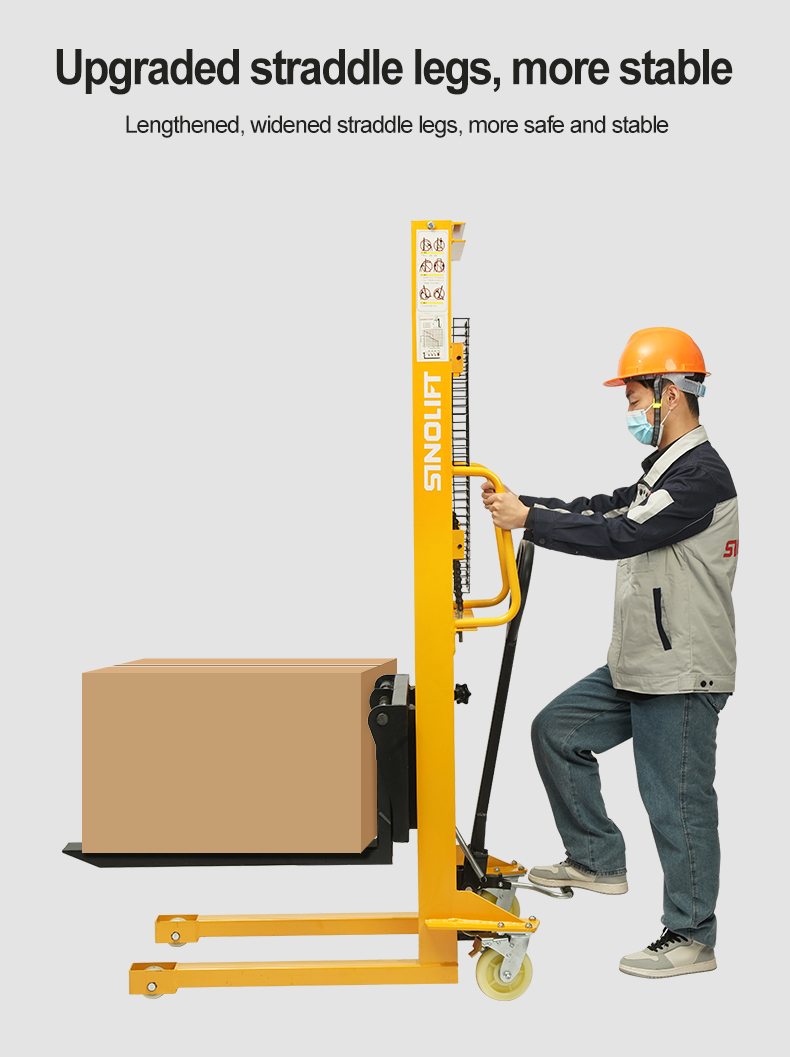

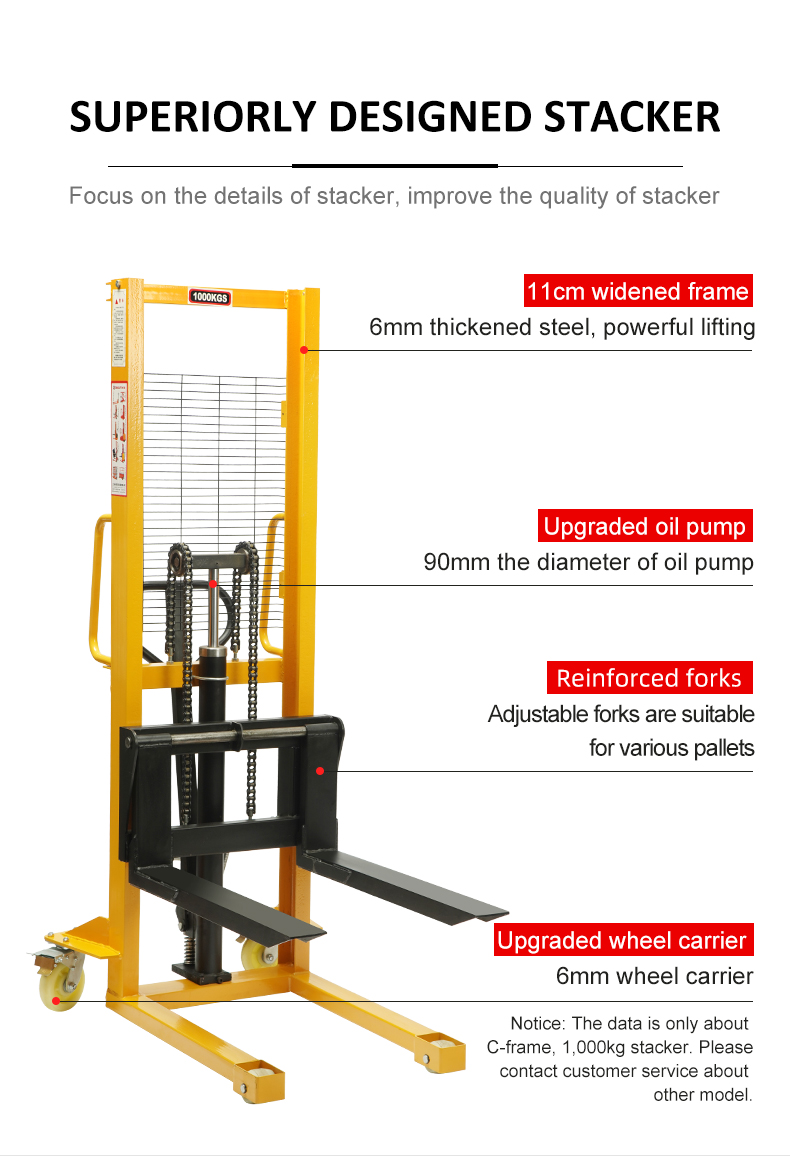

- The manual stacker are using high quality C-shaped steel with excellent structure design, and the wheel frame protection devices to ensure the stable and safe in the lifting works.

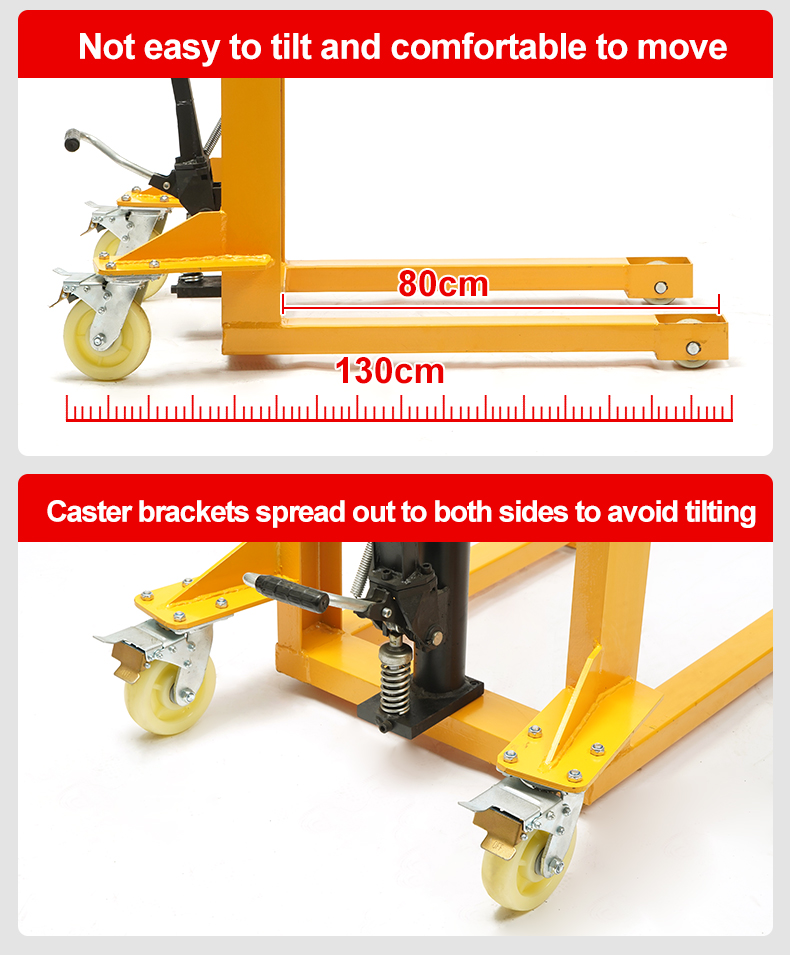

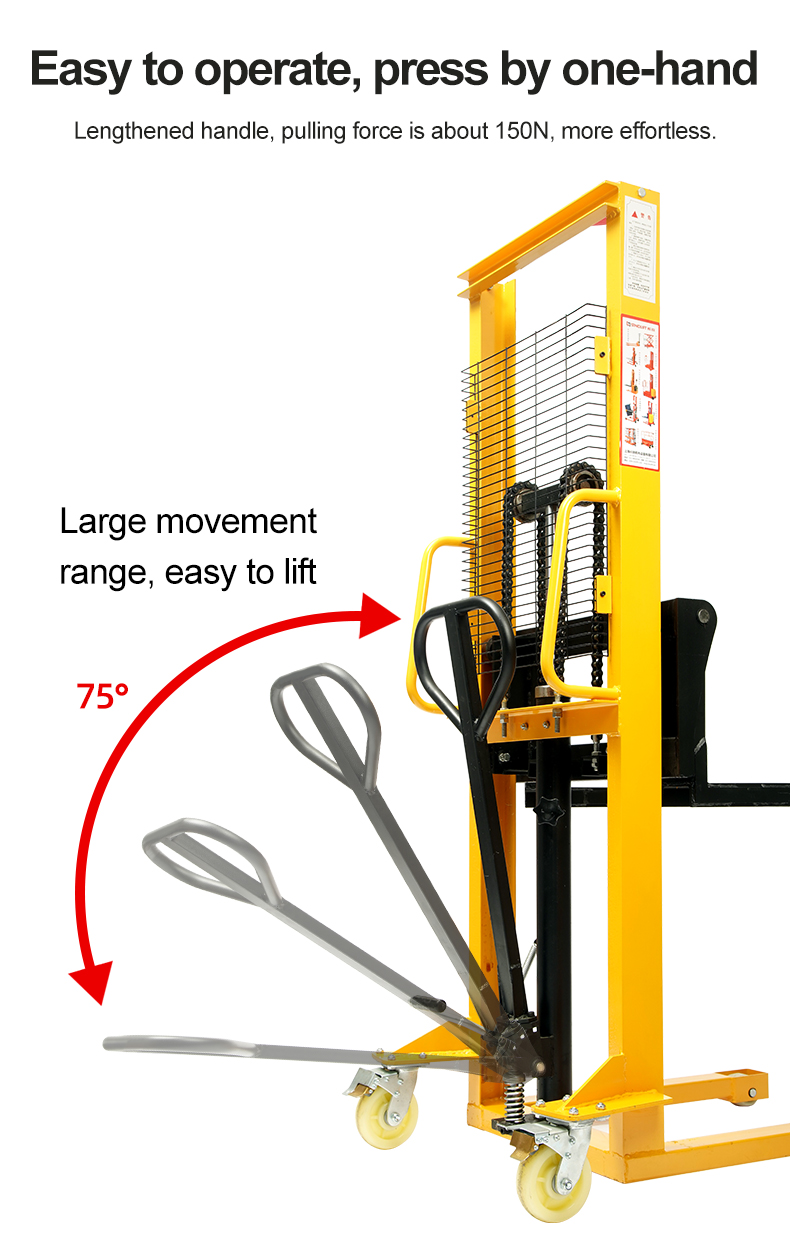

- Ergonomic design with smart and portable structure ensure a small turning radius and comfortable in operation.

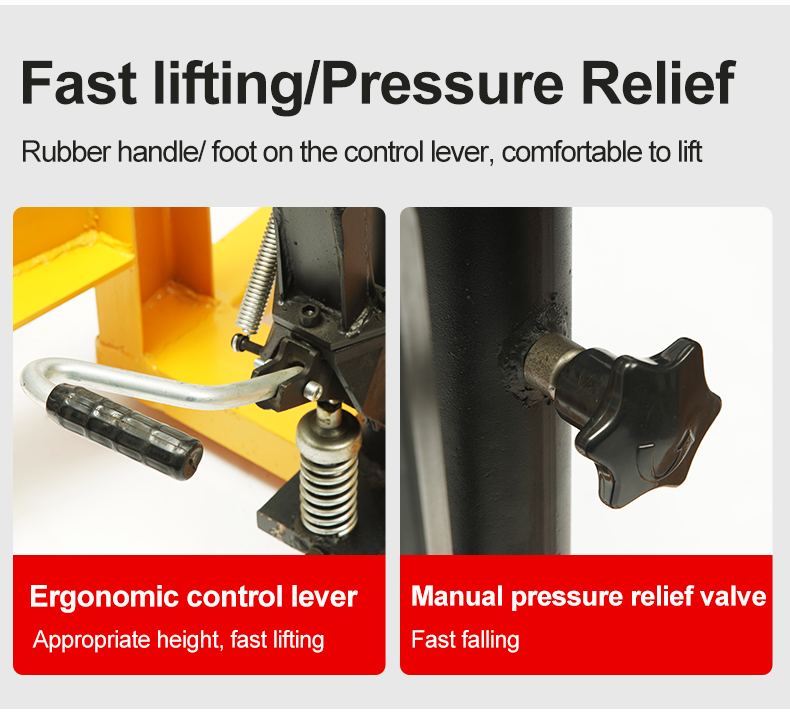

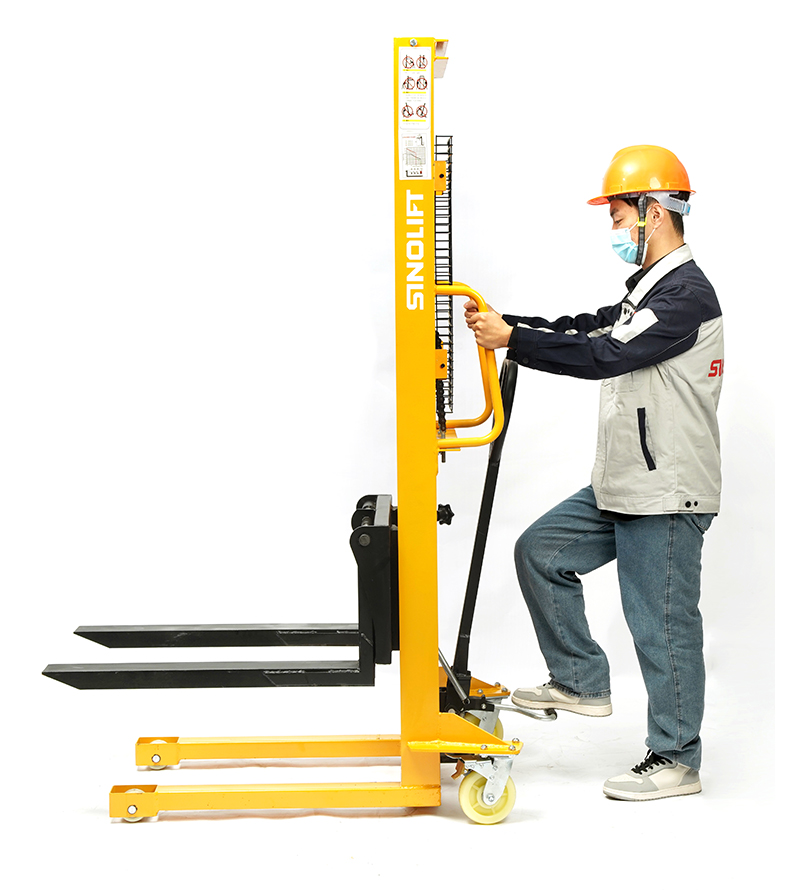

- The simplex mast manual stacker can unload the cargoes by both manual and pedal which is more flexible in operation.

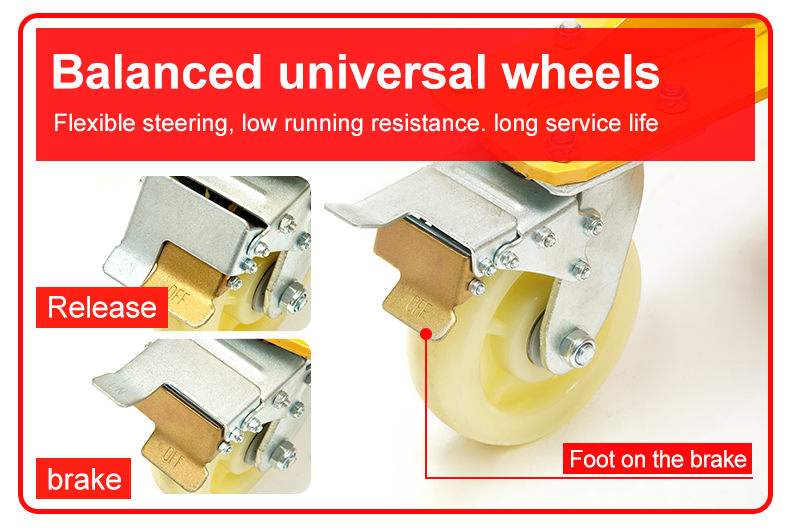

- The wheel frame equipped with grease fitting for the routine maintenance of bearing.

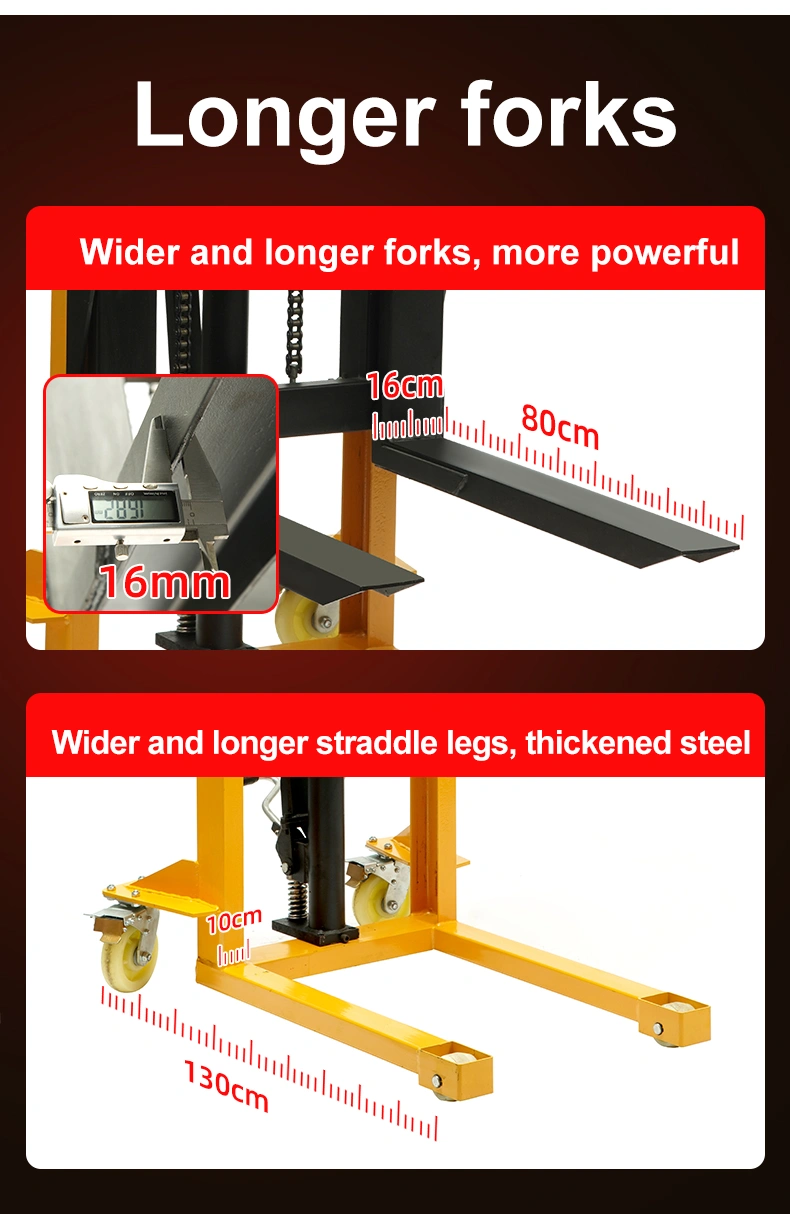

- Various forks types for selection to meet your working condition, include fixed forks and adjusting forks for both European and American standard pallets and various load sizes.
| Model | DHC 05/16 | DHC 10/16 | DHC 20/16 | DHC 30/16 | |
| Load capacity | kg | 500 | 1000 | 2000 | 3000 |
| Load center | mm | 380 | 380 | 380 | 380 |
| Min. height of fork | mm | 70 | 90 | 95 | 100 |
| Max. height of fork | mm | 1280 | 1600 | 1600 | 1600 |
| Fork length | mm | 690 | 800 | 950 | 1000 |
| Adjustable width of fork | mm | 210-740 | 240-620 | 280-660 | 320-770 |
| Turning radius | mm | 1250 | 1250 | 1250 | 1250 |
| Overall length | mm | 1120 | 1300 | 1500 | 1650 |
| Overall width | mm | 740 | 820 | 950 | 800 |
| Overall height | mm | 1660 | 2000 | 2070 | 2050 |
| Self-weight | kg | 115 | 150 | 230 | 280 |
