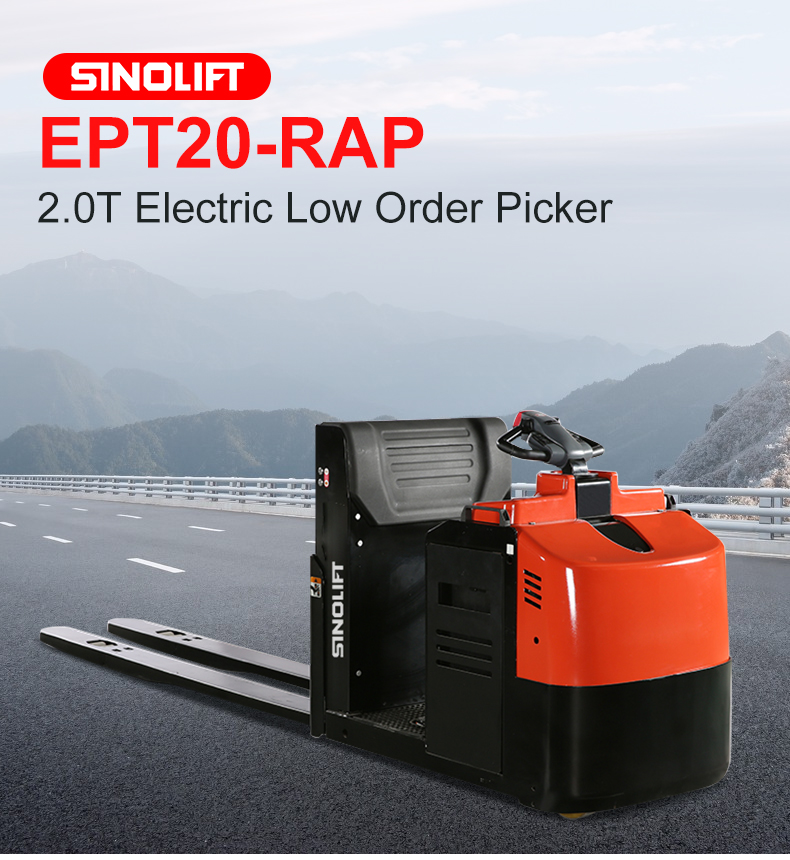

EPT20-RAP 2.0T Electric Low Order Picker

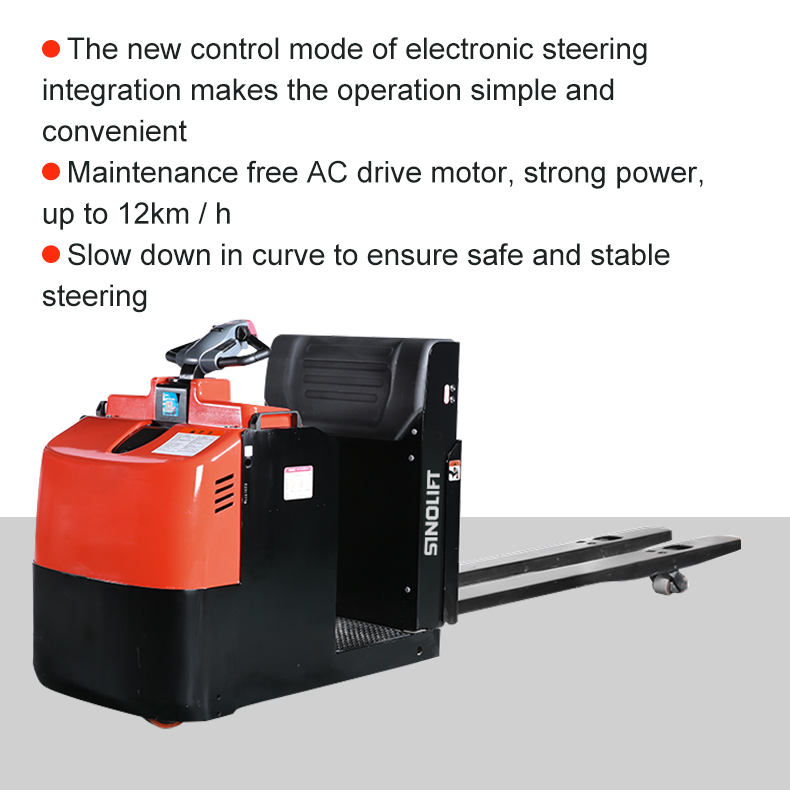

1. The new control mode of electronic steering integration makes the operation simple and convenient
2. Maintenance free AC drive motor, strong power, up to 12km / h
3. Slow down in curve to ensure safe and stable steering
Product Features:

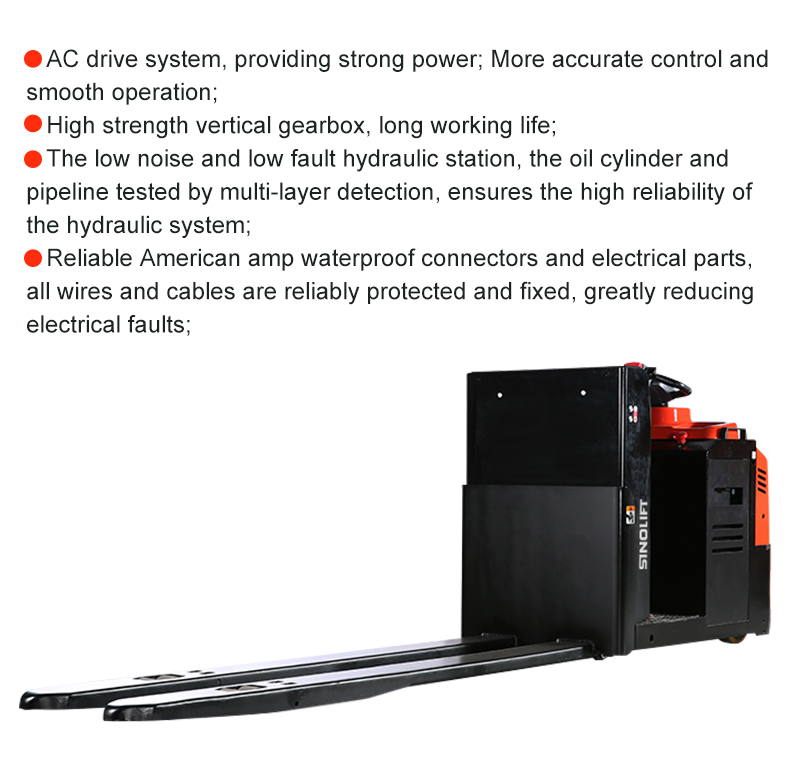

l AC drive system, providing strong power; More accurate control and smooth operation;
l High strength vertical gearbox, long working life;
l The low noise and low fault hydraulic station, the oil cylinder and pipeline tested by multi-layer detection, ensures the high reliability of the hydraulic system;
l Reliable American amp waterproof connectors and electrical parts, all wires and cables are reliably protected and fixed, greatly reducing electrical faults;

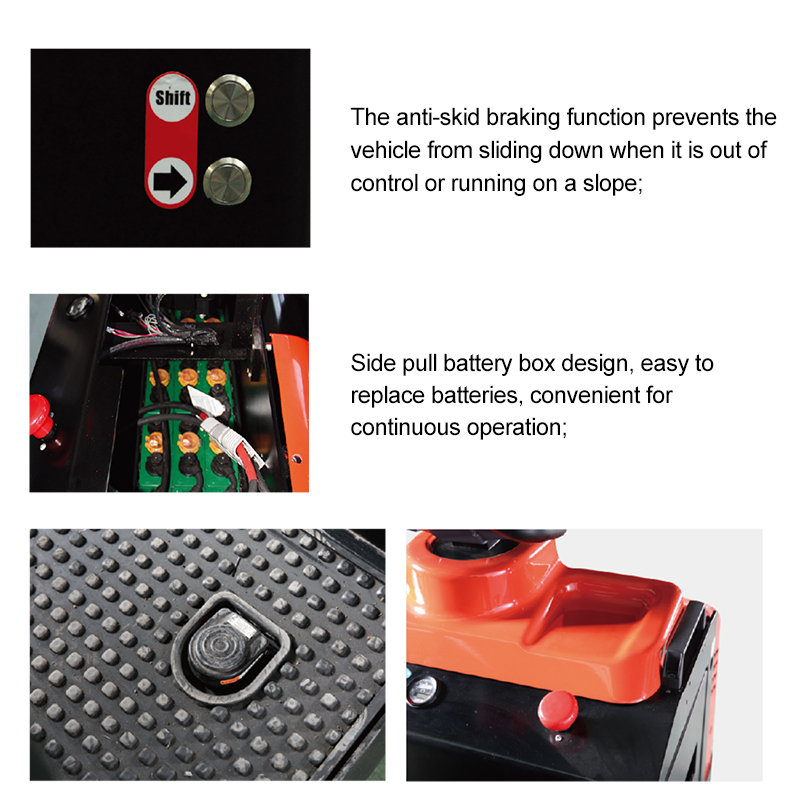

The anti-skid braking function prevents the vehicle from sliding down when it is out of control or running on a slope;

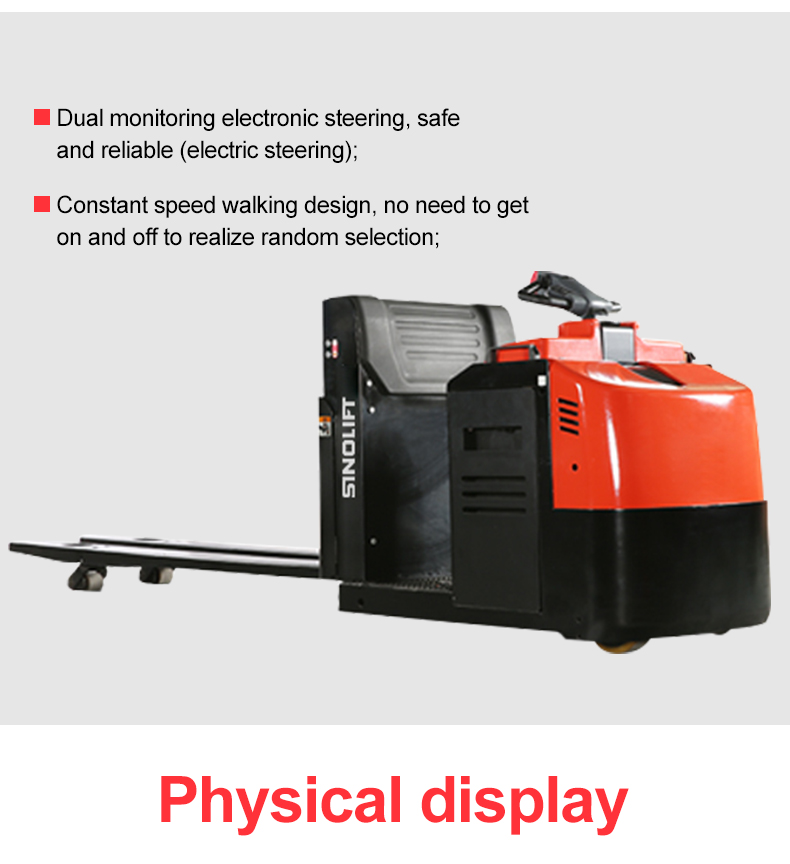

Dual monitoring electronic steering, safe and reliable (electric steering);
Side pull battery box design, easy to replace batteries, convenient for continuous operation;
Constant speed walking design, no need to get on and off to realize random selection;
| Manufacturer | SINOLIFT | ||
| Model designation | EPT20-RAP | ||
| Drive | Electric | ||
| Operator type | Standing | ||
| Load capacity | Q | kg | 2000 |
| Load center distance | c | mm | 600 |
| Load distance,centre of drive axle to fork | x | mm | 980 |
| Wheelbase | y | mm | 2161 |
| Service weight | kg | 940 | |
| Axle loading, laden front/rear | kg | 1200/1740 | |
| Axle loading, unladen front/rear | kg | 780/160 | |
| Tyre type | Polyurethane | ||
| Tyre size, front | mm | Ф85x70/Ф83x115 | |
| Tyre size, rear | mm | Ф230x90 | |
| Additional wheels (castor wheels) | mm | Ф180x65 | |
| Wheels, number front/rear (x=drive wheels) | mm | 1x +1/4/1x +1/2 | |
| Tread width, front | b10 | mm | 468 |
| Tread width, rear | b11 | mm | 370/515 |
| Lift height | h3 | mm | 120 |
| Height of tiller handle in drive position min./max. | h14 | mm | 1220 |
| Lowered height | h13 | mm | 85 |
| Overall length | l1 | mm | 2516 |
| Length to face of forks | l2 | mm | 1366 |
| Overall width | b1/b2 | mm | 800 |
| Fork dimensions | s/e/l | mm | 55/170/1150 |
| Distance between fork-arms | b5 | mm | 540/685 |
| Ground clearance, center of wheelbase | m2 | mm | 30 |
| Aisle width for pallets 1000×1200 crossways | Ast | mm | 3190 |
| Aisle width for pallets 800×1200 crossways | Ast | mm | 3025 |
| Turning radius | Wa | mm | 2390 |
| Travel speed, laden/unladen | km/ h | 9/12 | |
| Lifting speed, laden/unladen | m/s | 0.026/0.034 | |
| Lowering speed, laden/unladen | m/s | 0.025/0.021 | |
| Max. gradeability, laden/unladen | % | 8/13 | |
| Service brake | Electromagnetic | ||
| Drive motor rating S2 60 min | kW | 2.5 | |
| Lift motor rating at S3 15% | kW | 2.2 | |
| Battery voltage/nominal capacity | V/Ah | 24/360 | |
| Battery weight | kg | 330 | |
| Type of drive control | AC | ||
| Steering design | Electronic | ||
| Sound pressure level at the driver's ear | dB(A) | 74 |
